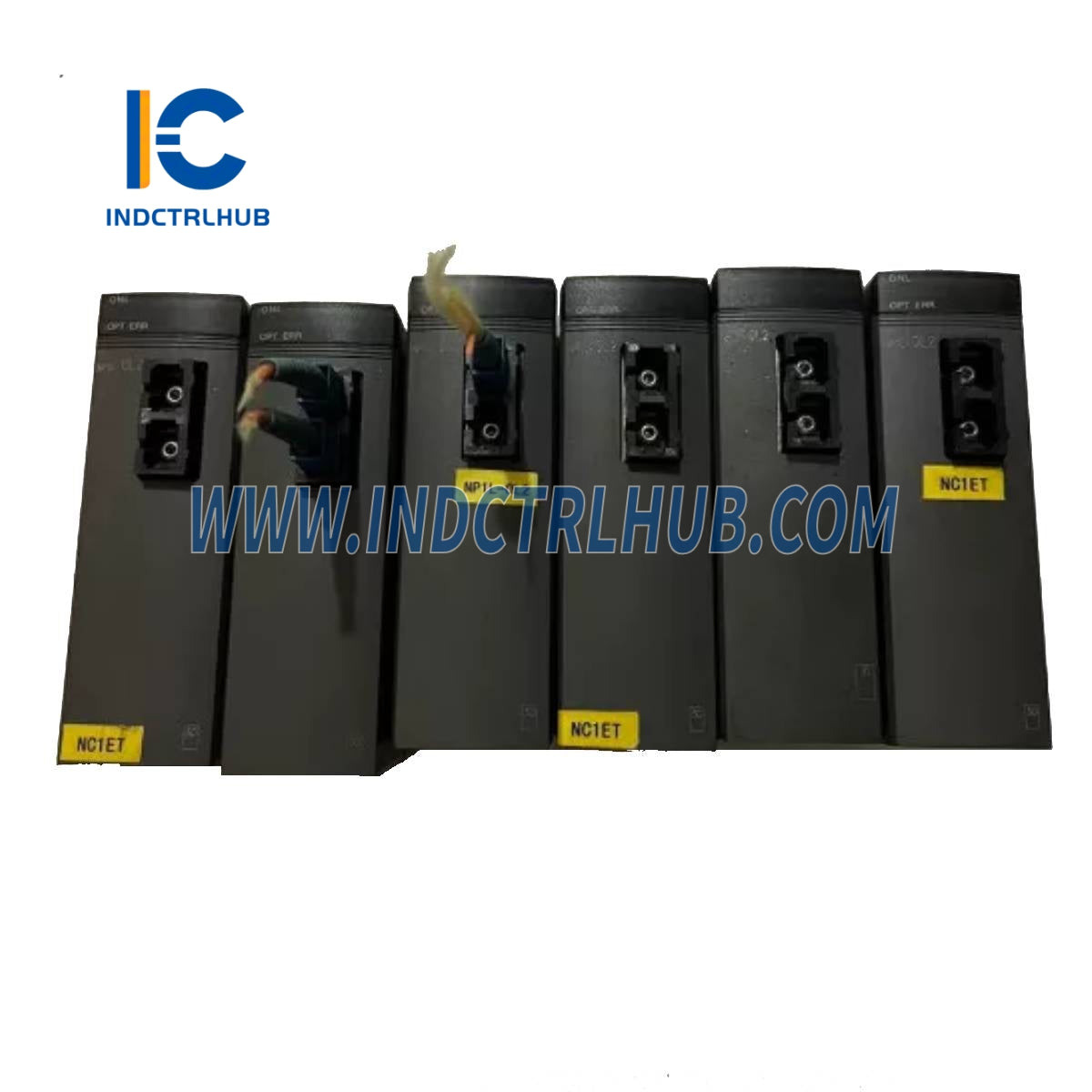

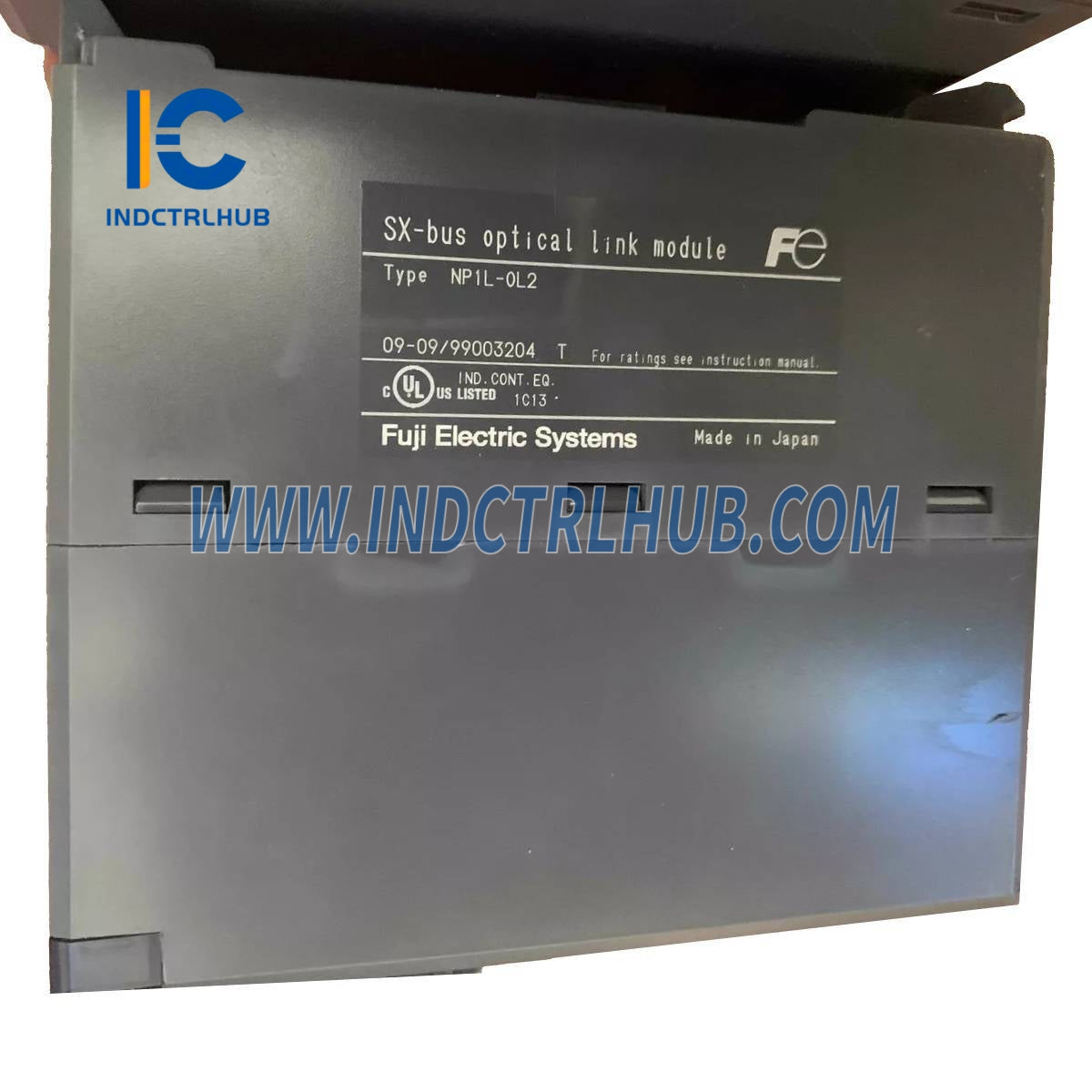

Fuji Electric NP1L-OL2 Optical Link Module
Product Overview
- The Fuji Electric NP1L-OL2 is an Optical Link Module designed for the MICREX-SX series programmable logic controllers (PLCs). This module facilitates high-speed, noise-resistant communication via optical fiber, enabling reliable data exchange between PLCs or other devices in industrial automation systems. It is used in applications such as manufacturing, process control, and factory automation, ensuring robust connectivity in harsh industrial environments.
Technical Specifications
- The NP1L-OL2 has the following specifications based on industry documentation for the MICREX-SX series:
| Specification | Details |
|---|---|
| Model/Part Number | NP1L-OL2 |
| Manufacturer | Fuji Electric |
| Description | Optical Link Module |
| Series | MICREX-SX |
| Communication Type | Optical fiber (SX bus) |
| Transmission Speed | Up to 5 Mbps |
| Transmission Distance | Up to 500 m (depending on fiber type) |
| Connection Type | Multi-drop |
| Maximum Nodes | Up to 64 nodes |
| Operating Voltage | 24 VDC |
| Power Consumption | Approx. 5 W |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Dimensions | Approx. 90 mm x 64 mm x 36 mm |
| Weight | Approx. 150 g |
Additional Details
- The NP1L-OL2 includes the following additional information based on its standard use and documentation from sources like 5gplc.com and Taobao listings:
- Function: Enables high-speed, noise-immune communication over optical fiber for the SX bus, connecting multiple PLCs or devices in a multi-drop configuration; supports reliable data transfer in environments with electromagnetic interference.
- Compatibility: Compatible with Fuji Electric MICREX-SX series PLCs, including CPU modules like NP1PU1-256NE and other communication modules like NP1L-ET1; integrates with base boards such as NP1BS-08.
- Configuration: Configured using Fuji Electric’s SX-Programmer software for setting communication parameters; supports up to 8 SX bus connections per configuration; uses optical fiber cables for robust connectivity.
- Certifications: Complies with UL, CUL, and other industrial standards for global use in automation systems.
