Product Description

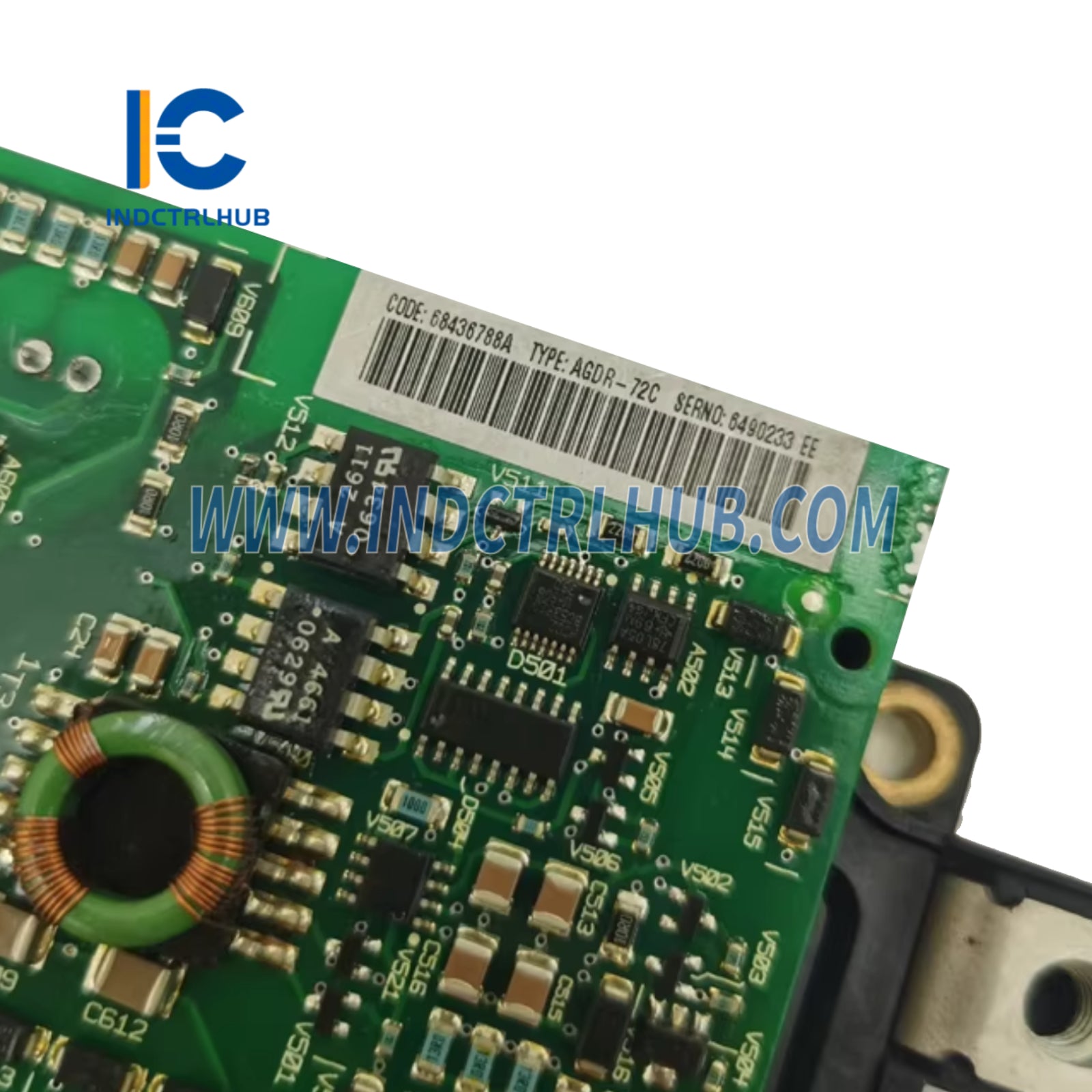

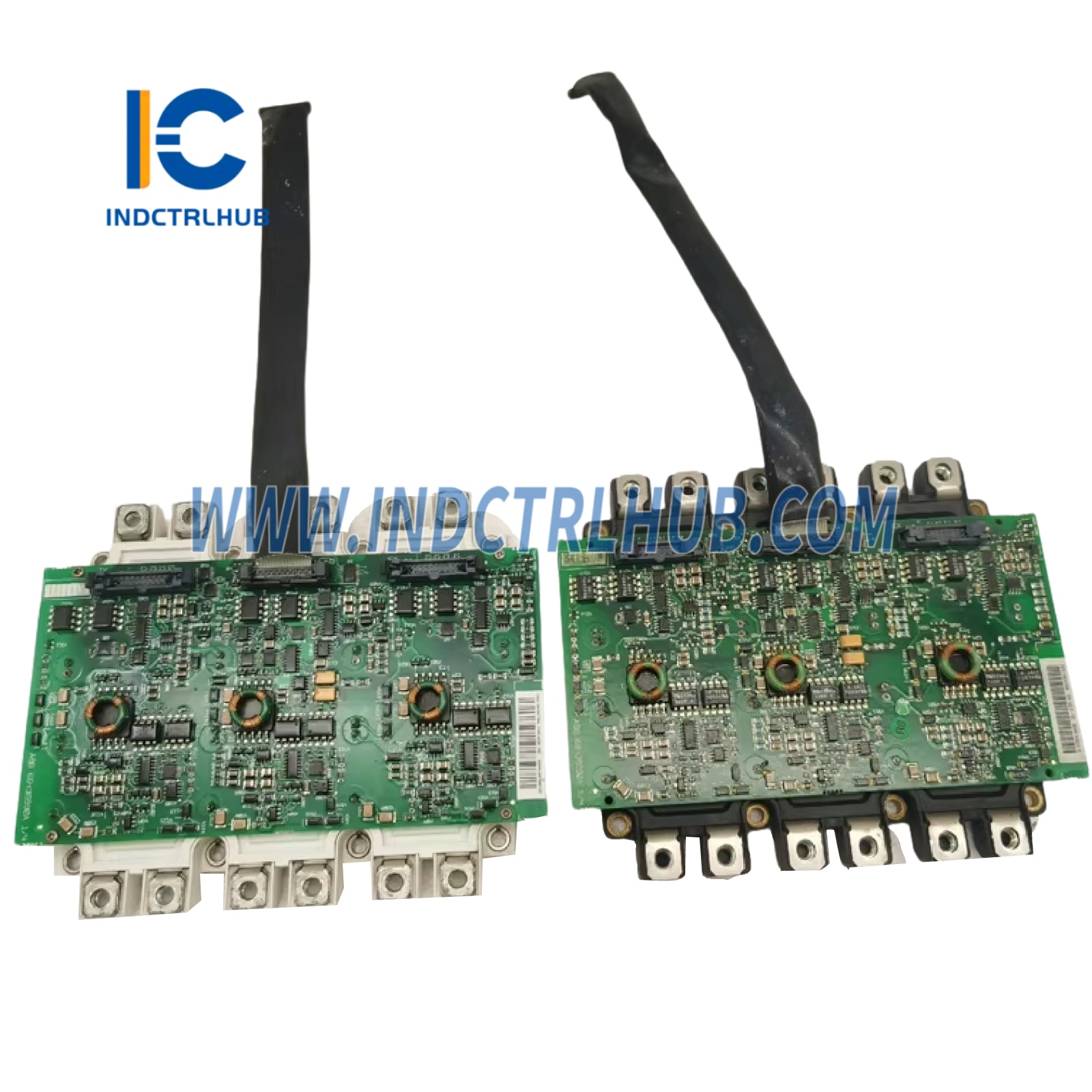

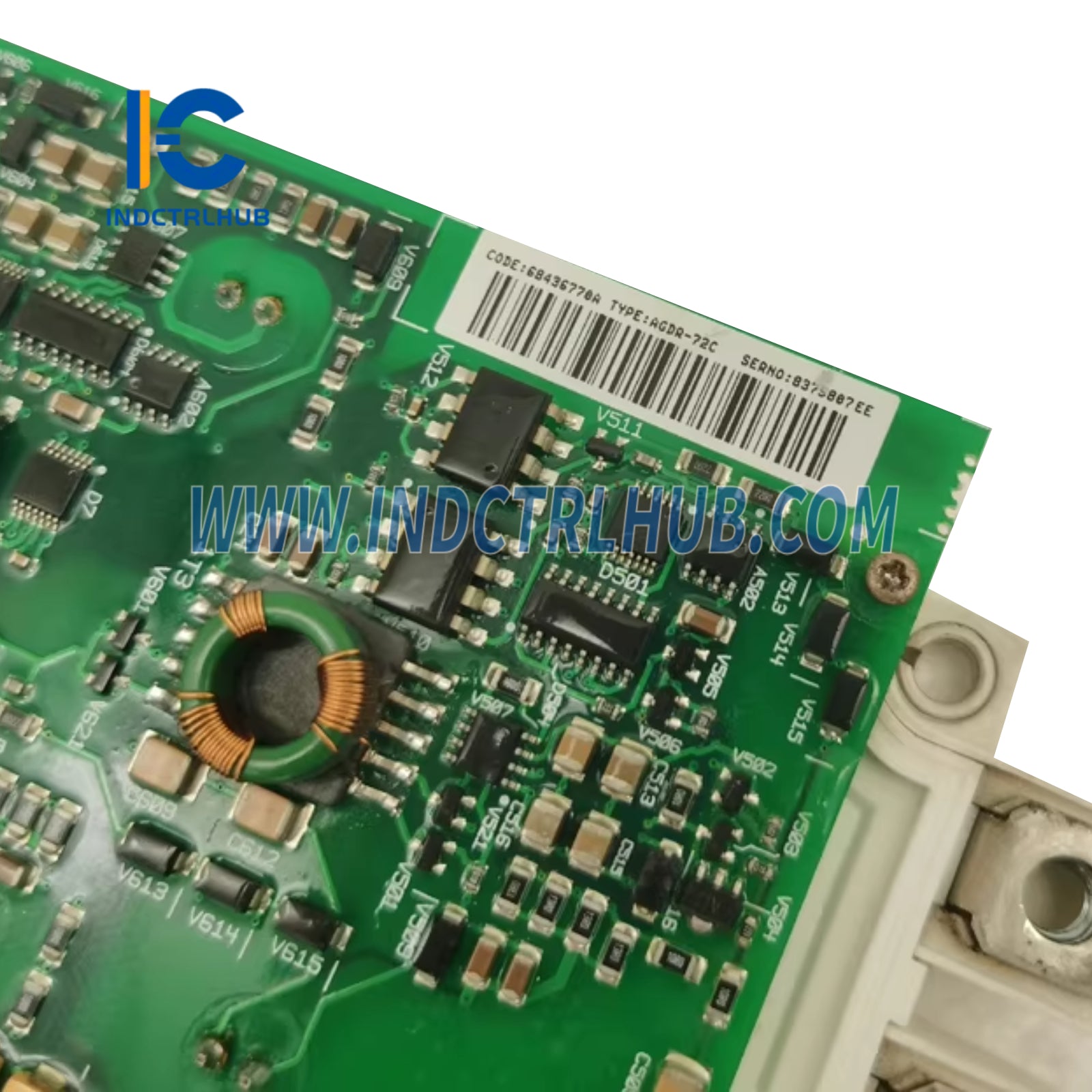

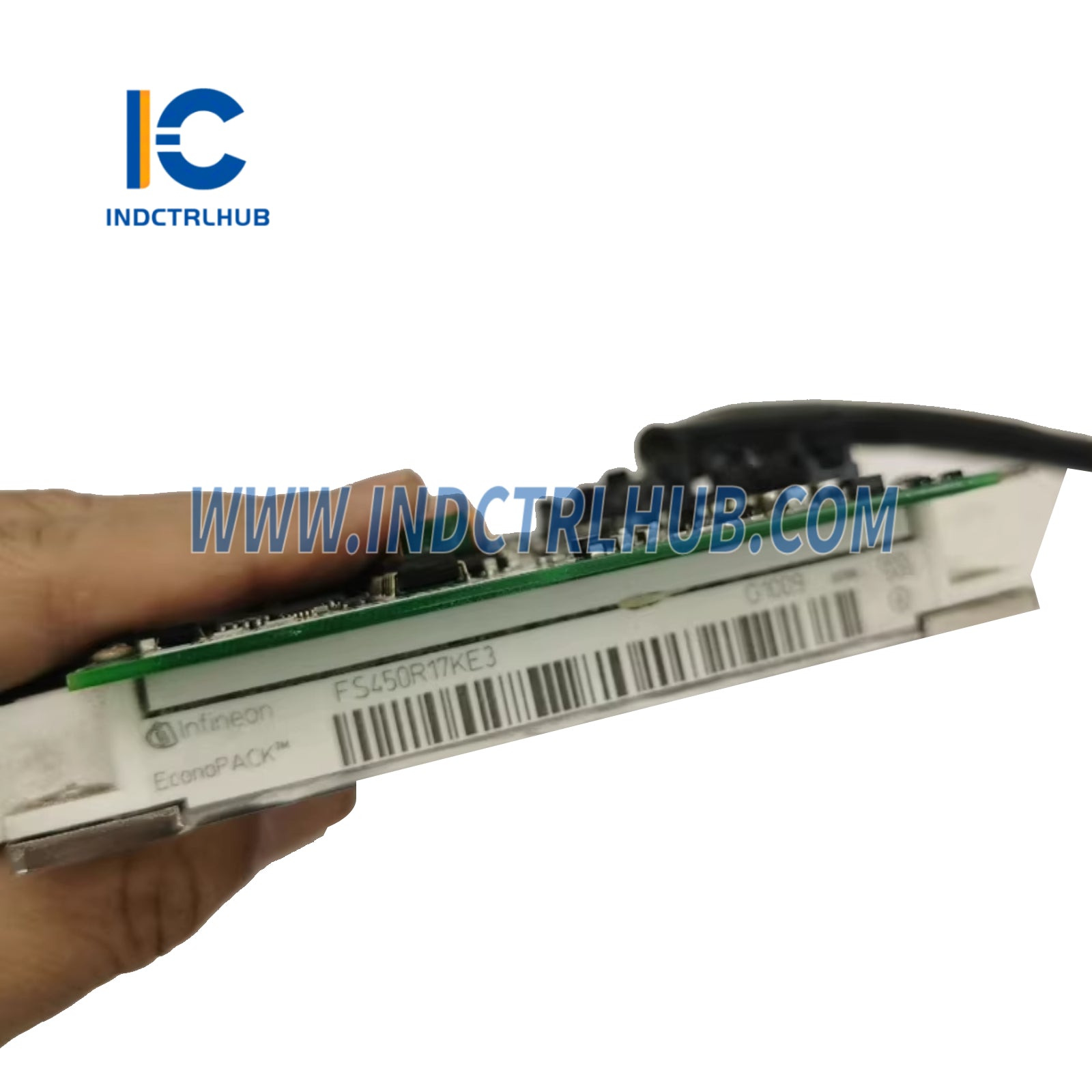

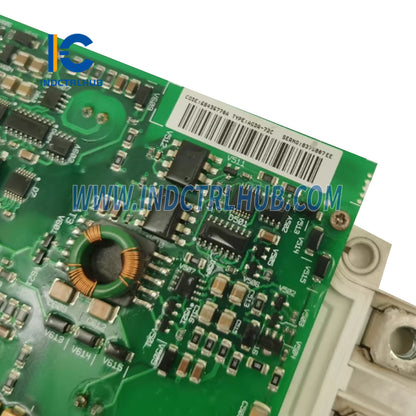

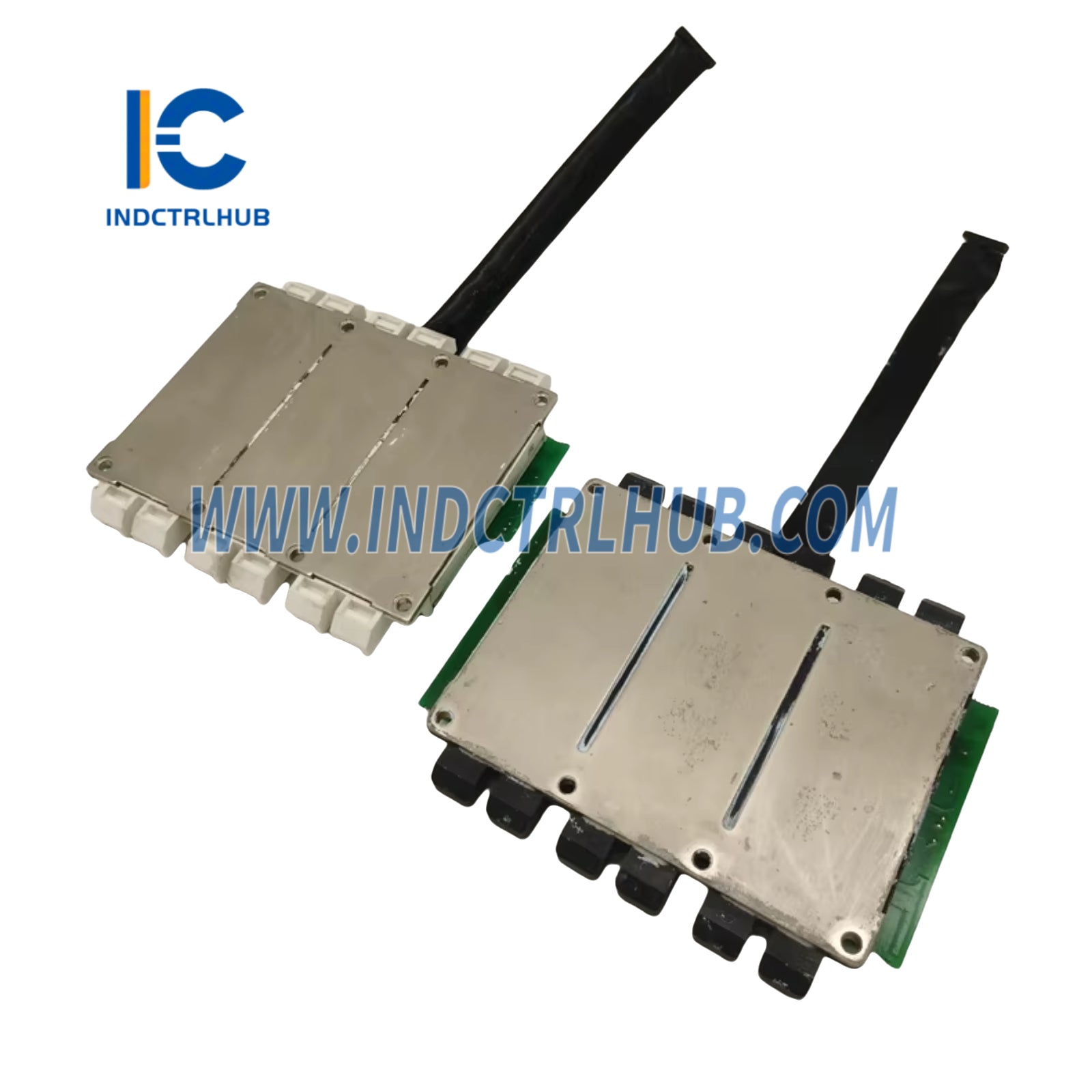

ABB FS450R17KE3/AGDR-72C IGBT Module with Drive
Product Overview
- The ABB FS450R17KE3/AGDR-72C is a high-power Insulated Gate Bipolar Transistor (IGBT) Module paired with an integrated gate driver (AGDR-72C), designed for industrial applications requiring efficient power switching and control. The FS450R17KE3 IGBT module, originally manufactured by Infineon and distributed by ABB, is part of the Econopack series, optimized for high-voltage applications such as motor drives, inverters, renewable energy systems (e.g., wind and solar), and traction systems. The AGDR-72C gate driver enhances the module’s performance by providing precise control and advanced protection features. This combination is commonly used in industries like power generation, transportation, and heavy manufacturing for reliable and high-efficiency power conversion.
Technical Specifications
- The FS450R17KE3/AGDR-72C has the following specifications based on industry sources and ABB/Infineon documentation:
| Specification | Details |
|---|---|
| Model/Part Number | FS450R17KE3/AGDR-72C |
| Manufacturer | ABB (IGBT module by Infineon) |
| Description | IGBT Module with Integrated Gate Driver |
| Series | Econopack (FS450R17KE3), ABB Gate Driver (AGDR-72C) |
| Function | High-power switching with precise gate control for motor drives, inverters, and converters |
| FS450R17KE3 IGBT Module | |
| Configuration | 6-pack (three-phase bridge, 6 IGBTs with freewheeling diodes) |
| Voltage Rating (V_CES) | 1700 V (Collector-Emitter Voltage) |
| Current Rating (I_C) | 450 A (Nominal Collector Current at 25°C) |
| Power Dissipation | Up to 2500 W (application-dependent) |
| Switching Frequency | Up to 8 kHz (typical for motor drives) |
| Isolation Voltage | 4000 V (RMS, 1 minute) |
| Thermal Resistance (R_th(j-c)) | Approx. 0.05 K/W (junction-to-case, per IGBT) |
| AGDR-72C Gate Driver | |
| Function | Provides gate control, protection, and monitoring for IGBT module |
| Gate Drive Voltage | ±15 V (typical) |
| Protection Features | Overcurrent, short-circuit, overvoltage, overtemperature, desaturation detection |
| Control Interface | PWM input, fault feedback signals |
| Power Supply for Driver | 24 VDC (external supply required) |
| General Specifications | |
| Cooling | Forced air or liquid cooling required |
| Operating Junction Temperature | -40°C to +150°C (-40°F to +302°F) |
| Environmental Specifications | Operating Temperature: -40°C to +85°C (-40°F to +185°F) Storage Temperature: -40°C to +125°C (-40°F to +257°F) Relative Humidity: 5% to 95% non-condensing Vibration: IEC 60068-2-6 compliant |
| Package Type | Econopack module (FS450R17KE3) with separate AGDR-72C driver board |
| Dimensions | IGBT Module: Approx. 150 mm (L) x 62 mm (W) x 17 mm (H) Driver Board: Approx. 100 mm (L) x 50 mm (W) x 20 mm (H) |
| Weight | IGBT Module: Approx. 0.4–0.6 kg Driver Board: Approx. 0.1–0.2 kg |
| Mounting | IGBT Module: Screw-mounted to heatsink Driver Board: Mounted near IGBT module or in control cabinet |
| Certifications | CE, UL, RoHS compliant, IEC 60747 standards |
