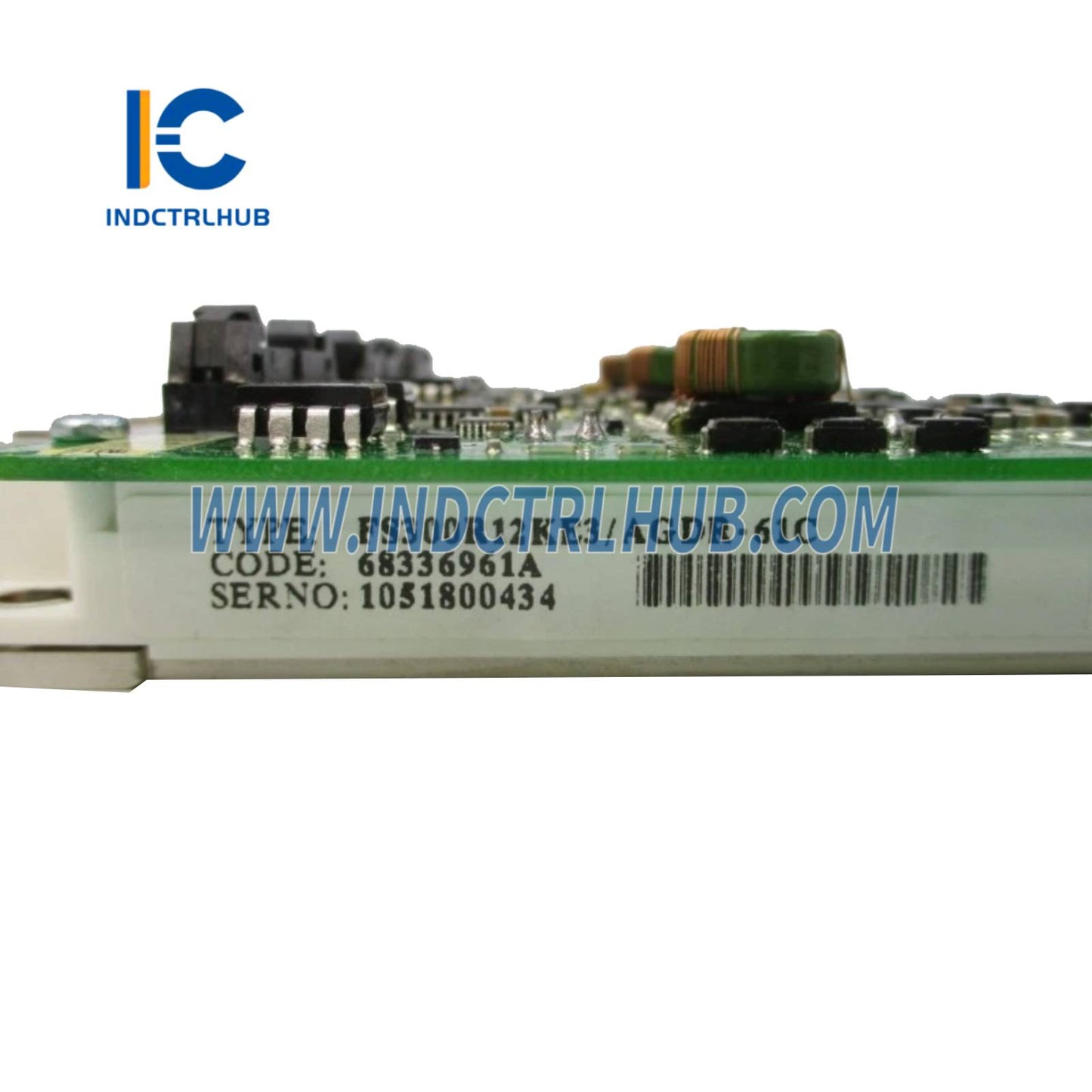

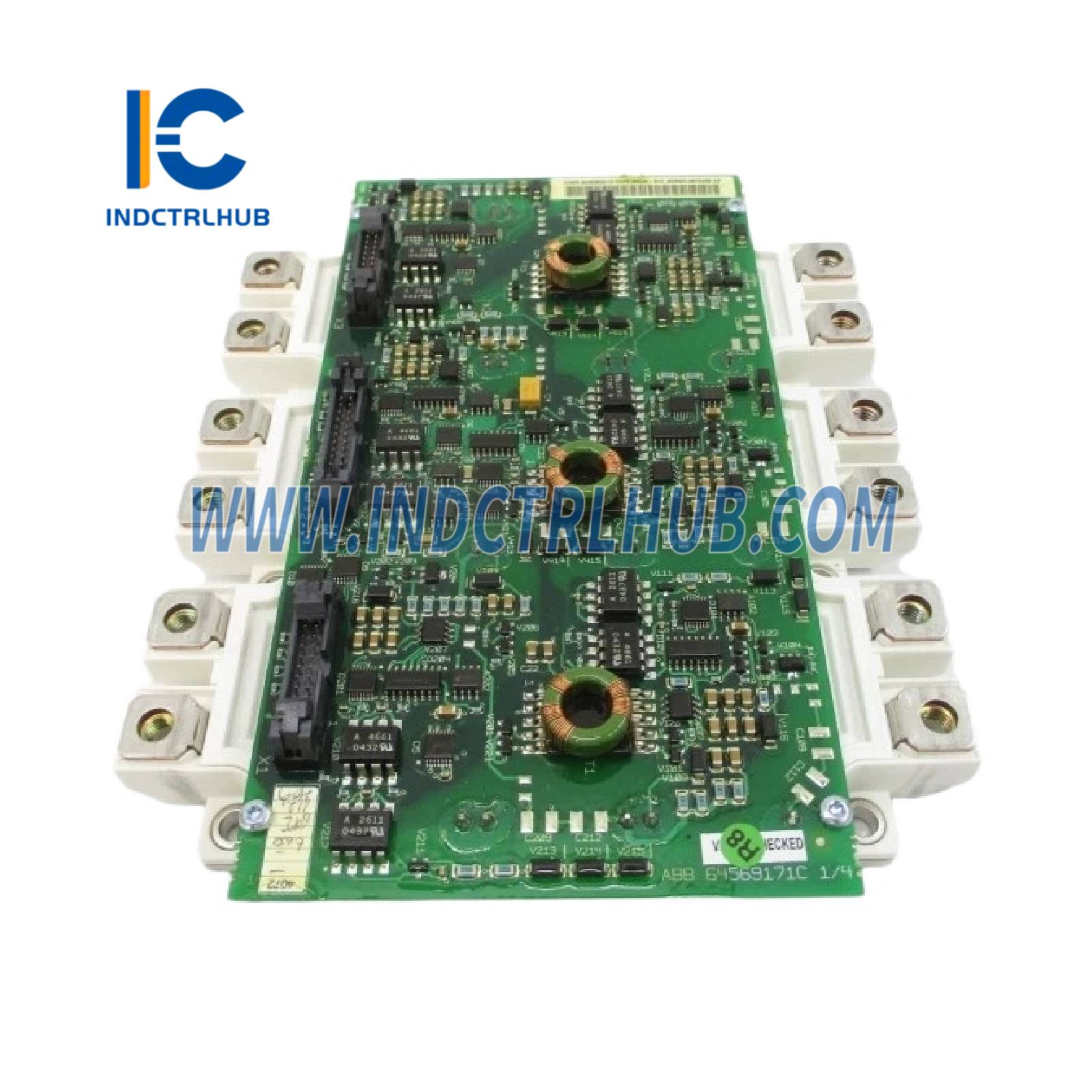

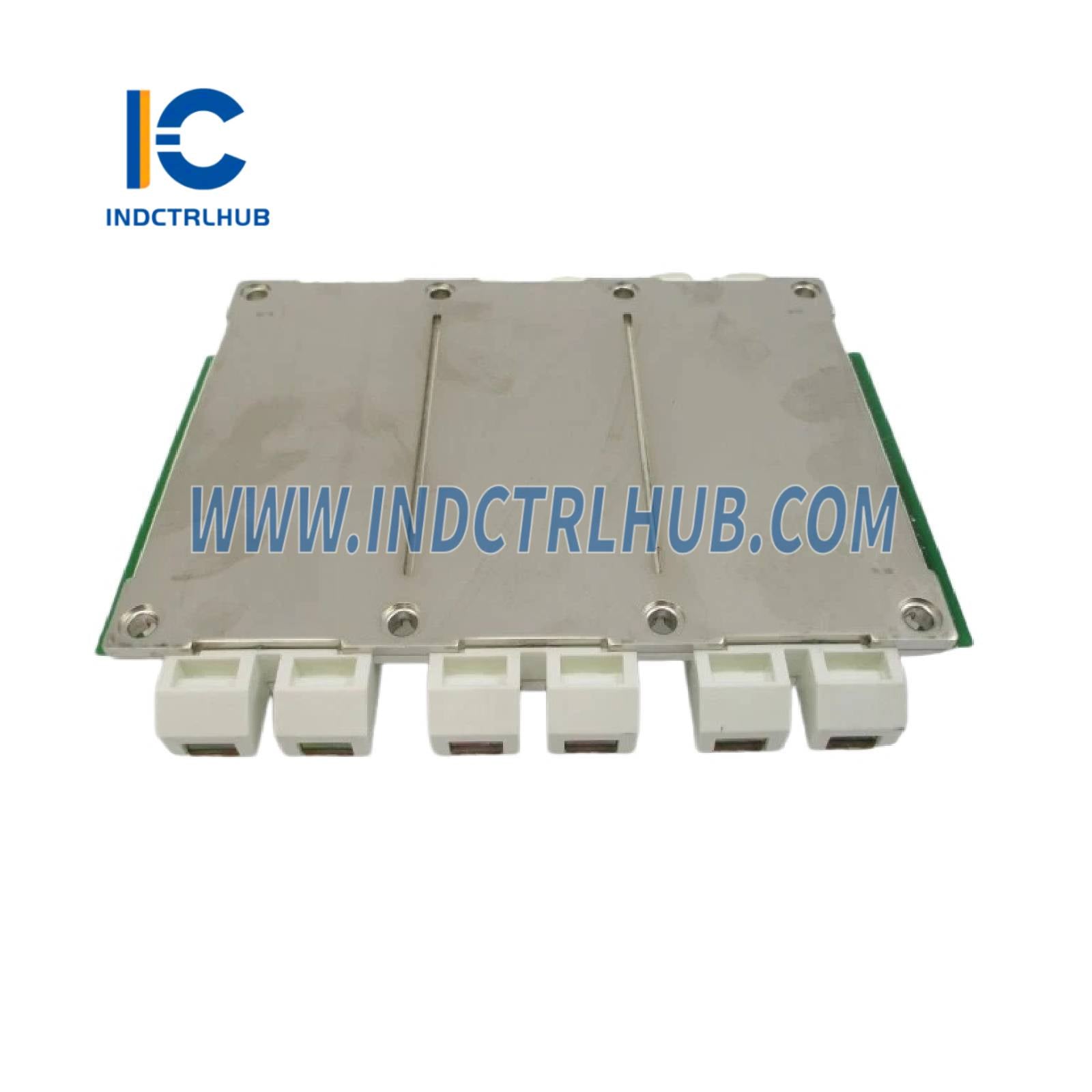

ABB FS300R12KE3/AGDR-61C IGBT Module with Drive
Product Overview
- The ABB FS300R12KE3/AGDR-61C is a high-power Insulated Gate Bipolar Transistor (IGBT) Module paired with an integrated gate driver (AGDR-61C), designed for industrial applications requiring efficient power switching and control. The FS300R12KE3 IGBT module, originally manufactured by Infineon and distributed by ABB, is part of the Econopack series, optimized for applications such as motor drives, inverters, renewable energy systems (e.g., wind and solar), and traction systems. The AGDR-61C gate driver enhances the module’s performance by providing precise control and protection features. This combination is commonly used in industries like power generation, transportation, and heavy manufacturing for reliable and high-efficiency power conversion.
Technical Specifications
- The FS300R12KE3/AGDR-61C has the following specifications based on industry sources and ABB/Infineon documentation:
| Specification |
Details |
| Model/Part Number |
FS300R12KE3/AGDR-61C |
| Manufacturer |
ABB (IGBT module by Infineon) |
| Description |
IGBT Module with Integrated Gate Driver |
| Series |
Econopack (FS300R12KE3), ABB Gate Driver (AGDR-61C) |
| Function |
High-power switching with precise gate control for motor drives, inverters, and converters |
| FS300R12KE3 IGBT Module |
|
| Configuration |
6-pack (three-phase bridge, 6 IGBTs with freewheeling diodes) |
| Voltage Rating (V_CES) |
1200 V (Collector-Emitter Voltage) |
| Current Rating (I_C) |
300 A (Nominal Collector Current at 25°C) |
| Power Dissipation |
Up to 1500 W (application-dependent) |
| Switching Frequency |
Up to 15 kHz (typical for motor drives) |
| Isolation Voltage |
4000 V (RMS, 1 minute) |
| Thermal Resistance (R_th(j-c)) |
Approx. 0.08 K/W (junction-to-case, per IGBT) |
| AGDR-61C Gate Driver |
|
| Function |
Provides gate control, protection, and monitoring for IGBT module |
| Gate Drive Voltage |
±15 V (typical) |
| Protection Features |
Overcurrent, short-circuit, overvoltage, overtemperature, desaturation detection |
| Control Interface |
PWM input, fault feedback signals |
| Power Supply for Driver |
24 VDC (external supply required) |
| General Specifications |
|
| Cooling |
Forced air or liquid cooling required |
| Operating Junction Temperature |
-40°C to +150°C (-40°F to +302°F) |
| Environmental Specifications |
Operating Temperature: -40°C to +85°C (-40°F to +185°F)
Storage Temperature: -40°C to +125°C (-40°F to +257°F)
Relative Humidity: 5% to 95% non-condensing
Vibration: IEC 60068-2-6 compliant
|
| Package Type |
Econopack module (FS300R12KE3) with separate AGDR-61C driver board |
| Dimensions |
IGBT Module: Approx. 122 mm (L) x 62 mm (W) x 17 mm (H)
Driver Board: Approx. 100 mm (L) x 50 mm (W) x 20 mm (H) |
| Weight |
IGBT Module: Approx. 0.3–0.5 kg
Driver Board: Approx. 0.1–0.2 kg |
| Mounting |
IGBT Module: Screw-mounted to heatsink
Driver Board: Mounted near IGBT module or in control cabinet |
| Certifications |
CE, UL, RoHS compliant, IEC 60747 standards |
Additional Details
- The FS300R12KE3/AGDR-61C includes the following additional information based on industry sources:
-
Function: The FS300R12KE3 IGBT module enables efficient power switching for three-phase applications, with integrated freewheeling diodes for bidirectional current flow; the AGDR-61C gate driver provides precise PWM control, protection against faults (e.g., short-circuits, overcurrent), and diagnostic feedback; supports pulse-width modulation (PWM) for motor control and power conversion; optimized for low switching losses and high thermal performance.
-
Compatibility: Compatible with ABB’s ACS and DCS series drives, as well as other high-power inverters and converters; integrates with ABB control systems or third-party controllers supporting IGBT gate drivers; suitable for motor drives, wind turbines, solar inverters, railway traction, and industrial power supplies; the AGDR-61C driver is tailored for the FS300R12KE3 but may support other compatible IGBT modules.
-
Configuration: Requires external PWM signals from a controller for operation; the AGDR-61C driver is configured with appropriate protection thresholds (e.g., desaturation detection); installed with proper cooling systems (air or liquid) to manage heat dissipation; IGBT module mounted to a heatsink with thermal paste; driver board connected via gate and feedback cables; no standalone programming required, but system-level configuration depends on the application.
-
Certifications: Complies with CE and UL standards for electrical safety; adheres to IEC 60747 standards for semiconductor devices; RoHS compliant for environmental regulations; designed for reliable operation in harsh industrial environments with high electrical and thermal stress.
-
Part Type: Available as new or refurbished from suppliers like Radwell International, Classic Automation, and ABB authorized distributors; manufactured by Infineon (IGBT module) and ABB (gate driver) in Germany, Switzerland, or other facilities; online price range approximately $1200–$3500 (excl. tax) for new units, lower for refurbished, depending on supplier and condition.
-
Features: High voltage (1200 V) and current (300 A) ratings for demanding applications; low switching losses for energy efficiency; integrated gate driver with advanced protection features; robust Econopack package for durability; compact driver board for easy integration; ideal for variable frequency drives, renewable energy, and traction systems.
Note: Specifications for the ABB FS300R12KE3/AGDR-61C are compiled from industry sources, including ABB/Infineon documentation and suppliers like Radwell International. The product is an IGBT module with a gate driver, distinct from other IGBT modules (e.g., ABB FS225R17KE3/AGDR-76C), power supply units (e.g., ABB DSQC609), or Siemens components (e.g., Siemens A5E36358260). Exact thermal resistance, gate drive settings, or application-specific details may require verification. For precise details, refer to ABB’s or Infineon’s official documentation or contact a certified supplier. |
