Product Description
Manufacturer: BACHMANN

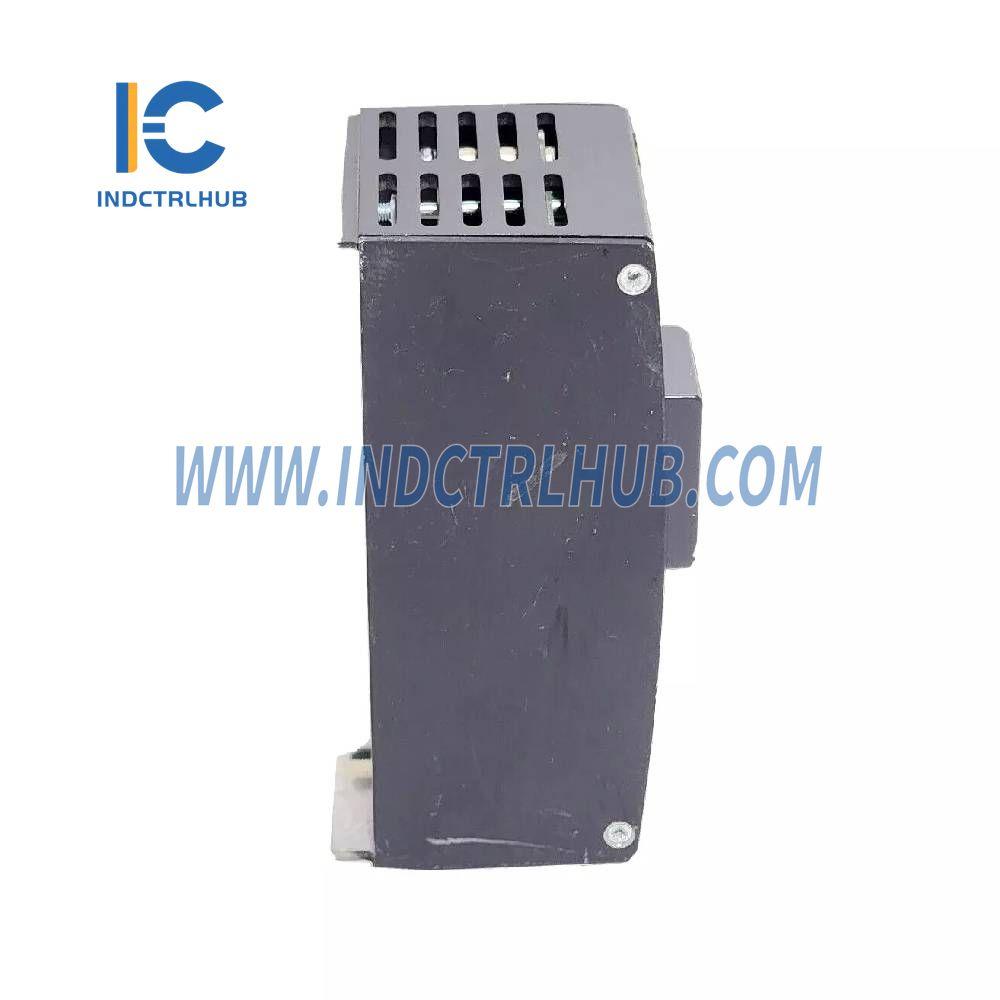

Model/Part Numbers: FS211/N, FS212/N
Description: Master Modules
Item Details:
| Item No. | Model/Part Number | Description |
|---|---|---|
| 00010498-00 | FS211/N | FASTBUS slave module with 1 FO interface, HCS/PCF 150m or PMMA 50m, integrated power supply (17W) |
| 00010500-00 | FS212/N | FASTBUS slave module with 2 FO interfaces, HCS/PCF 150m or PMMA 50m, integrated power supply (17W) |
FASTBUS Interface:
- Line Length: 50/150/200 m between stations
- Total Length (max): 1000 m
- Transmission Medium:
- Plastic Optical Fiber (POF): max. 50 m
- Hard Cladded Silica (HCS) or Plastic Silica Fiber (PCF): max. 150 m
- Special HCS Cable: max. 200 m
- Number of Stations (max.): 16
Integrated Power Supply:
| Parameter | Value |
|---|---|
| Input Voltage | 24 V DC (18 .. 34 V) |
| Current Consumption | 1.2 A at 24 V |
| Nominal Power | 17 W |
| Output Current (+5 V) | 2 A |
| Output Current (+15 V) | 250 mA |
| Output Current (-15 V) | 200 mA |
| Galvanic Isolation | 500 V |
| Reverse Polarity Protection | Yes |
Ambient Conditions:
- Operating Temperature: 0 .. +60°C
- Relative Humidity (Operation): 5 .. 95% (without condensation)
- Storage Temperature: -40 .. +85°C
- Relative Humidity (Storage): 5 .. 95% (without condensation)
Model Variants:
- FS211/N: FASTBUS slave module with 1 FO interface; HCS/PCF 150m or PMMA 50m; integrated power supply (17W)
- FS212/N: FASTBUS slave module with 2 FO interfaces; HCS/PCF 150m or PMMA 50m; integrated power supply (17W)
