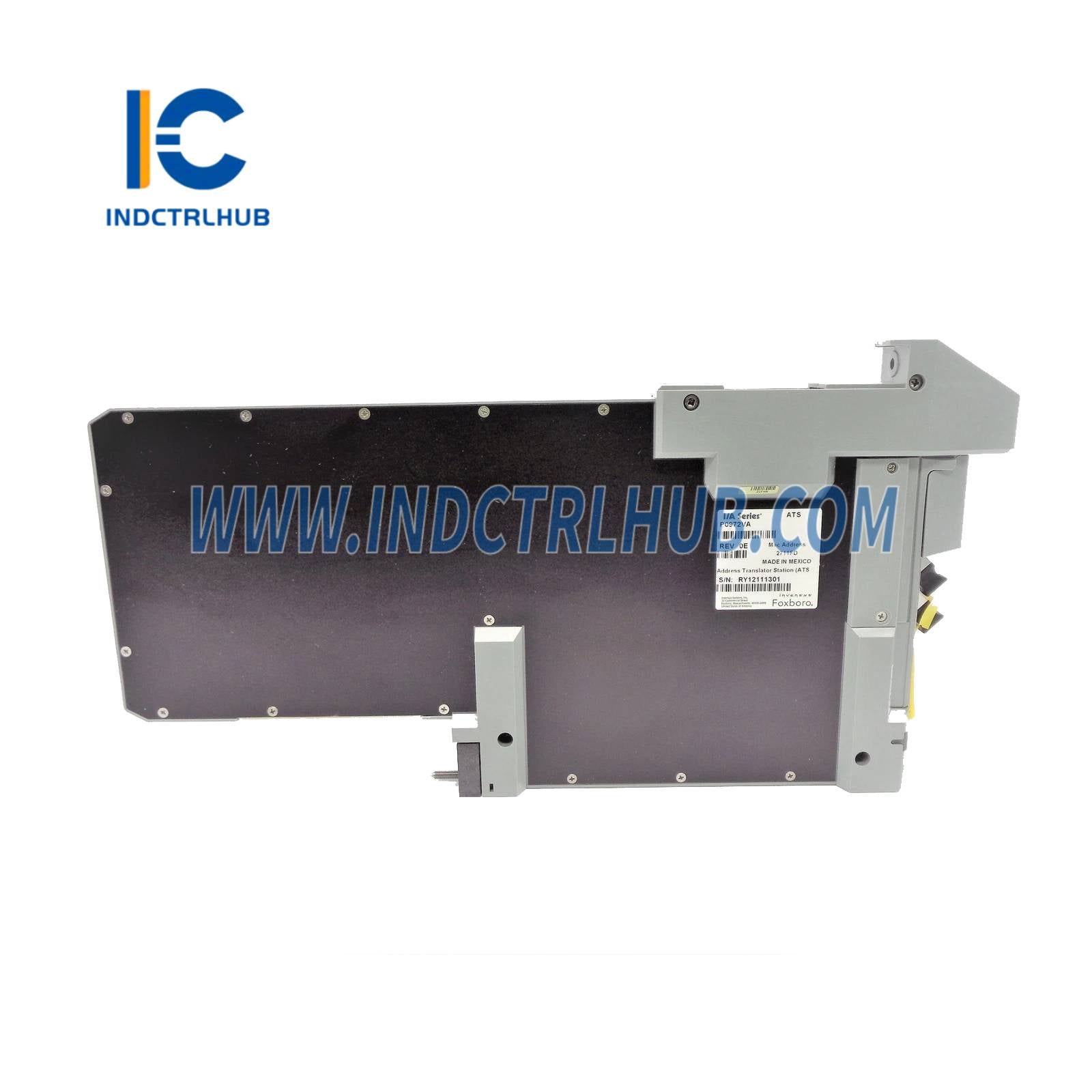

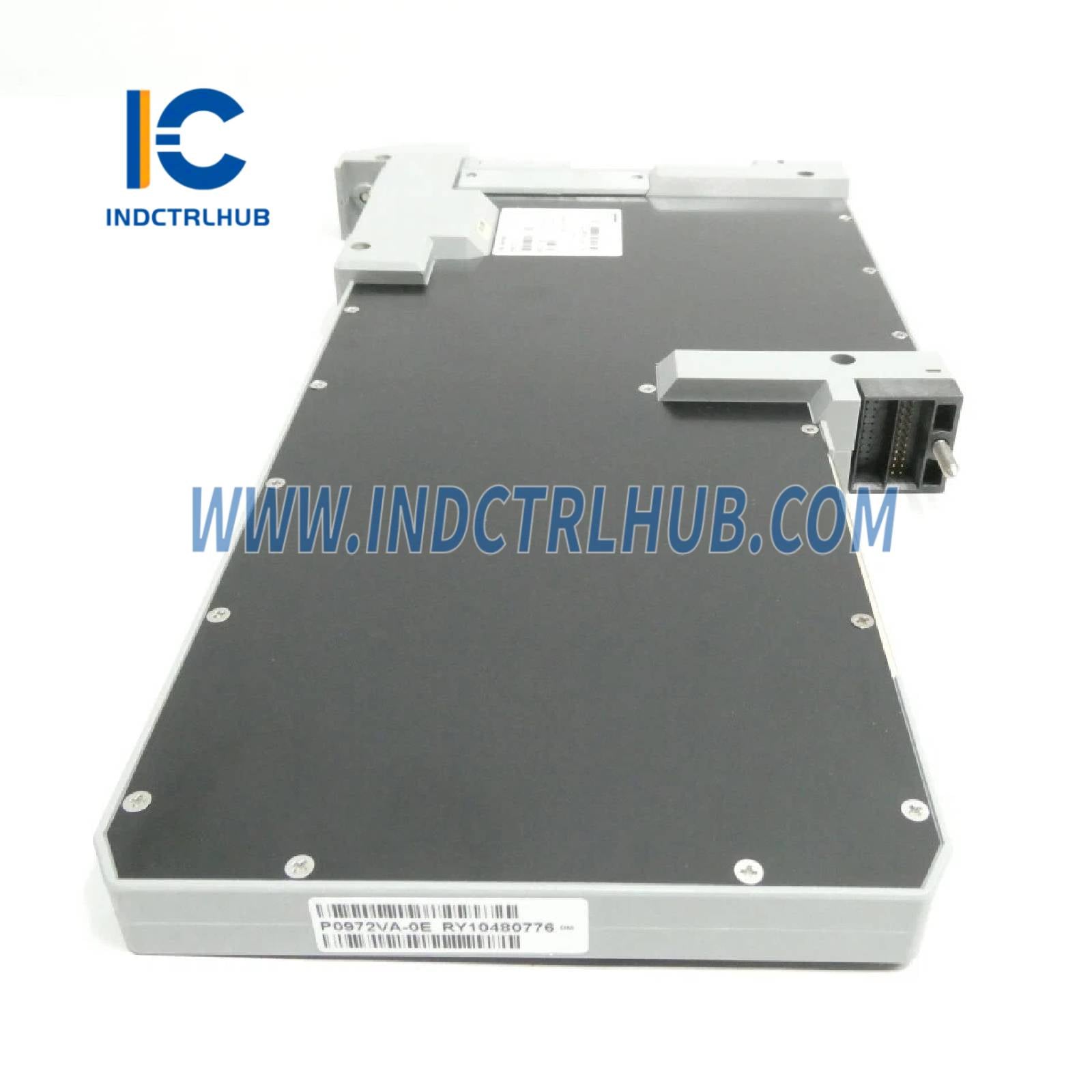

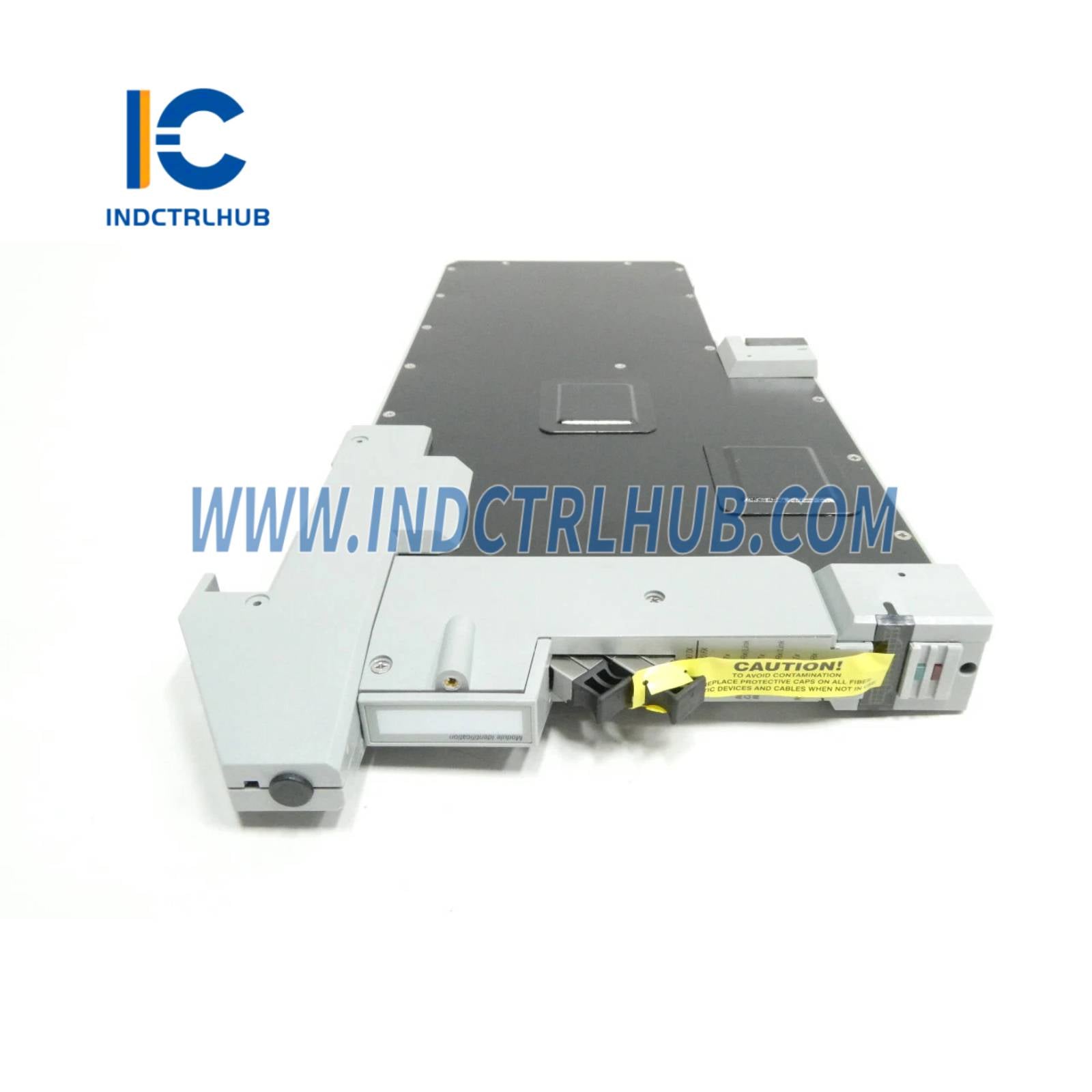

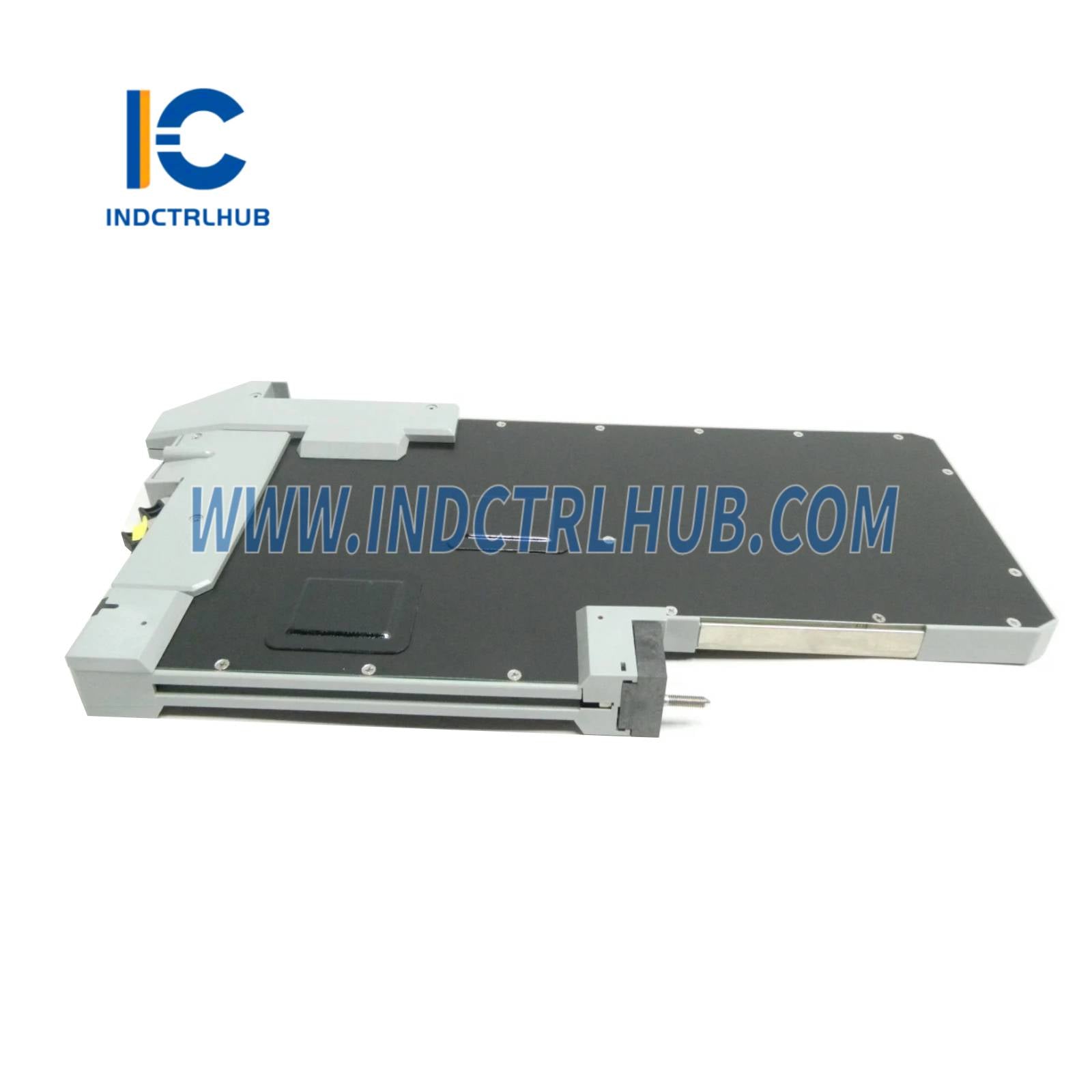

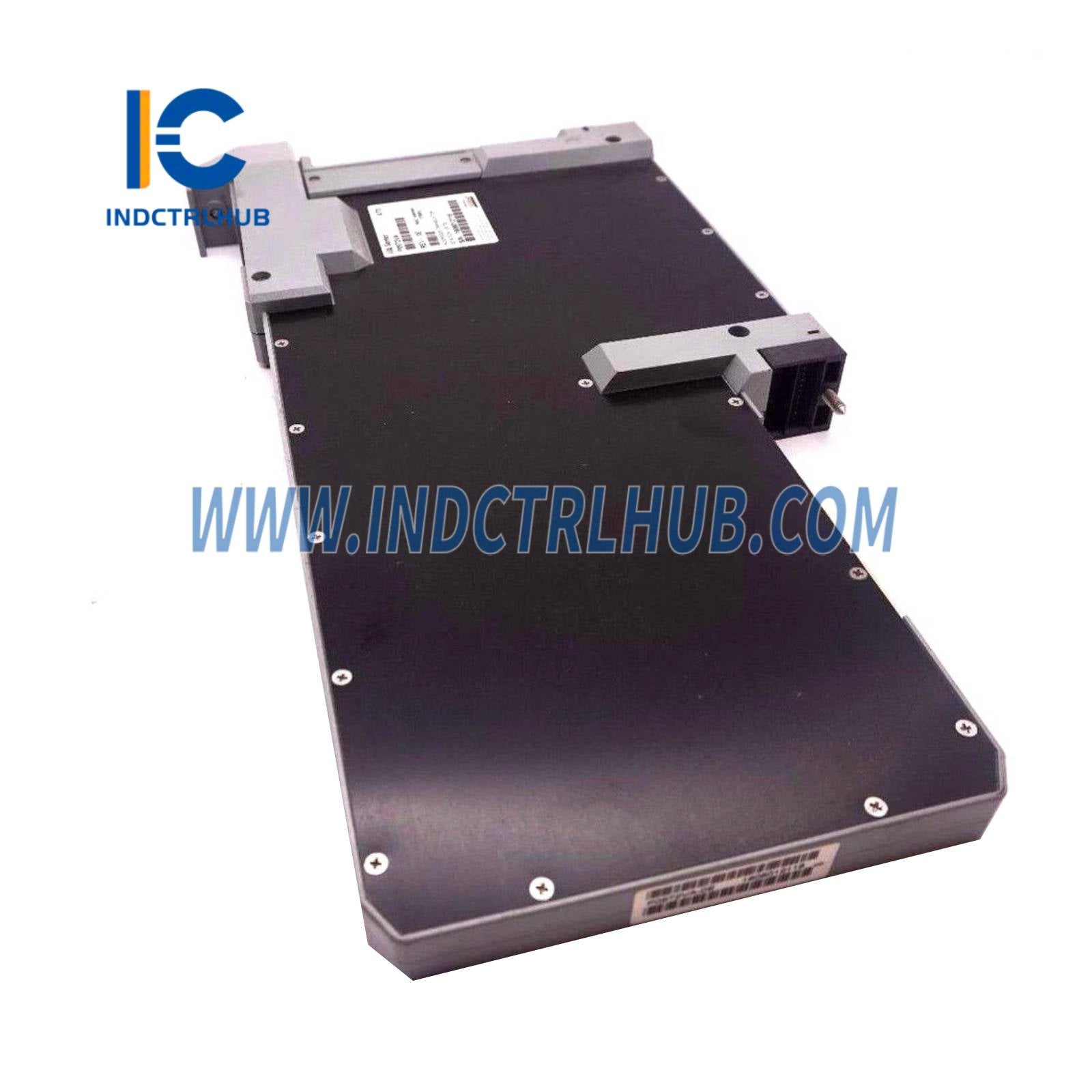

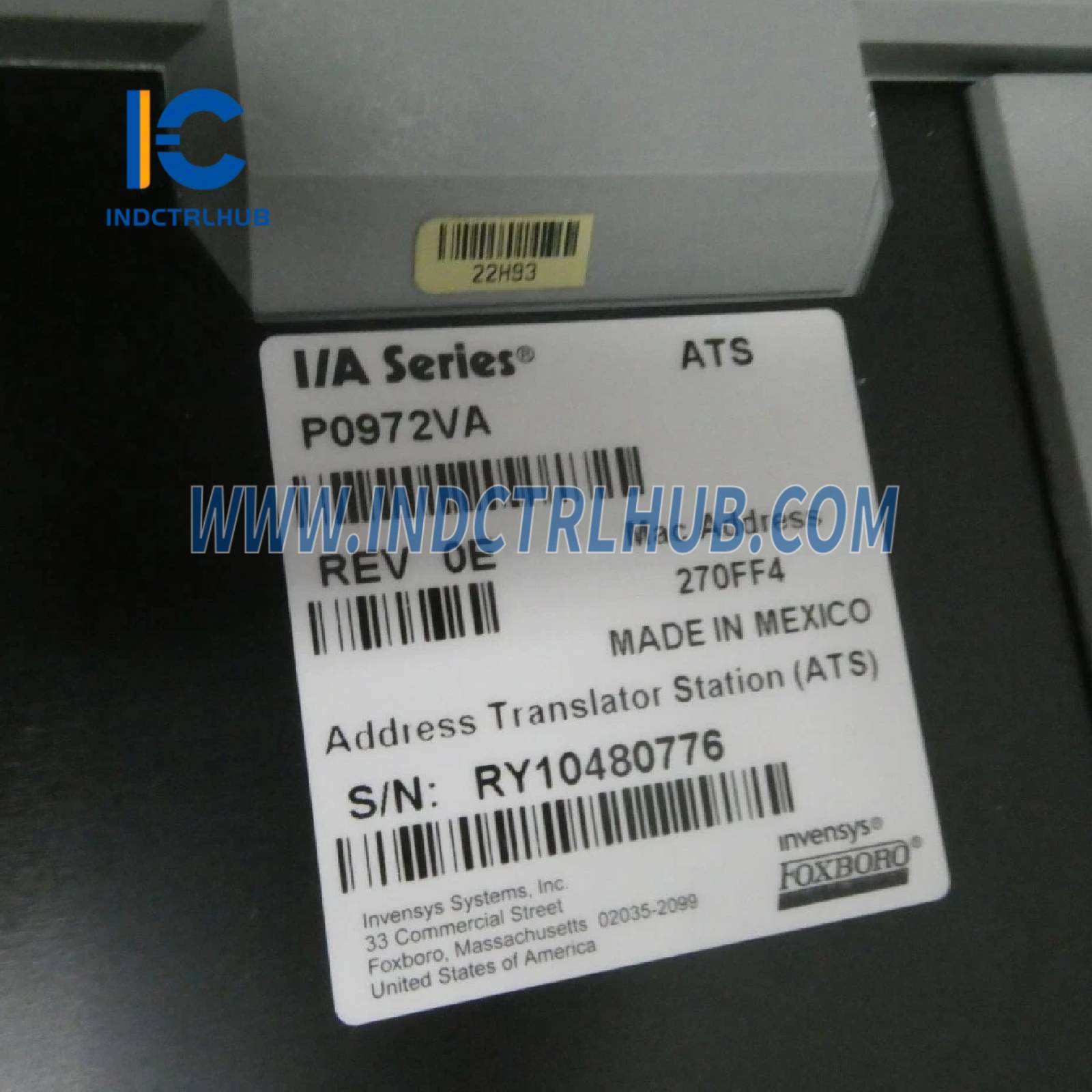

Foxboro P0972VA Address Translation Station (ATS) Module

Foxboro P0972VA Address Translation Station (ATS) Module

  • Manufacturer: Foxboro

  • Product No.: P0972VA

  • Condition:1000 in stock

  • Product Type: Address Translation Station (ATS) Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

Field Details
Manufacturer Schneider Electric
Part Number P0972VA
Product Type Address Translation Station (ATS) Module
Function Bridges I/A Series Nodebus stations with Foxboro DCS Control Network
System Compatibility EcoStruxure Foxboro DCS, I/A Series Nodebus systems
Associated Document PSS 41H-1ATS

Functional Specifications

Feature Specification
Purpose Enables communication between Nodebus stations and control network stations
Operation Modes - LAN Interface (LI) Mode: Acts as LI when no LI exists on the node
- Nodebus Extender Mode: Extends control network to appear as part of the node when LI is present
Transmission - To/From Fast Ethernet Switch: 100 Mbps full-duplex
- To/From Nodebus: 10 Mbps CSMA/CD
- Packets: Up to 1000 packets per second
Station Support - Nodebus: Up to 63 stations per ATS
- Control Network: Up to 1920 stations (Nodebus + control network)
Redundancy - Optional redundant configuration with two P0972VA modules
- Switch Time: <1 s
- Health/State Communication: Via network and local interlink
Host Requirement Requires control network workstation for hosting
Communication - Supports Interprocess Communications (IPC) for compound/block parameter data
- No boot hosting of Nodebus stations from control network workstations
Diagnostics - Self-checking at power-up
- Run-time checks with watchdog timer
Configuration Soft letterbugs configurable via Letterbug Configurator
LED Indicators Indicate ATS operational status, Fast Ethernet A/B links activity, Nodebus activity
Power Requirements - Input Voltage: 39 V DC typical (redundant voltage)
- Consumption: 15 W max per non-redundant module

Physical Specifications

Feature Specification
Configuration - Single-width module
- Redundant version: Two modules with P0926DF redundant connector
Weight 1.7 kg (3.75 lb) for single non-redundant module
Dimensions - Height: 228 mm (8.97 in)
- Width: 34.3 mm (1.35 in)
- Depth: 447 mm (17.6 in)
Mounting - I/A Series 1x8 or 2x8 mounting structure
- Redundant modules require adjacent slots for redundant connector
Cabling - Fiber Optic: Multi-mode fiber (MMF) 62.5/125 μm, LC connectors, lengths 3 m (9.9 ft), 15 m (49.5 ft), 50 m (165 ft), user-supplied >50 m, max 2 km (6,560 ft)
- Copper: Shielded cable, RJ-45 connectors, lengths 0.5 m (1.6 ft), 3 m (9.9 ft), 15 m (49.5 ft), 50 m (165 ft), 100 m (330 ft), max 100 m (330 ft)
Related Part Redundant Connector: P0926DF

Environmental Specifications

Parameter Specification
Operating Temperature 0 to 60°C (32 to 140°F)
Storage Temperature -40 to 70°C (-40 to 158°F)
Relative Humidity 5 to 95% (noncondensing)
Operating Altitude -300 to 3,000 m (-1,000 to 10,000 ft)
Storage Altitude -300 to 12,000 m (-1,000 to 40,000 ft)
Vibration 0.5 g (5 to 500 Hz)
Note Environmental ranges may vary based on enclosure (refer to specific PSS)

Regulatory Compliance

Certification Type Details
CE Certification Requires shielded enclosure per B0700AU for CE compliance
EMC - European EMC Directive 89/336/EEC
- EN 50081-2 (Emission), EN 50082-2 (Immunity), EN 61326 Annex A (Industrial)
- CISPR 11 Class A
- IEC 61000-4-2: 6 kV contact, 8 kV air ESD
- IEC 61000-4-3: 10 V/m, 80-1000 MHz
- IEC 61000-4-4: 2 kV on I/O, DC power, communication lines
- IEC 61000-4-5: 2 kV on power, 1 kV on I/O, communication lines
- IEC 61000-4-6: 10 V (rms), 150 kHz-80 MHz
- IEC 61000-4-8: 30 A/m, 50/60 Hz
Proposition 65 Contains lead/lead compounds, per California Proposition 65

Ordering Information

Field Details
Part Number P0972VA (ATS Module)
Related Components - Redundant Connector: P0926DF
- Cabling: Fiber optic (MMF 62.5/125 μm, LC connectors) or copper (shielded, RJ-45)
Related Documents - PSS 41H-1ATS: Address Translation Station Communications
- PSS 41H-7NETWORK: Foxboro DCS Control Network Architecture
- B0700AU: Power, Earthing, EMC, and CE Compliance
