Product Description
Product Parameters for P0972TQ (LC to LC Fiber Optic Cable)
📘 Product Overview
| Field | Details |
|---|---|
| Manufacturer | Schneider Electric (Foxboro) |
| Part Number | P0972TQ |
| Product Type | LC to LC Fiber Optic Cable |
| Function | Connects Electrodynamic Controller (EDC6000) to control network components (e.g., splitter/combiner, switch) |
| System Compatibility | EcoStruxure Foxboro DCS, Electrodynamic Controller (EDC6000) |
| Associated PSS Document | PSS 41S-2EDC (EcoStruxure Foxboro DCS Electrodynamic Controller) |
⚙️ Functional Specifications
| Feature | Specification |
|---|---|
| Purpose | Facilitates Ethernet communication for EDC6000 control network (Channels A and B) and IED communication (Channel C) |
| Network Compatibility | - Foxboro DCS Control Network (Channels A and B, redundant) - IEC 61850 and Modbus TCP protocols (Channel C) |
| Ethernet Standard | 100Base-FX (100 Mbps fiber link, IEEE 802.3 Ethernet standard) |
| Wavelength | 1310 nm (aligned with EDC6000 fiber optic channels, page 6) |
| Duplex Support | Supports both half- and full-duplex Ethernet communications (page 6) |
| Cable Mode | Multimode or single mode (page 32) |
| Maximum Distance | Up to 2000 m (6562 ft) for multimode 50/125 μm or 62.5/125 μm cables (page 6) |

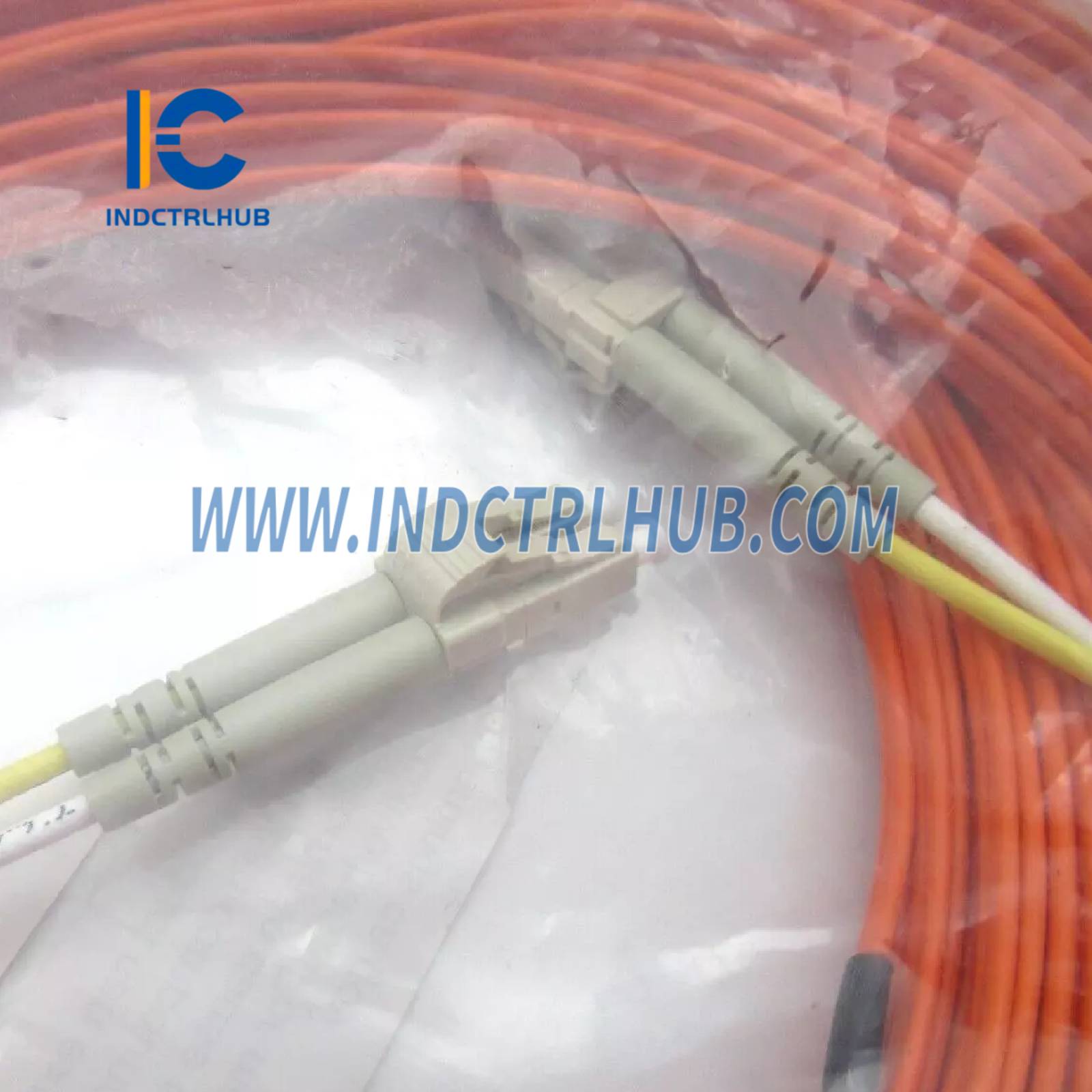

| Connectors | LC to LC (Lucent Connector) |
| Diagnostic Support | Compatible with SFP Link Status and Activity Status LEDs for link and communication monitoring (page 6) |
📏 Physical Specifications
| Feature | Specification |
|---|---|

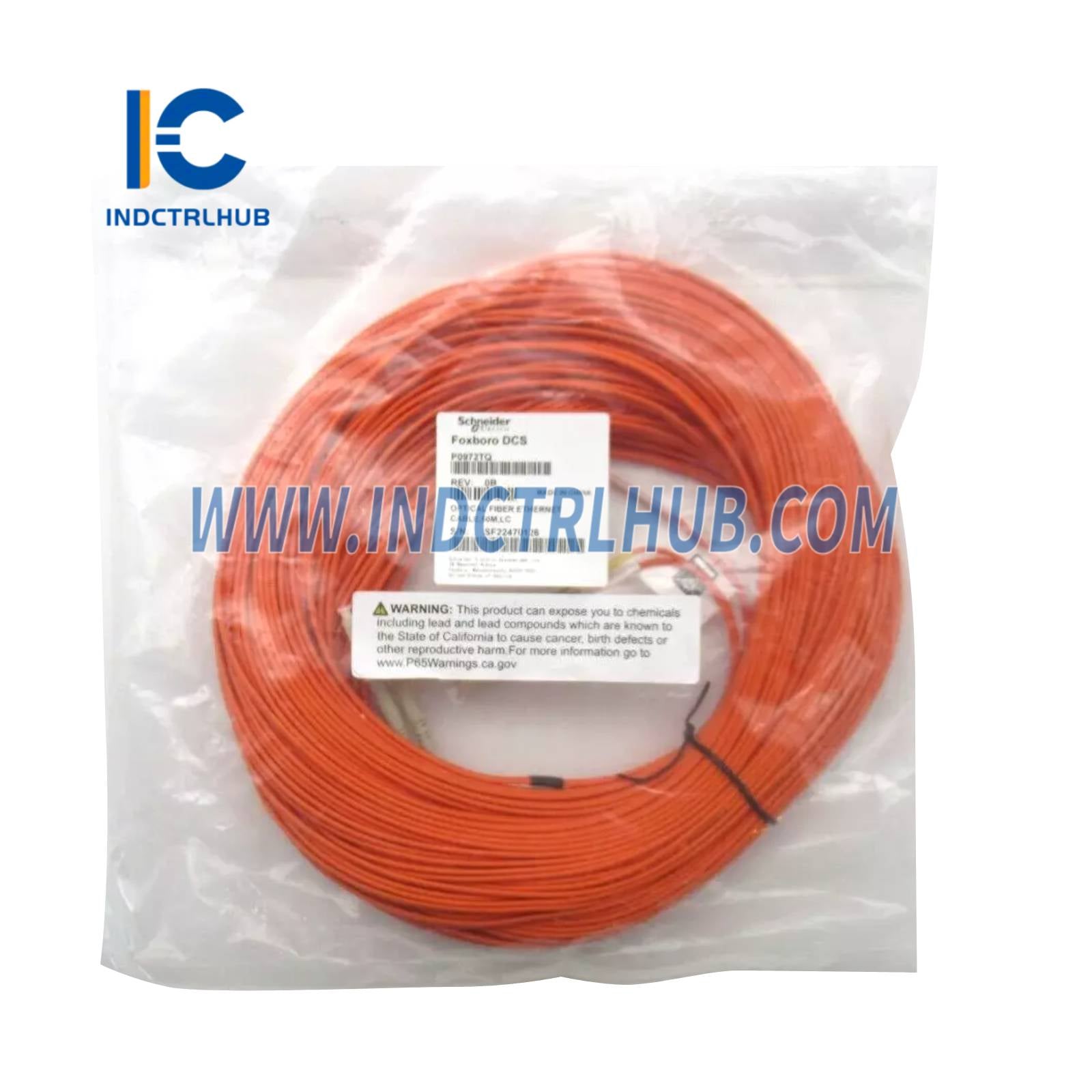

| Length | 50 m (164 ft) (page 32) |
| Fiber Type | Multimode (50/125 μm or 62.5/125 μm) or single mode (page 6, 32) |
| Connectors | LC to LC (page 32) |
| Cable Material | Not specified; likely standard fiber optic cable with protective jacket (e.g., PVC or LSZH) |
| Weight | Not specified; estimated ~0.8–1.2 kg (1.76–2.64 lb) based on typical 50 m fiber optic cables |
| Mounting | No mounting required; cable is routed between EDC6000 and network components |
🌡️ Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) (aligned with EDC6000, page 39) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) (aligned with EDC6000, page 39) |
| Relative Humidity | 5% to 95% (non-condensing) (operating and storage, page 39) |
| Operating Altitude | -300 m to +2,000 m (-1,000 ft to +6,500 ft) (page 39) |
| Vibration | 1 g (10 Hz to 150 Hz) (aligned with EDC6000, page 39) |
| Shock | 5 g (18 pulses for 11 ms each) (aligned with EDC6000, page 39) |
| Bump | 10 g (6000 pulses for 16 ms each) (aligned with EDC6000, page 39) |
✅ Regulatory Compliance
| Certification Type | Details |
|---|---|
| EMC | - Complies with European EMC Directive 2014/30/EU - EN 61326-1 (Class A Emissions, Industrial Immunity) - EN 61000-6-5 (Immunity for Power Station/Substation Environments) (page 46) |
| Marine Certification | - Bureau Veritas Marine certified for Environmental Category EC31 - Det Norske Veritas (DNV) certified for control and monitoring systems when installed in a suitably modified G128 enclosure (page 46, 49) |
| Product Safety | - UL 61010-1, CSA C22.2 No. 61010-1, EN 61010-1:2010 + A1:2019 (safety standards for electrical equipment) (page 47) |

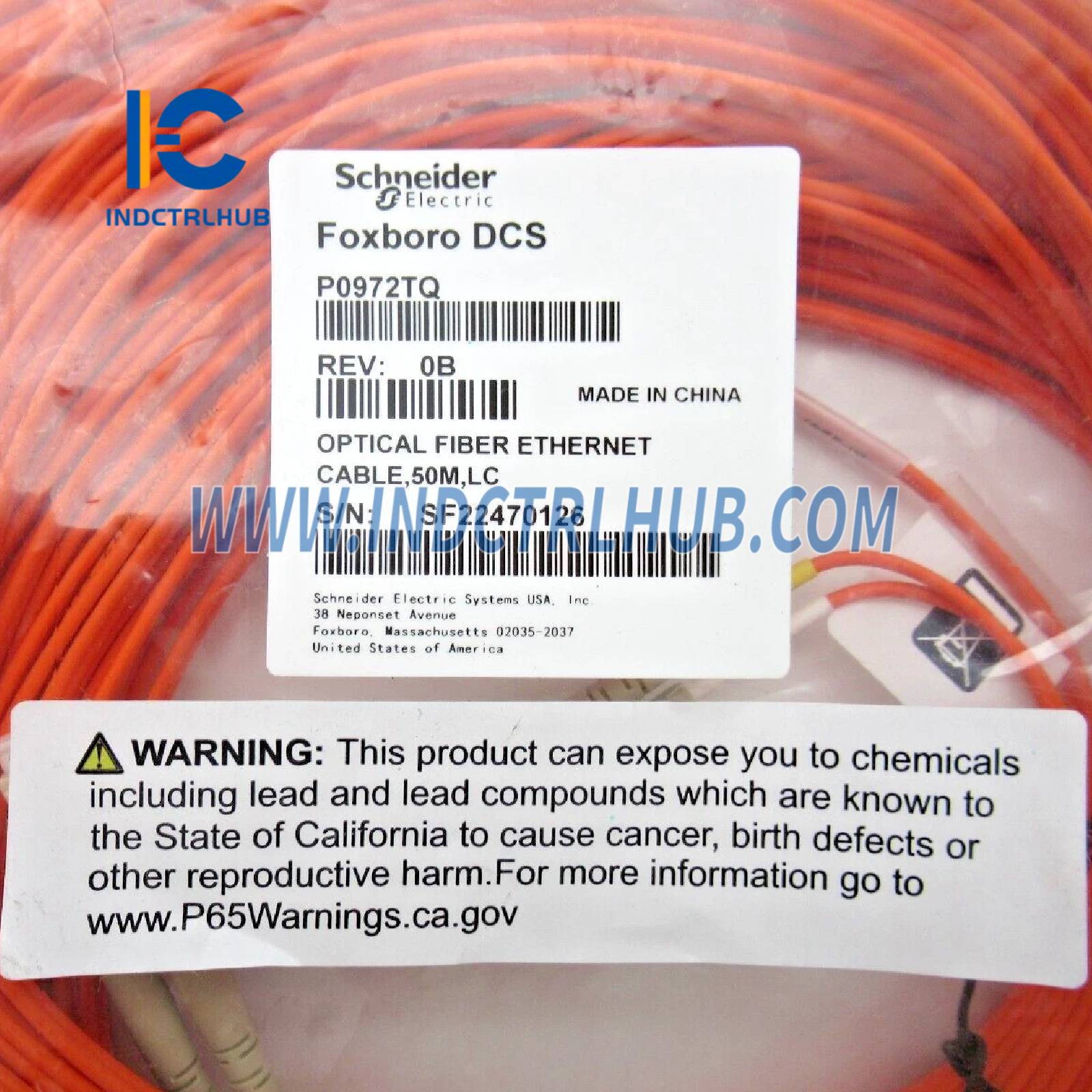

| Proposition 65 | Contains chemicals (e.g., lead) known to the State of California to cause cancer and reproductive harm (page 52) |
🔧 Additional Features
| Feature | Details |
|---|---|
| Installation | Connects EDC6000 to splitter/combiner (e.g., P0926AH) or control network switch (e.g., RH102AP, RH102AN) (page 32) |
| Compatibility | - Compatible with EDC6000 SFP modules (SY-6038090, 100Base-FX) (page 48) - Supports connection to splitter/combiner (RH972ZQ) or switches (RH102AM, RH102AN, RH102AP) |
| Interoperability | Supports 100 Mbps fiber optic Ethernet interface with high electrical isolation (page 6) |
📦 Ordering Information
| Field | Details |
|---|---|
| Part Number | P0972TQ |
| Related Components | - Splitter/Combiner: P0926AH, RH972ZQ (0.25 m LC-LC cable) - Control Network Switches: RH102AP, RH102AM, RH102AN - SFP Module: SY-6038090 (100Base-FX) - Other Fiber Optic Cables: P0972TN (3 m), P0972TR (MT-RJ to LC), P0972TP (15 m) (page 48) |
| Marine Certification | Certified for marine environments when installed in a suitably modified G128 enclosure (contact Schneider Electric sales office for details) (page 49) |
| Related PSS Documents | - PSS 41S-2S6KSWR: EcoStruxure Foxboro SCADA RTU Station, RTV, and RTU Connect Secure Software - PSS 41H-8S6KAOV: EcoStruxure Foxboro SCADA SCD6000 RTU Architectural Overview - B0780DW: EcoStruxure Foxboro SCADA SCD6000 Hardware User's Guide |
