Product Description
Product Parameters for P0926GR (Type 5 Hypalon/XLPE Termination Cable)
📘 Product Overview
| Field | Details |
|---|---|
| Manufacturer | Foxboro (by Schneider Electric) |
| Part Number | P0926GR |

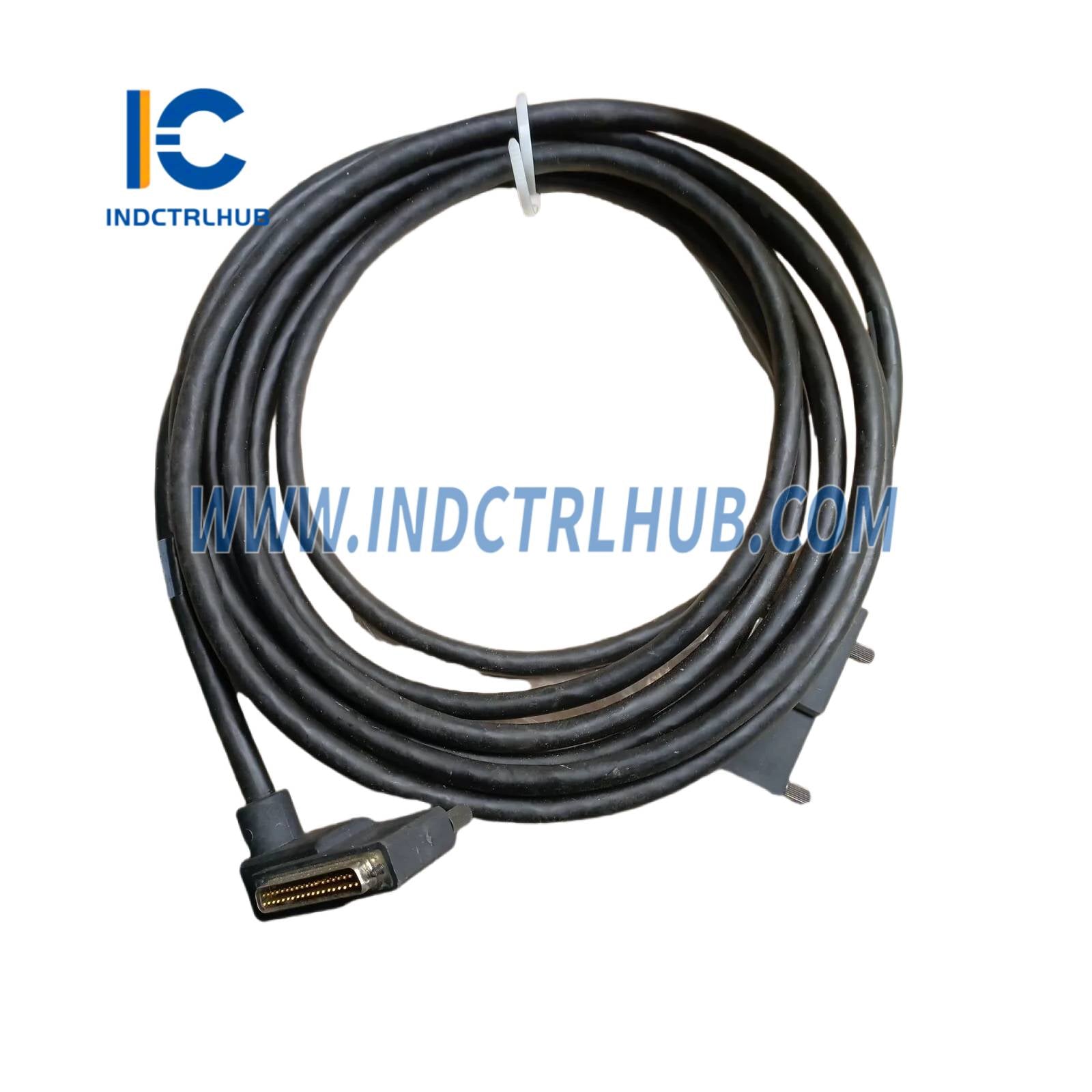

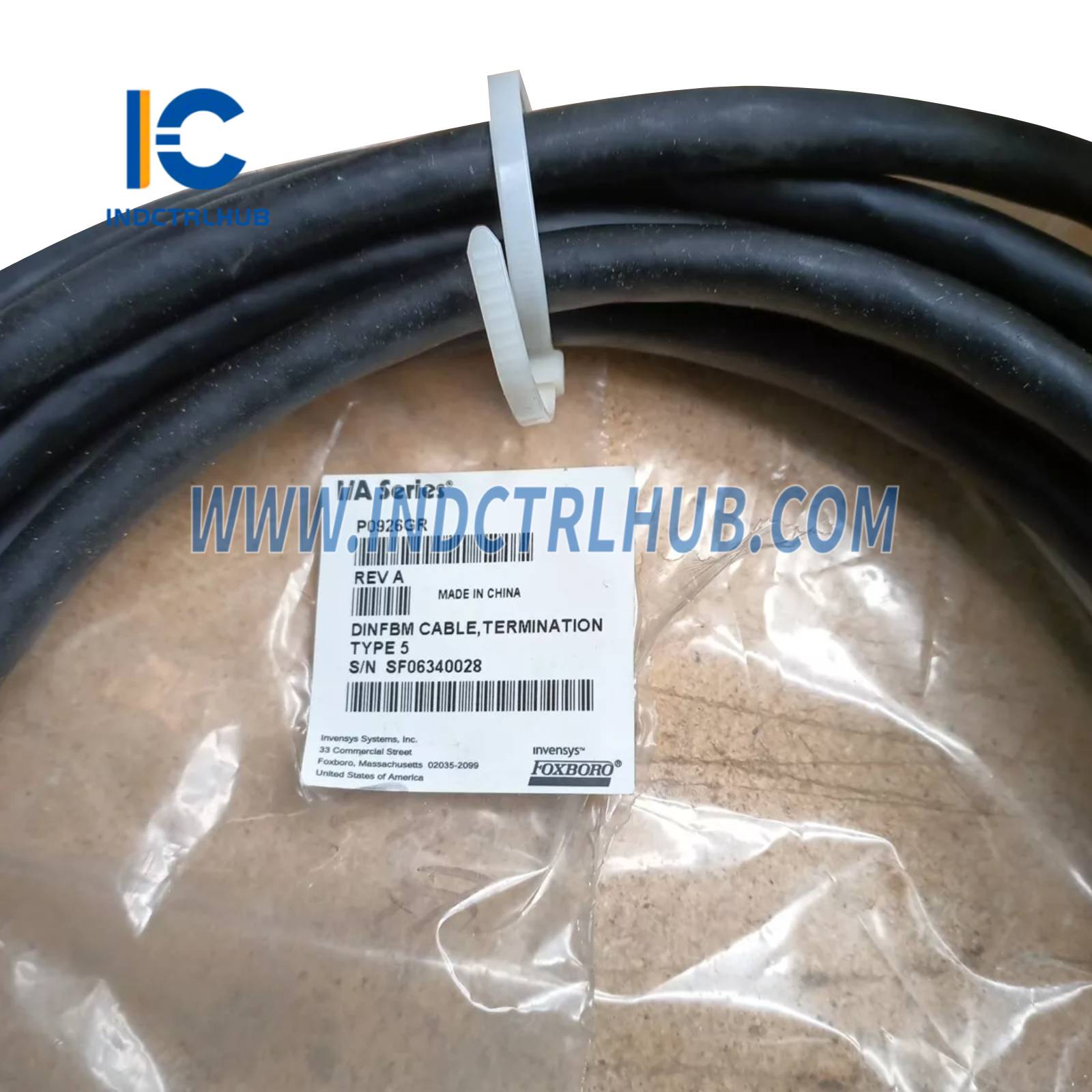

| Product Type | Type 5 Termination Cable (Hypalon/XLPE) |
| Function | Connects the FBM224 Modbus Communication Interface Module to its associated Termination Assembly (TA) for RS-232, RS-422, or RS-485 communication |
| System Compatibility | Used with FBM224 Module (P0926GG) and Termination Assemblies (P0926GH - Compression Screw, P0926PA - Ring Lug) in Foxboro Evo and I/A Series Systems |
| Associated PSS Document | PSS 21H-2Z24 |
⚙️ Functional Specifications
| Feature | Specification |
|---|---|
| Purpose | Provides a reliable connection between the FBM224 module (mounted on a modular baseplate) and its TA for Modbus communication (RS-232, RS-422, or RS-485) |
| Cable Type | Type 5 (specific to FBM224, supporting serial communication standards) |
| Connector Type | 37-pin male D-subminiature at both TA and baseplate ends |
| Communication Support | Supports: - RS-232 (via DB-25 connectors on TA) - RS-422 (4-wire) - RS-485 (twisted-pair shielded copper cable, single conductor pair) |
| Quantity Required | 1 per FBM224 module to connect to its TA |
| Availability Note | Hypalon/XLPE cables are no longer available for purchase; consider LSZH alternatives (e.g., P0928AZ) for new installations |
📏 Physical Specifications
| Feature | Specification |
|---|---|
| Cable Length | 5.0 m (16.4 ft) |
| Cable Material | Hypalon outer jacket, XLPE (cross-linked polyethylene) primary conductor insulation |
| Temperature Range | -40 to +90°C (-40 to +194°F) |
| Weight | Not explicitly specified (assumed lightweight, likely <1 kg for 5.0 m length based on similar cables) |
| Compatibility | Connects FBM224 module (P0926GG) on modular baseplate to TA (P0926GH or P0926PA) |
✅ Regulatory Compliance
| Certification Type | Details |
|---|---|
| Contextual Compliance | Inherits compliance from FBM224 subsystem: - UL/UL-C listed for Class I, Groups A-D, Division 2, T4 hazardous locations - CENELEC (DEMKO) certified EEx nA IIC T4 for Zone 2 per ATEX Directive 94/9/EC - Complies with EMC Directive 89/336/EEC (EN 50081-2, EN 50082-2, EN 61326 Annex A, CISPR 11 Class A) - Meets IEC 61000-4 standards for ESD, radiated field, surge, and other immunities |
| Conditions of Use | Must be installed per Modbus Communication Interface Module (FBM224) User’s Guide (B0400FK) and Standard and Compact 200 Series Subsystem User’s Guide (B0400FA) |
🔧 Additional Features
| Feature | Details |
|---|---|
| System Integration | Enables connection of FBM224 to TA, supporting up to 4 ports (configurable for RS-232, RS-422, or RS-485) for communication with up to 64 Modbus slave devices |
| Environmental Context | Suitable for harsh environments (Class G3 per ISA S71.04) when used with FBM224 and TA in appropriate enclosures |
| Alternative Cables | LSZH equivalent: P0928AZ (5.0 m, same Type 5, temperature range -40 to +105°C) |
📦 Ordering Information
| Field | Details |
|---|---|
| Part Number | P0926GR (Hypalon/XLPE, no longer available) |
| Quantity | 1 required per FBM224 module |
| Related Components | Used with FBM224 Module (P0926GG), Termination Assemblies (P0926GH, P0926PA), and Modular Baseplates (per PSS 21H-2W6 B4) |
| Alternative Part | P0928AZ (Type 5 LSZH, 5.0 m) for new installations |
