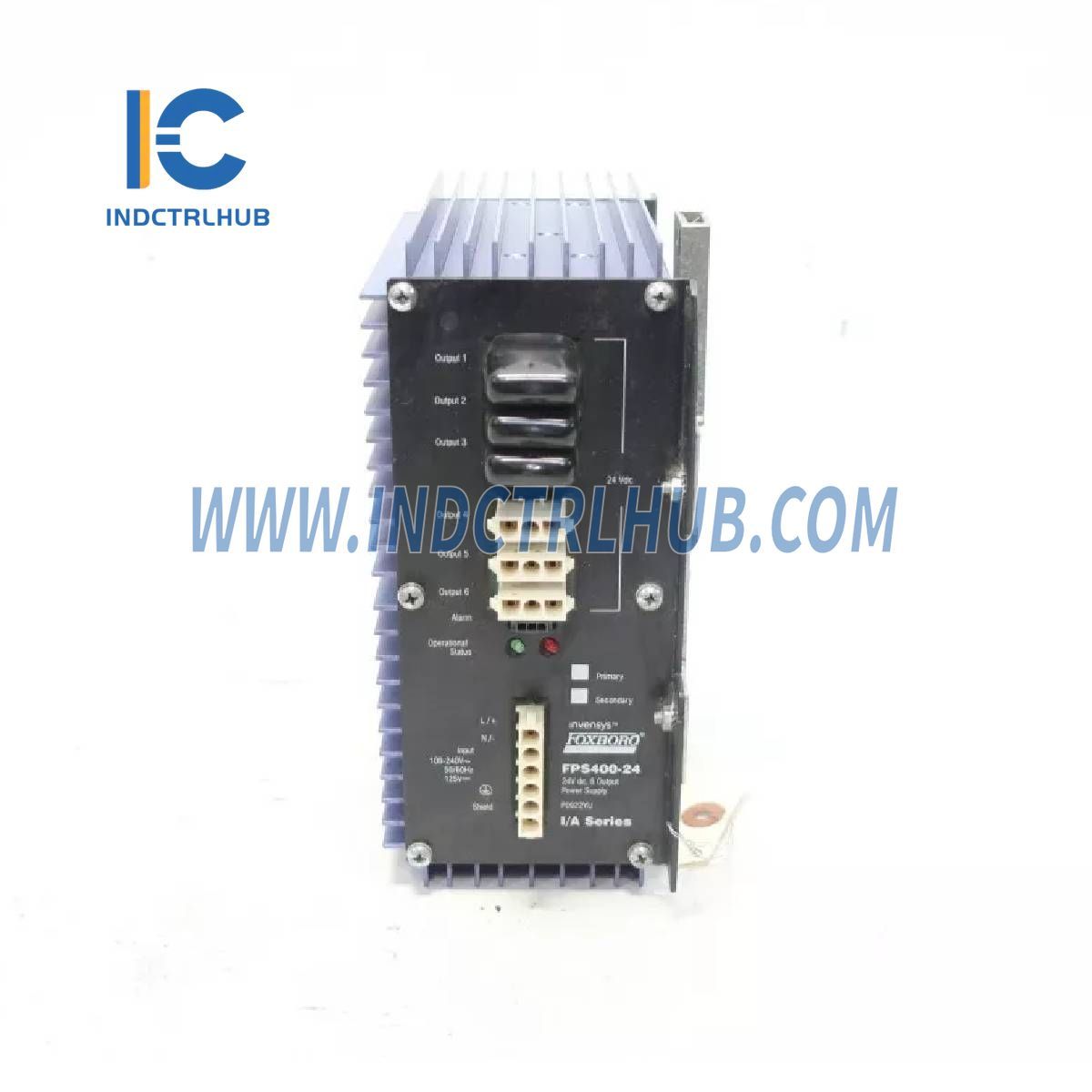

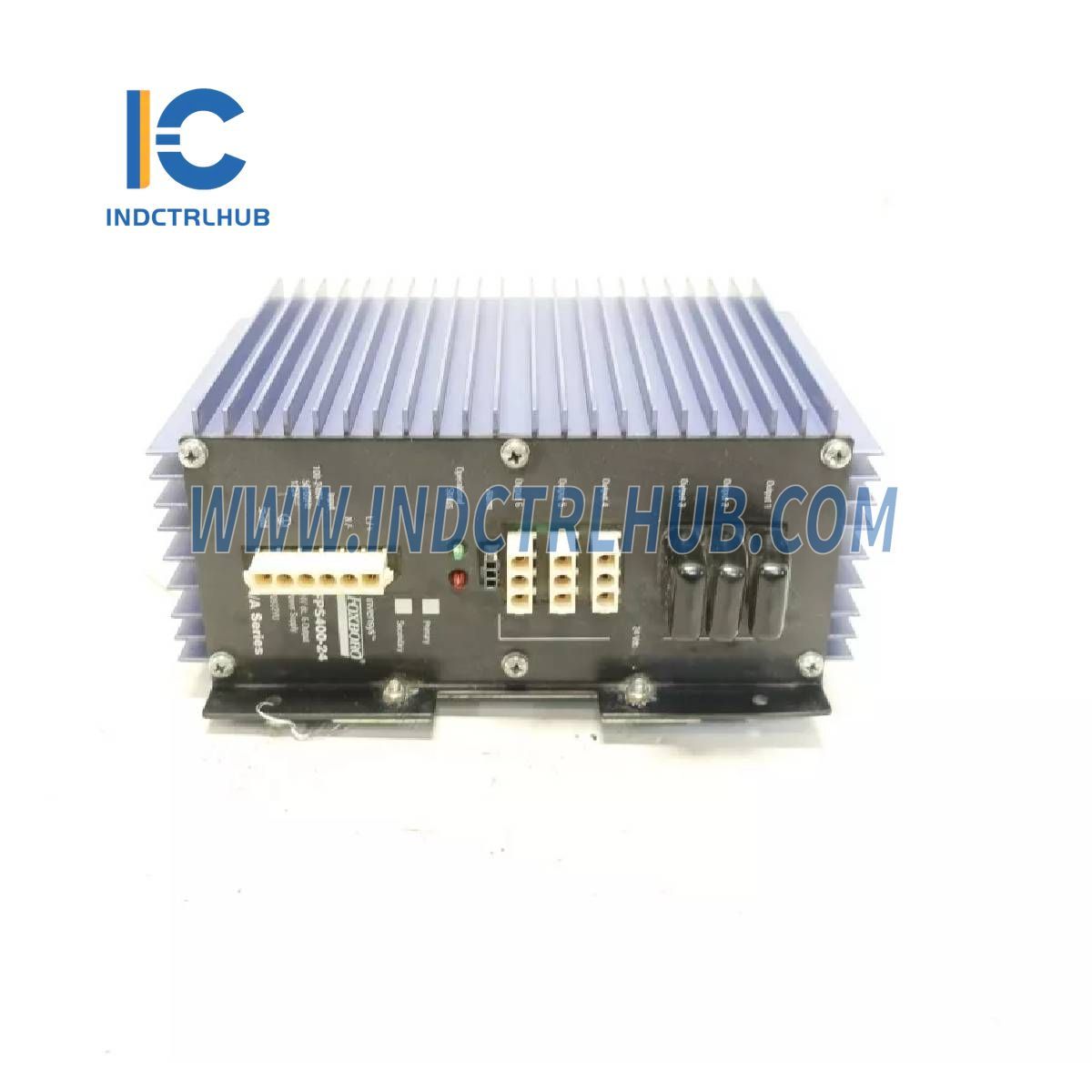

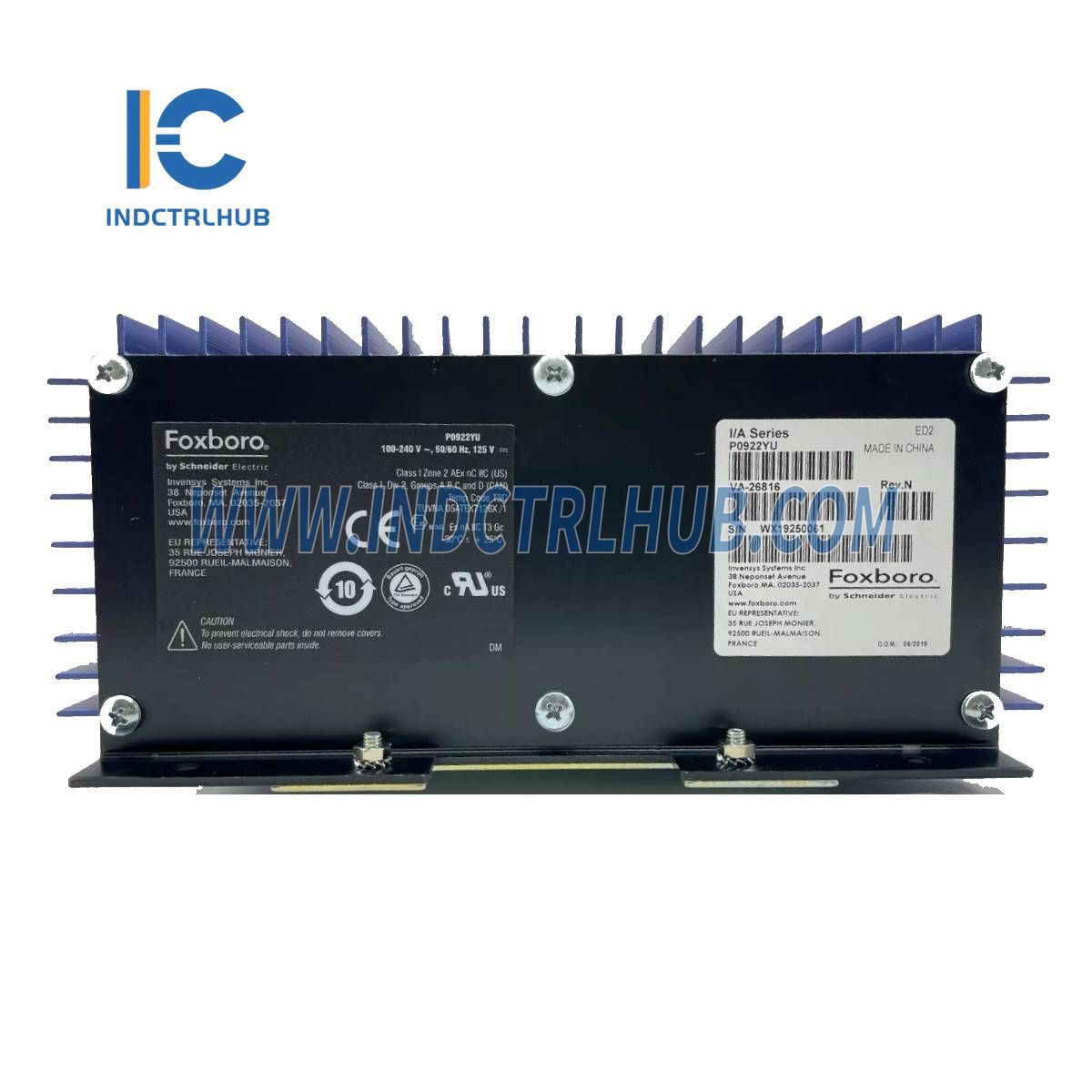

Foxboro P0922YU Standard 200 Series Power Supply
Foxboro P0922YU Standard 200 Series Power Supply
Manufacturer: Foxboro
Product No.: P0922YU
Condition:1000 in stock
Product Type: Standard 200 Series Power Supply
Product Origin: USA
Payment: T/T, Western Union
Weight: 2670g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Overview
The_Foxboro_ DCS Standard 200 Series Power Supply (Model P0922YU)_provides_24V DC output_to_standard 200 Series baseplates. It is designed for_industrial automation and process control applications, ensuring_reliable and efficient power delivery.
Technical Specifications
Input Specifications
|
Parameter |
Specification |
|---|---|
|
Input Voltage Range |
85 to 265V AC or 108 to 145V DC (125V DC nominal) |
|
Input Frequency Range |
47 to 63 Hz |
|
Input Current |
5.6A at 85V AC (RMS max), 2.5A at 230V AC (RMS max) |
|
Efficiency |
77% min at 85V AC__85% typical at 120V AC__92% typical at 230V AC__90% typical at 240V AC |
|
Inrush Current |
20A at 110V AC (cold start peak)__40A at 220V AC (cold start peak) |
|
Input Power |
453W typical at 120V AC, 50/60 Hz__439W typical at 230V AC, 60 Hz__441W typical at 230V AC, 50 Hz |
_
Output Specifications
|
Parameter |
Specification |
|---|---|
|
Output Voltage |
24.0V DC, ±0.2V DC nominal factory setting |
|
Voltage Line Regulation |
2.0% of Vout |
|
Voltage Load Regulation |
2.0% of Vout |
|
Ripple & Noise (20 MHz bandwidth) |
100mV peak-to-peak, 10mV RMS max |
|
Temperature Coefficient |
0.025% per °C |
|
Startup Time (Soft-Start) |
3s typical at 110V AC input, max 5s |
|
Overshoot |
No overshoot at power on/off, power failure, or short circuit removal |
|
Load Transient Response |
50-100% load change__Recovers within 50ms__Max voltage excursion <5% |
Protection Features
|
Parameter |
Specification |
|---|---|
|
Over Current Protection |
Current limiting to 110% of max at 25°C load |
|
Overvoltage Protection |
Factory set at 28.0V DC (for DIN rail FBM/FCM/FCP applications) |
|
Internal Fuse (Non-User Accessible) |
10A slow-blow (250V AC/DC) |
|
Isolation Voltages |
500V AC (output to chassis ground)__1,500V AC (input to chassis ground) |
|
Leakage Current |
<1.6mA when operated at 250V AC (47-63 Hz) |
_
Environmental Specifications
|
Condition |
Operating |
Storage |
|---|---|---|
|
Temperature |
-30 to 71°C (-58 to +160°F) |
-55 to +85°C (-65 to +185°F) |
|
Relative Humidity |
5 to 95% (non-condensing) |
5 to 95% (non-condensing) |
|
Altitude |
-300 to +3,000m (-1,000 to +10,000ft) |
-300 to +12,000m (-1,000 to +40,000ft) |
|
Vibration |
0.75g (5 to 500Hz) |
- |
_
Physical Specifications
|
Parameter |
Specification |
|---|---|
|
Mounting |
Horizontal or vertical_DIN-rail_(Use DIN rail clamp_P/N X0175TQ_for vertical mounting)__Can be_panel-mounted_with DIN rail bracket and clamp removed |
|
Cooling |
Convection cooled_(No fans) |
|
Weight (Net) |
2.67 kg (6.00 lb) |
|
Weight (Shipping) |
6 kg (11.00 lb) |
|
Indicators |
Red LED: Output undervoltage (<22V DC)__Green LED: Output within operating range (>23.5V DC) |
|
Finish |
Body & Front Cover: Foxboro DCS system blue (extruded aluminum)__Top & Bottom Caps: Black (die-cast aluminum) |
_
