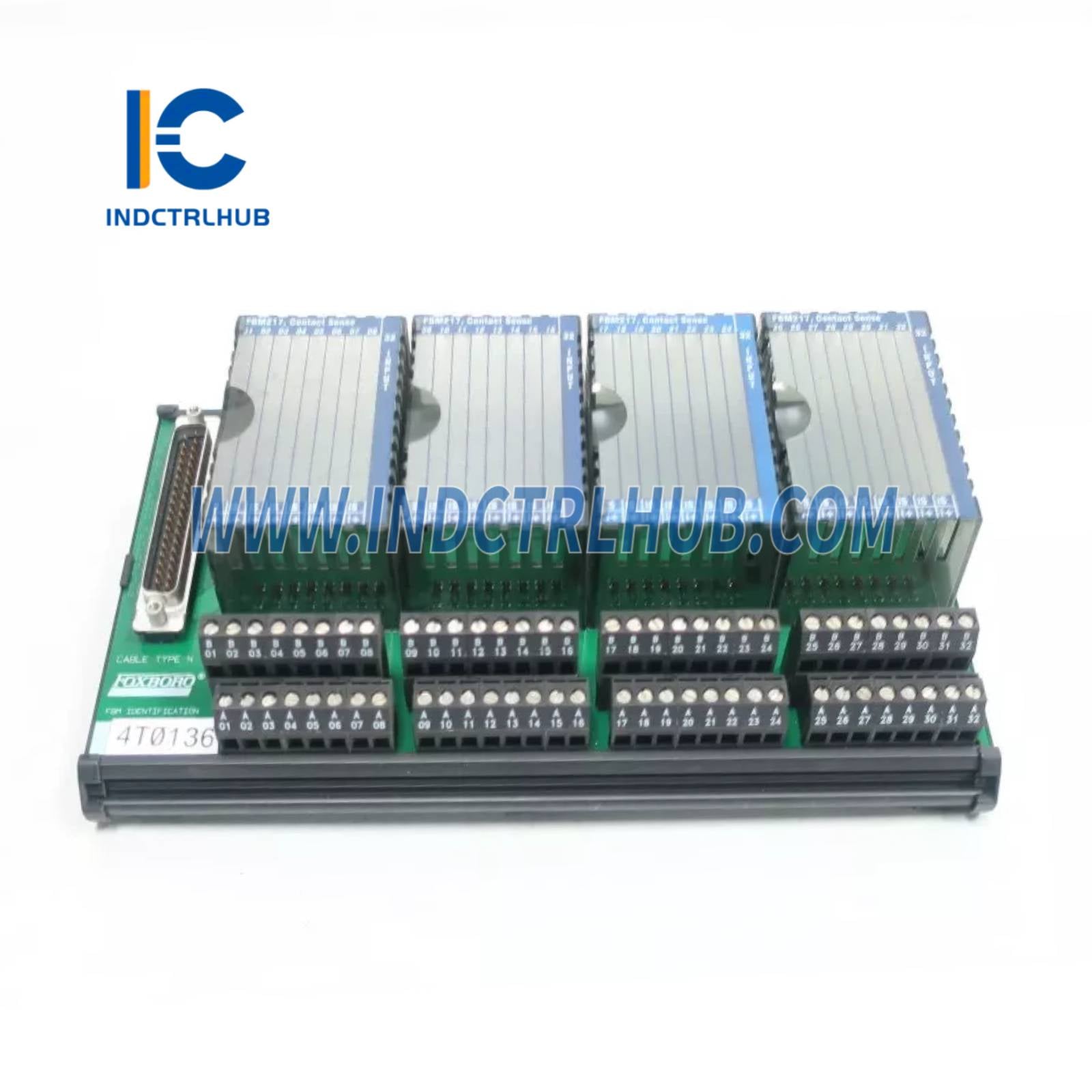

Product Parameters for P0916PW Termination Assembly (Superseded by RH916XZ)
📘 Product Overview

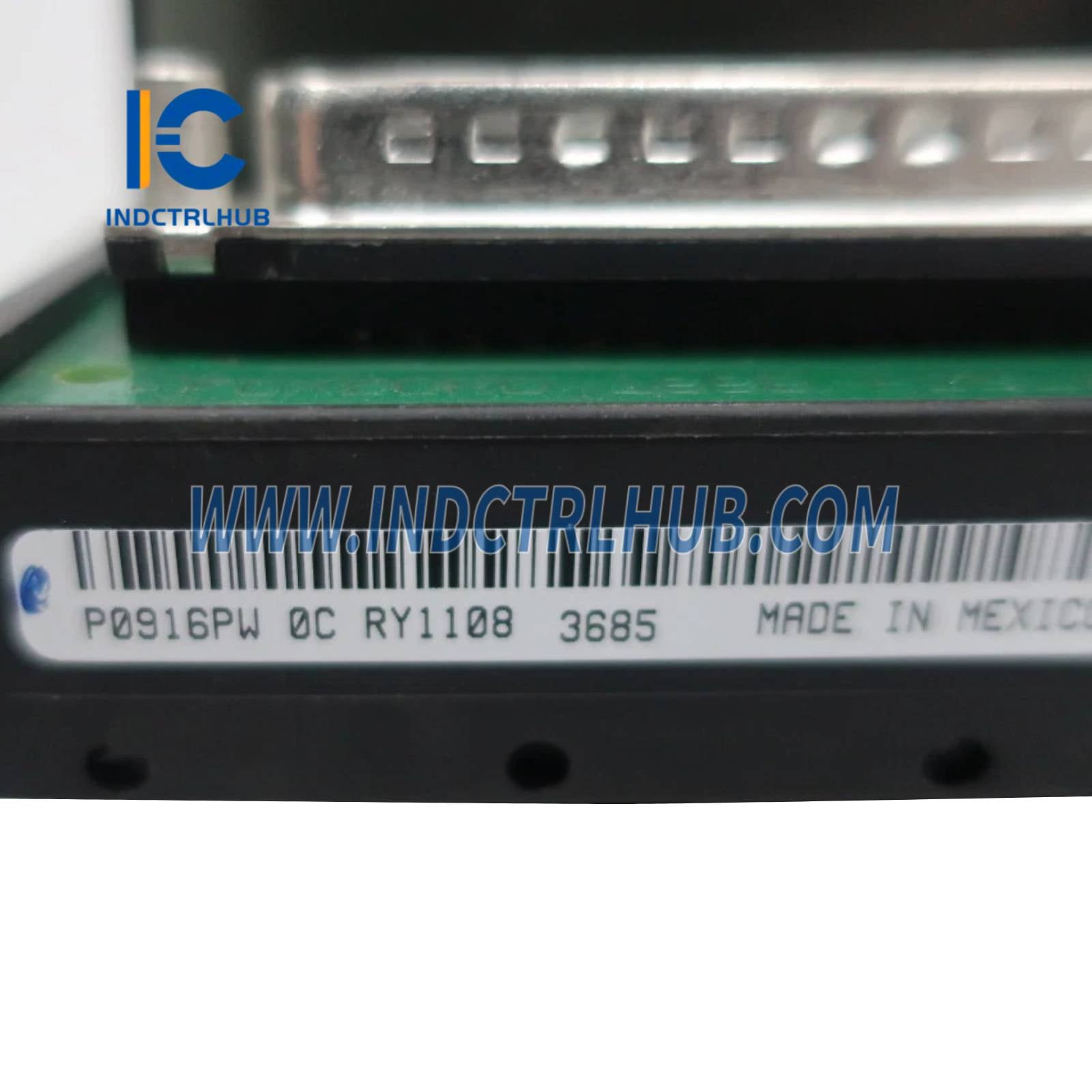

| Field | Details |
|---|---|
| Manufacturer | Foxboro (by Schneider Electric) |
| Part Number | P0916PW (superseded by RH916XZ) |
| Product Type | Termination Assembly (TA) for Compact FBM217 Discrete Input Module |
| Function | Supports 32 channels of contact sense inputs at 24 V DC with internal excitation |
| Associated Module | Compact FBM217 (RH101DF) |
| System Compatibility | Foxboro Evo Process Automation System, Compact 200 Series I/O Subsystem |
⚙️ Functional Specifications

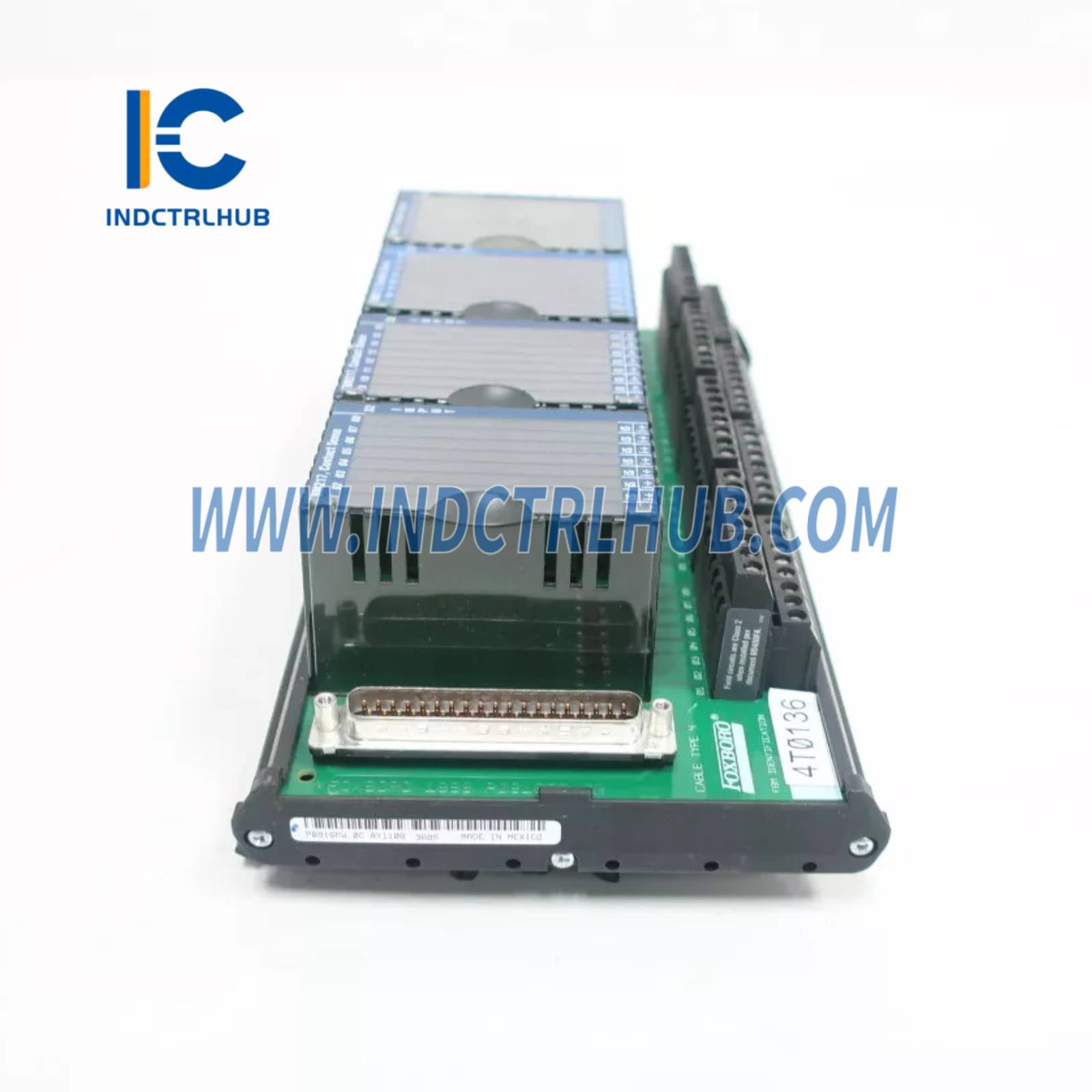

| Feature | Specification |
|---|---|
| Input Signal | 32 channels, contact sense, 24 V DC contact wetting from FBM; Passive feedthrough with group isolation |
| Input Voltage | 24 V DC (nominal open circuit voltage from FBM auxiliary +24 V DC power supply) |
| Input Current | Not explicitly specified for contact sense; typically 2.5 mA maximum short circuit current (based on similar TAs like RH924HA) |
| Logic Levels | Not explicitly specified; typically Logic Zero: 0 to 5 V DC, Logic One: 15 to 30 V DC (based on FBM217 input specs) |
| Source Resistance | On-State: 1 kΩ maximum; Off-State: 100 kΩ minimum (applies to all TAs per Page 4) |
| TA Type | Compression-type (C) |
| Isolation | Group isolation provided by termination assembly; withstands 600 V AC for one minute between group isolated channels and earth (ground) |
| Cable Type | Type 4 (P/PVC or LSZH) |
| Connector (TA to Cable) | 37-pin D-subminiature receptacle |
| Compatible Cables | Type 4 P/PVC: RH100CJ (0.5 m), RH100CK (1.0 m), RH100EQ (1.5 m), RH100CL (2.0 m), RH100CM (3.0 m), RH100CN (5.0 m), RH100CP (10.0 m), RH100CQ (15.0 m), RH100CR (20.0 m), RH100CS (25.0 m), RH100CT (30.0 m); Type 4 LSZH: RH100BN (0.5 m), RH100BP (1.0 m), RH100EN (1.5 m), RH100BQ (2.0 m), RH100BR (3.0 m), RH100BS (5.0 m), RH100BT (10.0 m), RH100BJ (15.0 m), RH100BV (20.0 m), RH100BW (25.0 m), RH100BX (30.0 m) |
| Application | Connects field wiring to Compact FBM217 for low-voltage contact sense inputs (e.g., switches, relays) |
| Signal Conditioning | Passive feedthrough (no active signal conditioning; uses FBM’s +24 V DC for contact wetting) |
| Certification Type | Type 1, 2, 4 (UL/UL-C listed for Class I, Div 2, Groups A-D; DEMKO certified Ex nA IIC T4 for Zone 2; Class 2 limited energy circuits) |
🔌 Physical Specifications
| Feature | Specification |
|---|---|
| Material | Polyamide (PA) |
| Weight | 233 mm width: ~454 g (1.0 lb, approximate) |
| Dimensions | Height: 125 mm (4.92 in); Width: 233 mm (9.17 in); Depth: Not specified (typical ~76 mm per similar TAs) |
| Mounting | DIN rail (supports 32 mm and 35 mm styles) |
| Field Termination Connections | Compression-type wiring: Solid: 0.2 to 4 mm² (24 to 12 AWG); Stranded: 0.2 to 2.5 mm² (24 to 12 AWG); Stranded with ferrules: 0.2 to 2.5 mm² (with or without plastic collar) |
🌡️ Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -20 to +70°C (-4 to +158°F) for polyamide |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Relative Humidity | 5 to 95% (non-condensing) |
| Altitude (Operating) | -300 to +3,000 m (-1,000 to +10,000 ft) |
| Altitude (Storage) | -300 to +12,000 m (-1,000 to +40,000 ft) |
| Contamination | Class G3 (harsh) per ISA S71.04, tested per EIA 364-65, Class III |
| Vibration | 0.75 m/s² (5 to 500 Hz) |
✅ Regulatory Compliance
| Standard | Details |
|---|---|
| Electromagnetic Compatibility (EMC) | European EMC Directive 2004/108/EC (pre-2016) and 2014/30/EU (post-2016); Meets EN 61326-1:2013 Class A Emissions and Industrial Immunity Levels |
| RoHS Compliance | Complies with European RoHS Directive 2011/65/EU |
| Product Safety (UL) | UL/UL-C listed for Class I, Groups A-D, Division 2, temperature code T4 when connected to specified Foxboro Evo processor modules per Standard and Compact 200 Series Subsystem User’s Guide (B0400FA); Meets Class 2 requirements per NFPA 70 and CSA C22.1 |
| Product Safety (Europe) | European Low Voltage Directive 2006/95/EC (pre-2016) and 2014/35/EU (post-2016); DEMKO certified Ex nA IIC T4 for Zone 2 when connected per B0400FA |
| Marine Certification | ABS Type Approved and Bureau Veritas Marine certified for Environmental Category EC31 |
| Certification Type | Type 1: UL/UL-C listed for Class I, Div 2, Groups A-D, T4; DEMKO Ex nA IIC T4 for Zone 2; Type 2: Associated apparatus for non-incendive field circuits (Class I, Div 2, Groups A-D; Zone 2, Group IIC); Type 4: Class 2 limited energy (60 V DC, 30 V AC, 100 VA or less) if customer equipment meets Class 2 |
📦 Ordering Information
| Field | Details |
|---|---|
| Grade | Industrial |
| Part Number | P0916PW (superseded by RH916XZ) |
| Associated Module | Compact FBM217 (RH101DF) |
| TA Type | Compression-type (polyamide) |
| Compatible Cables | Type 4 (P/PVC or LSZH, see Functional Specifications for part numbers) |
| Redundant Adapter | RH101AZ (for redundant FBM217 pair) |
