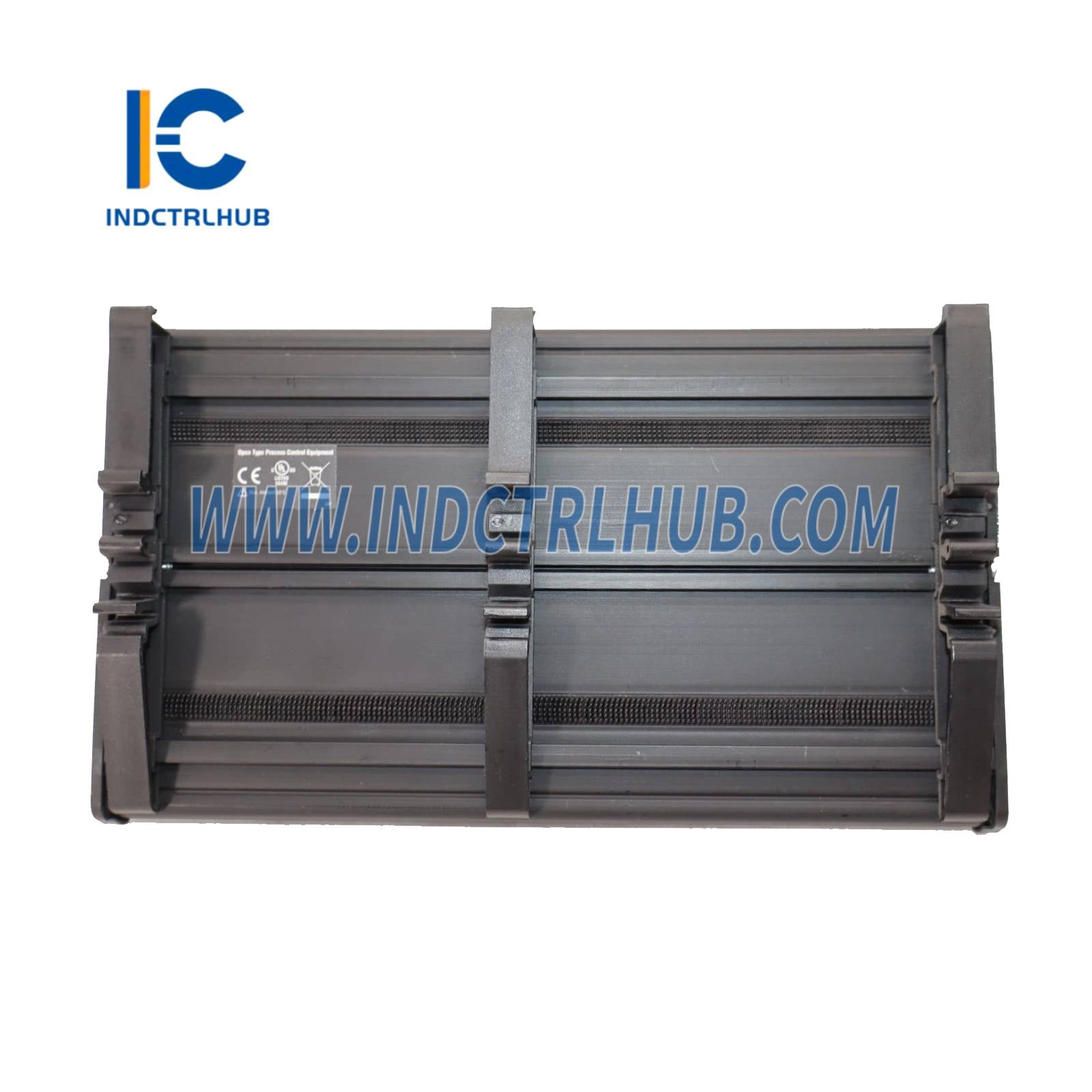

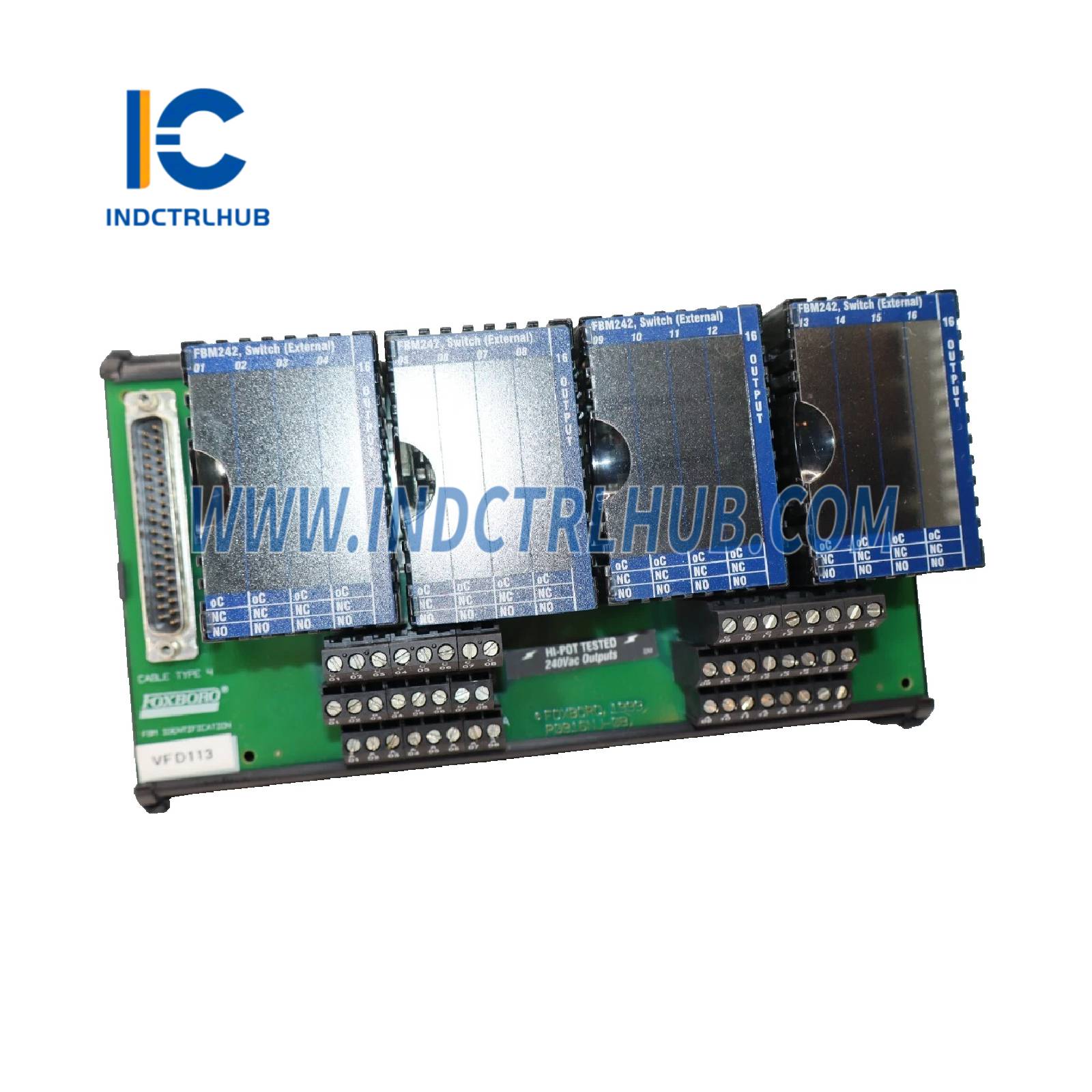

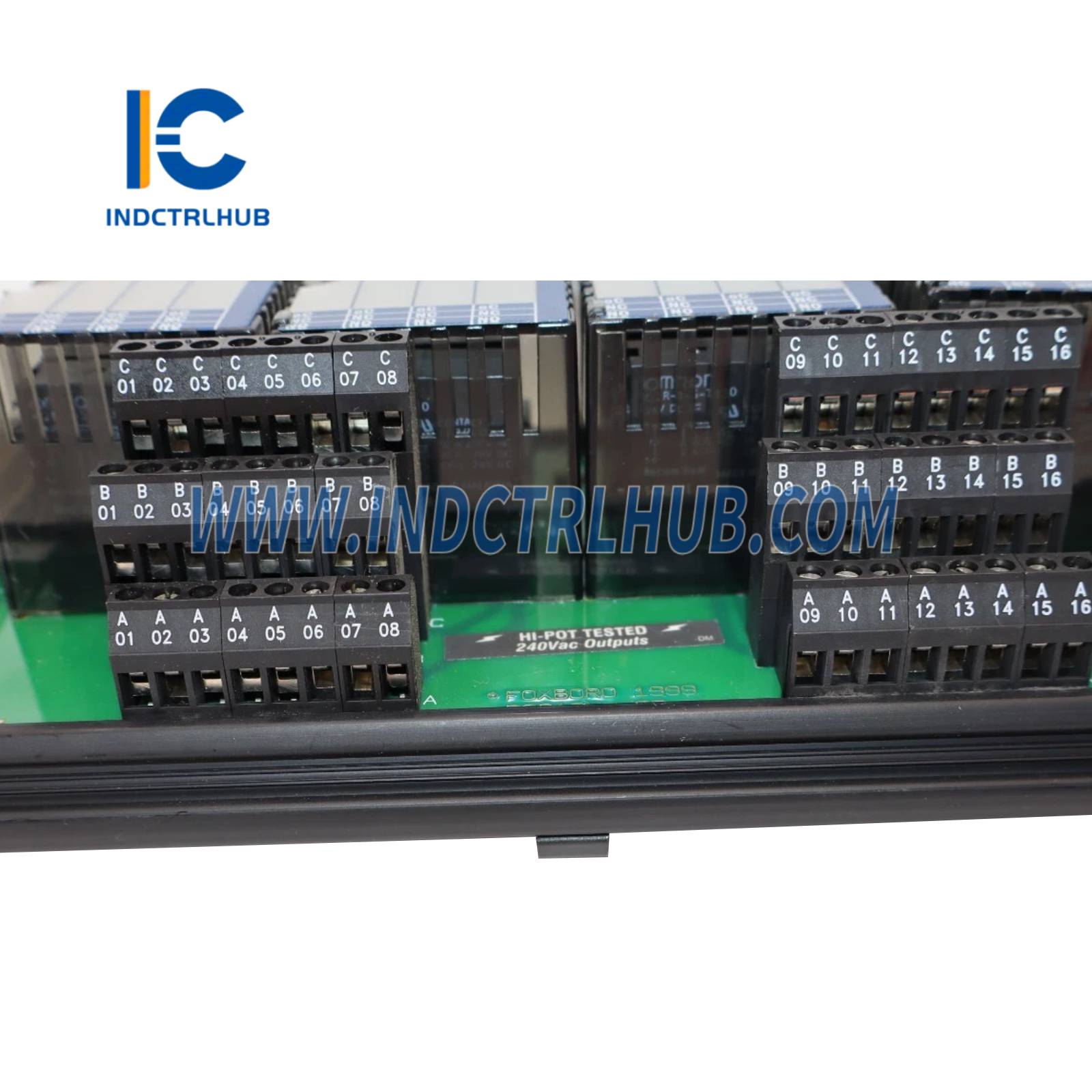

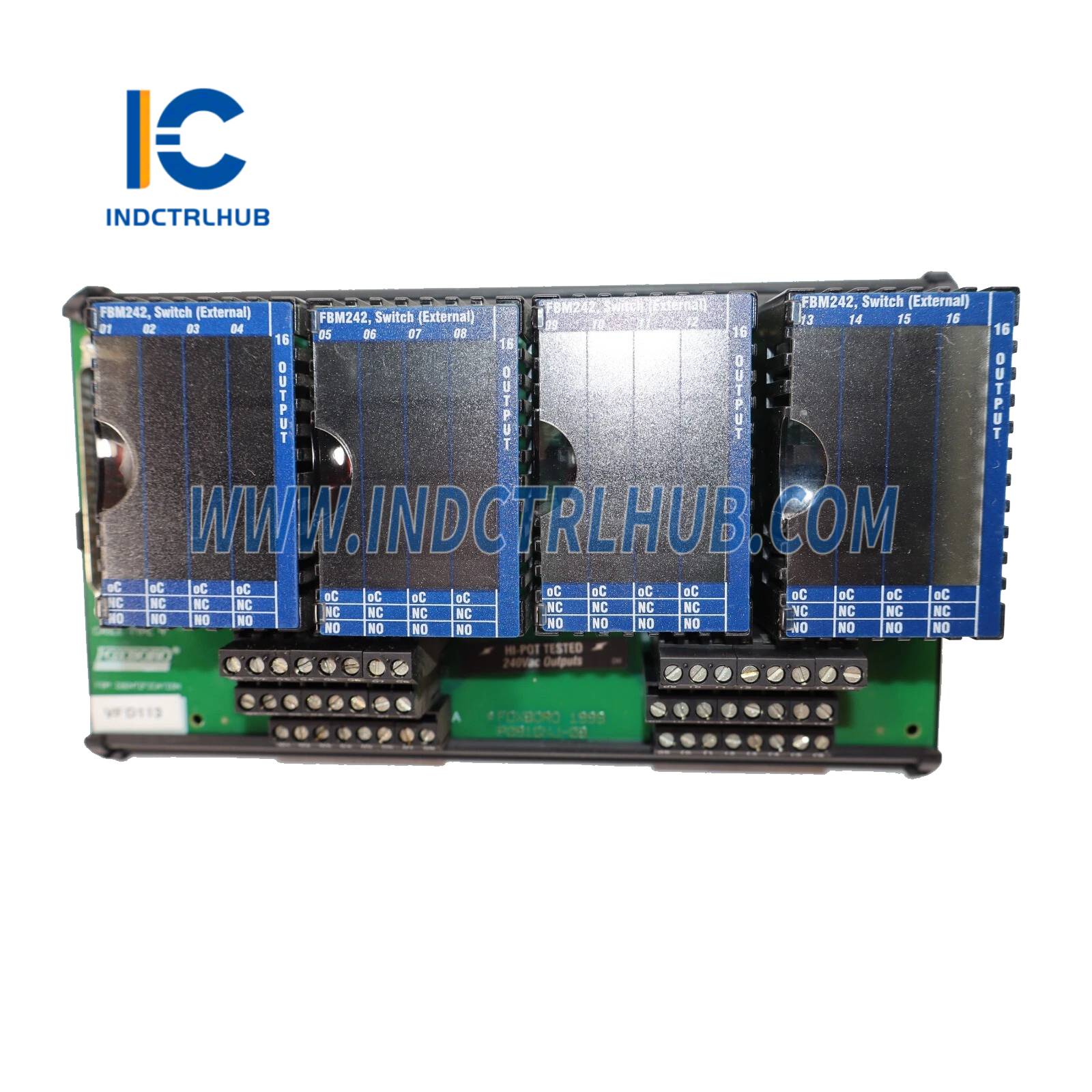

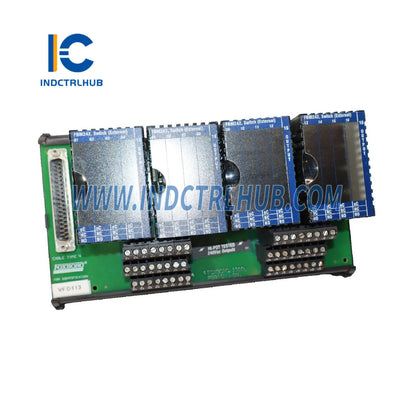

| Output Signal |
16 channels, switch (externally sourced) SPDT (Form C) relays; <30 V DC at 5 A max, 125 V DC at 600 mA (resistive load) or 240 mA (inductive load), up to 250 V AC at 5 A max |
| TA Type |
Compression-type (C) |
| Cable Type |
Type 4 (P/PVC or LSZH) |

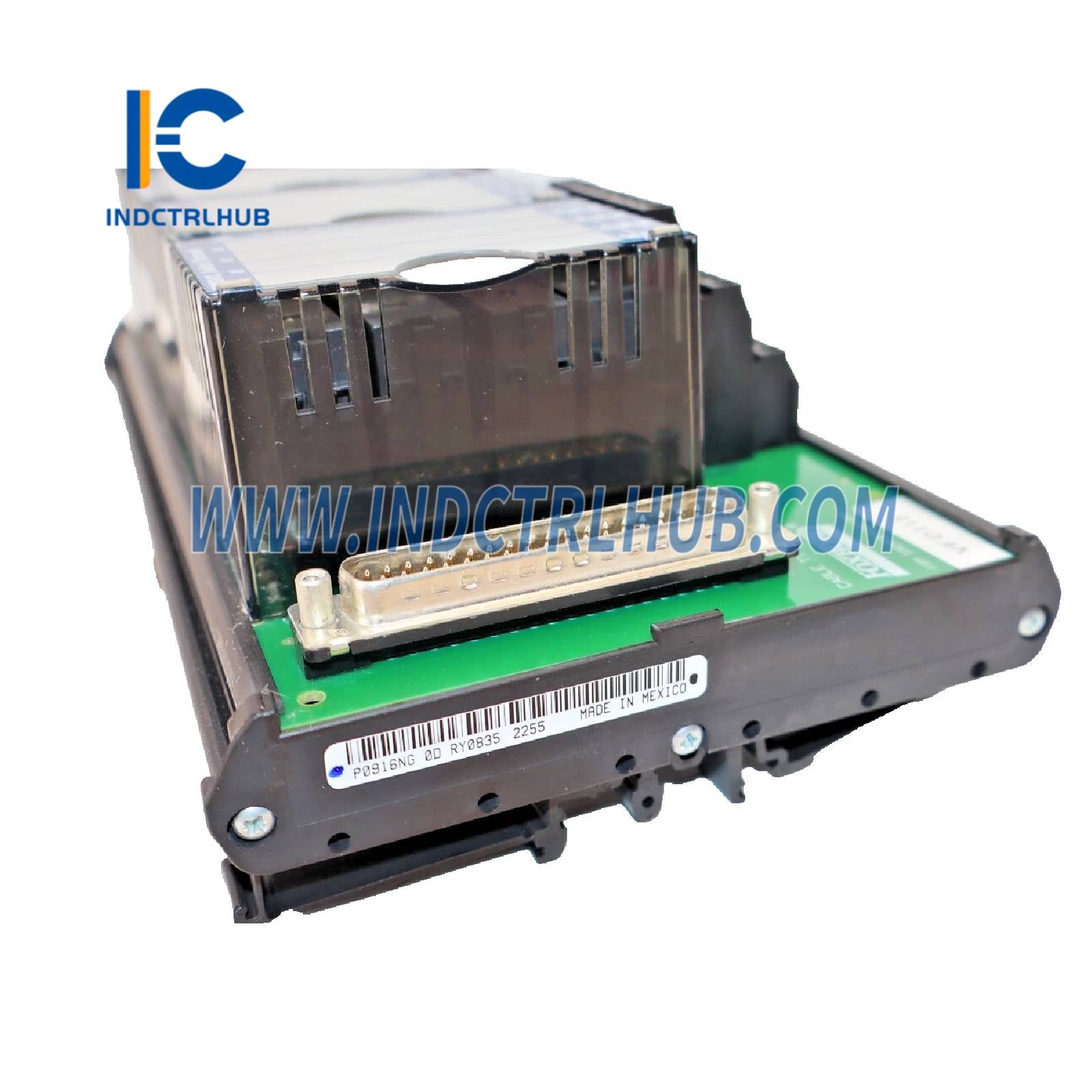

| Connector (TA to Cable) |

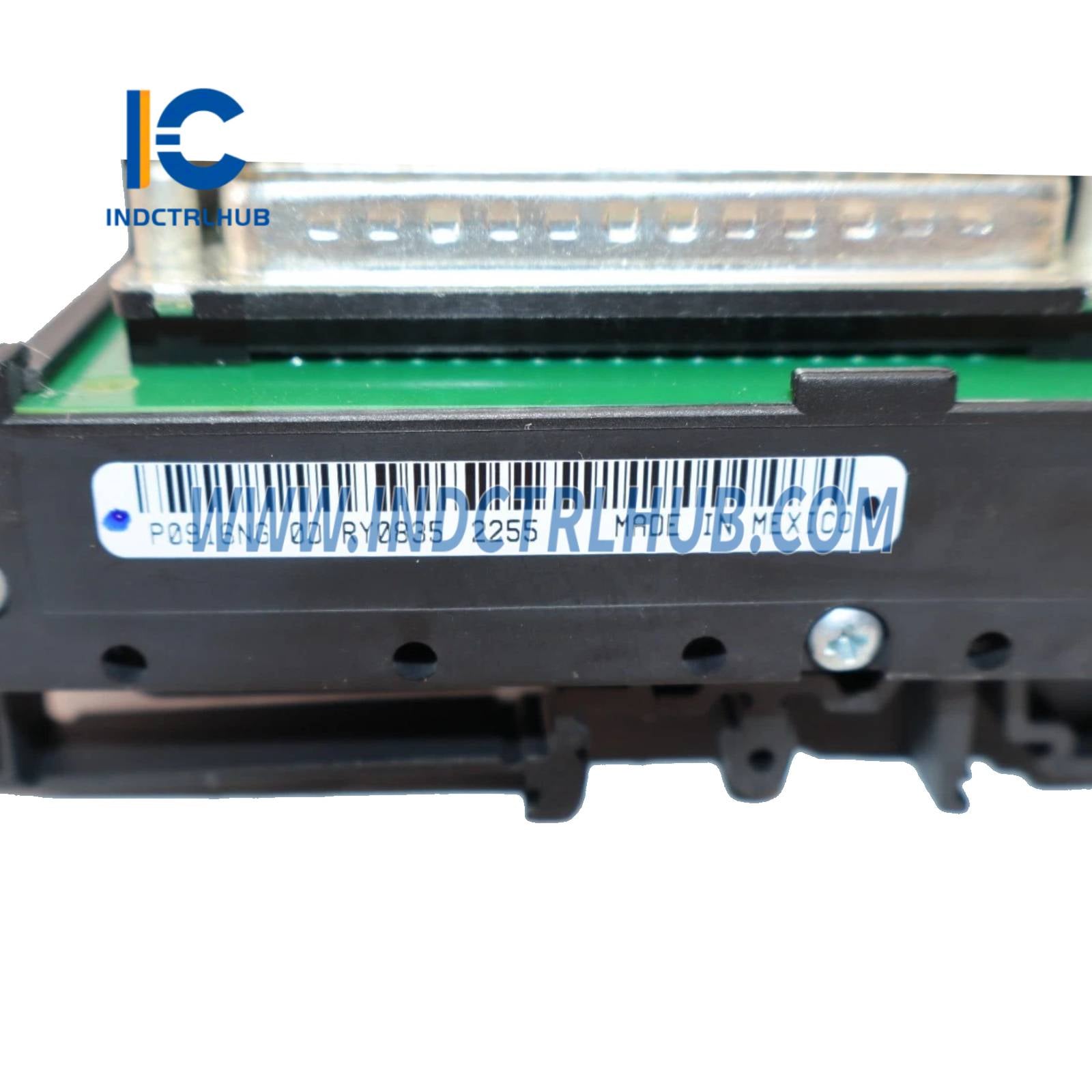

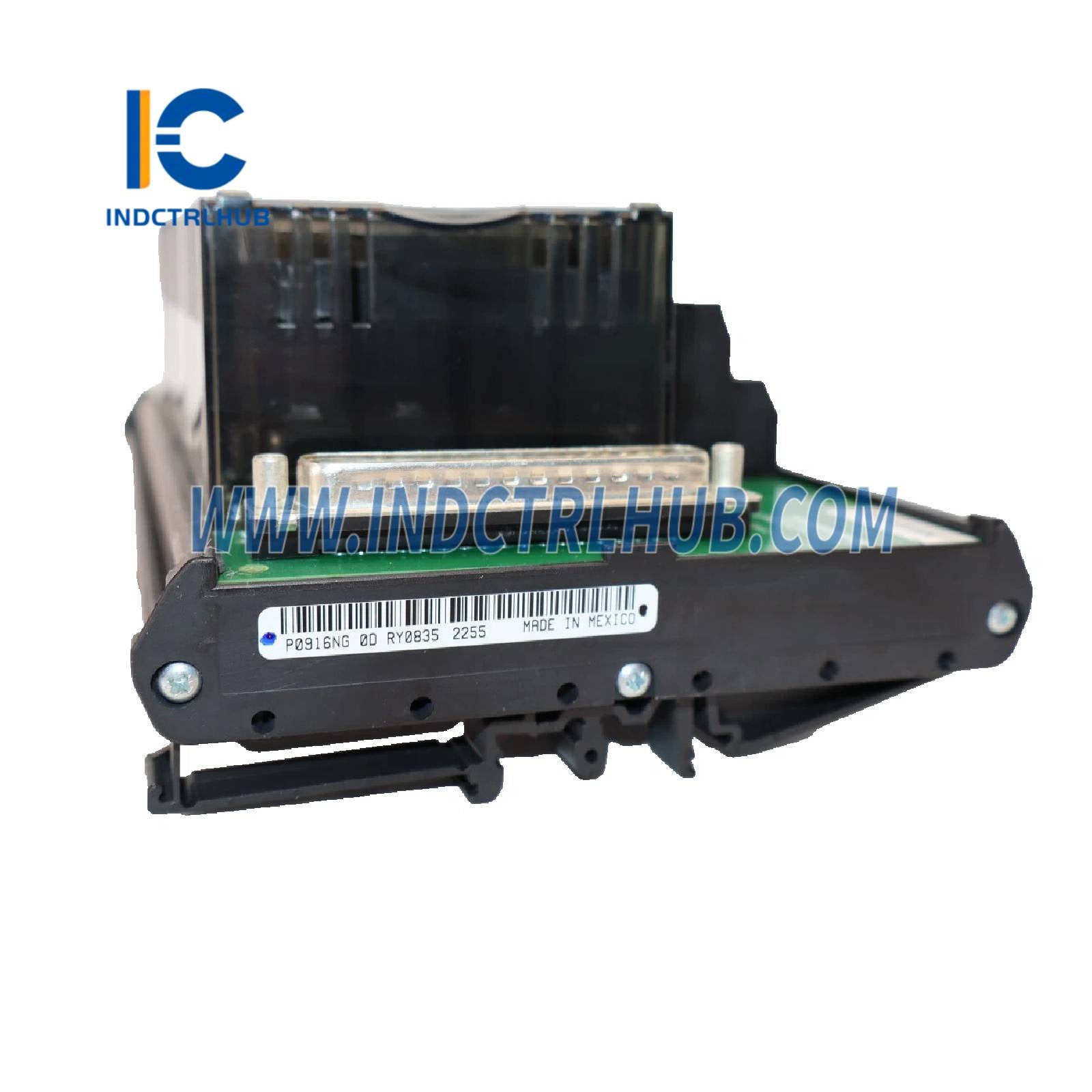

37-pin male D-subminiature |
| Compatible Cables |
Type 4 P/PVC: RH916FG (0.5 m), RH916FH (1.0 m), RH931RQ (2.0 m), RH916FJ (3.0 m), RH916FK (5.0 m), RH916FL (10.0 m), RH916FM (15.0 m), RH916FN (20.0 m), RH916FP (25.0 m), RH916FQ (30.0 m); Type 4 LSZH: RH928BA (0.5 m), RH928BB (1.0 m), RH928BC (2.0 m), RH928BD (3.0 m), RH928BE (5.0 m), RH928BF (10.0 m), RH928BG (15.0 m), RH928BH (20.0 m), RH928BJ (25.0 m), RH928BK (30.0 m) |
| Application |

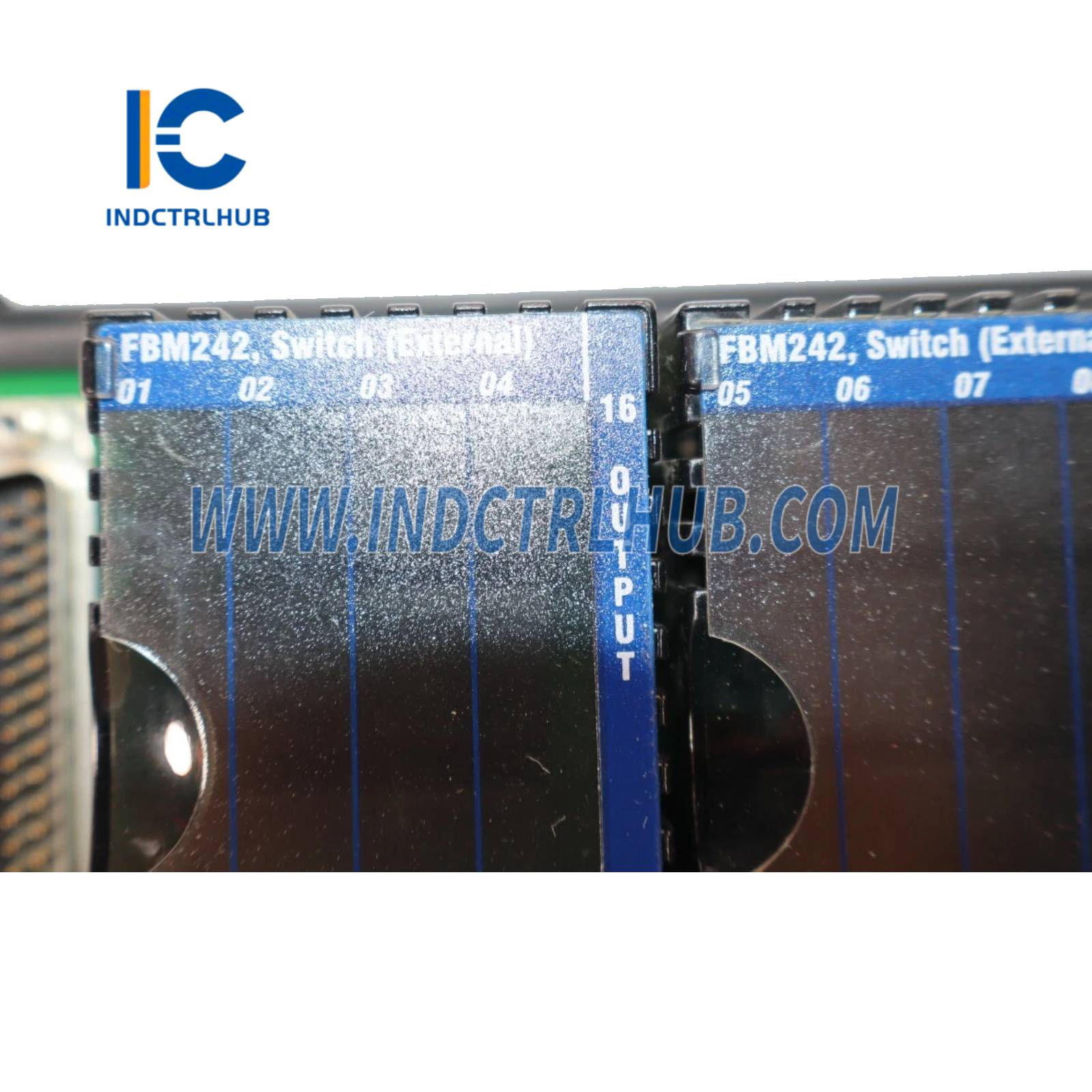

Connects field wiring to FBM242 for discrete output devices (e.g., relays, actuators) at low or high voltages |
| Output Protection |
None (relays are unsealed, general-purpose) |
| Certification Type |
Type 5 (see Regulatory Compliance) |
| Isolation |
Channel isolation provided by TA relays |
| Relay Specifications |
SPDT, plug-in, field-replaceable; Rated Load: 5 A at 30 V DC, 0.6 A at 125 V DC (resistive), 0.4 A at 125 V DC (inductive, L/R = 7 ms), 5 A at 240 V AC (resistive), 2 A at 240 V AC (inductive, P.F. = 0.4); Carry Current: 5 A; Max Operating Voltage: 240 V AC, 125 V DC; Max Switching Capacity: 1200 VA, 150 W; Min Permissible Load: 100 mA, 5 V DC; Contact Material: AgCdO; Contact Resistance: 30 mĪ© max; Life Expectancy: Mechanical: 20x10 |
