Product Description
Product Parameters for P0916FH Termination Cable
📘 Product Overview
| Field | Details |
|---|---|
| Manufacturer | Foxboro (by Schneider Electric) |
| Part Number | P0916FH (superseded by R-1916FH) |

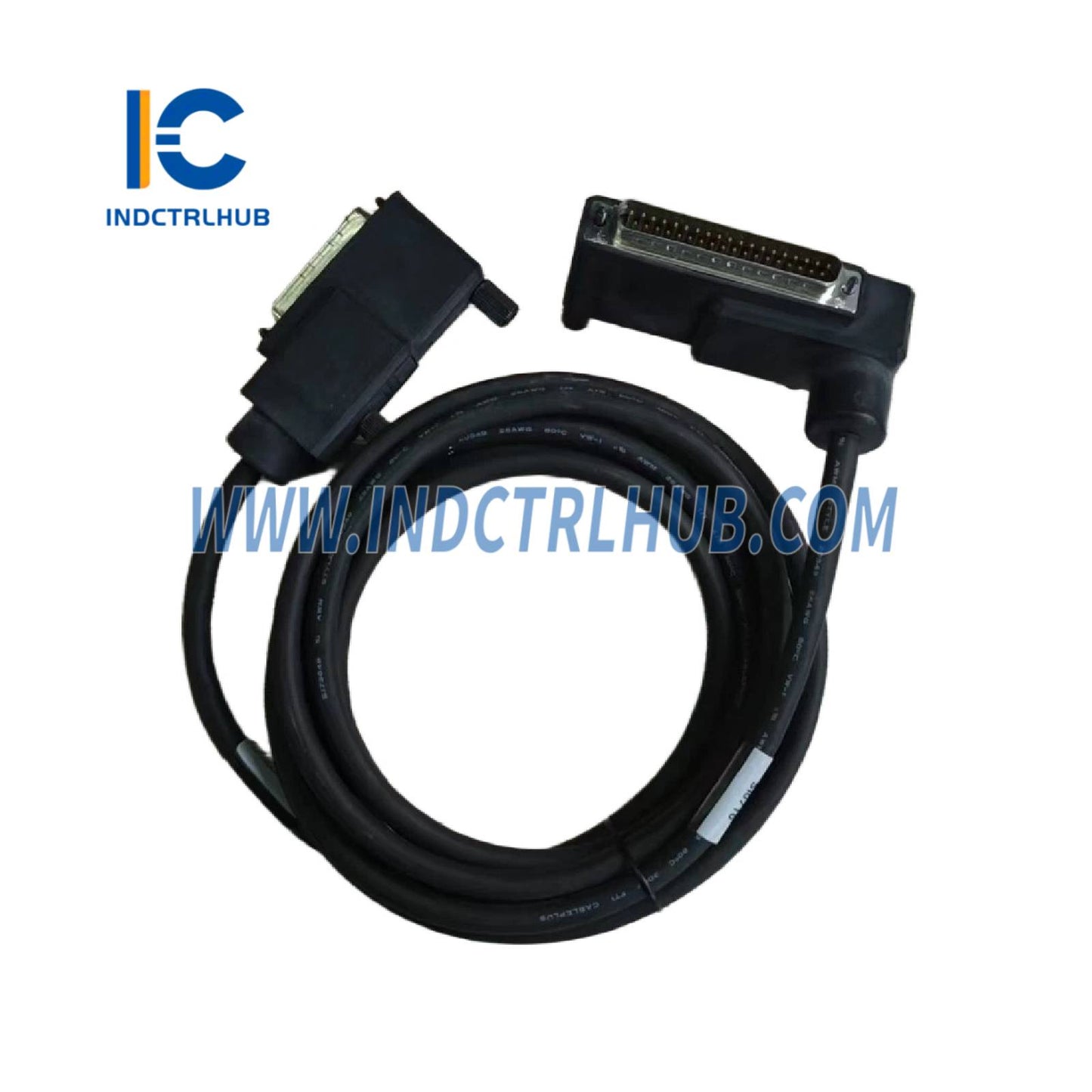

| Product Type | Termination Cable (Type 4, P/PVC) for FBM241/b/c/d Termination Assemblies |
| Function | Connects FBM241/b/c/d modules (baseplate) to Termination Assembly for discrete I/O signals |
| Associated Modules | FBM241 (RH914TG), FBM241b (RH914WK), FBM241c (RH914WM), FBM241d (RH914WP) |
| System Compatibility | Foxboro Evo Process Automation System, 200 Series |
⚙️ Functional Specifications
| Feature | Specification |
|---|---|

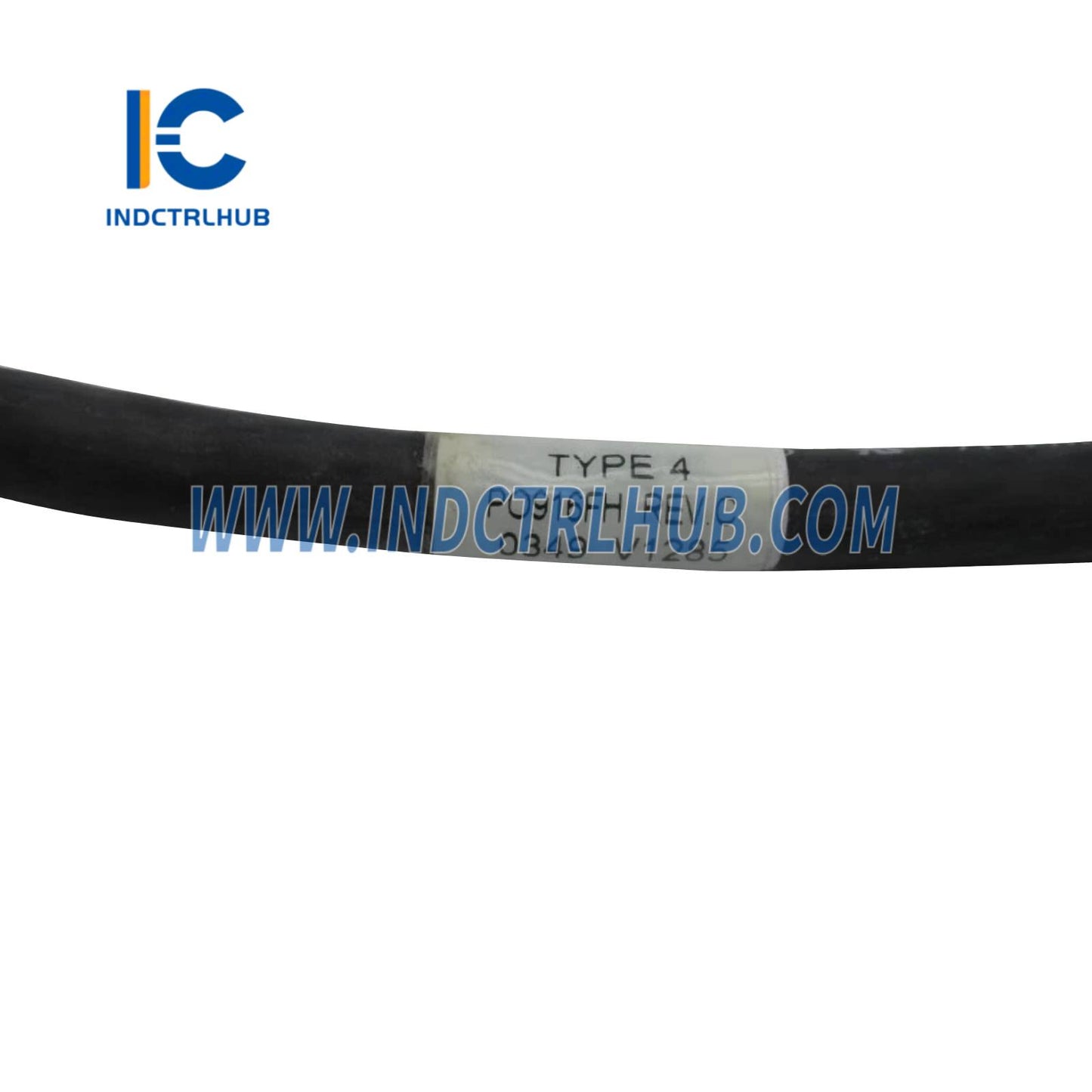

| Cable Type | Type 4, P/PVC (Polyurethane outer jacket, semi-rigid PVC primary conductor insulation) |
| Cable Length | 1.0 m (3.2 ft) |
| Connector (TA) | 37-pin male D-subminiature |
| Connector (Baseplate) | 37-pin male D-subminiature |
| Application | Provides feed-through connection between FBM241/b/c/d and TA for eight discrete input and eight discrete output signals |
| Compatibility | Supports DIN rail-mounted TAs (e.g., RH916UY, RH916AQ, RH916AR, RH916AE, RH916QV, RH916YH, RH916QG, RH916QX, RH916QZ, RH916QJ, RH916QL, RH916JV, RH916JW, RH916UD, RH916AW, RH916QQ, RH916YW, RH917MX, RH926DS) |
🔌 Physical Specifications
| Feature | Specification |
|---|---|
| Material | Polyurethane outer jacket, semi-rigid PVC primary conductor insulation |
| Temperature Range | -20 to +70°C (-4 to +158°F) |
| Cable Length | 1.0 m (3.2 ft) |
| Connector Type | 37-pin male D-subminiature (both ends) |
| Wiring Sizes (TA Connection) | Compression: 0.2 to 4 mm² (solid), 0.2 to 2.5 mm² (stranded), 24 to 12 AWG; Stranded with ferrules: 0.2 to 2.5 mm²; Ring-lug: 0.5 to 4 mm², 22 to 12 AWG with #6 size connectors |
🌡️ Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -20 to +70°C (-4 to +158°F) |
| Storage Temperature | -40 to +70°C (-40 to +158°F) |
| Relative Humidity | 5 to 95% (non-condensing) |
| Contamination | Class G3 (harsh) per ISA S71.04, tested per EIA 364-65, Class III |
| Vibration | 0.75 m/s² (5 to 500 Hz) |
✅ Regulatory Compliance
| Standard | Details |
|---|---|
| Electromagnetic Compatibility (EMC) | European EMC Directive 2004/108/EC (prior to April 20, 2016) and 2014/30/EU (beginning April 20, 2016); Meets EN61326-1:2013 Class A Emissions and Industrial Immunity Levels |
| Product Safety (UL) | UL/UL-C listed for Class I, Groups A-D, Division 2, T4; Class 2 per NEC (NFPA No.70) and CSA C22.1 when connected to specified Foxboro Evo processor modules |
| Product Safety (Europe) | European Low Voltage Directive 2006/95/EC (prior to April 20, 2016) and 2014/35/EU (beginning April 20, 2016); ATEX 94/9/EC (prior to April 20, 2016) and 2014/34/EU (beginning April 20, 2016); DEMKO certified Ex nA IIC T4 for Zone 2 |
| RoHS Compliance | Complies with European RoHS Directive 2011/65/EU |
| Marine Certification | ABS Type Approved and Bureau Veritas Marine certified for Environmental Category EC31 |
📦 Ordering Information
| Field | Details |
|---|---|
| Grade | Industrial |
| Part Number | P0916FH (superseded by R-1916FH) |
| Associated Modules | FBM241, FBM241b, FBM241c, FBM241d |
| Associated TAs | RH916UY, RH916AQ, RH916AR, RH916AE, RH916QV, RH916YH, RH916QG, RH916QX, RH916QZ, RH916QJ, RH916QL, RH916JV, RH916JW, RH916UD, RH916AW, RH916QQ, RH916YW, RH917MX, RH926DS |
| Cable Type | Type 4, P/PVC |
