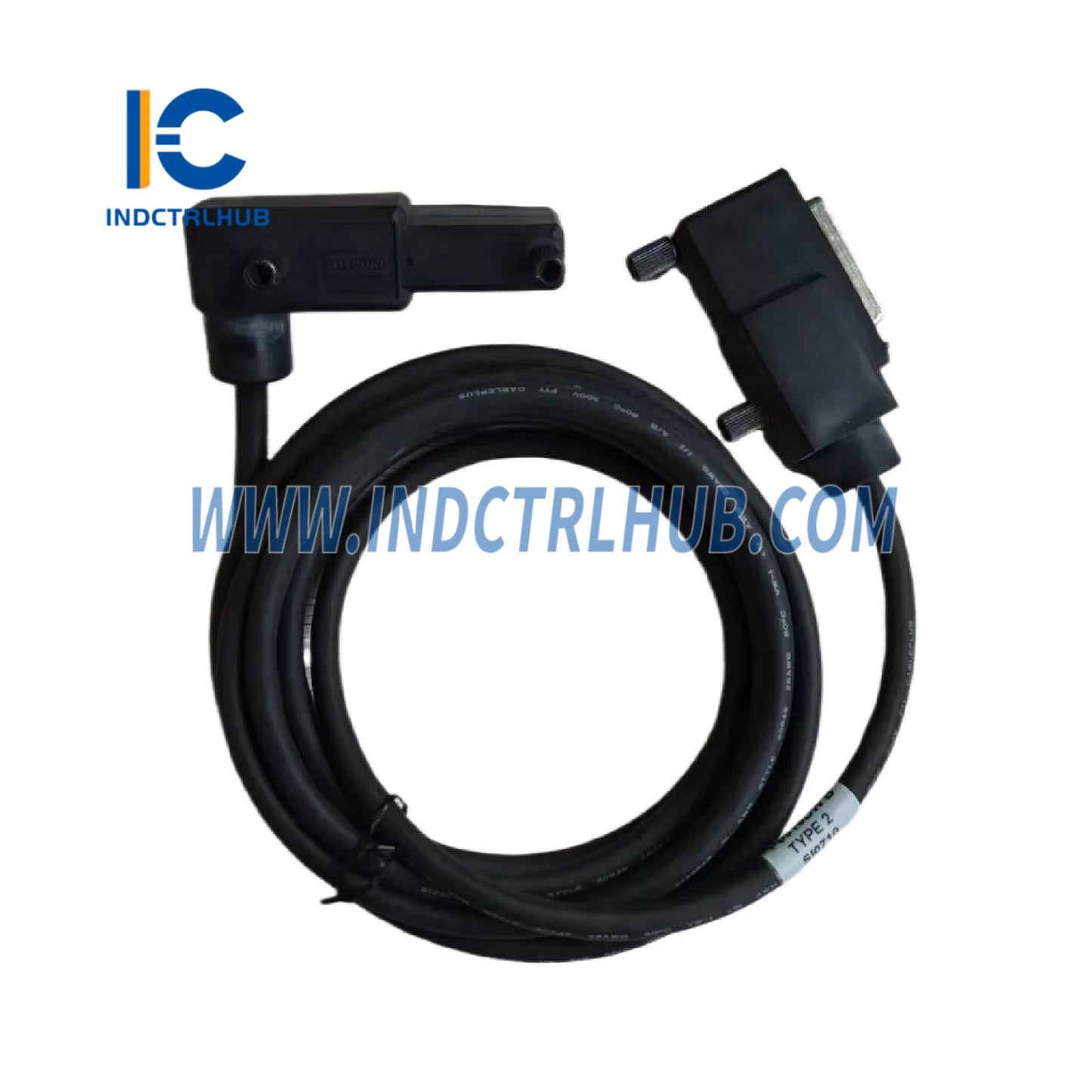

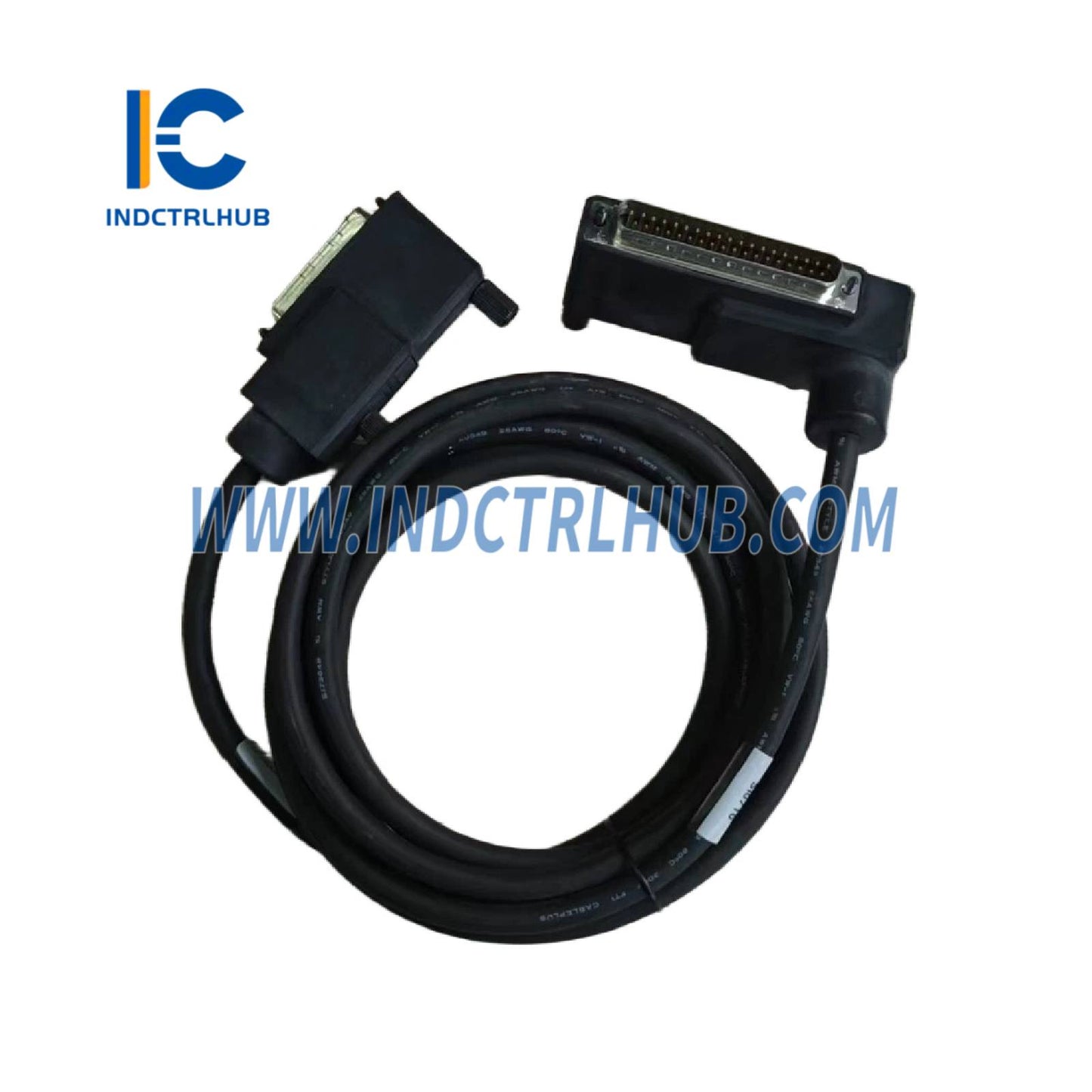

Foxboro P0916DW Termination Cable
Foxboro P0916DW Termination Cable
Manufacturer: Foxboro
Product No.: P0916DW
Condition:1000 in stock
Product Type: Termination Cable
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Parameters for P0916DW Termination Cable
__ Product Overview
| Field | Details |
|---|---|
| Manufacturer | Foxboro (by Schneider Electric) |
| Part Number | P0916DW |
| Product Type | Termination Cable (Type 2, P/PVC) for FBM202 Termination Assembly |
| Function | Connects FBM202 module (baseplate) to Termination Assembly for thermocouple/mV input signals |
| Associated Module | FBM202 (P0926EQ) |
| System Compatibility | I/A Series Process Automation System, 200 Series |
___ Functional Specifications
| Feature | Specification |
|---|---|
| Cable Type | Type 2, P/PVC (Polyurethane outer jacket, semi-rigid PVC primary conductor insulation) |
| Cable Length | 3.0 m (9.8 ft) |
| Connector (TA) | 25-pin male D-subminiature |
| Connector (Baseplate) | 37-pin male D-subminiature |
| Application | Provides feed-through connection between FBM202 and TA for eight thermocouple/mV input signals and one RTD reference junction |
| Compatibility | Supports DIN rail mounted TAs (P0916AC, P0916AD, P0916XH, P0917JL) and baseplate-mounted TAs (P0929CN) |
__ Physical Specifications
| Feature | Specification |
|---|---|
| Material | Polyurethane outer jacket, semi-rigid PVC primary conductor insulation |
| Temperature Range | -20 to +80°C (-4 to +176°F) |
| Cable Length | 3.0 m (9.8 ft) |
| Connector Types | 25-pin male D-subminiature (TA end); 37-pin male D-subminiature (baseplate end) |
__ï¸ Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -20 to +80°C (-4 to +176°F) |
| Storage Temperature | -40 to +70°C (-40 to +158°F) |
| Relative Humidity | 5 to 95% (non-condensing) |
| Contamination | Class G3 (harsh) per ISA S71.04, tested per EIA 364-65, Class III |
| Vibration | 0.75 m/s² (5 to 500 Hz) |
_ Regulatory Compliance
| Standard | Details |
|---|---|
| Electromagnetic Compatibility (EMC) | European EMC Directive 89/336/EEC; EN 50081-2, EN 50082-2, EN 61326 Annex A (Industrial Levels), CISPR 11 Class A; IEC 61000-4-2 (ESD, 4 kV contact, 8 kV air), IEC 61000-4-3 (Radiated, 10 V/m), IEC 61000-4-4 (EFT, 2 kV), IEC 61000-4-5 (Surge, 2 kV power, 1 kV I/O), IEC 61000-4-6 (Conducted, 10 V rms), IEC 61000-4-8 (Magnetic, 30 A/m) |
| Product Safety (UL) | UL/UL-C listed for Class I, Groups A-D, Division 2, T4; Class 2 per NEC (NFPA No.70) and CSA C22.1 when connected to specified I/A Series processor modules |
| Product Safety (Europe) | European Low Voltage Directive 73/23/EEC; ATEX 94/9/EC; CENELEC (DEMKO) EEx nA IIC T4 for Zone 2 |
| RoHS Compliance | Not explicitly stated; assumed compliant with European standards based on 2013 document context |
__ Ordering Information
| Field | Details |
|---|---|
| Grade | Industrial |
| Part Number | P0916DW |
| Associated Module | FBM202 (P0926EQ) |
| Associated TA | P0916AC (PVC, compression), P0916AD (PVC, ring lug), P0916XH (PA, compression), P0917JL (PA, ring lug), P0929CN (PC/ABS, baseplate-mounted) |
| Cable Type | Type 2, P/PVC |
Product Description
Product Parameters for P0916DW Termination Cable
__ Product Overview
| Field | Details |
|---|---|
| Manufacturer | Foxboro (by Schneider Electric) |
| Part Number | P0916DW |
| Product Type | Termination Cable (Type 2, P/PVC) for FBM202 Termination Assembly |
| Function | Connects FBM202 module (baseplate) to Termination Assembly for thermocouple/mV input signals |
| Associated Module | FBM202 (P0926EQ) |
| System Compatibility | I/A Series Process Automation System, 200 Series |
___ Functional Specifications
| Feature | Specification |
|---|---|
| Cable Type | Type 2, P/PVC (Polyurethane outer jacket, semi-rigid PVC primary conductor insulation) |
| Cable Length | 3.0 m (9.8 ft) |
| Connector (TA) | 25-pin male D-subminiature |
| Connector (Baseplate) | 37-pin male D-subminiature |
| Application | Provides feed-through connection between FBM202 and TA for eight thermocouple/mV input signals and one RTD reference junction |
| Compatibility | Supports DIN rail mounted TAs (P0916AC, P0916AD, P0916XH, P0917JL) and baseplate-mounted TAs (P0929CN) |
__ Physical Specifications
| Feature | Specification |
|---|---|
| Material | Polyurethane outer jacket, semi-rigid PVC primary conductor insulation |
| Temperature Range | -20 to +80°C (-4 to +176°F) |
| Cable Length | 3.0 m (9.8 ft) |
| Connector Types | 25-pin male D-subminiature (TA end); 37-pin male D-subminiature (baseplate end) |
__ï¸ Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -20 to +80°C (-4 to +176°F) |
| Storage Temperature | -40 to +70°C (-40 to +158°F) |
| Relative Humidity | 5 to 95% (non-condensing) |
| Contamination | Class G3 (harsh) per ISA S71.04, tested per EIA 364-65, Class III |
| Vibration | 0.75 m/s² (5 to 500 Hz) |
_ Regulatory Compliance
| Standard | Details |
|---|---|
| Electromagnetic Compatibility (EMC) | European EMC Directive 89/336/EEC; EN 50081-2, EN 50082-2, EN 61326 Annex A (Industrial Levels), CISPR 11 Class A; IEC 61000-4-2 (ESD, 4 kV contact, 8 kV air), IEC 61000-4-3 (Radiated, 10 V/m), IEC 61000-4-4 (EFT, 2 kV), IEC 61000-4-5 (Surge, 2 kV power, 1 kV I/O), IEC 61000-4-6 (Conducted, 10 V rms), IEC 61000-4-8 (Magnetic, 30 A/m) |
| Product Safety (UL) | UL/UL-C listed for Class I, Groups A-D, Division 2, T4; Class 2 per NEC (NFPA No.70) and CSA C22.1 when connected to specified I/A Series processor modules |
| Product Safety (Europe) | European Low Voltage Directive 73/23/EEC; ATEX 94/9/EC; CENELEC (DEMKO) EEx nA IIC T4 for Zone 2 |
| RoHS Compliance | Not explicitly stated; assumed compliant with European standards based on 2013 document context |
__ Ordering Information
| Field | Details |
|---|---|
| Grade | Industrial |
| Part Number | P0916DW |
| Associated Module | FBM202 (P0926EQ) |
| Associated TA | P0916AC (PVC, compression), P0916AD (PVC, ring lug), P0916XH (PA, compression), P0917JL (PA, ring lug), P0929CN (PC/ABS, baseplate-mounted) |
| Cable Type | Type 2, P/PVC |
