Product Description
Product Parameters for P0916DE Termination Cable
📘 Product Overview
| Field | Details |
|---|---|
| Manufacturer | Foxboro (by Schneider Electric) |

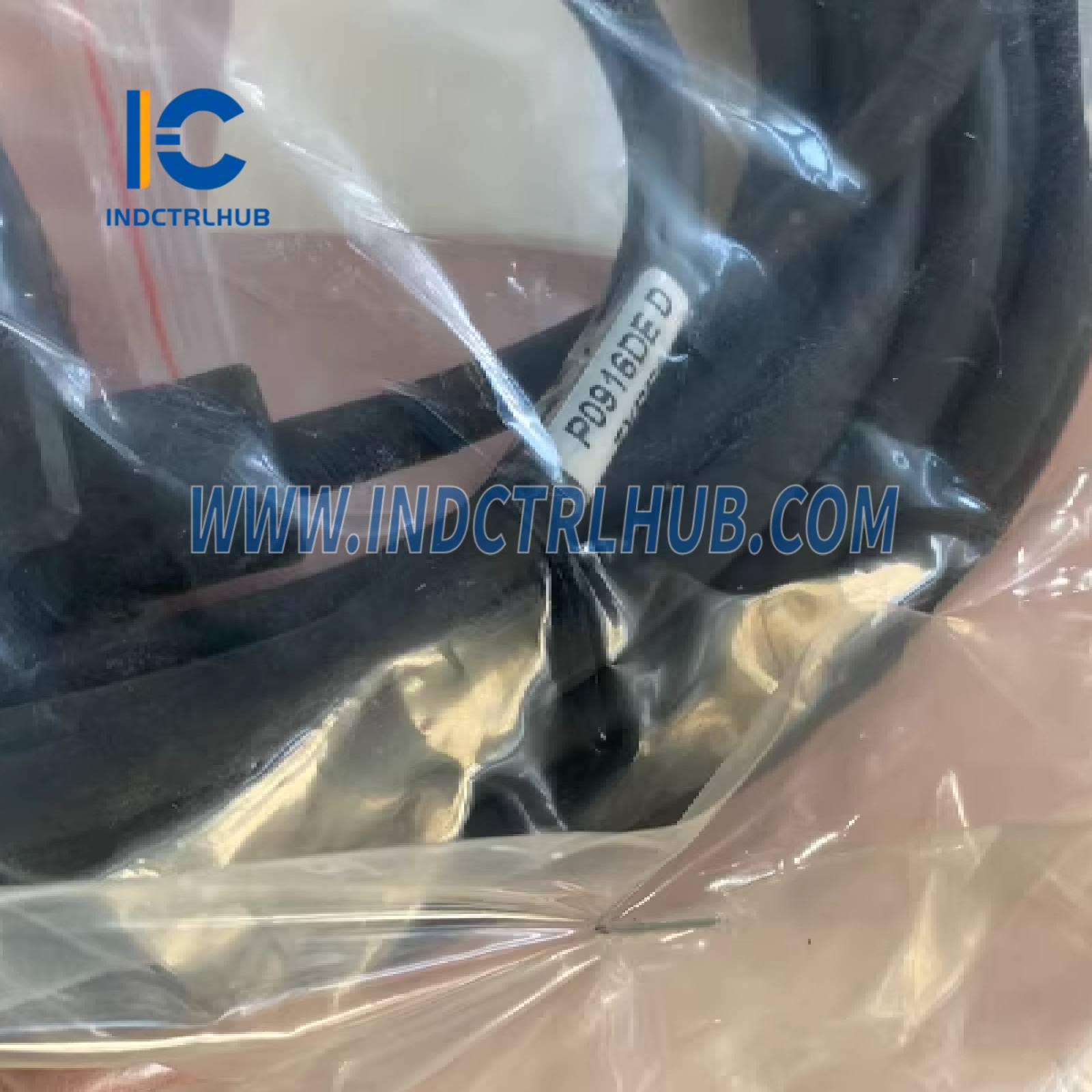

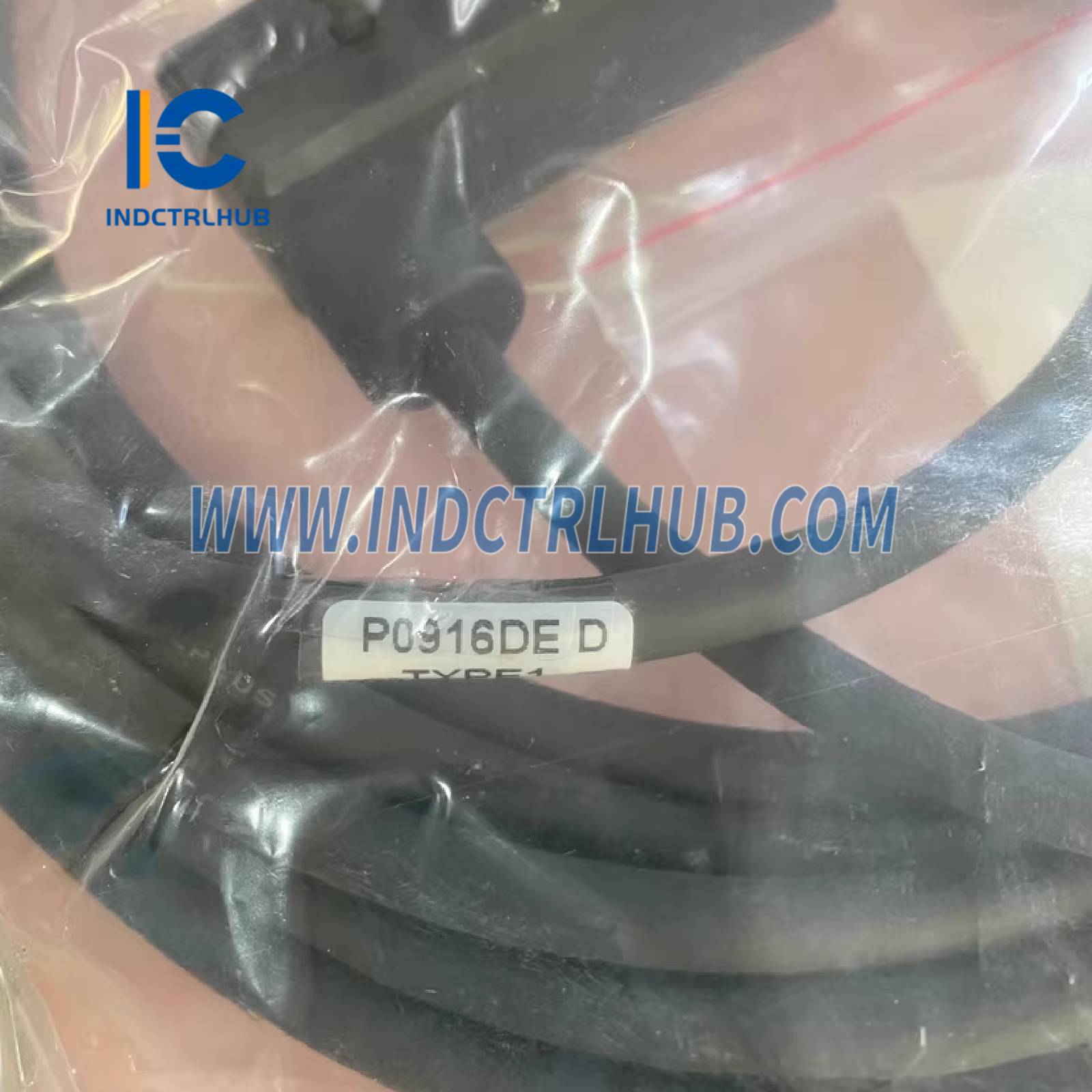

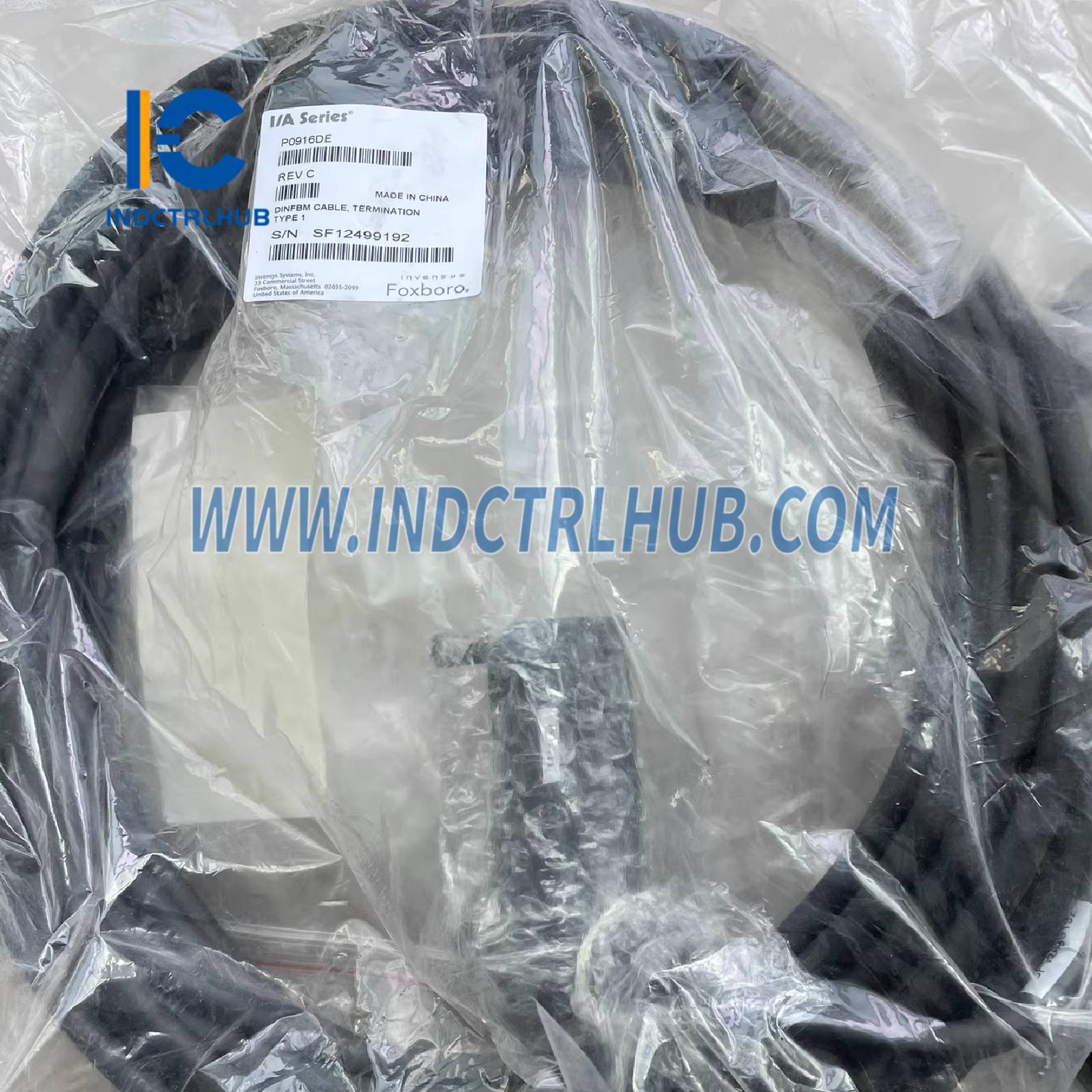

| Part Number | P0916DE |
| Product Type | Termination Cable (Type 1, P/PVC) for FBM222 Termination Assembly |
| Function | Connects FBM222 module (baseplate) to Termination Assembly (P0926TH or P0926TJ) for PROFIBUS-DP communication |
| Associated Module | FBM222 (P0926TL) |
| System Compatibility | Foxboro Evo Process Automation System, 200 Series |
⚙️ Functional Specifications
| Feature | Specification |
|---|---|
| Cable Type | Type 1, P/PVC (Polyurethane outer jacket, semi-rigid PVC primary conductor insulation) |
| Cable Length | 10.0 m (32.8 ft) |
| Connector (TA) | 25-pin male D-subminiature |
| Connector (Baseplate) | 37-pin male D-subminiature |
| Application | Provides feed-through connection between FBM222 and TA for two PROFIBUS-DP network segments |
| Compatibility | Supports single or redundant FBM222 configurations with TA (P0926TH, P0926TJ, or legacy P0917SY) |
| Network Length Impact | Cable length (up to 30 m) not included in PROFIBUS-DP bus segment length calculation when used with P0926TH/P0926TJ |
🔌 Physical Specifications
| Feature | Specification |
|---|---|
| Material | Polyurethane outer jacket, semi-rigid PVC primary conductor insulation |
| Temperature Range | -20 to +80°C (-4 to +176°F) |
| Cable Length | 10.0 m (32.8 ft) |

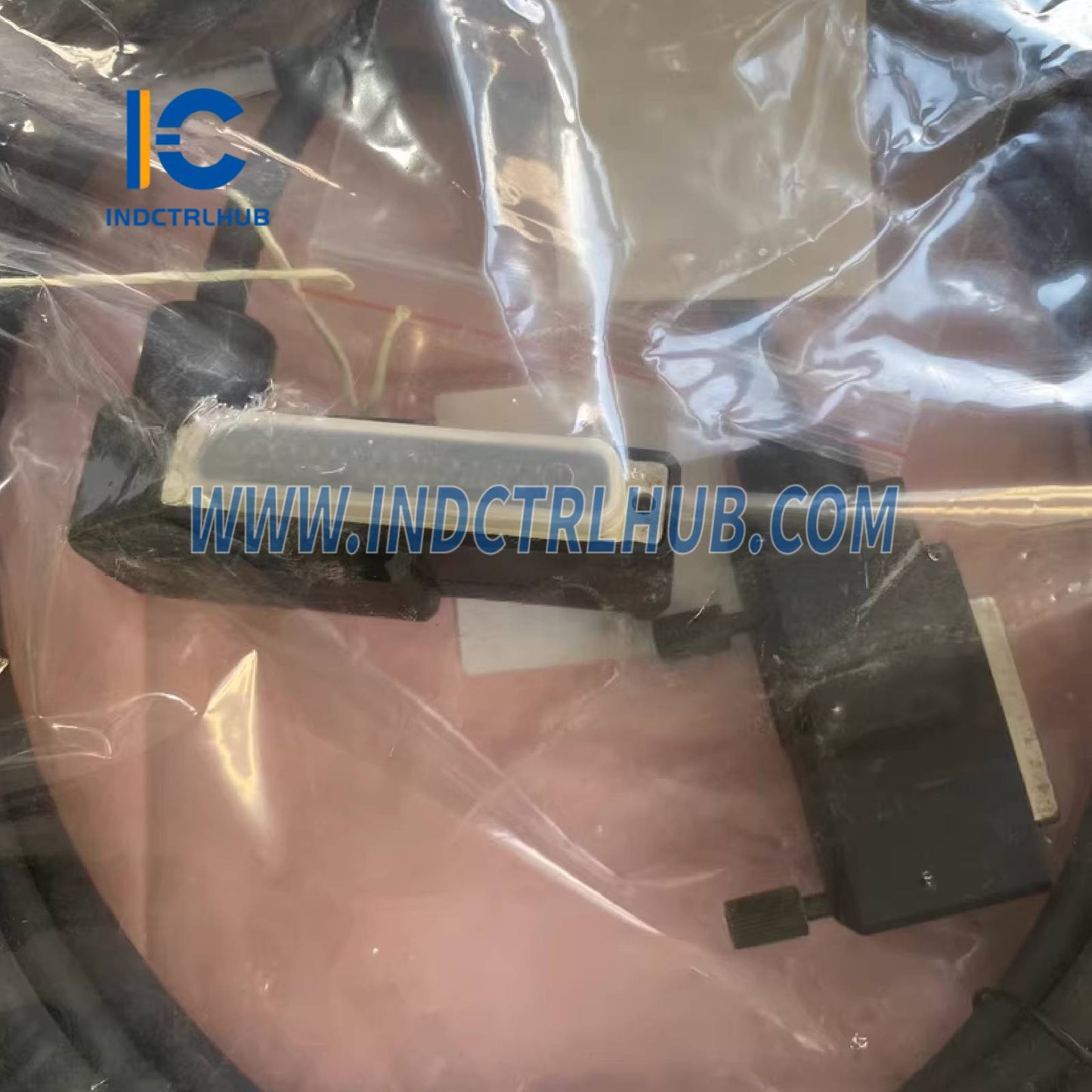

| Connector Types | 25-pin male D-subminiature (TA end); 37-pin male D-subminiature (baseplate end) |
🌡️ Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -20 to +80°C (-4 to +176°F) |
| Storage Temperature | -40 to +70°C (-40 to +158°F) |
| Relative Humidity | 5 to 95% (non-condensing) |
| Contamination | Class G3 (harsh) per ISA S71.04, tested per EIA 364-65, Class III |
| Vibration | 7.35 m/s² (0.75 g) from 5 to 500 Hz |
✅ Regulatory Compliance
| Standard | Details |
|---|---|
| Electromagnetic Compatibility (EMC) | European EMC Directive 2004/108/EC; EN 50081-2, EN 50082-2, EN 61326 (Industrial Levels), CISPR 11 Class A; IEC 61000-4-2 (ESD, 4 kV contact, 8 kV air), IEC 61000-4-3 (Radiated, 10 V/m), IEC 61000-4-4 (EFT, 2 kV), IEC 61000-4-5 (Surge, 2 kV power, 1 kV I/O), IEC 61000-4-6 (Conducted, 3 V rms), IEC 61000-4-8 (Magnetic, 30 A/m), IEC 61000-4-11 (Voltage Dips) |
| Product Safety (UL) | UL/UL-C listed for Class I, Groups A-D, Division 2, T4; Class 2 per NEC (NFPA No.70) and CSA C22.1 when connected to specified Foxboro Evo processor modules |
| Product Safety (Europe) | European Low Voltage Directive 2006/95/EC; ATEX 94/9/EC; ATEX (DEMKO) Ex nA IIC T4 Gc for Zone 2 |
| RoHS Compliance | Not explicitly stated; assumed compliant with European standards based on 2014 document context |
📦 Ordering Information
| Field | Details |
|---|---|
| Grade | Industrial |
| Part Number | P0916DE |
| Associated Module | FBM222 (P0926TL) |
| Associated TA | P0926TH (PVC), P0926TJ (Polyamide), or P0917SY (legacy FBM223 TA) |
| Redundant Adapter | P0922RK (single network) or P0926XM (dual network) |
| Cable Type | Type 1, P/PVC |
