Product Description

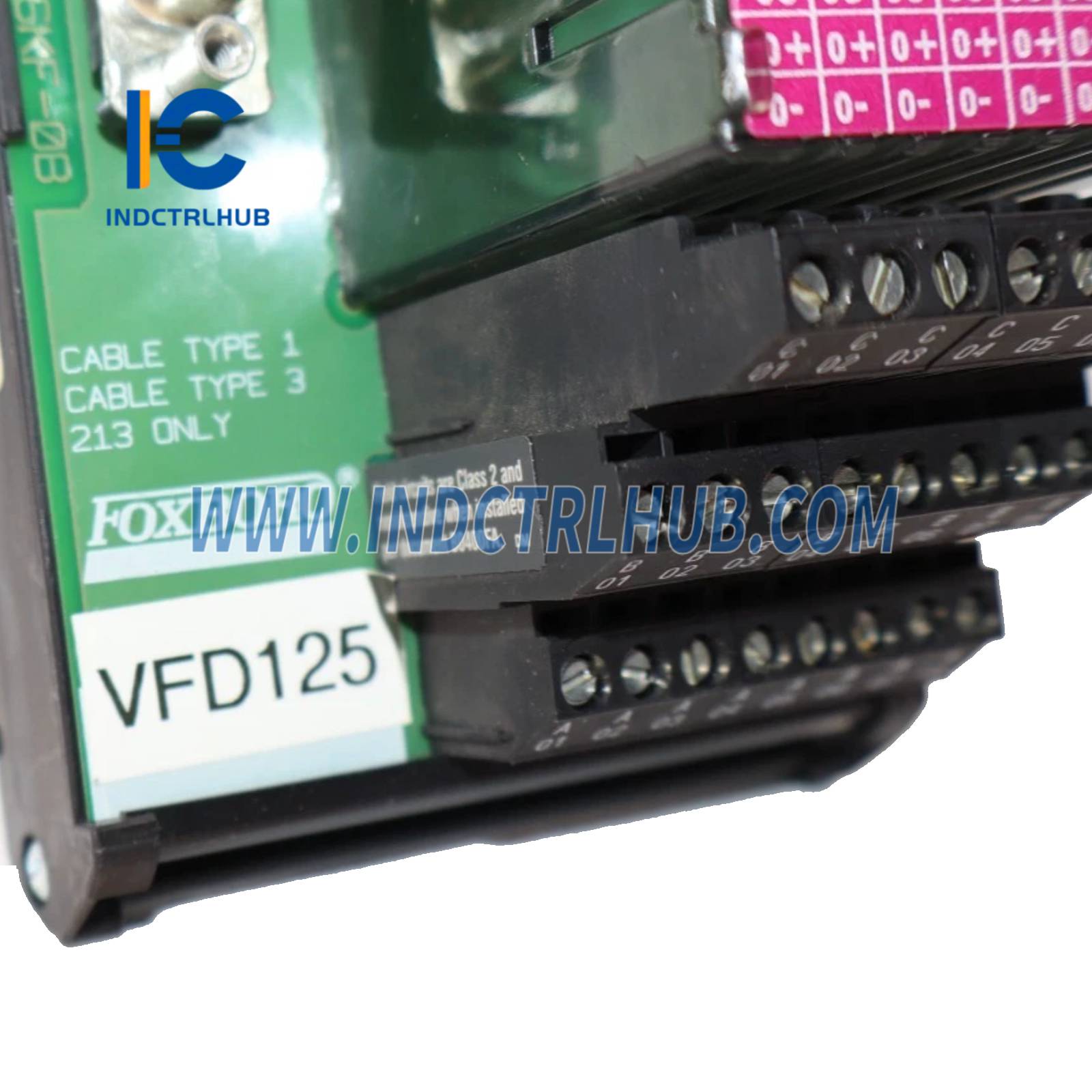

Product Parameters for P0916QC Termination Assembly
📘 Product Overview
| Field | Details |
|---|---|
| Manufacturer | Foxboro (by Schneider Electric) |
| Part Number | P0916QC |
| Product Type | Termination Assembly (TA) for FBM237 Output Module |
| Function | Connects eight 0 to 20 mA analog output channels to FBM237; supports redundant configuration |
| Associated Module | FBM237 (P0914XS) |
| System Compatibility | Foxboro Evo Process Automation System, 200 Series |
⚙️ Functional Specifications
| Feature | Specification |
|---|---|
| Output Signals | 8 channels, 0 to 20.4 mA dc analog output (per Page 4) |
| Termination Type | Compression (PVC material) (per Page 7, Table 1) |
| TA Cable Type | Type 1 (per Page 7, Table 1) |
| TA Certification Type | Type 1: UL/UL-C Class I, Groups A-D, Division 2, T4; CENELEC (DEMKO) EEx nA IIC T4 (Zone 2) Type 2: UL/UL-C and CENELEC certified as associated apparatus for non-incendive field circuits, Class 2 limited energy (60 V DC, 30 V AC, 100 VA or less) if customer-supplied equipment meets Class 2 limits (per Page 8, Table 2) |
| Loop Power Supply Protection | Each channel is galvanically isolated, current limited to ~25 mA, and voltage regulated (per Page 4) |
| Field Termination Connections | Solid/Stranded: 0.2 to 4 mm² / 0.2 to 2.5 mm² (24 to 12 AWG) Stranded with Ferrules: 0.2 to 2.5 mm² (with or without plastic collar) (per Page 6) |
| HART Compatibility | Meets impedance requirements for HART High Impedance Device; compatible with HART loop without interfering with HART signals (per Page 4) |
🔌 Physical Specifications
| Feature | Specification |
|---|---|
| Material | Polyvinyl Chloride (PVC), rated from -20 to +50°C (-4 to +122°F) (per Page 7) |
| Weight | Approximately 181 g (0.40 lb) (compression type) (per Page 6) |
| Dimensions | Height: 125 mm (4.92 in), Depth: 111 mm (4.37 in) including DIN rail (per Page 10) |
| Mounting | DIN rail (32 mm or 35 mm) (per Page 6) |

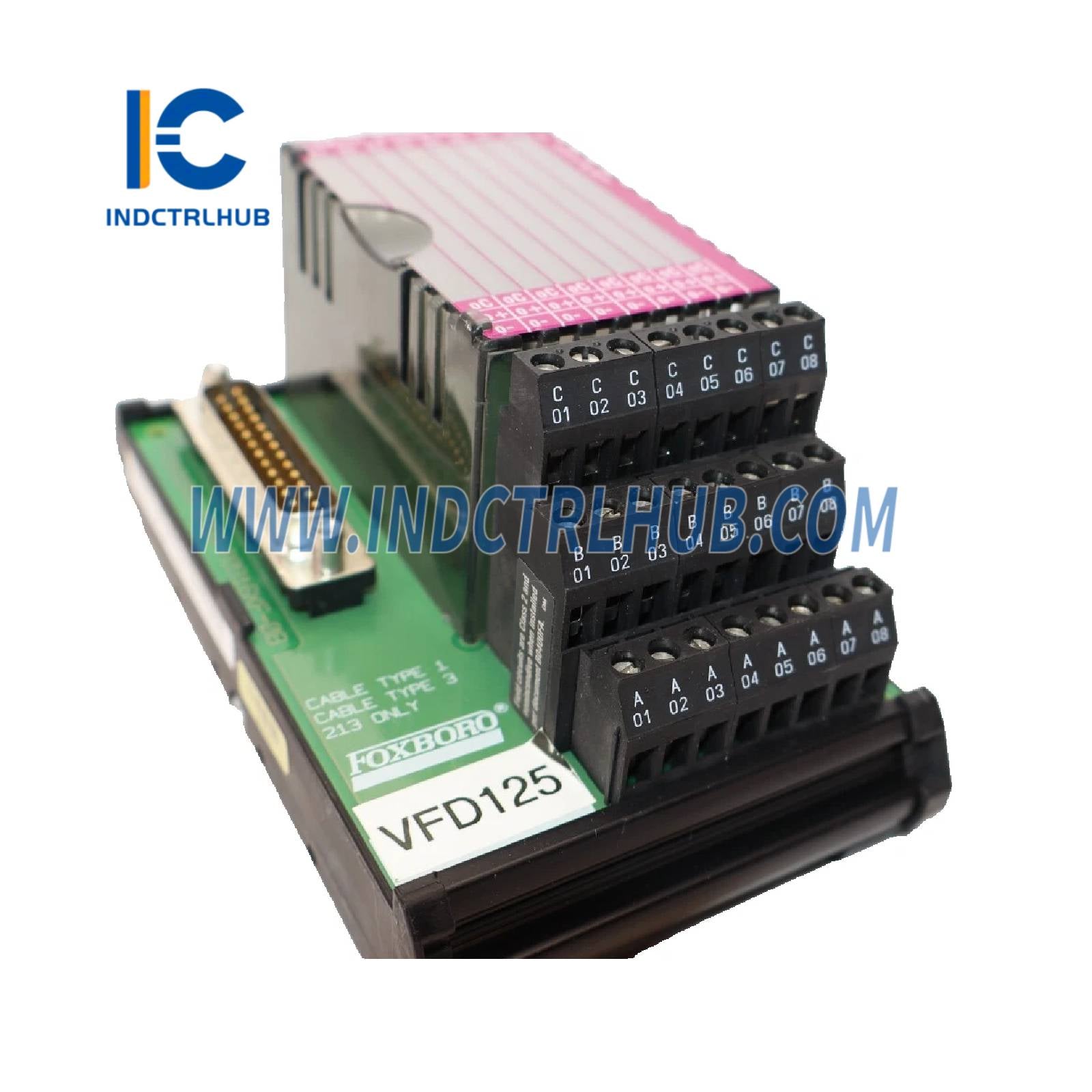

| Terminal Blocks | 3 tiers, 8 positions (per Page 6) |
| Cable Connection (Baseplate) | 25-pin male D-subminiature via redundant adapter (P0916QD) (per Page 6) |
| Cable Connection (TA) | Feedthrough connection for eight 2-wire analog output signals (per Page 7) |
| Family Group Color | Raspberry red (analog) (per Page 6) |
🌡️ Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -20 to +50°C (-4 to +122°F) (PVC material) (per Page 5) |
| Storage Temperature | -40 to +70°C (-40 to +158°F) (per Page 5) |
| Relative Humidity | 5 to 95% (non-condensing) (per Page 5) |
| Altitude (Operating) | -300 to +3,000 m (-1,000 to +10,000 ft) (per Page 5) |
| Altitude (Storage) | -300 to +12,000 m (-1,000 to +40,000 ft) (per Page 5) |
| Contamination | Class G3 (harsh) per ISA S71.04, tested per EIA 364-65, Class III (per Page 5) |
| Vibration | 7.5 m/s² (5 to 500 Hz) (per Page 5) |
✅ Regulatory Compliance
| Standard | Details |
|---|---|
| Electromagnetic Compatibility (EMC) | European EMC Directive 89/336/EEC; EN 50081-2, EN 50082-2, EN 61326 Annex A (Industrial Levels), CISPR 11 Class A; IEC 61000-4-2 (ESD, 4 kV contact, 8 kV air), IEC 61000-4-3 (Radiated, 10 V/m), IEC 61000-4-4 (EFT, 2 kV), IEC 61000-4-5 (Surge, 2 kV power, 1 kV I/O), IEC 61000-4-6 (Conducted, 10 V rms), IEC 61000-4-8 (Magnetic, 30 A/m) (per Page 4) |
| Product Safety (UL) | UL/UL-C listed for Class I, Groups A-D, Division 2, T4; associated apparatus for non-incendive circuits; Class 2 per NEC (NFPA No.70) and CSA C22.1 when connected to specified Foxboro Evo processor modules (per Page 5) |
| Product Safety (Europe) | European Low Voltage Directive 73/23/EEC; ATEX 94/9/EC; CENELEC (DEMKO) EEx nA IIC T4 for Zone 2; certified as associated apparatus for Zone 2, Group IIC (per Page 5) |
| RoHS Compliance | Not explicitly stated; assumed compliant with European standards based on document context |
📡 Termination Cables
| Feature | Specification |
|---|---|
| Cable Types | P/PVC (Polyurethane/PVC, -20 to +80°C); LSZH (Low Smoke Zero Halogen, -40 to +105°C); H/XLPE (Hypalon/XLPE, -40 to +90°C, no longer available) (per Page 9) |
| Cable Lengths | Up to 30 m (98 ft) (per Page 6) |
| Cable Part Numbers (P/PVC) | 0.5 m: P0916DA; 1.0 m: P0916DB; 2.0 m: P0931RM; 3.0 m: P0916DC; 5.0 m: P0916DD; 10.0 m: P0916DE; 15.0 m: P0916DF; 20.0 m: P0916DG; 25.0 m: P0916DH; 30.0 m: P0916DJ (per Page 9) |
| Cable Part Numbers (LSZH) | 0.5 m: P0928AA; 1.0 m: P0928AB; 2.0 m: P0928AC; 3.0 m: P0928AD; 5.0 m: P0928AE; 10.0 m: P0928AF; 15.0 m: P0928AG; 20.0 m: P0928AH; 25.0 m: P0928AJ; 30.0 m: P0928AK (per Page 9) |
| Cable Part Numbers (H/XLPE) | 0.5 m: P0916VA; 1.0 m: P0916VB; 2.0 m: P0931RR; 3.0 m: P0916VC; 5.0 m: P0916VD; 10.0 m: P0916VE; 15.0 m: P0916VF; 20.0 m: P0916VG; 25.0 m: P0916VH; 30.0 m: P0916VJ (per Page 9) |
📦 Ordering Information
| Field | Details |
|---|---|
| Grade | Industrial |
| Part Number | P0916QC |
| Associated Module | FBM237 (P0914XS) |
| Redundant Adapter | P0916QD |
| Termination Type | Compression, Polyvinyl Chloride (PVC) (per Page 7) |
| Cable Part Numbers | P/PVC: P0916DA to P0916DJ; LSZH: P0928AA to P0928AK; H/XLPE: P0916VA to P0916VJ (per Page 9) |
