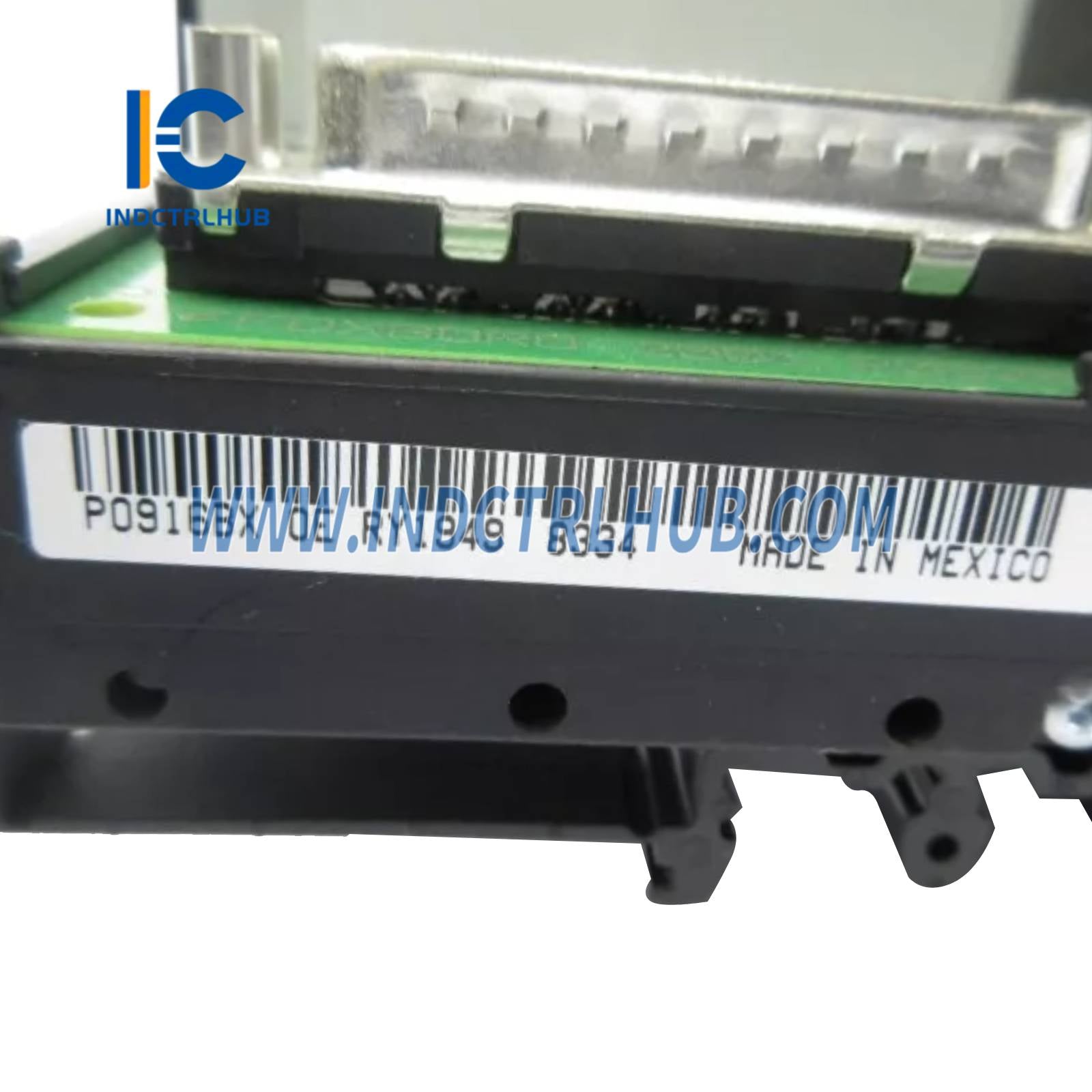

Product Description
Product Parameters for P0916BX Termination Assembly

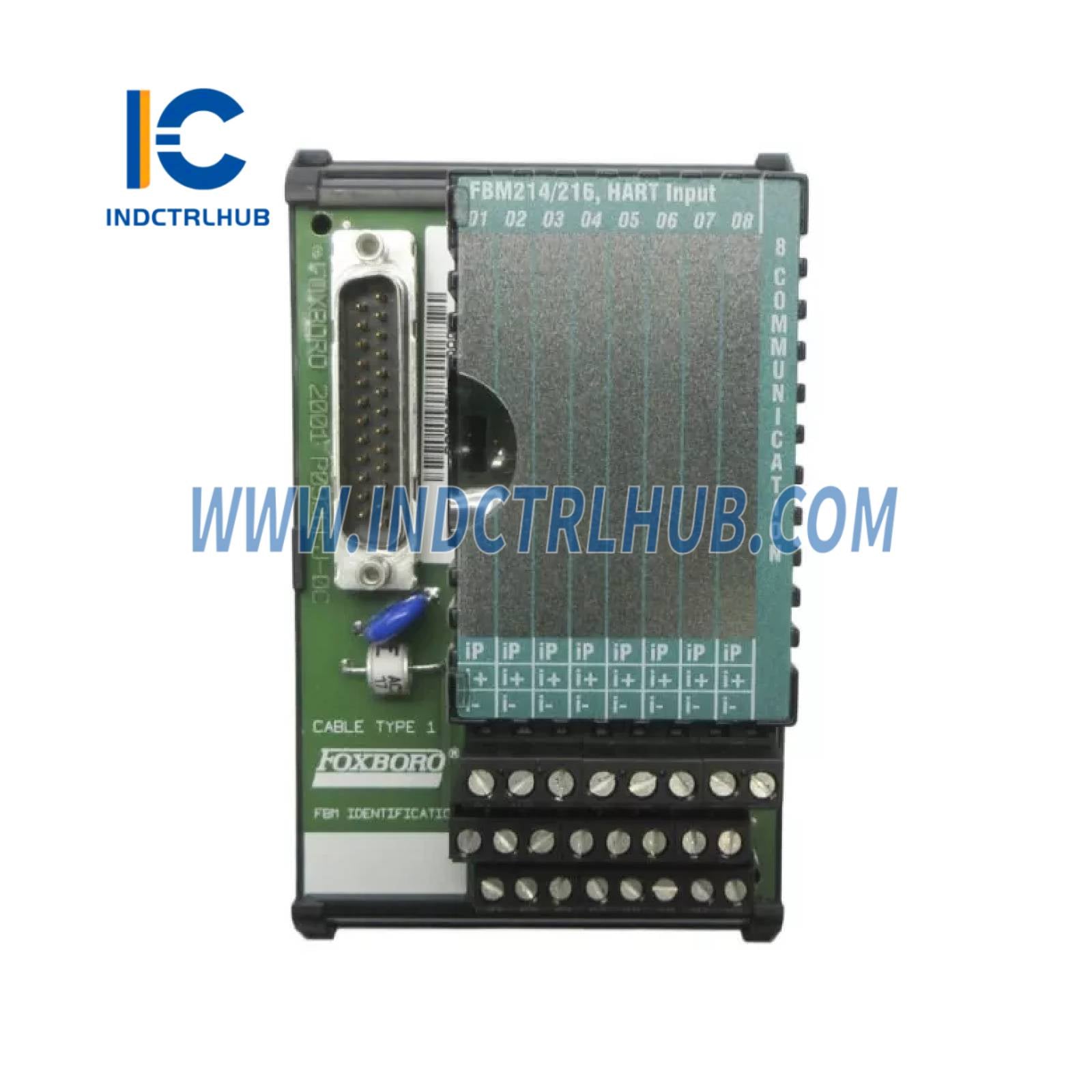

📘 Product Overview
| Field | Details |
|---|---|
| Manufacturer | Foxboro (by Invensys Process Systems) |
| Part Number | P0916BX |
| Product Type | Termination Assembly (TA) for FBM216 Input Module |
| Function | Connects eight 4 to 20 mA analog input channels (with or without HART signals) to FBM216; supports redundant configuration |
| Associated Module | FBM216 (P0922VV) |
| System Compatibility | I/A Series Process Automation System, DIN Rail Mounted FBM Subsystem |
⚙️ Functional Specifications
| Feature | Specification |
|---|---|
| Input Signals | 8 group-isolated channels, 4 to 20 mA analog, optional HART FSK signal |
| Termination Type | Compression (PVC material) (per Page 9, Table on Functional Specifications) |
| TA Cable Type | Type 1 (per Page 9, Table on Functional Specifications) |
| TA Certification Type | Type 1: UL/UL-C Class I, Groups A-D, Division 2, T4; CENELEC (DEMKO) EEx nA IIC T4 (Zone 2) Type 2: UL/UL-C and CENELEC certified as associated apparatus for non-incendive field circuits, Class 2 limited energy (60 V DC, 30 V AC, 100 VA or less) if customer-supplied equipment meets Class 2 limits (per Page 10, Table 1) |
| Loop Power Supply | Internal: FBM216 provides 24 V DC ± 10% common power supply for all channels, current limited to <30 mA per channel (60 mA with redundant modules); short circuit limited to ~85 mA External: Requires Cable Balun module to prevent crosstalk (per Page 5) |
| Field Termination Connections | Solid/Stranded: 0.2 to 4 mm² / 0.2 to 2.5 mm² (24 to 12 AWG) Stranded with Ferrules: 0.2 to 2.5 mm² (with or without plastic collar) (per Page 8) |
| HART Compatibility | Supports HART Hand-Held Terminal or PC20 Intelligent Field Device Configurator; meets loop resistance requirements (per Page 9) |
🔌 Physical Specifications

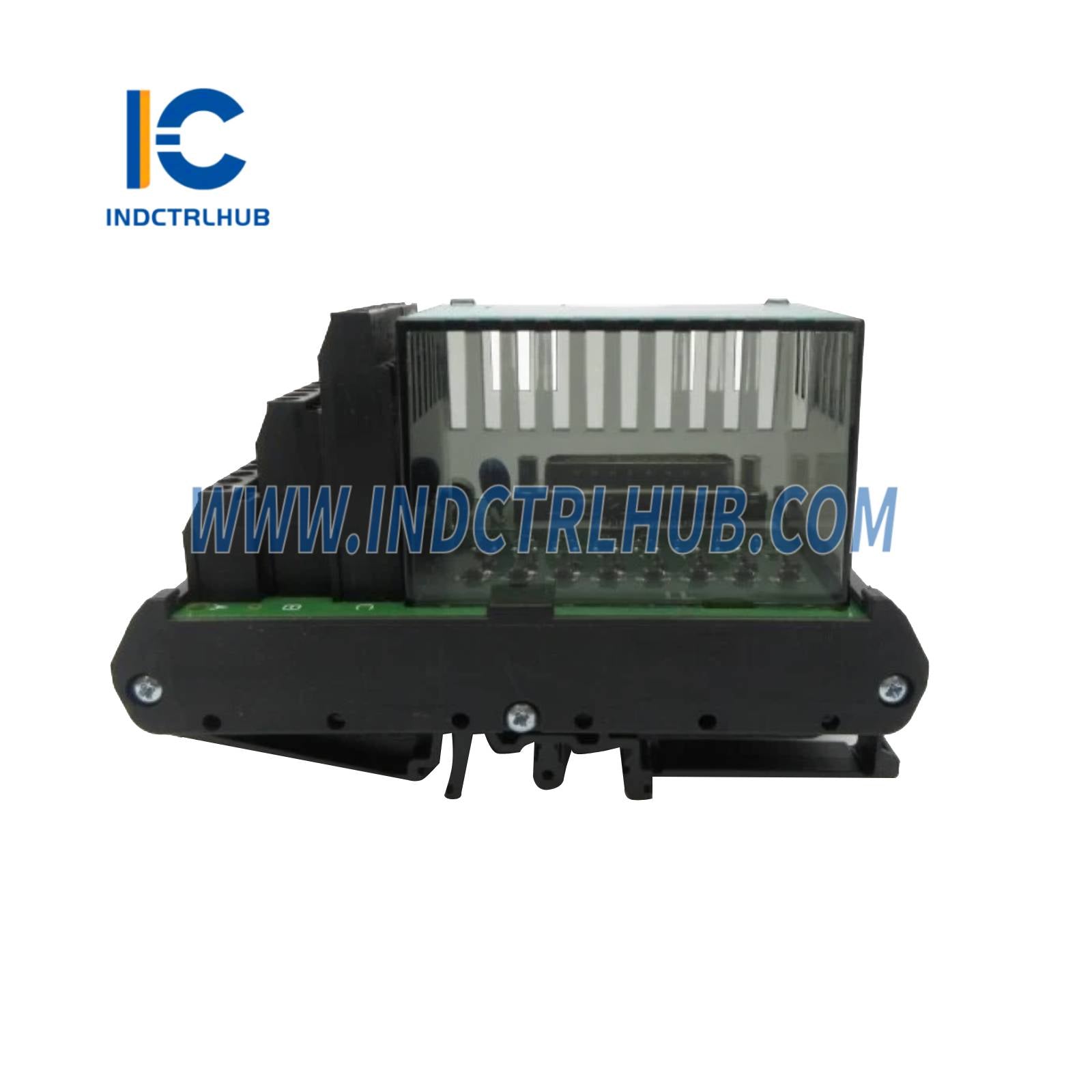

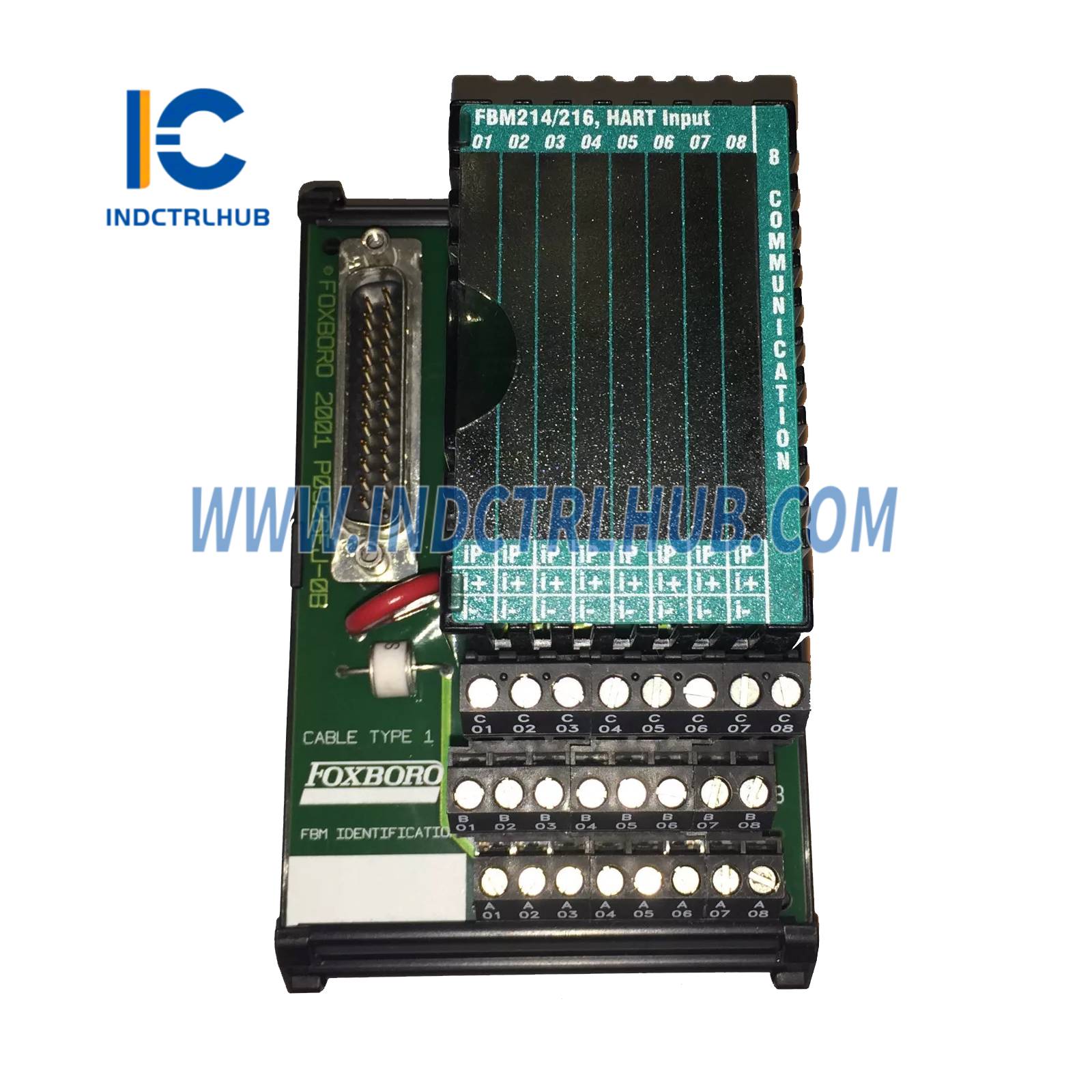

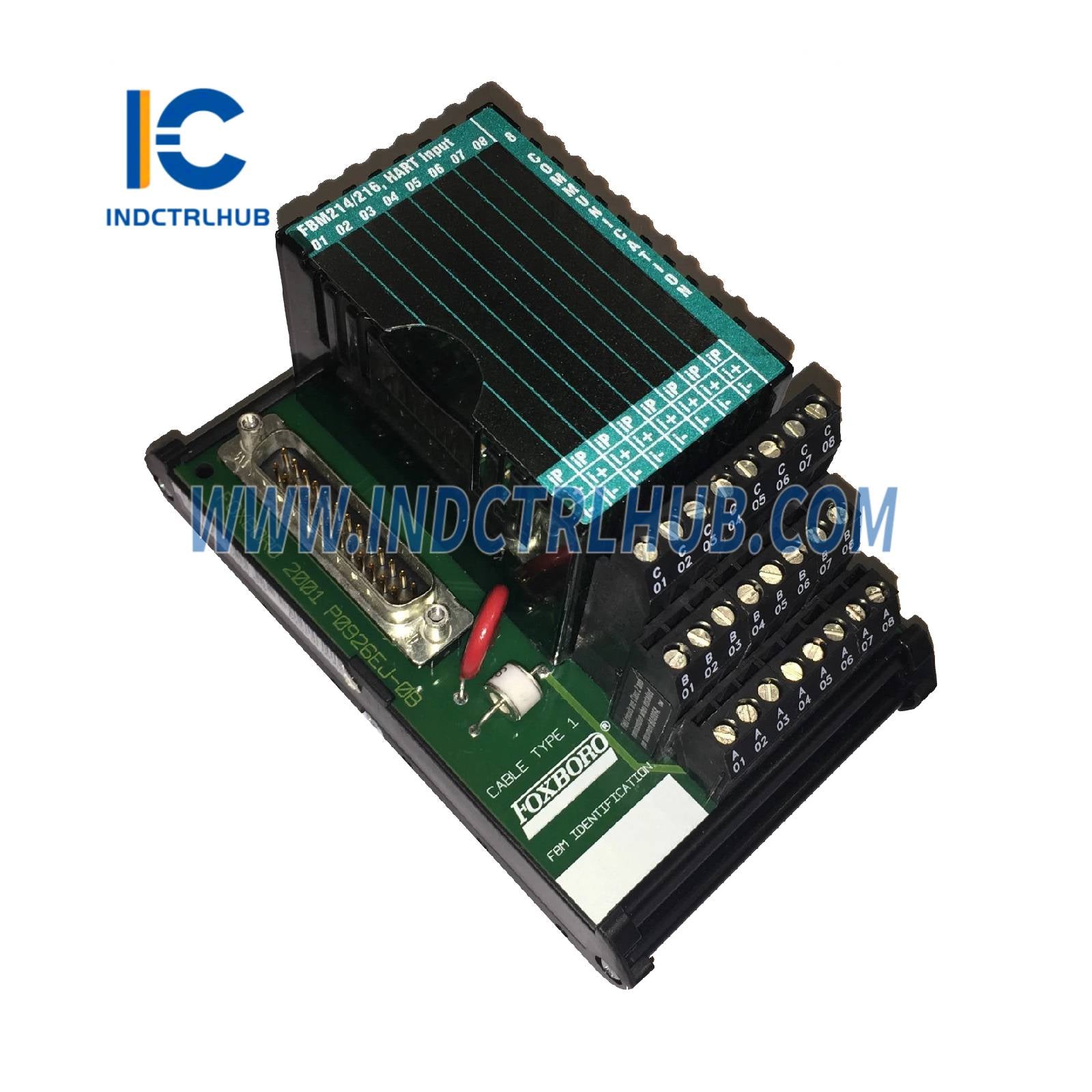

| Feature | Specification |
|---|---|
| Material | Polyvinyl Chloride (PVC), rated from -20 to +50°C (-4 to +122°F) (per Page 9) |
| Weight | Approximately 181 g (0.40 lb) (compression type) (per Page 8) |
| Dimensions | Height: 125 mm (4.92 in), Depth: 111 mm (4.37 in) including DIN rail (per Page 11) |
| Mounting | DIN rail (32 mm or 35 mm) (per Page 8) |
| Terminal Blocks | 3 tiers, 8 positions (per Page 8) |
| Cable Connection (Baseplate) | 25-pin male D-subminiature (TA end) via redundant adapter (P0917XQ) (per Page 8) |
| Cable Connection (TA) | Feedthrough connection for eight 2-wire analog input signals (per Page 9) |
| Family Group Color | Green (communication) (per Page 8) |
🌡️ Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -20 to +50°C (-4 to +122°F) (PVC material) (per Page 7) |
| Storage Temperature | -40 to +70°C (-40 to +158°F) (per Page 7) |
| Relative Humidity | 5 to 95% (non-condensing) (per Page 7) |
| Altitude (Operating) | -300 to +3,000 m (-1,000 to +10,000 ft) (per Page 7) |
| Altitude (Storage) | -300 to +12,000 m (-1,000 to +40,000 ft) (per Page 7) |
| Contamination | Class G3 (harsh) per ISA S71.04, tested per EIA 364-65, Class III (per Page 7) |
| Vibration | 7.5 m/s² (0.75 g) from 5 to 500 Hz (per Page 7) |
✅ Regulatory Compliance
| Standard | Details |
|---|---|
| Electromagnetic Compatibility (EMC) | European EMC Directive 89/336/EEC; EN 50081-2, EN 50082-2, EN 61326 Annex A (Industrial Levels), CISPR 11 Class A; IEC 61000-4-2 (ESD, 4 kV contact, 8 kV air), IEC 61000-4-3 (Radiated, 10 V/m), IEC 61000-4-4 (EFT, 2 kV), IEC 61000-4-5 (Surge, 2 kV power, 1 kV I/O), IEC 61000-4-6 (Conducted, 10 V rms), IEC 61000-4-8 (Magnetic, 30 A/m) (per Page 6) |
| Product Safety (UL) | UL/UL-C listed for Class I, Groups A-D, Division 2, T4; associated apparatus for non-incendive circuits; Class 2 per NEC (NFPA No.70) and CSA C22.1 when connected to specified I/A Series processor modules (per Page 6) |
| Product Safety (Europe) | European Low Voltage Directive 73/23/EEC; ATEX 94/9/EC; CENELEC (DEMKO) EEx nA IIC T4 for Zone 2; certified as associated apparatus for Zone 2, Group IIC (per Page 6) |
| RoHS Compliance | Not explicitly stated; assumed compliant with European standards for 2009 (per document copyright) |
📡 Termination Cables
| Feature | Specification |
|---|---|
| Cable Types | P/PVC (Polyurethane/PVC); H/XLPE (Hypalon/XLPE) (per Page 10) |
| Cable Lengths | Up to 30 m (98 ft) (per Page 8) |
| Cable Part Numbers (P/PVC) | 0.5 m: P0916DA; 1.0 m: P0916DB; 2.0 m: P0931RM; 3.0 m: P0916DC; 5.0 m: P0916DD; 10.0 m: P0916DE; 15.0 m: P0916DF; 20.0 m: P0916DG; 25.0 m: P0916DH; 30.0 m: P0916DJ (per Page 10) |
| Cable Part Numbers (H/XLPE) | 0.5 m: P0916VA; 1.0 m: P0916VB; 2.0 m: P0931RR; 3.0 m: P0916VC; 5.0 m: P0916VD; 10.0 m: P0916VE; 15.0 m: P0916VF; 20.0 m: P0916VG; 25.0 m: P0916VH; 30.0 m: P0916VJ (per Page 10) |
📦 Ordering Information
| Field | Details |
|---|---|
| Grade | Industrial |
| Part Number | P0916BX |
| Associated Module | FBM216 (P0922VV) |
| Redundant Adapter | P0917XQ |
| Termination Type | Compression, Polyvinyl Chloride (PVC) (per Page 9) |
| Cable Part Numbers | P/PVC: P0916DA to P0916DJ; H/XLPE: P0916VA to P0916VJ (per Page 10) |
