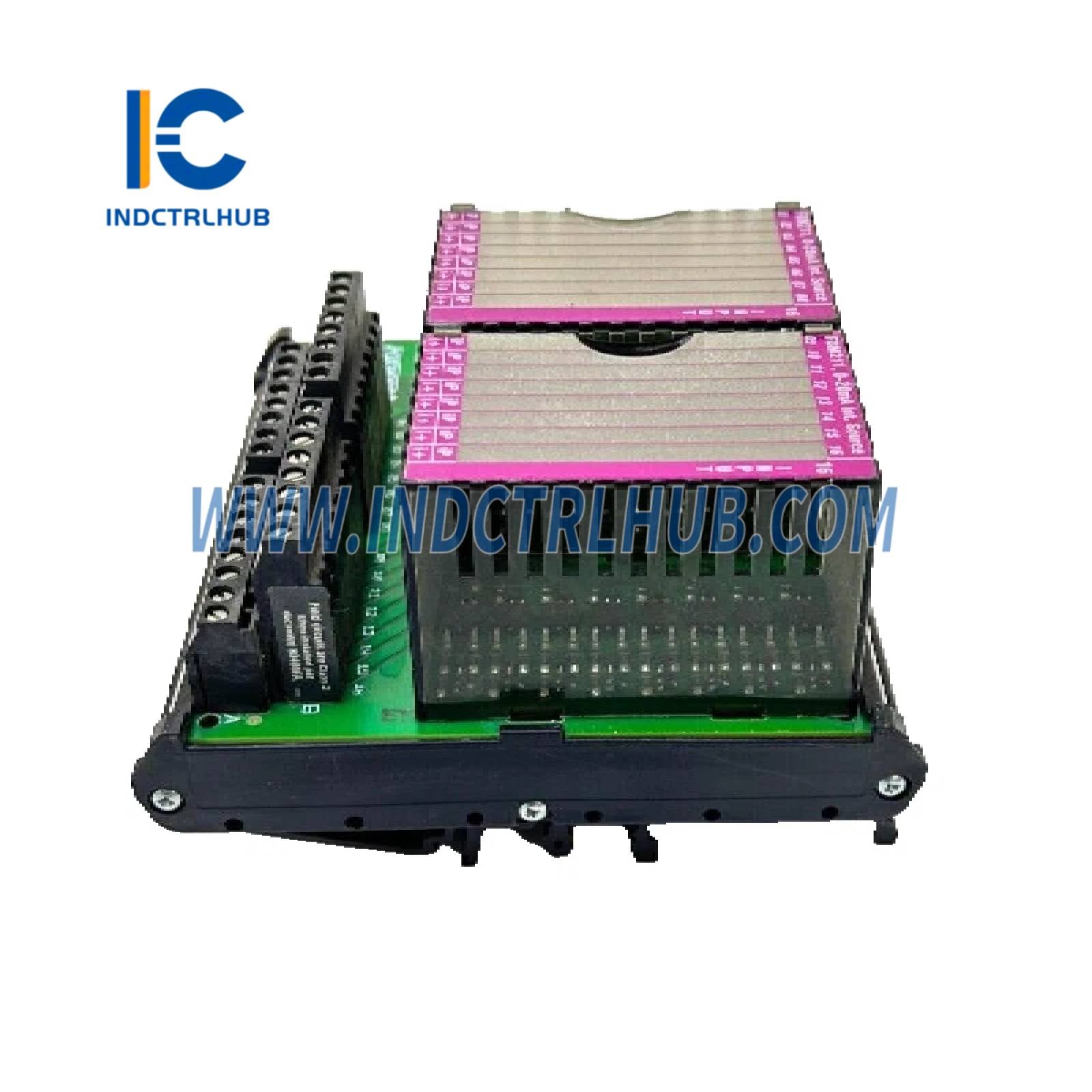

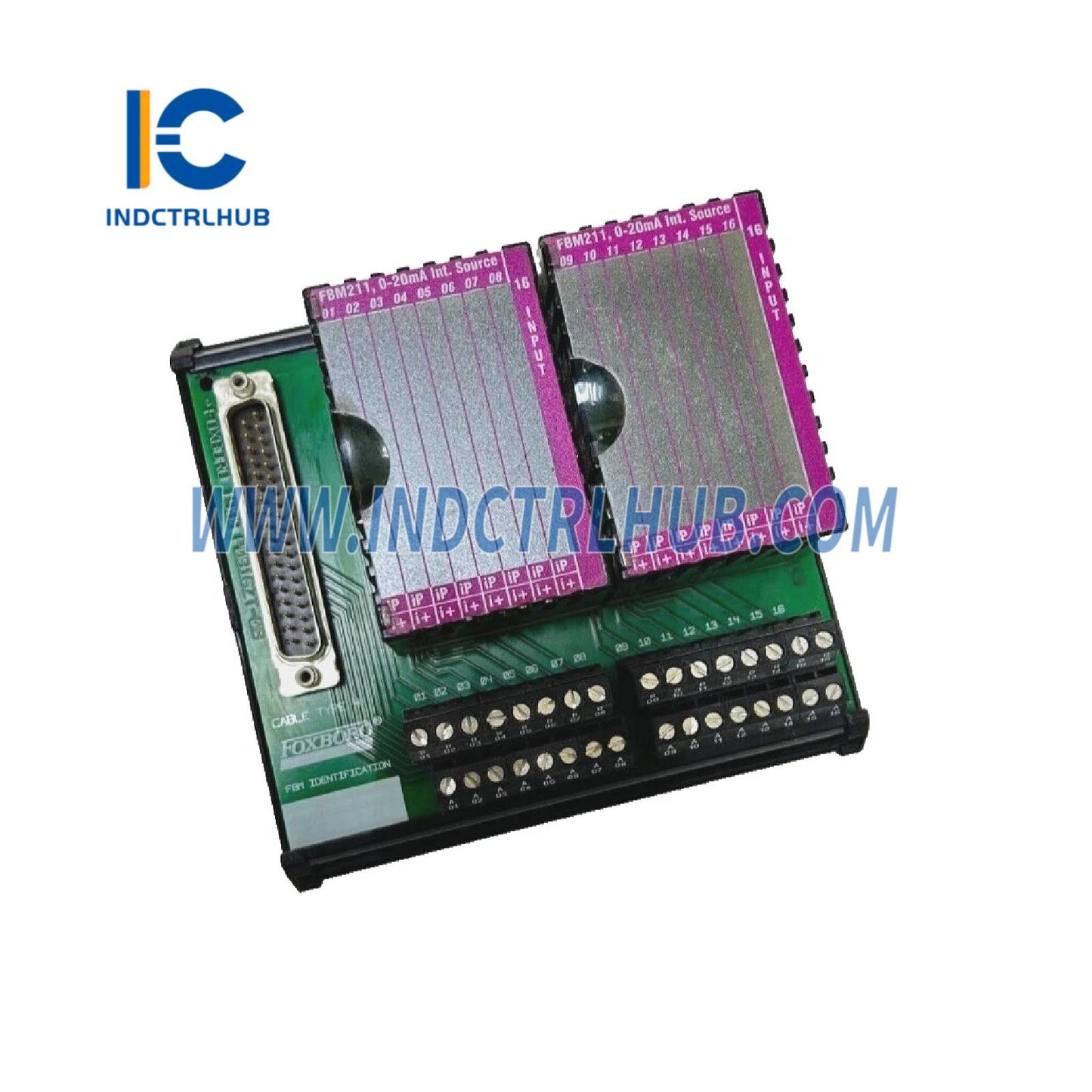

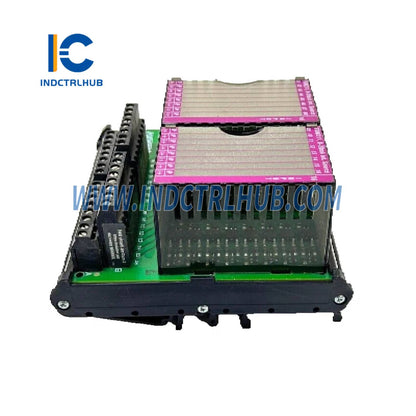

Product Parameters for P0916BT Termination Assembly

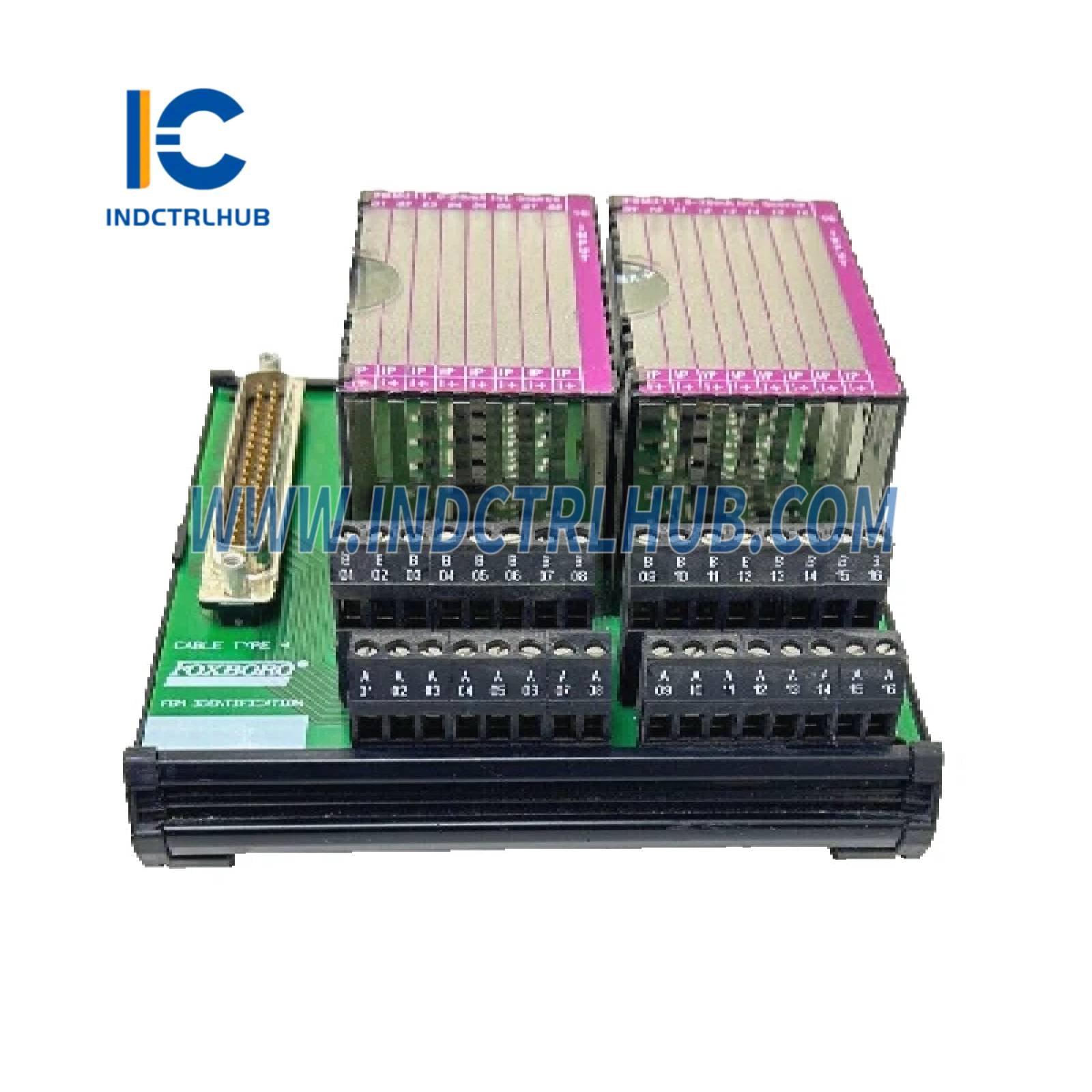

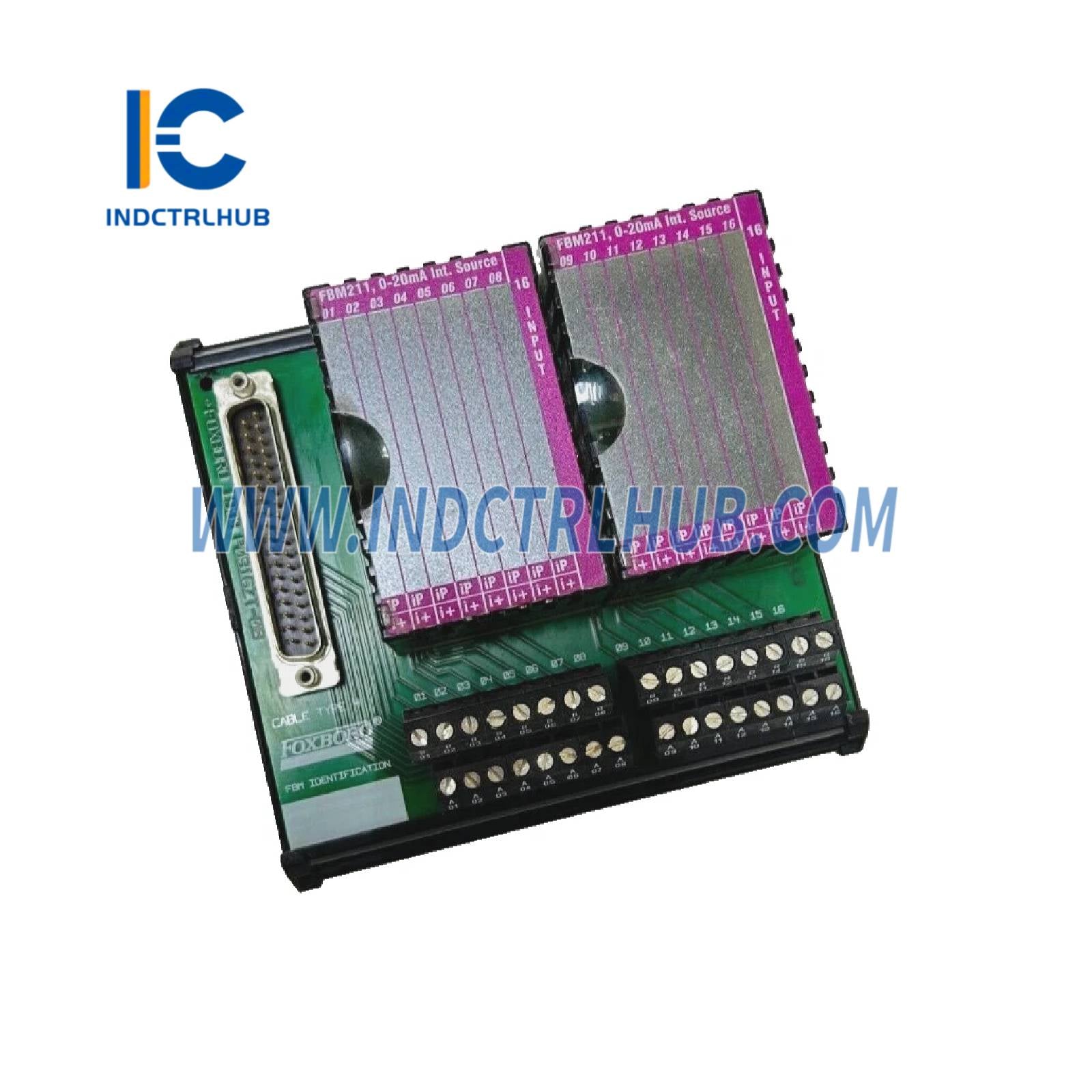

📘 Product Overview
| Field | Details |
|---|---|
| Manufacturer | Foxboro (by Schneider Electric) |
| Part Number | P0916BT (superseded by RH916BT) |
| Product Type | Termination Assembly (TA) for FBM211 Input Module |
| Function | Connects sixteen 0 to 20 mA analog input channels to FBM211; provides loop power via FBM auxiliary +24 V DC power supply |
| Associated Module | FBM211 (RH914TN, supersedes P0914TN) |
| System Compatibility | Foxboro Evo Process Automation System, 200 Series |
⚙️ Functional Specifications

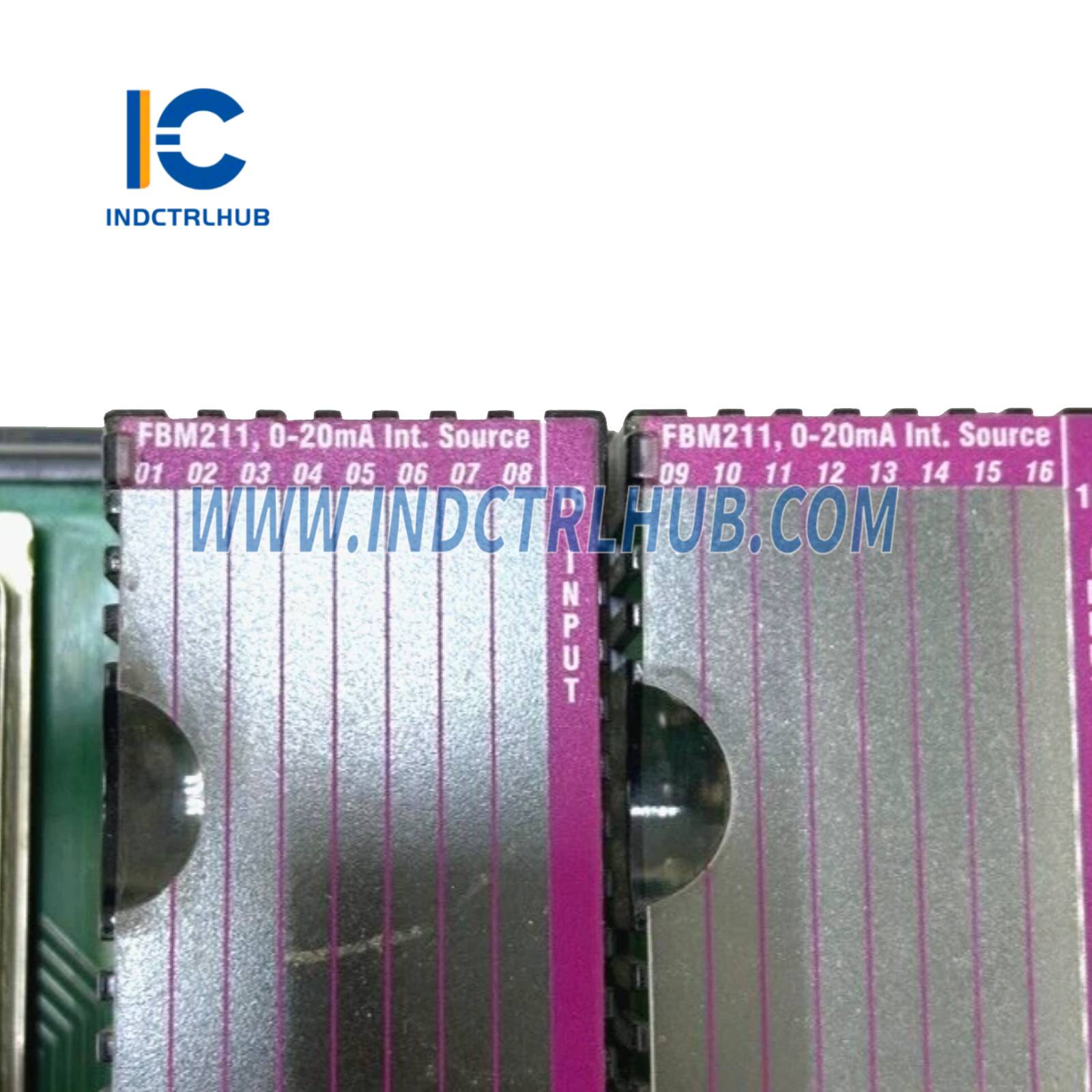

| Feature | Specification |
|---|---|
| Input Signals | 16 group isolated and independent channels, 0 to 20.4 mA DC |
| Termination Type | Compression ( Table on Functional Specifications) |
| TA Cable Type | Type 4 (Table on Functional Specifications) |
| TA Certification Type | Type 1: UL/UL-C Class I, Groups A-D, Division 2, T4; DEMKO EEx nA IIC T4 (Zone 2); Type 4: Class 2 limited energy (60 V DC, 30 V AC, 100 VA or less) if customer-supplied equipment meets Class 2 limits |
| Loop Power Supply | Provided by FBM auxiliary +24 V DC power supply; current limited to 35 mA per channel, with short circuit current limited to ~385 mA |
| Field Termination Connections | Solid/Stranded: 0.2 to 4 mm² / 0.2 to 2.5 mm² (24 to 12 AWG) Stranded with Ferrules: 0.2 to 2.5 mm² (with or without plastic collar) |
| HART Compatibility | Meets impedance requirements for HART High Impedance Device; compatible with HART loop without interfering with HART signals |
🔌 Physical Specifications

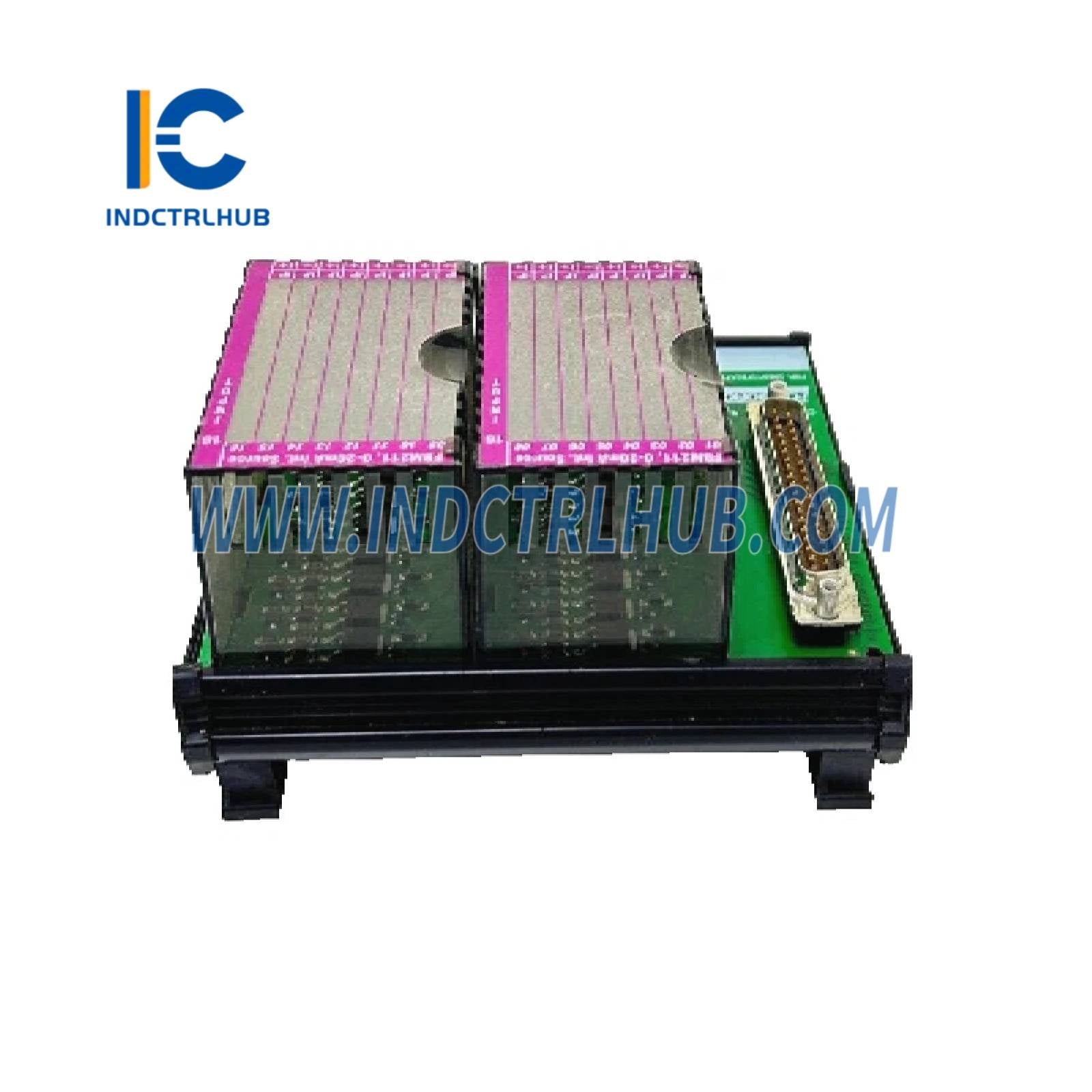

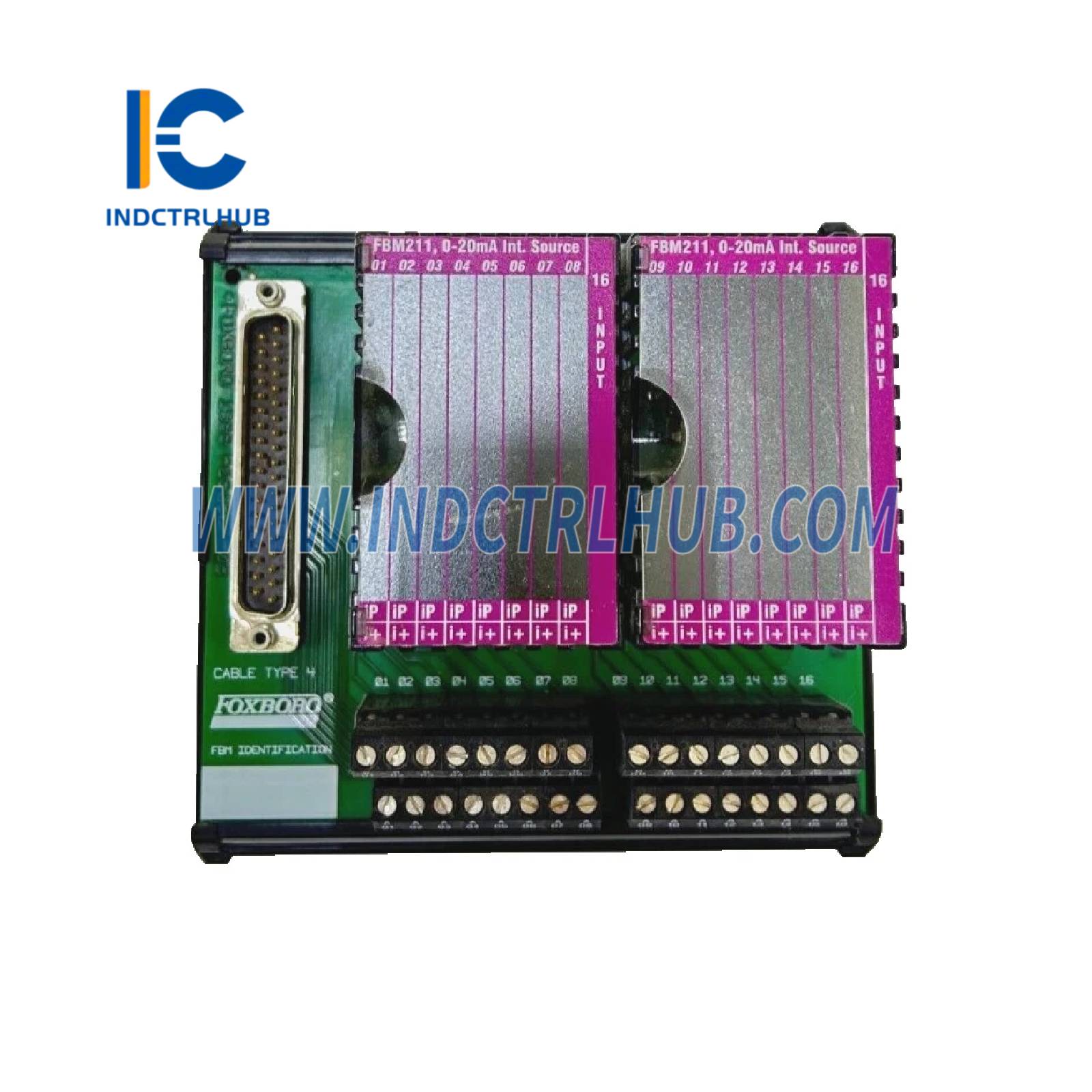

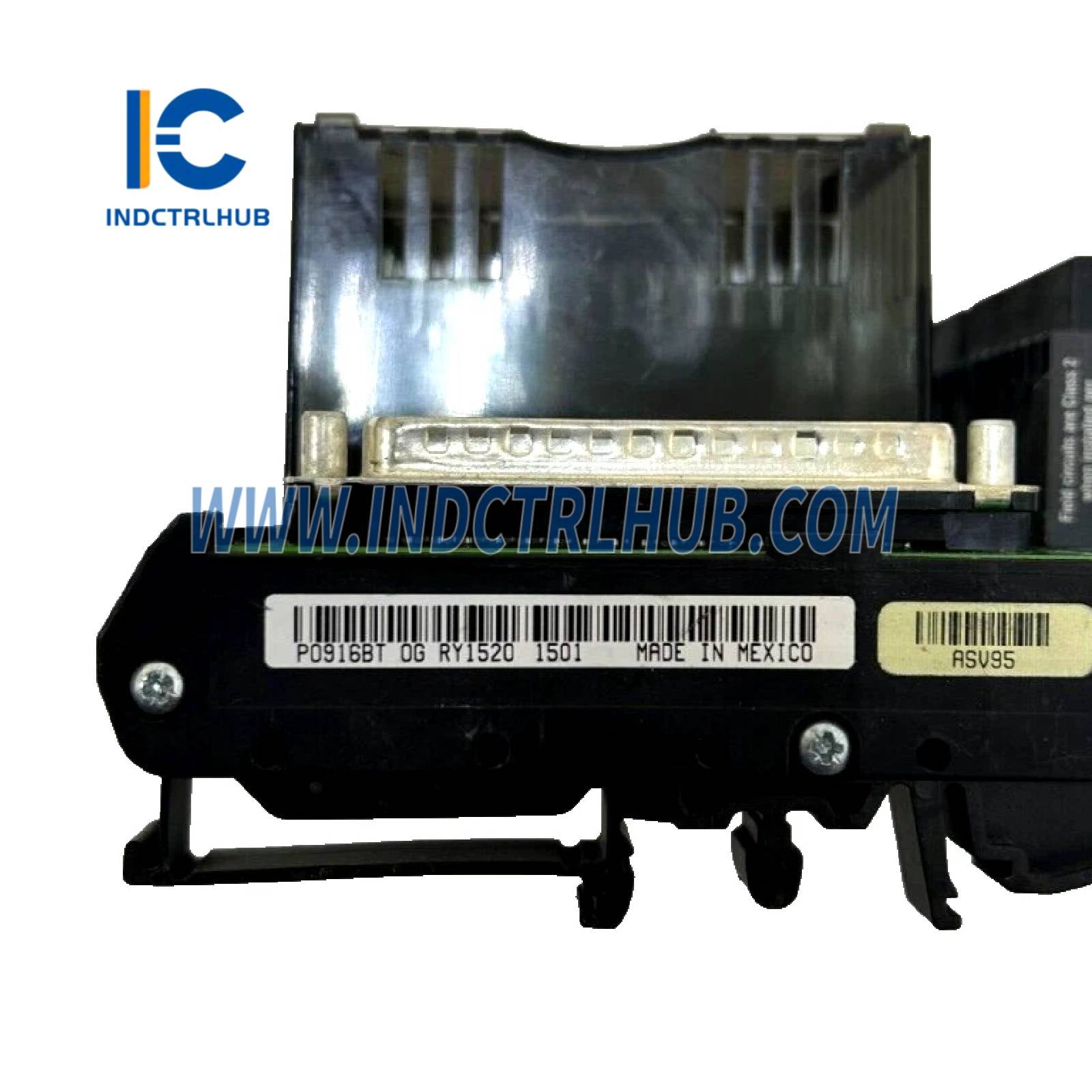

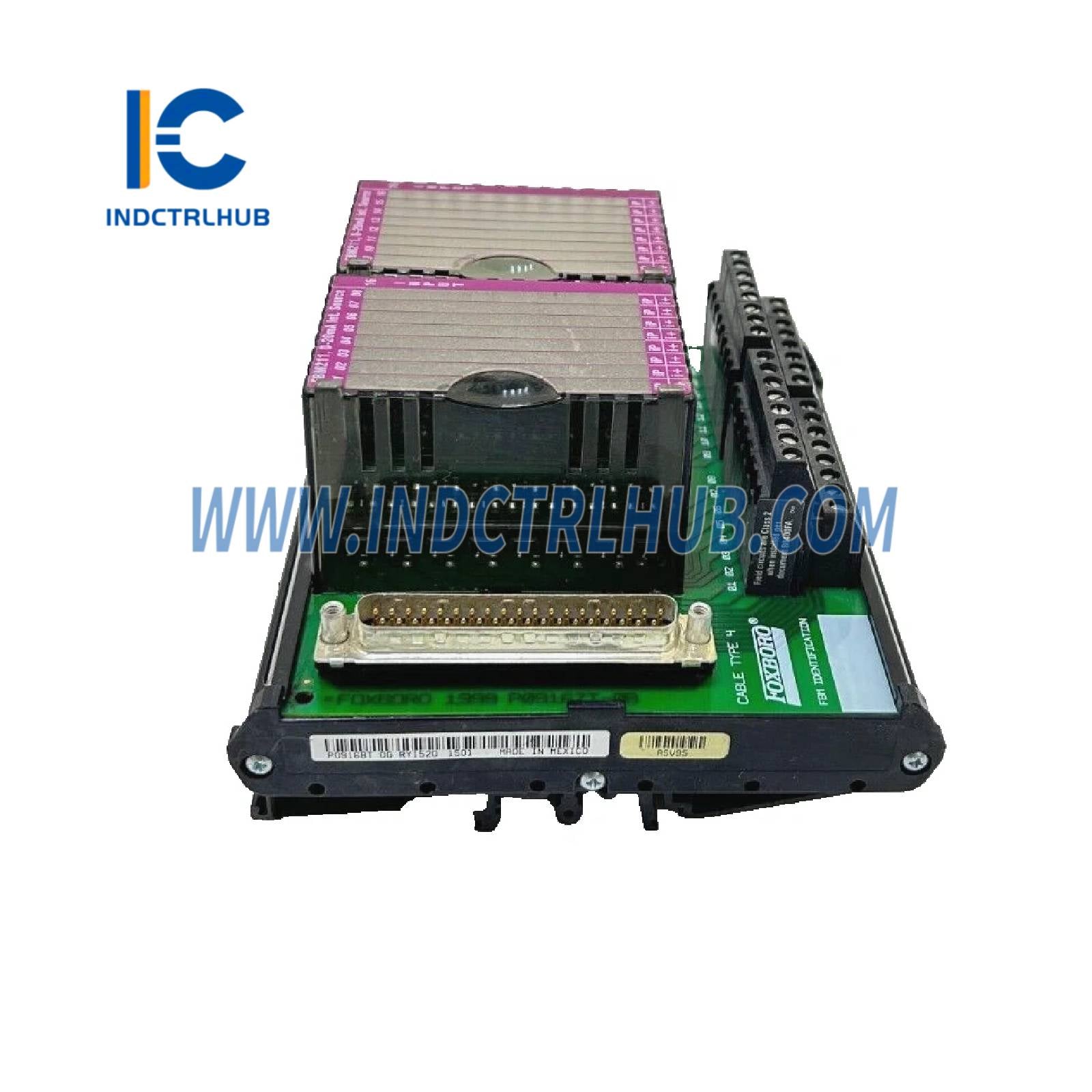

| Feature | Specification |
|---|---|
| Material | Polyamide (PA), rated from -20 to +70°C (-4 to +158°F) |
| Weight | Approximately 272 g (0.60 lb) |
| Dimensions | Height: 125 mm (4.92 in), Depth: 111 mm (4.37 in) including DIN rail |
| Mounting | DIN rail (32 mm or 35 mm) ( |
| Terminal Blocks | 2 tiers, 16 positions |
| Cable Connection (Baseplate) | 37-pin male D-subminiature |
| Cable Connection (TA) | Feedthrough connection for sixteen 2-wire analog input signals |
🌡️ Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -20 to +70°C (-4 to +158°F) |
| Storage Temperature | -40 to +70°C (-40 to +158°F) |
| Relative Humidity | 5 to 95% (non-condensing) |
| Altitude (Operating) | -300 to +3,000 m (-1,000 to +10,000 ft) |
| Altitude (Storage) | -300 to +12,000 m (-1,000 to +40,000 ft) |
| Contamination | Class G3 (harsh) per ISA S71.04, tested per EIA 364-65, Class III |
| Vibration | 0.75 m/s² (5 to 500 Hz) |
✅ Regulatory Compliance
| Standard | Details |
|---|---|
| Electromagnetic Compatibility (EMC) | European EMC Directive 2004/108/EC (pre-April 20, 2016) and 2014/30/EU (post-April 20, 2016); EN61326-1:2013 Class A Emissions and Industrial Immunity Levels |
| Product Safety (UL) | UL/UL-C listed for Class I, Groups A-D, Division 2, T4; Class 2 per NEC (NFPA No.70) and CSA C22.1 when connected to specified processor modules |
| Product Safety (Europe) | European Low Voltage Directive 2006/95/EC (pre-April 20, 2016) and 2014/35/EU (post-April 20, 2016); ATEX 94/9/EC (pre-April 20, 2016) and 2014/34/EU (post-April 20, 2016); DEMKO Ex nA IIC T4 for Zone 2 |
| RoHS Compliance | Complies with European RoHS Directive 2011/65/EU |
| Marine Certification | ABS Type Approved and Bureau Veritas Marine certified for Environmental Category EC31 |
📡 Termination Cables
| Feature | Specification |
|---|---|
| Cable Types | P/PVC (Polyurethane/PVC, -20 to +50°C); LSZH (Low Smoke Zero Halogen, -40 to +105°C) |
| Cable Lengths | Up to 30 m (98 ft) |
| Cable Part Numbers (P/PVC) | 0.5 m: RH916FG (supersedes P0916FG); 1.0 m: RH916FH (supersedes P0916FH); 2.0 m: RH931RQ (supersedes P0931RQ); 3.0 m: RH916FJ (supersedes P0916FJ); 5.0 m: RH916FK (supersedes P0916FK); 10.0 m: RH916FL (supersedes P0916FL); 15.0 m: RH916FM (supersedes P0916FM); 20.0 m: RH916FN (supersedes P0916FN); 25.0 m: RH916FP (supersedes P0916FP); 30.0 m: RH916FQ (supersedes P0916FQ) |
| Cable Part Numbers (LSZH) | 0.5 m: RH928BA (supersedes P0928BA); 1.0 m: RH928BB (supersedes P0928BB); 2.0 m: RH928BC (supersedes P0928BC); 3.0 m: RH928BD (supersedes P0928BD); 5.0 m: RH928BE (supersedes P0928BE); 10.0 m: RH928BF (supersedes P0928BF); 15.0 m: RH928BG (supersedes P0928BG); 20.0 m: RH928BH (supersedes P0928BH); 25.0 m: RH928BJ (supersedes P0928BJ); 30.0 m: RH928BK (supersedes P0928BK) |
📦 Ordering Information
| Field | Details |
|---|---|
| Grade | Industrial |
| Part Number | P0916BT (superseded by RH916BT) |
| Associated Module | FBM211 (RH914TN, supersedes P0914TN) |
| Termination Type | Compression, Polyamide (PA) |
| Cable Part Numbers | P/PVC: RH916FG to RH916FQ; LSZH: RH928BA to RH928BK |
