Product Description

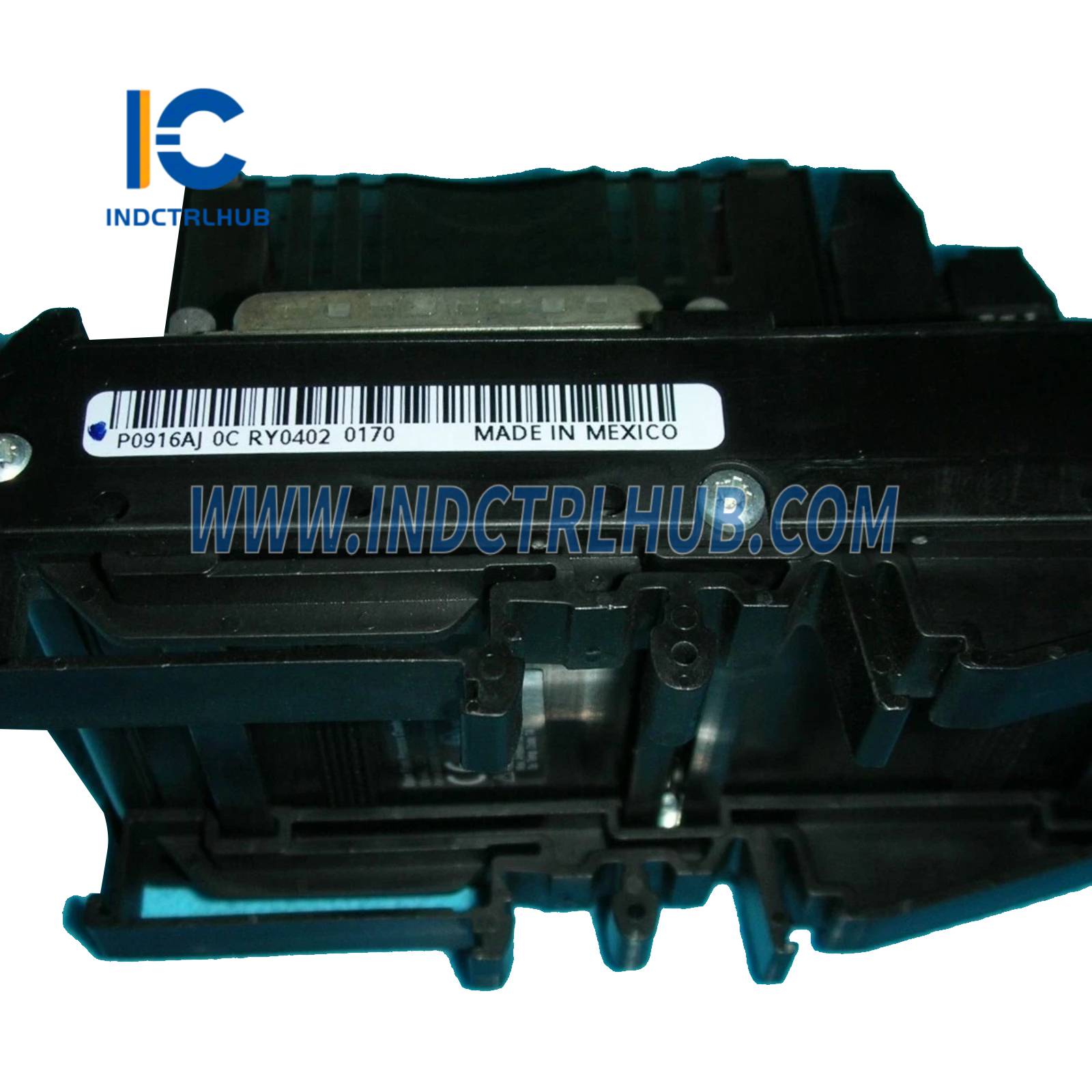

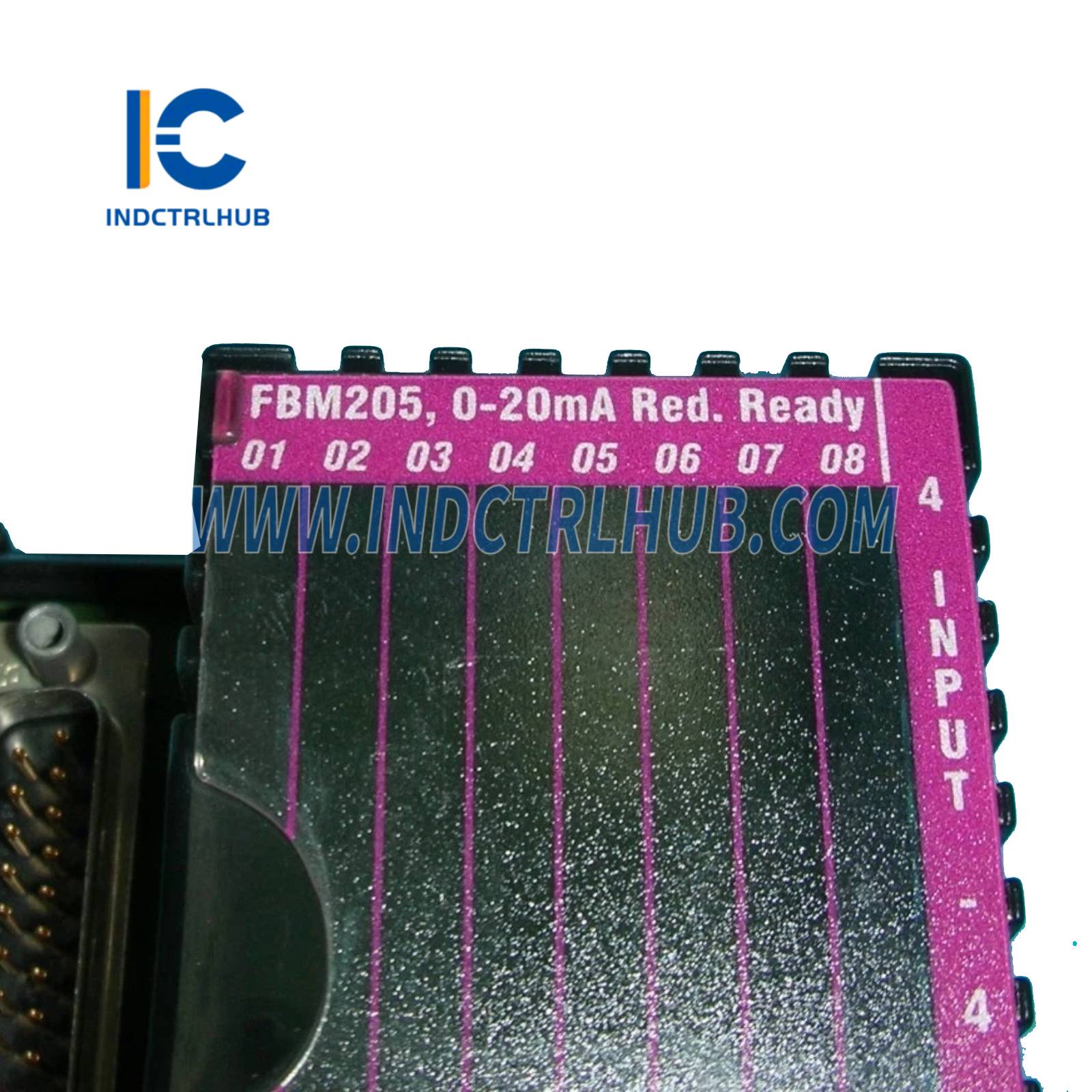

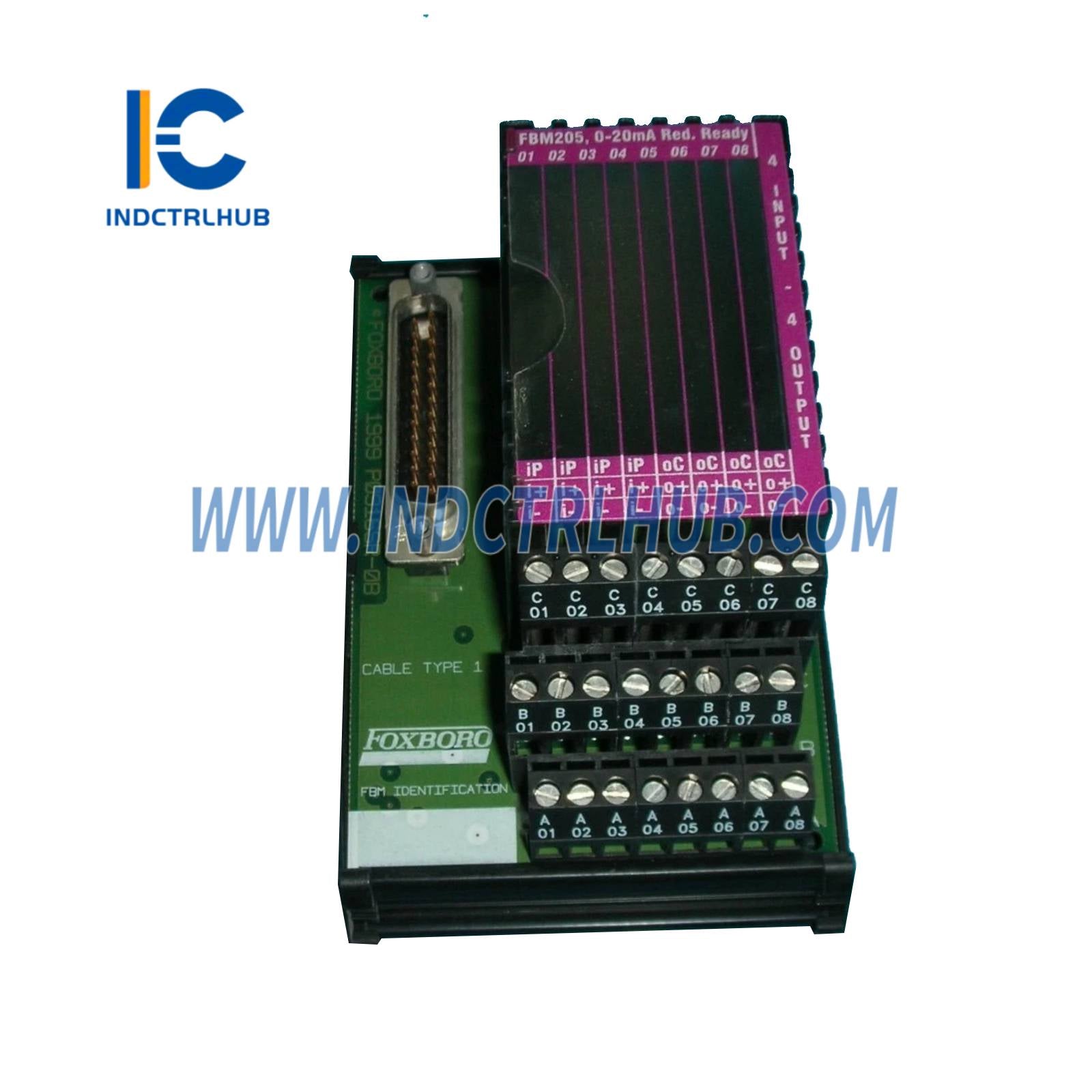

Product Parameters for P0916AJ Termination Assembly
📘 Product относятся к изделиям
| Field | Details |
|---|---|
| Manufacturer | Foxboro (by Schneider Electric) |
| Part Number | P0916AJ (superseded by RH916XL) |
| Product Type | Termination Assembly (TA) for FBM208 I/O Module |
| Function | Connects four 0 to 20 mA analog inputs and four 0 to 20 mA analog outputs to FBM208; supports redundant configuration with readback, channel isolated |
| Associated Module | FBM208 (RH916XL, replacement path only for FBM05, non-HART devices) |
| System Compatibility | Foxboro Evo Process Automation System, 200 Series Upgrade from 100 Series |
⚙️ Functional Specifications
| Feature | Specification |
|---|---|
| Input Signals | 4 channels, 0 to 20 mA dc analog input, redundant with readback |
| Output Signals | 4 channels, 0 to 20 mA dc analog output, redundant with readback |
| Termination Type | Compression (assumed based on standard TA design for FBM208, per PSS 31H-2S208) |
| TA Cable Type | Type 1 (standard for 200 Series TAs, per PSS 31H-2S208) |
| TA Certification Type | Type 1: UL/UL-C Class I, Groups A-D, Division 2, T4; DEMKO EEx nA IIC T4 (Zone 2) (per PSS 31H-2S208) |
| Field Termination Connections | Solid/Stranded: 0.2 to 4 mm² / 0.2 to 2.5 mm² (24 to 12 AWG) Stranded with Ferrules: 0.2 to 2.5 mm² (with or without plastic collar) (per PSS 31H-2S208) |
🔌 Physical Specifications
| Feature | Specification |
|---|---|
| Material | Polyamide (PA) (assumed based on standard 200 Series TA, per PSS 31H-2S208) |
| Weight | Approximately 159 g (0.35 lb) (based on similar TAs, e.g., RH916XK, per PSS 31H-2S204) |
| Dimensions | Assumed similar to standard TA (e.g., RH917QW): 125 mm (4.92 in) height, 111 mm (4.37 in) depth (including DIN rail) (per PSS 31H-2S204 context) |
| Mounting | DIN rail (32 mm or 35 mm) (per PSS 31H-2S208) |
| Cable Connection (Baseplate) | 37-pin D-subminiature (FBM baseplate end) (per PSS 31H-2S208) |
| Cable Connection (TA) | 25-pin D-subminiature (TA end) (per PSS 31H-2S208) |
🌡️ Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -20 to +70°C (-4 to +158°F) (per PSS 31H-2S208) |
| Storage Temperature | -40 to +70°C (-40 to +158°F) (per PSS 31H-2S208) |
| Relative Humidity | 5 to 95% (non-condensing) (per PSS 31H-2S208) |
| Altitude (Operating) | -300 to +3,000 m (-1,000 to +10,000 ft) (per PSS 31H-2S208) |
| Altitude (Storage) | -300 to +12,000 m (-1,000 to +40,000 ft) (per PSS 31H-2S208) |
| Contamination | Class G3 (harsh) per ISA S71.04, tested per EIA 364-65, Class III (per PSS 31H-2S208) |
| Vibration | 7.5 m/s² (0.75 g) from 5 to 500 Hz (per PSS 31H-2S208) |
✅ Regulatory Compliance
| Standard | Details |
|---|---|
| Electromagnetic Compatibility (EMC) | European EMC Directive 2004/108/EC (pre-April 20, 2016) and 2014/30/EU (post-April 20, 2016); EN61326-1:2013 Class A Emissions and Industrial Immunity Levels (per PSS 31H-2S208) |
| Product Safety (UL) | UL/UL-C listed for Class I, Groups A-D, Division 2, T4; Class 2 per NEC (NFPA No.70) and CSA C22.1 (per PSS 31H-2S208) |
| Product Safety (Europe) | European Low Voltage Directive 2006/95/EC (pre-April 20, 2016) and 2014/35/EU (post-April 20, 2016); ATEX 94/9/EC (pre-April 20, 2016) and 2014/34/EU (post-April 20, 2016); DEMKO Ex nA IIC T4 for Zone 2 (per PSS 31H-2S208) |
| RoHS Compliance | Complies with European RoHS Directive 2011/65/EU (assumed for P0916AJ, confirmed for RH916XL, per PSS 31H-2S208) |
| Marine Certification | ABS Type Approved and Bureau Veritas Marine certified for Environmental Category EC31 (per PSS 31H-2S208) |
📡 Termination Cables
| Feature | Specification |
|---|---|
| Cable Types | P/PVC (Polyurethane/PVC, -20 to +80°C), LSZH (Low Smoke Zero Halogen, -40 to +105°C) (per PSS 31H-2S208) |
| Cable Lengths | Up to 30 m (98 ft) (per PSS 31H-2S208) |
| Cable Part Numbers (P/PVC) | 0.5 m: RH916DA; 1.0 m: RH916DB; 2.0 m: RH931RM; 3.0 m: RH916DC; 5.0 m: RH916DD; 10.0 m: RH916DE; 15.0 m: RH916DF; 20.0 m: RH916DG; 25.0 m: RH916DH; 30.0 m: RH916DJ (supersedes P0916DA to P0916DJ) (per PSS 31H-2S204, assumed applicable) |
| Cable Part Numbers (LSZH) | 0.5 m: RH928AA; 1.0 m: RH928AB; 2.0 m: RH928AC; 3.0 m: RH928AD; 5.0 m: RH928AE; 10.0 m: RH928AF; 15.0 m: RH928AG; 20.0 m: RH928AH; 25.0 m: RH928AJ; 30.0 m: RH928AK (supersedes P0928AA to P0928AK) (per PSS 31H-2S204, assumed applicable) |
📦 Ordering Information
| Field | Details |
|---|---|
| Grade | Industrial |
| Part Number | P0916AJ (superseded by RH916XL) |
| Associated Module | FBM208 (RH916XL, replacement path for FBM05, non-HART devices) |
| Termination Type | Compression, Polyamide (PA) (assumed per PSS 31H-2S208) |
| Cable Part Numbers | P/PVC: RH916DA to RH916DJ; LSZH: RH928AA to RH928AK (per PSS 31H-2S204, assumed applicable) |
