Product Description
Product Parameters for P0916AA Termination Assembly

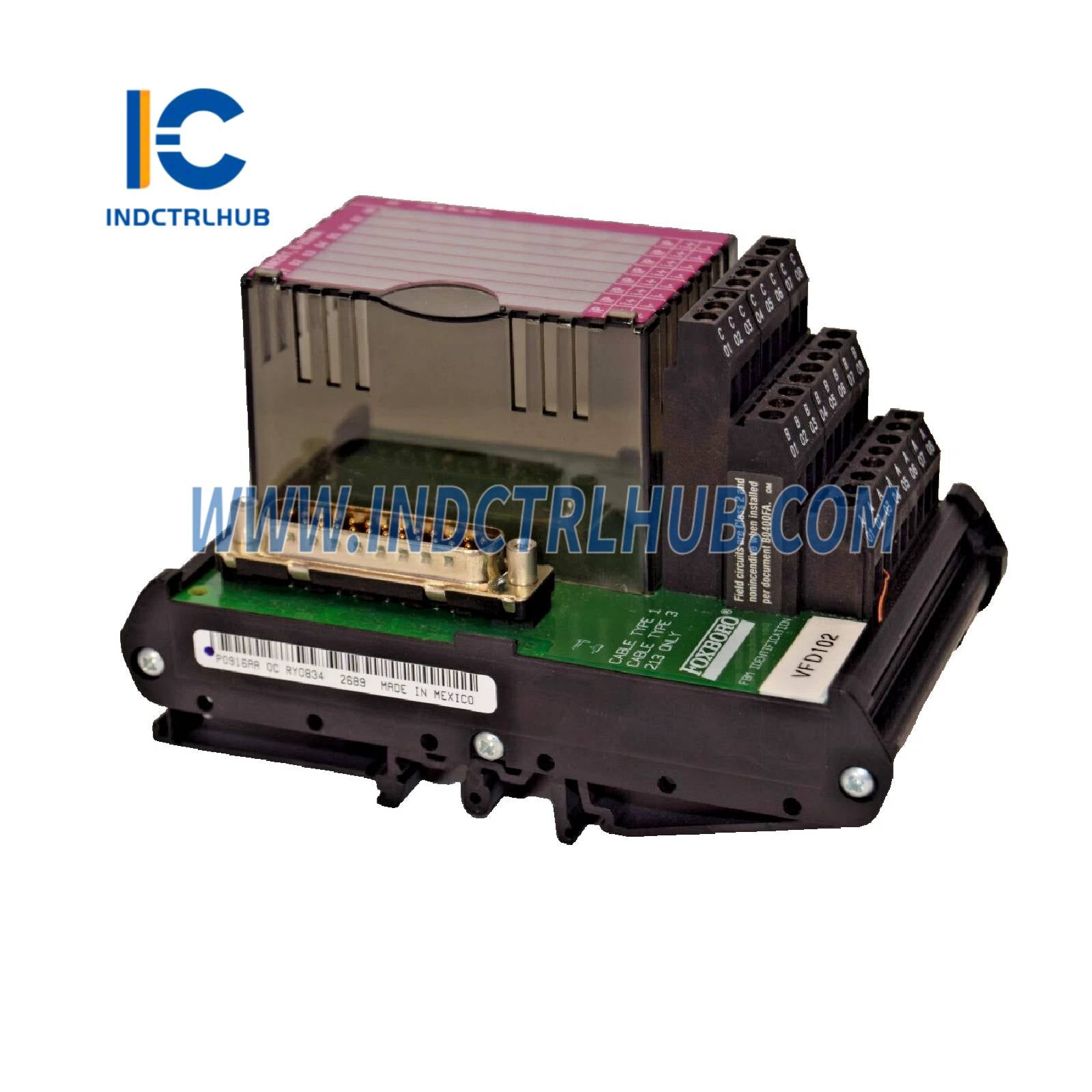

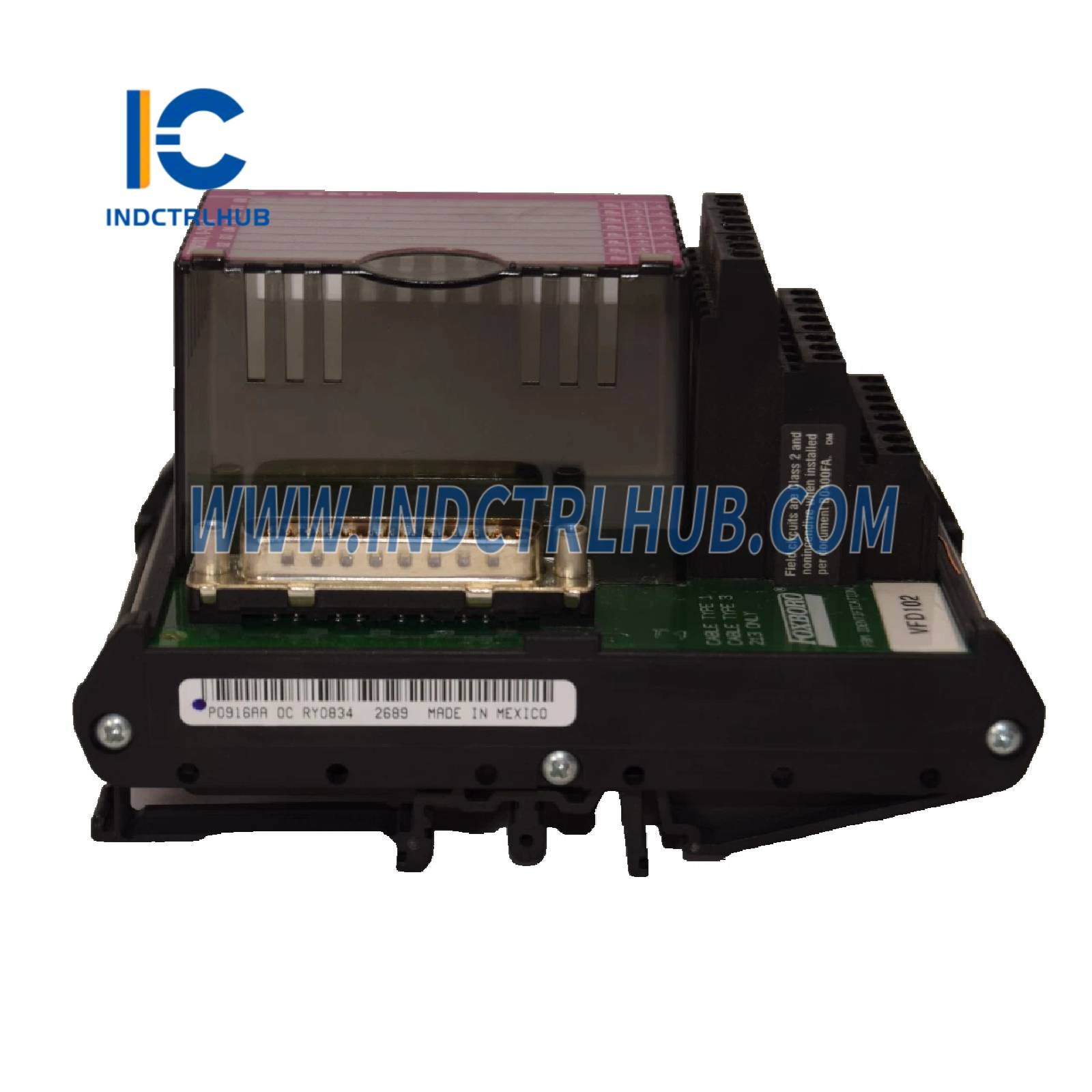

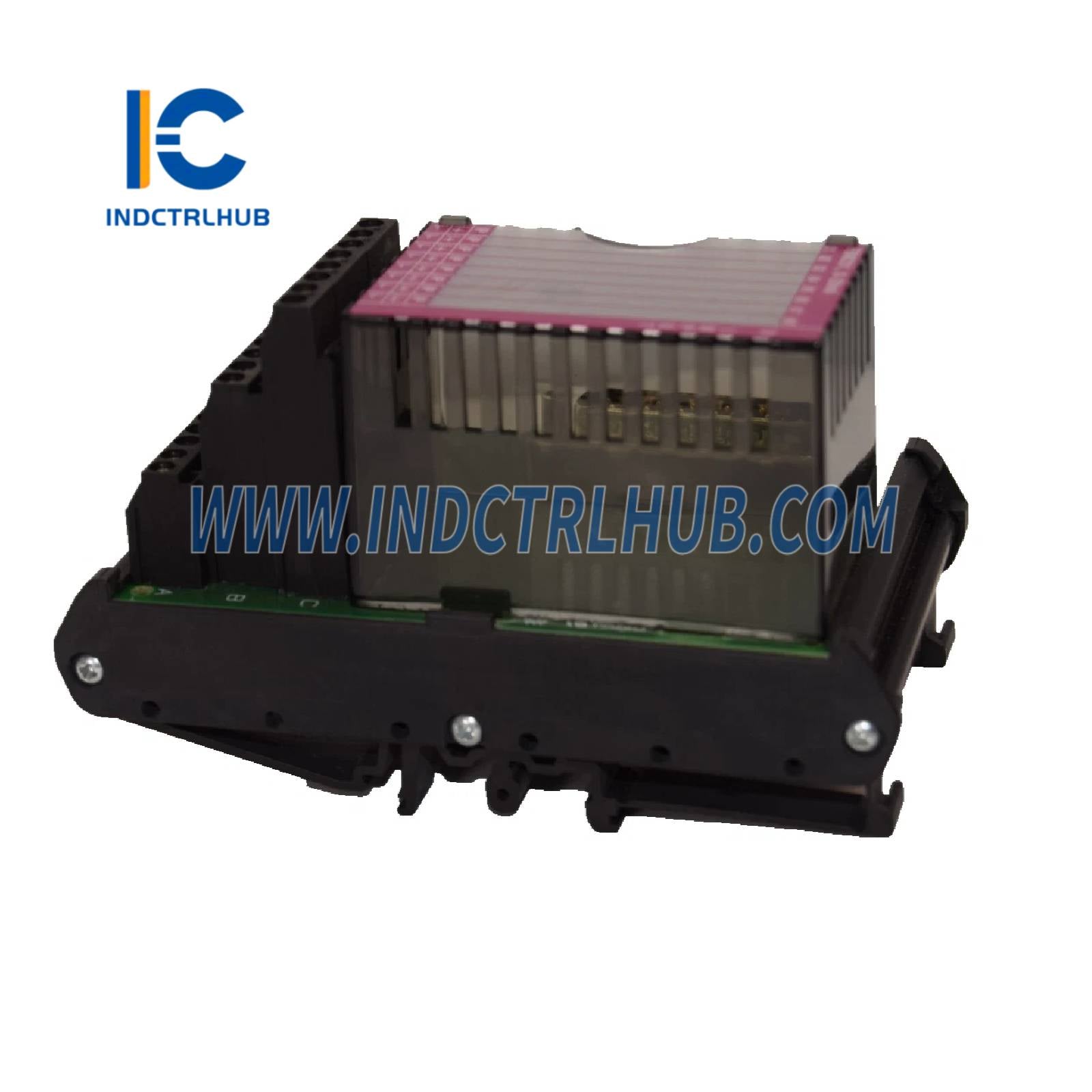

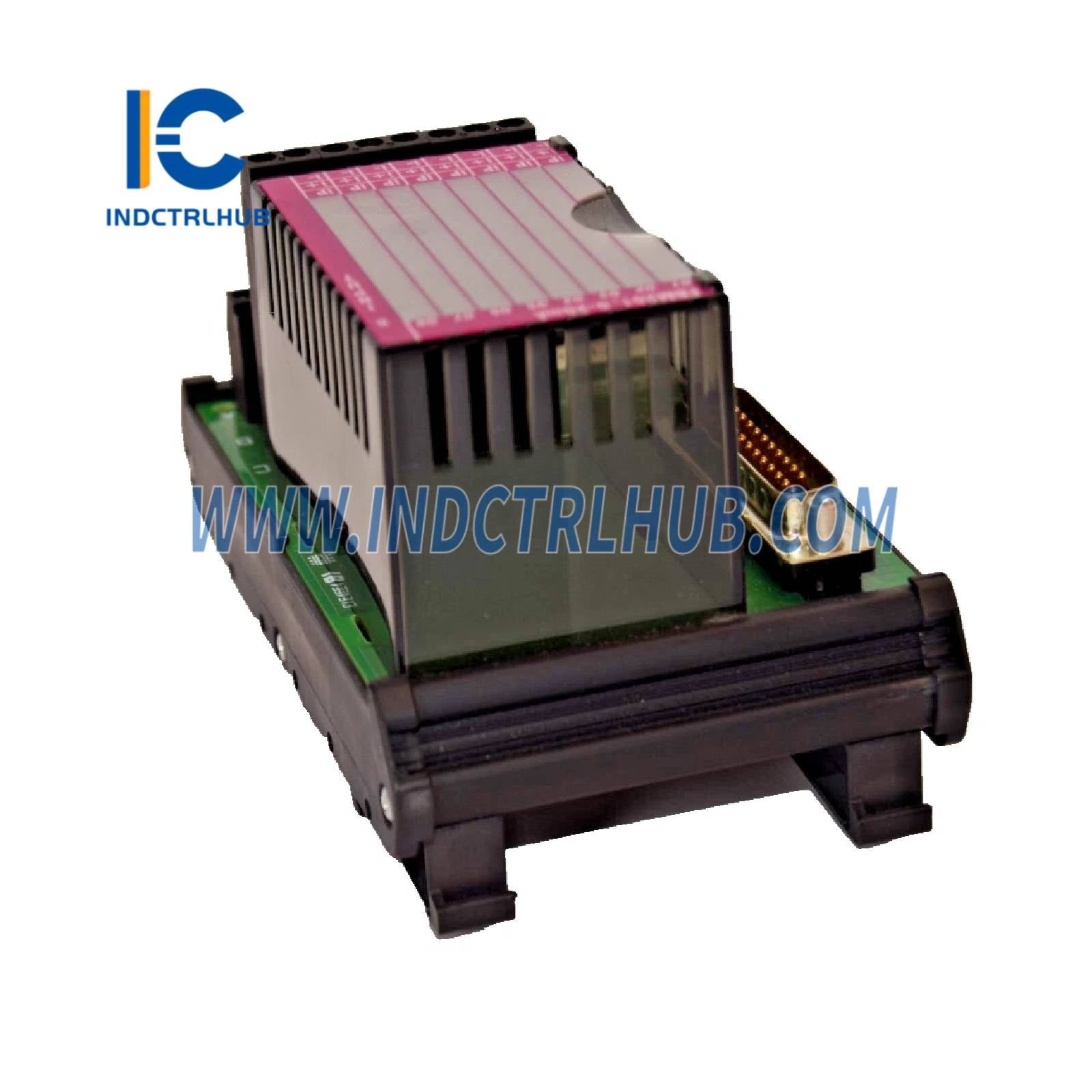

📘 Product Overview
| Field | Details |
|---|---|
| Manufacturer | Foxboro (by Schneider Electric) |
| Part Number | P0916AA (superseded by RH916XG) |
| Product Type | Termination Assembly (TA) for FBM201 Analog Input Module |
| Function | Connects eight 0 to 20 mA dc analog input signals to FBM201; passive feedthrough with channel isolation |
| Associated Module | FBM201 (0 to 20 mA dc, 8 channels) |
| System Compatibility | Foxboro Evo Process Automation System, Standard 200 Series |
⚙️ Functional Specifications

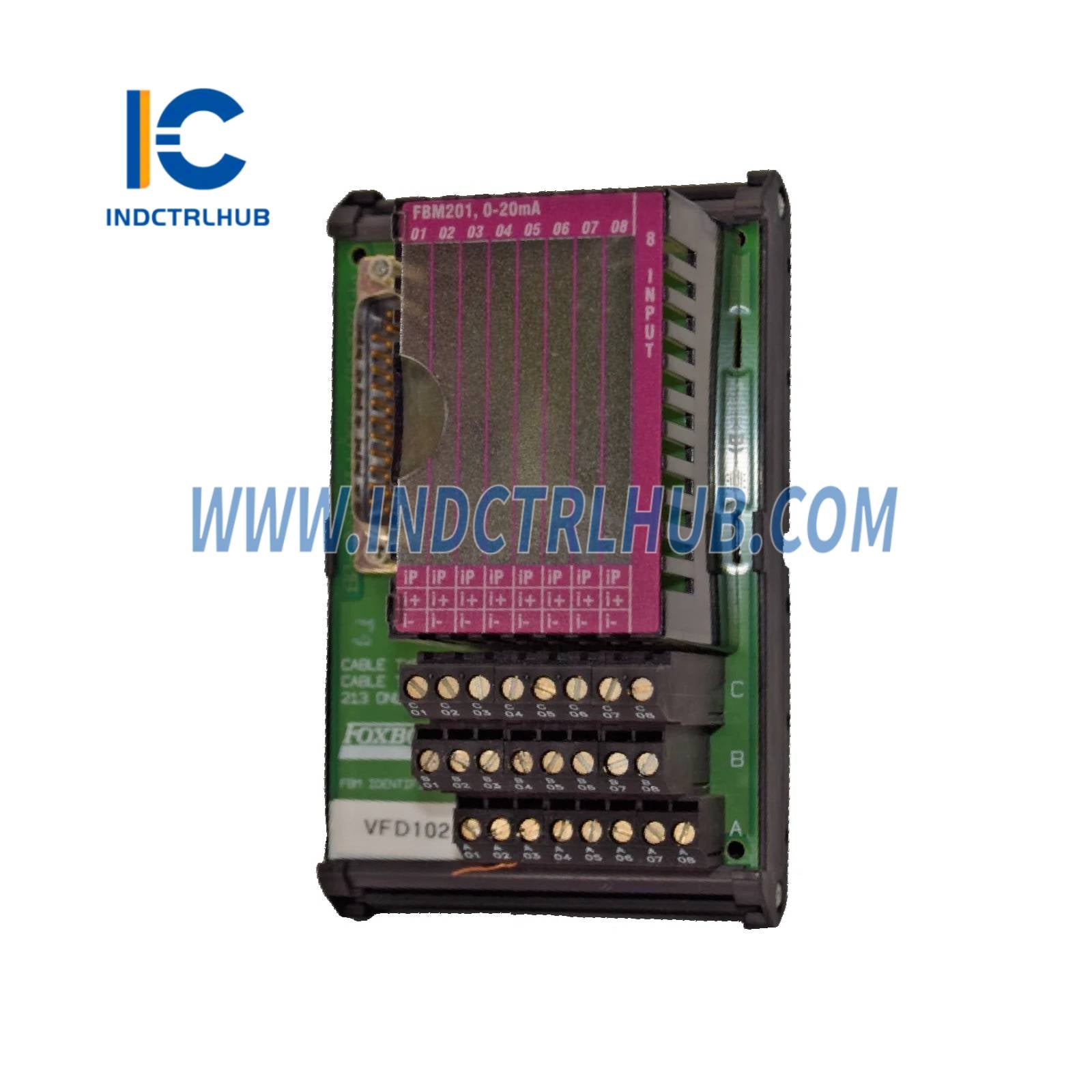

| Feature | Specification |
|---|---|
| Input Signals | 8 channels, 0 to 20 mA dc, passive feedthrough |
| Termination Type | Compression (C) |
| TA Cable Type | Type 1 (see Table 2 for cable part numbers) |
| TA Certification Type | Type 1: UL/UL-C Class I, Groups A-D, Division 2, T4; DEMKO EEx nA [nL] IIC T4 (Zone 2) Type 2: Associated apparatus for non-incendive field circuits (Class I, Groups A-D, Division 2; Zone 2, Group IIC) |
| Field Termination Connections | Solid/Stranded: 0.2 to 4 mm² / 0.2 to 2.5 mm² (24 to 12 AWG) Stranded with Ferrules: 0.2 to 2.5 mm² (with or without plastic collar) |
🔌 Physical Specifications

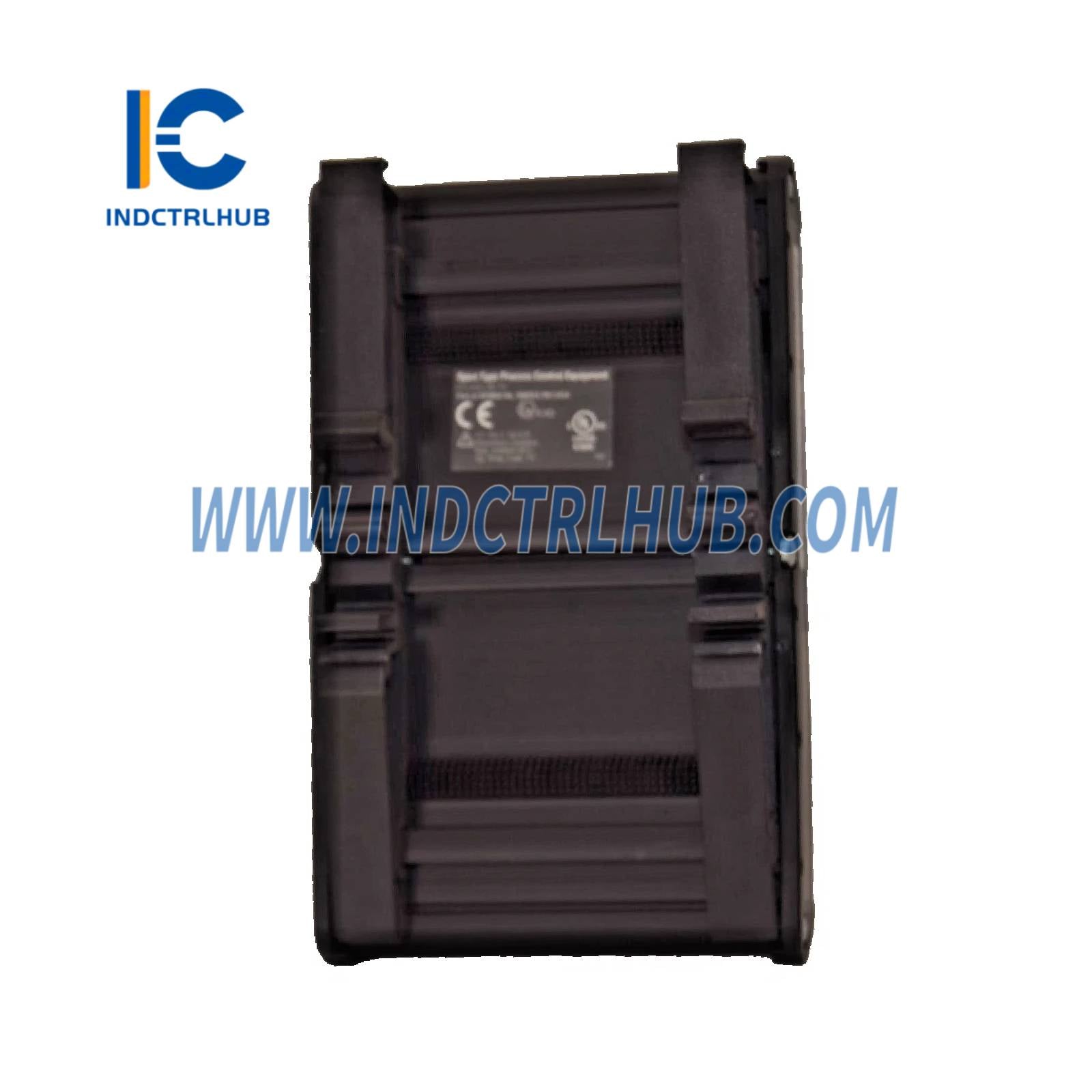

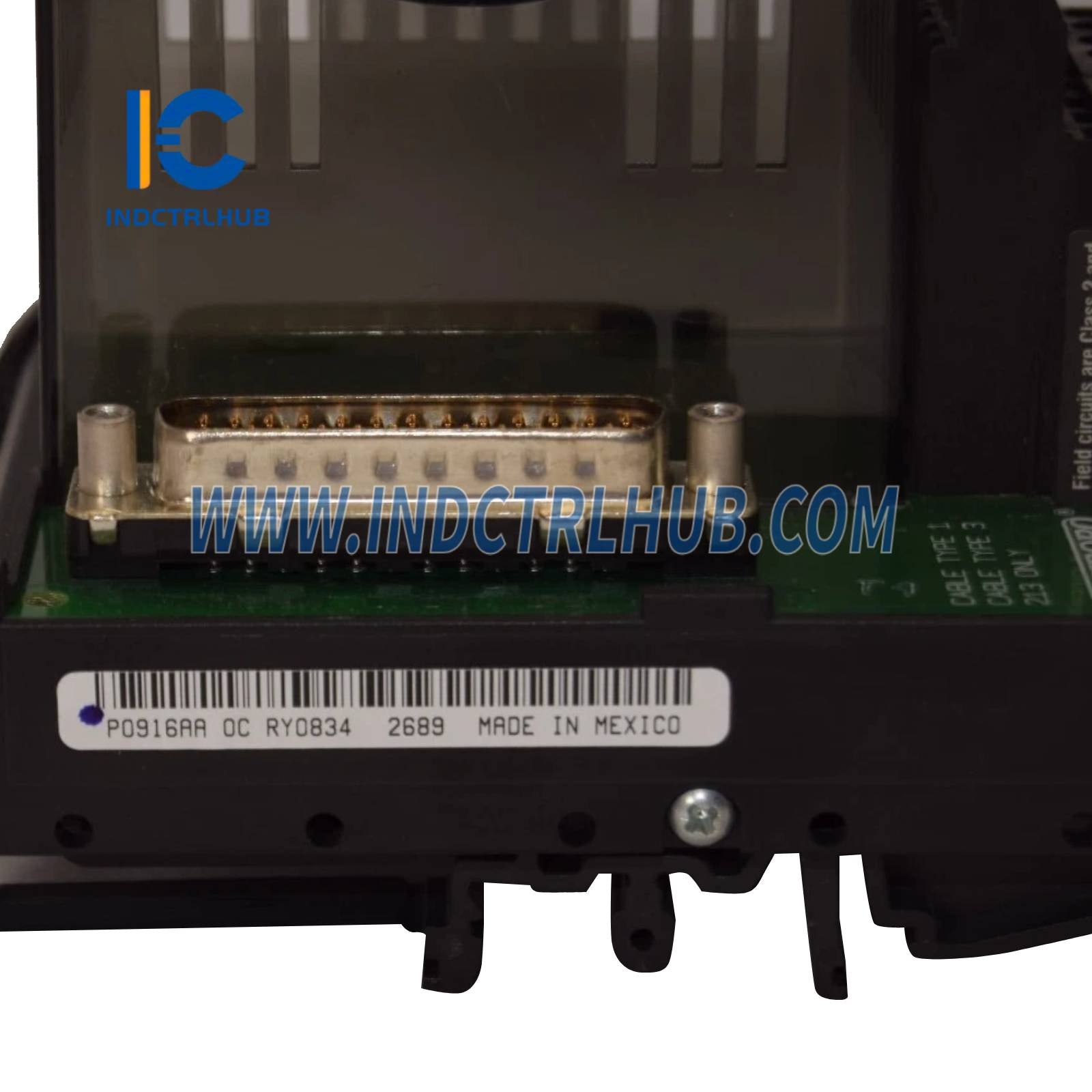

| Feature | Specification |
|---|---|
| Material | Polyamide (PA) |
| Weight | 181 g (0.40 lb) approximate |
| Dimensions | 125 mm (4.92 in) height, 111 mm (4.37 in) depth (including DIN rail) |
| Mounting | DIN rail (32 mm or 35 mm) |
| Cable Connection (Baseplate) | 37-pin D-subminiature (FBM baseplate end) |
| Cable Connection (TA) | 25-pin D-subminiature (TA end) |
🌡️ Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -20 to +70°C (-4 to +158°F) |
| Storage Temperature | -40 to +70°C (-40 to +158°F) |
| Relative Humidity | 5 to 95% (non-condensing) |
| Altitude (Operating) | -300 to +3,000 m (-1,000 to +10,000 ft) |
| Altitude (Storage) | -300 to +12,000 m (-1,000 to +40,000 ft) |
| Contamination | Class G3 (harsh) per ISA S71.04, tested per EIA 364-65, Class III |
| Vibration | 7.5 m/s² (0.75 g) from 5 to 500 Hz |
✅ Regulatory Compliance
| Standard | Details |
|---|---|
| Electromagnetic Compatibility (EMC) | European EMC Directive 2004/108/EC (pre-April 20, 2016) and 2014/30/EU (post-April 20, 2016); EN61326-1:2013 Class A Emissions and Industrial Immunity Levels |
| Product Safety (UL) | UL/UL-C listed for Class I, Groups A-D, Division 2, T4; Class 2 per NEC (NFPA No.70) and CSA C22.1; associated apparatus for non-incendive circuits per B0400FA |
| Product Safety (Europe) | European Low Voltage Directive 2006/95/EC (pre-April 20, 2016) and 2014/35/EU (post-April 20, 2016); ATEX 94/9/EC (pre-April 20, 2016) and 2014/34/EU (post-April 20, 2016); DEMKO Ex nA [nL] IIC T4 for Zone 2 |
| RoHS Compliance | Complies with European RoHS Directive 2011/65/EU |
| Marine Certification | ABS Type Approved and Bureau Veritas Marine certified for Environmental Category EC31 |
📡 Termination Cables
| Feature | Specification |
|---|---|
| Cable Types | P/PVC (Polyurethane/PVC, -20 to +80°C), LSZH (Low Smoke Zero Halogen, -40 to +105°C) |
| Cable Lengths | Up to 30 m (98 ft) |
| Cable Part Numbers (P/PVC) | 0.5 m: RH916DA; 3.0 m: RH916DC; 30 m: RH916DJ (supersedes P0916DA, P0916DC, P0916DJ) |
| Cable Part Numbers (LSZH) | 0.5 m: RH928AA; 3.0 m: RH928AD; 30 m: RH928AK (supersedes P0928AA, P0928AD, P0928AK) |
📦 Ordering Information
| Field | Details |
|---|---|
| Grade | Industrial |
| Part Number | P0916AA (superseded by RH916XG) |
| Associated Module | FBM201 (RH914SQ, supersedes P0914SQ) |
| Termination Type | Compression, Polyamide (PA) |
| Cable Part Numbers | P/PVC: RH916DA to RH916DJ; LSZH: RH928AA to RH928AK (see Table 2) |
