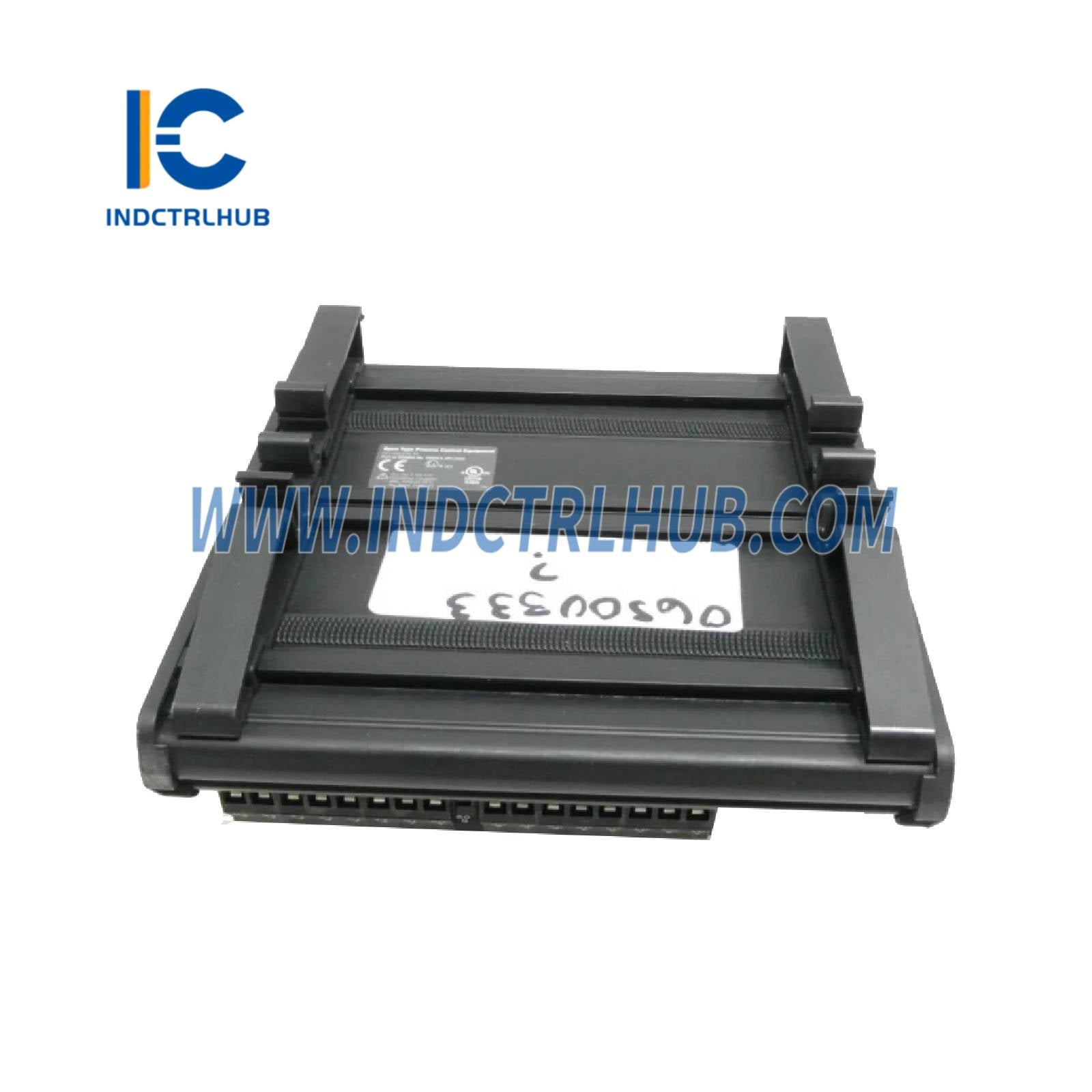

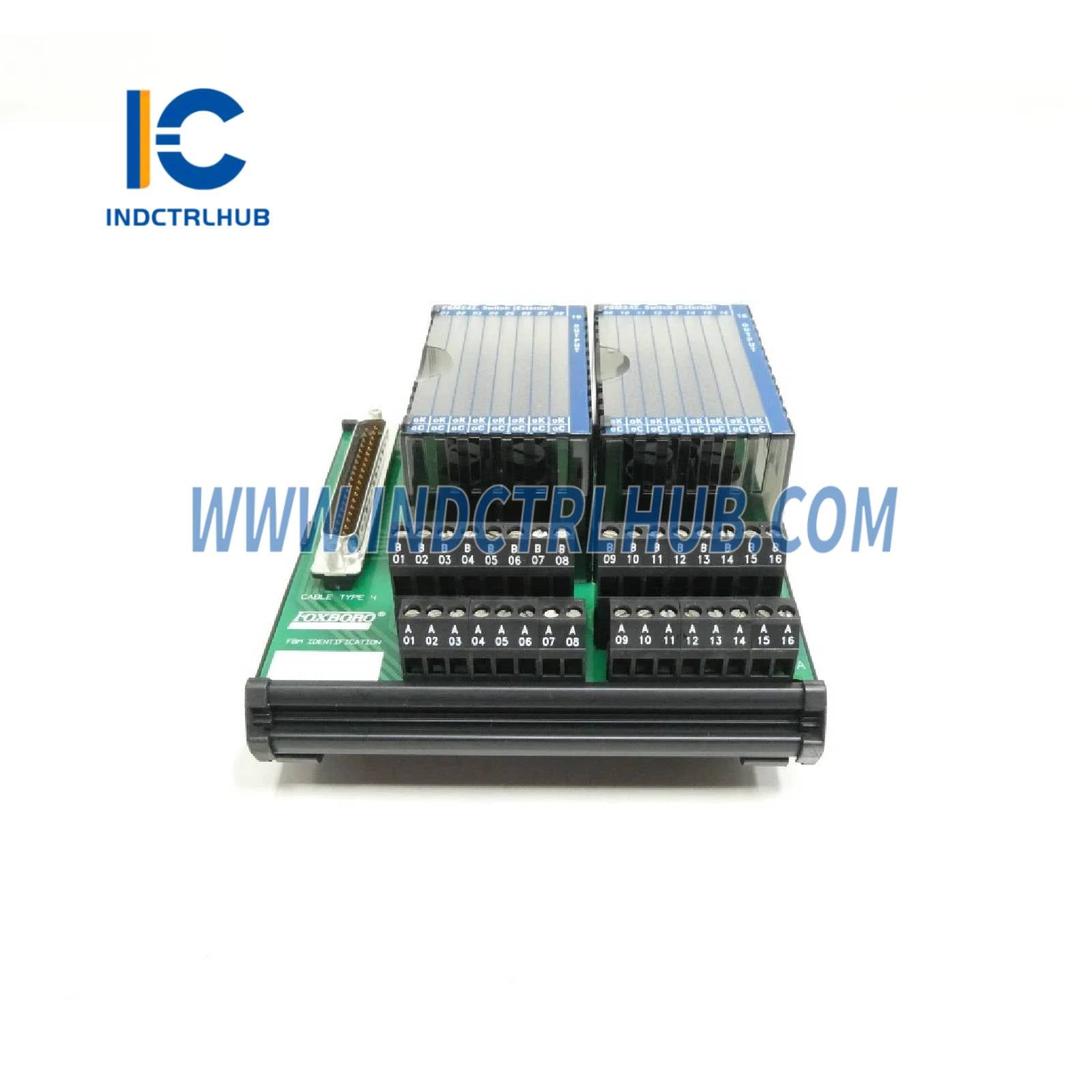

Foxboro FBM242 P0971HX Invensys I/A Series Discrete Output Module
Product Overview
- The Foxboro FBM242 P0971HX is a Discrete Output Module from the Invensys I/A Series (now part of Schneider Electric's EcoStruxure Foxboro DCS). This module provides 16 externally powered discrete outputs, designed to interface with field devices such as relays, solenoids, or actuators. It is used in industrial automation applications, including oil and gas, chemical processing, and power generation, for reliable control of binary signals within the I/A Series control system. The P0971HX is a specific variant of the FBM242, potentially indicating a revision or configuration for enhanced compatibility or performance.
Technical Specifications
- The FBM242 P0971HX has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | FBM242 P0971HX |
| Manufacturer | Foxboro (Invensys, now Schneider Electric) |
| Description | I/A Series Discrete Output Module, 16 Externally Powered Outputs |
| Series | Invensys I/A Series |
| Function | Provides 16 discrete output signals for controlling field devices |
| Input/Output | 16 discrete outputs (externally powered, 15–60 VDC or 120/240 VAC) |
| Output Voltage | 15–60 VDC or 120/240 VAC (external power source) |
| Output Current | Up to 2 A per output (dependent on load and external power) |
| Isolation | Optical isolation between field outputs and system bus |
| Power Supply | 24 VDC (supplied via I/A Series backplane for module operation); external power required for outputs |
| Power Consumption | Approx. 3 W (typical for FBM modules, excludes external load) |
| Environmental Specifications | Ambient Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing Shock: 15 g, 11 ms Vibration: 1 g, 10–500 Hz |
| Dimensions | Approx. 170 mm (H) x 35 mm (W) x 150 mm (D) (standard I/A Series module size) |
| Weight | Approx. 0.4 kg |
| Mounting | Plugs into I/A Series Fieldbus Module (FBM) baseplate |
| Certifications | CE, UL, CSA, suitable for non-hazardous environments |
