Product Description

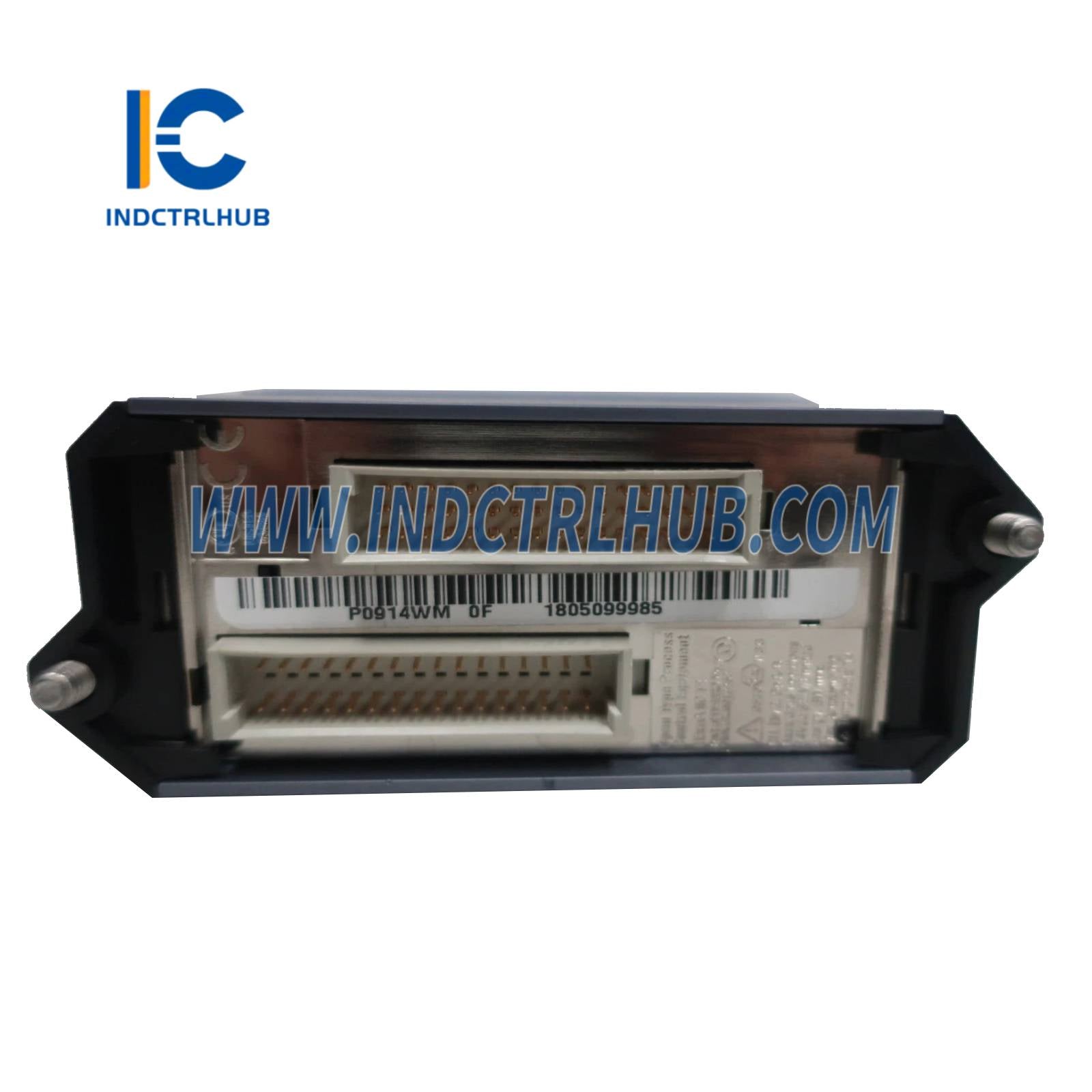

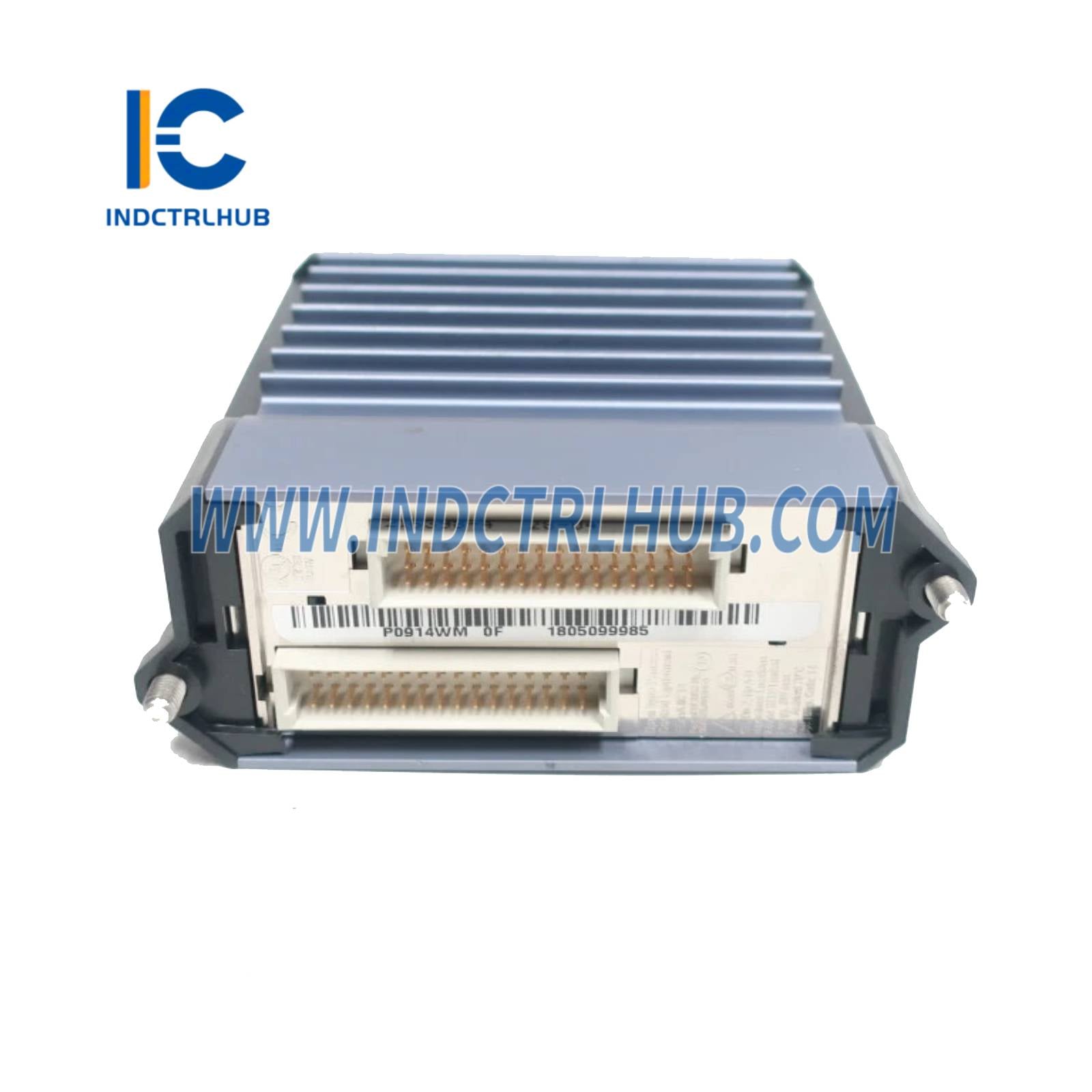

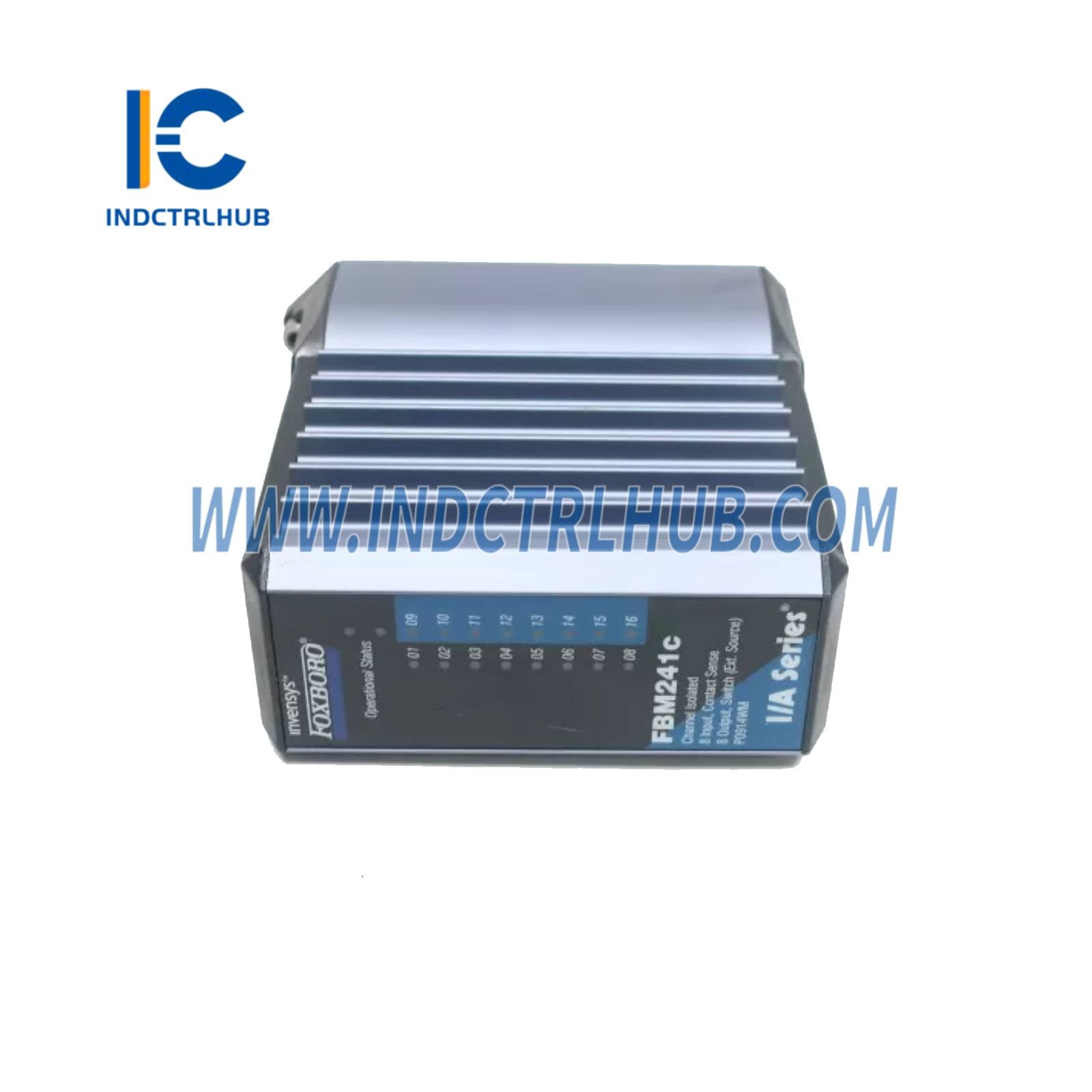

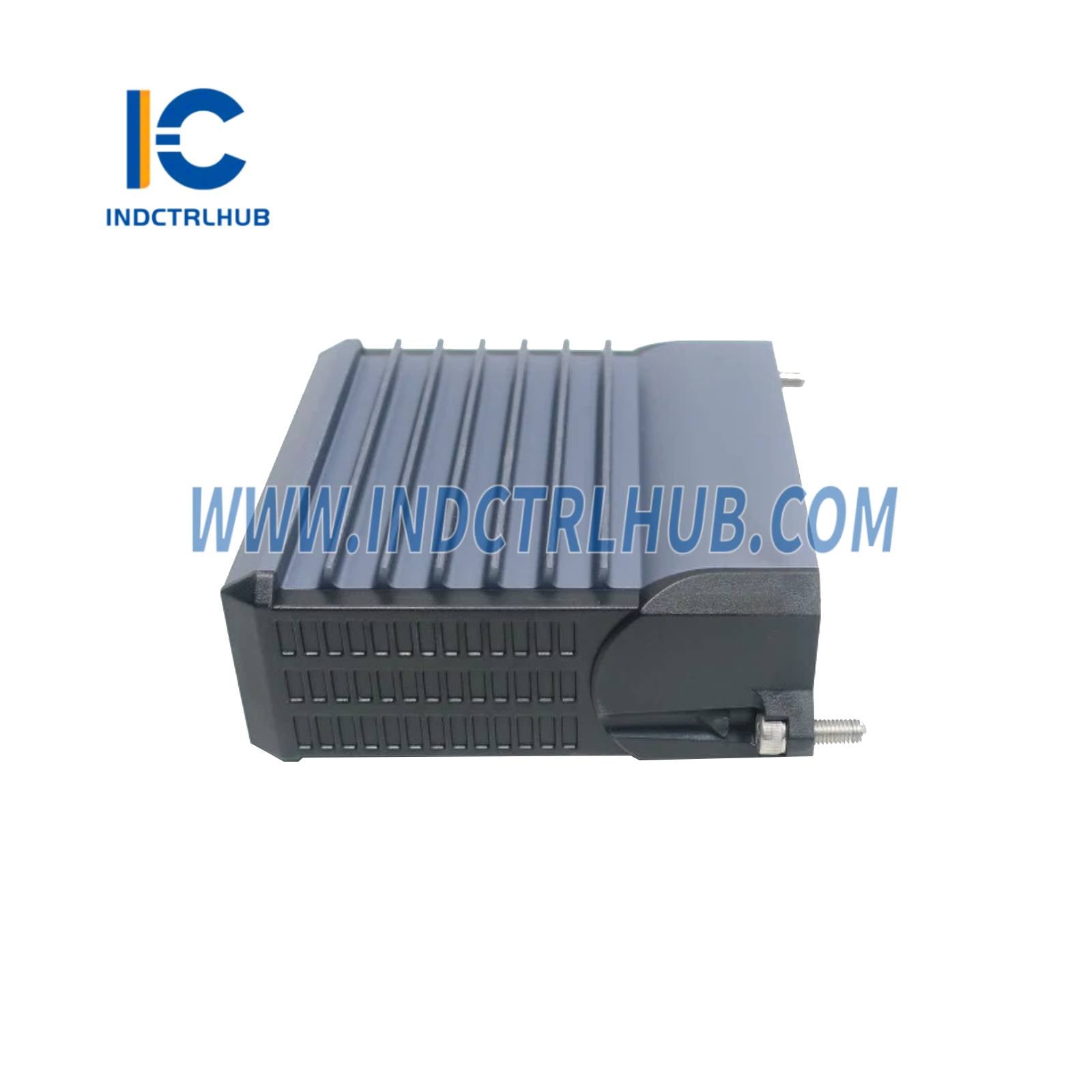

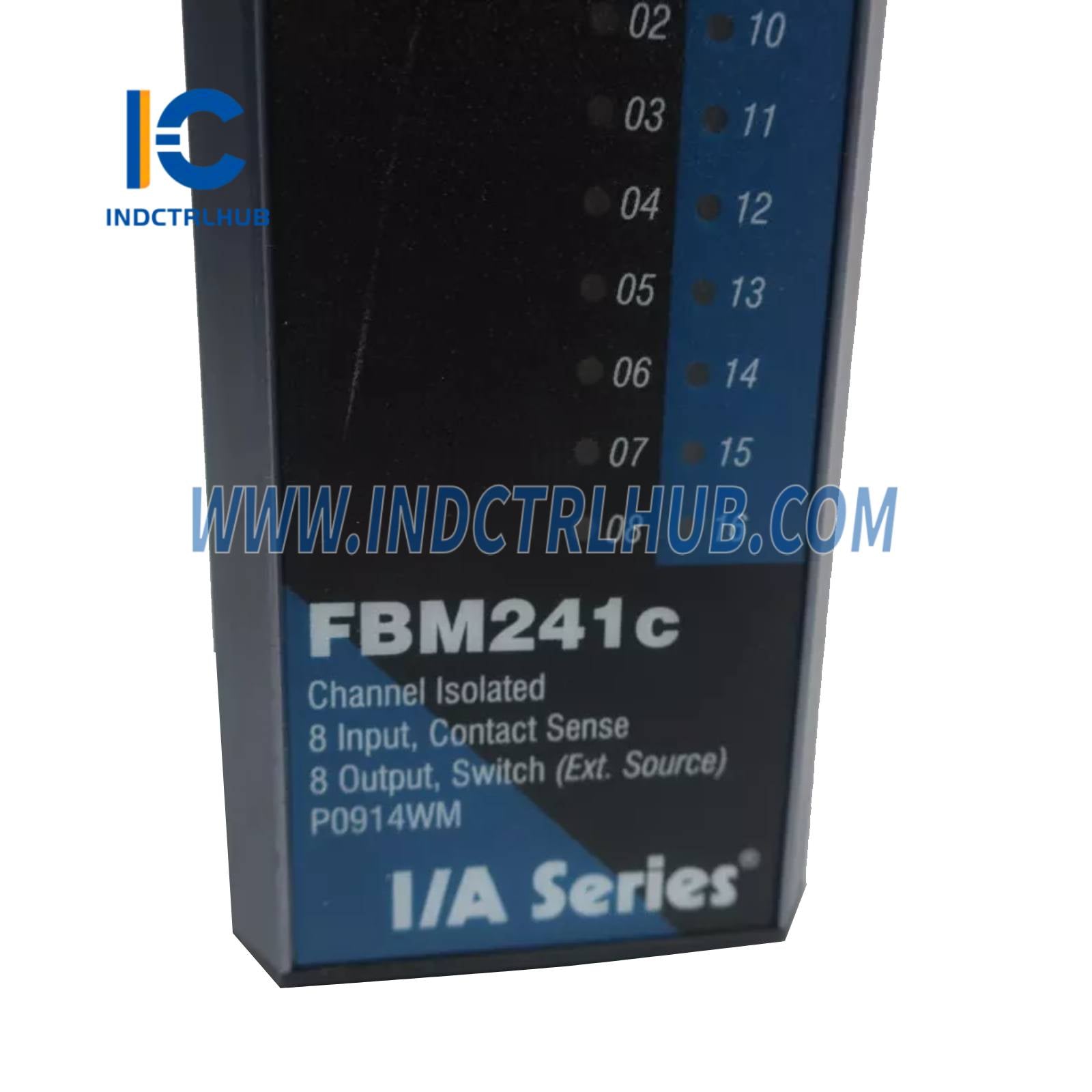

Foxboro FBM241 P0914WM Invensys I/A Series Discrete I/O Module
Product Overview
- The Foxboro FBM241 P0914WM is a Discrete I/O Module from the Invensys I/A Series (now part of Schneider Electric's EcoStruxure Foxboro DCS). This module provides 8 discrete inputs and 8 discrete outputs, designed to interface with field devices such as switches, relays, or actuators. It is used in industrial automation applications, including oil and gas, chemical processing, and power generation, for reliable monitoring and control of binary signals within the I/A Series control system.
Technical Specifications
- The FBM241 P0914WM has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | FBM241 P0914WM |
| Manufacturer | Foxboro (Invensys, now Schneider Electric) |
| Description | I/A Series Discrete I/O Module, 8 Inputs, 8 Outputs |
| Series | Invensys I/A Series |
| Function | Acquires 8 discrete input signals and provides 8 discrete output signals |
| Input/Output | 8 discrete inputs (120 VAC nominal) 8 discrete outputs (120 VAC, up to 2 A per output) |
| Input Voltage | 120 VAC (85–132 VAC range for inputs) |
| Output Voltage | 120 VAC (85–132 VAC range) |
| Input Current | Approx. 5 mA per input at 120 VAC |
| Output Current | Up to 2 A per output (dependent on load) |
| Isolation | Optical isolation between field inputs/outputs and system bus |
| Power Supply | 24 VDC (supplied via I/A Series backplane for module operation) |
| Power Consumption | Approx. 4 W (typical for FBM modules) |
| Environmental Specifications | Ambient Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing Shock: 15 g, 11 ms Vibration: 1 g, 10–500 Hz |
| Dimensions | Approx. 170 mm (H) x 35 mm (W) x 150 mm (D) (standard I/A Series module size) |
| Weight | Approx. 0.4 kg |
| Mounting | Plugs into I/A Series Fieldbus Module (FBM) baseplate |
| Certifications | CE, UL, CSA, suitable for non-hazardous environments |
