Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Foxboro |
|
Model/Part Number |
FBM231 P0926GV |
|
Description |

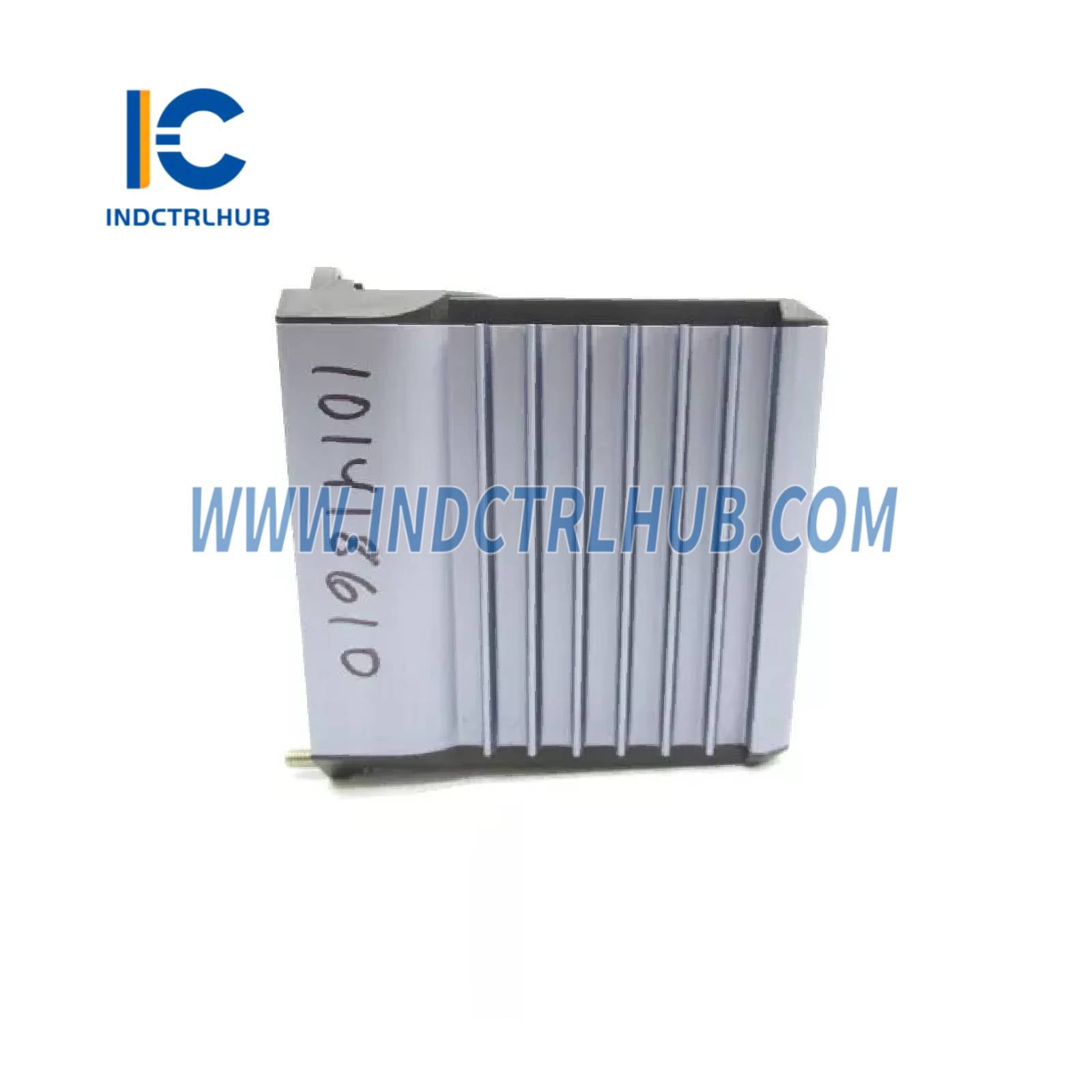

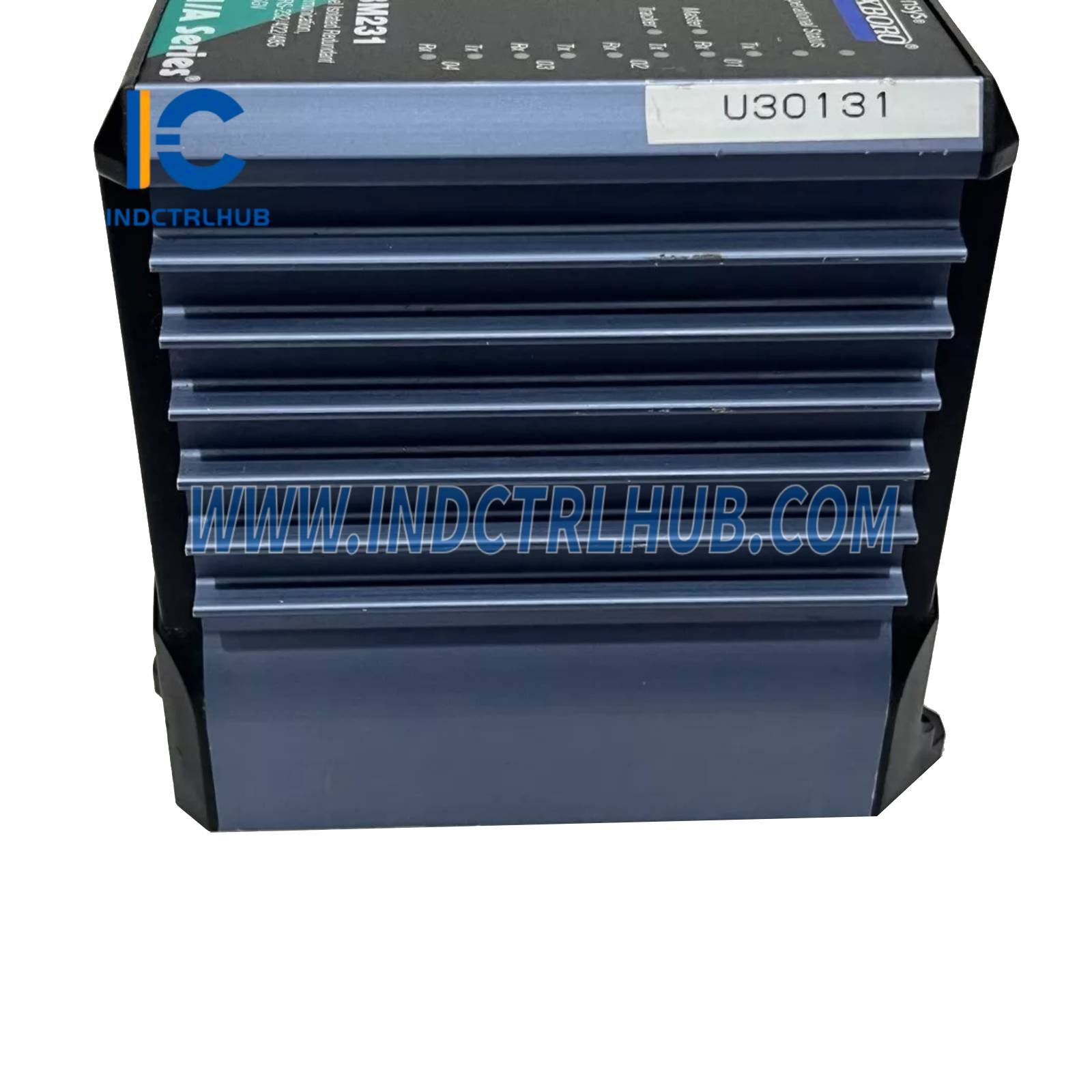

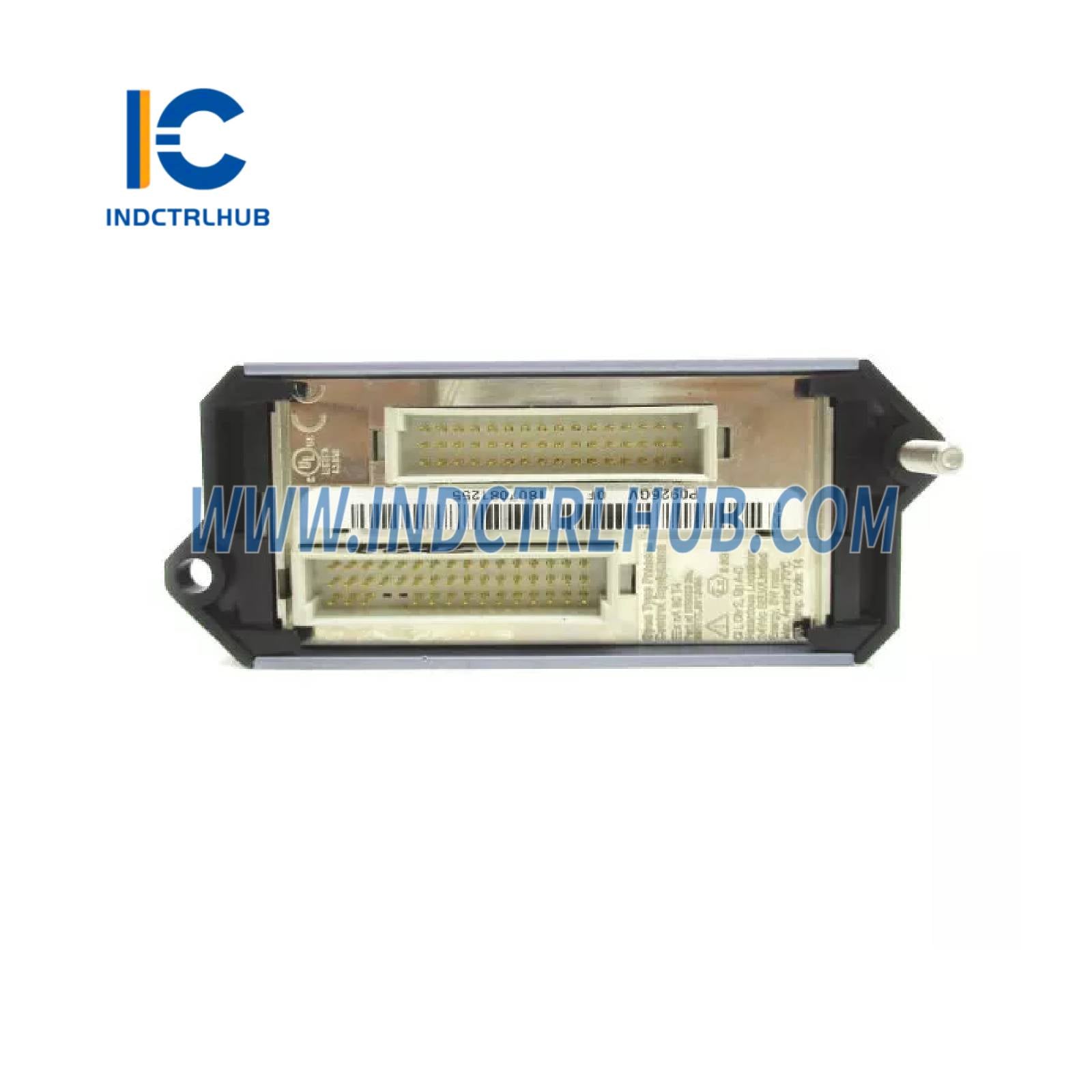

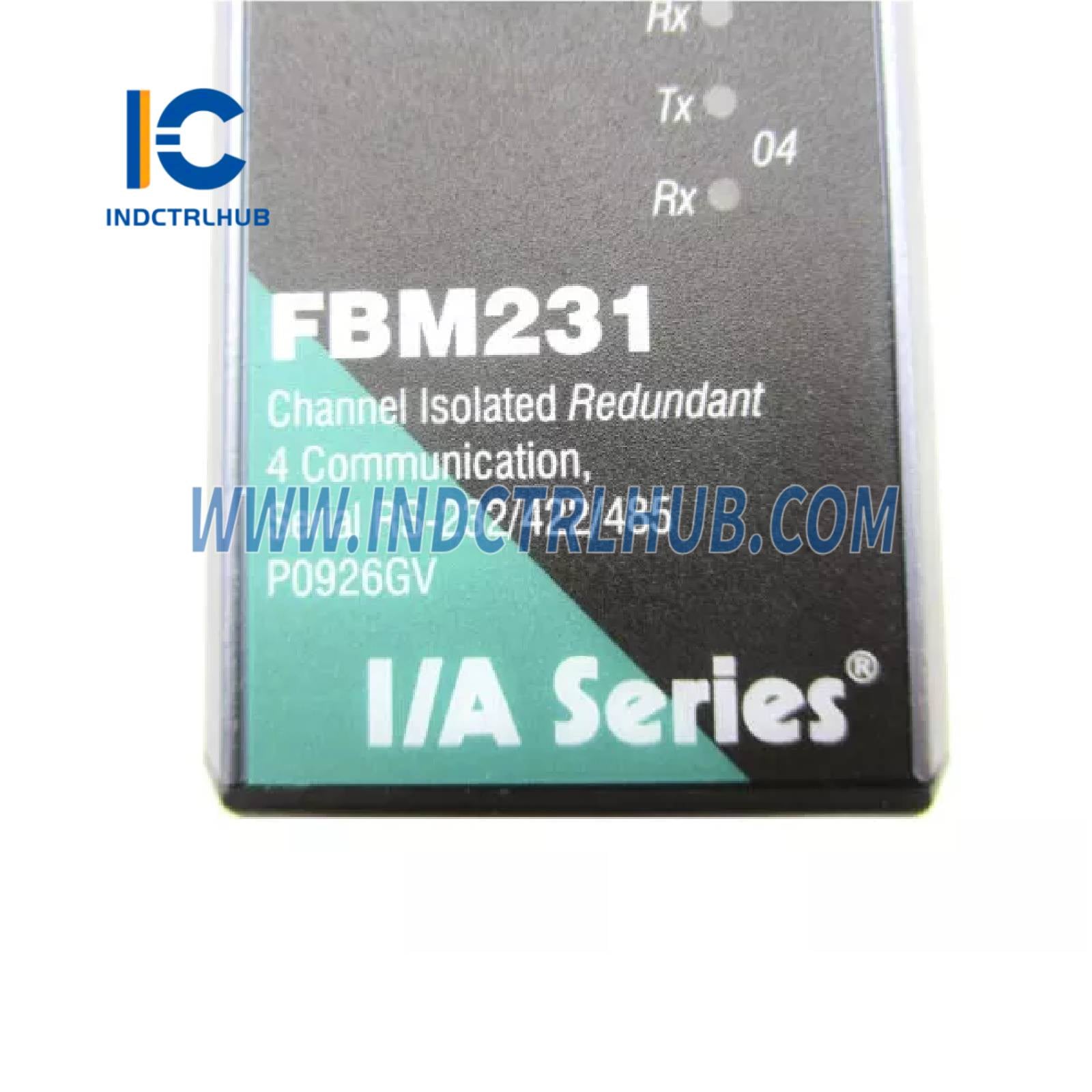

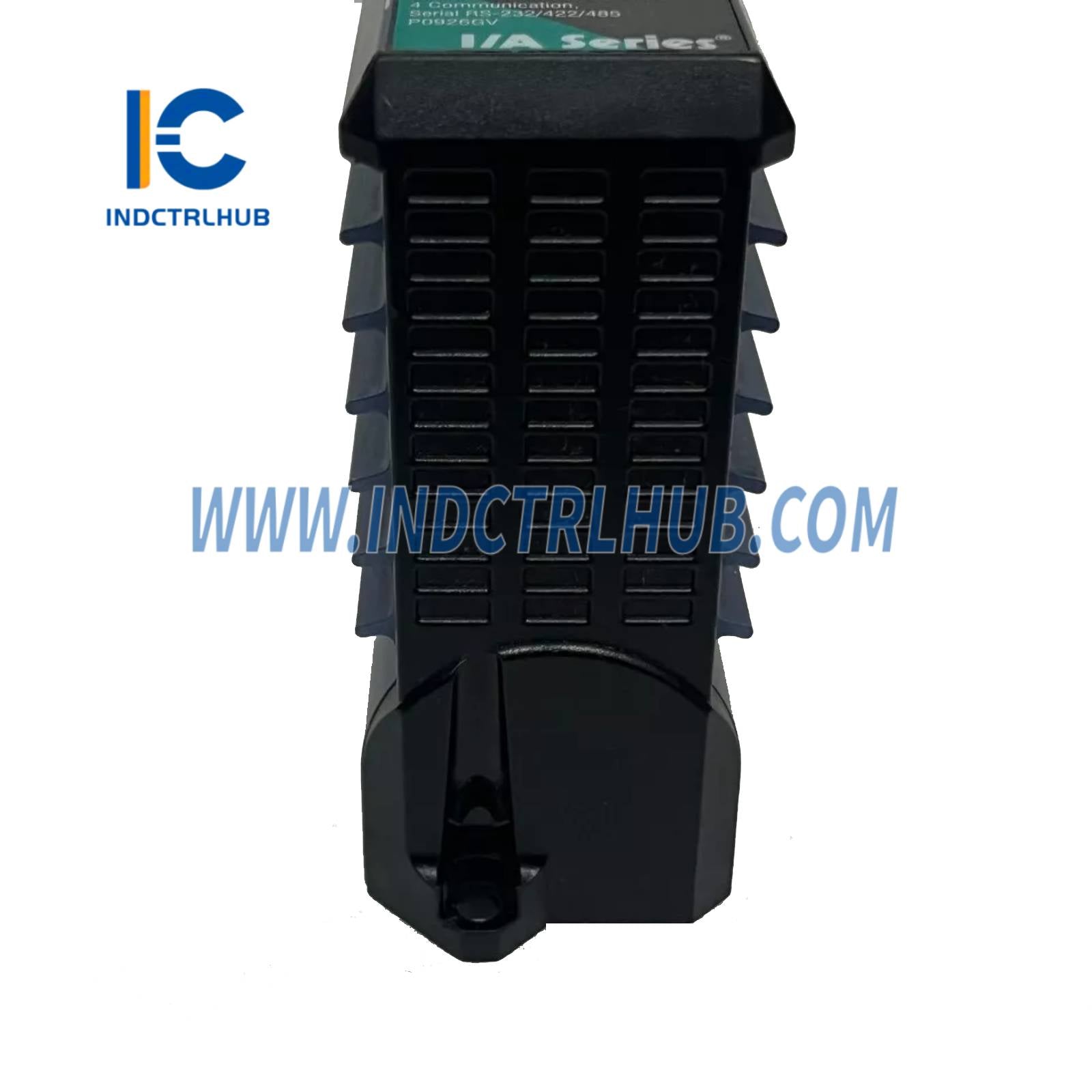

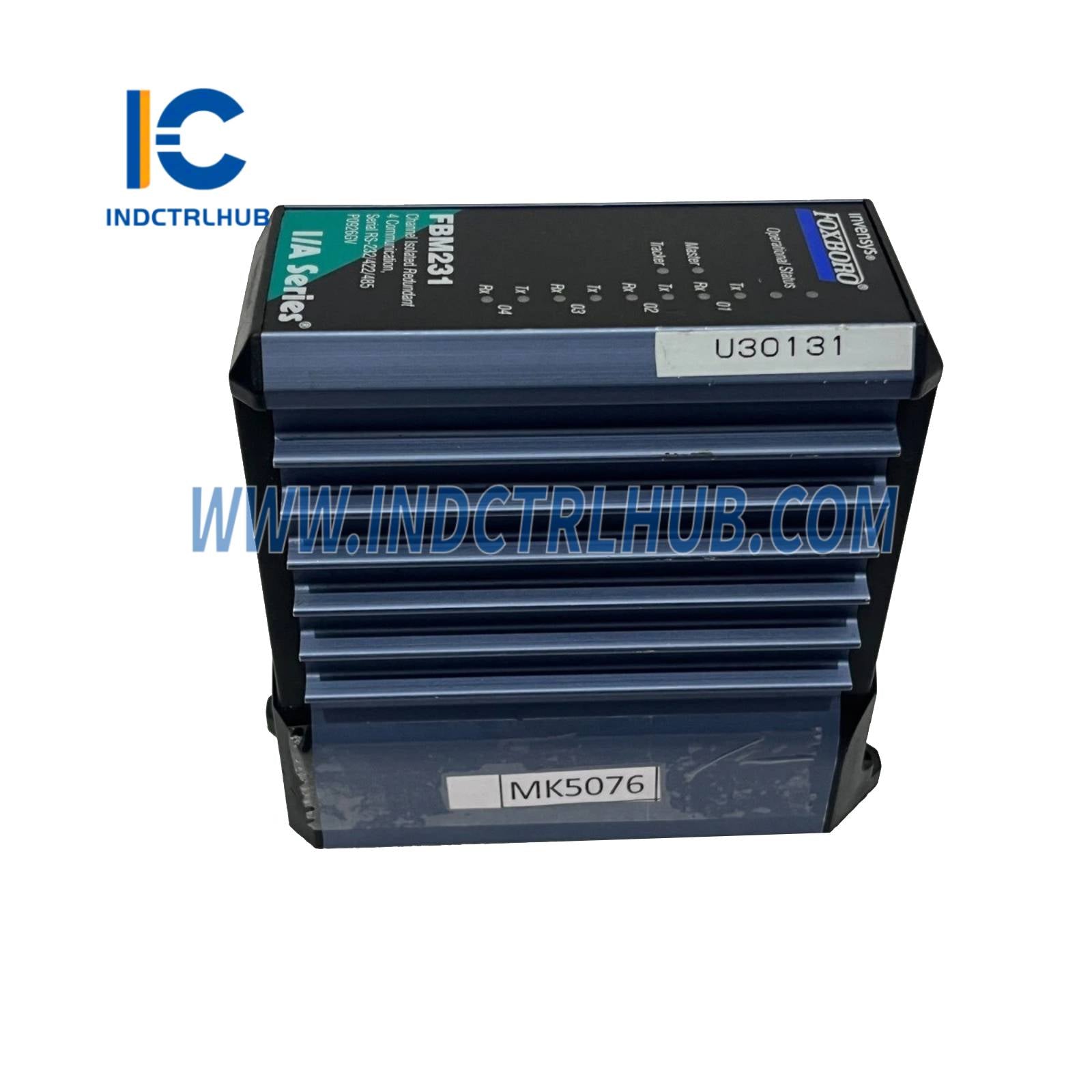

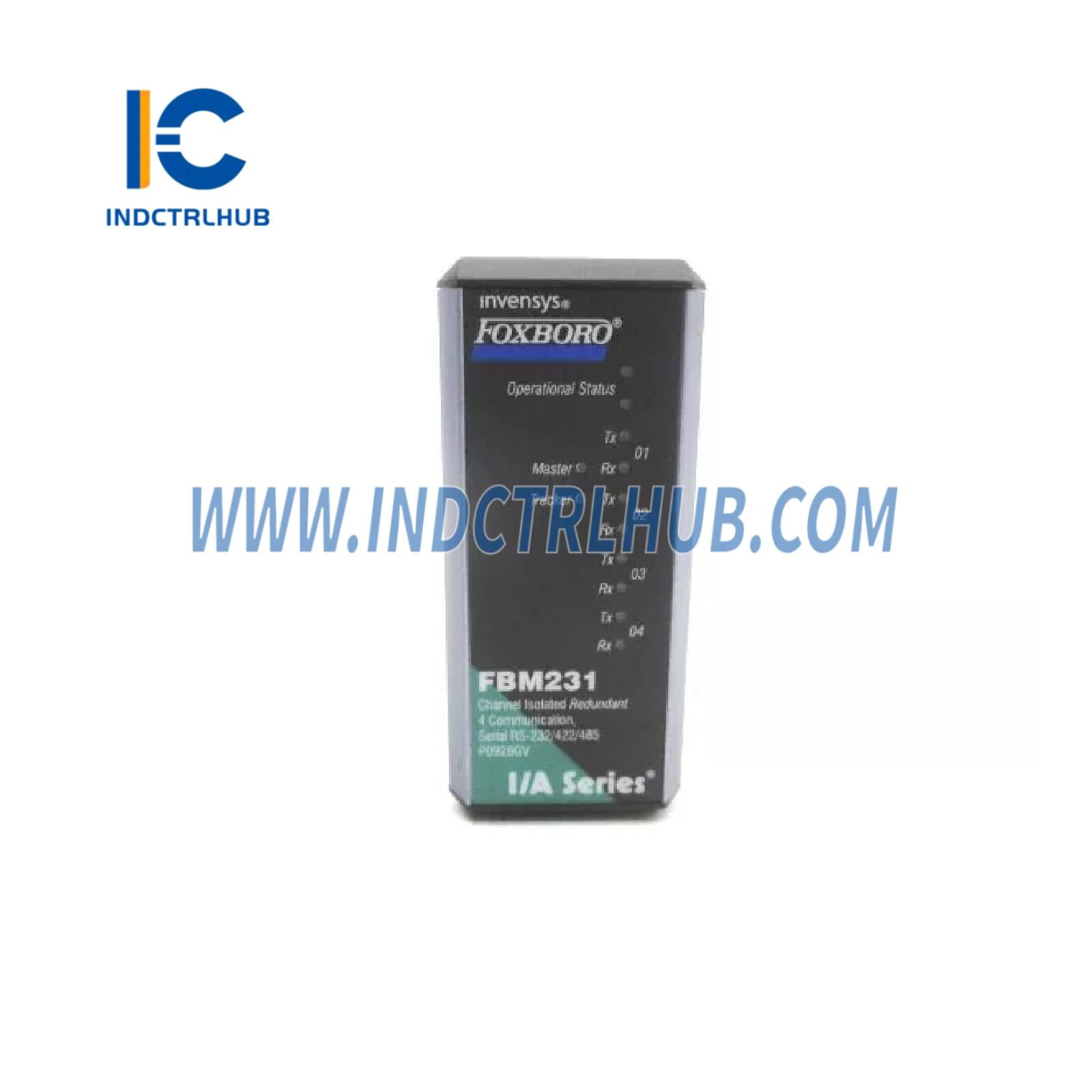

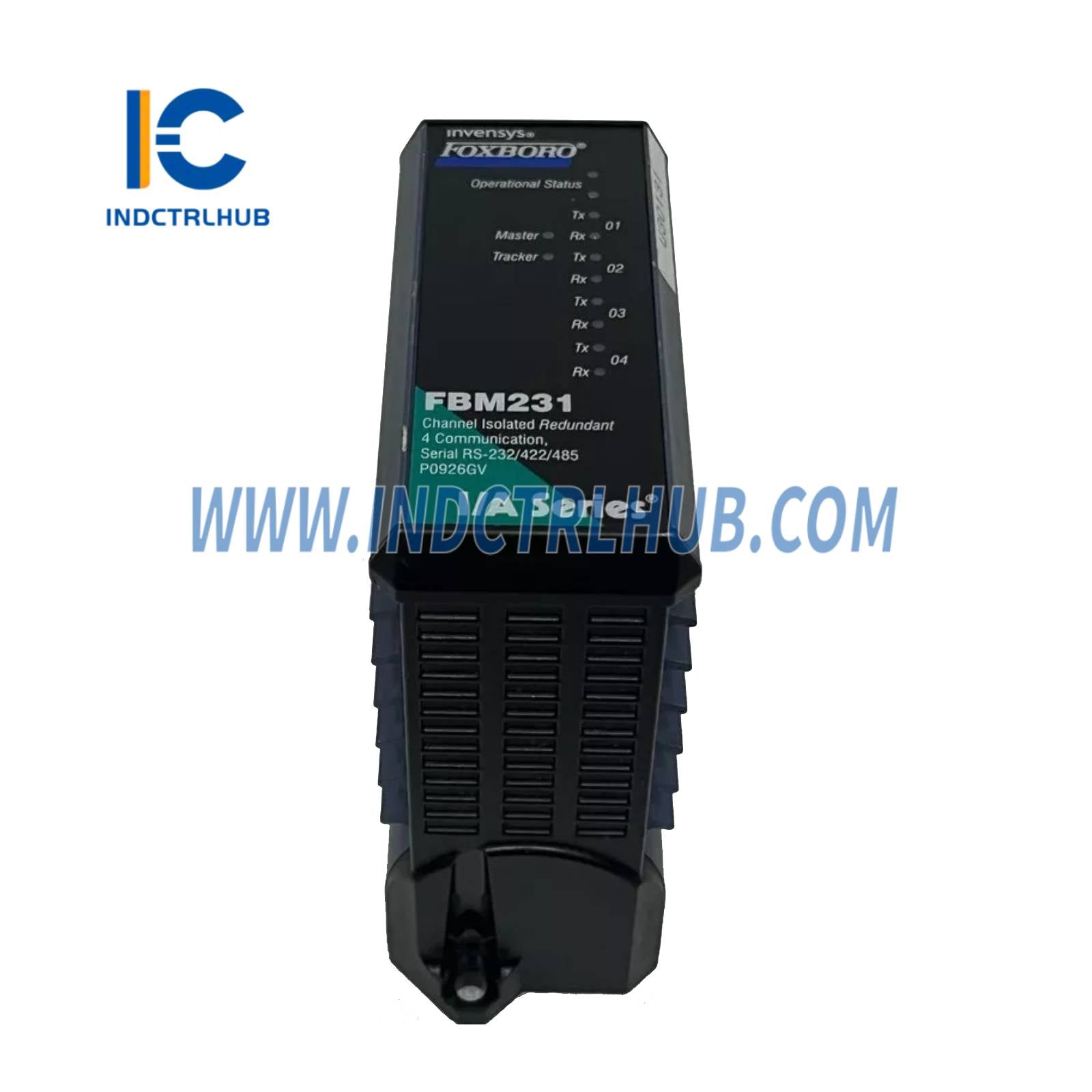

FBM231 Field Device System Integrator Module, Four Serial Ports, Redundant |
Environmental Specifications
|
Condition |
Temperature Range |
Relative Humidity |
|---|---|---|
|
Operating |
Rev A–L: -20 to +70°C (-4 to +158°F) Rev M and later: 0 to +70°C (32 to +158°F) |
5 to 95% (noncondensing) |
|
Storage |
-40 to +70°C (-40 to +158°F) |
5 to 95% (noncondensing) |
|
Contamination |
Suitable for Class G3 (Harsh) environments per ISA S71.04 and EIA 364-65 Class III |
Physical Specifications
|
Property |
Specification |
|---|---|
|
Mounting |
Modular Baseplate (horizontal/vertical DIN rail or 19” rack) |
|
Module Dimensions |
Height: 102 mm (4 in) / 114 mm (4.5 in incl. mounting lugs) Width: 45 mm (1.75 in) Depth: 104 mm (4.11 in) |
|
Module Mass |
284 g (10 oz) approximate |
|
TA Mass |
Ring Lug (P0926PA): 363 g (0.8 lb) Compression Screw (RH926GH): 272 g (0.6 lb) |
|
TA Dimensions |
See page 14 of original documentation |
Cables and Connections
|
Type |
Specification |
|---|---|
|
FBM231 to TA Cable |
Type 5 LSZH; Length: 1 m to 5 m |
|
RS-232 Connection |
Up to 15 m (50 ft) for custom cables per EIA RS-232 |
|
RS-422/RS-485 |
Up to 1200 m (3937 ft) |
Termination Cable Types and Part Numbers
|
Length (m / ft) |
Part Number |
Notes |
|---|---|---|
|
1.0 / 3.2 |
RH928AW |
Supersedes P0928AW |
|
2.0 / 6.6 |
RH928AX |
Supersedes P0928AX |
|
3.0 / 9.8 |
RH928AY |
Supersedes P0928AY |
|
5.0 / 16.4 |
RH928AZ |
Supersedes P0928AZ |
Ordering Information
|
Component |
Part Number |
Notes |
|---|---|---|
|
Module |
P0926GV |
|
|
TA (Ring Lug) |
P0926PA |
|
|
TA (Compression Screw) |
RH926GH |
Supersedes P0926GH |
|
Termination Cable (1 m) |
RH928AW |
Supersedes P0928AW |
|
Termination Cable (2 m) |
RH928AX |
Supersedes P0928AX |
|
Termination Cable (3 m) |
RH928AY |
Supersedes P0928AY |
|
Termination Cable (5 m) |
RH928AZ |
Supersedes P0928AZ |
