Product Description
Product Details

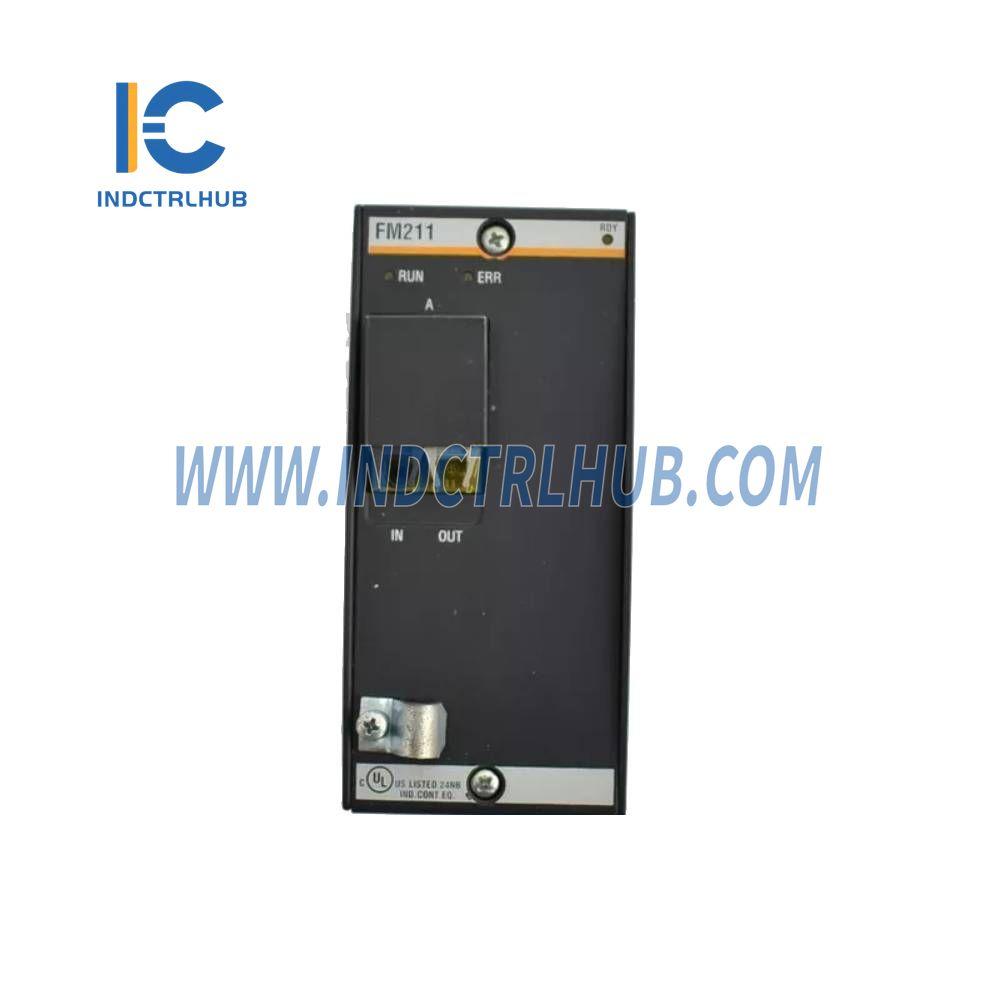

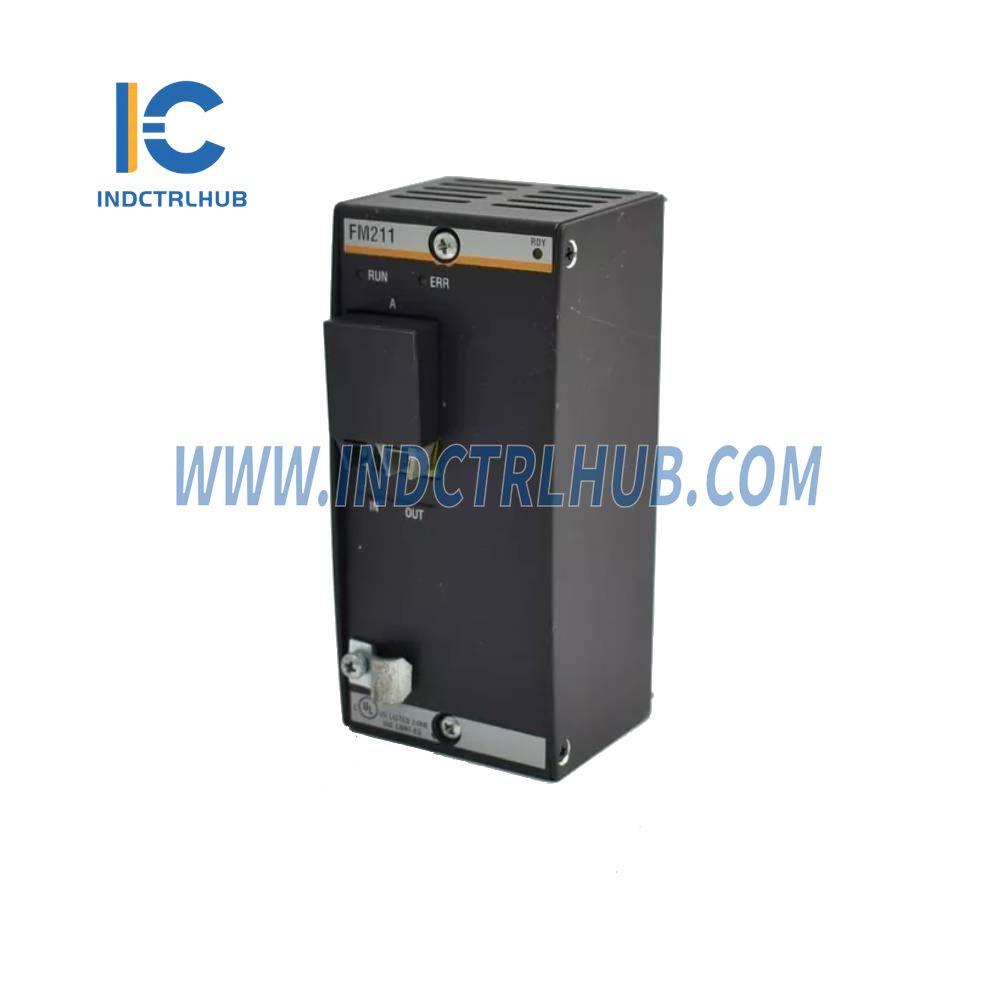

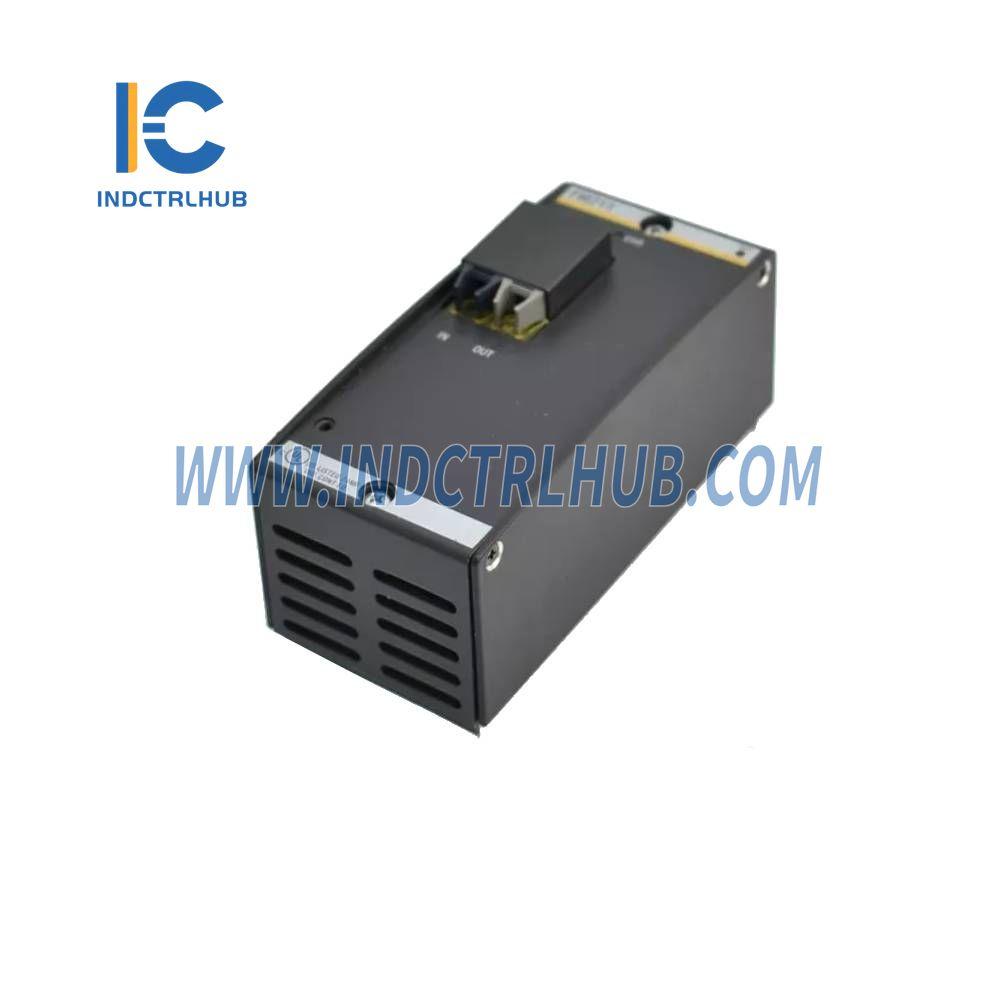

Manufacturer: BACHMANN
Model/Part Numbers: FM211
Description: FASTBUS Master Module
| Item | Item Number |
|---|
| FM211 | 00010495-00 |
| FM212 | 00010496-00 |
| FS211/N | 00010498-00 |
| FS212/N | 00010500-00 |
Key Features:
| Feature | Details |
|---|---|
| Interfaces | 1 FO interface |
| Max. Distributed Substations | 15 stations |
| Cable Types and Distances | POF: 50 m HCS/PCF: 150 m Special HCS: 200 m |
| Total Line Length | Max. 1000 m |
| Signal Delay | Minimal |
| Integrated Power Supply | Optional |
| Reverse Polarity Protection | Yes |
| Galvanic Isolation | 500 V |
FASTBUS Interface:
| Specification | Details |
|---|---|
| Line Length | 50 m (POF), 150 m (HCS/PCF), 200 m (Special HCS) |
| Transmission Medium | Plastic Optical Fiber (POF), Hard Cladded Silica (HCS/PCF) |
| Max. Number of Stations | 16 |
Integrated Power Supply:
| Specification | Details |
|---|---|
| Input Voltage | 24 V DC (18–34 V) |
| Current Consumption | Max. 1.2 A at 24 V |
| Nominal Power | 17 W |
| Output Current (+5 V) | 2 A |
| Output Current (+15 V) | 250 mA |
| Output Current (-15 V) | 200 mA |
Ambient Conditions:
| Condition | Details |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Rel. Humidity Operation | 5–95% without condensation |
| Storage Temperature | -40°C to +85°C |
| Rel. Humidity Storage | 5–95% without condensation |
Model Variants:
| Model | Description |
|---|---|
| FM211 | FASTBUS master module with 1 FO interface; HCS/PCF 150m or PMMA 50m |
