Product Description
Product Details
|
Manufacturer |
EPRO |
|---|---|
|
Model/Part Number |

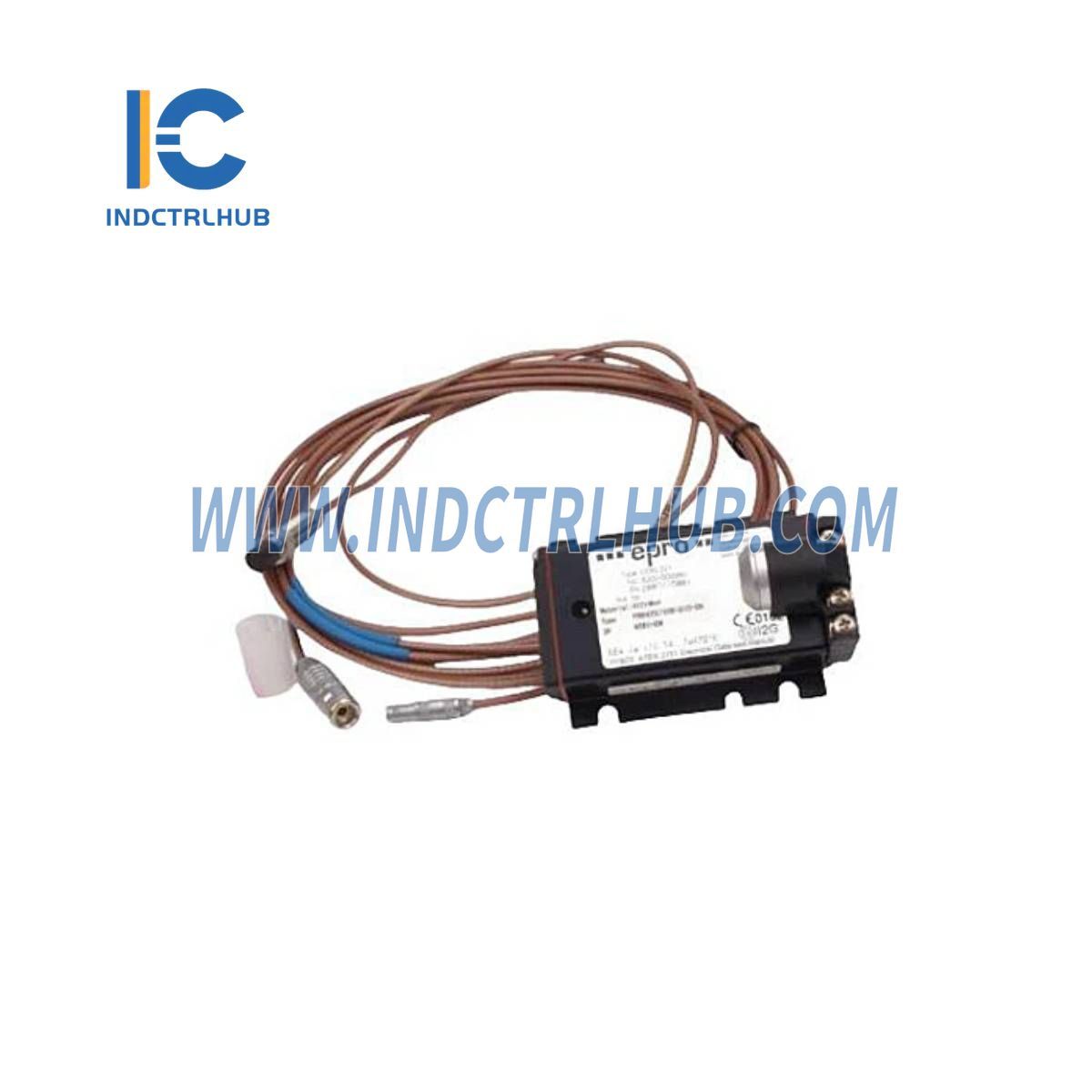

PR6423/00R-111 |
|
Model Type |
8mm Eddy Current Sensor |
Performance Specifications
|
Attribute |
Specification |
|---|---|
|
Linear Measurement Range |
2 mm (80 mils) |
|
Initial Air Gap |
0.5 mm (20 mils) |
|
Incremental Scale Factor (ISF) |
ISO: 8 V/mm (203.2 mV/mil) ± 5% @ temperature range 0 to 45°C (+32 to +113°F) |
|
Deviation from Best Fit Straight Line (DSL) |
± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F) |
Measuring Target Specifications
|
Attribute |
Specification |
|---|---|
|
Minimum Shaft Diameter |
25 mm (0.79”) |
|
Target Material |
Ferromagnetic Steel 42CrMo4 (AISI/SAE 4140) Standard (Other on request) |
Environmental Specifications
|
Attribute |
Specification |
|---|---|
|
Protection Class |
IP66, IEC 60529 |
|
Operating Temperature Range |
Sensor incl. 1m Cable: -35 to +180°C (-31 to 356°F) Cable & Connector: -35 to +150°C (-31 to 302°F) |
|
Material (Sensor Tip) |
PEEK Polyether Ether Ketone |
|
Material (Case) |
Stainless Steel |
|
Material (Cable) |
PTFE Polytetrafluoroethylene |
|
Material (Connector) |
Brass, nickel-plated |
|
Weight (Sensor with 1m Cable) |
Approx. 100 grams (3.53 oz) |
Ordering Information
|
Tip Diameter |
Case Threads |
Armored Cable |
Model No. |
|---|---|---|---|
|
8mm |
M10x1 |
No |
PR6423/00 |
|
8mm |
M10x1 |
Yes |
PR6423/01 |
|
8mm |
3/8”-24 UNF |
No |
PR6423/10 |
|
8mm |
3/8”-24 UNF |
Yes |
PR6423/11 |
|
8mm |
- |
Yes |
PR6423/13 (Reverse Mount Option, Adapter Plug Required) |
|
Cable Length Options |
|---|
|
0 = 25mm |
|
1 = 35mm |
|
2 = 45mm |
|
3 = 55mm |
|
4 = 65mm |
|
5 = 75mm |
|
6 = 85mm |
|
7 = 95mm |
|
8 = 105mm |
|
9 = 115mm |
|
E = 155mm |
|
H = 195mm |
|
Adapter Plug |
|---|
|
0 = With |
|
1 = Without |
|
Cable Length Options |
|---|
|
0 = 4.0m |
|
1 = 5.0m |
|
3 = 8.0m |
|
F = 9.0m |
|
4 = 10.0m |
|
Cable End Options |
|---|
|
0 = Lemo* |
|
1 = Open |
