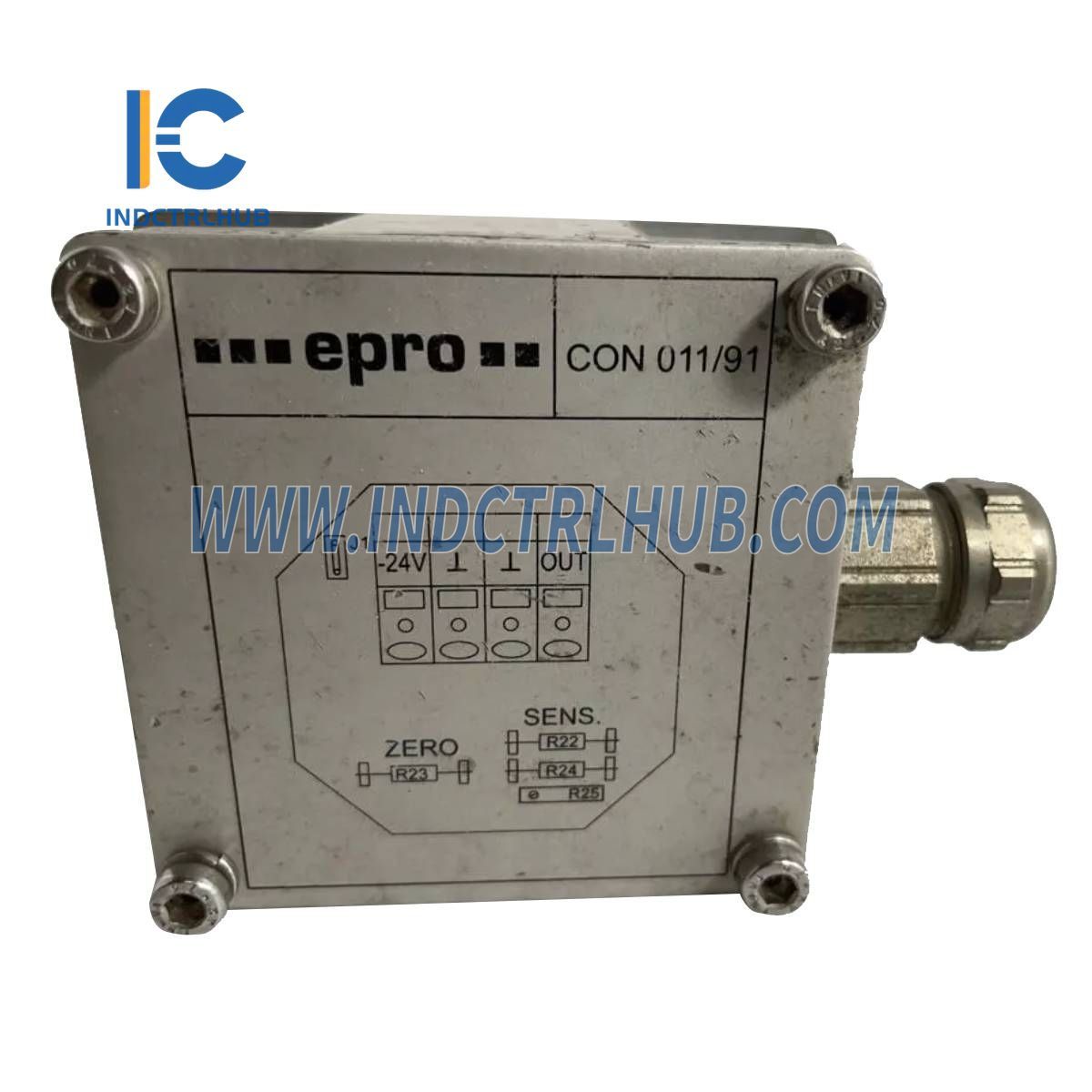

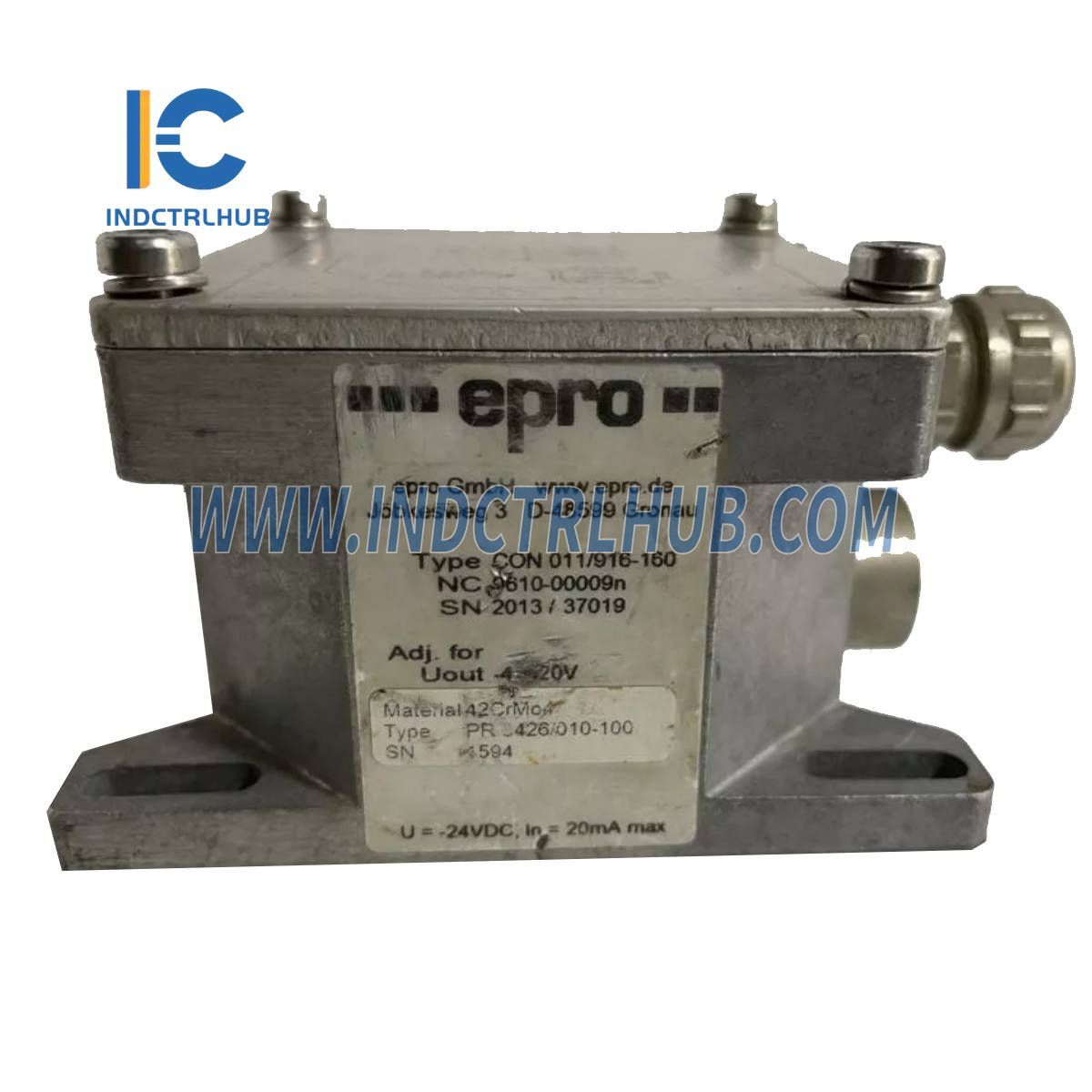

EPRO CON 011/916-160 Eddy Current Signal Converter

EPRO CON 011/916-160 Eddy Current Signal Converter

  • Manufacturer: EPRO

  • Product No.: CON 011/916-160

  • Condition:1000 in stock

  • Product Type: Eddy Current Signal Converter

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 600g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

Manufacturer

EPRO

Model/Part Number

CON 011/916-160

Model Type

Eddy Current Signal Converter

Dynamic Performance

Attribute

Specification

Frequency Range (-3 dB)

0 to 20000 Hz

Rise Time

<15 µs

Input Sensor Types

PR6422, PR6423, PR6424, PR6425, PR6426

Extended Measuring Range

For extended range use CON011/91x-xxx  (Note: PR6425 requires extended range converter)

Environmental Specifications

Attribute

Specification

Operating Temperature Range

-30 to 100°C (-22 to 212°F)

Shock and Vibration

5g @ 60 Hz @ 25°C (77°F)

Protection Class

IP65

Power & Electrical

Attribute

Specification

Supply Voltage Range

-23V to -32V (Output Range - 4V to -20V)  -21V to -32V (Output Range - 2V to -18V)

Physical Specifications

Attribute

Specification

Housing Material

GD-ALSi9Cu3

Weight

~600 grams (21.16 oz)

Mounting

4 Screws M5x20 (Included in Delivery)

Connections

Transducer Self-Locking Lemo-Plug  Supply/Output Spring Type (Max. 1.5 mm²)

Compliance and Certifications

Attribute

Specification

CE

2014/30/EU (EN 61326-1)  2014/34/EU  2011/65/EU

ATEX

EN 60079-0  EN 60079-11



View full details

Product Description

Product Details

Manufacturer

EPRO

Model/Part Number

CON 011/916-160

Model Type

Eddy Current Signal Converter

Dynamic Performance

Attribute

Specification

Frequency Range (-3 dB)

0 to 20000 Hz

Rise Time

<15 µs

Input Sensor Types

PR6422, PR6423, PR6424, PR6425, PR6426

Extended Measuring Range

For extended range use CON011/91x-xxx  (Note: PR6425 requires extended range converter)

Environmental Specifications

Attribute

Specification

Operating Temperature Range

-30 to 100°C (-22 to 212°F)

Shock and Vibration

5g @ 60 Hz @ 25°C (77°F)

Protection Class

IP65

Power & Electrical

Attribute

Specification

Supply Voltage Range

-23V to -32V (Output Range - 4V to -20V)  -21V to -32V (Output Range - 2V to -18V)

Physical Specifications

Attribute

Specification

Housing Material

GD-ALSi9Cu3

Weight

~600 grams (21.16 oz)

Mounting

4 Screws M5x20 (Included in Delivery)

Connections

Transducer Self-Locking Lemo-Plug  Supply/Output Spring Type (Max. 1.5 mm²)

Compliance and Certifications

Attribute

Specification

CE

2014/30/EU (EN 61326-1)  2014/34/EU  2011/65/EU

ATEX

EN 60079-0  EN 60079-11
