Product Description

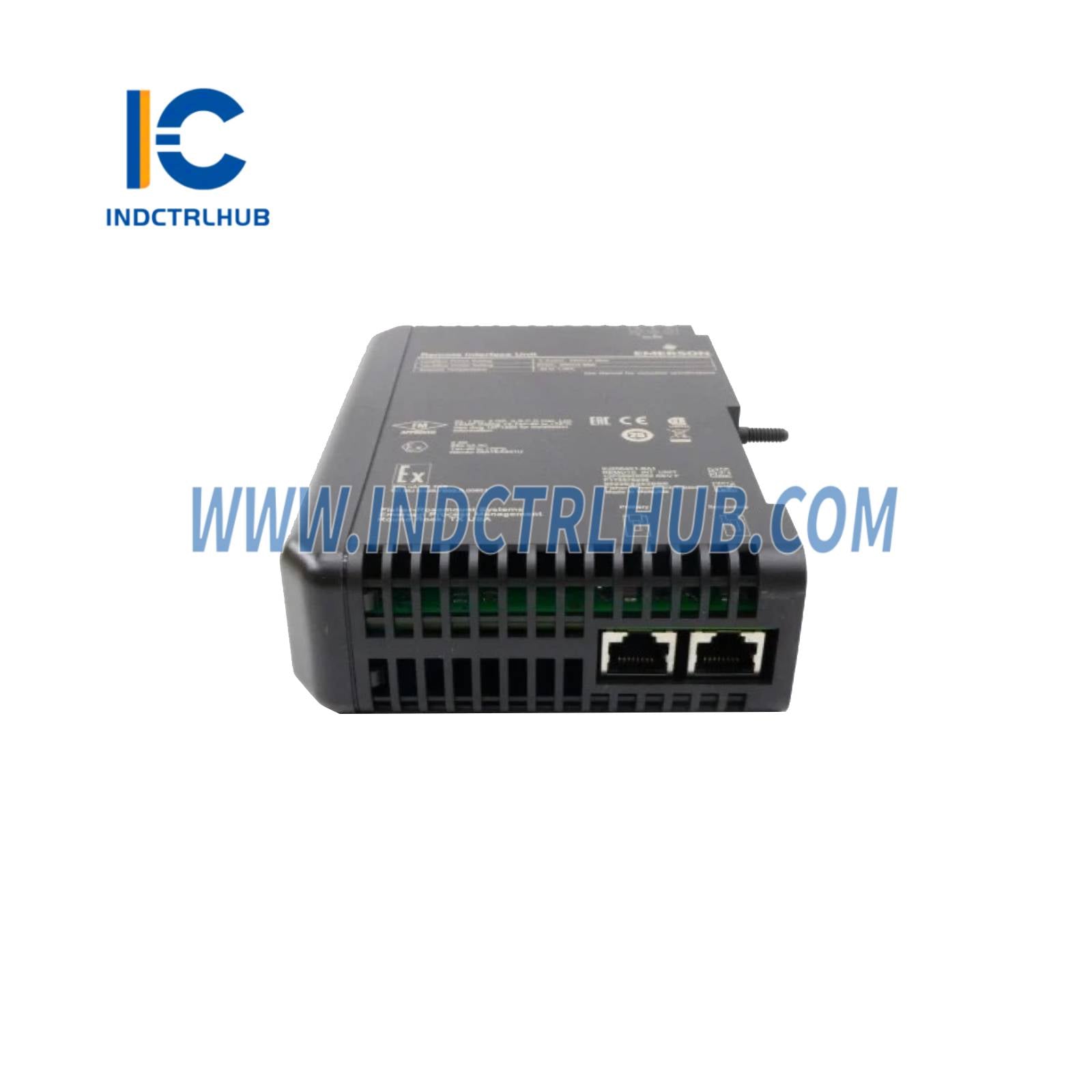

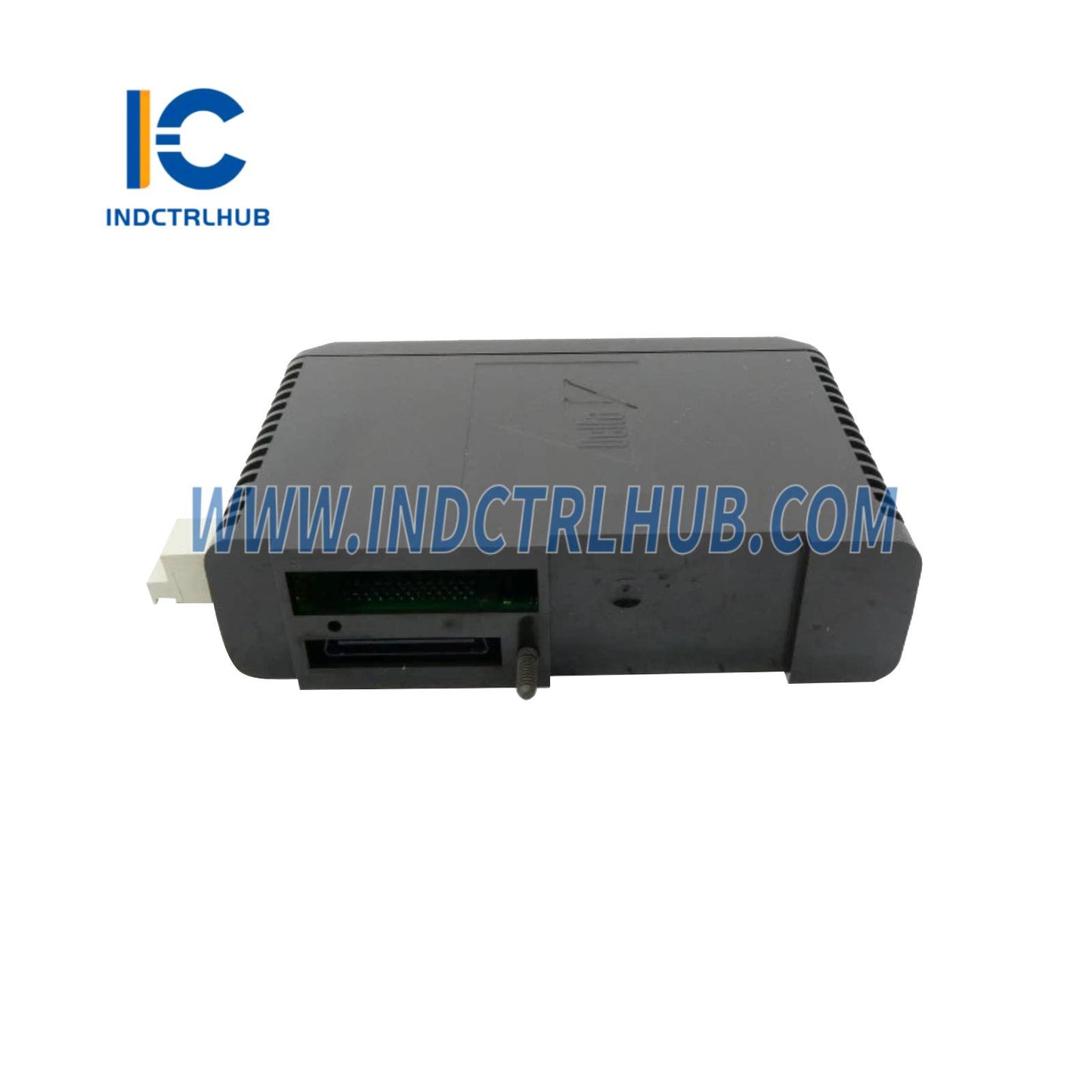

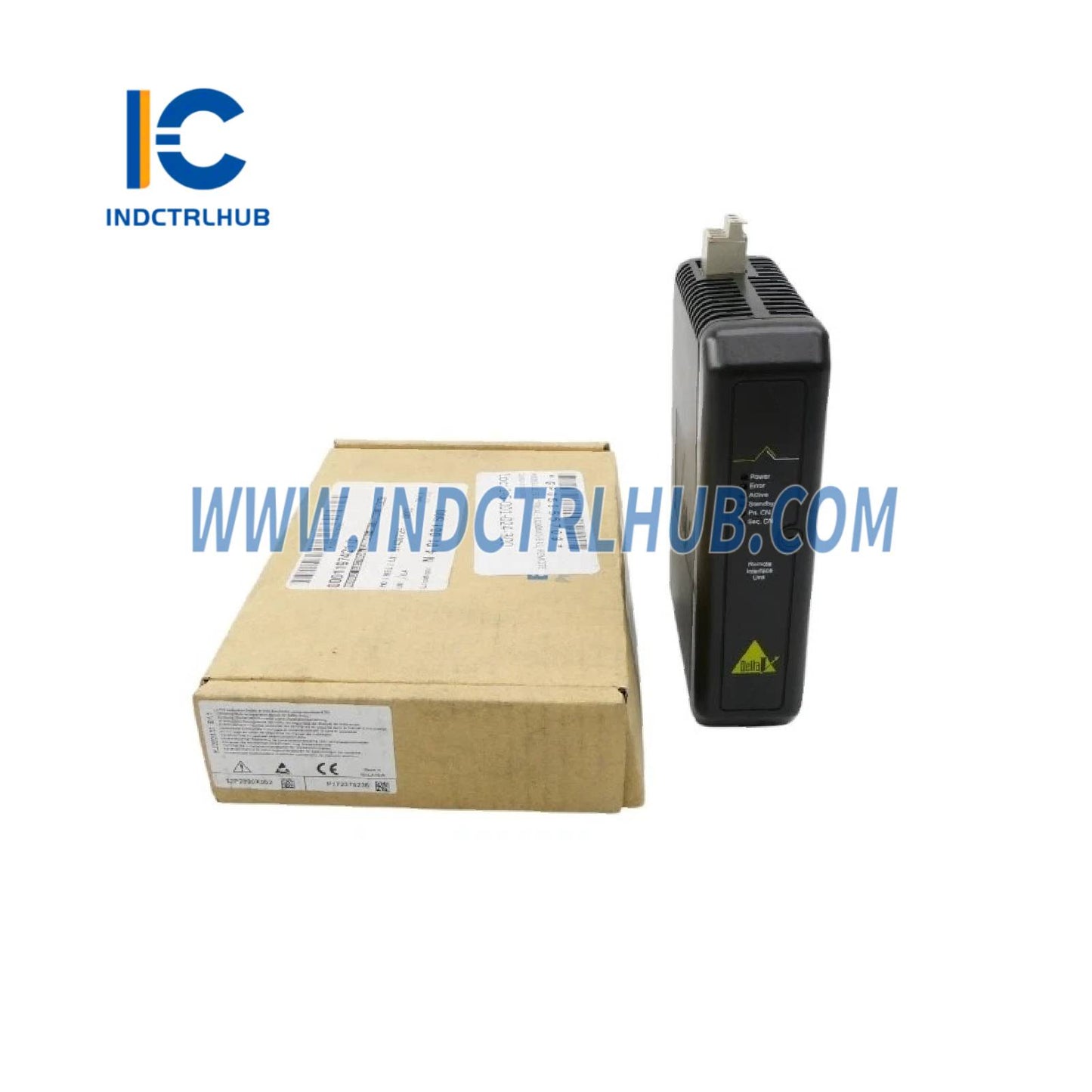

Emerson KJ2004X1-BA1 VS3201 Remote Interface Unit
- Manufacturer: Emerson

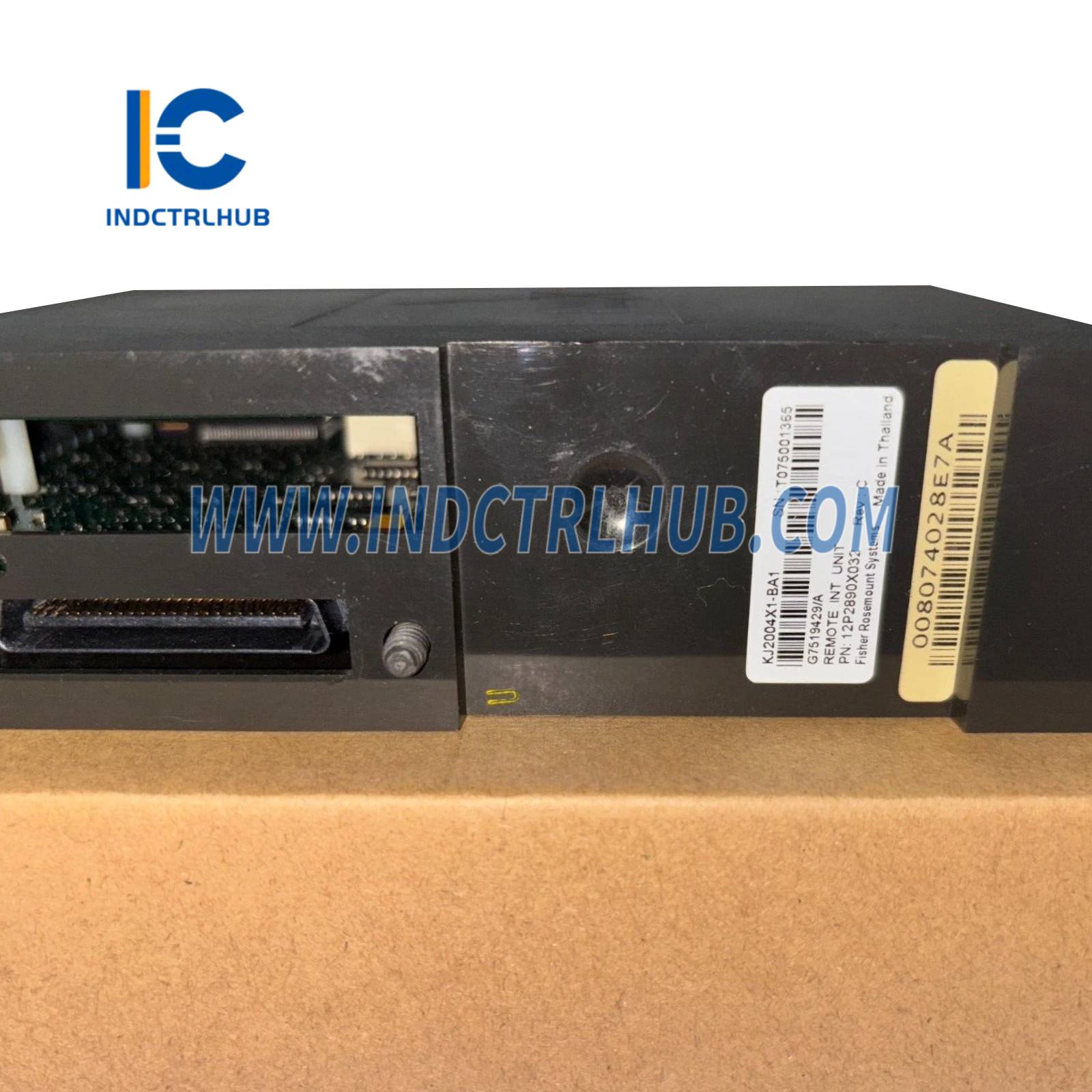

- Model/Part Number: KJ2004X1-BA1 (VS3201, Alt# 12P2890X)
- Description: Remote Interface Unit (RIU) for DeltaV System
Overview
- The Emerson KJ2004X1-BA1 VS3201 is a Remote Interface Unit (RIU) designed for the DeltaV distributed control system (DCS). It enables remote I/O connectivity, integrating field devices with the DeltaV system in hazardous and distributed automation environments. The RIU is critical for extending control system reach, ensuring reliable data communication and process control in industries such as oil and gas, chemical, and power generation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | KJ2004X1-BA1 (VS3201) |
| Series | DeltaV Scalable Process System |
| Type | Remote Interface Unit (RIU) |
| Local Bus Power | 5 VDC at 300 mA (max), 3.3 VDC at 500 mA (max) |
| Ambient Temperature | -40°C to +70°C (-40°F to +158°F) |
| Shock | 10g ½ Sinewave for 11 msec |
| Vibration | 1 mm Peak to Peak from 2 to 13.2 Hz; 0.7g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3, conformal coating |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Network Voltage | Not to exceed 60 VAC or 75 VDC under normal conditions |
| Certifications | CE, CSA, suitable for hazardous environments (Zone 2) |
| System Compatibility | DeltaV v8.3 or later |
Additional Information
- Functionality: The KJ2004X1-BA1 facilitates communication between field devices and the DeltaV control system, supporting remote I/O integration. It is certified for hazardous environments, ensuring safe operation in critical applications. The unit supports seamless integration with DeltaV controllers and I/O modules, providing reliable data exchange for process monitoring and control.
