Product Description
🔍
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |

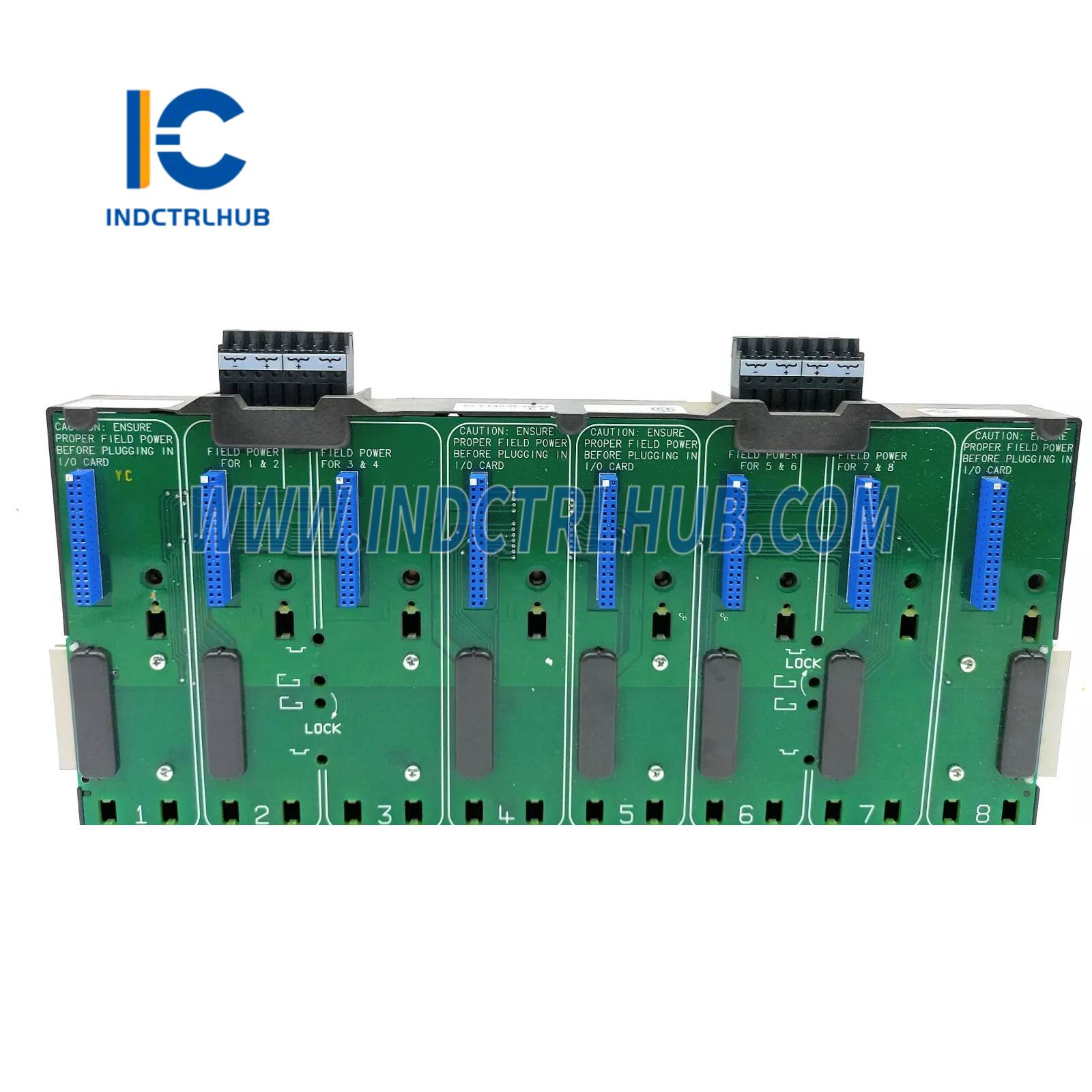

VE4050S2K1C0 / KJ4001X1-BE1 (12P0818X042) |
|
Model Type |

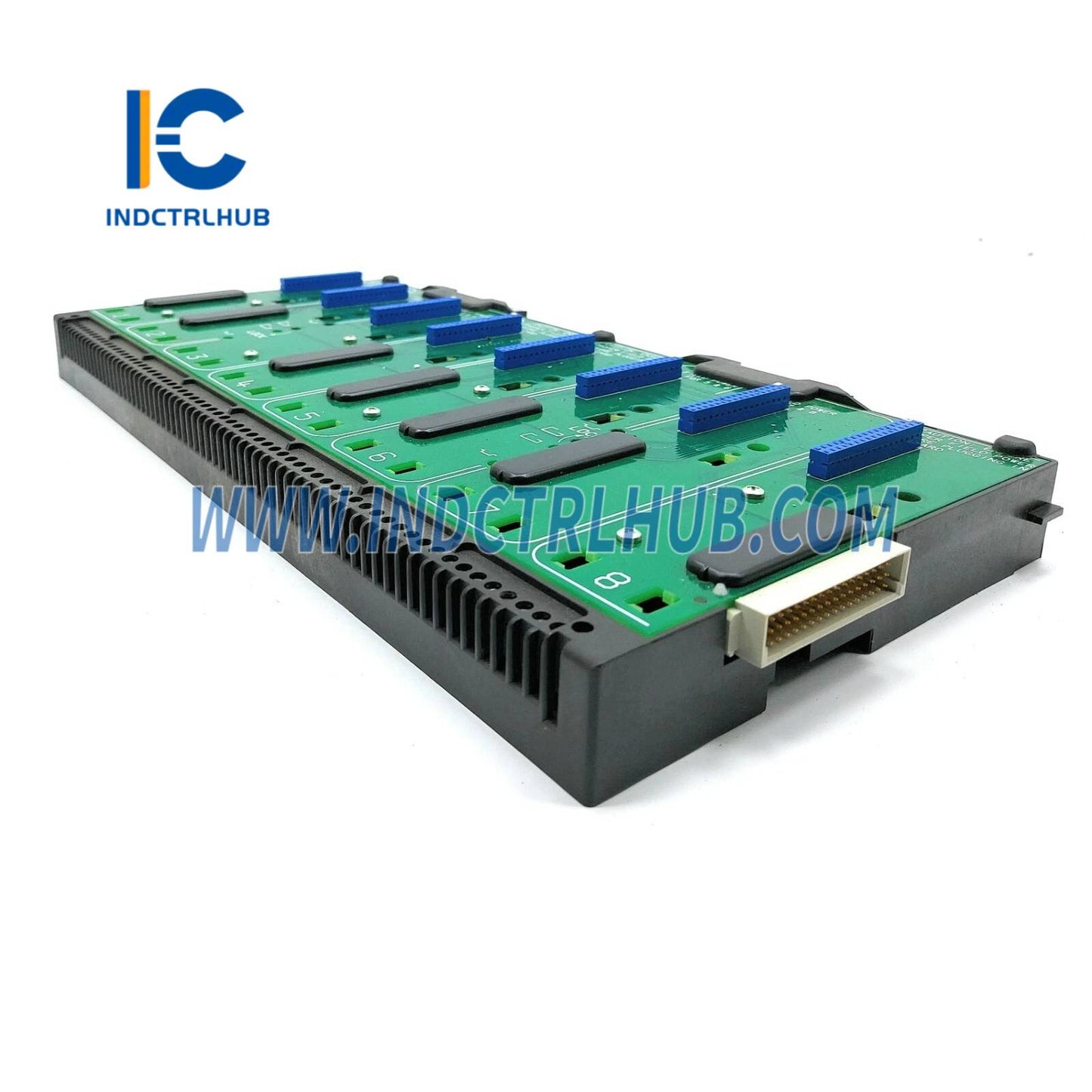

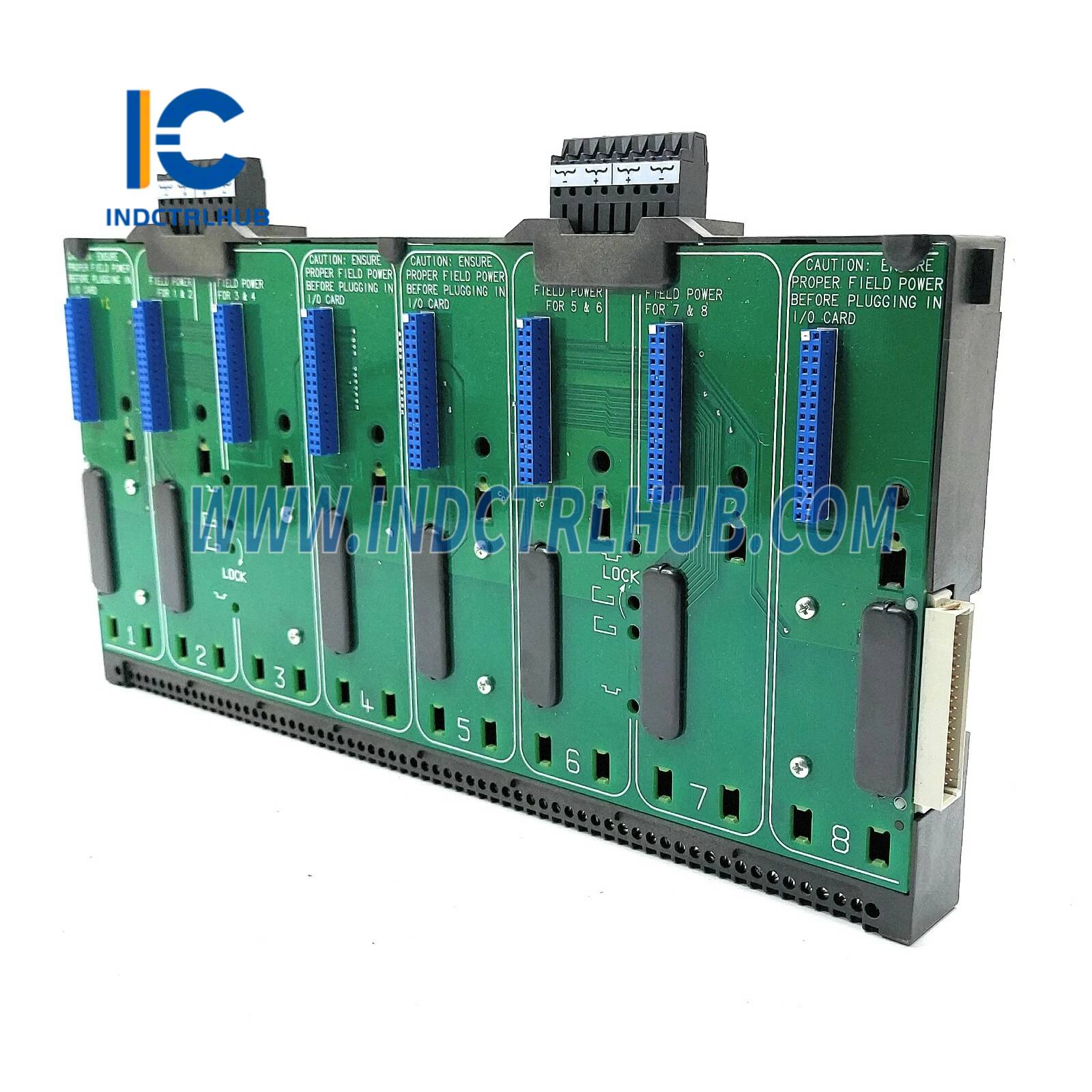

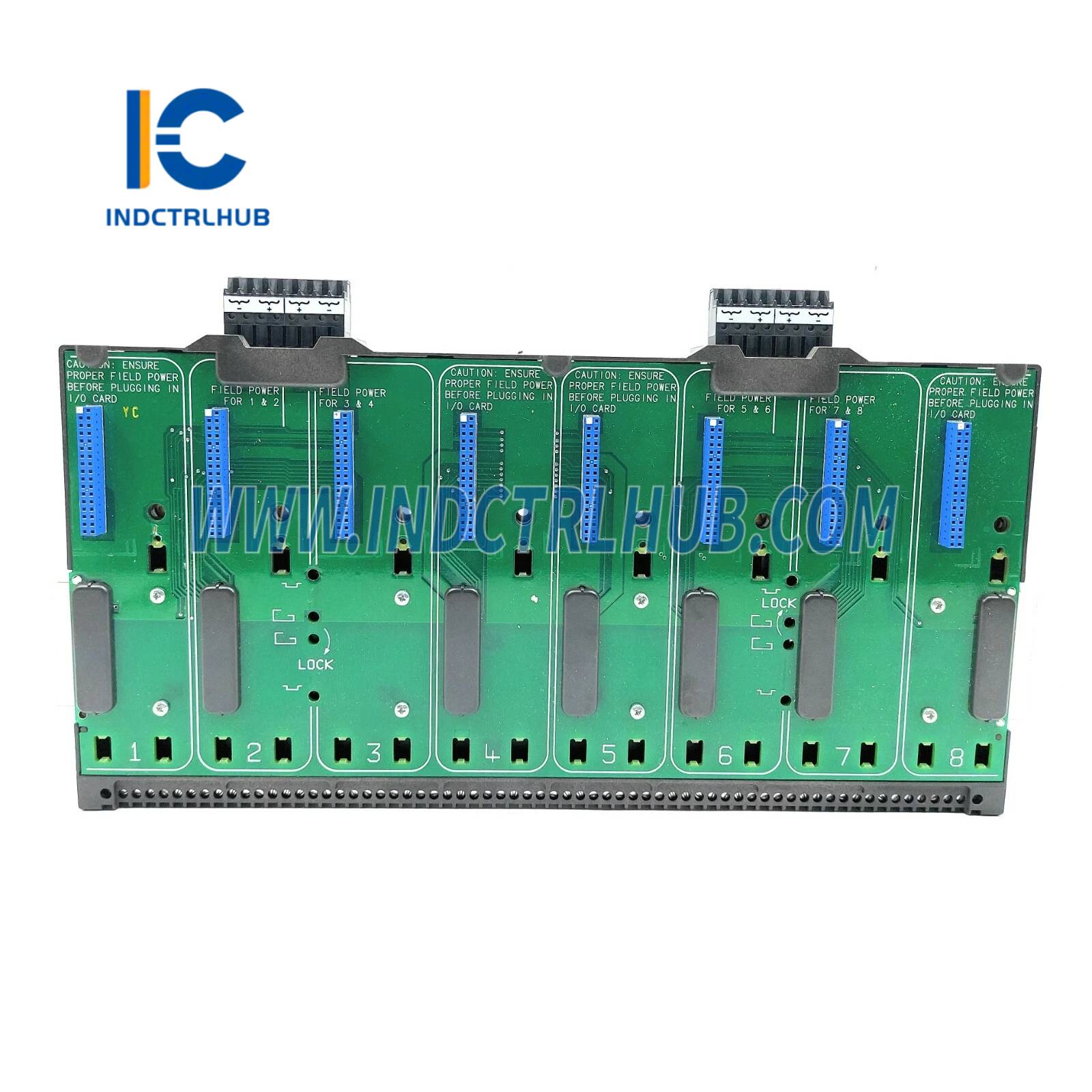

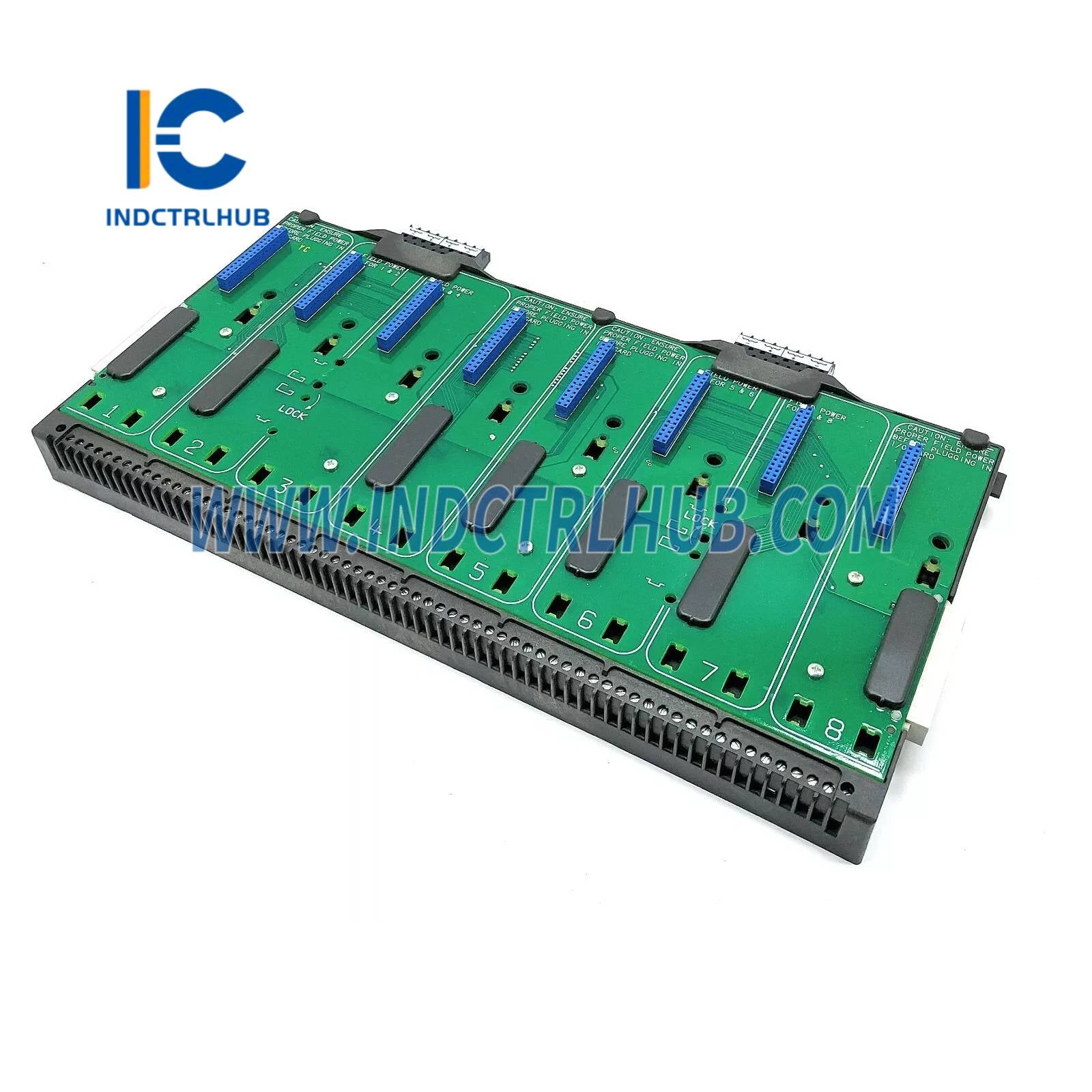

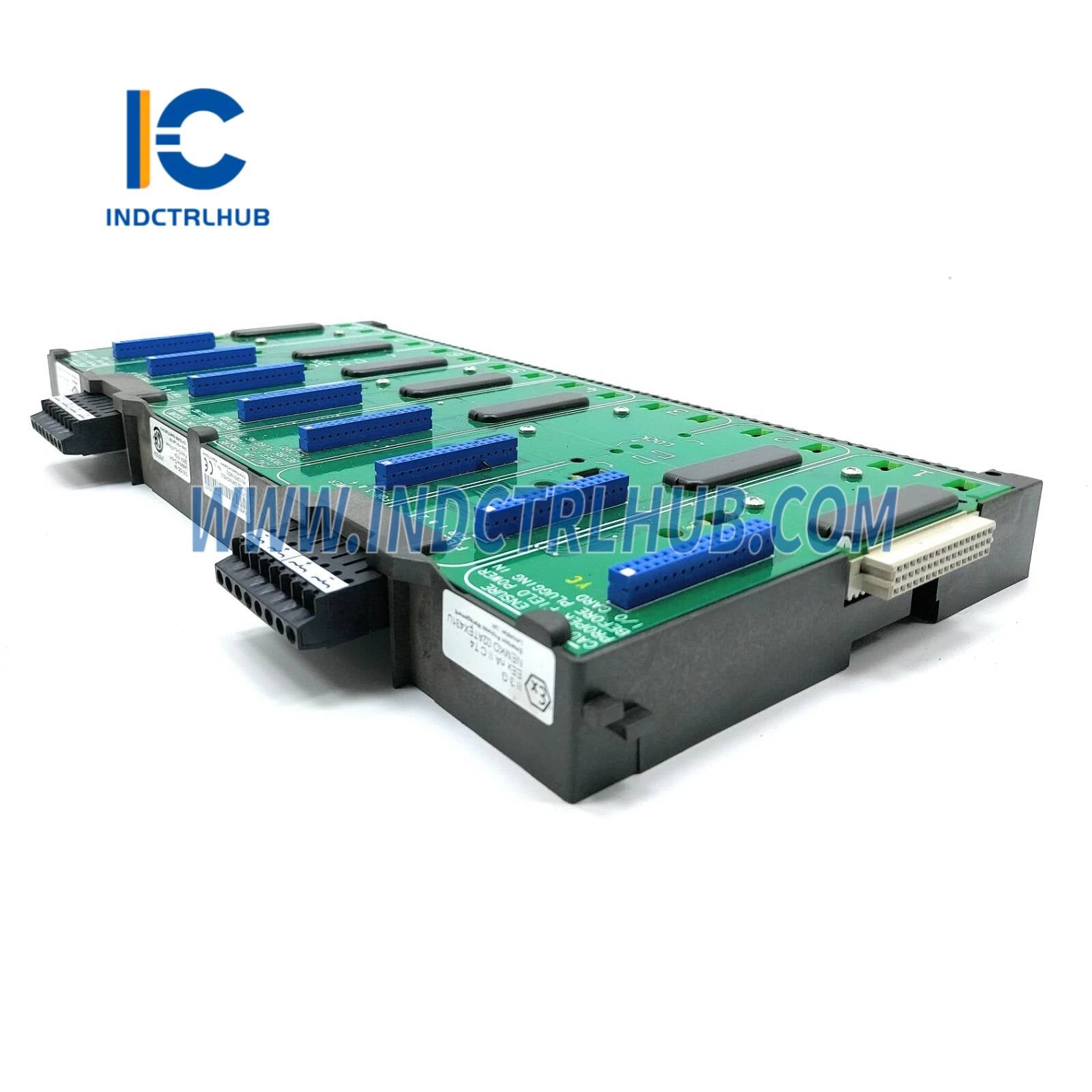

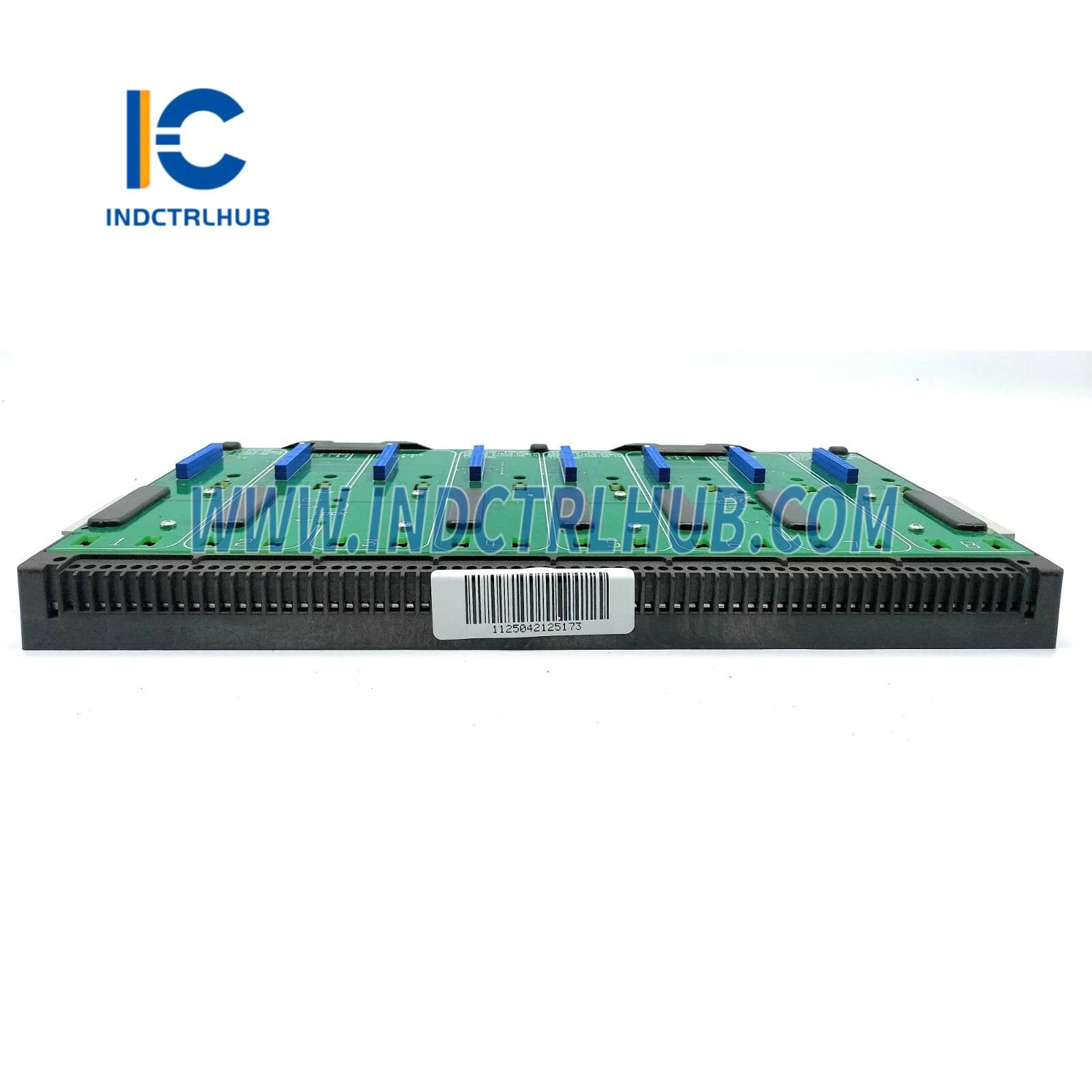

8 Wide I/O Carrier with Shield Bar |
|
Description |
Provides mechanical and electrical mounting for 8 I/O modules in DeltaV™ systems, with integrated shield bar for grounding and cable management. Ideal for industrial process automation. |
⚡
Power Specifications
|
Circuit Type |
Voltage / Current Rating |
|---|---|
|

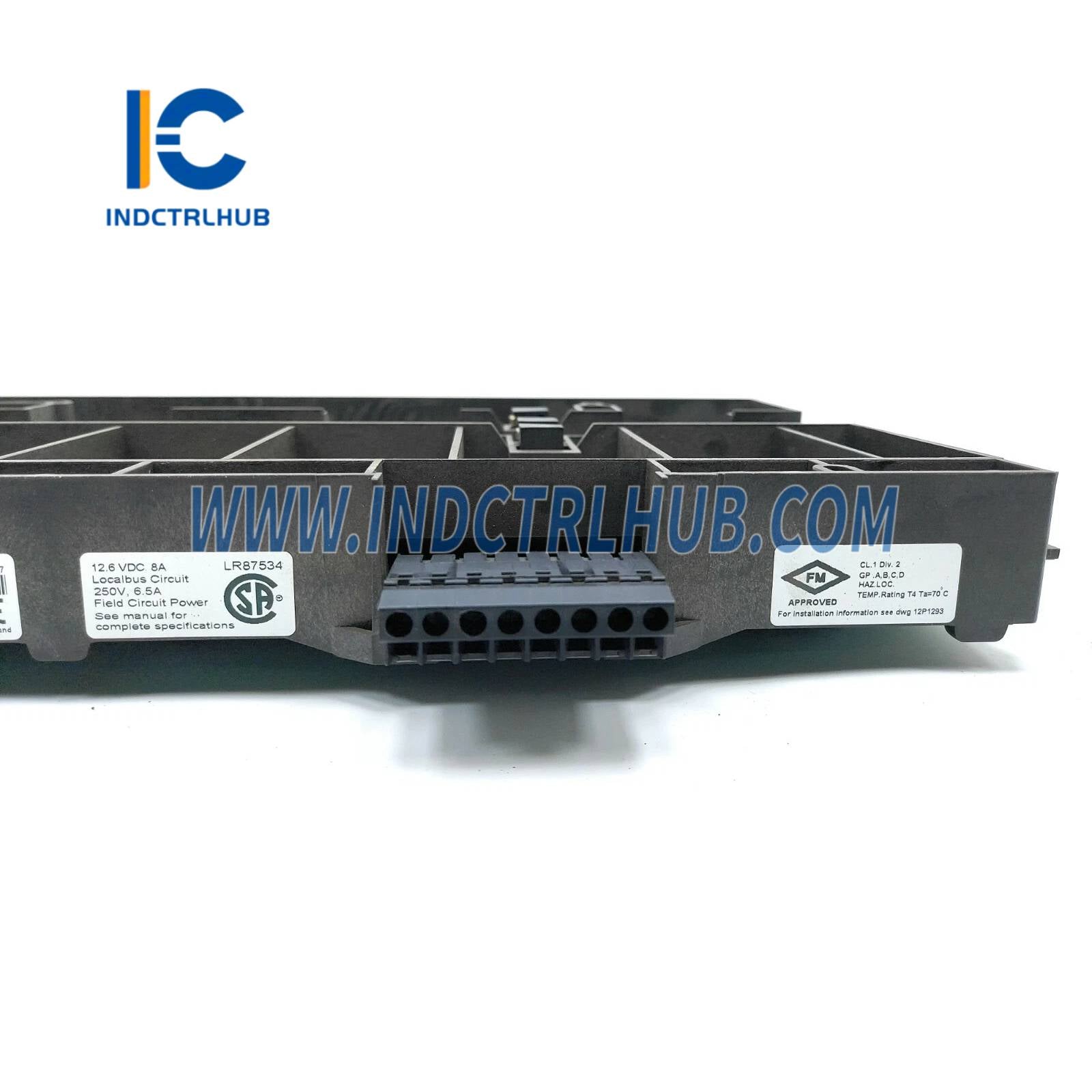

LocalBus Circuit |
12.6 VDC @ 8 A |
|
Field Circuit Power |
30 VDC @ 6.5 A |
🌡️
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Operating Temperature |
-40°C to +70°C |
|
Shock Resistance |
10 G, ½-sinewave for 11 ms |
|
Vibration |
1 mm peak-to-peak (5–16 Hz), 0.5 g (16–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 –1985, Class G3 |
|
Relative Humidity |
5% to 95% non-condensing |
|
Ingress Protection |
IP20 |
