Product Description
🔍
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |

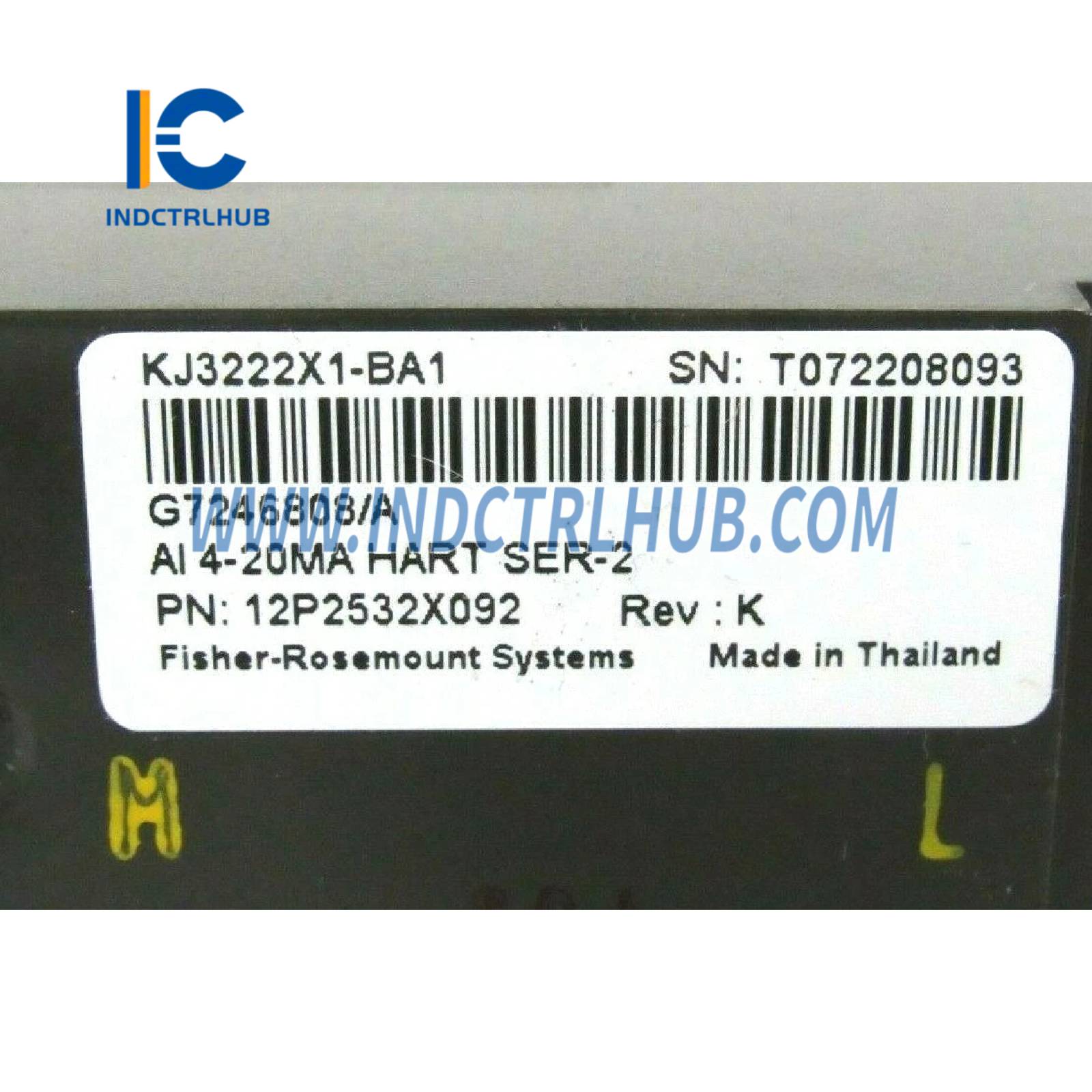

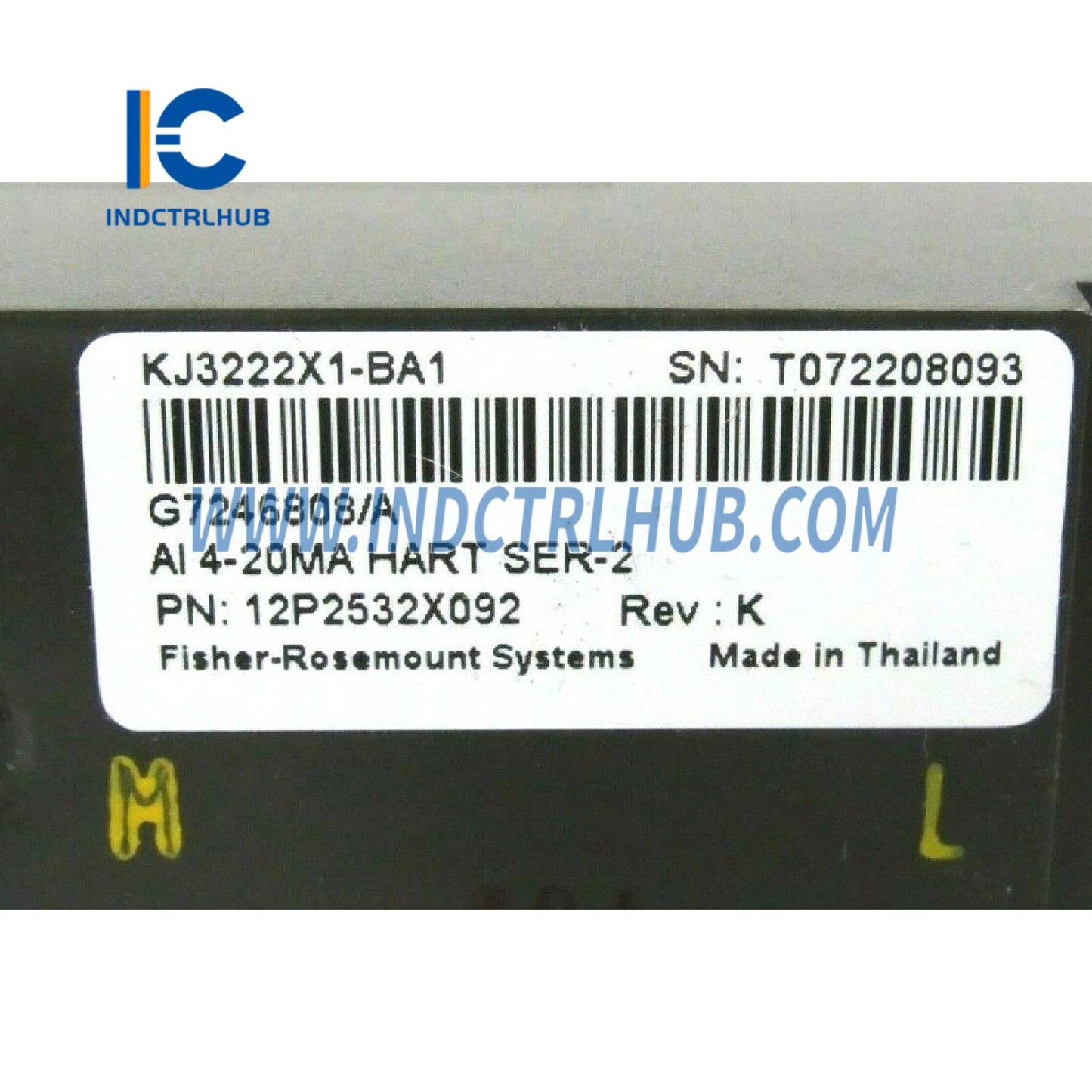

VE4033S2B1 / KJ3222X1-BA1 / 12P2532X092 |
|
Model Type |

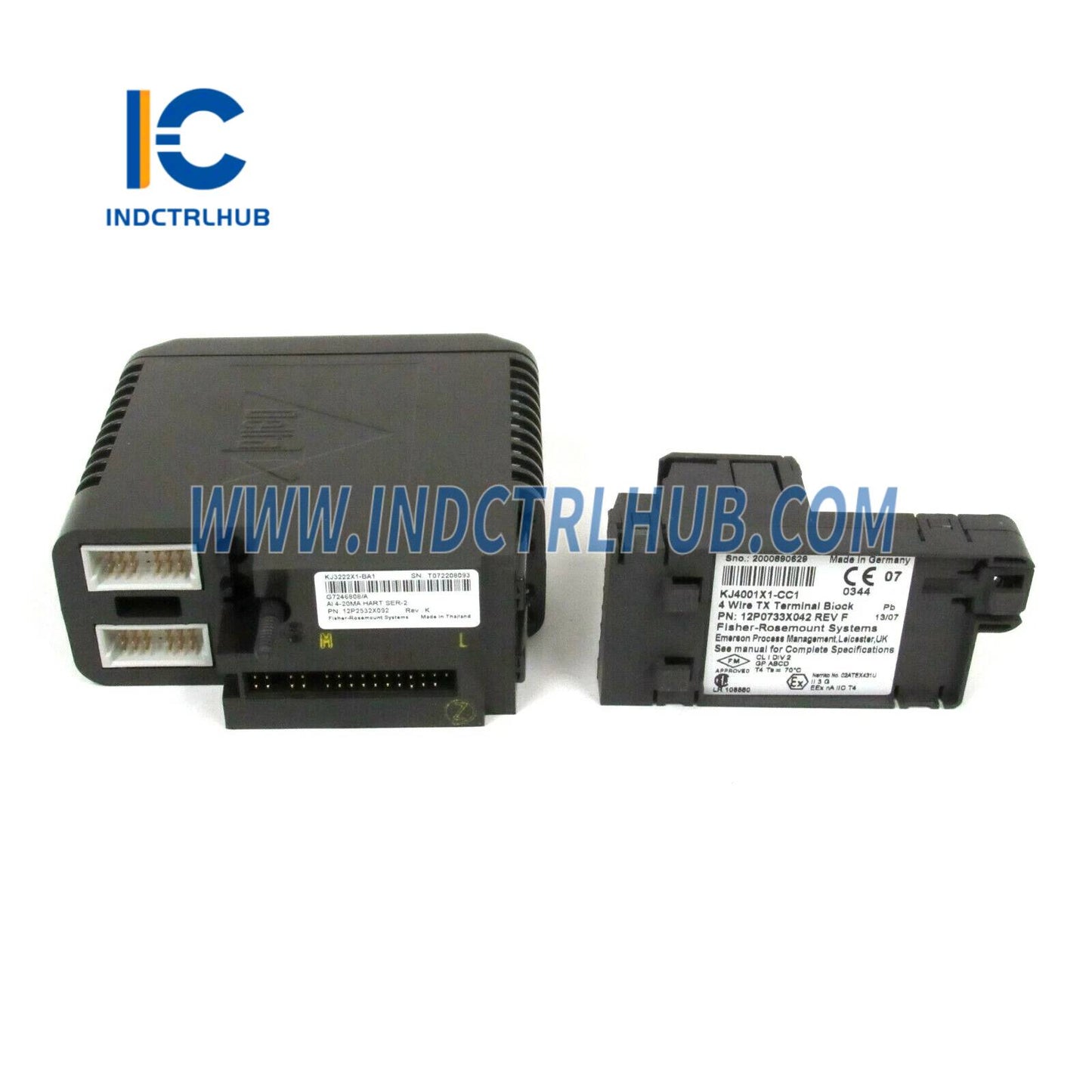

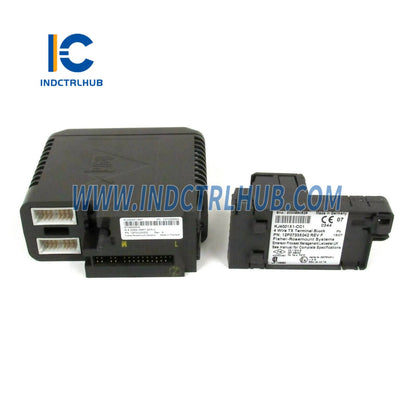

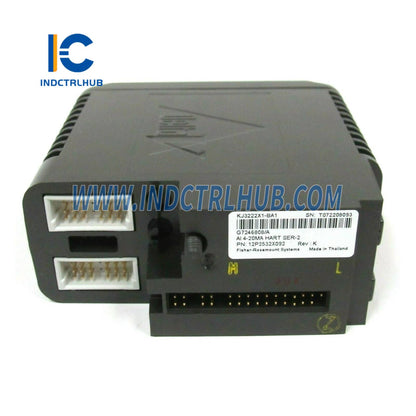

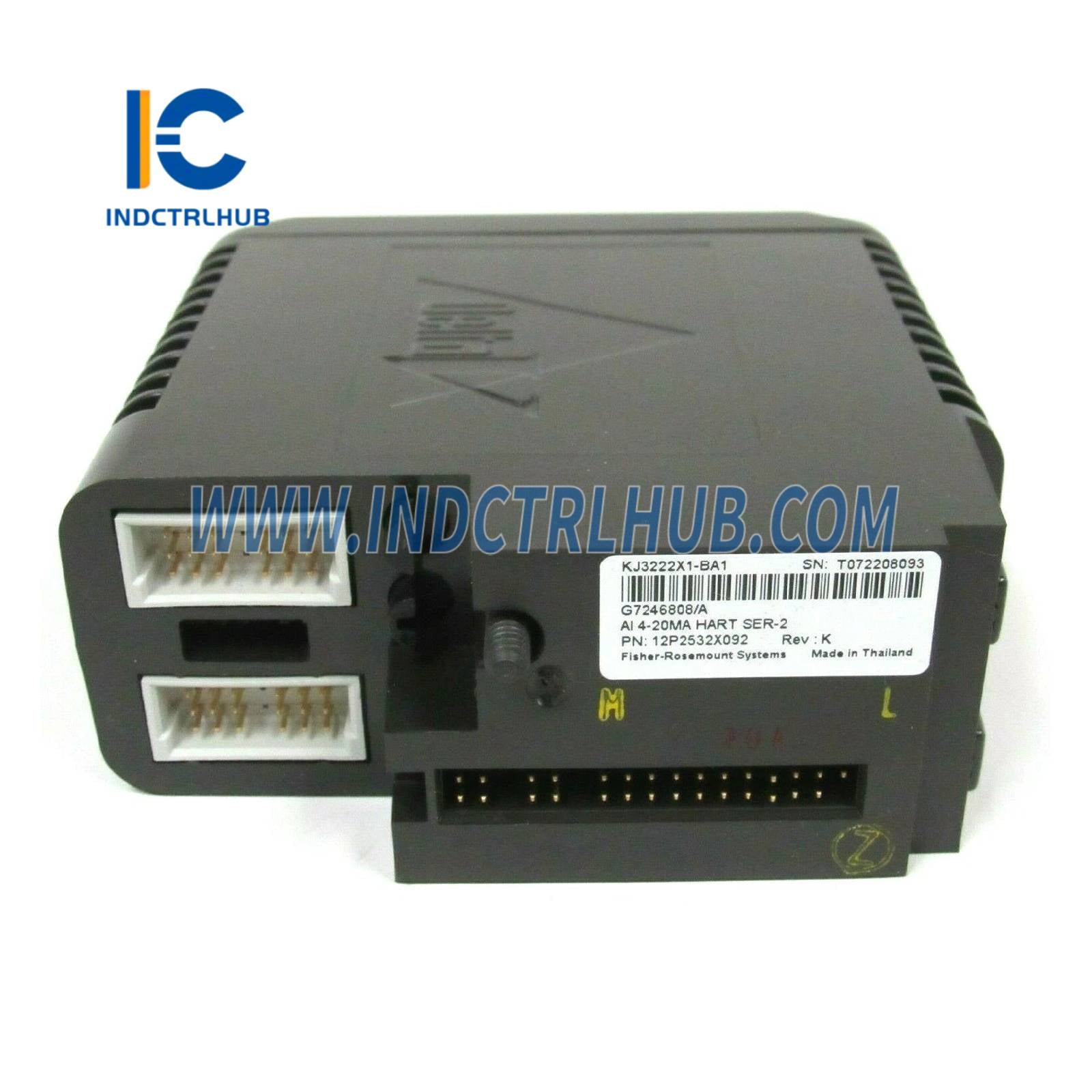

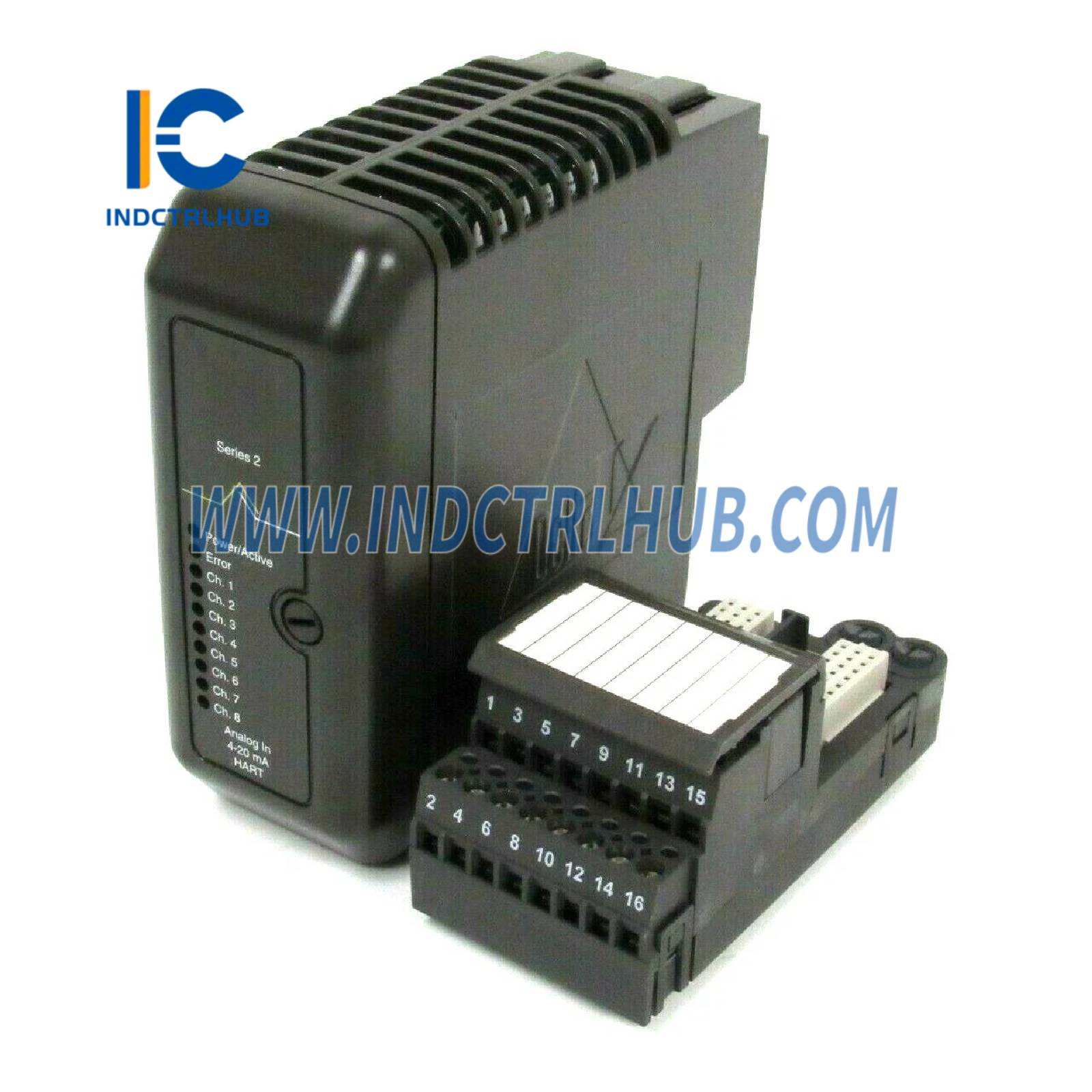

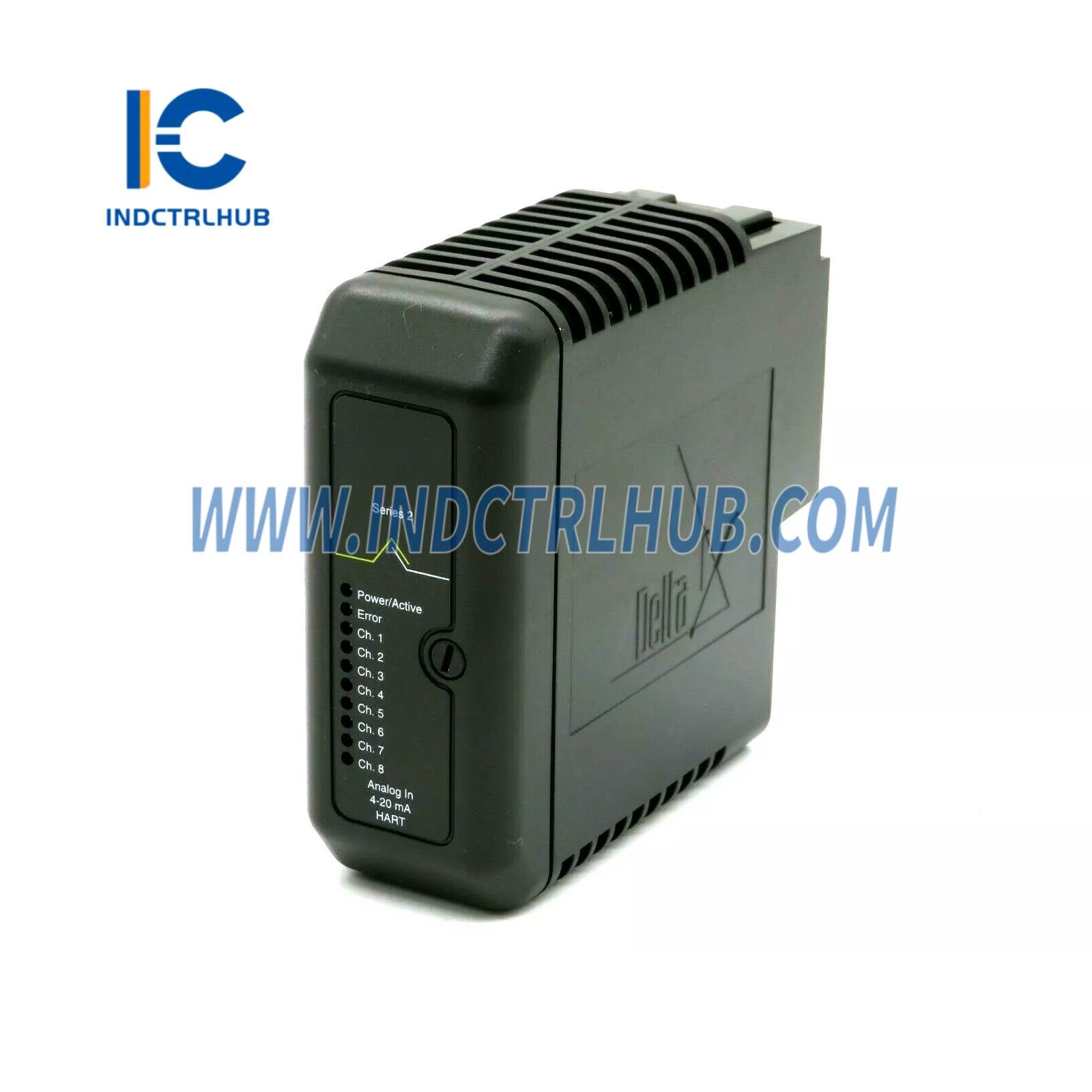

Analog Input (AI) Card, 8 Channels, 4–20 mA with HART, Series 2 |
|
Description |
8-channel Analog Input Card with HART protocol support. Designed for use in Emerson DeltaV™ systems. Delivers reliable high-resolution analog input and smart transmitter communication. |
⚡
Power Specifications
|
Parameter |
Specification |
|---|---|
|
Local Bus Power |
12 VDC @ 150 mA |
|
Bussed Field Power |
24 VDC @ 300 mA |
|
Field Circuit Power |
24 VDC @ 30 mA per channel |
🌡️
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Ambient Temperature |
-40 °C to +70 °C |
|
Shock |
10 g, half-sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 –1985, Class G3 |
|
Relative Humidity |
5% to 95%, non-condensing |
|
Terminal Block Key |
Position A1 |
