Product Description
🔍
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |

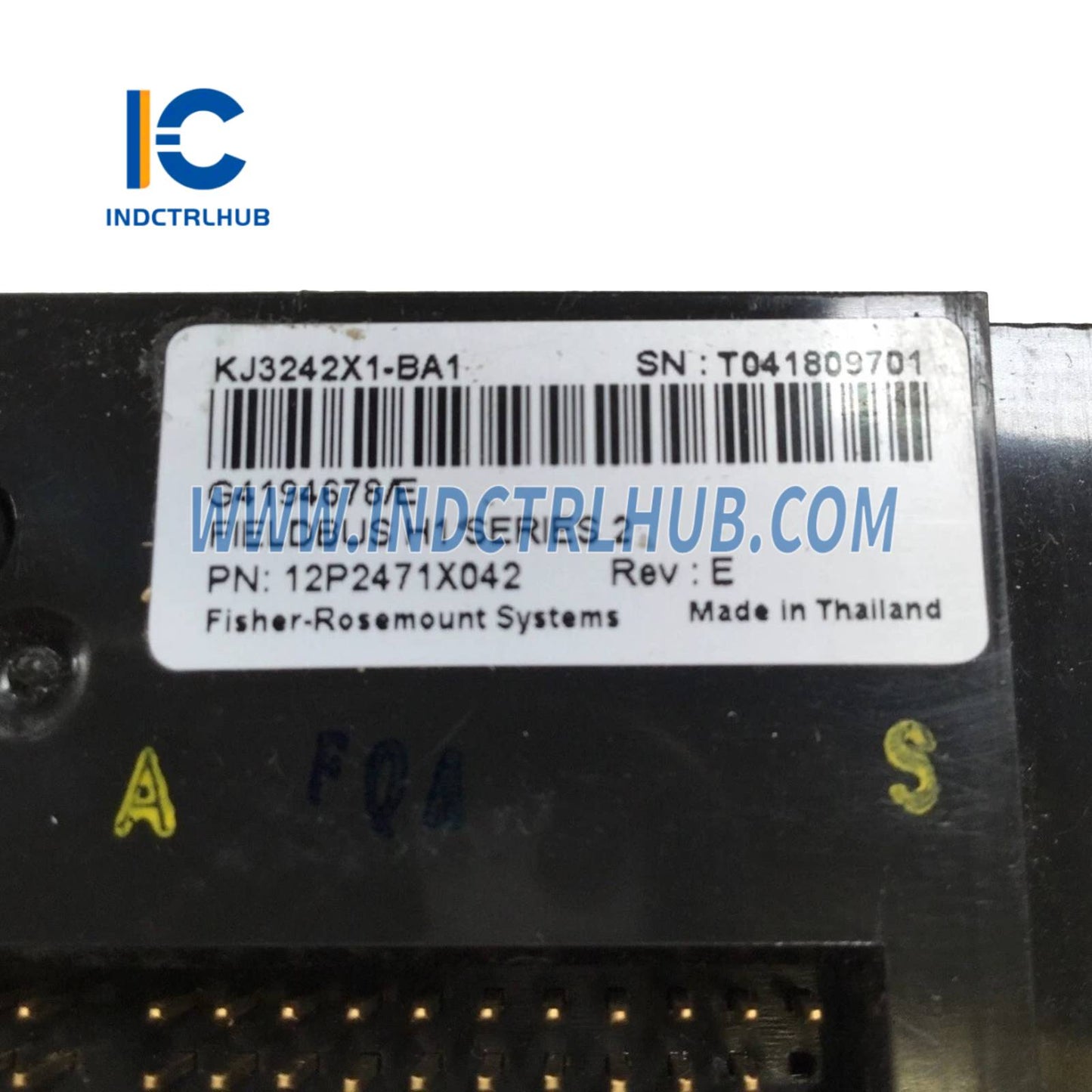

VE4017PO / KJ3242X1-BA1 |
|
Model Type |
Fieldbus Interface Card |
|
Description |

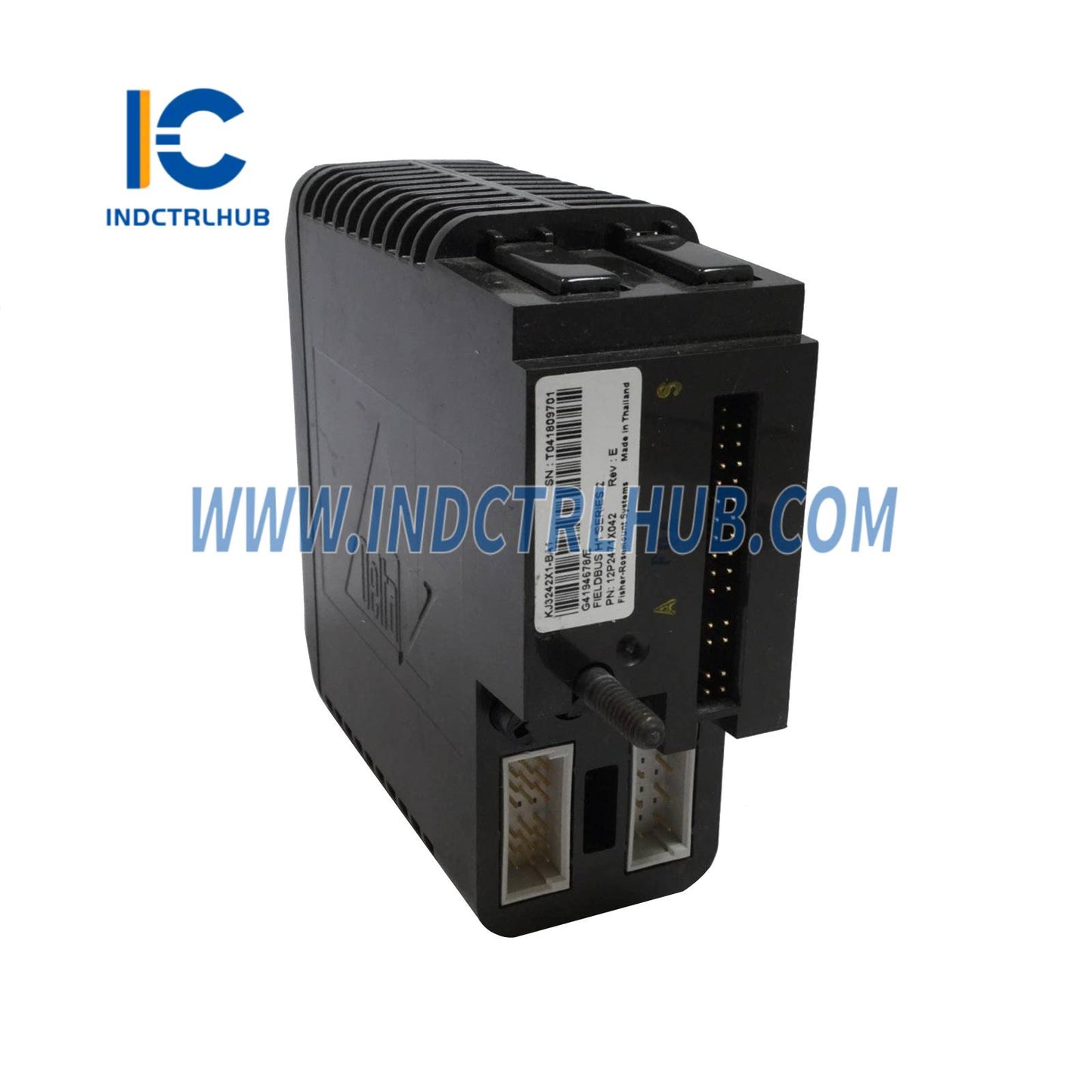

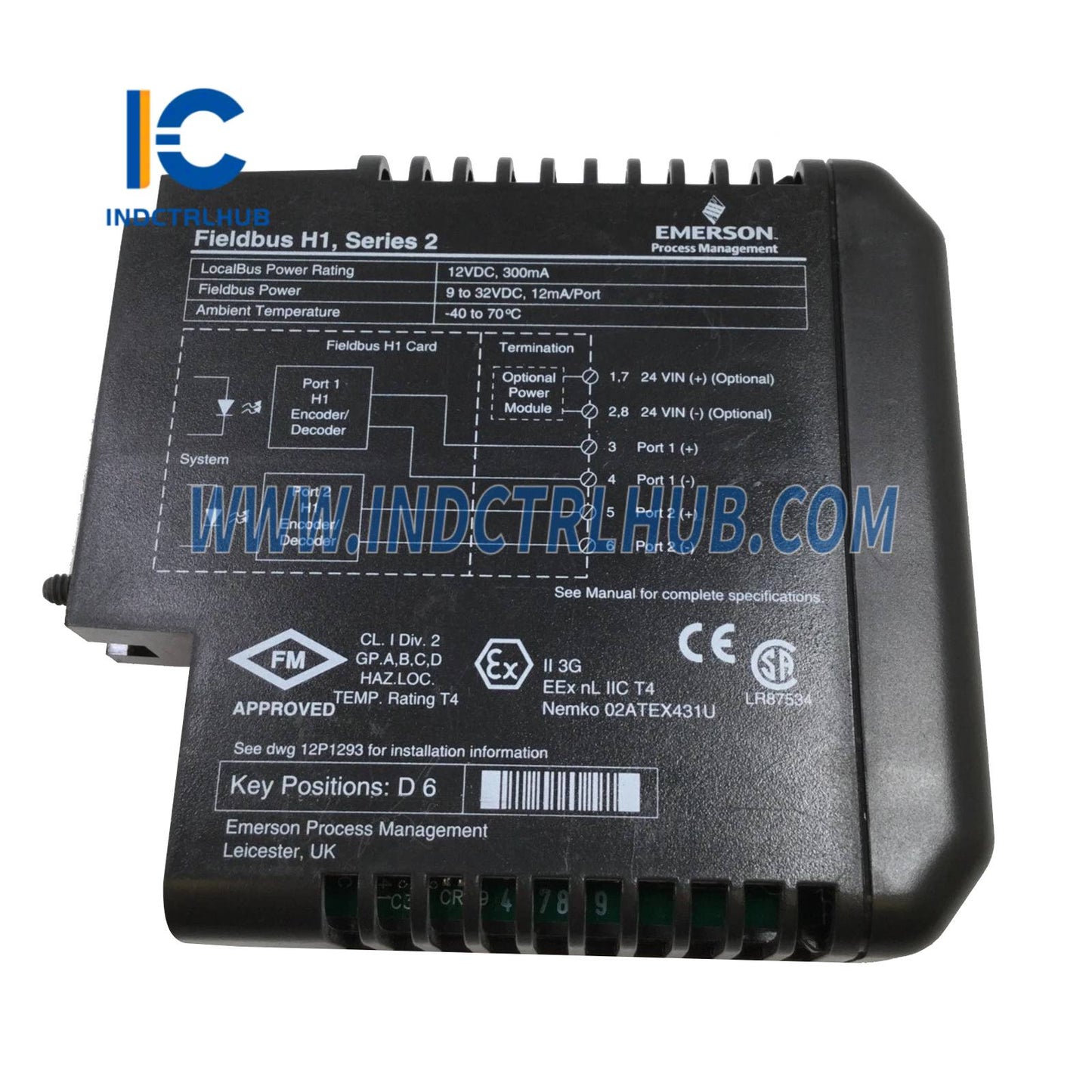

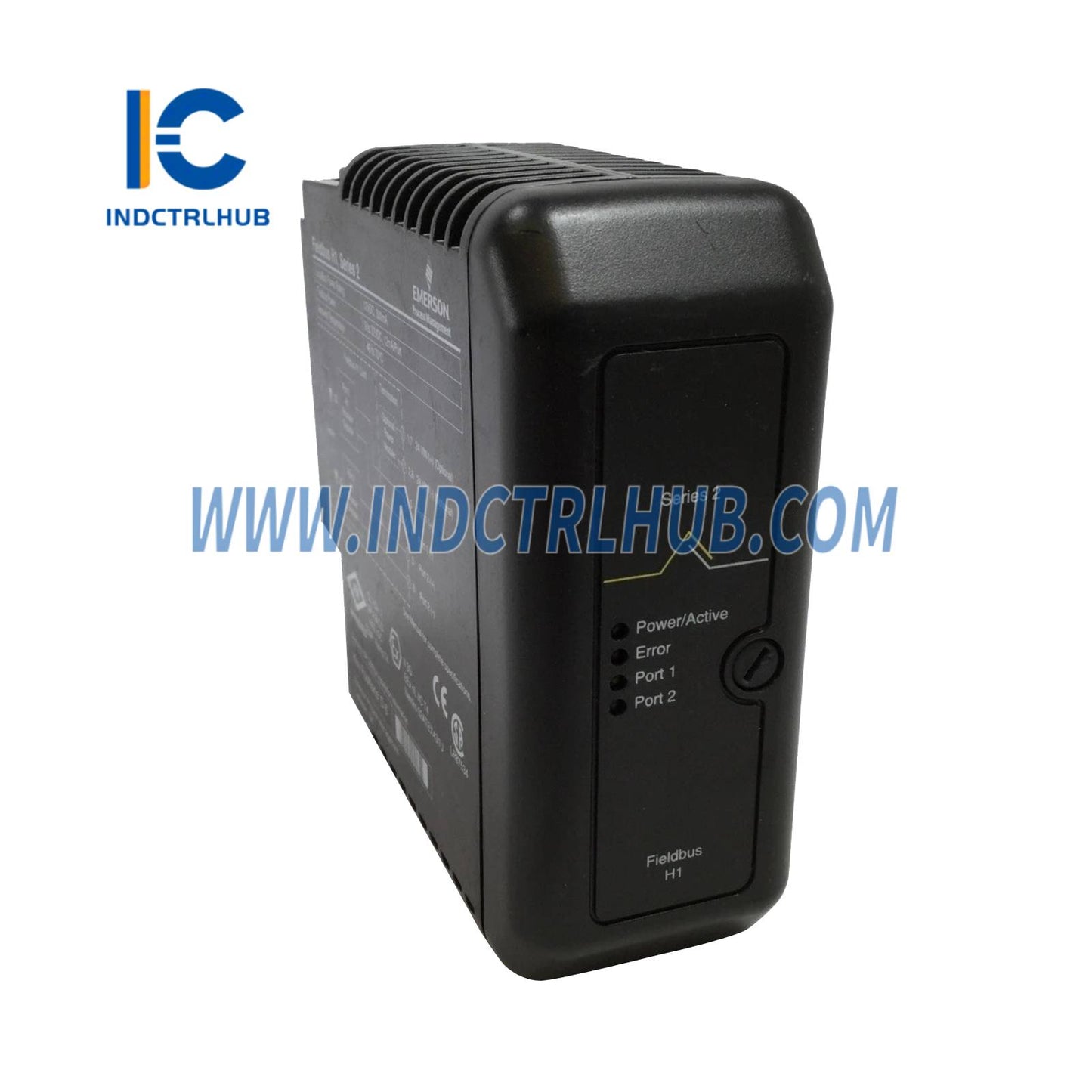

The VE4017PO with KJ3242X1-BA1 is a DeltaV Series 2 Fieldbus Interface Module, providing robust and isolated communication between the DeltaV system and field devices using the FOUNDATION Fieldbus protocol. |
⚡
Power Specifications
|
Parameter |
Specification |
|---|---|
|
Local Bus Power |
12 VDC @ 300 mA |
|
Fieldbus Power |
9–32 VDC @ 12 mA per port |
🌡️
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Ambient Temperature |
-40 °C to +70 °C |
|
Shock |
10 g, half-sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 –1985, Class G3 |
|
Relative Humidity |
5% to 95%, non-condensing |
|
Protection Rating |
IP20 |
|
Terminal Block Key |
D6 |
