Product Description
🔍
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |

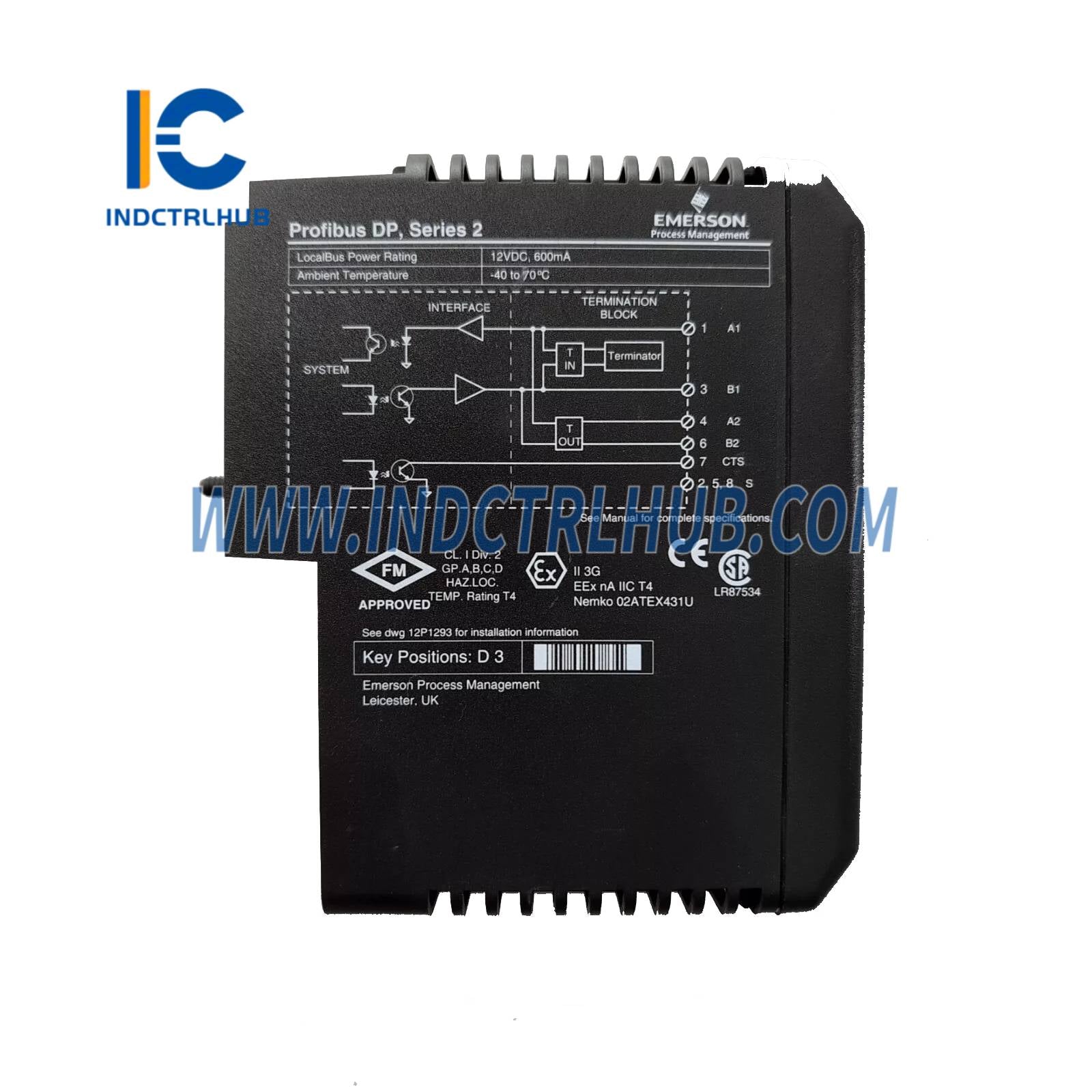

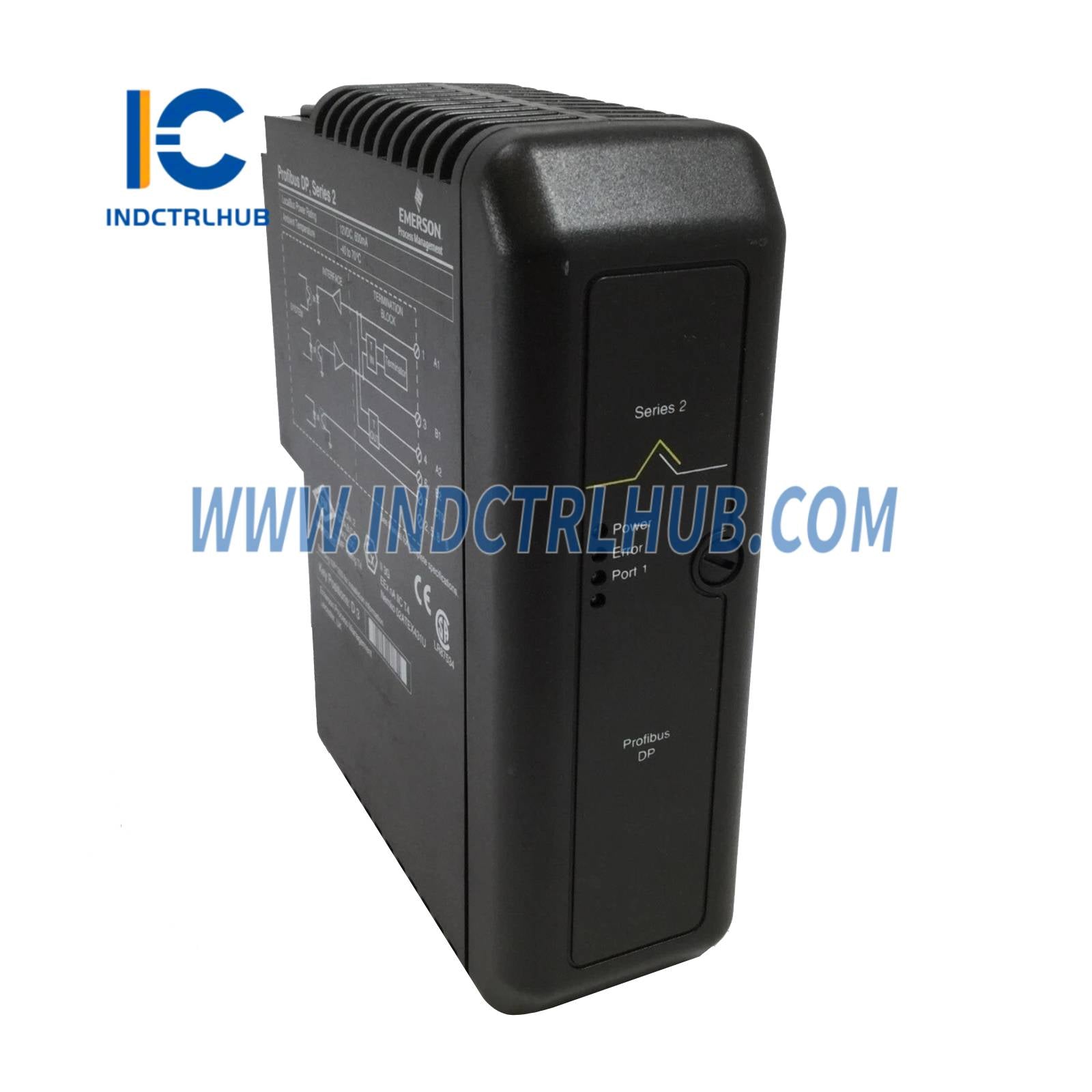

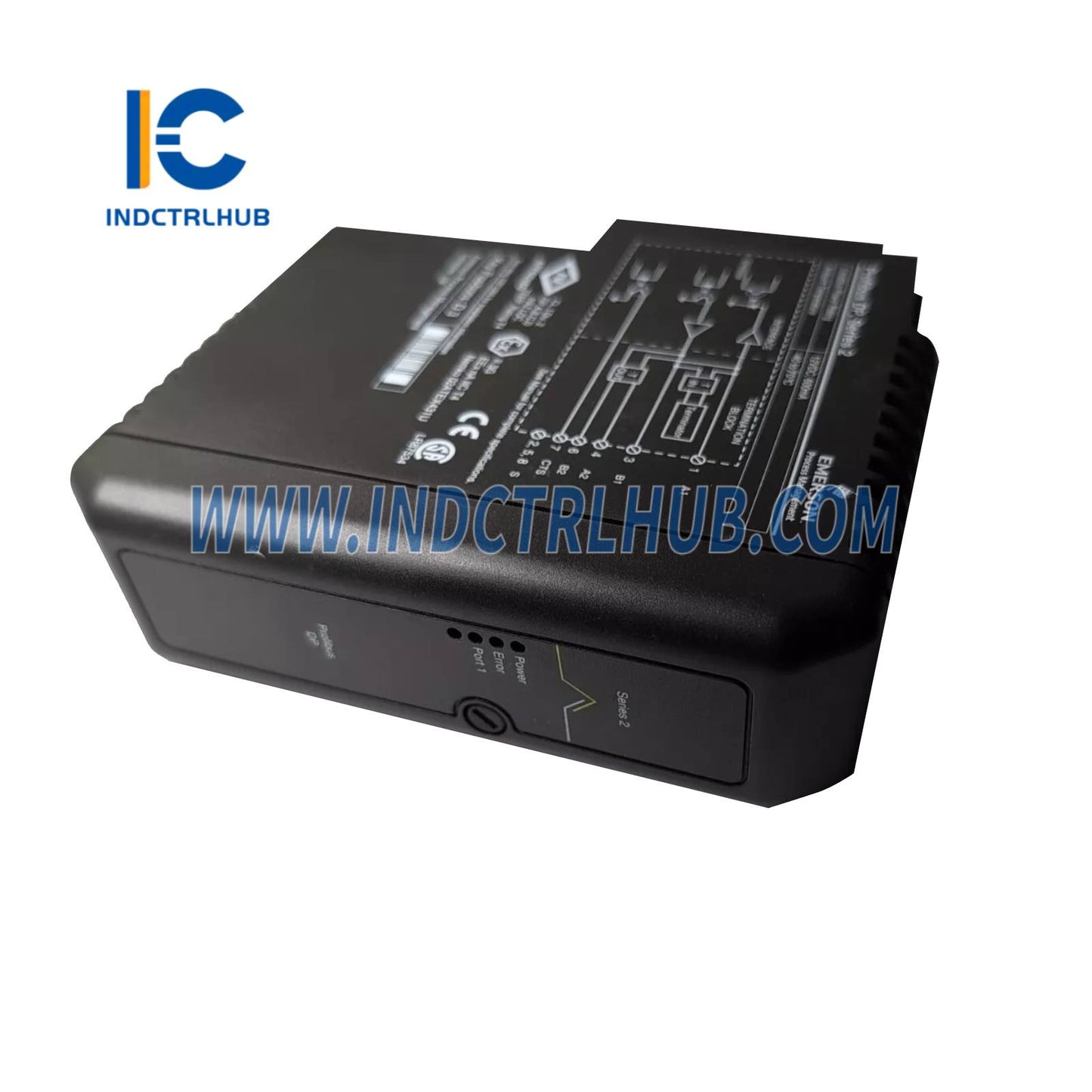

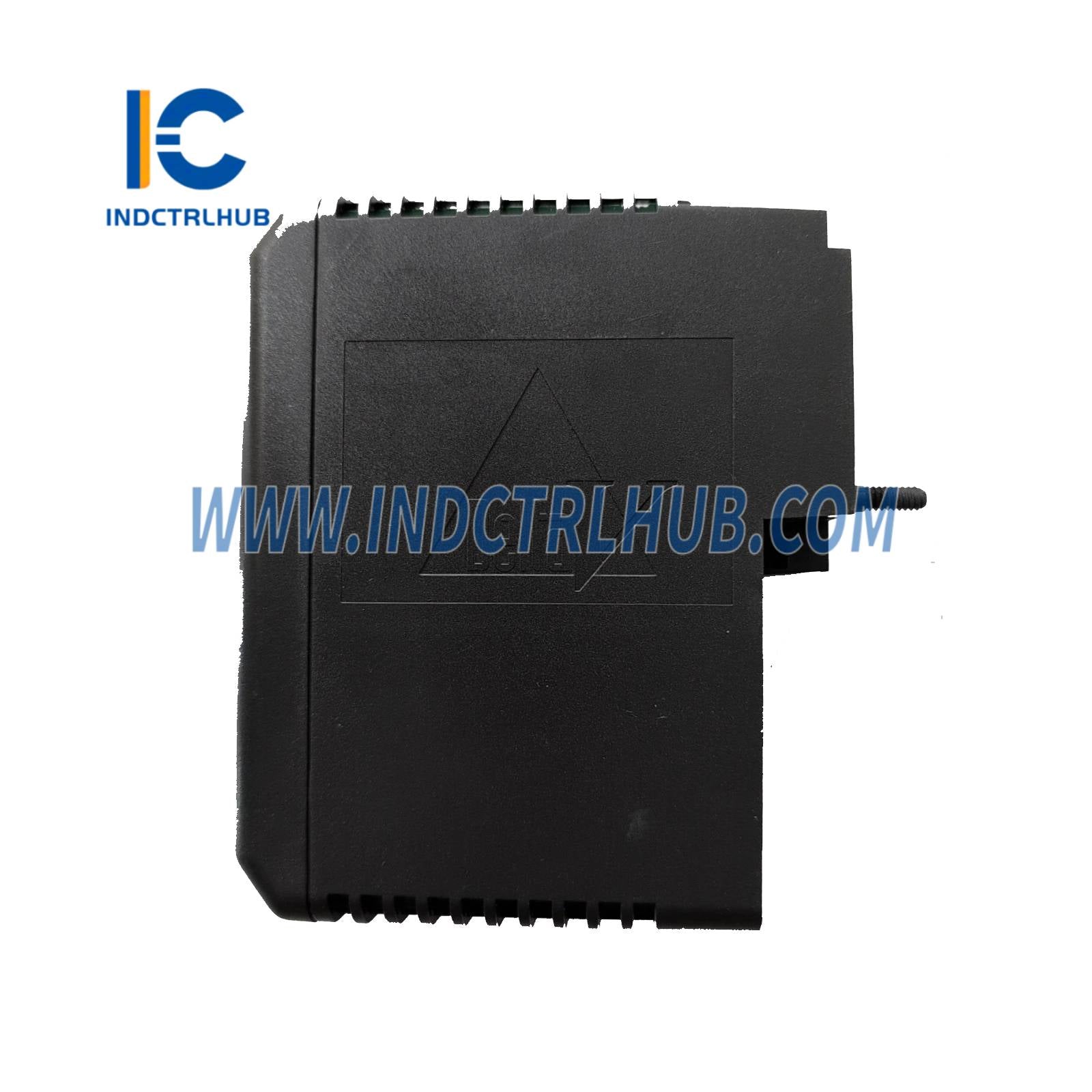

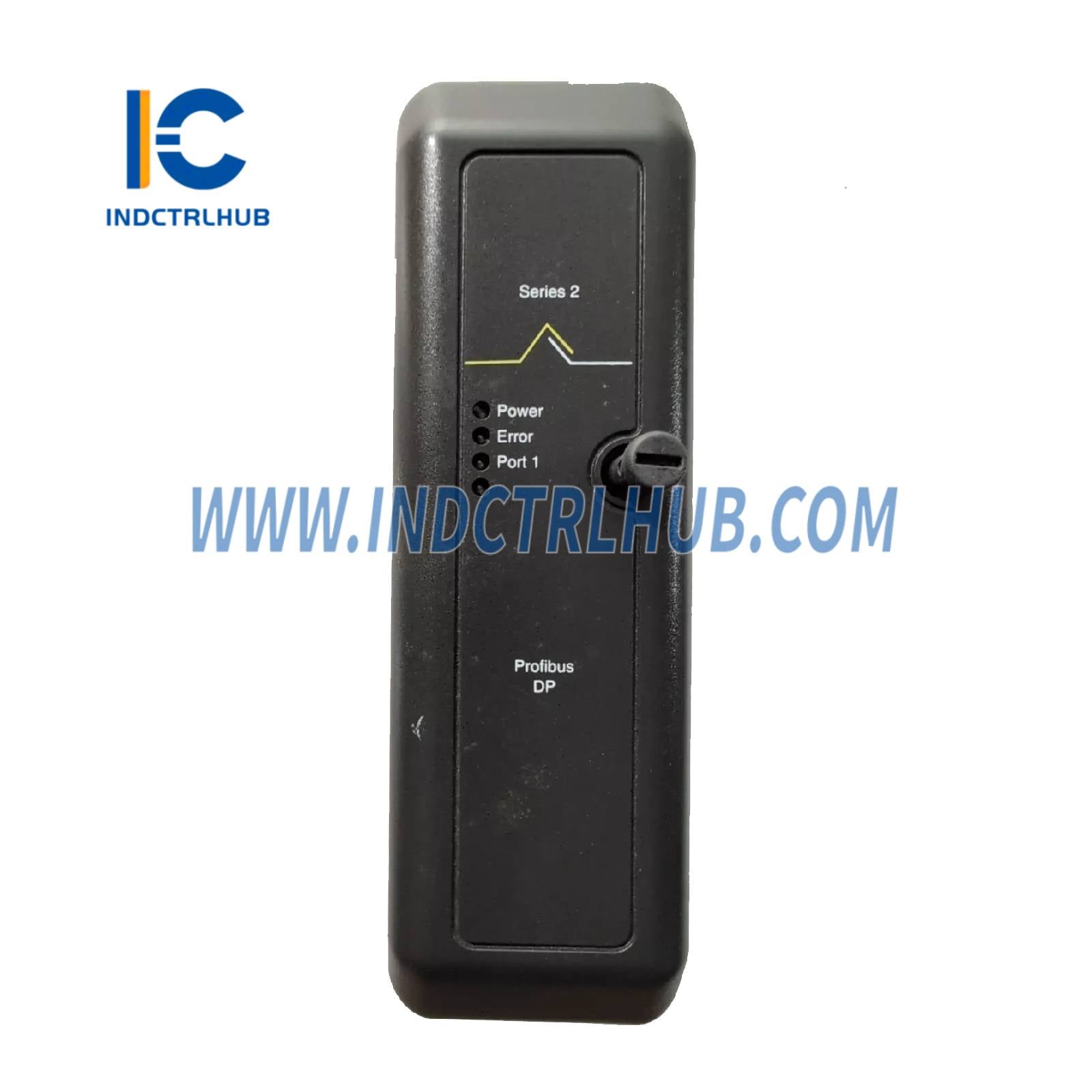

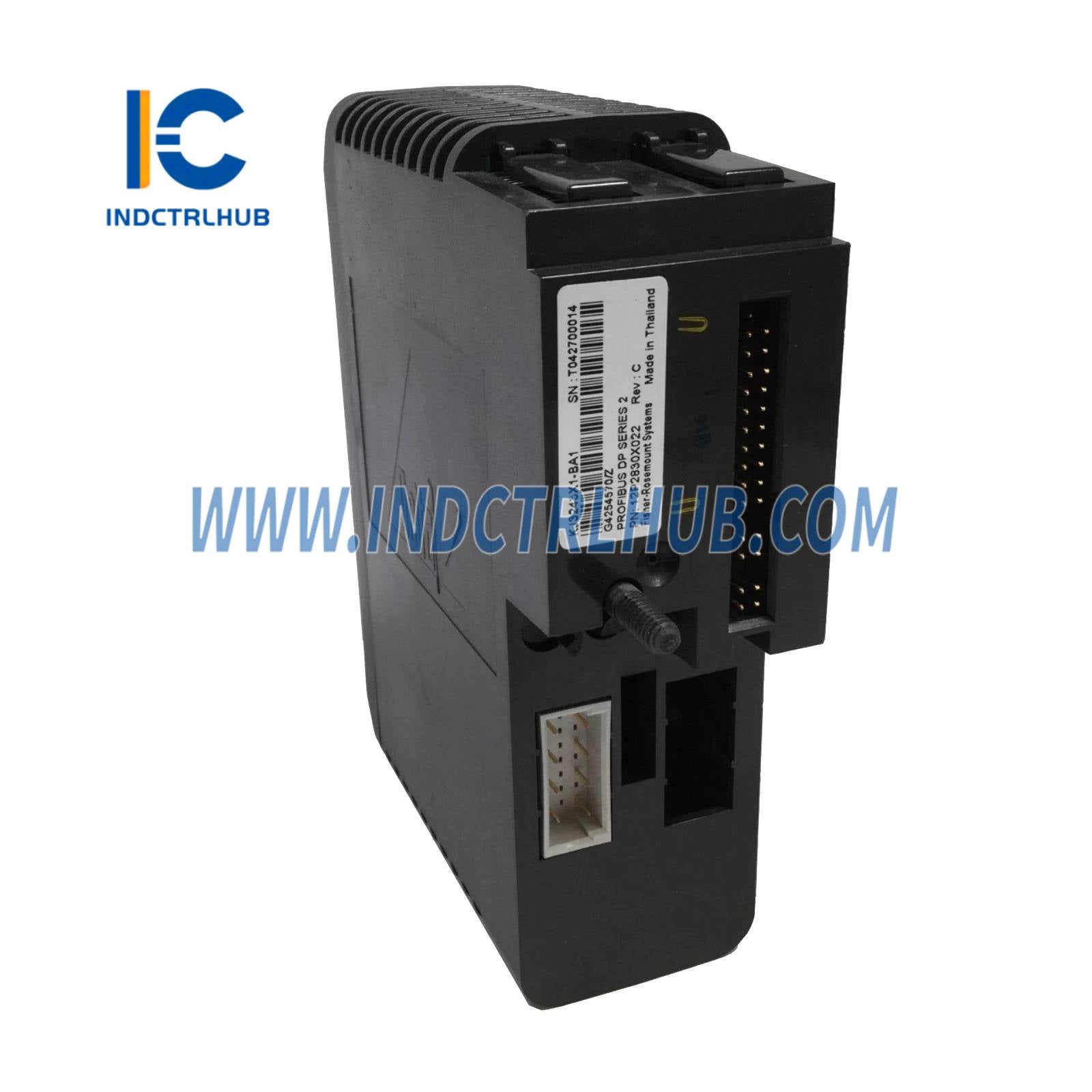

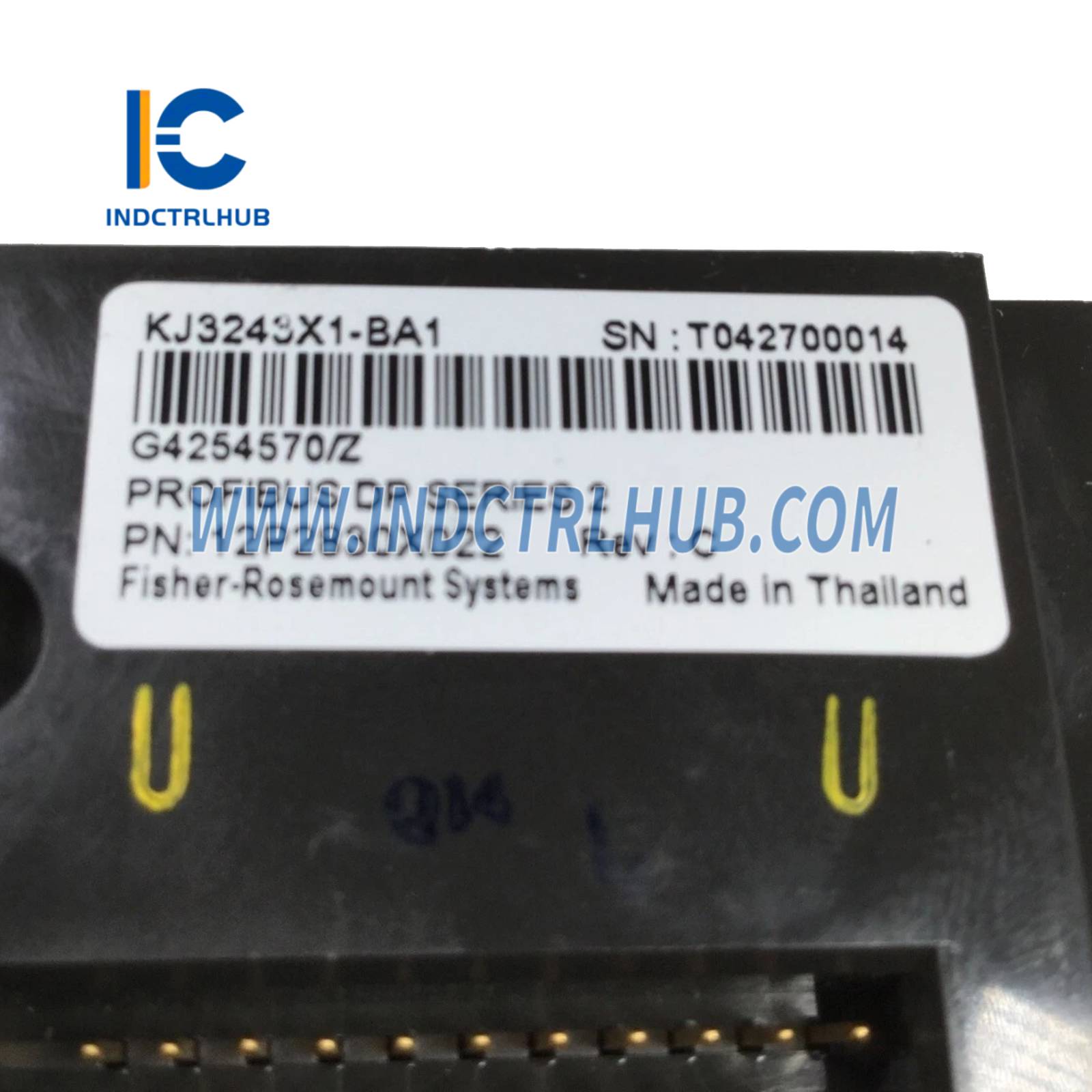

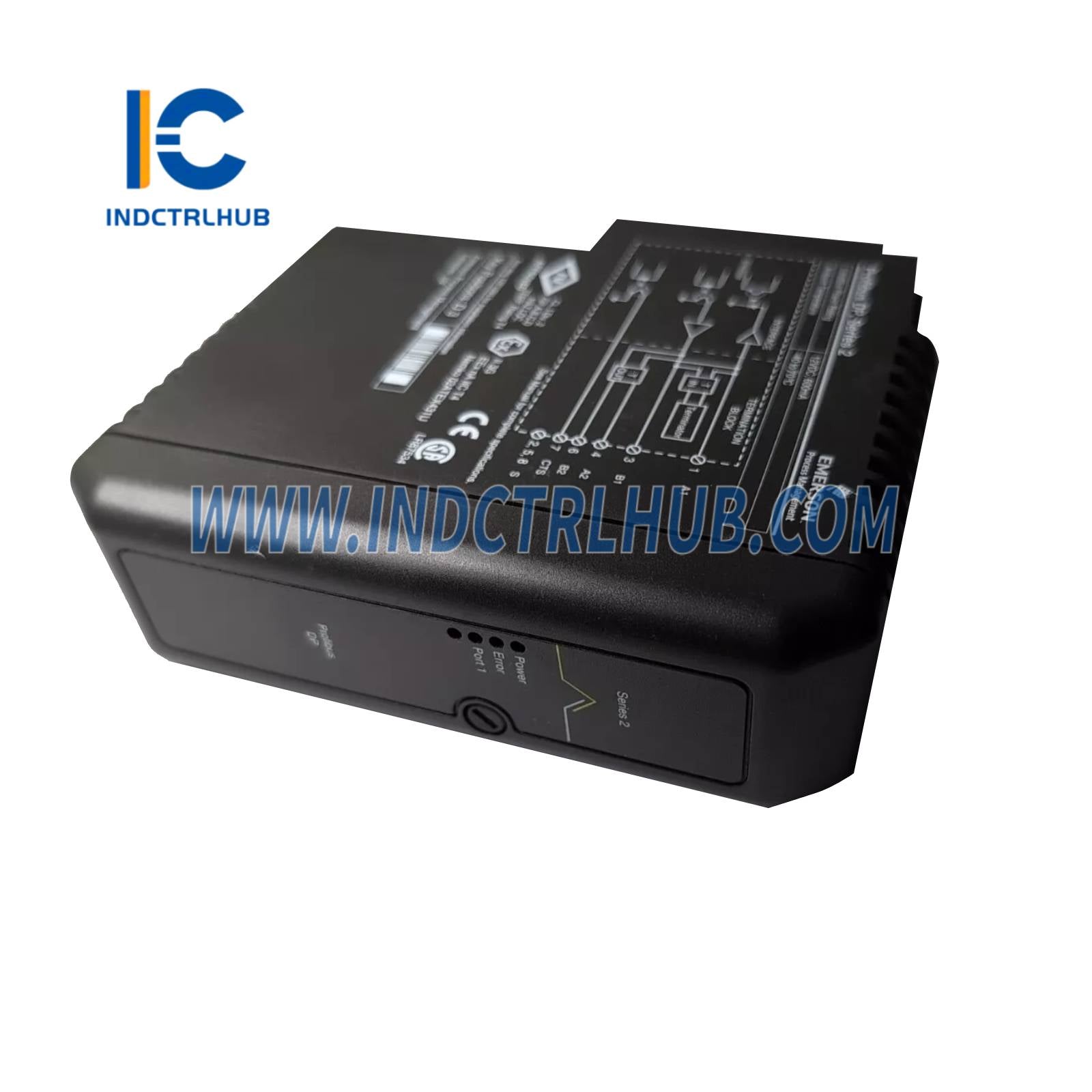

VE4014 / KJ3243X1-BA1 / 12P2830X022 |
|
Model Type |

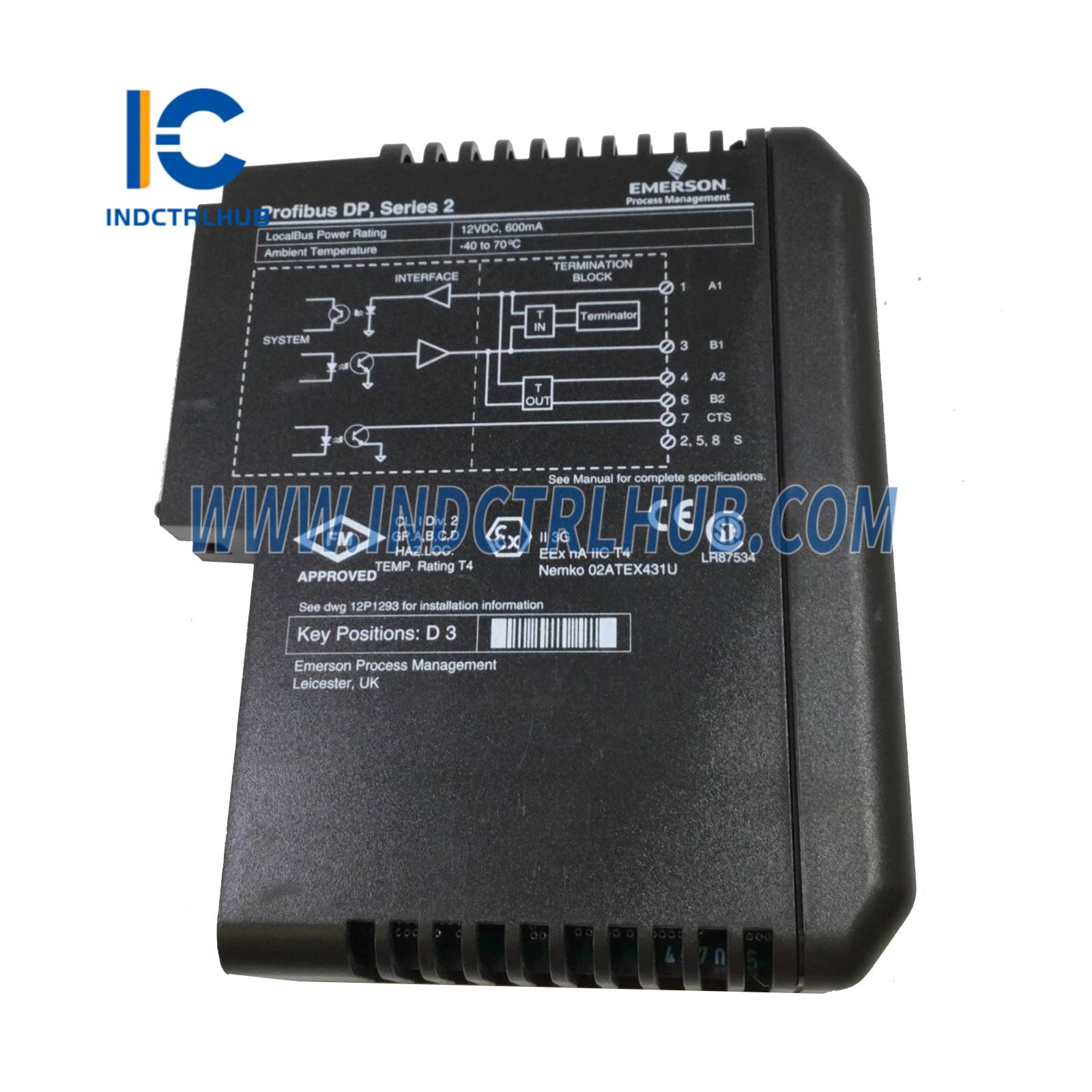

ProfibusDP Interface Card (Series 2) |
|
Description |
The KJ3243X1-BA1 is a Series 2 ProfibusDP interface card designed for the DeltaV system, enabling high-speed, deterministic communication with field devices using the ProfibusDP protocol. |
⚡
Power Specifications
|
Parameter |
Specification |
|---|---|
|
Local Bus Power |
12 VDC @ 600 mA |
|
Field Circuit Power |
None |
🌡️
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Ambient Temperature |
-40 °C to +70 °C |
|
Shock |
10 g, half-sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (5–16 Hz), 0.5 g (16–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04–1985, Class G3 |
|
Relative Humidity |
5% to 95%, non-condensing |
|
Protection Rating |
IP20 |
|
Terminal Block Key |
D3 |
