Product Description
🔍
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
VE4006P2 (Includes: KJ3241X1-BA1 + KJ3003X1-EA1) |
|
Description |

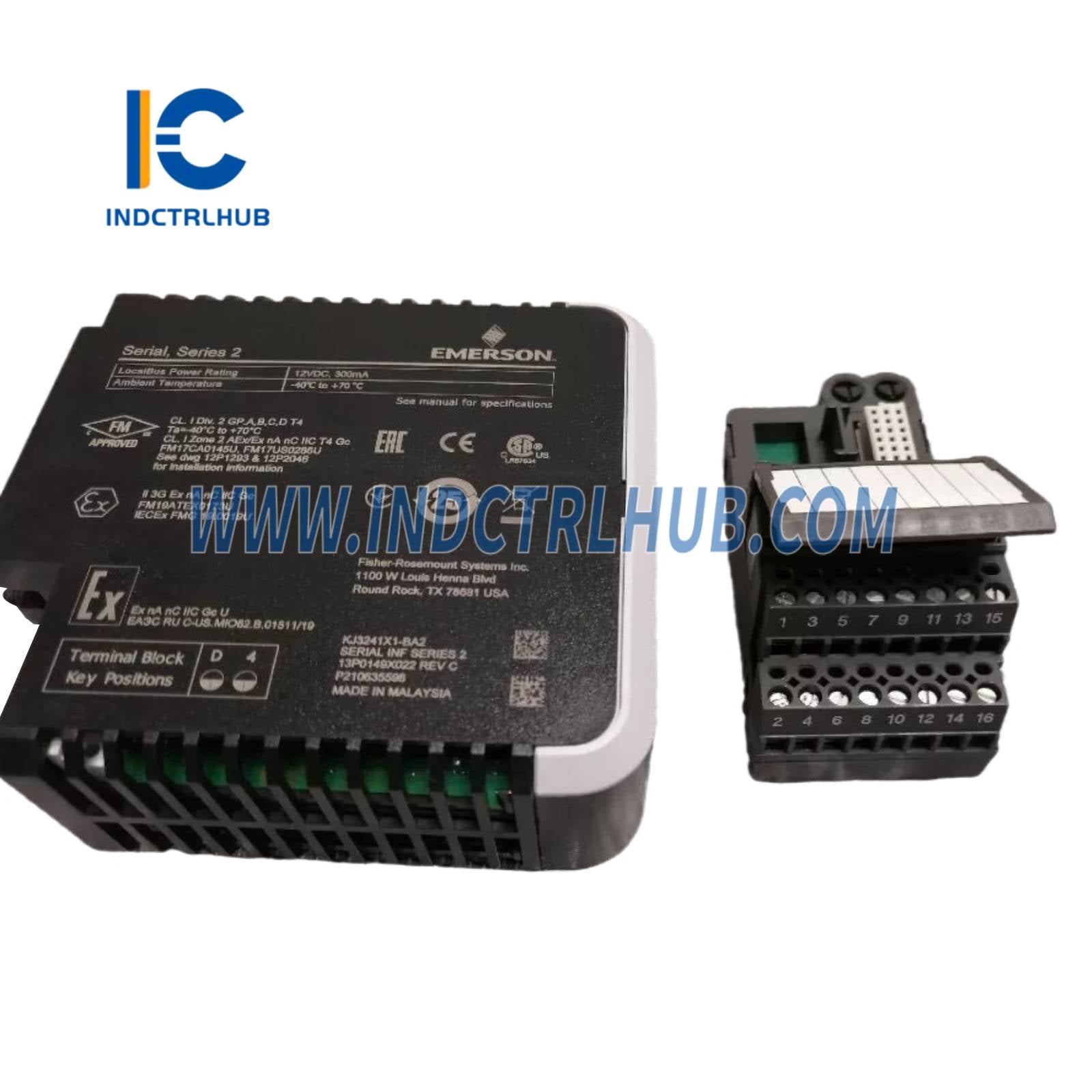

VE4006P2 is a serial communication module set for the DeltaV system, comprising a Serial Interface Card and Interface Terminal Block. It facilitates serial data exchange in robust industrial environments. |
⚡
Power Specifications

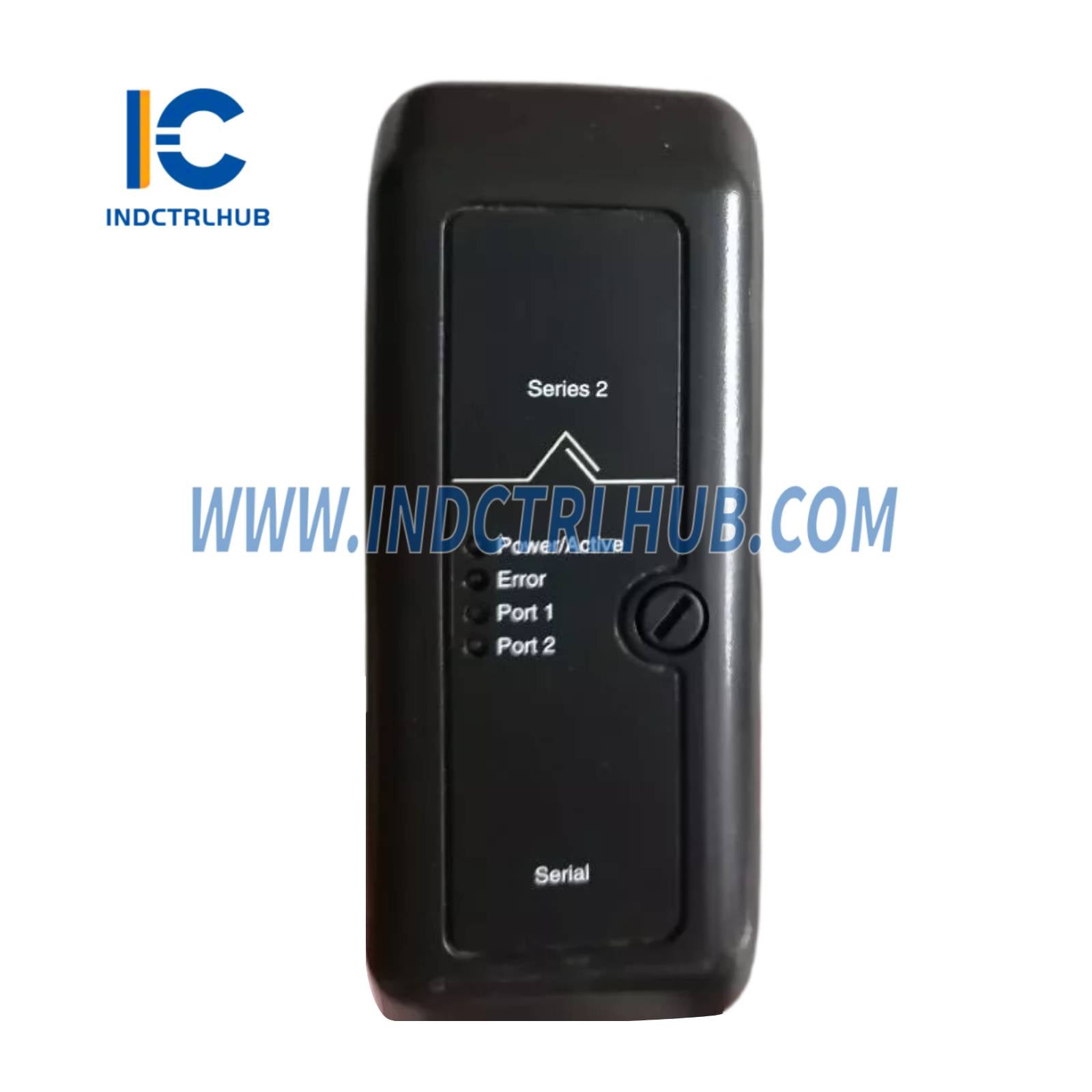

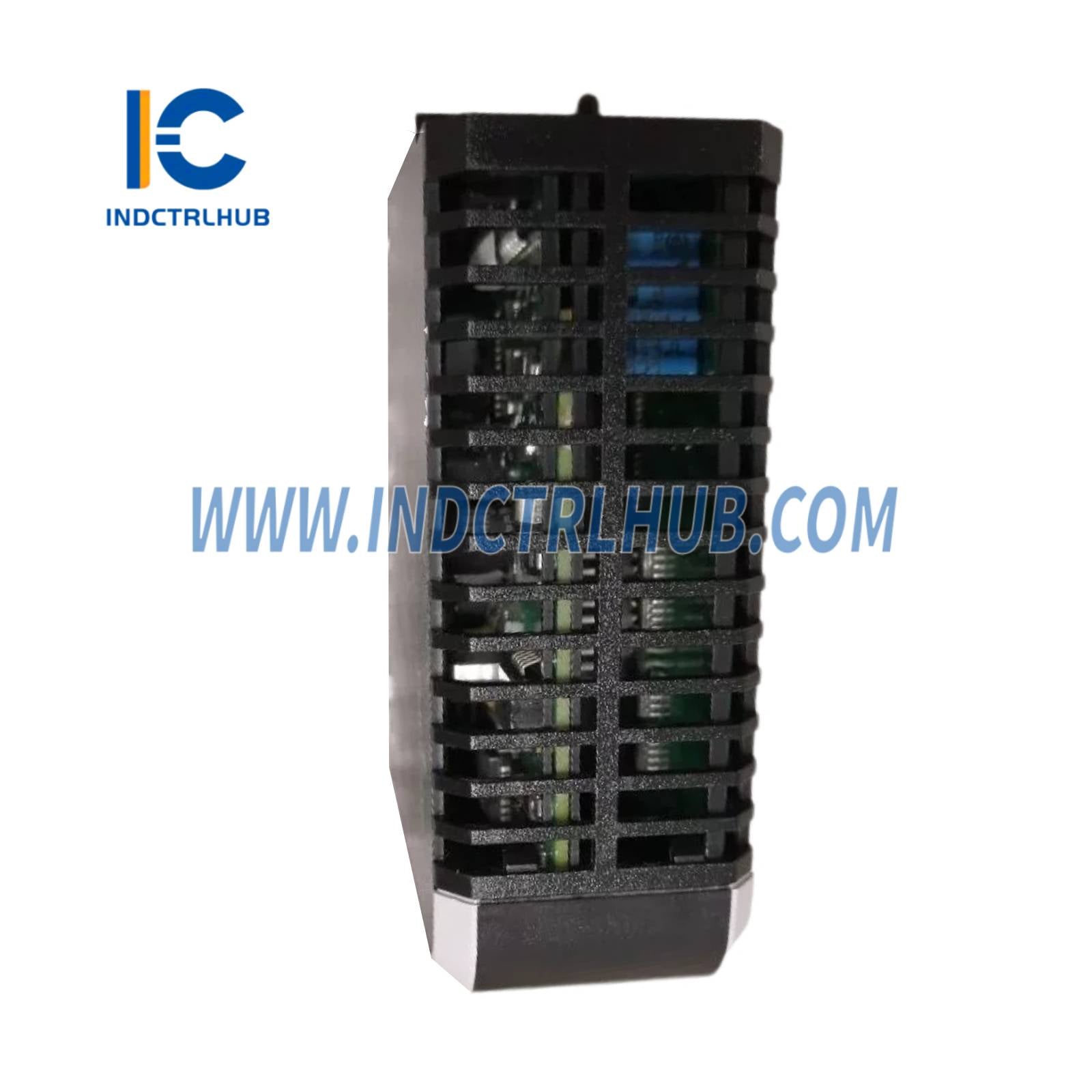

KJ3241X1-BA1 Serial Interface Card
|
Parameter |
Specification |
|---|---|
|
Local Bus Power |
12 VDC @ 300 mA |

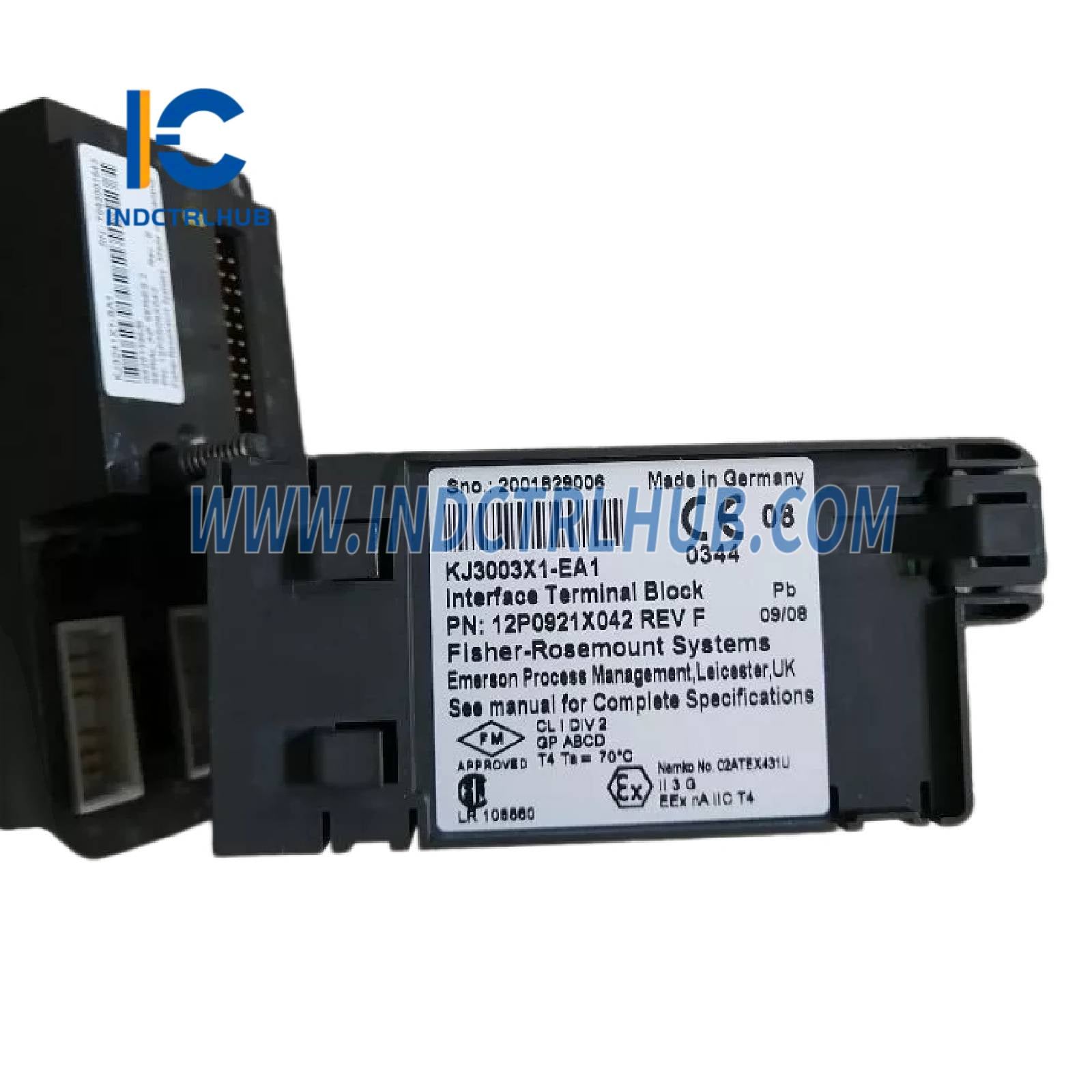

KJ3003X1-EA1 Interface Terminal Block
|
Parameter |
Specification |
|---|---|
|
Input Power Rating |
35 VDC @ 1 A |
🌡️
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Ambient Temperature |
-40 °C to +70 °C |
|
Shock |
10 g, half-sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 –1985, Airborne Contaminants Class G3 |
|
Relative Humidity |
5% to 95%, non-condensing |
|
Protection Rating |
IP20 |
|
Terminal Block Key |
D4 |
