Product Description

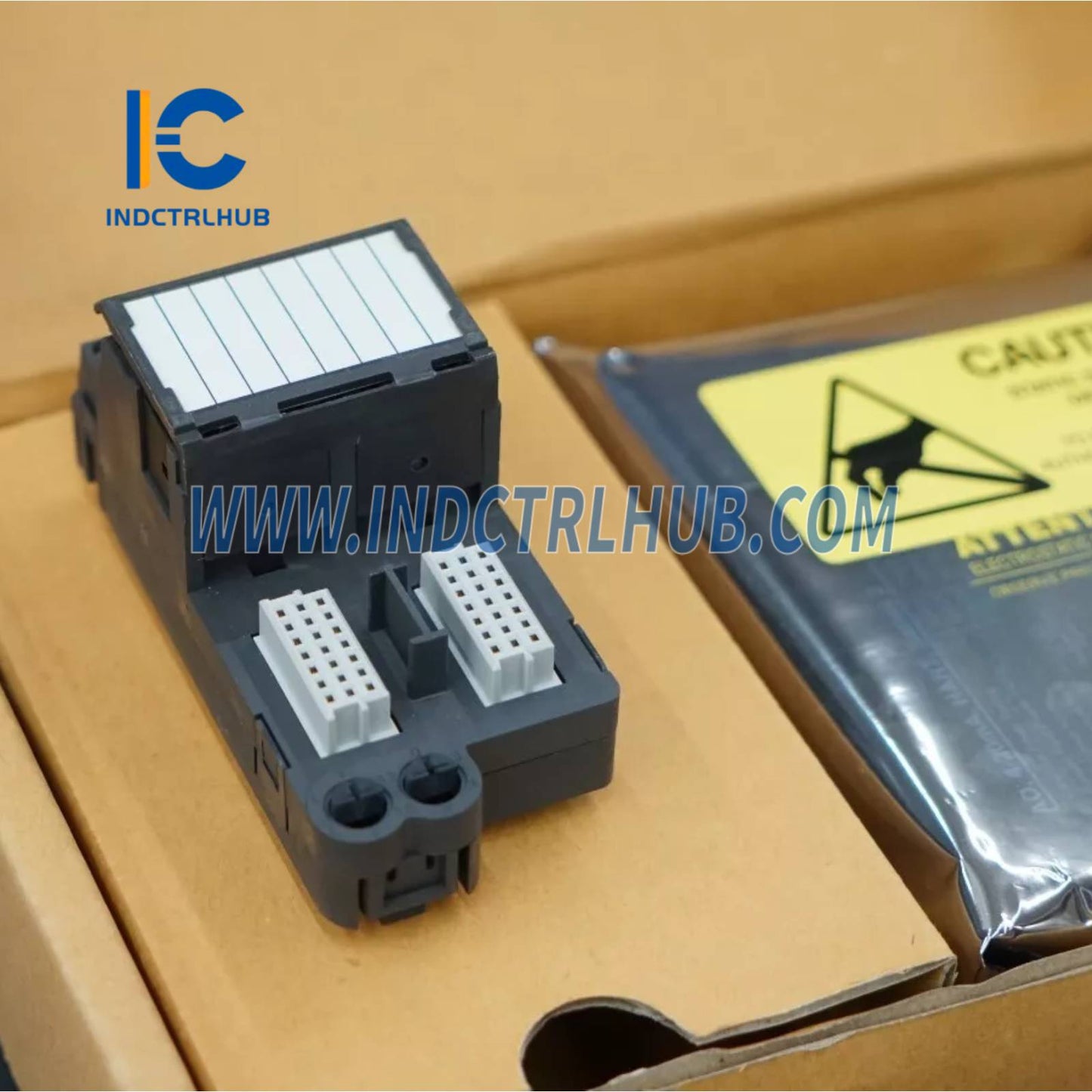

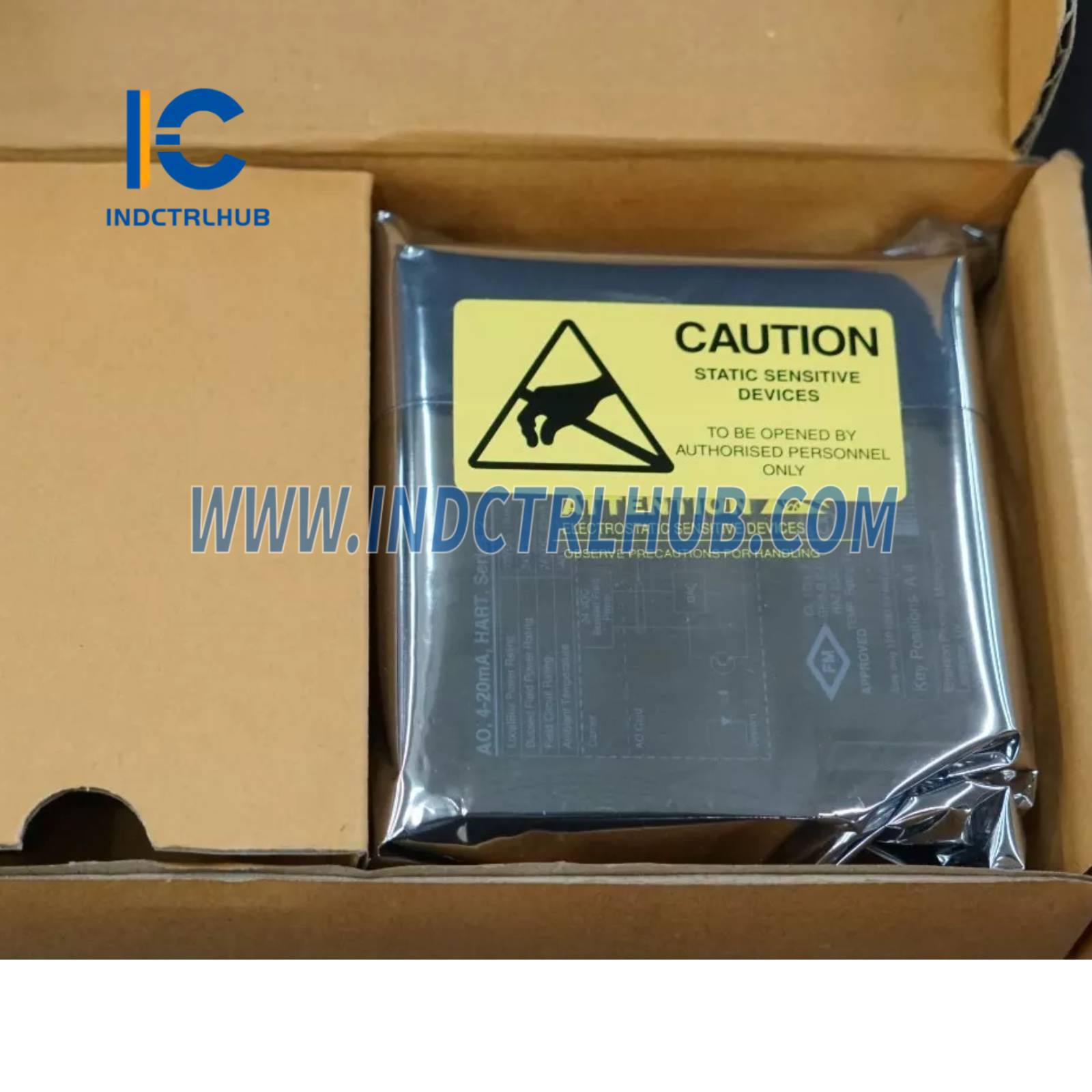

Emerson VE4005S2B2 DeltaV M-series Discrete Output Module
- Manufacturer: Emerson
- Model/Part Number: VE4005S2B2 (Alternate: KJ3223X1-BA1, 12P2871X, KJ4001X1-CJ1)
- Description: M-series Discrete Output Module, 16-Channel, 4-20 mA, HART, with Fused I/O Termination Block
Overview
- The Emerson VE4005S2B2 is an M-series Discrete Output Module designed for the DeltaV Distributed Control System. It provides 16-channel, 4-20 mA outputs with HART communication, equipped with a fused I/O termination block for enhanced safety and wiring protection. The module controls field devices such as valves and actuators in industrial automation applications, including oil and gas, chemical, and power generation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | VE4005S2B2 (KJ3223X1-BA1, KJ4001X1-CJ1) |
| Series | DeltaV M-series |
| Type | Discrete Output Module, 16-Channel, 4-20 mA, HART, with Fused I/O Termination Block |
| Channels | 16 analog output channels |
| Output Signal | 4-20 mA, HART protocol |
| LocalBus Power | 12 VDC at 300 mA |
| Field Circuit Power | 24 VDC at 600 mA |
| Fuse Rating | 100 mA per channel |
| Weight | 0.4 kg |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Airborne Contaminants | ISA-S71.04-1985 Class G3, conformal coating |
| Mounting | T-type DIN rail, on I/O carrier |
| Certifications | CE, CSA, FM, ATEX, IECEx, Marine Certifications (ABS, DNV) |
| System Compatibility | DeltaV v10.3 or later |
Additional Information
- Functionality: The VE4005S2B2 delivers 16 4-20 mA analog outputs with HART communication for precise control and diagnostics of field devices. The fused I/O termination block includes 100 mA fuses per channel to protect wiring and devices from overcurrent. The module supports hot-swappable installation, enabling maintenance without system downtime, and includes diagnostics for fault detection.
- Environmental Durability: Designed for harsh industrial environments, the module features conformal coating to protect against airborne contaminants and operates reliably in extreme temperatures, shock, and vibration conditions. It is suitable for hazardous area installations, including Zone 2.
- Integration: The VE4005S2B2 integrates with DeltaV M-series systems, mounting on T-type DIN rail I/O carriers, such as VE4050S2K1C0. It complies with DeltaV installation guidelines, ensuring seamless integration and enhanced safety with the fused termination block. The HART protocol supports advanced device management and diagnostics.
