Product Description

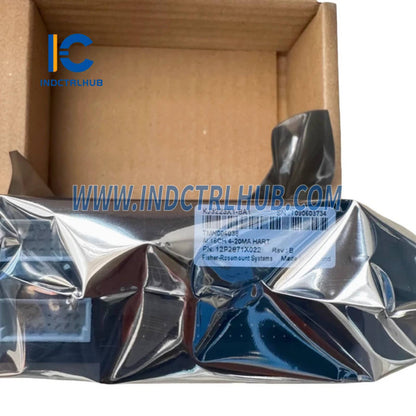

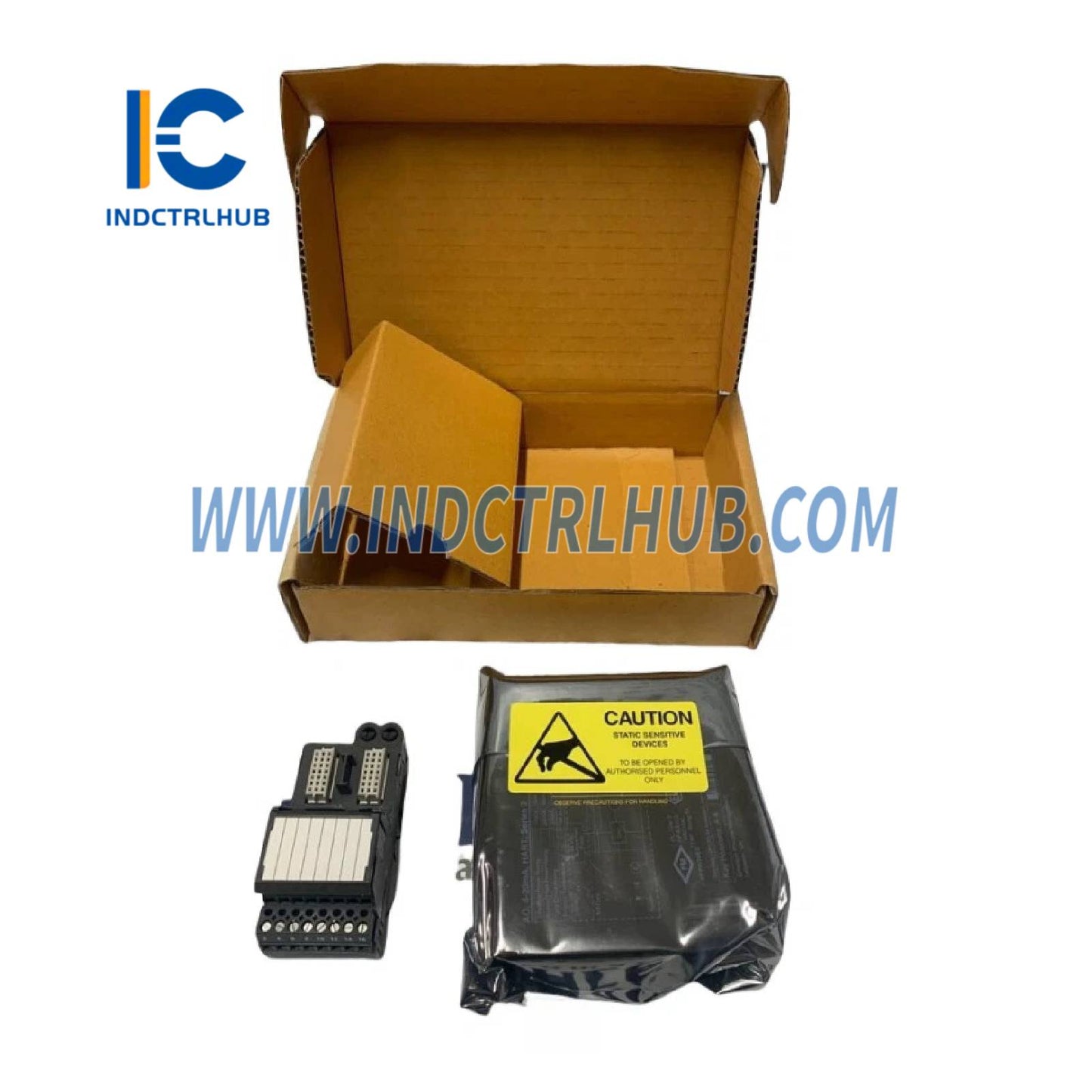

Emerson VE4003S2B6 DeltaV M-series Analog Input Module
- Manufacturer: Emerson
- Model/Part Number: VE4003S2B6 (KJ3223X1-BA1, 12P2871X)
- Description: M-series Analog Input Module, 16-Channel, 4-20 mA, HART, with 4-Wire I/O Termination Block
Overview
- The Emerson VE4003S2B6 is an M-series Analog Input Module designed for the DeltaV Distributed Control System. It provides 16-channel, 4-20 mA input with HART communication and includes a 4-wire I/O termination block for secure connections. The module processes signals from field devices like sensors and transmitters in industrial automation applications, such as oil and gas, chemical, and power generation, ensuring accurate data acquisition.
Technical Specifications
| Specification | Details |
|---|---|
| Model | VE4003S2B6 (KJ3223X1-BA1) |
| Series | DeltaV M-series |
| Type | Analog Input Module, 16-Channel, 4-20 mA, HART, with 4-Wire I/O Termination Block |
| Channels | 16 analog input channels |
| Input Signal | 4-20 mA, HART protocol |
| LocalBus Power | 12 VDC at 300 mA |
| Field Circuit Power | 24 VDC at 600 mA |
| Weight | 0.4 kg |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Airborne Contaminants | ISA-S71.04-1985 Class G3, conformal coating |
| Mounting | T-type DIN rail, on I/O carrier |
| Certifications | CE, CSA, FM, ATEX, IECEx, Marine Certifications (ABS, DNV) |
| System Compatibility | DeltaV v10.3 or later |
Additional Information
- Functionality: The VE4003S2B6 processes 16 4-20 mA analog inputs with HART communication for accurate data collection and diagnostics from field devices. The 4-wire I/O termination block supports efficient wiring for 4-wire transmitters, enhancing signal integrity. The module supports hot-swappable installation, enabling maintenance without system downtime, and includes diagnostics for detecting faults like open circuits.
- Environmental Durability: Designed for harsh industrial environments, the module features conformal coating to protect against airborne contaminants and operates reliably in extreme temperatures, shock, and vibration conditions. It is suitable for hazardous area installations, including Zone 2.
- Integration: The VE4003S2B6 integrates with DeltaV M-series systems, mounting on T-type DIN rail I/O carriers, such as VE4050S2K1C0. It complies with DeltaV installation guidelines, ensuring seamless integration and reduced wiring complexity with the 4-wire termination block. The HART protocol supports advanced device management and diagnostics.
- Availability: Available through suppliers as new, surplus, or refurbished units, typically with a one-year warranty. Users must verify compatibility with DeltaV software versions and ensure proper carrier configuration.
