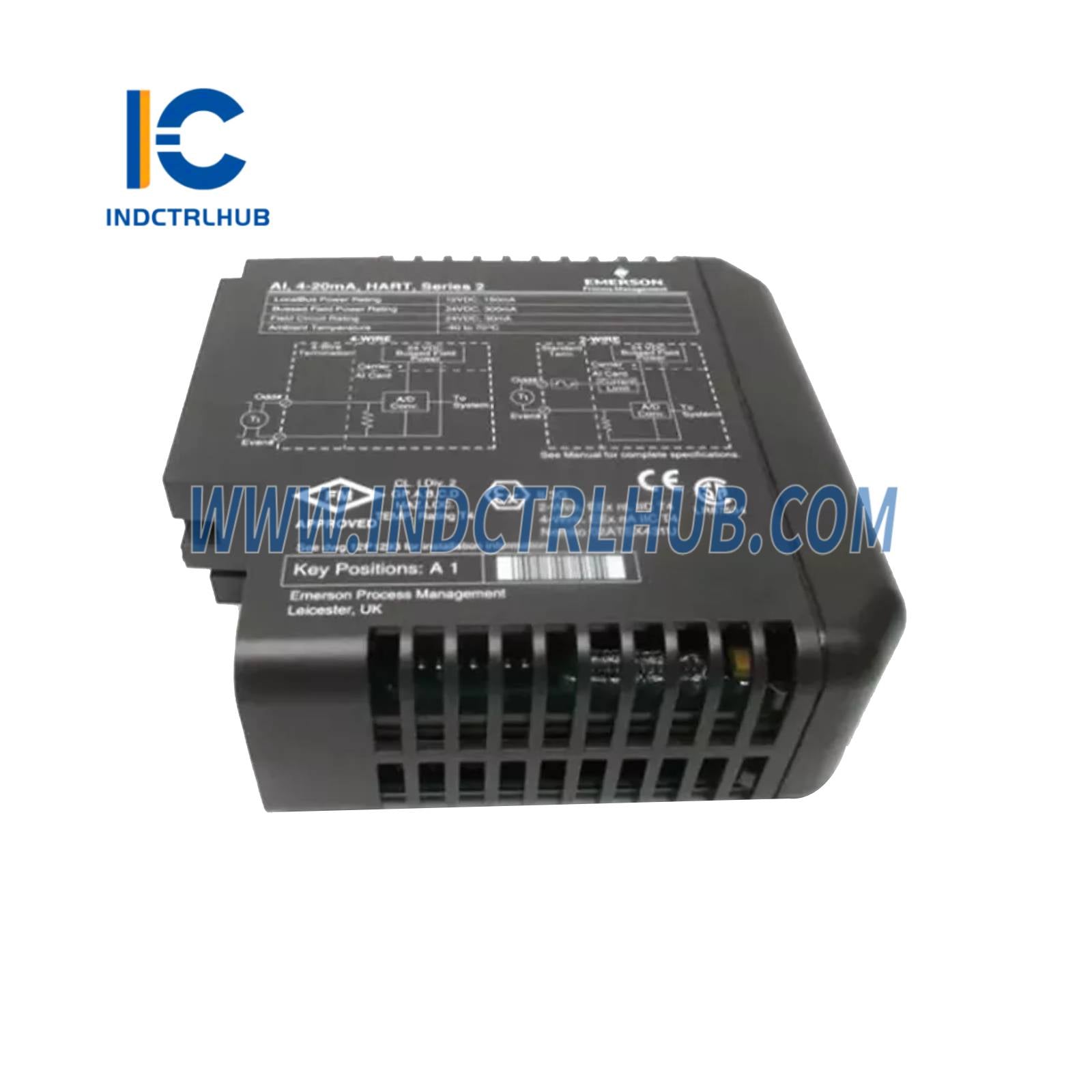

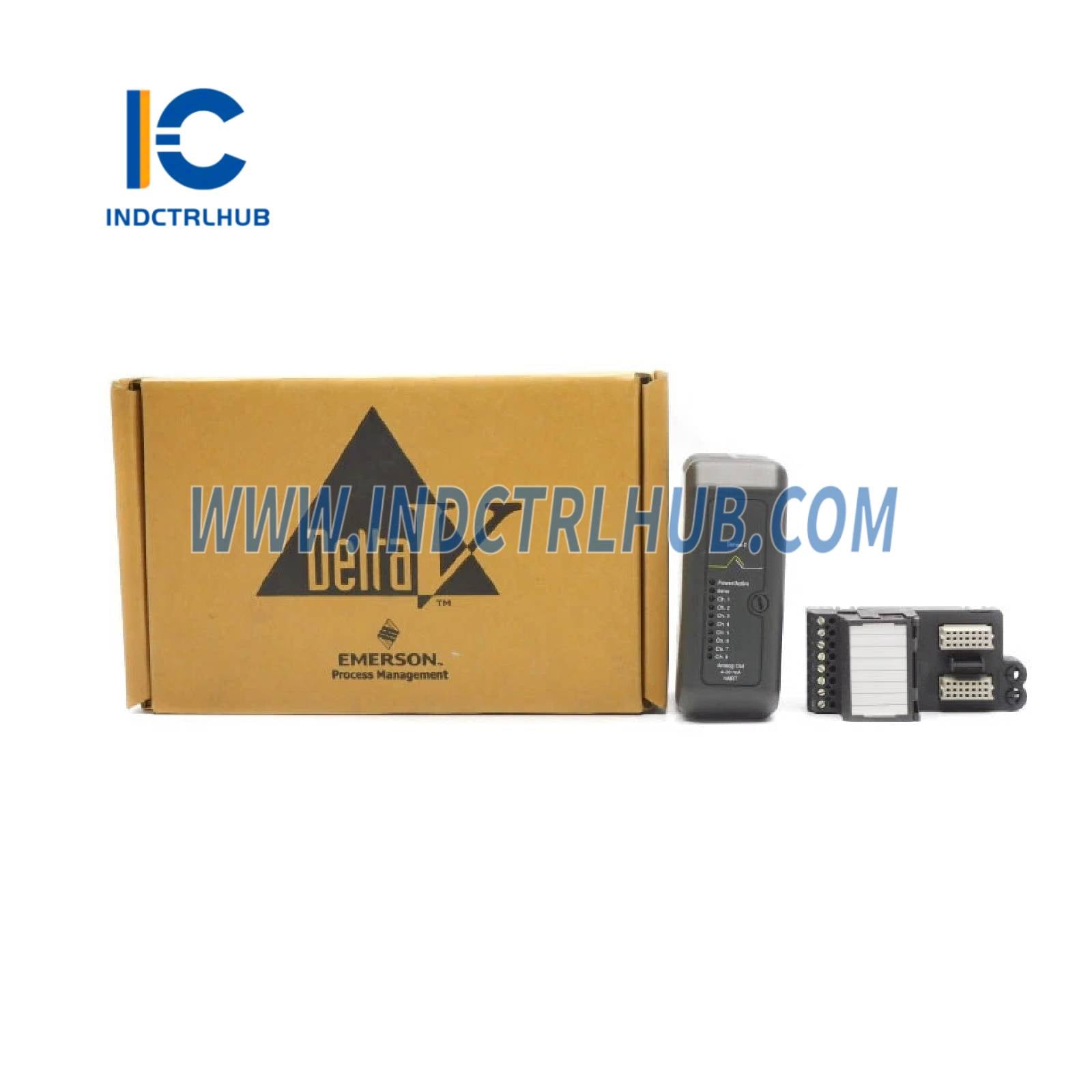

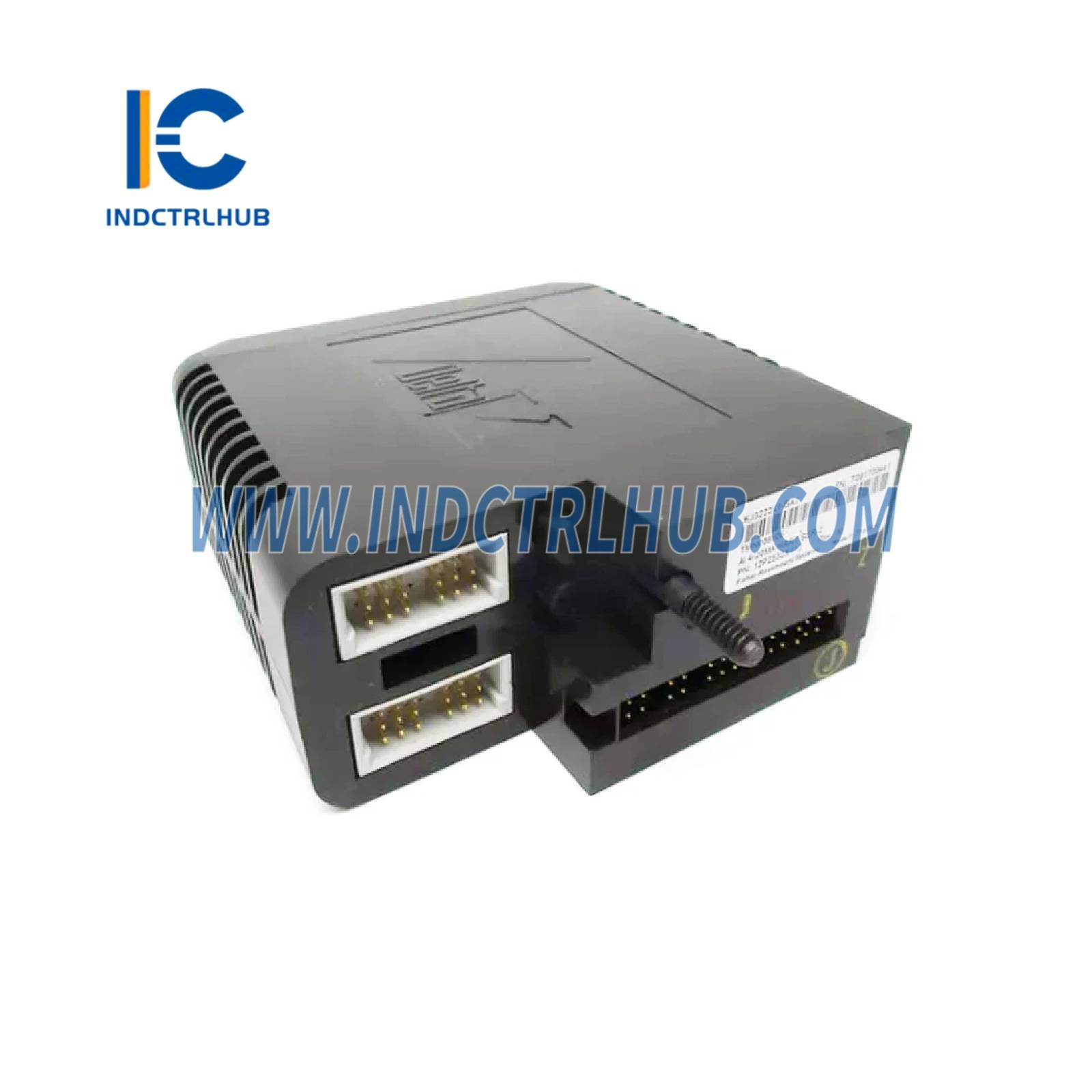

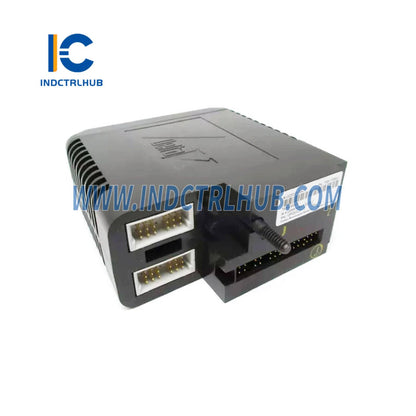

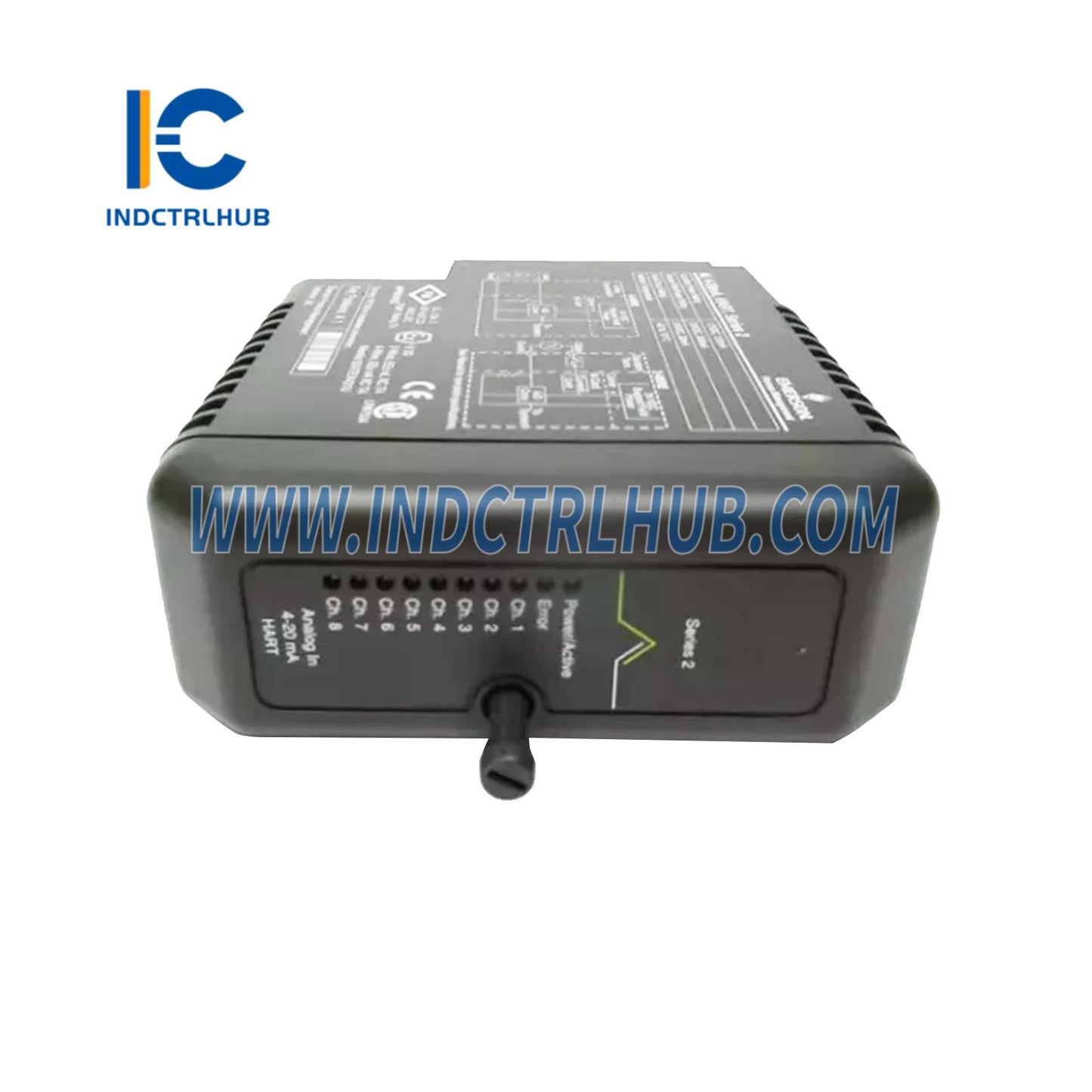

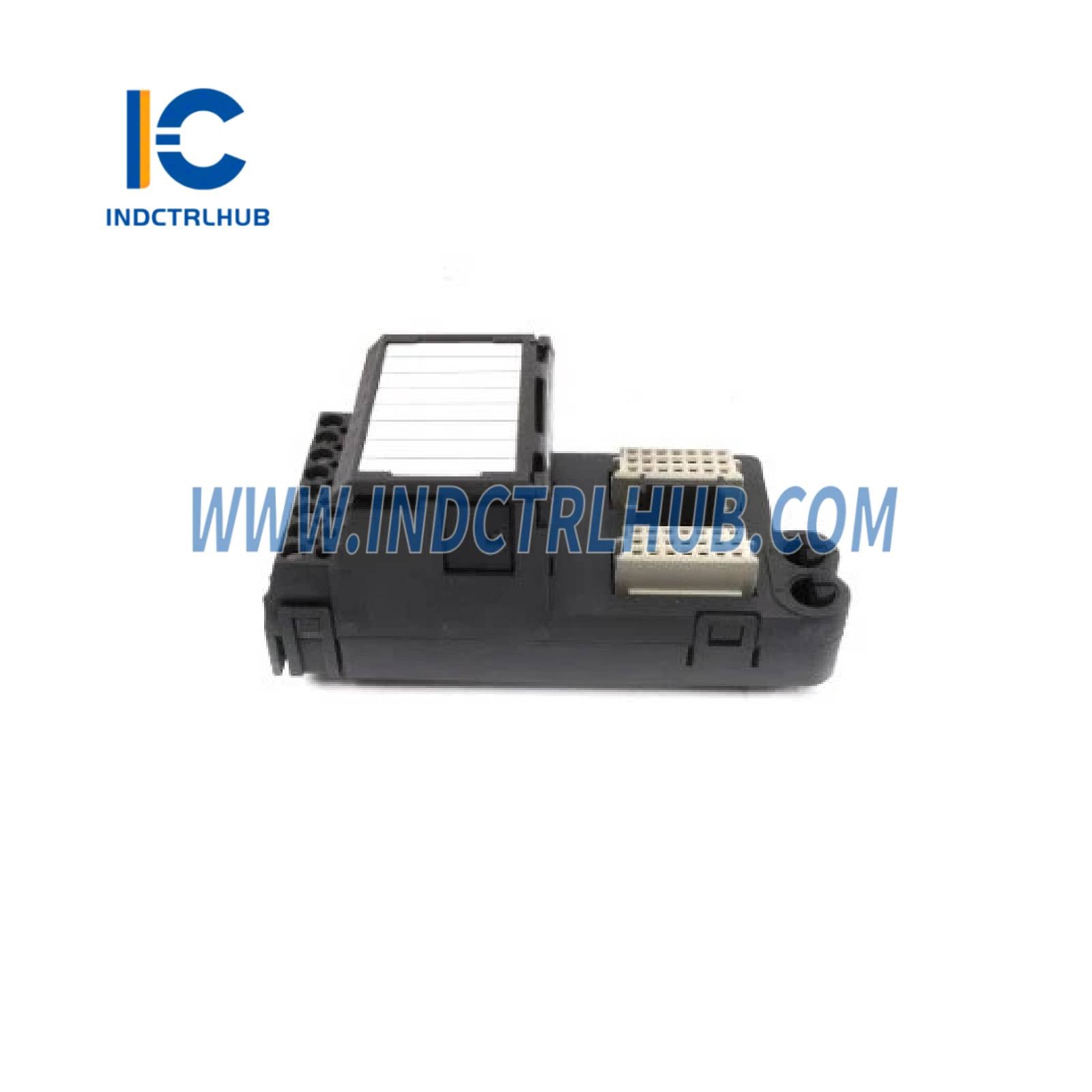

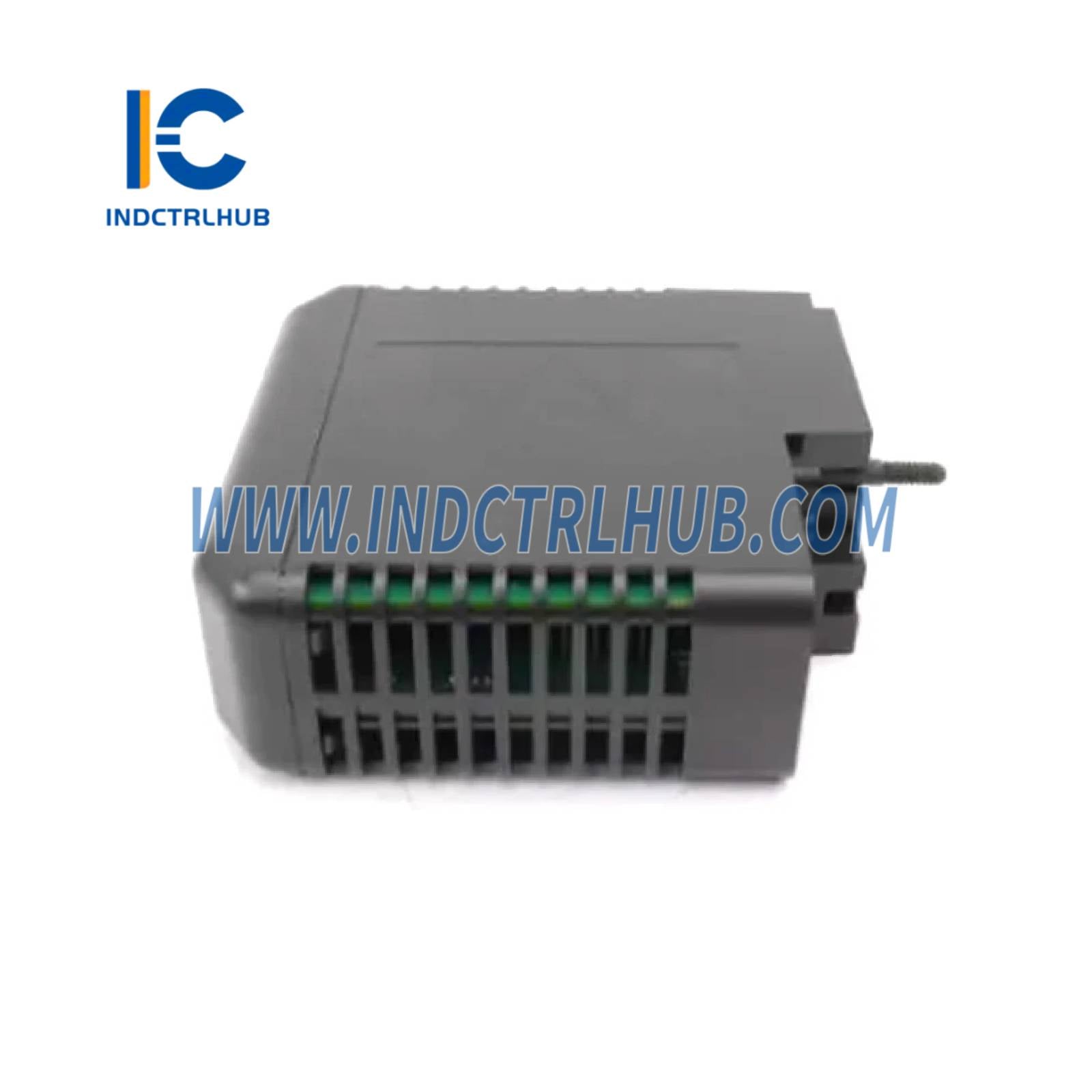

Emerson VE4003S2B2 KJ3222X1-BA1+KJ4001X1-CB1 Analog Input Module

Emerson VE4003S2B2 KJ3222X1-BA1+KJ4001X1-CB1 Analog Input Module

  • Manufacturer: Emerson

  • Product No.: KJ3222X1-BA1+KJ4001X1-CB1

  • Condition:1000 in stock

  • Product Type: DeltaV M-series Analog Input Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 400g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

🔍

Product Overview


Field

Details

Manufacturer

Emerson

Model/Part Number

VE4003S2B2 (KJ3222X1-BA1 + KJ4001X1-CB1, 12P2532X)

Series

DeltaV M-series

Description

8-Channel Analog Input Module with 4–20 mA HART and fused termination block

Application

Signal acquisition from 4–20 mA field devices (sensors, transmitters)







⚙️

Technical Specifications


Specification

Details

Input Channels

8 analog inputs

Input Signal Type

4–20 mA, HART protocol

LocalBus Power

12 VDC at 150 mA

Field Circuit Power

24 VDC at 300 mA

Fuse Rating

100 mA per channel

Operating Temp.

-40°C to +70°C

Storage Temp.

-40°C to +85°C

Relative Humidity

5% to 95% RH (non-condensing)

Protection Rating

IP20

Weight

0.4 kg

Contaminant Protection

ISA-S71.04-1985 Class G3, coated

Mounting

T-type DIN rail on I/O carrier

System Compatibility

DeltaV v10.3 or later

Certifications

CE, CSA, FM, ATEX, IECEx, Marine (ABS, DNV)







💡

Key Features & Benefits




  • HART-enabled: Enables digital communication with smart field devices.

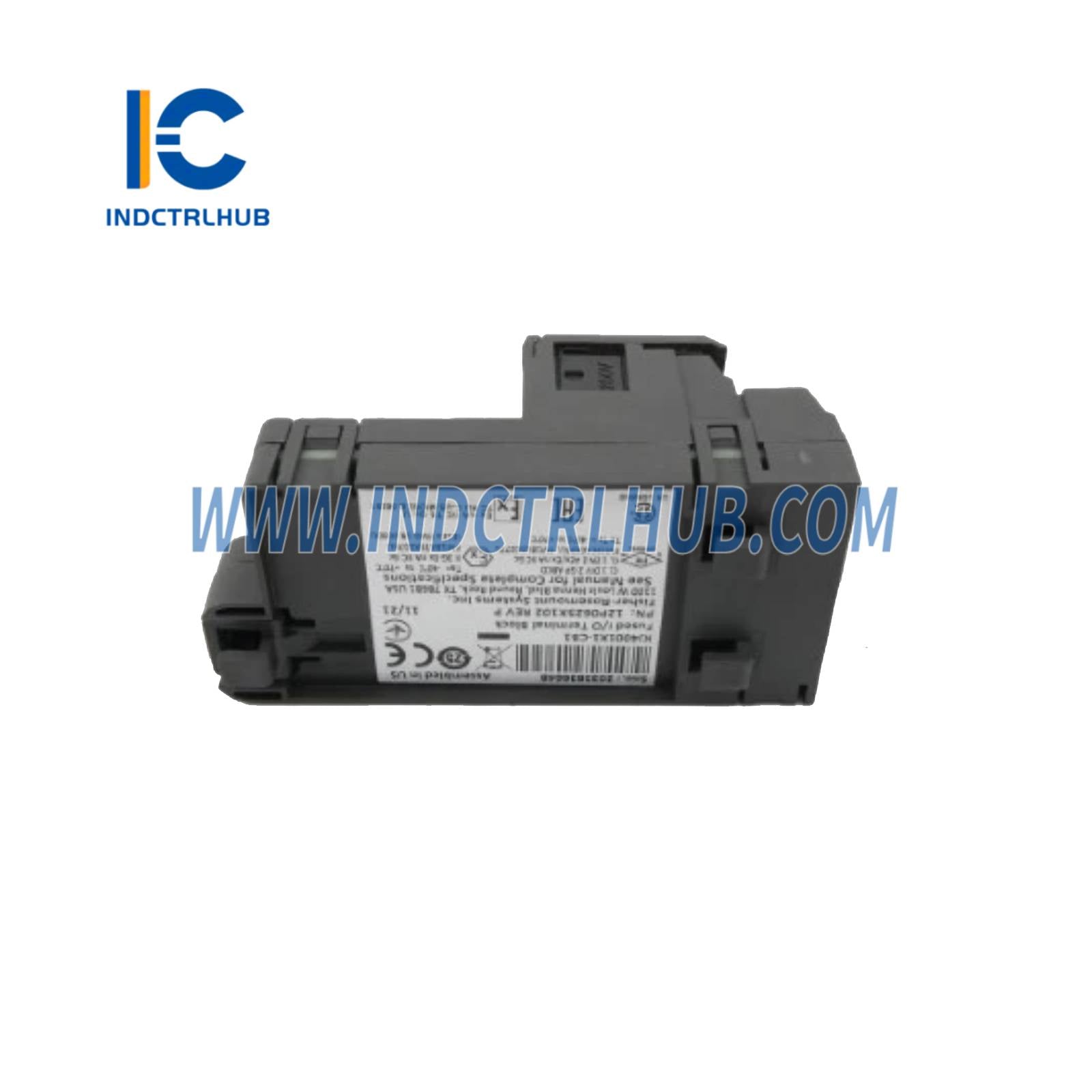

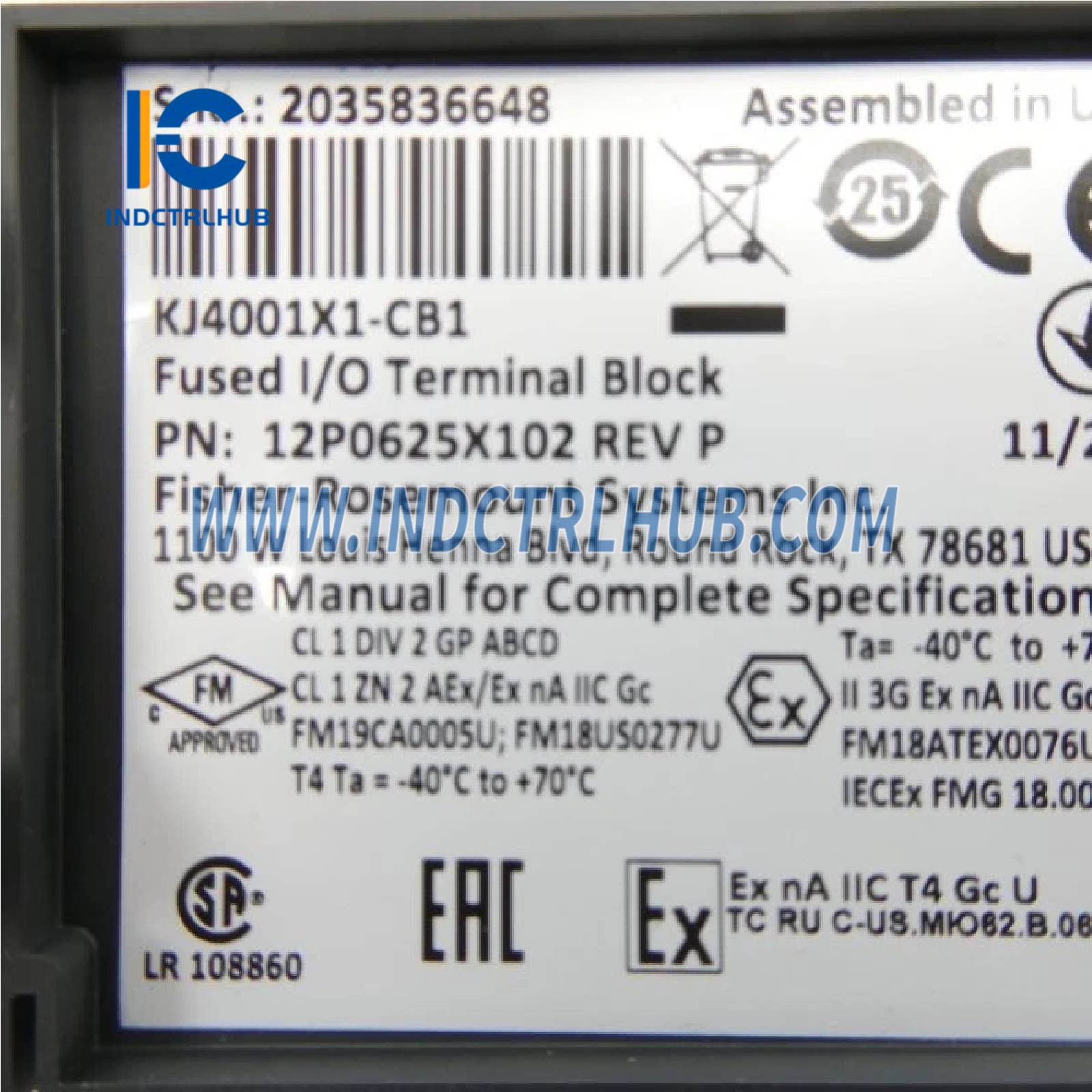

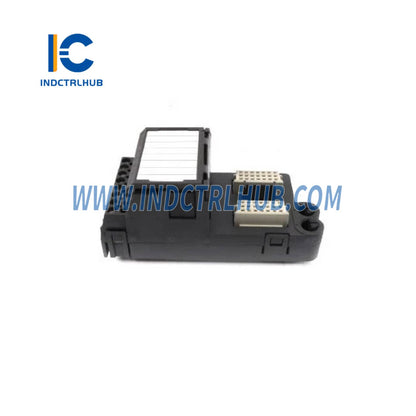

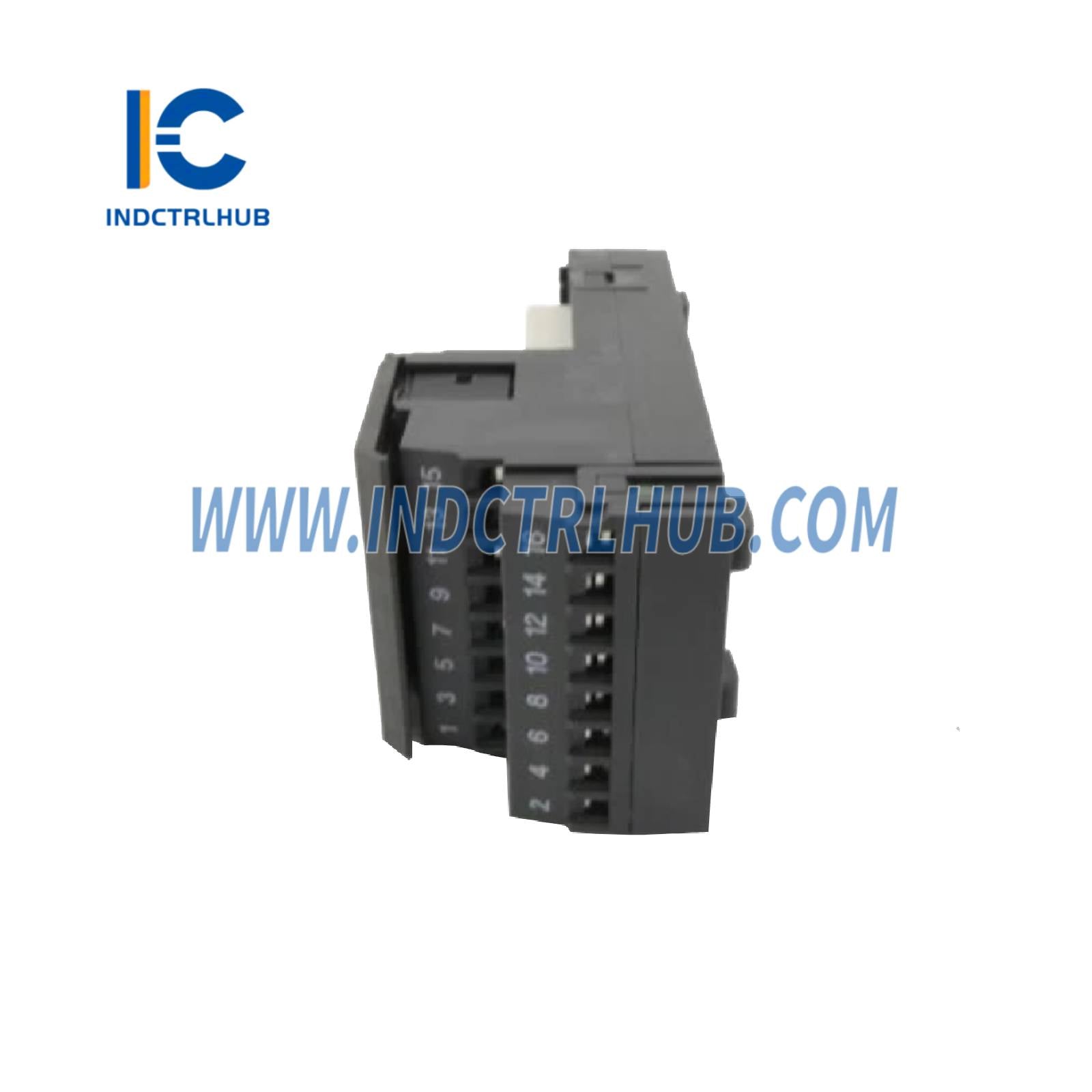

  • Fused Termination Block: KJ4001X1-CB1 provides per-channel protection (100 mA).

  • Hot-swappable: No need to power down for maintenance or replacement.

  • Advanced Diagnostics: Detects open circuits, wiring faults, and supports device status monitoring.

  • Rugged & Industrial: Conformal coating for airborne contaminants, wide temperature range, and shock/vibration resistance.







🔌

Integration & Compatibility




  • Fully compatible with DeltaV M-series systems.

  • Installs on VE4050S2K1C0 8-wide I/O carriers.

  • Easily configured via DeltaV Explorer and Control Studio software.

  • Supports seamless integration and centralized diagnostics through the DeltaV system.







📦

Availability




  • Offered as new, surplus, or refurbished from authorized Emerson distributors.

  • Usually comes with a 1-year warranty.

  • Ensure compatibility with existing software versions and system hardware before installation.




View full details

Product Description

🔍

Product Overview


Field

Details

Manufacturer

Emerson

Model/Part Number

VE4003S2B2 (KJ3222X1-BA1 + KJ4001X1-CB1, 12P2532X)

Series

DeltaV M-series

Description

8-Channel Analog Input Module with 4–20 mA HART and fused termination block

Application

Signal acquisition from 4–20 mA field devices (sensors, transmitters)







⚙️

Technical Specifications


Specification

Details

Input Channels

8 analog inputs

Input Signal Type

4–20 mA, HART protocol

LocalBus Power

12 VDC at 150 mA

Field Circuit Power

24 VDC at 300 mA

Fuse Rating

100 mA per channel

Operating Temp.

-40°C to +70°C

Storage Temp.

-40°C to +85°C

Relative Humidity

5% to 95% RH (non-condensing)

Protection Rating

IP20

Weight

0.4 kg

Contaminant Protection

ISA-S71.04-1985 Class G3, coated

Mounting

T-type DIN rail on I/O carrier

System Compatibility

DeltaV v10.3 or later

Certifications

CE, CSA, FM, ATEX, IECEx, Marine (ABS, DNV)







💡

Key Features & Benefits




  • HART-enabled: Enables digital communication with smart field devices.

  • Fused Termination Block: KJ4001X1-CB1 provides per-channel protection (100 mA).

  • Hot-swappable: No need to power down for maintenance or replacement.

  • Advanced Diagnostics: Detects open circuits, wiring faults, and supports device status monitoring.

  • Rugged & Industrial: Conformal coating for airborne contaminants, wide temperature range, and shock/vibration resistance.







🔌

Integration & Compatibility




  • Fully compatible with DeltaV M-series systems.

  • Installs on VE4050S2K1C0 8-wide I/O carriers.

  • Easily configured via DeltaV Explorer and Control Studio software.

  • Supports seamless integration and centralized diagnostics through the DeltaV system.







📦

Availability




  • Offered as new, surplus, or refurbished from authorized Emerson distributors.

  • Usually comes with a 1-year warranty.

  • Ensure compatibility with existing software versions and system hardware before installation.
