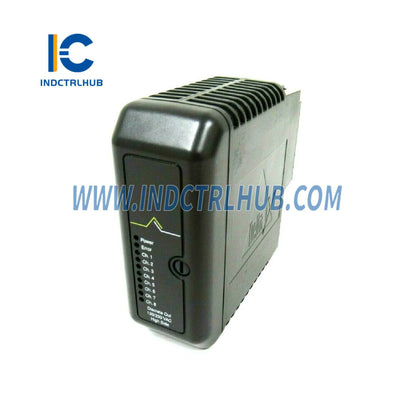

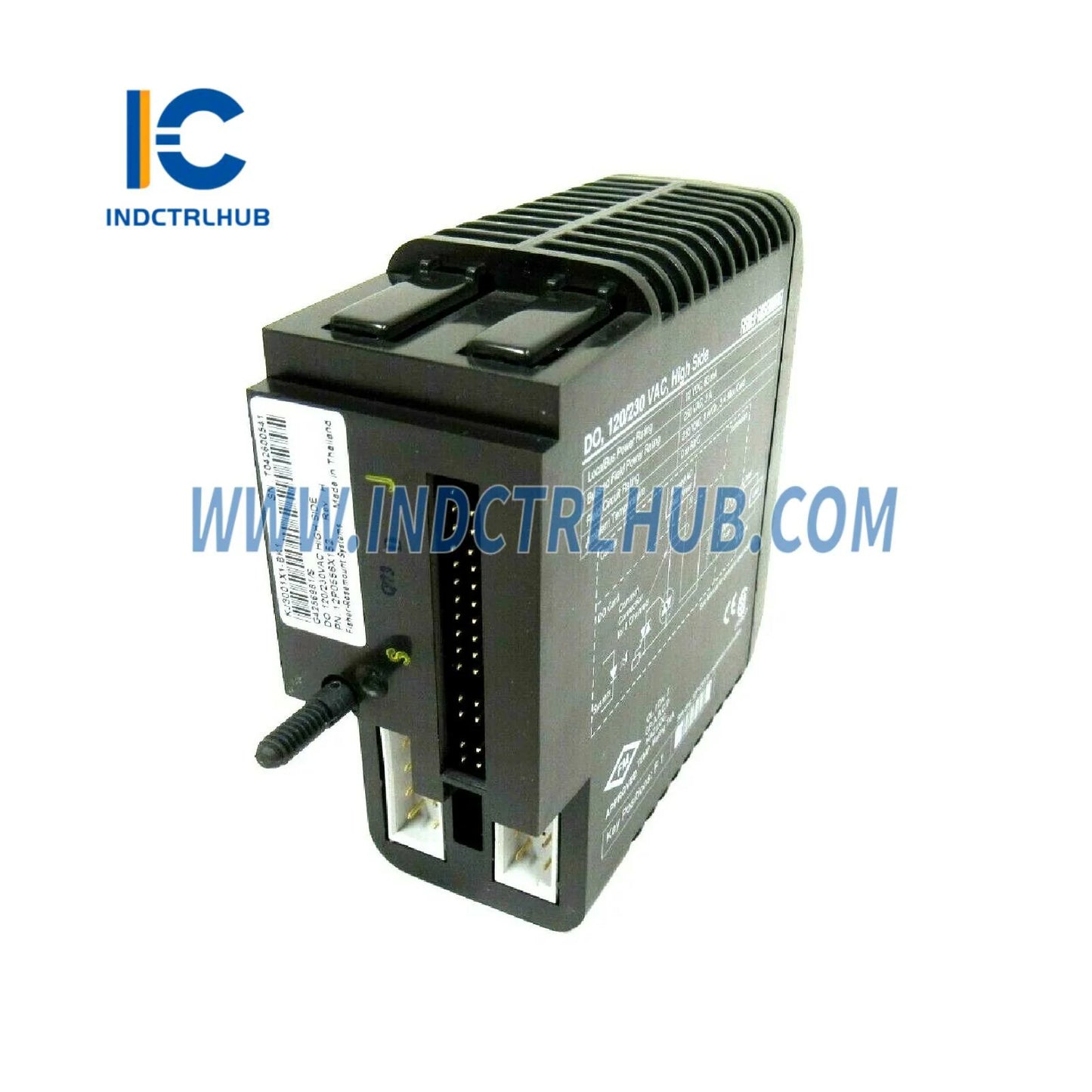

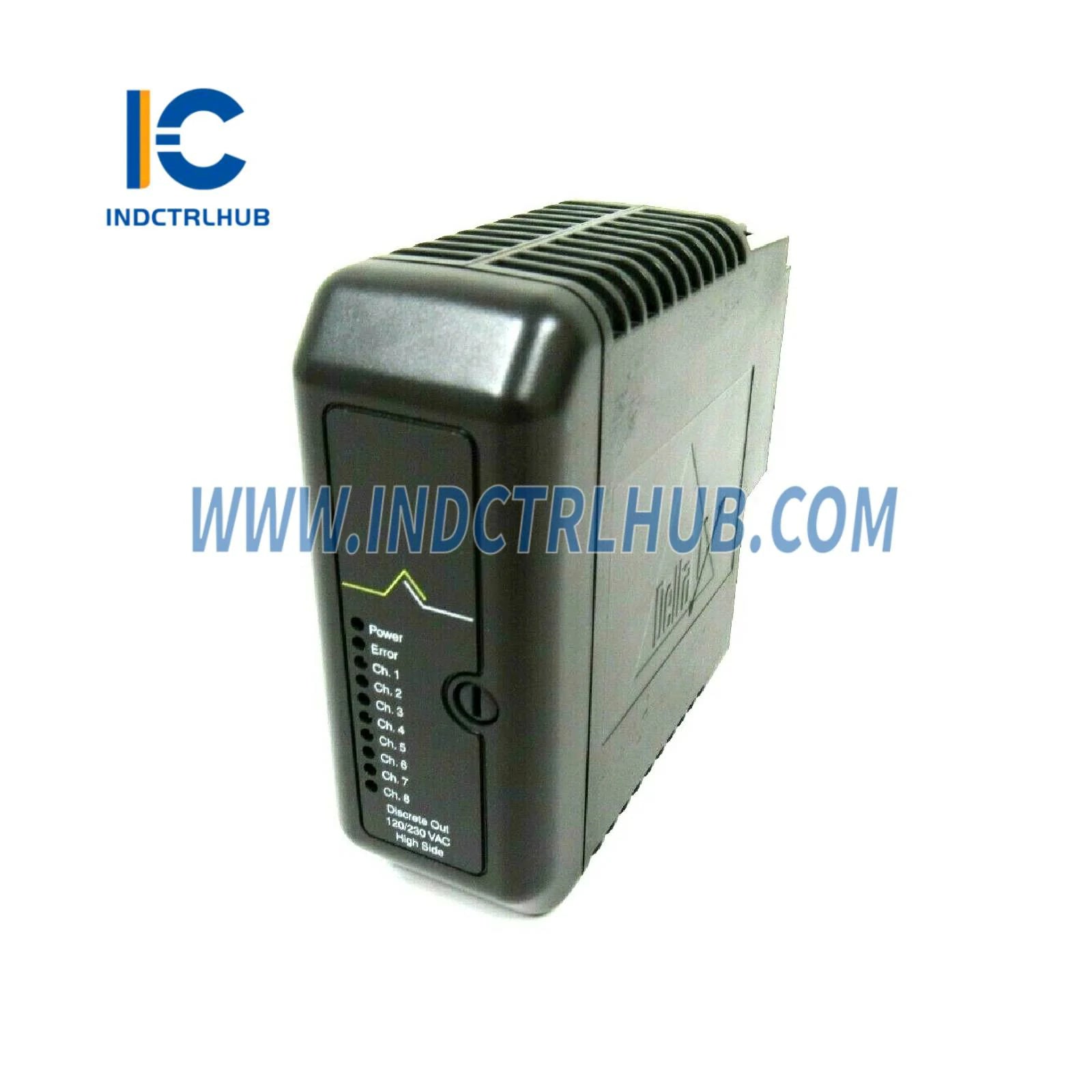

Emerson VE4002S2T2B2 12P0556X152 8-Channel Discrete Output Module
Emerson VE4002S2T2B2 12P0556X152 8-Channel Discrete Output Module
Manufacturer: Emerson
Product No.: 12P0556X152
Condition:1000 in stock
Product Type: DeltaV M-series Discrete Output Module
Product Origin: 6954789056789
Payment: T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Emerson VE4002S2T2B2 12P0556X152 8-Channel Discrete Output Module
The Emerson VE4002S2T2B2 (12P0556X152) represents a specialized 8-channel discrete output module engineered for DeltaV M-series control systems where individual channel protection and fault isolation are paramount. Unlike standard discrete output cards, this module integrates fused I/O termination blocks that provide independent overcurrent protection for each output channel, preventing single-point failures from cascading across multiple control loops.
Fused I/O Architecture: Enhanced Protection Strategy
Traditional discrete output modules employ shared protection circuits that can disable entire banks of outputs when a single channel fault occurs. The VE4002S2T2B2's fused termination architecture revolutionizes this approach by incorporating individual replaceable fuses per channel, ensuring that short-circuit or overload conditions affect only the faulted output while maintaining operation of the remaining seven channels.
Protection System Features:
- 8 independent high-side sourcing outputs with individual fuse protection
- Replaceable 500mA fast-blow fuses per channel (field-serviceable)
- Visual fuse status indicators for rapid fault identification
- 24 VDC nominal operation (18-30 VDC tolerance)
- Short-circuit protection response time <5ms
- Automatic fault annunciation to DeltaV control logic
- Hot-swappable fuse replacement without module removal
- Diagnostic LEDs for per-channel output state and fault conditions
Technical Performance Specifications
| Output Channels | 8 independent fused discrete outputs |
| Switching Type | High-side sourcing (positive switching) |
| Output Voltage | 24 VDC nominal (18-30 VDC operating range) |
| Current Rating | 500 mA continuous per channel (fuse-limited) |
| Fuse Type | 5x20mm fast-blow, 500mA rated |
| Voltage Drop | <0.8V at rated current (including fuse) |
| Switching Speed | 15 ms typical on/off transition |
| Isolation | 1500 VAC channel-to-bus, 250 VAC channel-to-channel |
| Diagnostics | Fuse status, open-load, output state per channel |
| Update Rate | 50 ms scan cycle |
| Power Consumption | 6W card logic + field load power |
| Operating Temp | -40°C to +70°C ambient |
| Certifications | UL/CSA Class I Div 2, ATEX Zone 2, CE |
Real-World Application Case Studies
Case Study 1: Offshore Platform Emergency Shutdown System
A North Sea oil platform deployed VE4002S2T2B2 modules to control critical ESD valve solenoids across 12 process trains. During a lightning strike event, induced voltage transients caused three solenoid coils to short-circuit simultaneously. The fused architecture isolated the faulted channels within 3ms while maintaining operation of adjacent shutdown valves, preventing a full platform shutdown that would have cost $2.8M in lost production. Maintenance crews replaced the blown fuses in under 10 minutes without interrupting ongoing operations.
Case Study 2: Pharmaceutical Batch Reactor Control
A sterile manufacturing facility uses these modules to control pneumatic valve manifolds in multi-product batch reactors. FDA validation requirements mandate individual channel isolation to prevent cross-contamination between product campaigns. The fused outputs provide documented proof of electrical isolation between valve circuits, satisfying 21 CFR Part 11 audit requirements. Fuse status monitoring integrates with batch records for complete traceability.
Case Study 3: Water Treatment Chemical Dosing
A municipal water treatment plant controls 96 chemical metering pump solenoids using VE4002S2T2B2 modules. Pump seal failures occasionally cause motor overloads that trip output circuits. Individual fuse protection ensures that a single pump failure doesn't disable the entire chemical dosing system, maintaining regulatory compliance for disinfection residual levels. Predictive maintenance alerts flag degrading pump motors before catastrophic failures occur.
Maintenance & Serviceability Advantages
The fused termination design dramatically reduces mean time to repair (MTTR) compared to non-fused alternatives. When a channel fault occurs, operators can identify the failed fuse via front-panel LED indicators and replace it in under 60 seconds using standard 5x20mm fuses available from any electrical supplier. This eliminates the need for spare module inventory and reduces emergency parts costs by 70%.
Fuse replacement procedures require no special tools or calibration equipment. Spring-loaded fuse holders accept standard fast-blow fuses rated at 500mA, 250V. Color-coded fuse caps (red for blown, green for good) provide instant visual status confirmation during routine inspections.
System Integration & Wiring
The VE4002S2T2B2 mounts to DeltaV M-series controller carriers (VE3005, VE3006, VE3007) via the LocalBus backplane. The integrated termination block accepts 12-24 AWG wire with screw-clamp terminals rated for 10 in-lbs torque. Silk-screened channel labels and color-coded wiring diagrams simplify commissioning and reduce installation errors.
Common power bus architecture distributes 24 VDC supply across all eight channels through internal distribution, minimizing external wiring complexity. Separate fuse monitoring circuits provide real-time status feedback to DeltaV control logic for automated fault response and alarm generation.
Related DeltaV Interface Products
| Product Model | Description | Product Link |
|---|---|---|
| VE4006P2 KJ3241X1-BA1 | Serial Interface Card for Modbus/ASCII Communication | View Product |
| SE4006P2 | S-Series Serial Interface Card (RS-232/RS-485) | View Product |
| SE4006P2 KJ3241X1-BK1 | DeltaV Serial Interface Card with Terminal Block | View Product |
Quality Assurance & Support
Factory-tested to IEC 61131-2 digital output standards with 100% functional verification and burn-in testing. Ships with spare fuse kit (16 pieces), installation manual, and wiring diagrams. Backed by 18-month warranty covering manufacturing defects and performance specifications.
Global technical support provides fuse sizing calculations, load compatibility verification, and troubleshooting guidance for complex installations. Replacement modules ship pre-configured to match existing installations for minimal downtime during emergency repairs.
