Product Description

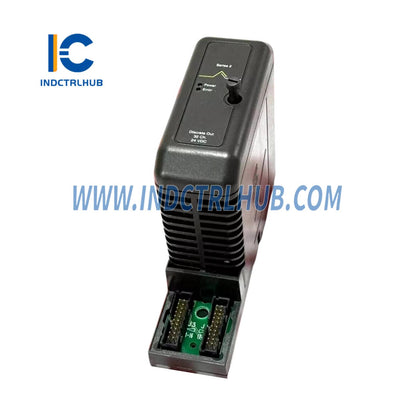

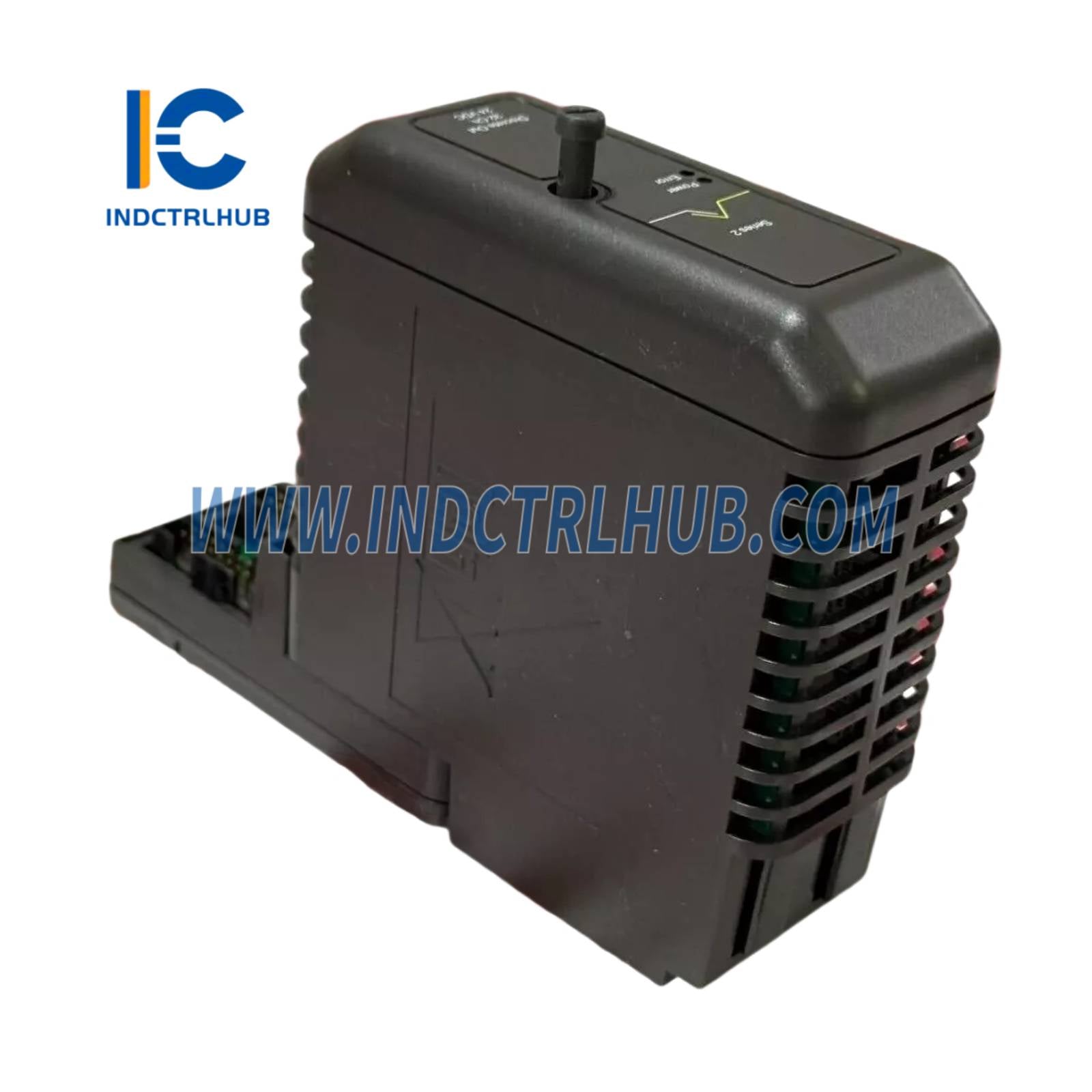

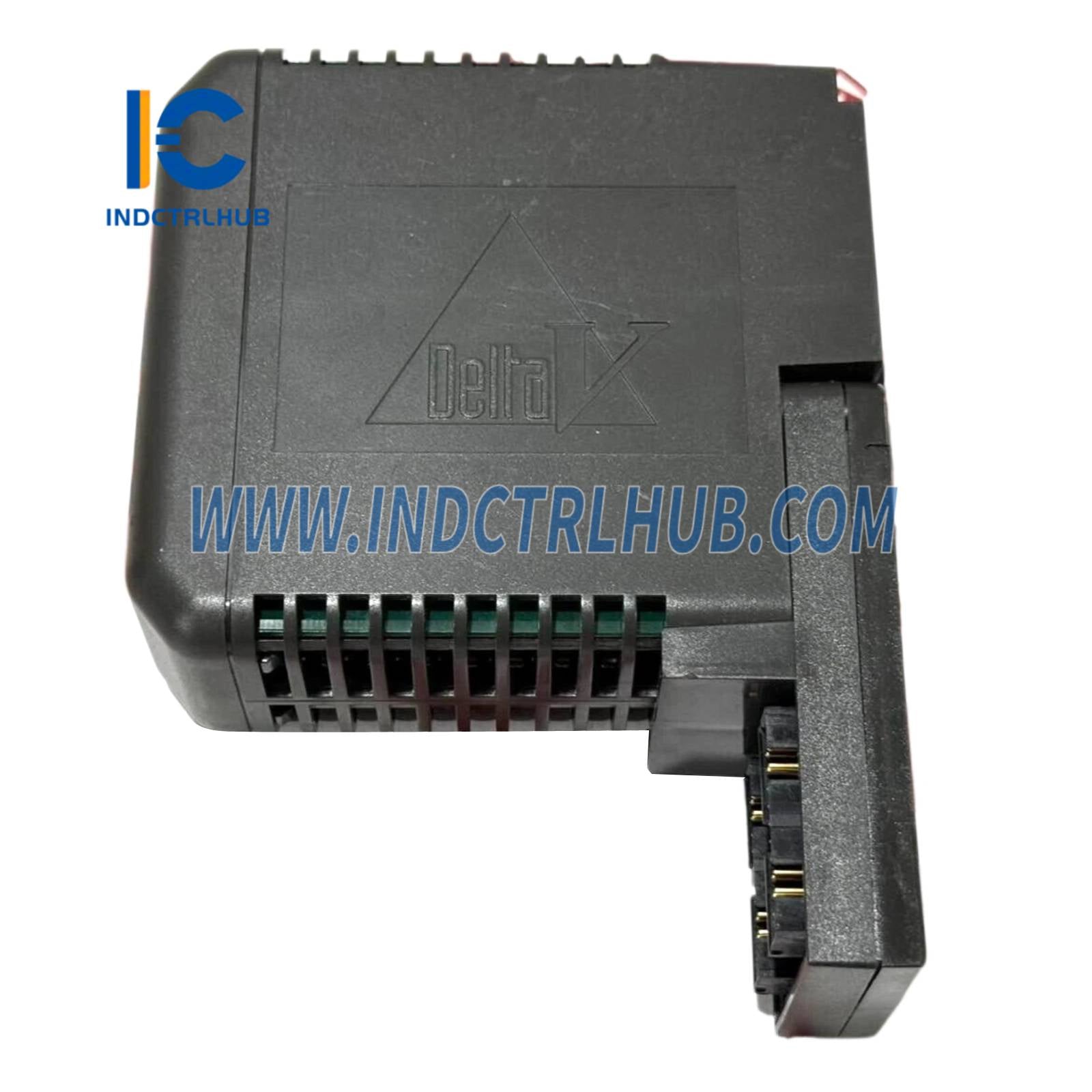

Emerson VE4002S1T2B6 DeltaV M-series Discrete Output Module
- Manufacturer: Emerson
- Model/Part Number: VE4002S1T2B6 (KJ3204X1-BA1 + KJ4001X1-CK1, 12P3275X)
- Description: M-series Discrete Output Module, 32-Channel, 24 VDC, High-Side, with 40-Pin Mass Termination Block
Overview
- The Emerson VE4002S1T2B6 is an M-series Discrete Output Module designed for the DeltaV Distributed Control System. It provides 32-channel, 24 VDC high-side outputs with a 40-pin mass termination block (KJ4001X1-CK1) for efficient wiring. The module controls field devices such as relays, solenoids, and actuators in industrial automation applications, including oil and gas, chemical, and power generation, ensuring reliable process control.
Technical Specifications
| Specification | Details |
|---|---|
| Model | VE4002S1T2B6 (KJ3204X1-BA1 + KJ4001X1-CK1) |
| Series | DeltaV M-series |
| Type | Discrete Output Module, 32-Channel, 24 VDC, High-Side, with 40-Pin Mass Termination Block |
| Channels | 32 discrete output channels |
| Output Signal | 24 VDC, high-side switching |
| Output Current | 100 mA per channel, 3 A total |
| LocalBus Power | 12 VDC at 150 mA |
| Field Circuit Power | 24 VDC at 3 A |
| Weight | 0.4 kg |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Airborne Contaminants | ISA-S71.04-1985 Class G3, conformal coating |
| Mounting | T-type DIN rail, on I/O carrier |
| Certifications | CE, CSA, FM, ATEX, IECEx, Marine Certifications (ABS, DNV) |
| System Compatibility | DeltaV v10.3 or later |
Additional Information
- Functionality: The VE4002S1T2B6 delivers 32 24 VDC high-side discrete outputs for controlling field devices, with each channel supporting up to 100 mA. The 40-pin mass termination block simplifies wiring, reducing installation time. The module supports hot-swappable installation, enabling maintenance without system downtime, and includes diagnostics for detecting faults like short circuits or wiring issues.
- Environmental Durability: Designed for harsh industrial environments, the module features conformal coating to protect against airborne contaminants and operates reliably in extreme temperatures, shock, and vibration conditions. It is suitable for hazardous area installations, including Zone 2.
- Integration: The VE4002S1T2B6 integrates with DeltaV M-series systems, mounting on T-type DIN rail I/O carriers, such as VE4050S2K1C0. It complies with DeltaV installation guidelines, ensuring seamless integration and efficient wiring with the mass termination block.
- Availability: Available through suppliers as new, surplus, or refurbished units, typically with a one-year warranty. Users must verify compatibility with DeltaV software versions and ensure proper carrier configuration.
