Product Description
Product Overview
| Parameter | Details |
|---|---|
| Product Name | Fused I/O Termination Block for Discrete Output Card |
| Model Number | VE4002S1T2B2 |
| Category | DeltaV M-series Traditional I/O - Discrete Output Termination Blocks |

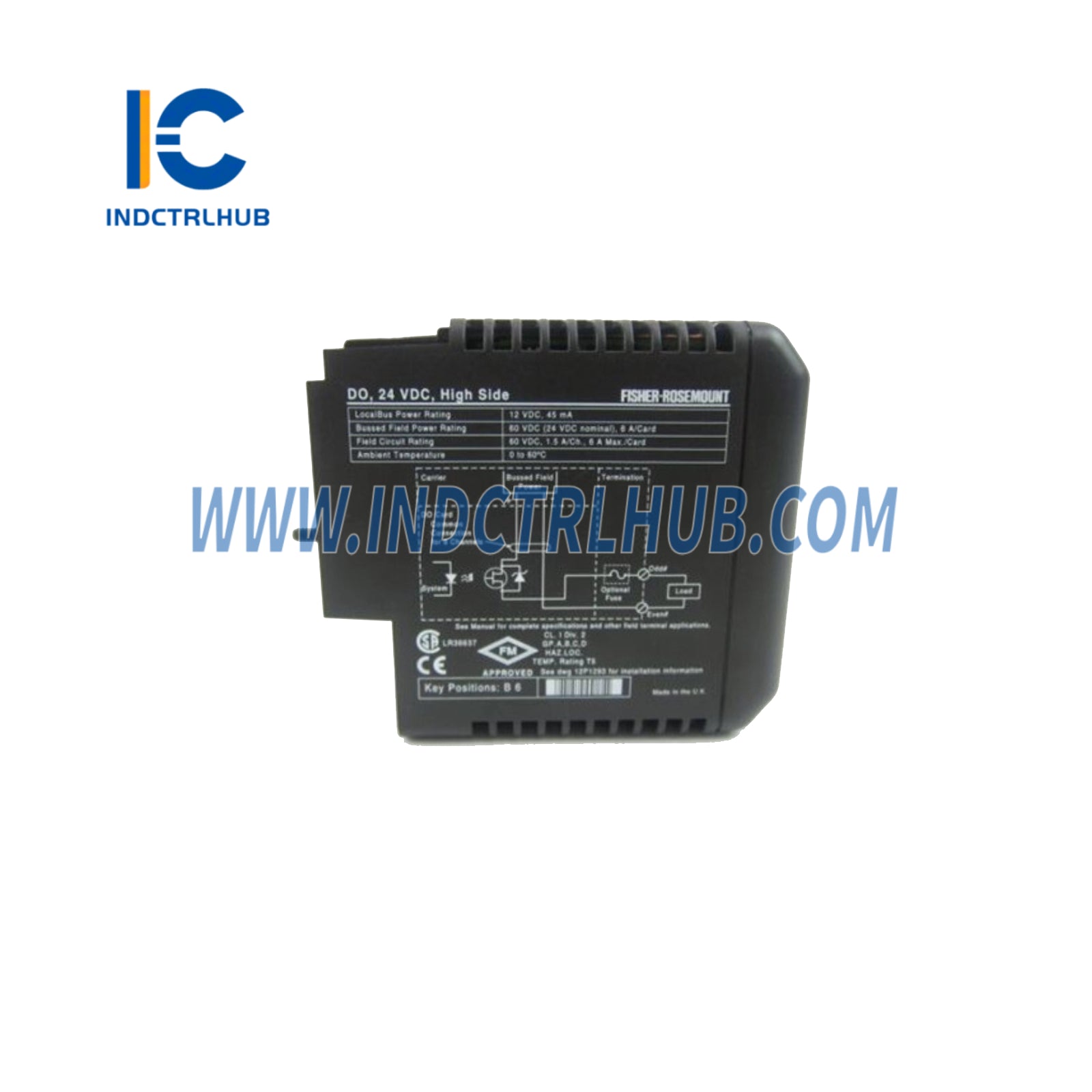

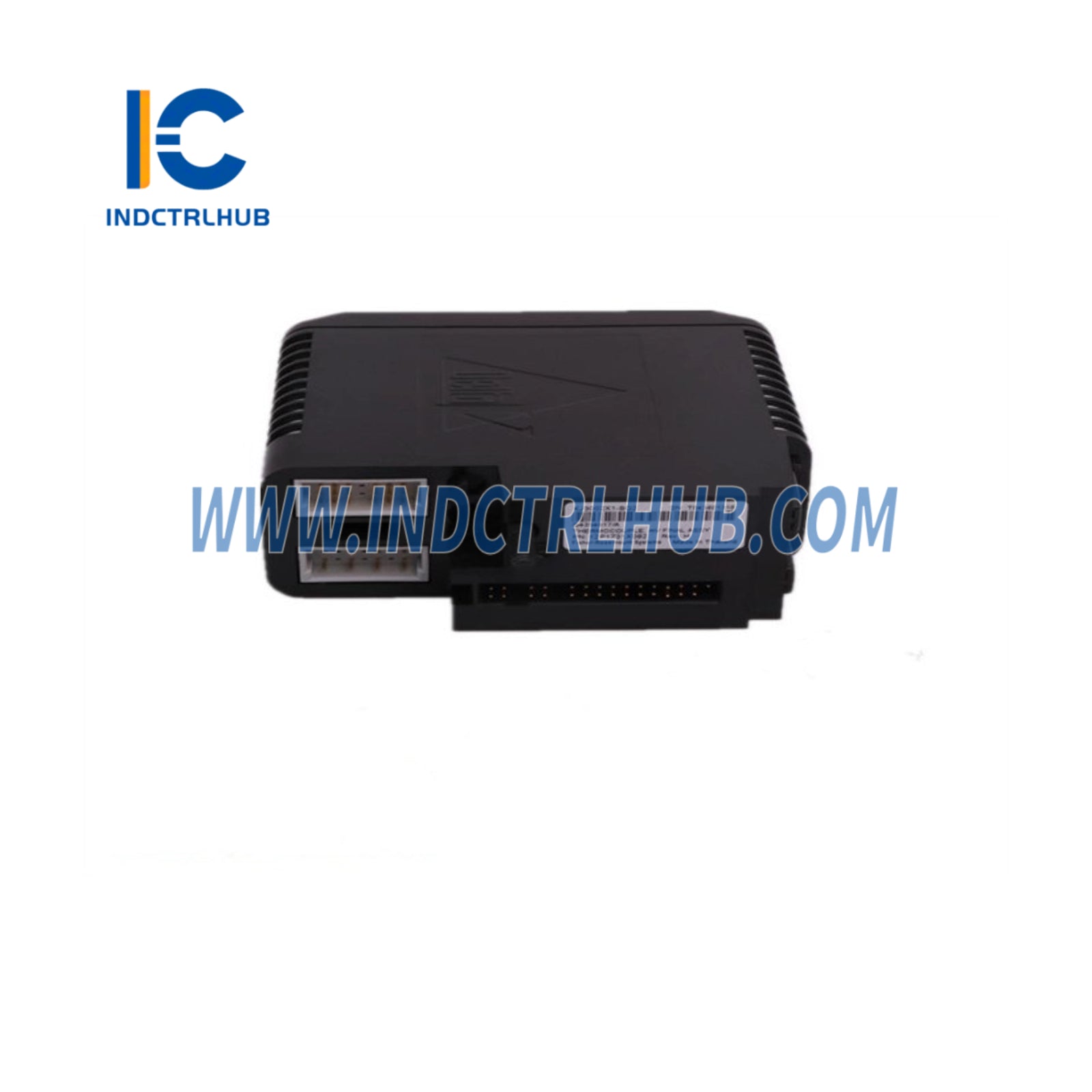

| Function | Connects field wiring for 8-channel Discrete Output (DO) card (24V DC, High-Side) to the I/O interface carrier with fused protection |
| System Compatibility | DeltaV M-series Traditional I/O, used with 8-channel DO card (I/O card keying D1) on M-series horizontal or VerticalPlus carriers |
Hardware Specifications
| Specification | Value |
|---|---|

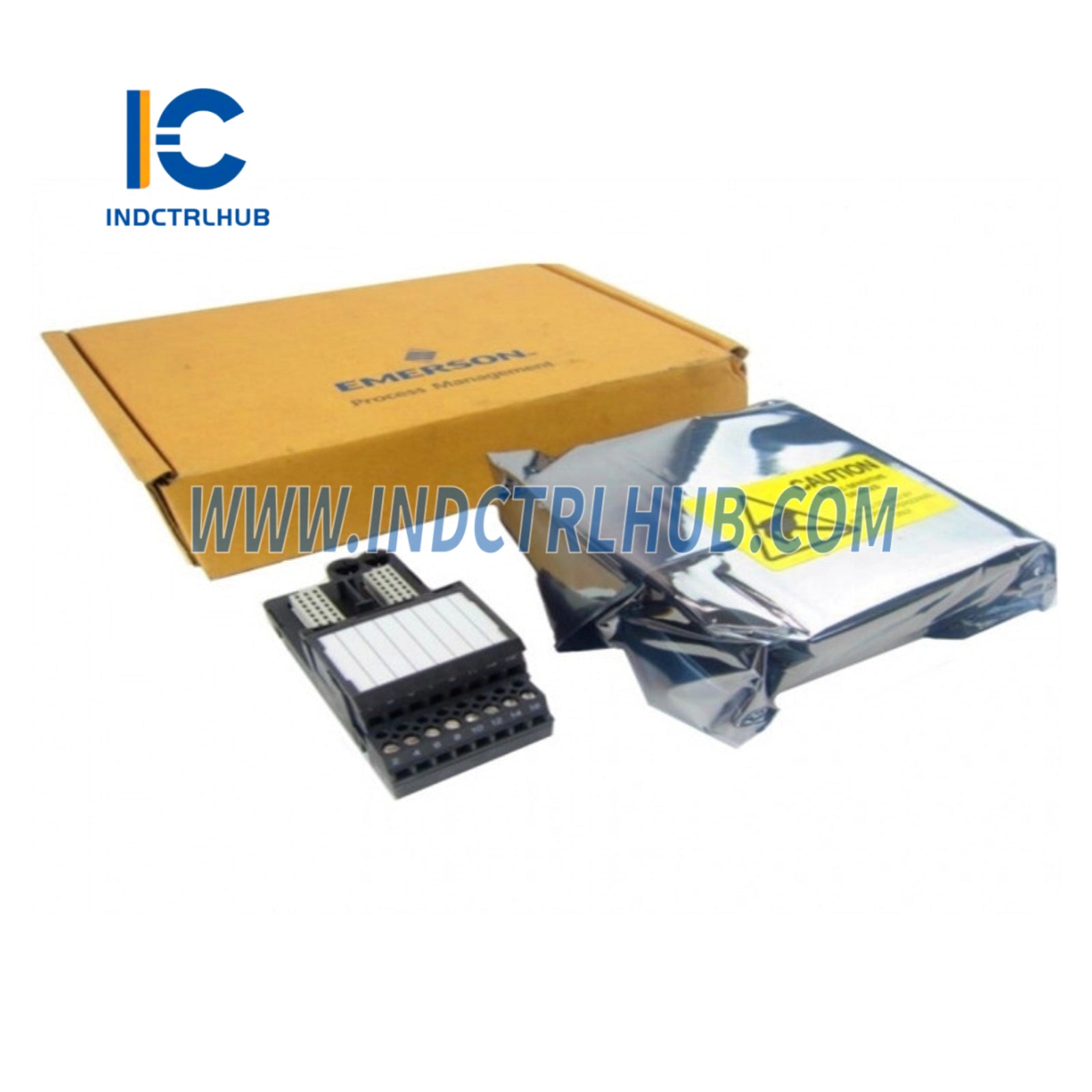

| Type | Fused I/O Termination Block |
| Associated I/O Card | Discrete Output Card: 8 Channels, 24V DC, High-Side (I/O card keying D1) |
| Number of Channels | Supports 8 channels |
| Wiring Compatibility | Connects field wiring for high-side outputs; supports loads up to 1 A per channel |
| Output Voltage | 24V DC nominal (10 to 30V DC range) |
| Output Current | 1 A continuous per channel; 4 A per card |
| Fuse Protection | Each channel individually fused; compatible with 250V 2A fuse (KJ4010X1-BC1) |
| Isolation | Each channel optically isolated from the system, tested to 1500V DC |
| LocalBus Current | 75 mA typical, 100 mA maximum (12V DC nominal) per card |
| Keying | I/O card keying D1, ensuring correct card installation |
Environmental Specifications
| Parameter | Value |
|---|---|
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative Humidity | 5 to 95%, non-condensing |
| Airborne Contaminants | ISA-S71.04-1985 Class G3, conformal coating |
| Protection Rating | IP 20 |
| Shock | 10 g ½-sine wave for 11 ms |
| Vibration | 1 mm peak-to-peak from 5 to 16 Hz; 0.5 g from 16 to 150 Hz |
| Dimensions (I/O Interface) | H 10.7 cm (4.2 in), W 4.1 cm (1.6 in), Depth 10.5 cm (4.1 in) |
Certifications
| Standard | Details |
|---|---|
| CE | EMC: EN 61326-1 |
| FM | FM 3600, FM 3611 |
| CSA | CSA C22.2 No. 213, CSA C22.2 No. 1010-1 |
| ATEX | EN60079-0, IEC60079-7, EN60079-15 |
| IEC-Ex | IEC60079-0, IEC60079-7, IEC60079-15 |
| Marine | IACS E10, ABS Certificate of Design Assessment, DNV Marine Certificate |
Hazardous Area Approvals
| Standard | Details |
|---|---|
| FM (USA) | Class I, Division 2, Groups A, B, C, D, T4 |
| cFM (Canada) | Class I, Division 2, Groups A, B, C, D, T4 |
| ATEX | II 3G Ex ec IIC T4 Gc, II 3G Ex nA nC IIC T4 Gc |
| IEC-Ex | II 3G Ex ec IIC T4 Gc, II 3G Ex nA nC IIC T4 Gc |
Physical & Installation
| Parameter | Details |
|---|---|
| Mounting | Mounts on I/O interface carrier (DIN rail surface-mounted) |
| Installation Type | Fused I/O termination block for wiring; plugs into I/O interface carrier |
| Wiring | Supports 8-screw termination for field wiring with individual fuses per channel |
| Keying Mechanism | Keying posts (D1) with 6 positions (A-F, 1-6) to prevent incorrect card installation |
| Installation Notes | Suitable for hazardous areas (Class I, Division 2, Zone 2); follow installation instructions |
Functional Features
| Feature |
|---|
| Facilitates wiring for 8-channel DO card (24V DC, High-Side) with fused protection |
| Supports high-side outputs with up to 1 A per channel, 4 A per card |
| Each channel individually fused for enhanced safety and device protection |
| Optically isolated channels (1500V DC) for enhanced safety and reliability |
| Compatible with M-series horizontal or VerticalPlus carriers |
| Plug-and-play installation on I/O interface carrier, reducing installation time |
| Keying mechanism (D1) ensures correct I/O card installation |
| Supports online equipment additions without process interruption |
| Suitable for hazardous areas with ATEX/IEC-Ex and FM/CSA certifications |
| Designed for process automation applications requiring reliable discrete output control |
Ordering Information
| Description | Model Number |
|---|---|

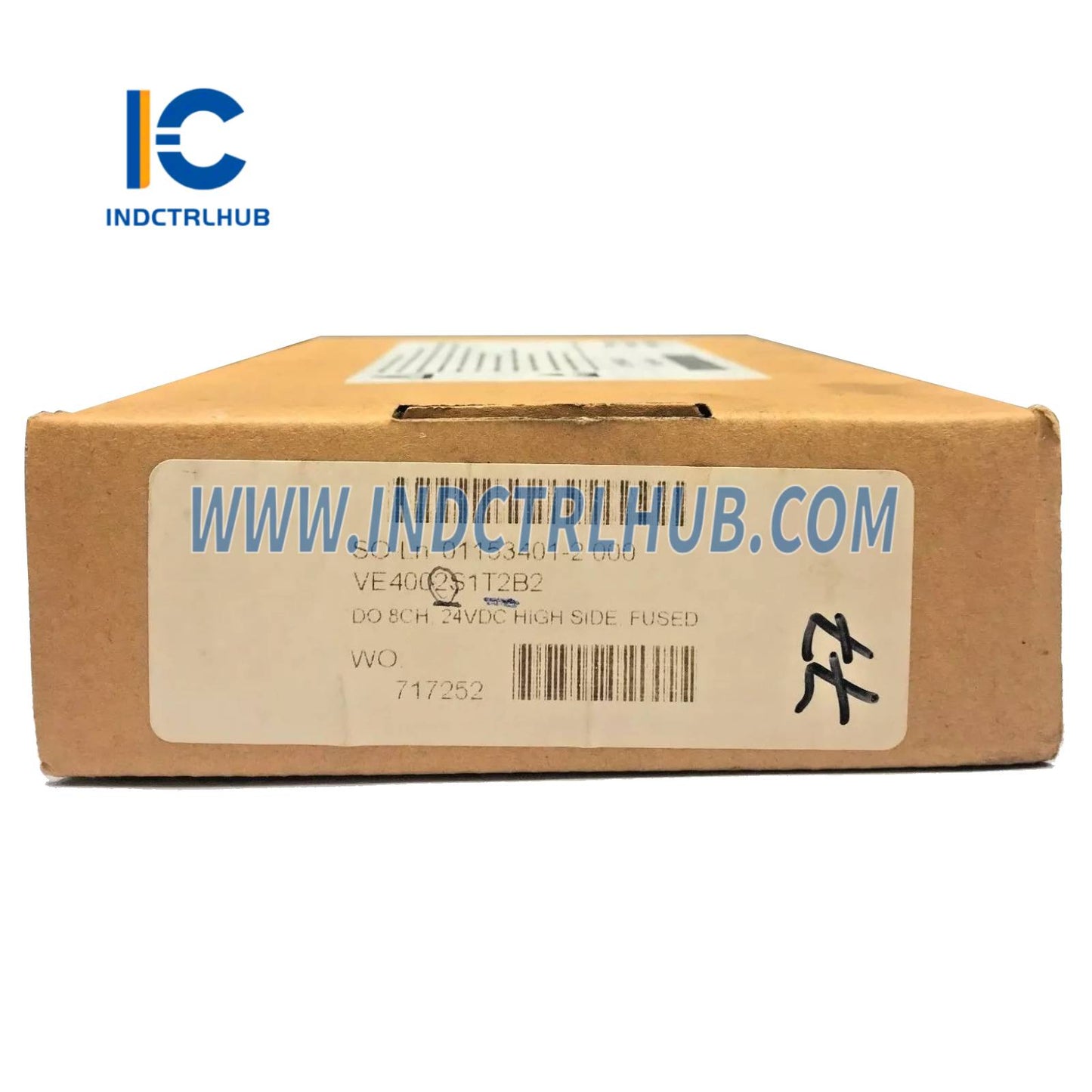

| Discrete Output Card: 8 Channels, 24V DC, High-Side - Fused I/O Termination Block | VE4002S1T2B2 |
Spare Parts
| Description | Model Number |
|---|---|
| 250V 2A Fuse for Fused Terminal Block (Box of 20) | KJ4010X1-BC1 |
