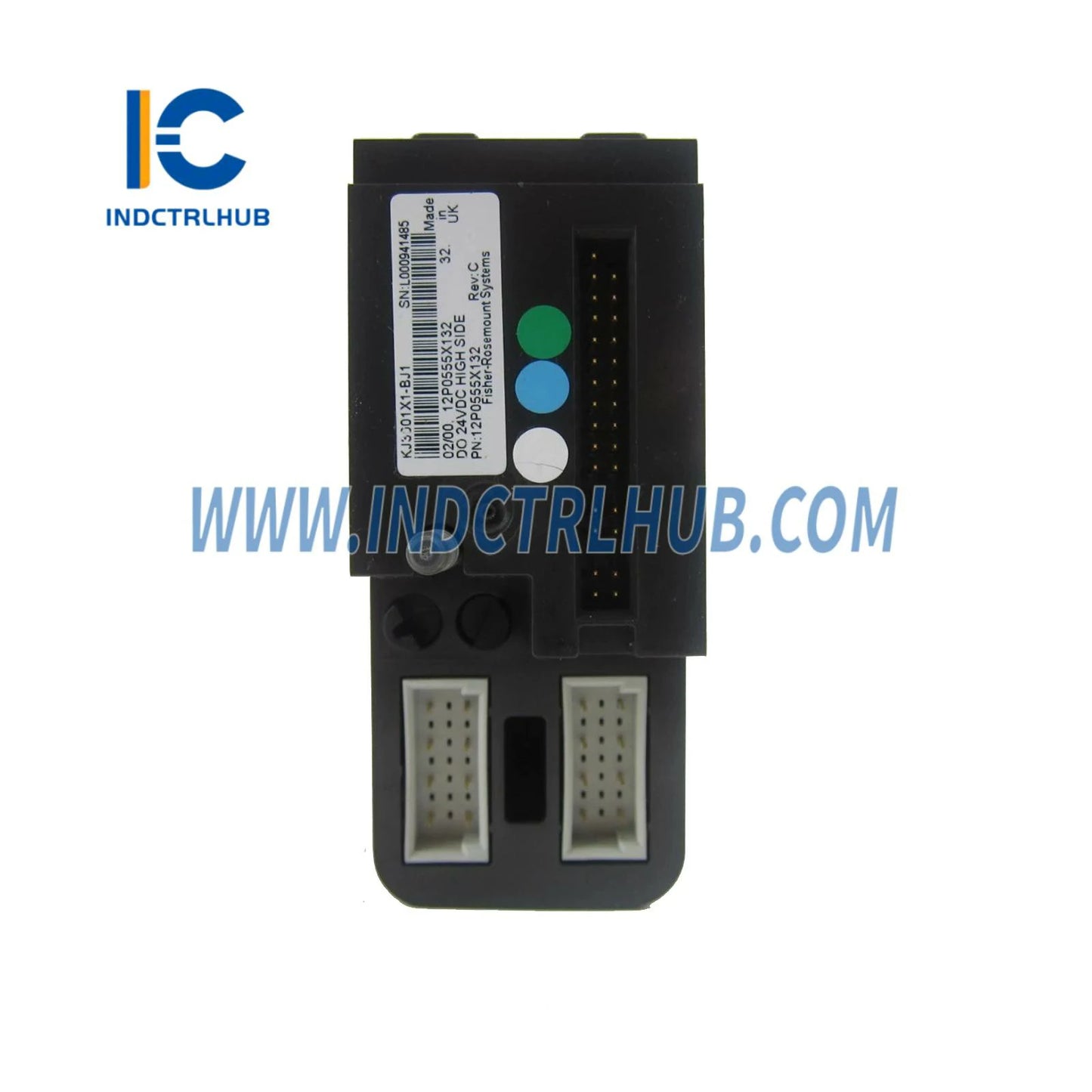

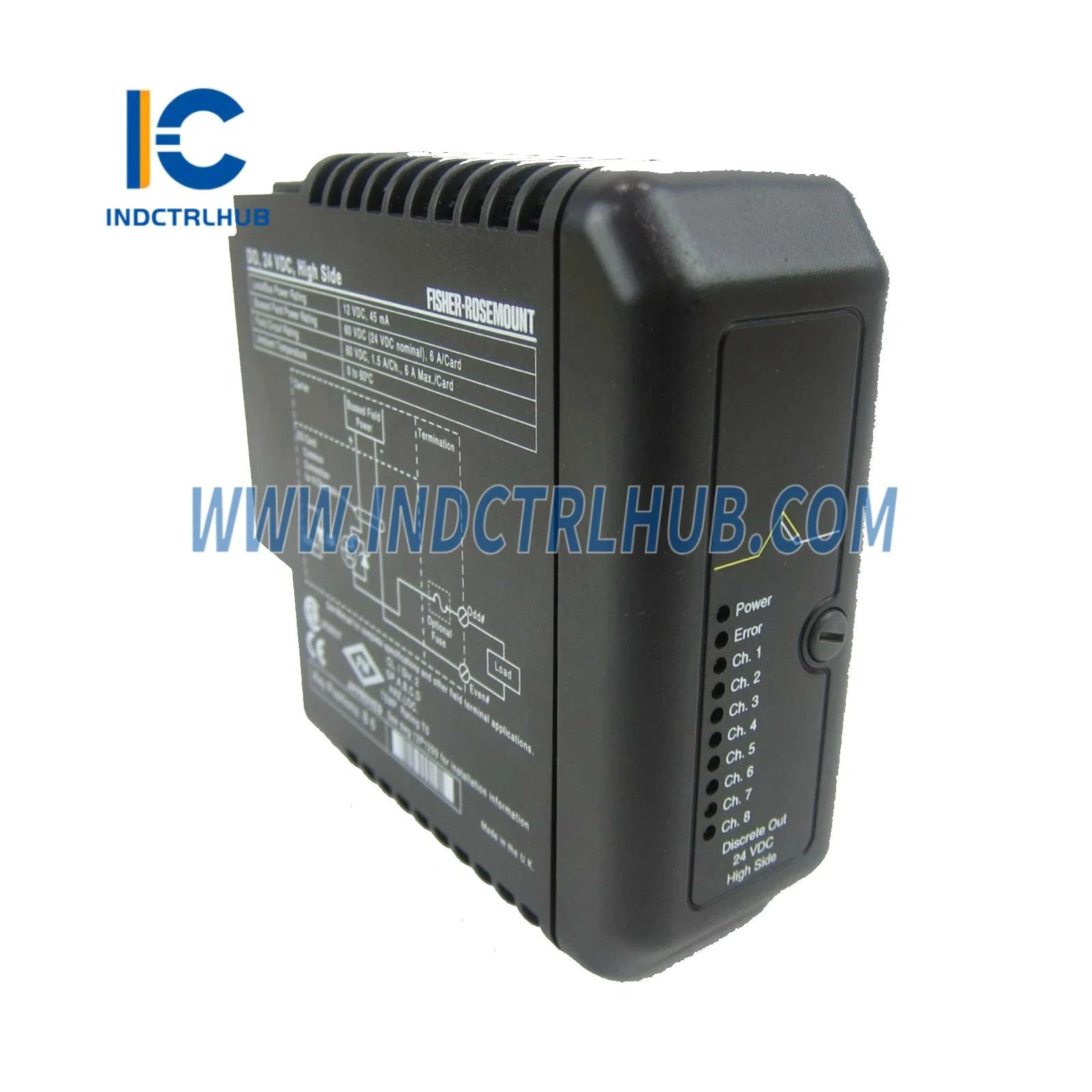

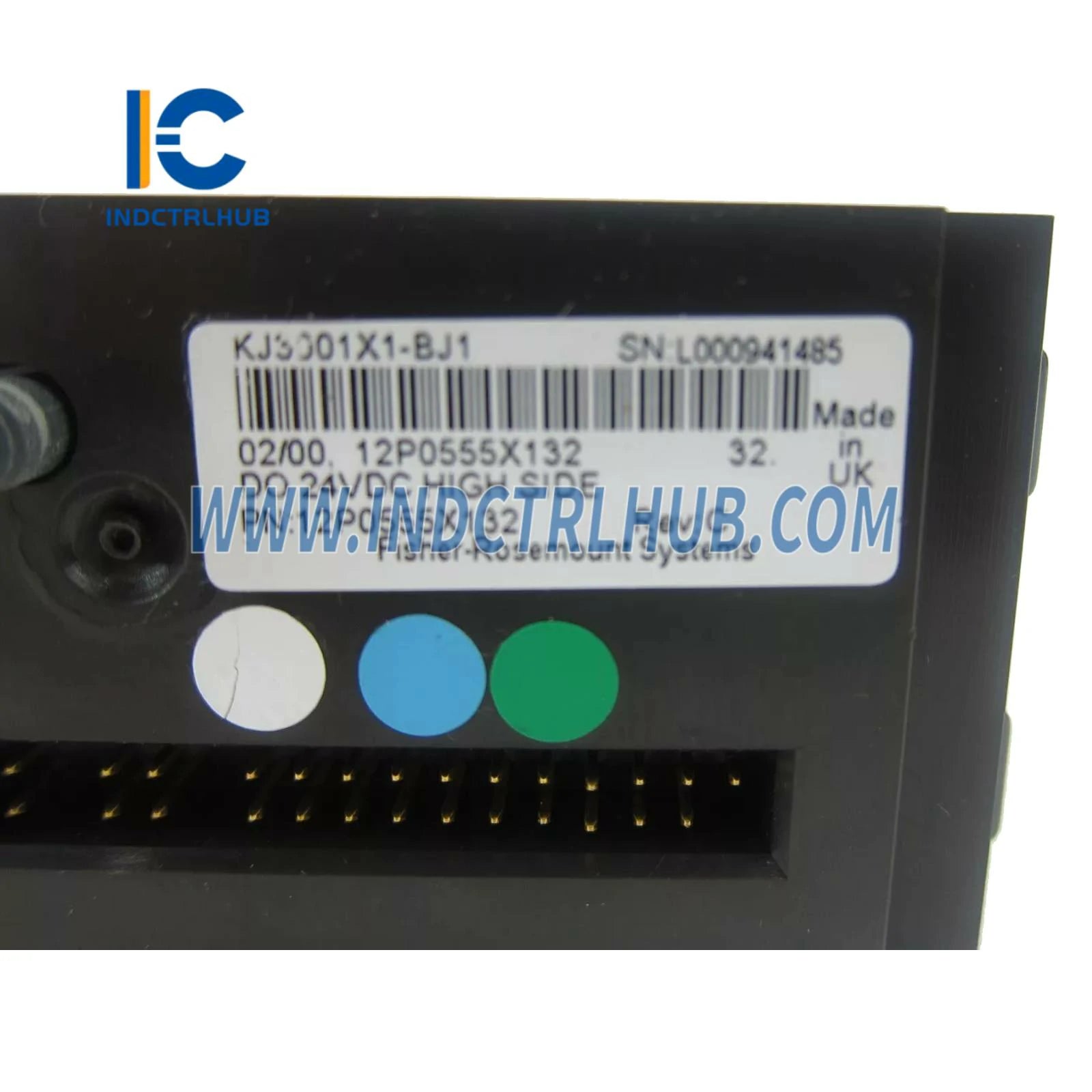

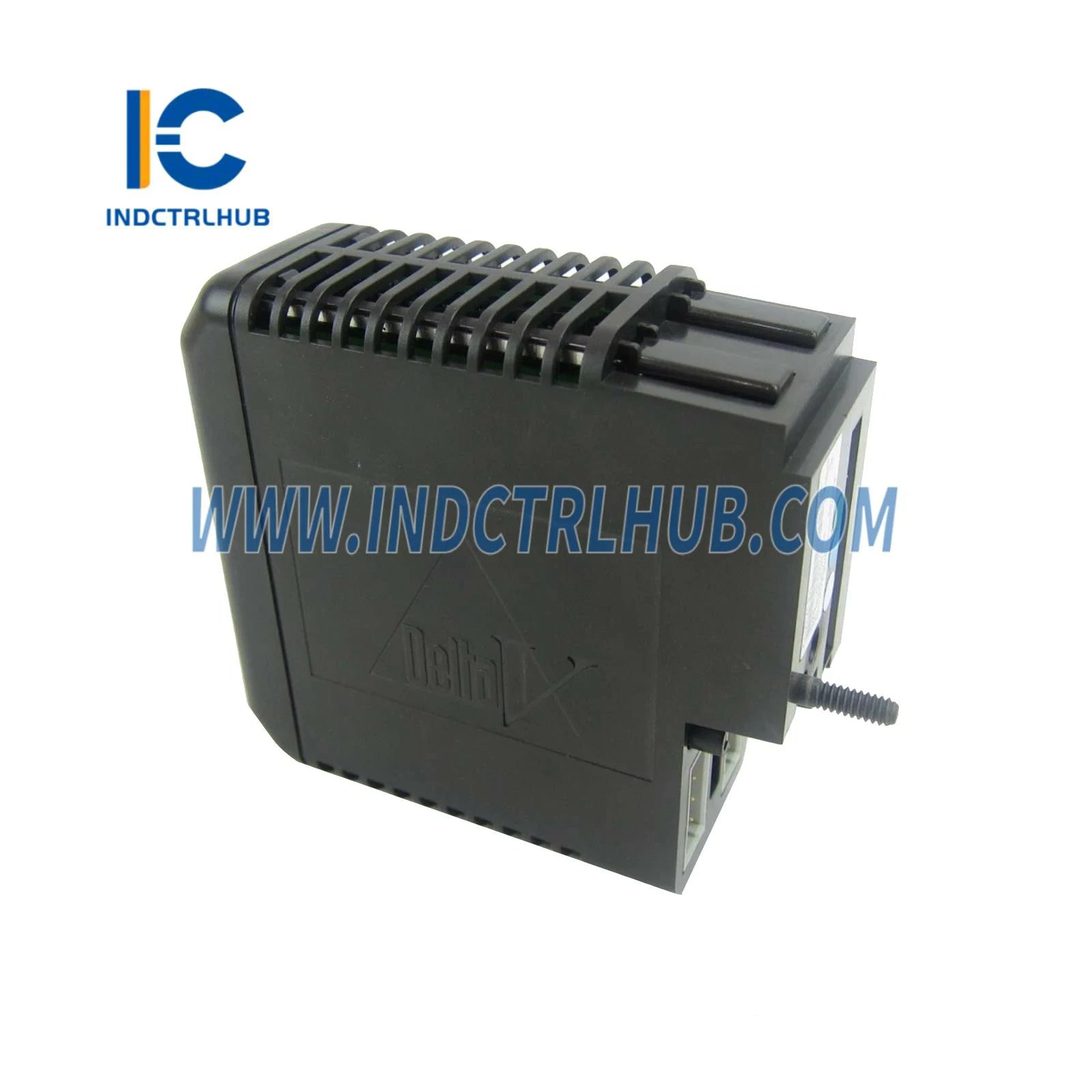

Emerson VE4002S1T2B1 KJ3001X1-BJ1 8-Channel Discrete Output Module
Emerson VE4002S1T2B1 KJ3001X1-BJ1 8-Channel Discrete Output Module
Manufacturer: Emerson
Product No.: KJ3001X1-BJ1
Condition:1000 in stock
Product Type: DeltaV M-series Discrete Output Module
Product Origin: 6954789067890
Payment: T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Emerson VE4002S1T2B1 KJ3001X1-BJ1 8-Channel Discrete Output Module
The Emerson VE4002S1T2B1 with KJ3001X1-BJ1 card delivers precision on/off control for DeltaV M-series distributed control systems. This 8-channel discrete output module provides reliable 24 VDC high-side switching for solenoid valves, motor contactors, relay coils, and pneumatic actuators across process industries requiring deterministic control with advanced fault detection and diagnostic capabilities.
Understanding Discrete Output Module Selection
Choosing the right discrete output module impacts system reliability, maintenance costs, and troubleshooting efficiency. The VE4002S1T2B1 addresses common challenges faced by control engineers:
High-Side vs. Low-Side Switching: This module employs high-side switching architecture, switching the positive 24 VDC rail rather than ground. This design simplifies troubleshooting—technicians can verify output state with a voltmeter at the load terminal without tracing complex ground paths through multi-device wiring harnesses.
Channel Density Optimization: With 8 channels per module, the VE4002S1T2B1 strikes the optimal balance between I/O density and fault isolation. Unlike 32-channel modules where a single card failure affects numerous control points, the 8-channel architecture limits exposure while maintaining compact footprint for cabinet space efficiency.
Diagnostic Coverage: Integrated per-channel diagnostics detect open-load, short-circuit, and overcurrent conditions in real-time, generating immediate alarms in DeltaV Operate. This proactive fault detection reduces mean time to repair (MTTR) by 50% compared to modules without diagnostic feedback.
Technical Specifications
| Output Channels | 8 independent high-side sourcing outputs |
| Output Voltage | 24 VDC nominal (18-30 VDC operating range) |
| Current Rating | 500 mA continuous per channel, 2A surge (10ms) |
| Switching Technology | Solid-state MOSFET with integrated protection |
| Voltage Drop | <0.5V at rated current (high-efficiency design) |
| Leakage Current | <1 mA in OFF state (prevents false triggering) |
| Response Time | 10 ms typical on/off transition |
| Isolation | 1500 VAC channel-to-bus, 250 VAC channel-to-channel |
| Diagnostics | Open-load, short-circuit, overcurrent per channel |
| Status Indication | Green LED per channel for visual output verification |
| Operating Temperature | -40°C to +70°C ambient |
| Power Consumption | 6W card logic + field load power |
| Certifications | UL/CSA Class I Div 2, ATEX Zone 2, IECEx, CE |
Comparison: VE4002S1T2B1 vs. Alternative Discrete Output Modules
| Feature | VE4002S1T2B1 (8-ch) | VE4002S1T2B5 (32-ch) | VE4032S1T2B1 (Redundant) |
|---|---|---|---|
| Channel Count | 8 outputs | 32 outputs | 8 outputs (redundant) |
| Fault Isolation | Excellent | Good | Excellent |
| Cost per Channel | Moderate | Low | High |
| Cabinet Density | Moderate | High | Moderate |
| Redundancy | No | No | Yes (1oo2) |
| Best Application | General purpose control | High-density installations | Safety-critical systems |
Selection Guidance: Choose VE4002S1T2B1 for general process control where balanced density and fault isolation are priorities. Select 32-channel modules for space-constrained installations with hundreds of discrete points. Deploy redundant modules for SIL-rated safety systems requiring fault-tolerant architectures.
Industrial Control Applications
Pneumatic Valve Control: Drive solenoid valve manifolds controlling process isolation, sample systems, and instrument air distribution. High-side switching prevents ground faults from disabling entire valve banks, maintaining partial system operation during single-point failures.
Motor Starter Interlocks: Provide permissive and interlock signals to motor control centers (MCCs) for pump sequencing, compressor staging, and conveyor coordination. Diagnostic feedback confirms starter coil energization before process advancement, preventing equipment damage from failed interlocks.
Alarm Annunciation: Control visual indicators, tower lights, and alarm horns in control rooms and field locations. Open-load detection identifies burned-out lamps and broken wiring within one scan cycle, enabling proactive maintenance before critical alarms go unnoticed.
Safety System Interfaces: Interface DeltaV control logic with safety PLCs and emergency shutdown systems requiring positive control signals for fail-safe operation. Per-channel diagnostics provide verification feedback for SIL 2 applications per IEC 61511 requirements.
Advanced Diagnostic Features
Each output channel incorporates intelligent monitoring that continuously tracks load current, voltage drop, and thermal conditions. Open-load detection identifies disconnected solenoids or broken wiring within 50ms, generating immediate alarms with channel identification. Short-circuit protection automatically disables faulted channels while maintaining operation of healthy outputs, preventing cascading failures.
Overcurrent conditions trigger protective shutdown with fault latching, requiring operator acknowledgment before reset. This prevents repeated fault cycling that could damage field devices or wiring. Historical fault logging accessible through DeltaV AMS Device Manager enables root cause analysis and predictive maintenance trending.
System Integration & Wiring
The VE4002S1T2B1 mounts to DeltaV M-series controller carriers (VE4050, VE4070) via the LocalBus backplane, providing deterministic communication with sub-50ms update rates. Compatible with KJ3001X1-BJ1 termination blocks featuring screw terminals for 12-24 AWG field wiring.
Common negative bus architecture allows all eight channels to share a single ground return, reducing wiring by 50% compared to isolated output designs. Integrated surge protection withstands 1000V transients from inductive load switching without external suppression components.
Configuration Best Practices
Device configuration utilizes DeltaV Explorer with pre-built function block templates for common output patterns including pulse outputs, time-delayed energization, and interlock logic. Diagnostic thresholds are field-configurable to match specific load characteristics—solenoid valve applications typically set open-load detection at 50 mA minimum current, while relay coil applications use 20 mA thresholds.
Output forcing capabilities enable safe pre-commissioning testing without energizing field devices. Simulation mode allows control logic validation before connecting live equipment, reducing commissioning risks and startup time.
Related DeltaV Discrete I/O Products
| Product Model | Description | Product Link |
|---|---|---|
| KJ3201X1-BA1 | DeltaV Dry Contact Input Card (32-Channel 12VDC) | View Product |
| VE4002S1T2B1 Terminal Block | DeltaV Discrete Input Termination Block | View Product |
| VE4001S2T2B3 Complete Module | Discrete Input Module with Card and Terminal Block | View Product |
Quality Assurance & Technical Support
Factory-tested to IEC 61131-2 digital output standards with 100% functional verification and 48-hour burn-in testing. Ships with load sizing worksheets, wiring diagrams, and configuration templates for rapid deployment. Backed by 18-month warranty covering manufacturing defects and performance specifications.
Global technical support provides application engineering assistance for load calculations, fusing recommendations, and troubleshooting guidance. Replacement modules ship pre-configured to match existing installations, minimizing downtime during emergency repairs.
