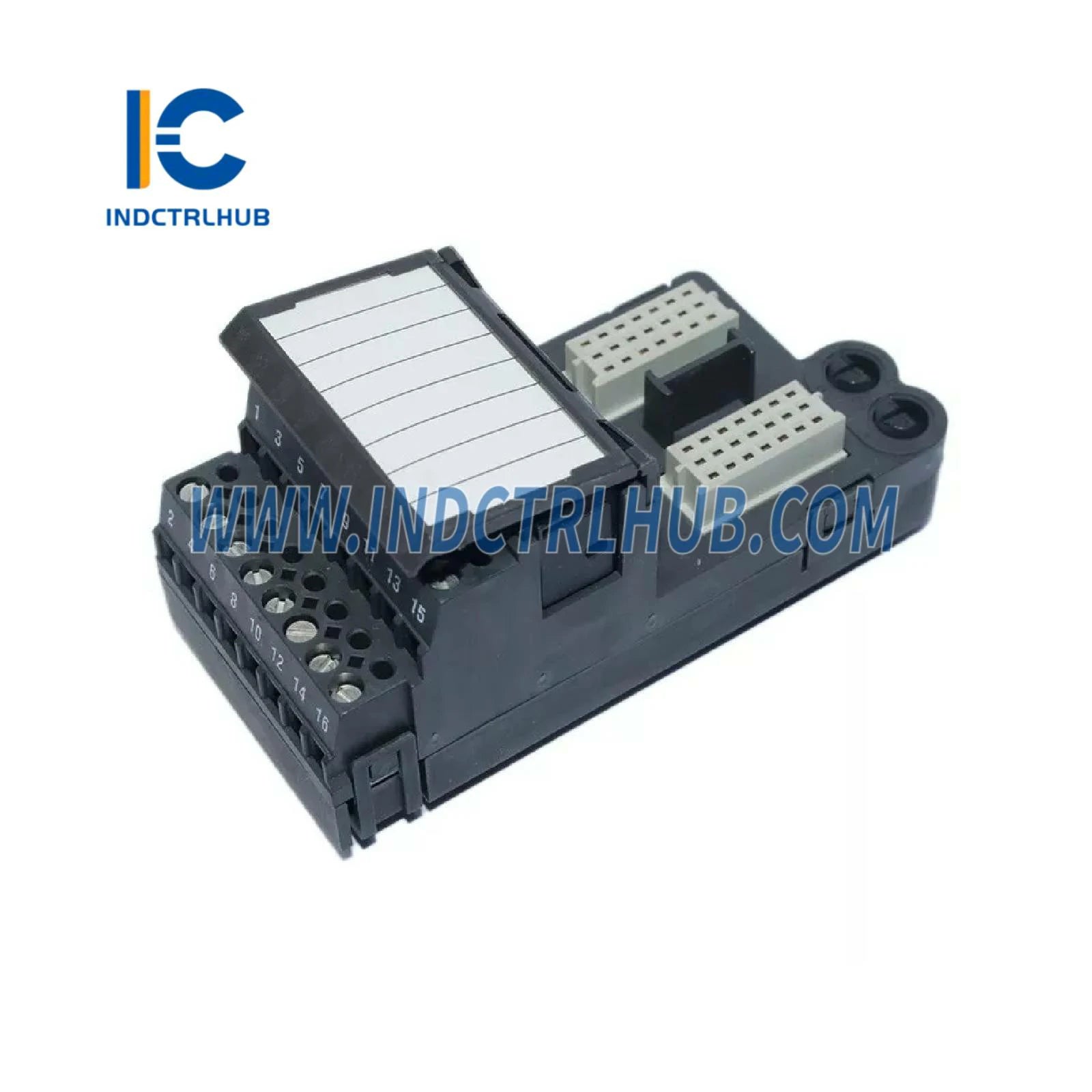

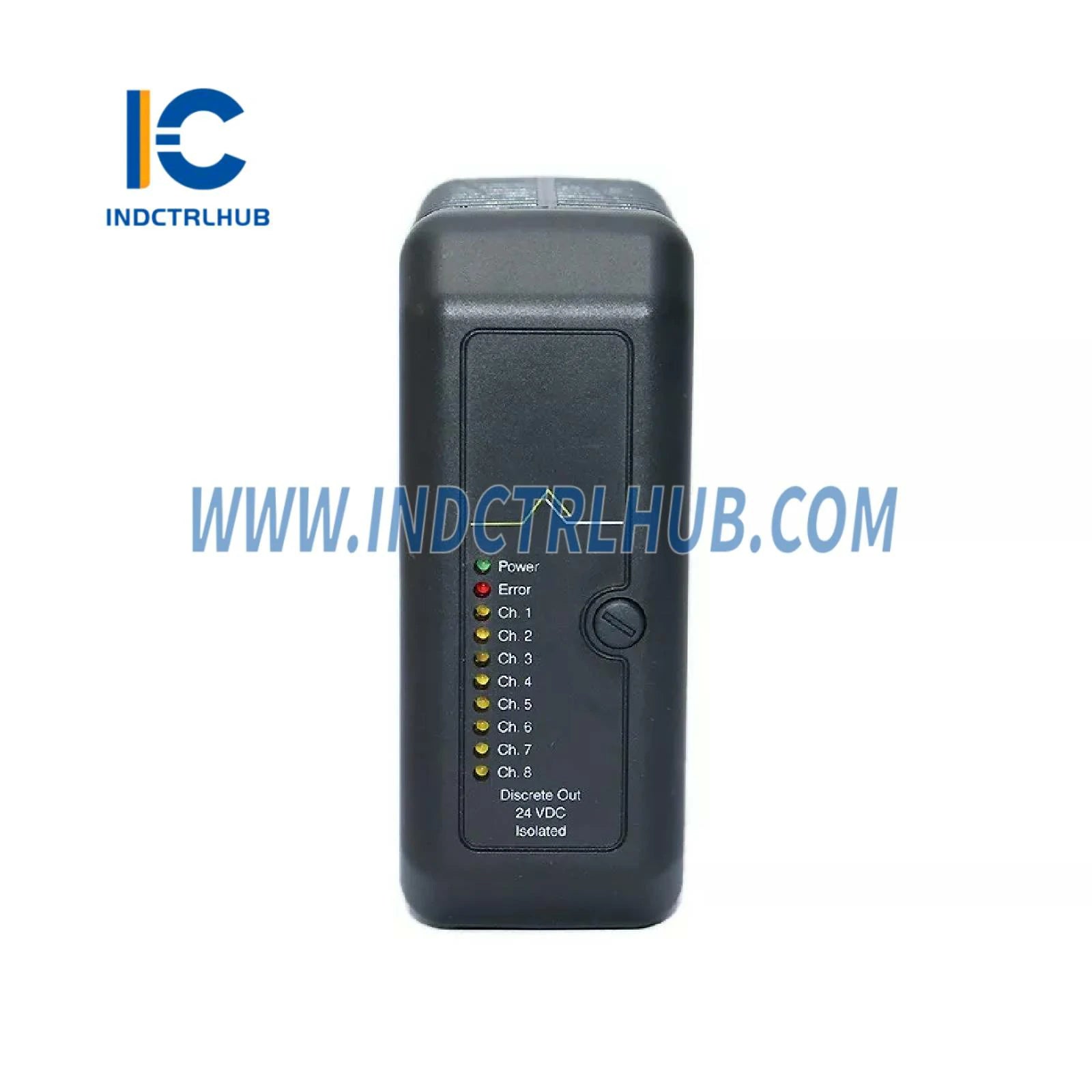

Emerson VE4002S1T1B2 Fused I/O Terminal Block for Discrete Output
Emerson VE4002S1T1B2 Fused I/O Terminal Block for Discrete Output
Manufacturer: Emerson
Product No.: VE4002S1T1B2
Condition:1000 in stock
Product Type: Fused I/O Terminal Block for Discrete Output Card
Product Origin: 6954789067890
Payment: T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping

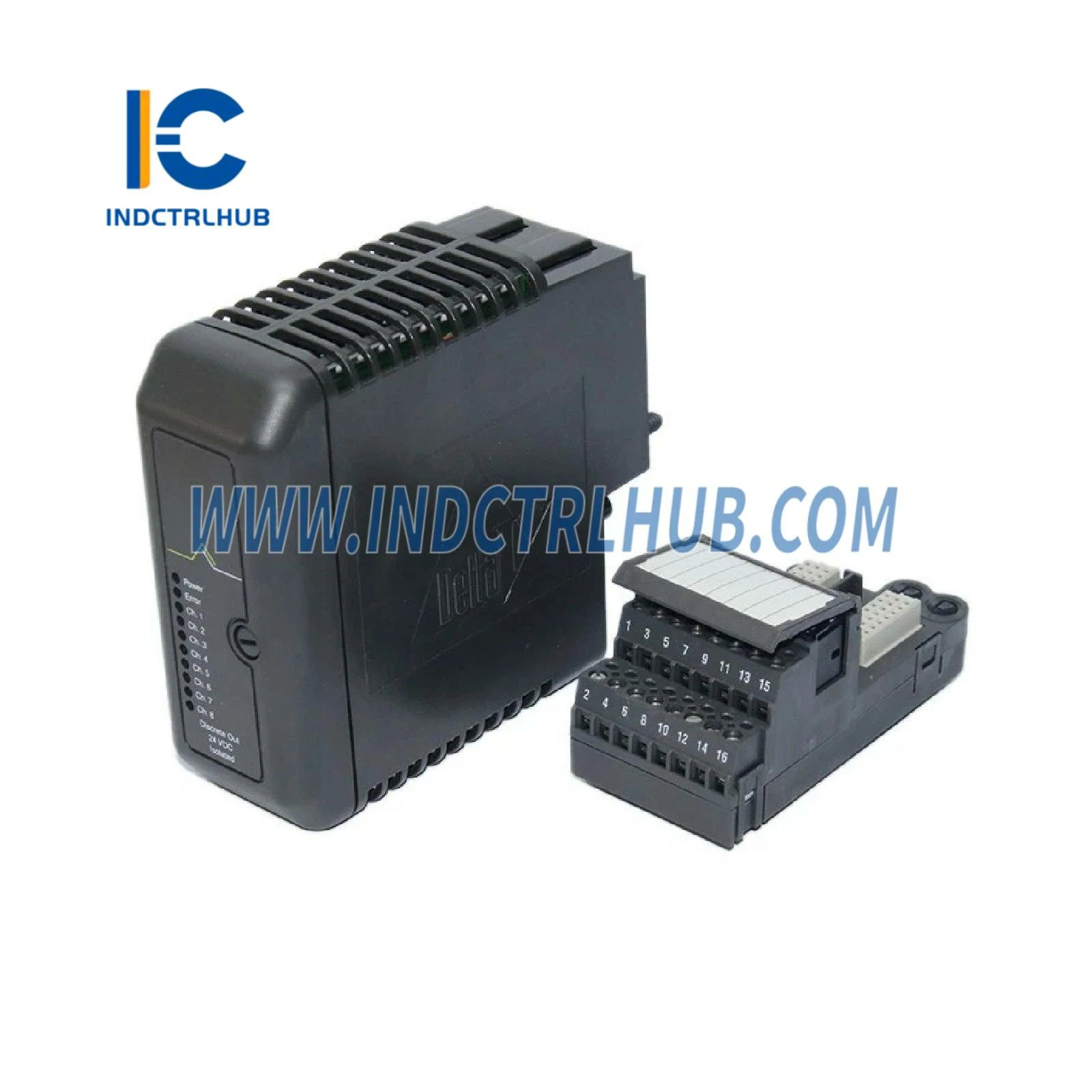

Emerson VE4002S1T1B2 Fused I/O Terminal Block for Discrete Output Cards
The Emerson VE4002S1T1B2 fused I/O terminal block provides critical overcurrent protection for DeltaV M-series discrete output modules, safeguarding both control system electronics and field devices from short-circuit damage. Featuring individual fuse protection per channel with quick-change fuse holders and visual fault indication, this terminal block represents the industry best practice for mission-critical digital output applications where equipment protection and rapid fault recovery are paramount.
Fused vs. Unfused Terminal Blocks: Making the Right Choice
Many engineers face a critical decision when specifying DeltaV I/O terminations: fused or unfused terminal blocks? While unfused blocks offer lower initial cost, fused terminal blocks like the VE4002S1T1B2 deliver superior protection and operational advantages that justify the investment in high-value applications.
| Feature | Fused Terminal Block (VE4002S1T1B2) | Unfused Terminal Block |
|---|---|---|
| Short-Circuit Protection | Individual fuse per channel isolates faults | Entire card shuts down on overcurrent |
| Fault Isolation | Single channel failure, 7 channels remain operational | All 8 channels offline during fault |
| Troubleshooting Time | Visual LED identifies faulted channel instantly | Requires multimeter testing across all channels |
| Replacement Cost | $2-5 fuse replacement | $800-1200 output card replacement |
| Downtime | 30 seconds to replace fuse | 15-30 minutes to replace card + configuration |
| Best For | Critical loads, expensive field devices, safety systems | Low-power monitoring, non-critical applications |
Technical Specifications
| Compatible Cards | VE4002S1T2B5, VE4002S1T2B6, KJ3204X1-BA1 discrete output cards |
| Fuse Type | 5x20mm fast-acting ceramic (IEC 60127-2) |
| Fuse Ratings | 250mA, 500mA, 1A, 2A (field-selectable per channel) |
| Voltage Rating | 250V AC/DC maximum |
| Breaking Capacity | 100A at 250V (fuse interrupt rating) |
| Channels | 8 independent fused outputs |
| Terminal Type | Screw terminals accepting 12-24 AWG wire |
| Fuse Holders | Quick-change snap-in design (no tools required) |
| Fault Indication | Red LED per channel illuminates on blown fuse |
| Mounting | Direct mount to VE4002 output card via 40-pin connector |
| Operating Temperature | -40°C to +70°C ambient |
| Certifications | UL/CSA recognized, CE marked, RoHS compliant |
Real-World Protection Scenario
Case Study: Chemical Plant Solenoid Valve Protection
A specialty chemicals facility experienced recurring failures of expensive $1,200 digital output cards due to solenoid valve short circuits caused by moisture ingress in outdoor junction boxes. Each card failure resulted in 4-6 hours of downtime while technicians diagnosed the fault, ordered replacement cards, and reconfigured the system.
Solution: Retrofitted all critical valve control circuits with VE4002S1T1B2 fused terminal blocks using 500mA fast-acting fuses. When the next solenoid short circuit occurred, the individual channel fuse opened within 10 milliseconds, protecting the output card while maintaining operation of the remaining seven channels.
Results: Zero output card failures over 24 months of operation. Average fault recovery time reduced from 4 hours to 5 minutes (fuse replacement). Total cost savings: $18,400 in avoided card replacements plus $67,000 in prevented production losses.
Application-Specific Fuse Selection Guide
250mA Fuses: LED indicators, low-power relays, signal lamps, and monitoring circuits drawing <200mA continuous. Provides maximum protection for sensitive loads.
500mA Fuses: Standard pneumatic solenoid valves (5-7W coils), small contactors, and general-purpose relay coils. Most common rating for industrial valve control applications.
1A Fuses: Large solenoid valves (10-15W coils), motor starter coils, high-current relays, and dual-coil devices. Suitable for inductive loads with moderate inrush current.
2A Fuses: Heavy-duty contactors, multiple parallel loads, and devices with high inrush current (capacitive or inductive). Maximum rating for VE4002 output card protection.
Installation and Maintenance Best Practices
Initial Installation: Select fuse ratings 25-50% above normal operating current to prevent nuisance tripping while maintaining protection. For solenoid valves, measure actual coil current with clamp meter and select next higher standard fuse rating.
Fuse Replacement Procedure: Grasp fuse holder tab and pull straight out from terminal block. Insert new fuse of identical rating into holder and snap back into position until audible click confirms seating. Red LED will extinguish when fuse is properly installed and circuit is healthy.
Preventive Maintenance: Inspect fuse holders quarterly for corrosion or loose contacts. Verify fuse ratings match load requirements annually. Maintain spare fuse inventory of all ratings used in facility (minimum 10 per rating).
Advanced Diagnostic Features
Each channel's red LED fault indicator provides instant visual confirmation of blown fuses during troubleshooting, eliminating the need for multimeter testing across multiple channels. DeltaV diagnostic function blocks can monitor output current and generate predictive alerts when loads approach fuse ratings, enabling proactive maintenance before failures occur.
Integration with DeltaV AMS Device Manager logs fuse failure events with timestamps and channel identification, supporting root cause analysis and reliability improvement initiatives. Trend analysis of fuse failures identifies problematic field devices requiring repair or replacement.
Related DeltaV Terminal Block Products
| Product Model | Description | Product Link |
|---|---|---|
| VE4002S1T2B1 | DeltaV Discrete Input Termination Block (Unfused) | View Product |
| VE4001S2T2B4 | Discrete Input Module for DeltaV M-Series | View Product |
| VE4001S2T2B2 | DeltaV M-Series Discrete Input Module | View Product |
Quality Assurance and Support
Factory-tested to IEC 60947-7-1 terminal block standards with full electrical continuity and insulation resistance verification. Ships with fuse selection guide, installation manual, and recommended spare parts list. Backed by 24-month warranty covering manufacturing defects and component failures.
Includes starter kit of mixed fuse ratings (4 each of 250mA, 500mA, 1A, 2A) for initial commissioning and testing. Global technical support provides fuse sizing assistance, load current calculations, and troubleshooting guidance for complex protection schemes.
