Product Description
Product Overview
| Parameter | VE3006 (M-series MD Plus Controller) | KJ3203X1-BA1 (DI 32-Channel 24 VDC Dry Contact Card) |
|---|---|---|

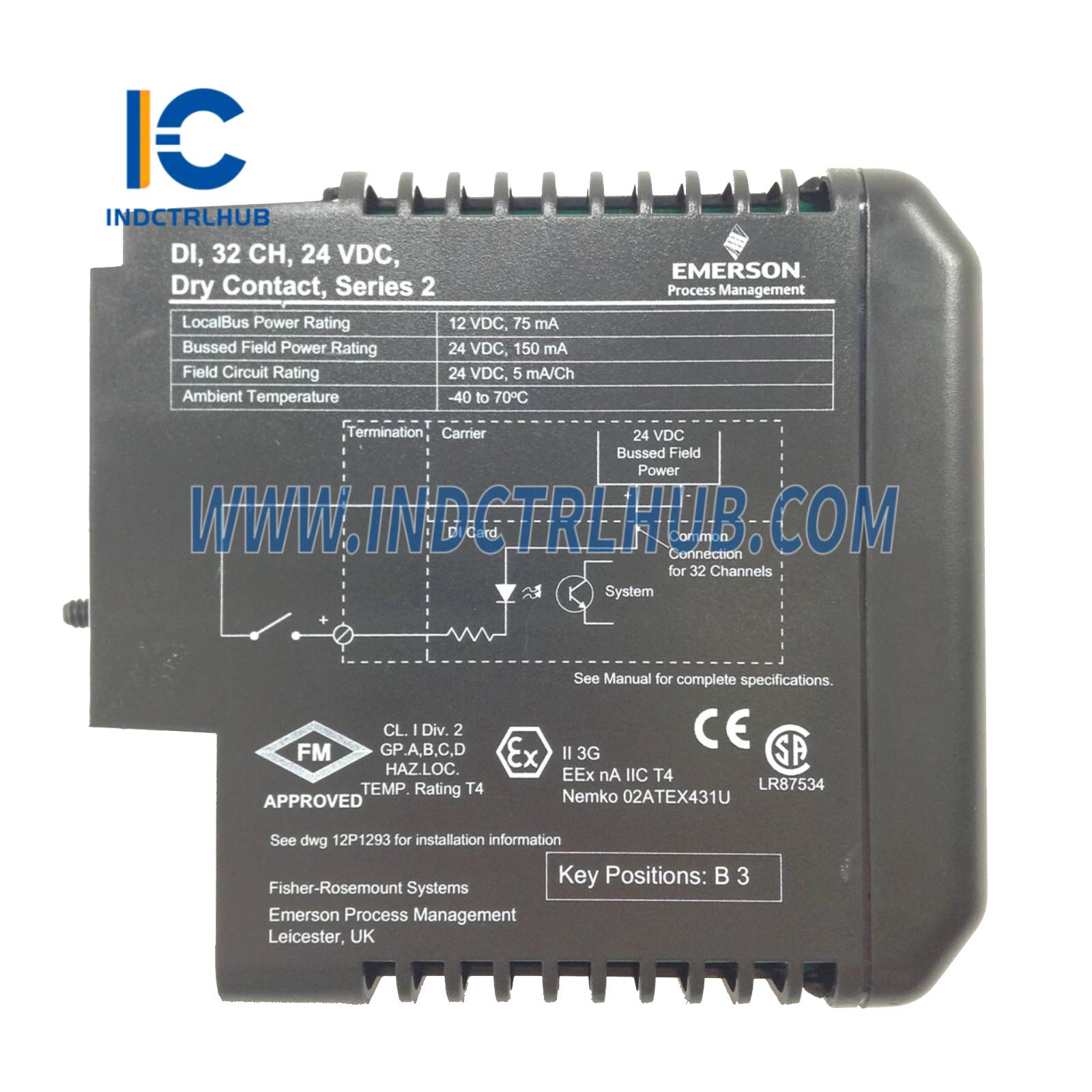

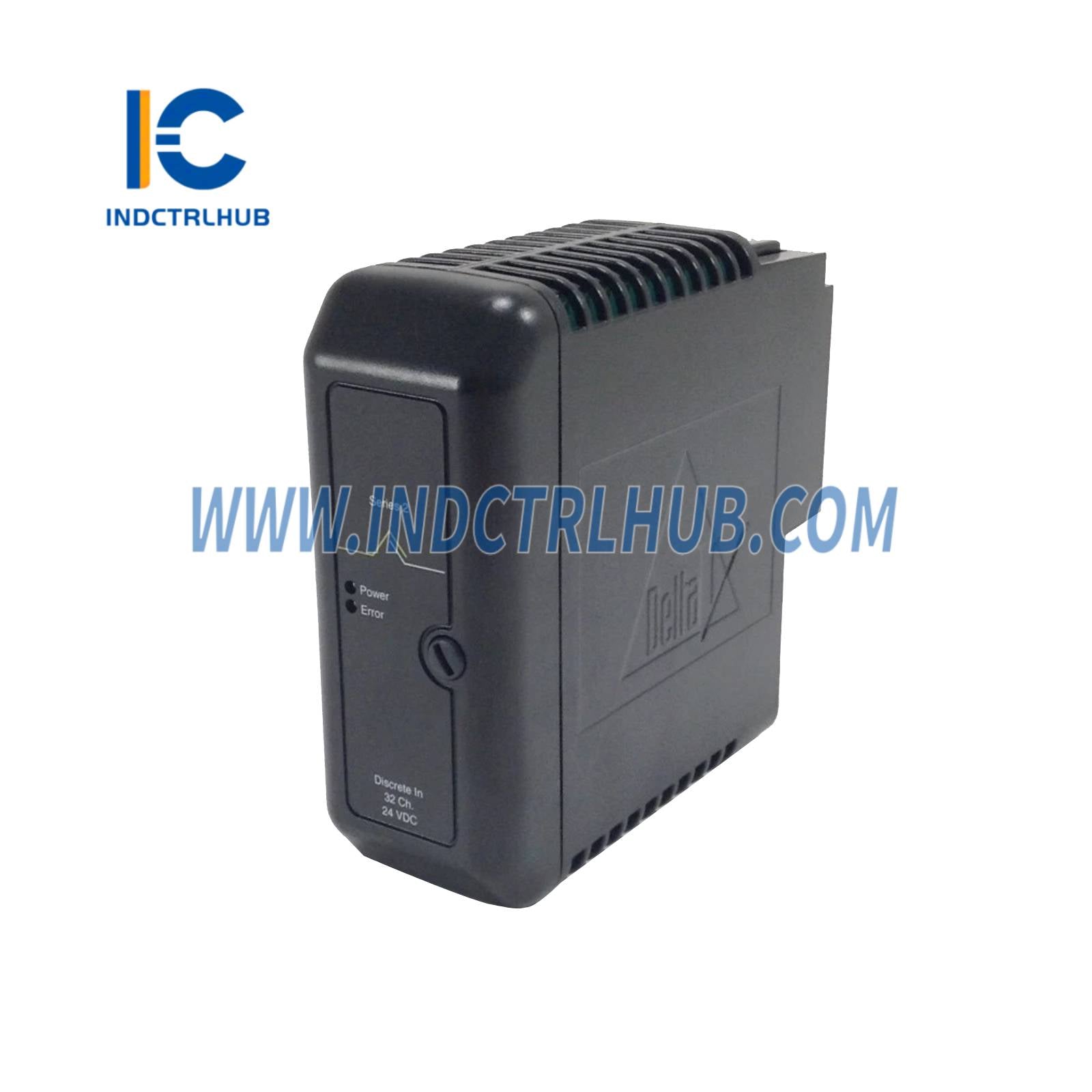

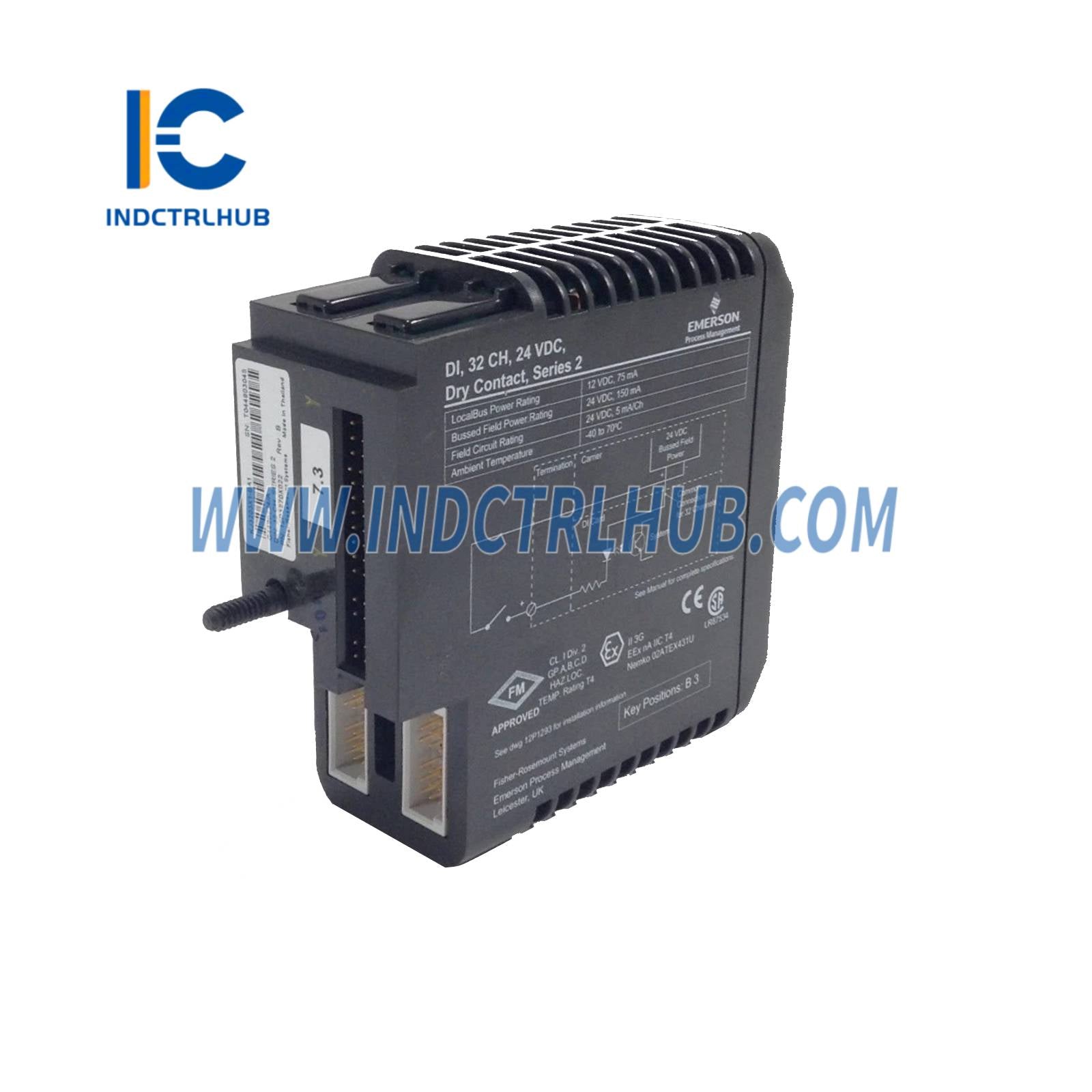

| Product Name | M-series MD Plus Controller | DI 32-Channel 24 VDC Dry Contact Card |

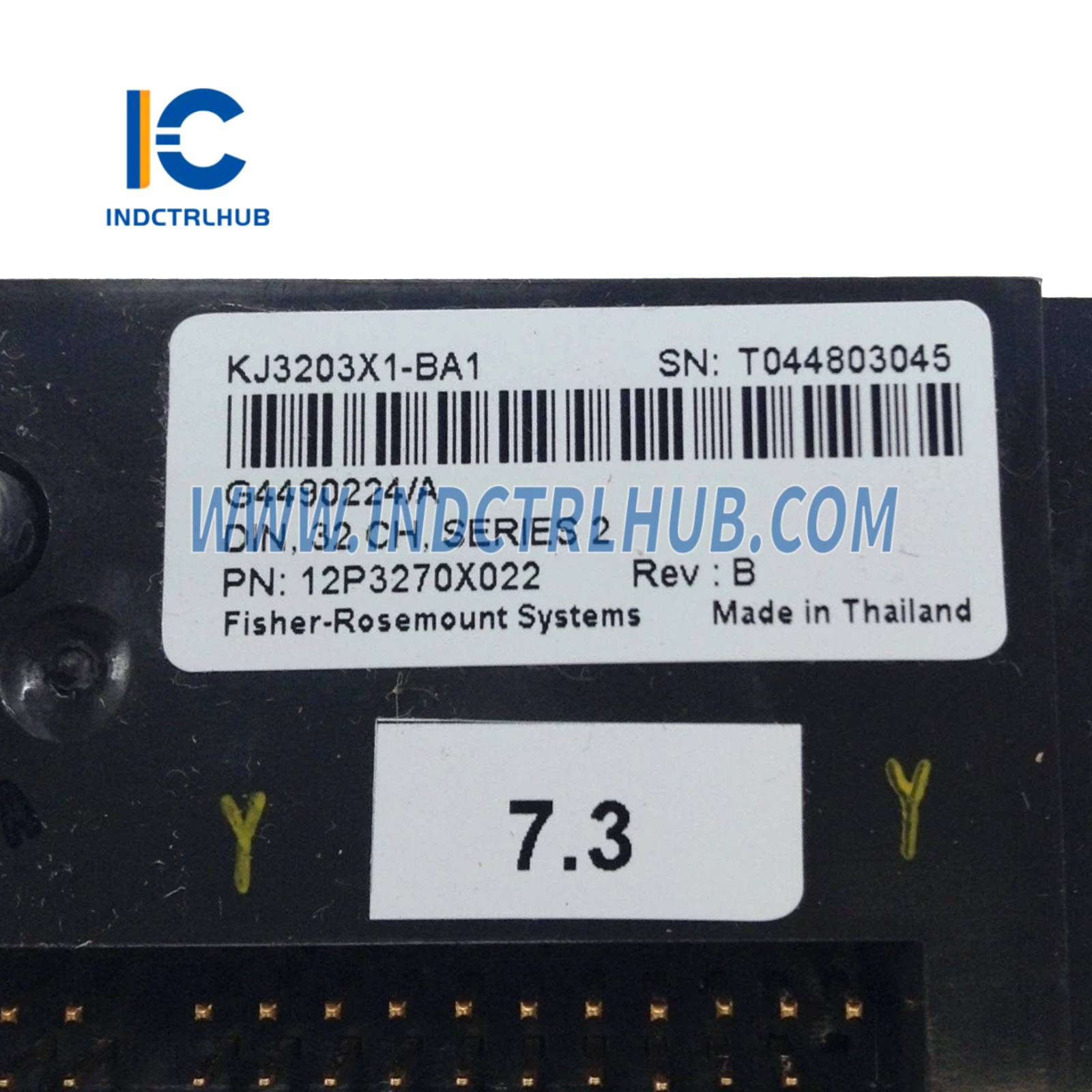

| Model Number | VE3006 | KJ3203X1-BA1 |
| Category | DeltaV Controller | DeltaV I/O Module |
| Function | Provides communication and control between field devices and control network | Discrete Input, 32 channels, 24 VDC dry contact inputs |
| System Compatibility | DeltaV v7.4.2 or later; supports PROVOX and RS3 migration | DeltaV M-series; compatible with VE3006 controller |
Hardware & Electrical Specifications
| Specification | VE3006 | KJ3203X1-BA1 |
|---|---|---|
| Power Requirement | Supplied by System Power Supply through 2-wide Power/Controller Carrier | Local Bus: 12 VDC at 75 mA; Bussed Field: 24 VDC at 150 mA |
| Fuse Protection | 3.0 A, non-replaceable fuses | Not specified (inferred: none or internal protection) |
| Power Dissipation | 5.0 W typical, 7.0 W maximum | Not specified (inferred: minimal, typical for I/O cards) |
| Field Circuit | Not applicable | 24 VDC at 5 mA per channel |
| User Memory | 48 MB | Not applicable |
| Network/Interface | Primary and Redundant Control Network: 8-pin RJ-45, 100 MB/s full duplex Ethernet | Terminal Block Key: B3 |
LED Indicators (VE3006 Only)
| Indicator | Description (VE3006) |
|---|---|
| Green - Power | Indicates DC power is applied |
| Red - Error | Indicates an error condition |
| Green - Active | Indicates controller is operating as the primary controller |
| Green - Standby | Indicates controller is operating as a backup controller (future use) |
| Yellow Flashing - Pri. CN | Indicates valid primary control network communication |
| Yellow Flashing - Sec. CN | Indicates valid secondary control network communication |
| All except Power Flashing | Visual identification initiated by ping command |
| All except Power Flashing (Even/Odd) | Firmware upgrade in progress |
Environmental Specifications
| Parameter | VE3006 | KJ3203X1-BA1 |
|---|---|---|
| Operating Temperature | -40 to 70°C (-40 to 158°F) | -40 to 70°C |
| Storage Temperature | -40 to 85°C (-40 to 185°F) | -40 to 85°C (inferred from VE3006) |
| Relative Humidity | 5 to 95%, non-condensing | 5 to 95%, non-condensing |
| Airborne Contaminants | ISA-S71.04-1985 Class G3, Conformal coating | ISA-S71.04-1985 Class G3 |
| Shock | 10 g ½-sine wave for 11 ms | 10 g ½-sine wave for 11 ms |
| Vibration | 1 mm peak-to-peak from 5 to 16 Hz; 0.5 g from 16 to 150 Hz | 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Protection Rating | Not specified (inferred: IP20) | IP20 |
Certifications
| Standard | VE3006 | KJ3203X1-BA1 |
|---|---|---|
| ATEX | EEx nA IIC T4 | II 3G Ex nA IIC Gc (FM12ATEX0090U) |
| IEC-Ex | Not specified | IECEx FMG 12.0035U |
| FM (USA) | Class I, Div 2, Groups A, B, C, D, T4 | Class I, Div 2, Groups A, B, C, D, T4 |
Physical & Installation
| Parameter | VE3006 | KJ3203X1-BA1 |
|---|---|---|
| Mounting | On right slot of 2-wide Power/Controller Carrier | Mounted on I/O interface carrier (DIN rail) |
| Installation Type | Plug-and-play, modular system growth | Modular I/O subsystem |
| Removal/Insertion | Refer to Zone 2 (12P2046) or Class I Div 2 (12P1293) installation instructions | Cannot be removed/inserted with system power energized unless area is non-hazardous; non-sparking field circuits must be de-energized |
| Terminal Block Keying | Not applicable | Rotary keying system; keys set to match I/O card (B3) |
| Maintenance | No user-serviceable parts; calibration not required | No user-serviceable parts; calibration not required |
Functional Features
| Feature | VE3006 | KJ3203X1-BA1 |
|---|---|---|
| Key Features | Over 400% faster than M5 Plus Controller; 3x user-configurable memory | Supports 32 channels of 24 VDC dry contact inputs |
| Self-addressing and self-locating with no dip switches | Designed for hazardous area installation with non-sparking circuits | |
| Automatic I/O detection for plugged-in I/O interfaces | Compatible with DeltaV M-series I/O subsystem | |
| Manages all control activities, communication, time stamping, alarming, and trends | Integrates with VE3006 controller for control and communication | |
| Data protection with automatic saving of installation and online changes | ||
| Cold restart without manual intervention or network devices | ||
| Supports DeltaV Batch, Neural, and Model Predictive Control | ||
| HART data pass-through for remote device management | ||
| Scalable from 50 to 750 Device Signal Tags (DSTs) | ||
| Supports redundant controller for bumpless transition | ||
| Migration support for PROVOX and RS3 with up to 750 real I/O signals |
Ordering Information
| Description | Model Number |
|---|---|
| MD-PLUS Controller | VE3006 |
| DI 32-Channel 24 VDC Dry Contact Card | KJ3203X1-BA1 |
