Product Description
Product Overview

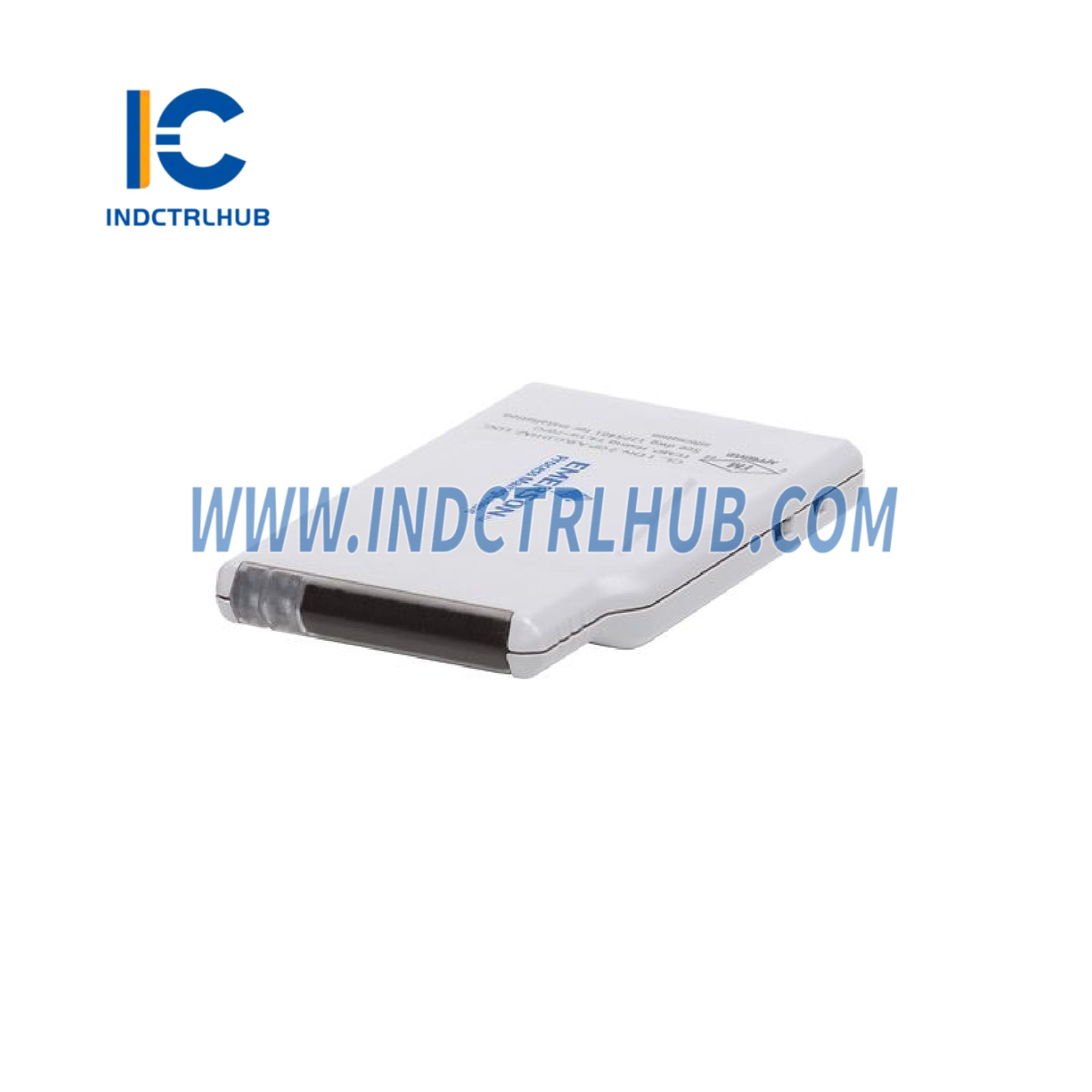

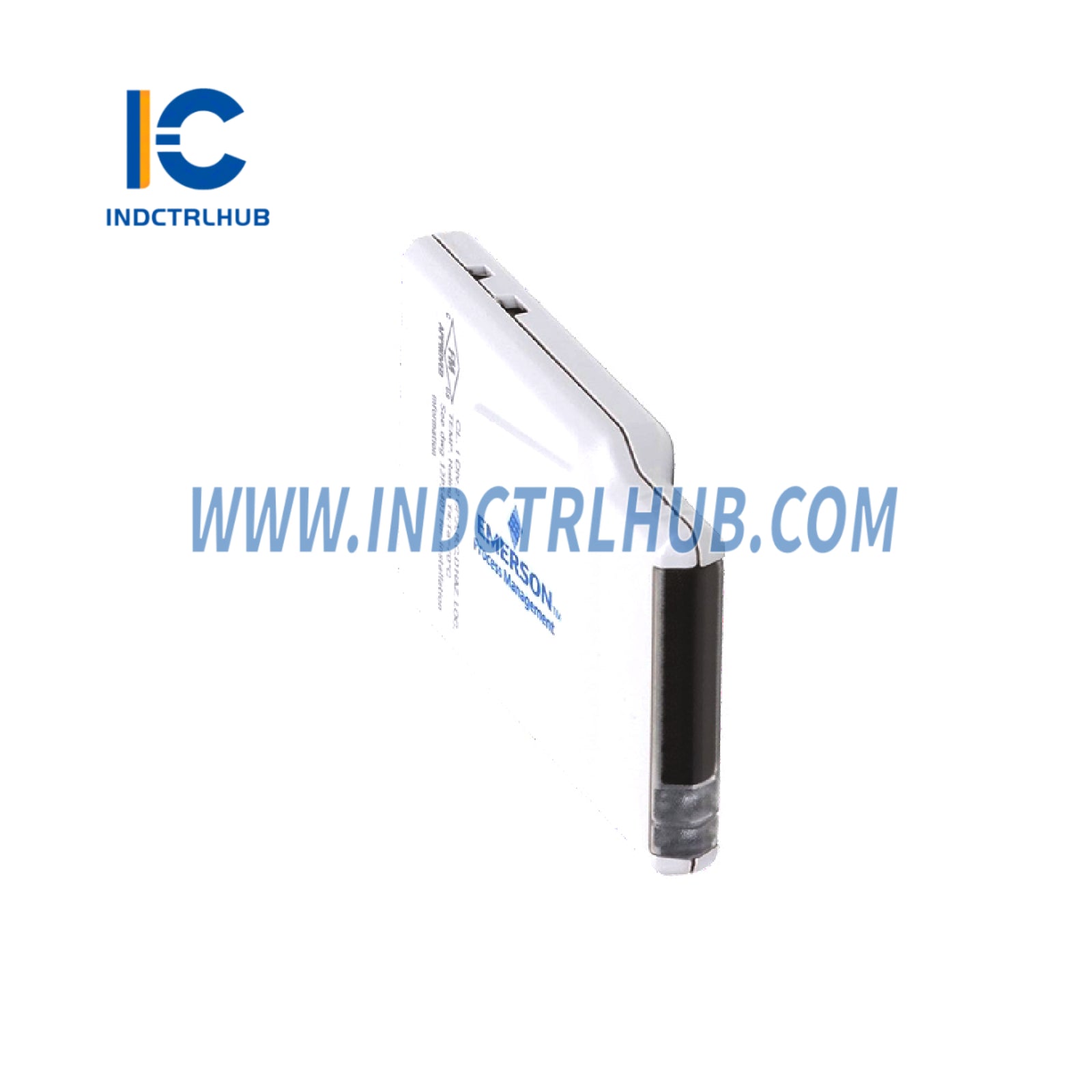

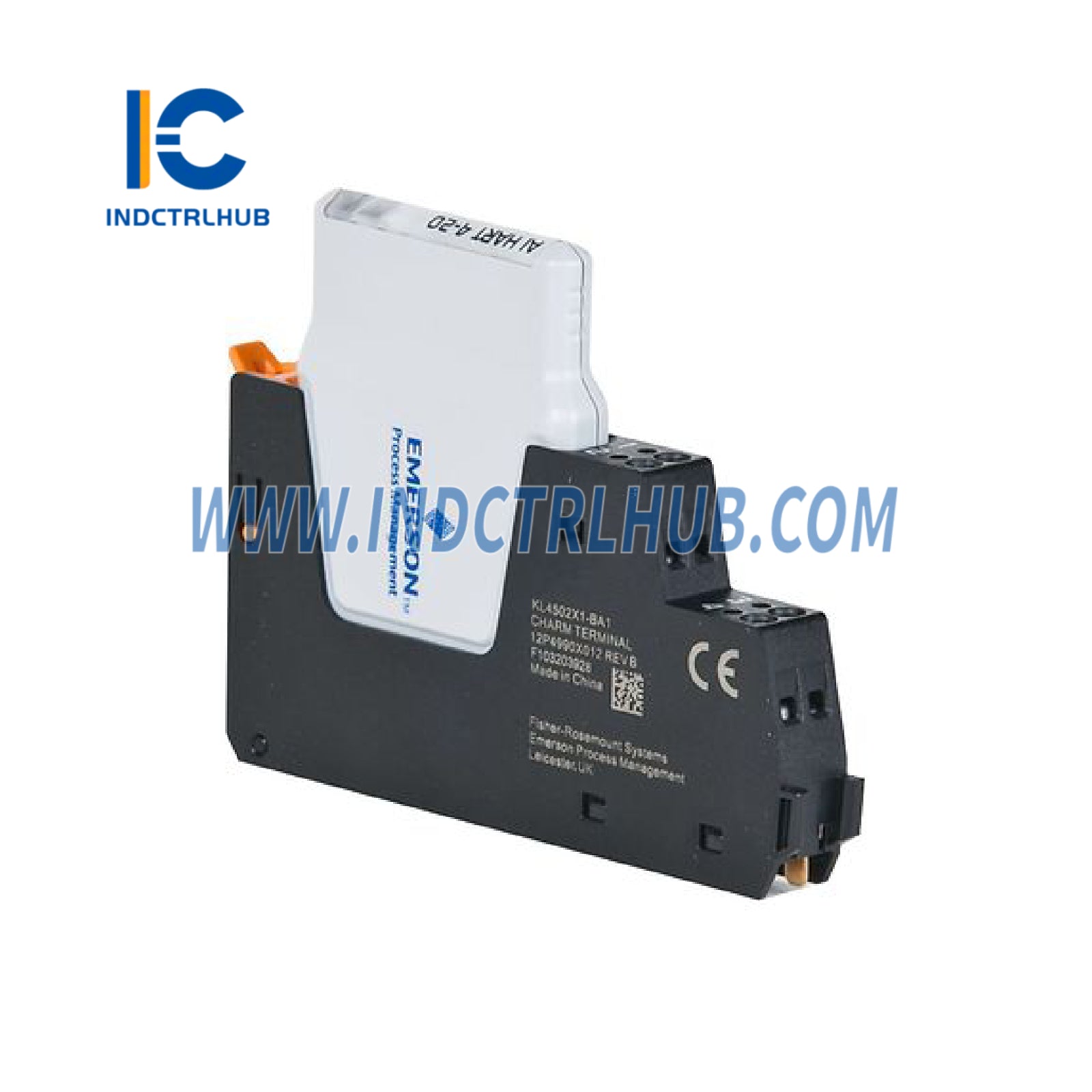

| Parameter | Details |
|---|---|
| Product Name | DO 24V DC 100mA Energy Limited CHARM |
| Model Number | SE4302T04 |
| Category | Low Voltage Instrumentation CHARMs |
| Function | Provides discrete output for controlling 24V DC solenoid coils (energy-limited) |
| System Compatibility | DeltaV v11.3.1 or later (with SD Plus, SX, SQ, MQ, MX, PK Controllers) |
| Terminal Block | Compatible with SE4501 (Standard CHARM Terminal Block) |
Hardware & Electrical Specifications
| Specification | Value |
|---|---|
| Device Type | 24V DC Solenoid Coils |
| On-State Output Rating | 100 mA continuous @ 24V DC |
| Off-State Leakage Current | ≤ 1 mA |
| Line Fault Detection Ranges | <50 Ω (short), 240 Ω–10 kΩ (normal), >20 kΩ (open) |
| Configurable Output Behavior | Momentary / Continuous Pulse Output / Line Fault Testing |
| Line Fault Test Timing | 200 µsec |
| Current Limiting Protection | 107 mA |
| Power Requirement | 116 mA @ 24V DC |
| Heat Dissipation | 0.56 W |
Environmental Specifications
| Parameter | Value |
|---|---|
| Operating Temperature | -40 to 70°C (or -40 to 60°C for fanless enclosures) |
| Storage Temperature | -40 to 85°C |
| Humidity | 5 to 95%, non-condensing |
| Protection Rating | IP20 |
| Contaminants | ISA-S71.04-1985 Class G3 |
| Shock | 10g ½-sine wave for 11 ms |
| Vibration | 1mm (2–13.2 Hz); 0.7g (13.2–150 Hz) |
Functional Features
| Feature |
|---|
| Current limiting and field wiring disconnect |
| Pulse capability (≥200 µsec) |
| Line fault diagnostics |
| LED Indicators: |
| - Power/Integrity (Bi-color): Green (Normal), Red (Fault) |
| - Field Signal (Yellow): Indicates output state |
Certifications
| Standard | Details |
|---|---|
| CE | EN 61326-1 |
| FM (USA) | Class I, Div 2, Groups A-D, T4 |
| CSA (Canada) | Class I, Div 2, Groups A-D, T4 |
| ATEX | II 3G Ex ec IIC T4 Gc |
| IEC-Ex | Compliant with IEC60079-0, EN60079-7, IEC60079-15 |
| Marine | ABS, DNV Marine Certificate |
| Achilles | CIOC/CIOC2 Communication Certification (Level 1/2) |
Physical & Installation
| Parameter | Details |
|---|---|
| Installation Type | Mounted on CHARM Baseplate (DIN rail) |
| Wiring | Screw cage terminals, 0.32–2.5 mm² (22–14 AWG), 7–9 mm strip length |
| Keying | Self-keying for proper CHARM placement |
Ordering Information
| Description | Model Number |
|---|---|
| DO 24V DC 100mA Energy Limited CHARM | SE4302T04 |
