Product Description

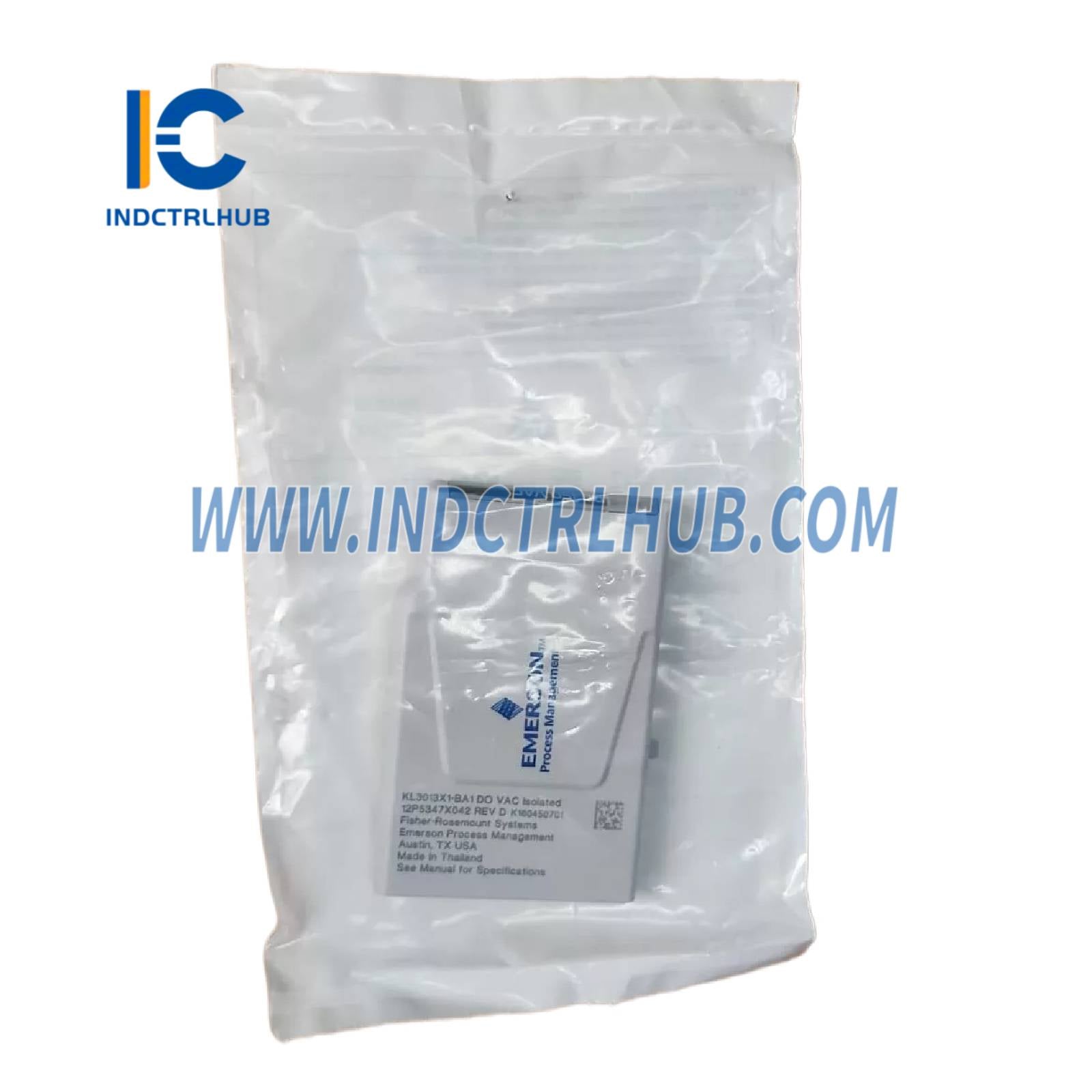

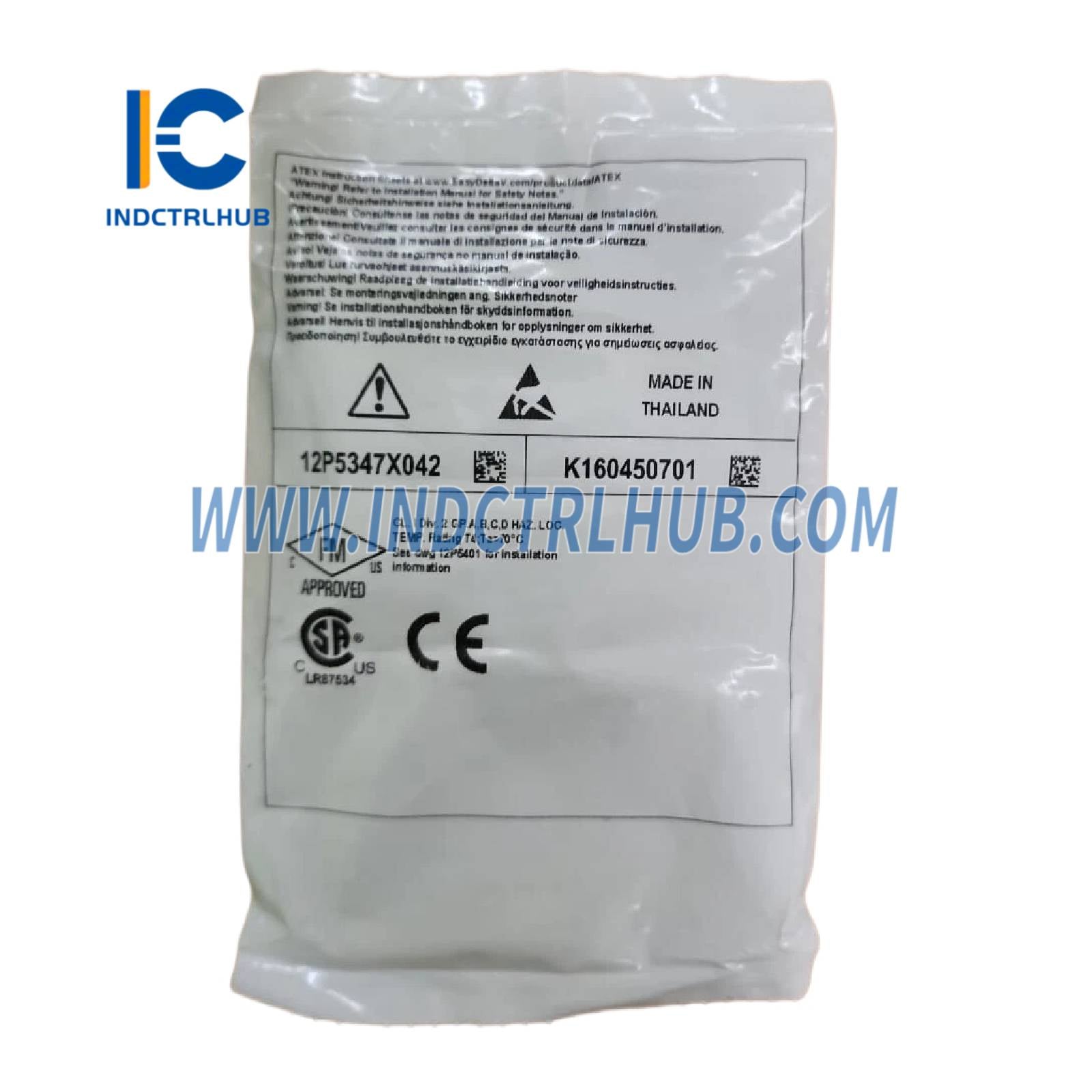

Emerson SE4302T03 KL3013X1-BA1 DO V AC Isolated CHARM
Product Overview
- The Emerson SE4302T03, also referenced as KL3013X1-BA1, is a Digital Output Characterization Module (CHARM) designed for the DeltaV Distributed Control System (DCS) with S-series Electronic Marshalling. This module provides isolated V AC digital outputs to control field devices such as relays, solenoid valves, or other AC-powered equipment in process control applications. It is widely used in industries like oil and gas, chemical, and power generation, offering flexible integration with DeltaV systems through Electronic Marshalling. The isolated design ensures safe operation in high-voltage environments.
Technical Specifications
- The SE4302T03 (KL3013X1-BA1) has the following specifications based on documentation from Emerson and industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | SE4302T03 (KL3013X1-BA1) |
| Manufacturer | Emerson |
| Description | DO V AC Isolated CHARM |
| Series | DeltaV S-series (CHARM) |
| Output Type | Isolated V AC digital output |
| Output Voltage | 120/230 V AC (47–63 Hz) |
| Output Current | Max. 1 A per channel |
| Output Load | Resistive or inductive loads up to 230 VA |
| CHARM Power Requirement | Max. 60 mA at 24 VDC |
| Isolation | Galvanic isolation (field to system, 1500 V RMS; channel to channel, 1500 V RMS) |
| Short Circuit Protection | Requires external fusing (e.g., via terminal block) |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | Approx. 30 mm x 30 mm x 130 mm |
| Weight | Approx. 0.1 kg |
| Mounting | CHARM baseplate (e.g., SS3001 KL4103X1-BA1, DIN rail-mounted) |
Additional Details
- The SE4302T03 includes the following additional information based on documentation from Emerson and industry sources:
- Function: Delivers isolated V AC outputs to control AC-powered field devices, supporting up to 1 A per channel; supports Electronic Marshalling to simplify wiring and enable flexible I/O assignment; provides channel-to-channel and field-to-system isolation for safe operation in high-voltage applications.
- Compatibility: Compatible with DeltaV S-series CHARM baseplates (e.g., SS3001 KL4103X1-BA1), CHARM I/O Card (CIOC, e.g., SE6504 KL2101X1-BB1), and standard or fused terminal blocks (e.g., SE4501 KL4501X1-BA1); supports DeltaV systems version 11 or later; integrates with DeltaV controllers for process control (not SIS-specific, unlike LS CHARMs).
- Configuration: Configured via DeltaV Explorer or Control Studio software for mapping outputs to control logic; supports plug-and-play installation on CHARM baseplates with a keying system to ensure compatibility with terminal blocks; allows any channel to be assigned to any controller with drag-and-drop functionality; includes diagnostic capabilities for status and fault monitoring.
- Certifications: Complies with CE, UL, ATEX, and IECEx standards for hazardous environments (Zone 2, Class I, Div. 2); rated for G3 environmental conditions; not certified for SIL-rated SIS applications (use LS CHARMs for SIS); certified by KCC with Authorization ID KCC-REM-ERN-KL3013X1-BA1.
