Product Description
🔍

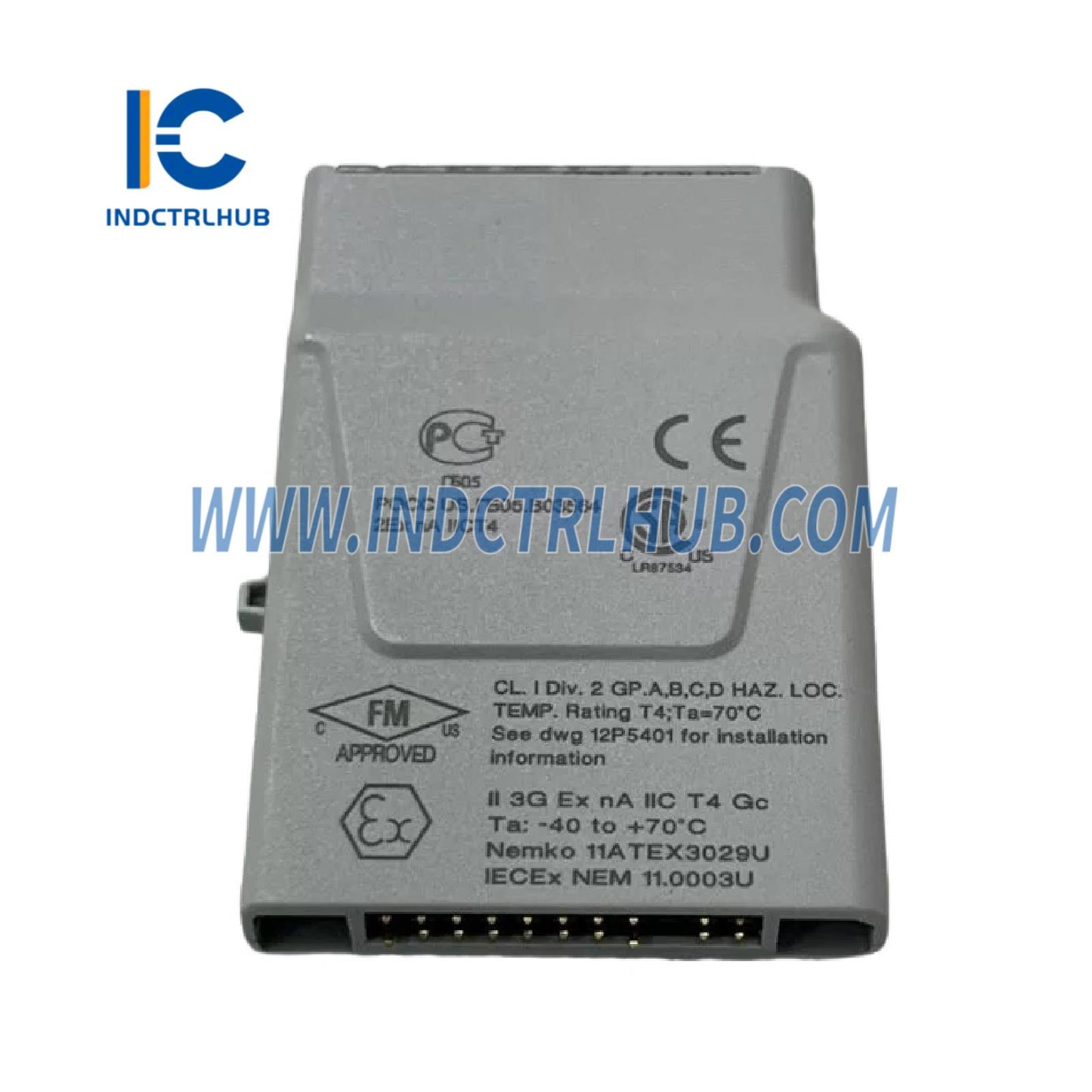

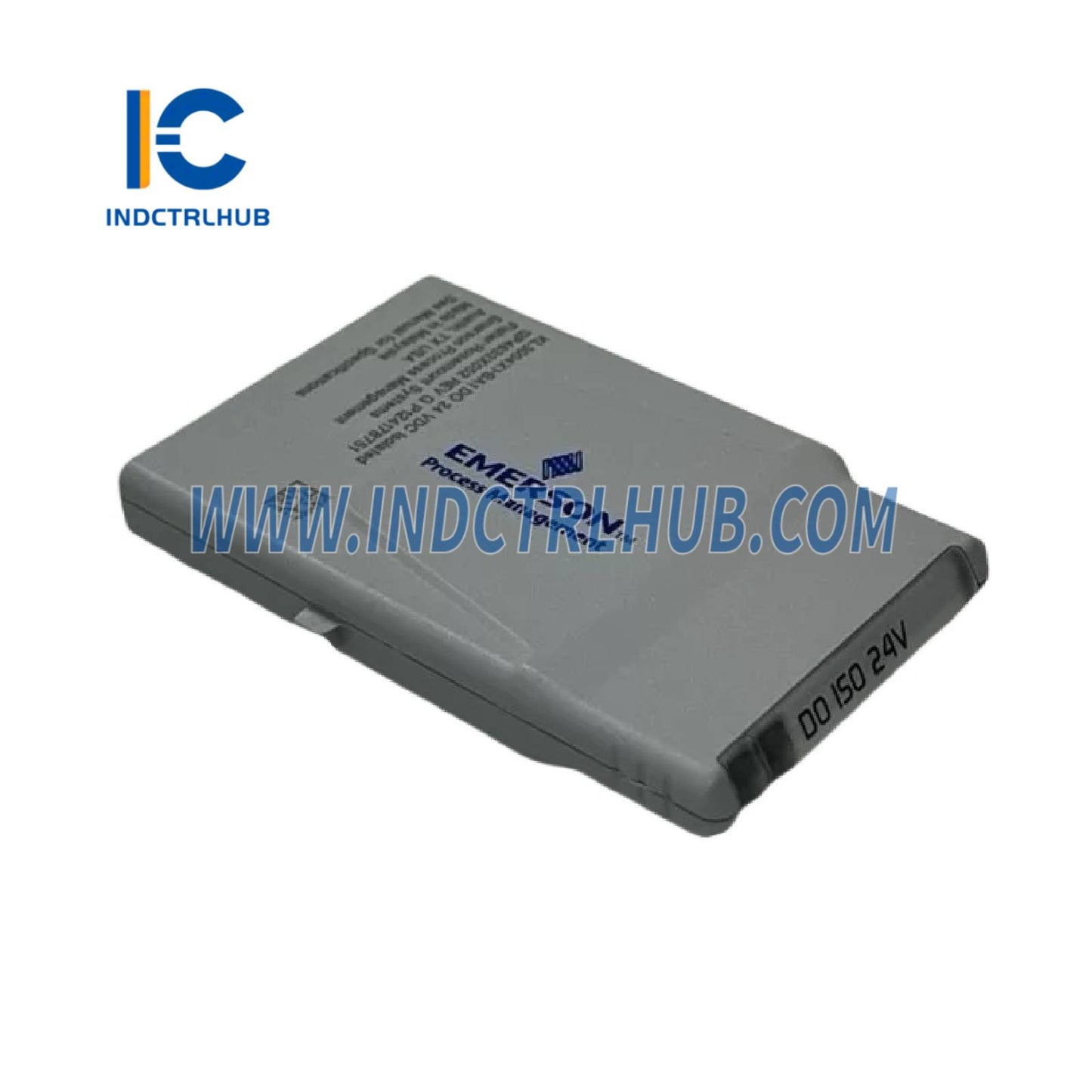

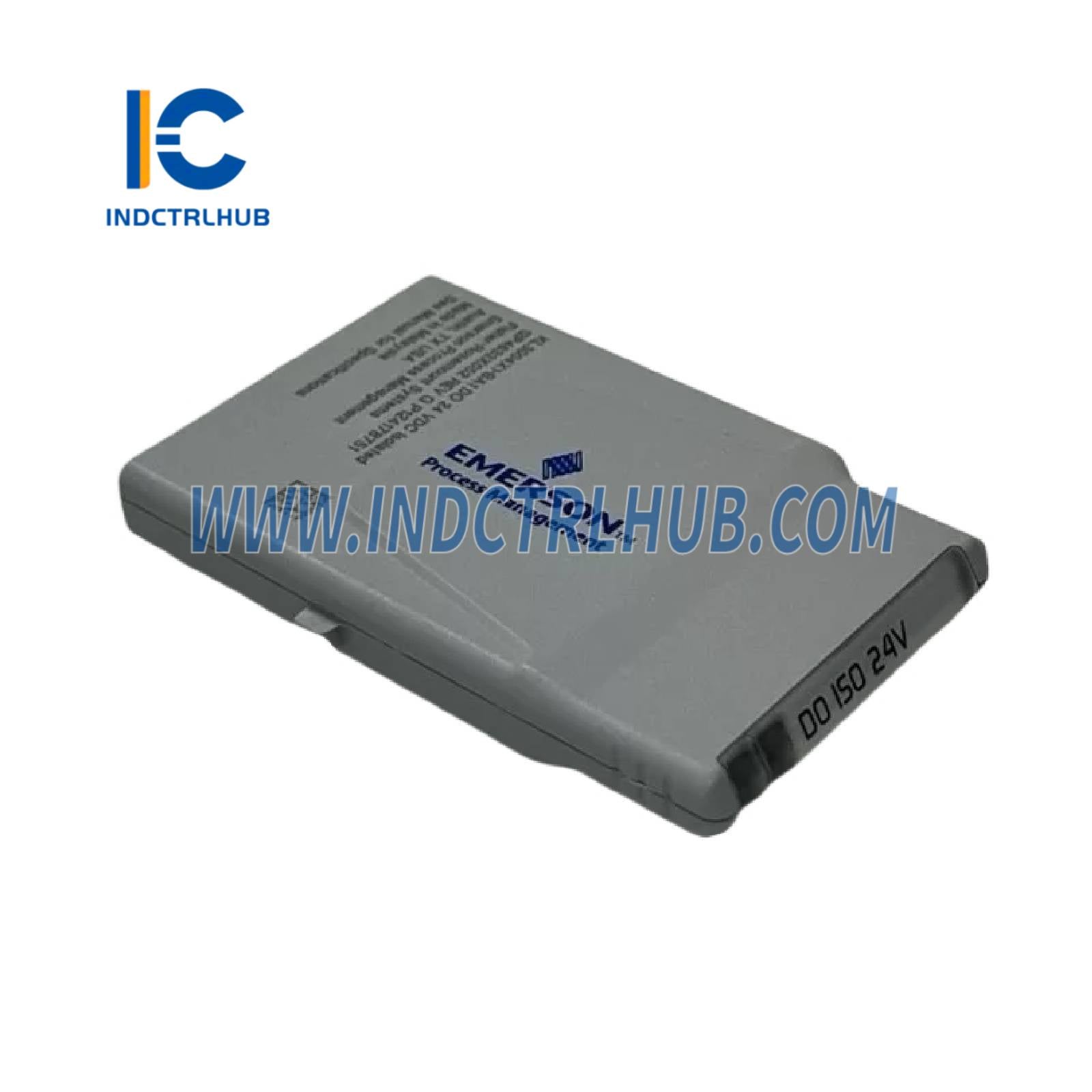

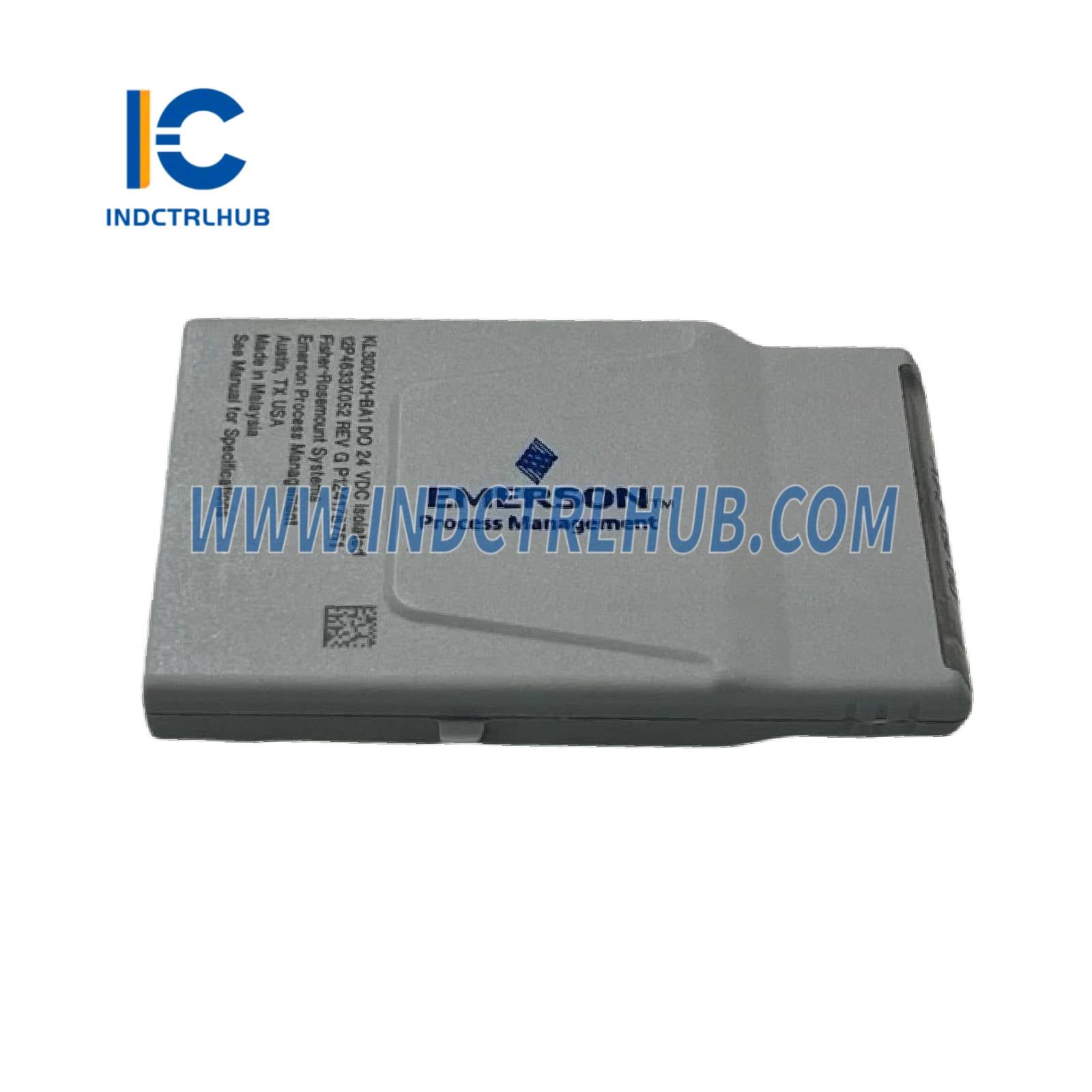

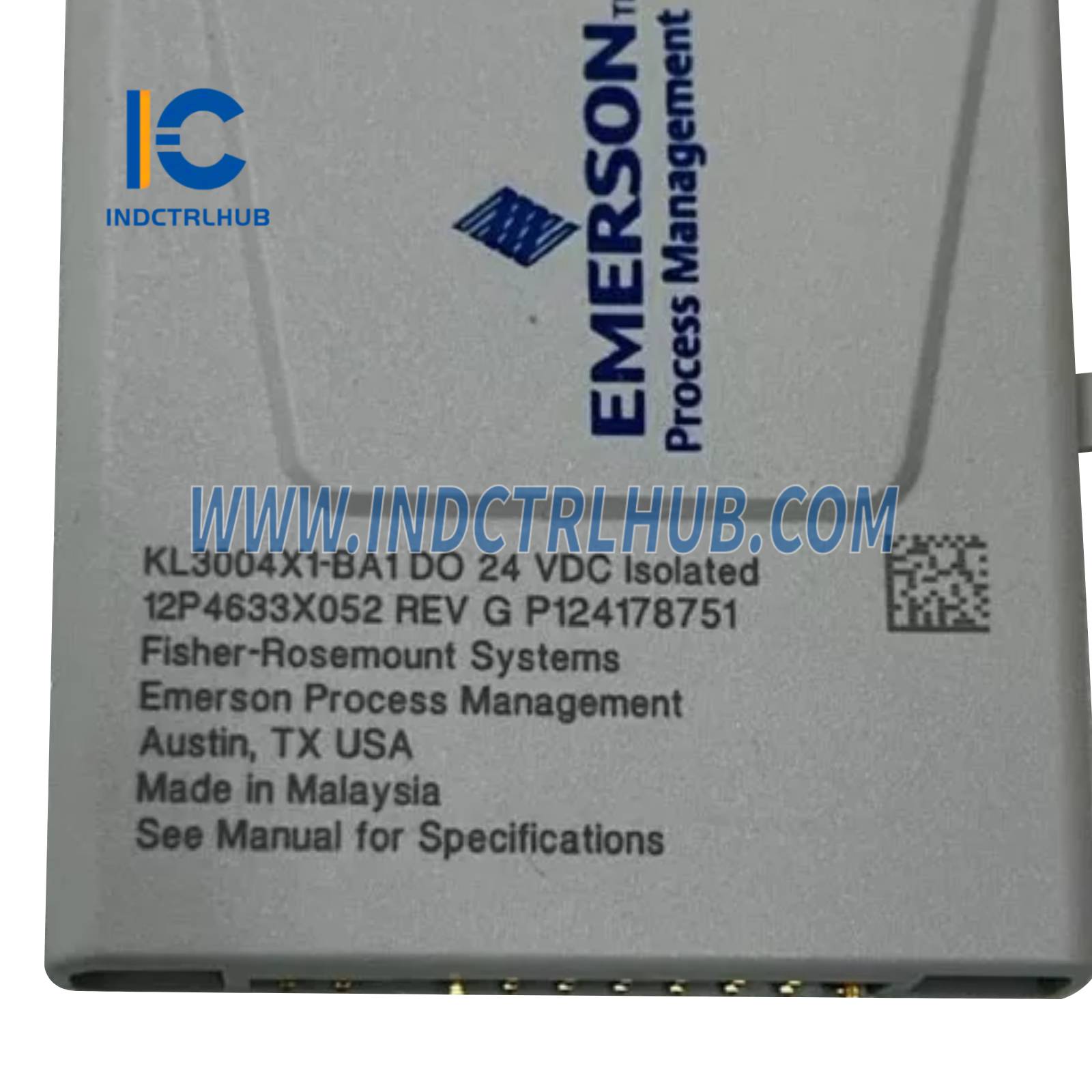

Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
SE4302T02 (KL3004X1-BA1) |
|
Series |
DeltaV S-series CHARM (CHARacterization Module) |
|
Description |
DO 24 VDC Isolated CHARM Module |
|
Application |
Provides 24 VDC digital outputs to control actuators, solenoids, or relays in industrial automation systems. |
⚙️
Technical Specifications
|
Specification |
Details |
|---|---|
|
Output Type |
Digital Output (Isolated) |
|
Output Voltage |
24 VDC |
|
Output Current |
Not specified (typical CHARM: up to 1 A per channel when used with proper terminal blocks) |
|
CHARM Bus Power |
6.3 VDC at 32 A (shared across baseplate) |
|
Field Circuit Power |
24 VDC at 10 mA |
|
Terminal Block Key Position |
5C |
🌡️
Environmental Specifications
|
Condition |
Value |
|---|---|
|
Operating Temperature |
-40°C to +70°C |
|
Shock |
10g, ½ sinewave for 11 ms |
|
Vibration |
1 mm peak-to-peak (2–13.2 Hz); 0.7g (13.2–150 Hz) |
|
Humidity |
5% to 95% RH (non-condensing) |
|
Airborne Contaminants |
ISA-S71.04 –1985 Class G3 (harsh industrial) |
|
Protection Rating |
IP20 (with CHARM baseplate) |
🧩
Integration & Mounting
-
Mounting: Installs on a DeltaV CHARM baseplate (e.g., SS3001 KL4103X1-BA1), DIN rail mountable.
-
CHARM I/O Card (CIOC) compatibility: Works with DeltaV CIOC (e.g., SE6504 KL2101X1-BB1).
-
DeltaV System Compatibility: DeltaV v11 or later.
-
Configuration: Via DeltaV Explorer/Control Studio; supports Electronic Marshalling for flexible I/O assignment.
-
Isolation: Galvanically isolated from the system and channel-to-channel (typically 250 V RMS).
