Product Description

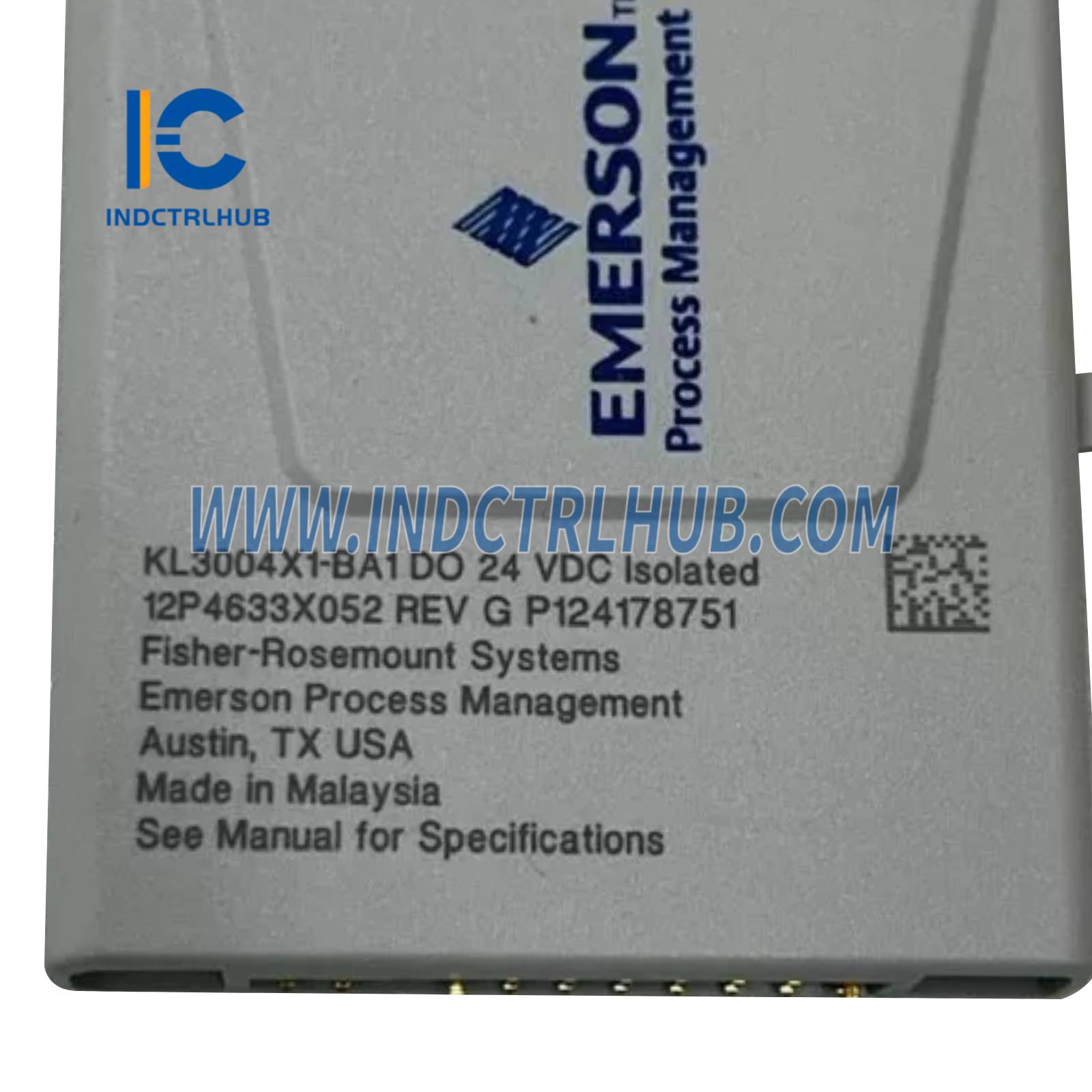

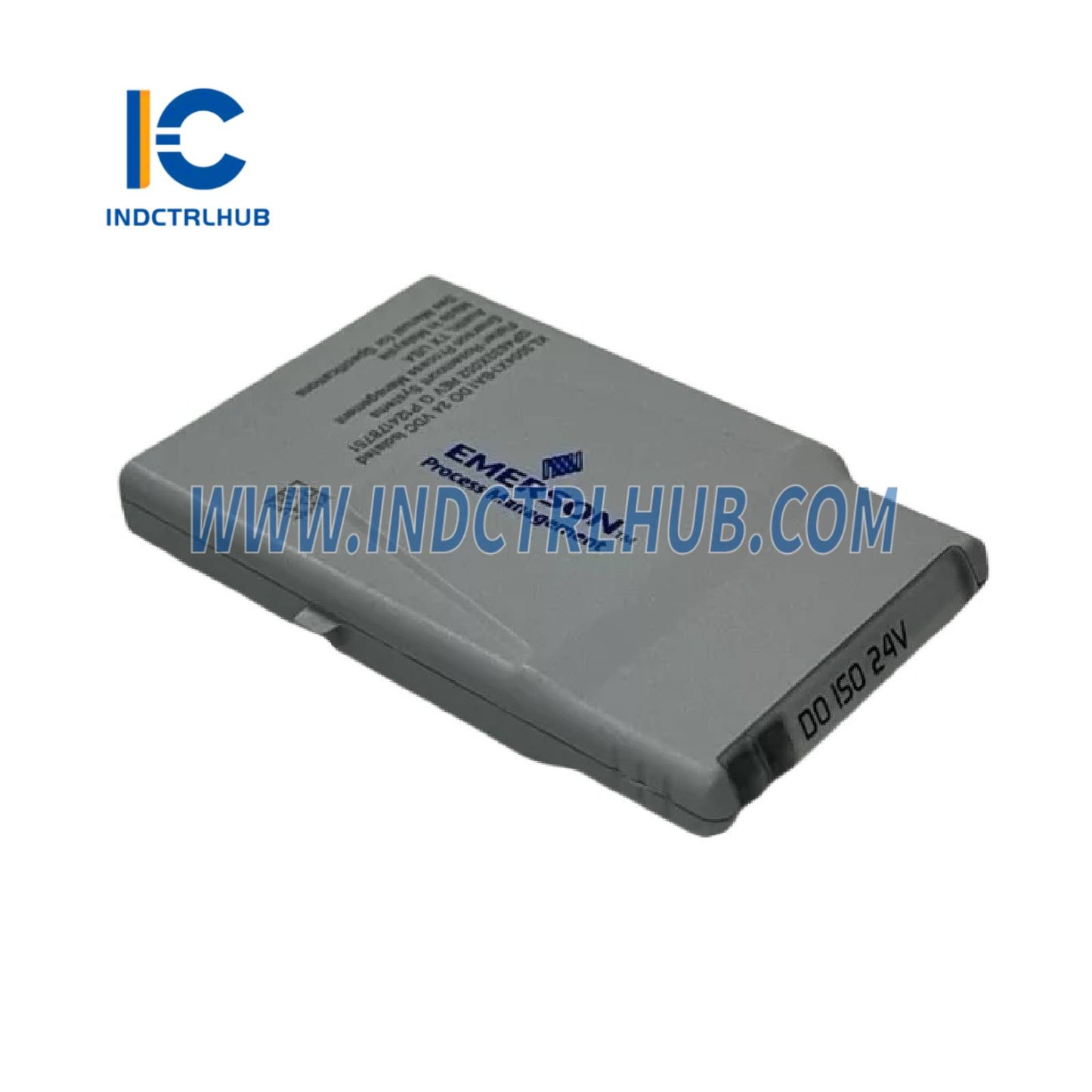

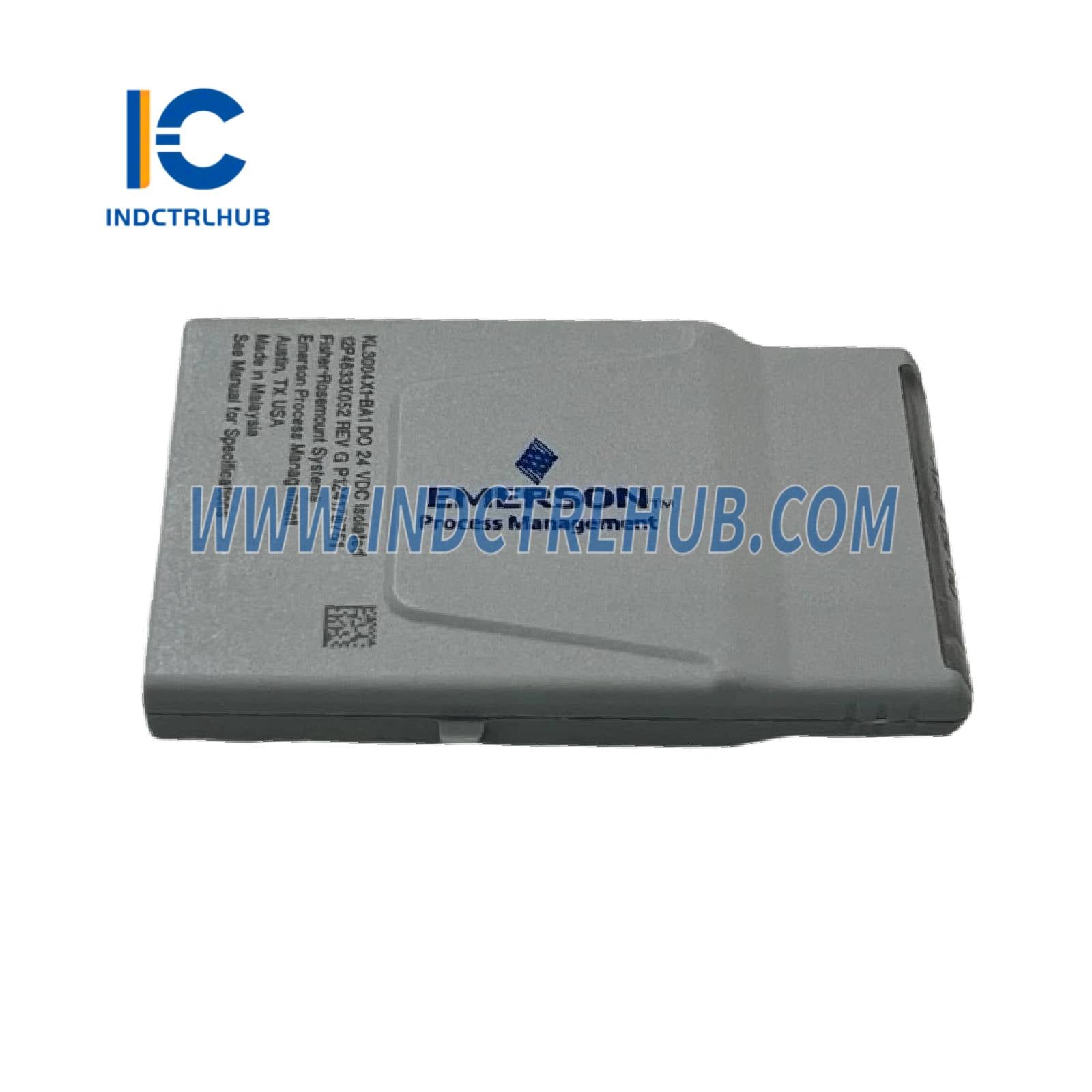

📘 Product Overview
| Field | Details |
|---|---|
| Manufacturer | Emerson (DeltaV S-series) |
| Model Number | SE4302T02 |
| Product Type | DO 24 V DC Isolated CHARM (Digital Output, Isolated) |
| System Compatibility | DeltaV Electronic Marshalling with CHARM I/O Card (CIOC/CIOC2) |
| Applications | Industrial process control, automation, distributed control systems |
| Features | Single channel granularity, plug-and-play, galvanic isolation, supports redundant architecture |
| Prerequisites | DeltaV v11.3.1 or later software; CIOC2 requires v14.3 or later |
⚡ Electrical Specifications
| Parameter | Specification |
|---|---|
| Device Type | 24 V DC Inductive Load |
| Output Type | Digital Output, Isolated (suitable for solenoid coils) |
| Output Range | 4 V DC to 32 V DC |
| Output Rating | 1.0 A continuous (2 A inrush for <100 ms) |
| Off-State Leakage Current | 1 mA maximum |
| Isolation | Galvanically isolated, factory tested to 1000 V DC |
| CHARM Power Requirement | 22 mA max @ 24 V DC |
| CHARM Heat Dissipation | 0.46 W |
| Field Circuit Protection | 4 A current-limiting circuit (short circuit) with thermal shutoff, automatic reset; field wiring disconnect; recommended external fuse at power source |
🔌 Functional Specifications
| Parameter | Specification |
|---|---|
| Channel Configuration | Single channel, individually configurable |
| Configurable Output Behavior | Momentary Output, Continuous Pulse Output |
| Load Compatibility | Resistive, inductive loads (e.g., solenoids, relays) with external diode for inductive loads |
| Update Rate | 50 ms updates to any four controllers in the system |
| Redundancy | Fully redundant communication from CHARM to controller (via CIOC) |
| Terminal Block | Compatible with SE4501 (Standard), SE4503 (Relay Output) |
| Wiring | Supports multi-core home run cables, no cross-wiring required |
| Diagnostics | Channel status, fault detection via DeltaV diagnostics |
🌡️ Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -40 to +70°C (typical for DeltaV S-series hardware) |
| Storage Temperature | -40 to +85°C (typical for DeltaV S-series hardware) |
| Humidity | 5% to 95% non-condensing (typical for DeltaV S-series) |
| Vibration | IEC 60068-2-6; 1 g, 10-500 Hz (typical for field-mounted hardware) |
| Shock | IEC 60068-2-27; 15 g, 11 ms (typical for field-mounted hardware) |
| IP Rating | IP20 (typical for DIN rail-mounted CHARMs) |

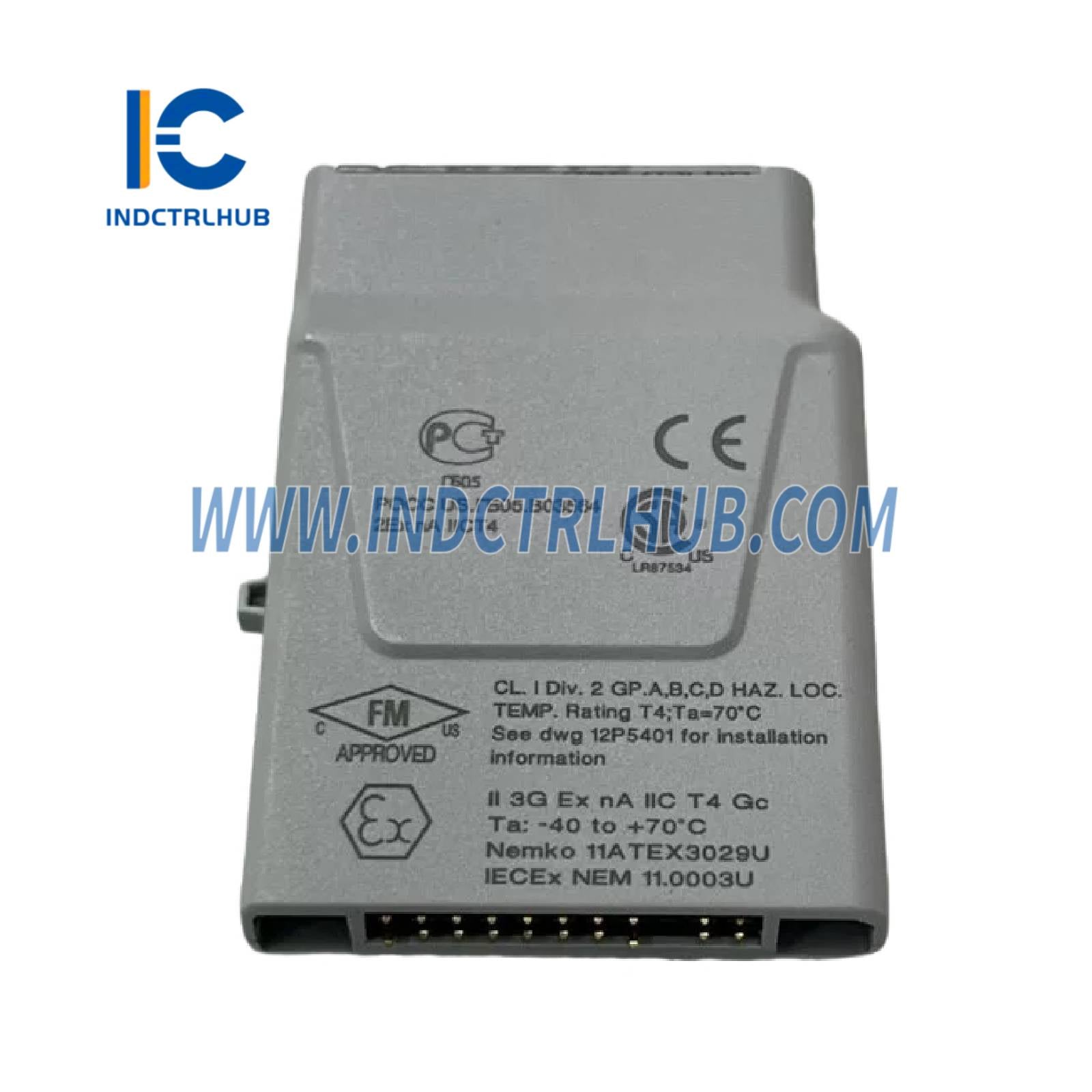

✅ Certifications and Compliances
| Standard | Details |
|---|---|
| Safety | UL 508, CSA C22.2 No. 107.1 (Industrial Control Equipment) |
| Hazardous Locations | Class I, Div 2; Class I, Zone 2; ATEX/IECEx (Ex ec nC IIC Gc) (typical for DeltaV S-series) |
| CE Compliance | Low Voltage Directive, IEC/EN 62368-1, IEC/EN 60950-1 |
| EMC | EN 61326-1 (Industrial Electromagnetic Compatibility) |
| Other | RoHS compliant; designed for use with DeltaV Smart Switches |
🛠️ Installation and Mounting
| Parameter | Details |
|---|---|
| Mounting | DIN rail via CHARM I/O Carrier (CIOC/CIOC2) |
| Installation | Snap-in installation, hot-swappable (no bent pins, push-button release) |
| Wiring | Landed on CHARM terminal blocks (SE4501/SE4503); no signal type pre-assignment required |
| Protection Cover | Optional CHARM Protection Cover (SE6103, package of 12) |
| Labeling | Channel Identifier Labels (SE4606T02, package of 8) |
📏 Physical Specifications
| Parameter | Specification |
|---|---|
| Dimensions (W x H x D) | 263 mm x 58 mm x 28 mm (10.35 in x 2.28 in x 1.10 in) |
| Weight | 0.43 kg (0.95 lb) |
