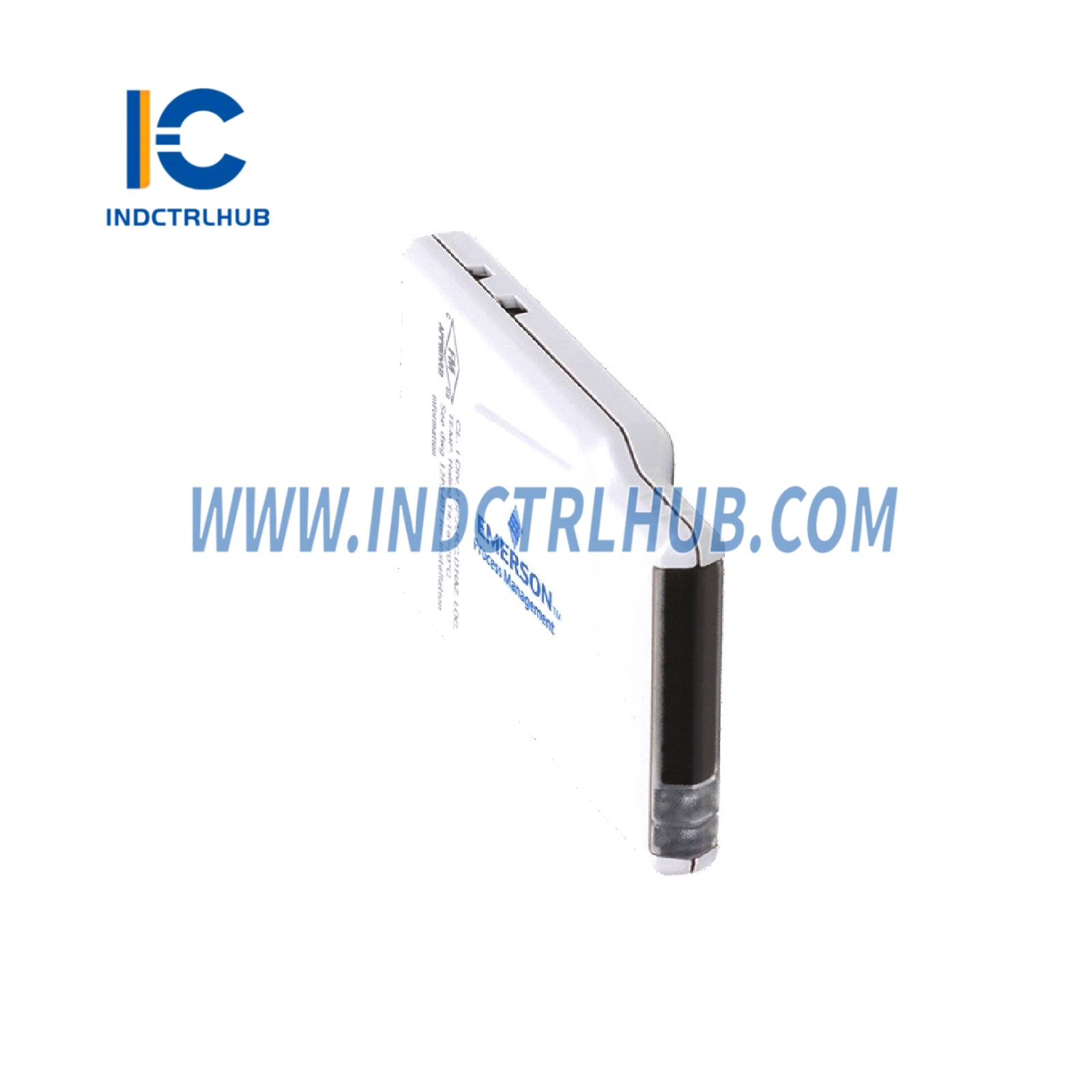

Product Description
📘 Product Overview
| Field | Details |
|---|---|
| Manufacturer | Emerson (DeltaV S-series) |
| Model Number | SE4302T01 |
| Product Type | DO 24 V DC High-Side CHARM (Digital Output, High-Side Switching) |
| System Compatibility | DeltaV Electronic Marshalling with CHARM I/O Card (CIOC/CIOC2) |
| Applications | Industrial process control, automation, distributed control systems |
| Features | Single channel granularity, plug-and-play, supports redundant architecture |
| Prerequisites | DeltaV v11.3.1 or later software; CIOC2 requires v14.3 or later |
⚡ Electrical Specifications
| Parameter | Specification |
|---|---|
| Output Type | Digital Output, 24 V DC High-Side (sourcing) |
| Nominal Voltage | 24 V DC |
| Output Current | Up to 500 mA per channel (typical for high-side DO CHARMs) |
| Power Consumption | Not explicitly specified; typically <1 W per CHARM (based on similar models like SE4301T01: 0.51 W) |
| Isolation | Galvanic isolation between field and system (specific values not provided) |
| Field Wiring | Requires Standard CHARM Terminal Block (SE4501) or Relay Output Terminal Block (SE4503) |
| Short Circuit Protection | Electronic protection, auto-recovery (typical for DeltaV DO CHARMs) |
| Diagnostics | Channel status, fault detection via DeltaV diagnostics |
🔌 Functional Specifications
| Parameter | Specification |
|---|---|
| Channel Configuration | Single channel, individually configurable |
| Switching Type | High-Side (connects load to positive supply) |
| Load Compatibility | Resistive, inductive loads (e.g., solenoids, relays) with external diode for inductive loads |
| Update Rate | 50 ms updates to any four controllers in the system |
| Redundancy | Fully redundant communication from CHARM to controller (via CIOC) |
| Terminal Block | Compatible with SE4501 (Standard), SE4503 (Relay Output) |
| Wiring | Supports multi-core home run cables, no cross-wiring required |
🌡️ Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -40 to +70°C (typical for DeltaV S-series hardware) |
| Storage Temperature | -40 to +85°C (typical for DeltaV S-series hardware) |
| Humidity | 5% to 95% non-condensing (typical for DeltaV S-series) |
| Vibration | IEC 60068-2-6; 1 g, 10-500 Hz (typical for field-mounted hardware) |
| Shock | IEC 60068-2-27; 15 g, 11 ms (typical for field-mounted hardware) |
| IP Rating | IP20 (typical for DIN rail-mounted CHARMs) |
✅ Certifications and Compliances
| Standard | Details |
|---|---|
| Safety | UL 508, CSA C22.2 No. 107.1 (Industrial Control Equipment) |
| Hazardous Locations | Class I, Div 2; Class I, Zone 2; ATEX/IECEx (Ex ec nC IIC Gc) (typical for DeltaV S-series) |
| CE Compliance | Low Voltage Directive, IEC/EN 62368-1, IEC/EN 60950-1 |
| EMC | EN 61326-1 (Industrial Electromagnetic Compatibility) |
| Other | RoHS compliant; designed for use with DeltaV Smart Switches |
🛠️ Installation and Mounting
| Parameter | Details |
|---|---|
| Mounting | DIN rail via CHARM I/O Carrier (CIOC/CIOC2) |
| Installation | Snap-in installation, hot-swappable (no bent pins, push-button release) |
| Wiring | Landed on CHARM terminal blocks (SE4501/SE4503); no signal type pre-assignment required |
| Protection Cover | Optional CHARM Protection Cover (SE6103, package of 12) |
| Labeling | Channel Identifier Labels (SE4606T02, package of 8) |
📏 Physical Specifications
| Parameter | Specification |
|---|---|
| Dimensions (W x H x D) | Approx. 15 mm x 100 mm x 70 mm (typical for CHARM modules) |
| Weight | Approx. 0.1 kg (typical for CHARM modules) |
