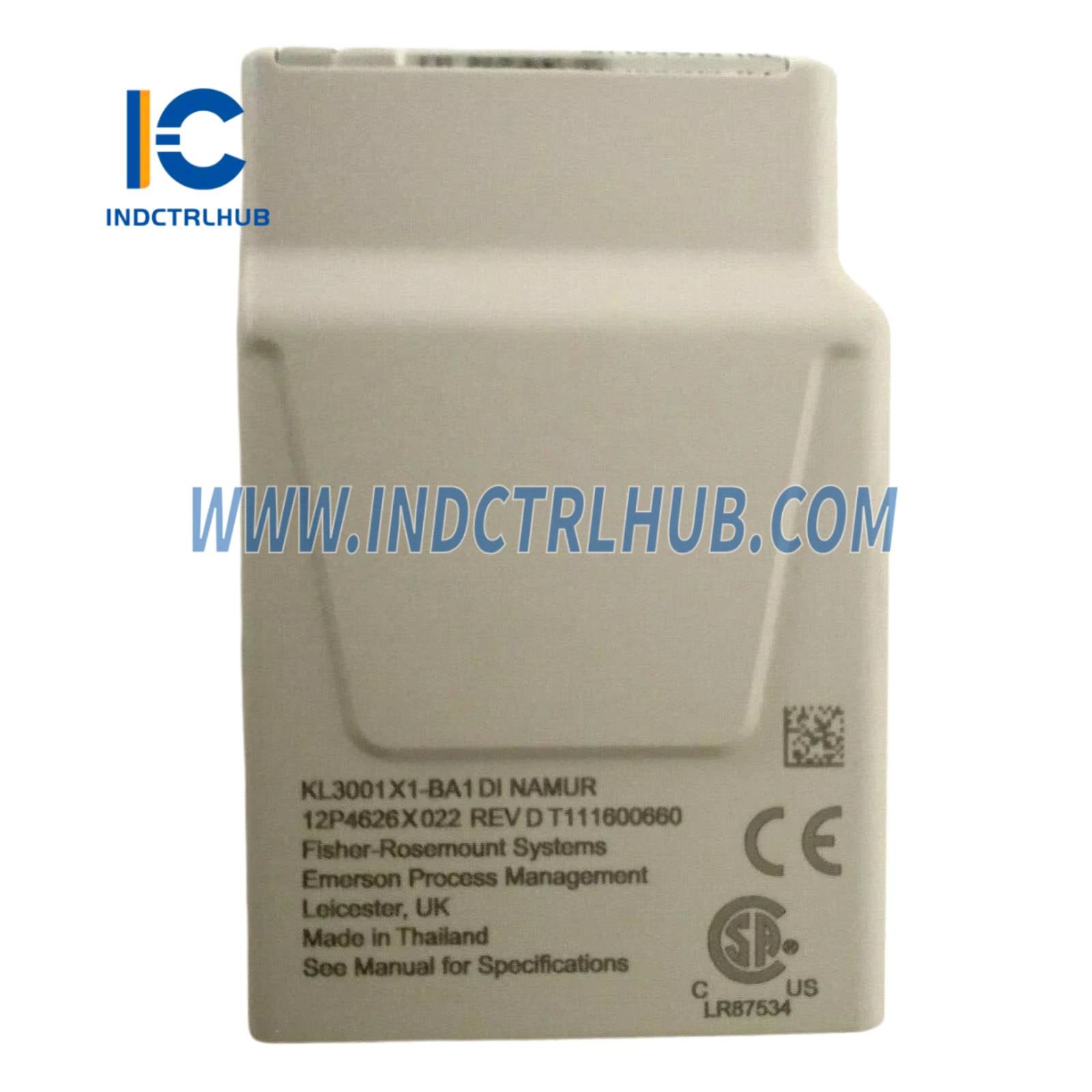

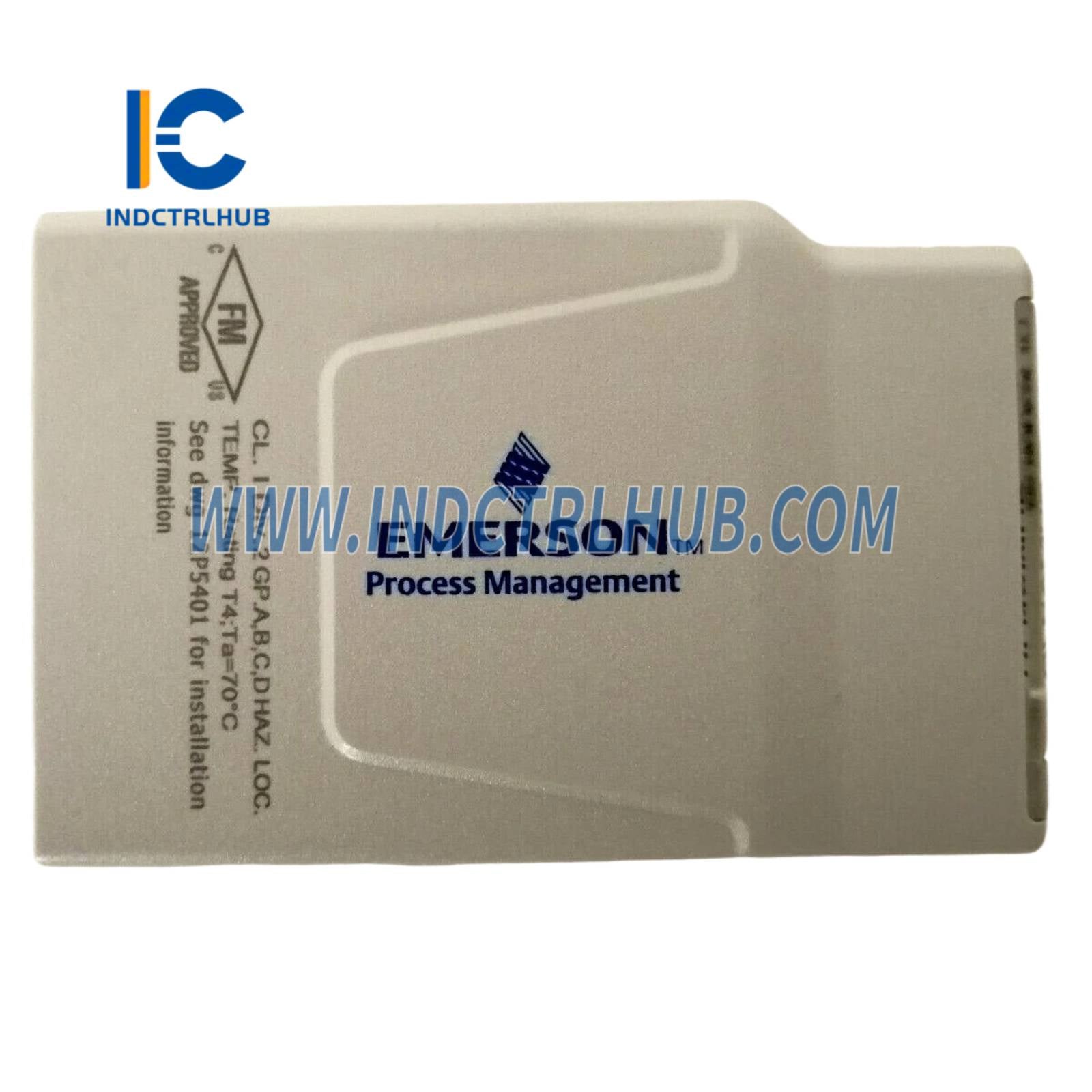

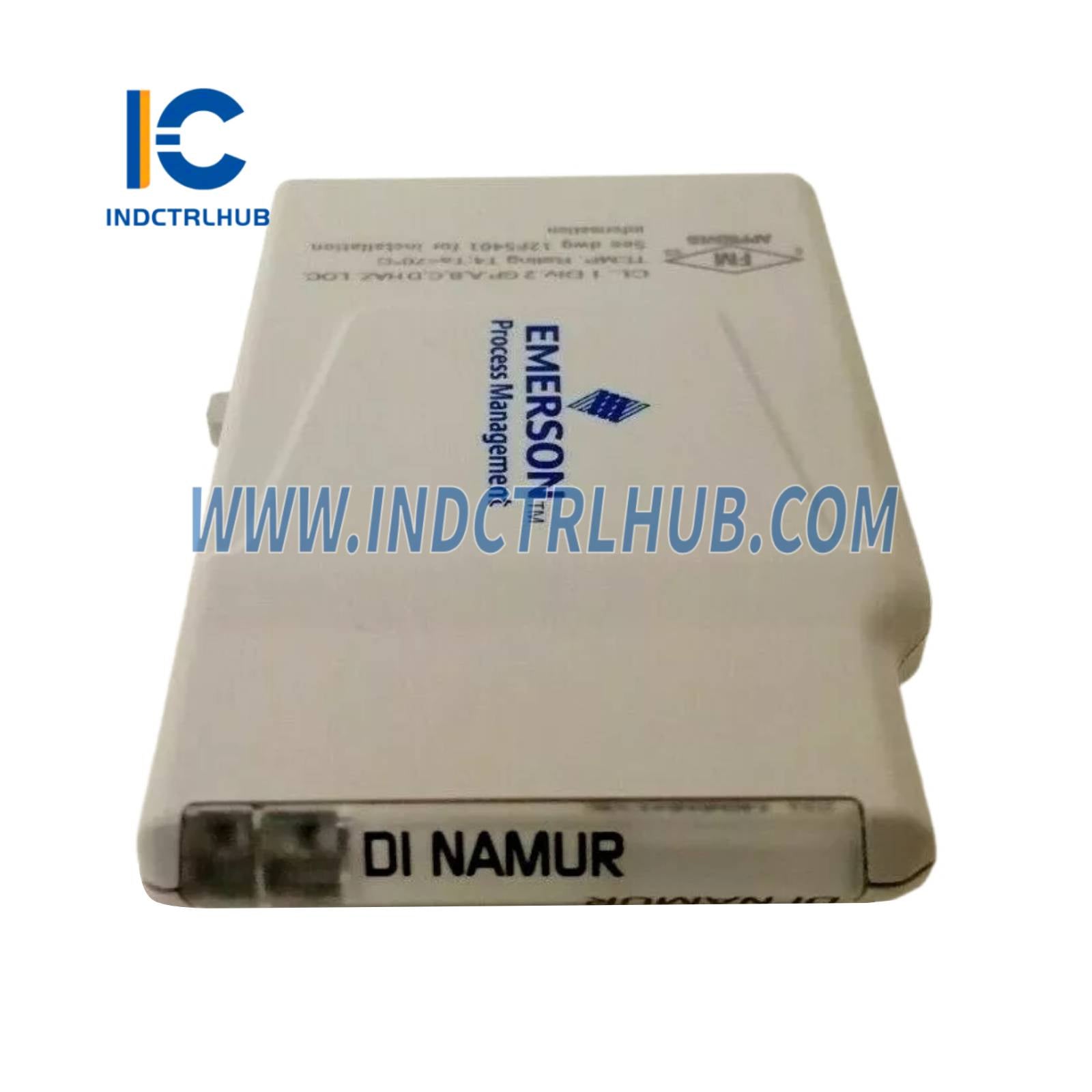

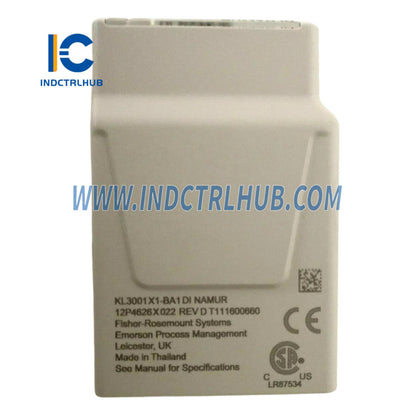

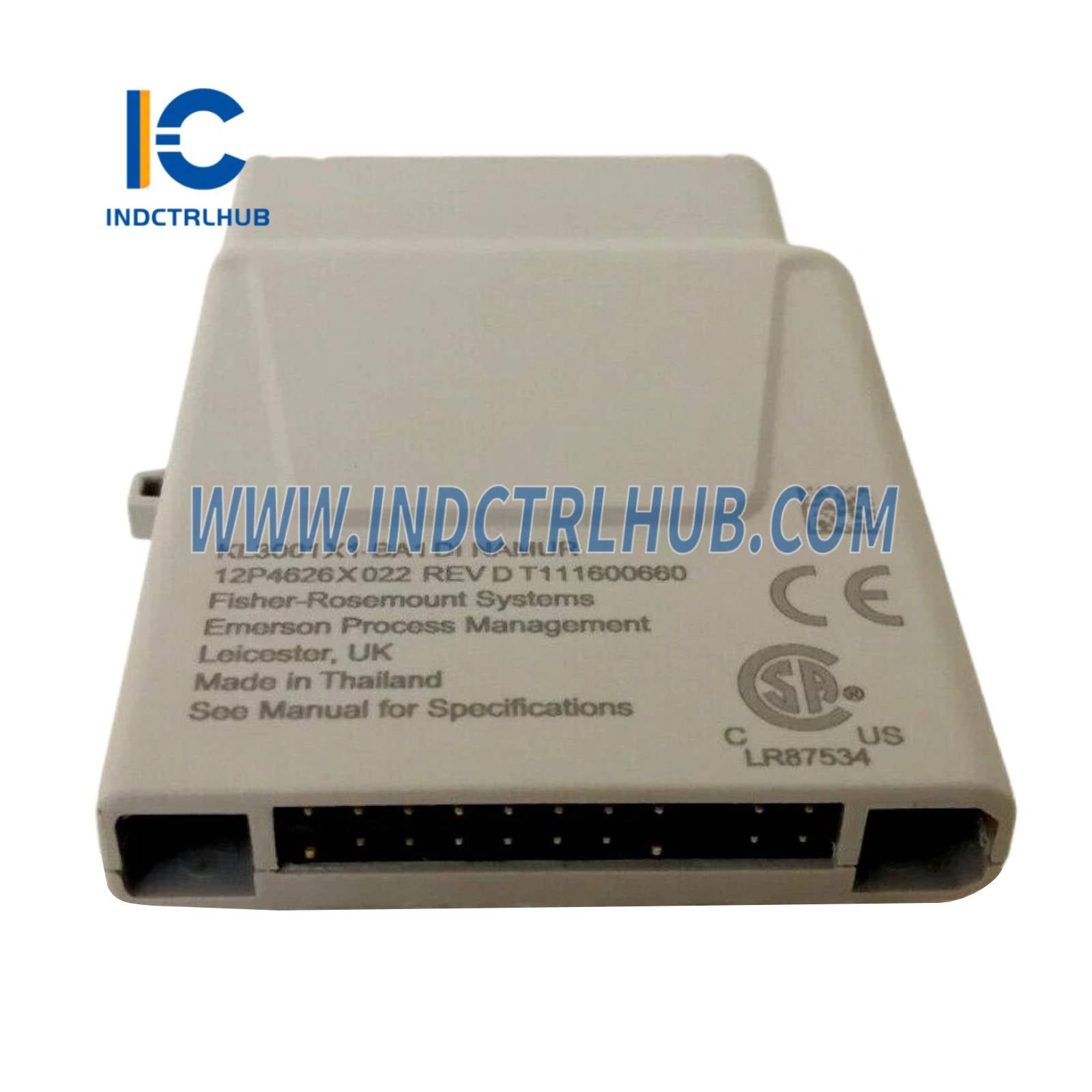

Emerson SE4301T01 KL3001X1-BA1 DI NAMUR CHARM
Emerson SE4301T01 KL3001X1-BA1 DI NAMUR CHARM
Manufacturer: Emerson
Product No.: KL3001X1-BA1
Condition:1000 in stock
Product Type: DI NAMUR CHARM _ Digital Input for NAMUR proximity sensors
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
___
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
SE4301T01 (KL3001X1-BA1) |
|
Series |
DeltaV S-series (CHARM) |
|
Description |
DI NAMUR CHARM _ Digital Input for NAMUR proximity sensors |
|
Application |
Captures signals from NAMUR-compliant proximity switches or sensors in process control applications. |
_
_
___
Technical Specifications
|
Specification |
Details |
|---|---|
|
Input Type |
NAMUR (DIN EN 60947-5-6 compliant) |
|
Input Signal |
Digital input from NAMUR sensors |
|
CHARM Bus Power |
+6.3 VDC at 32 mA |
|
Field Circuit Power |
+24 VDC at 16 mA |
|
Isolation |
Galvanically isolated (field to system) |
|
Terminal Block Key |
1C |
_
_
__ï¸
Environmental Specifications
|
Condition |
Value |
|---|---|
|
Operating Temperature |
-40°C to +70°C |
|
Shock |
10 g, half-sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (2_13.2 Hz); 0.7 g (13.2_150 Hz) |
|
Humidity |
5% to 95% RH (non-condensing) |
|
Airborne Contaminants |
ISA-S71.04 _1985 Class G3 |
|
Protection Rating |
IP20 (with CHARM baseplate installed) |
_
_
_§©
Integration & Compatibility
_
-
Mounting: On DeltaV CHARM baseplates (e.g., SS3001 KL4103X1-BA1)
-
System Integration: With CIOC (CHARM I/O Card, e.g., SE6504 KL2101X1-BB1)
-
Software Support: DeltaV v11 or higher
-
Configuration: Drag-and-drop via DeltaV Explorer or Control Studio
-
Channel Assignment: Flexible mapping to any controller
_
_
_
Additional Features
_
-
Specifically designed for_NAMUR sensors, ensuring accurate detection of low-level proximity switch signals.
-
Supports_Electronic Marshalling, enabling channel-level granularity and flexible I/O assignment.
-
Ideal for_hazardous locations, with full support for_Zone 2/Class I Div 2_environments.
-
Internal diagnostics for input status and module health.
-
Not designed for SIL-rated SIS use (see LS series CHARMs for those applications).
_
Let me know if you need wiring guidance for NAMUR sensors with this CHARM or help selecting a compatible terminal block (e.g., SE4501, SE4502)!
