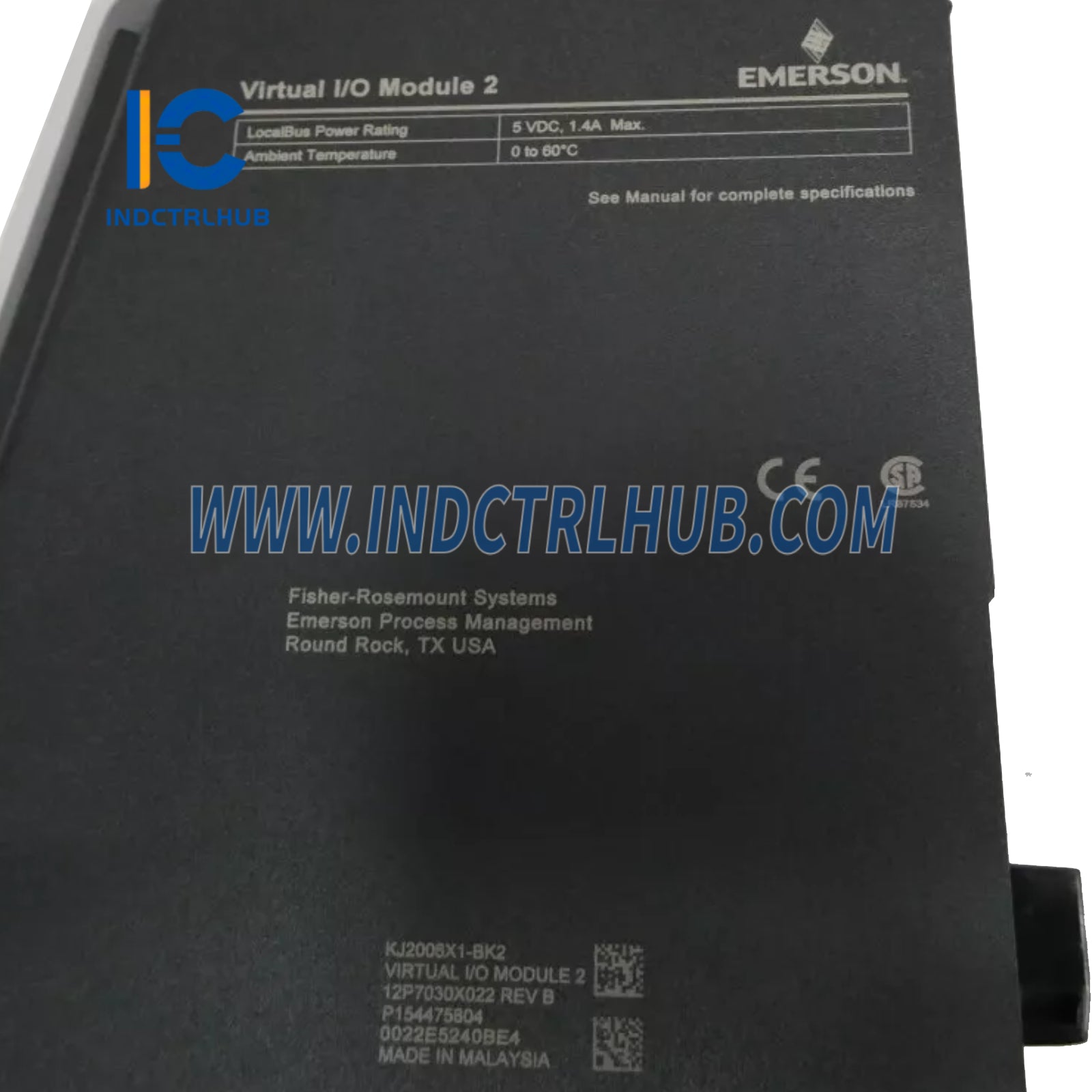

Product Description
📘 Product Overview
| Field | Details |
|---|---|
| Manufacturer | Emerson |
| Model Number | SE4026 |
| Product Type | S-series Virtual I/O Module 2 (VIM2) |
| Function | Non-intrusive DeltaV I/O simulation and Ethernet I/O device integration |
| Applications | Simulates DeltaV S-series I/O with Mimic software; integrates with Ethernet I/O networks (e.g., Modbus TCP, EtherNet/IP, PROFINET) |
| System Compatibility | DeltaV v11.3 and higher, S-series controllers (SX, SQ), PK Controller, DeltaV SIS |
| Mounting | Right slot of a 2-wide power/controller carrier |

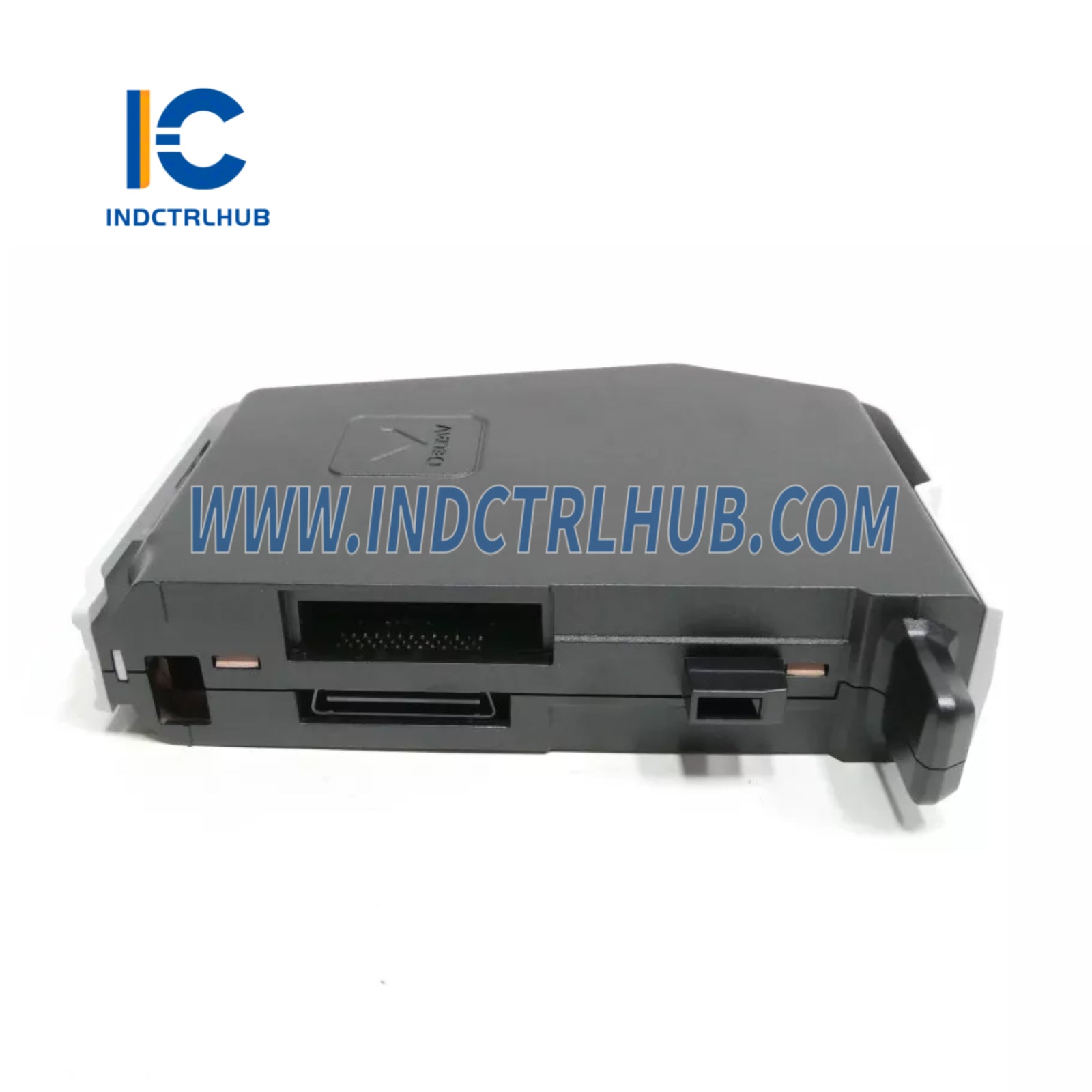

⚙️ Hardware Specifications

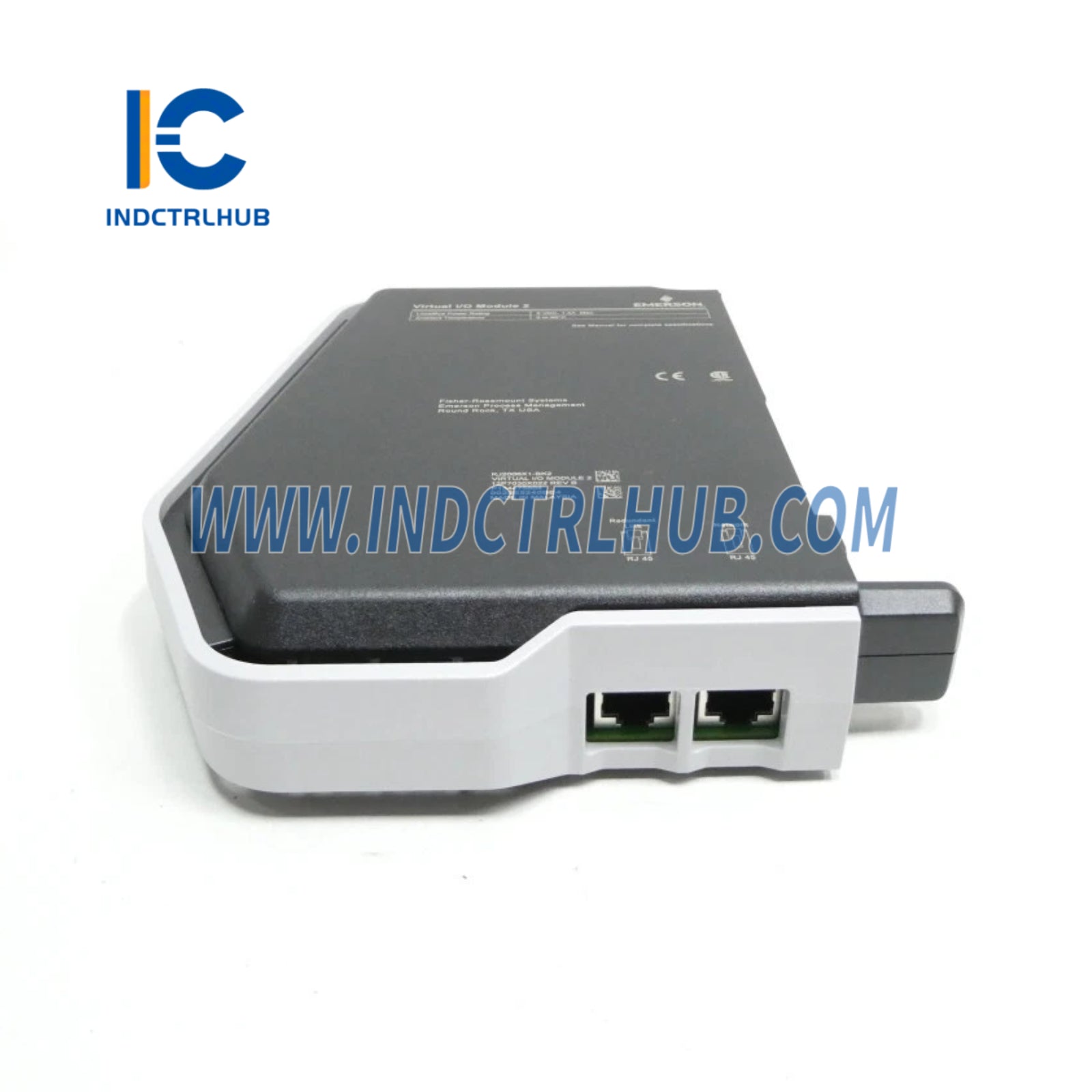

| Feature | Specification |
|---|---|
| Power Requirement | Supplied by System Power Supply through 2-wide Power/Controller Carrier |
| Maximum Current | 1.4 A at 5 V DC |
| Fuse Protection | 3.0 A, non-replaceable fuses |
| Power Dissipation | 5.0 W typical, 7.0 W maximum |
| User Memory | 48 MB |
| Mounting Location | Right slot of power/controller carrier |
| Dimensions | 4.2 cm W × 19.9 cm H × 16.2 cm D |
| External Connections | - Plant Ethernet Network: One 100BaseTX RJ-45 connector (redundant mode) - Plant Ethernet Network and Redundancy Link: One 100BaseTX RJ-45 connector (cable supplied with redundant modules) |

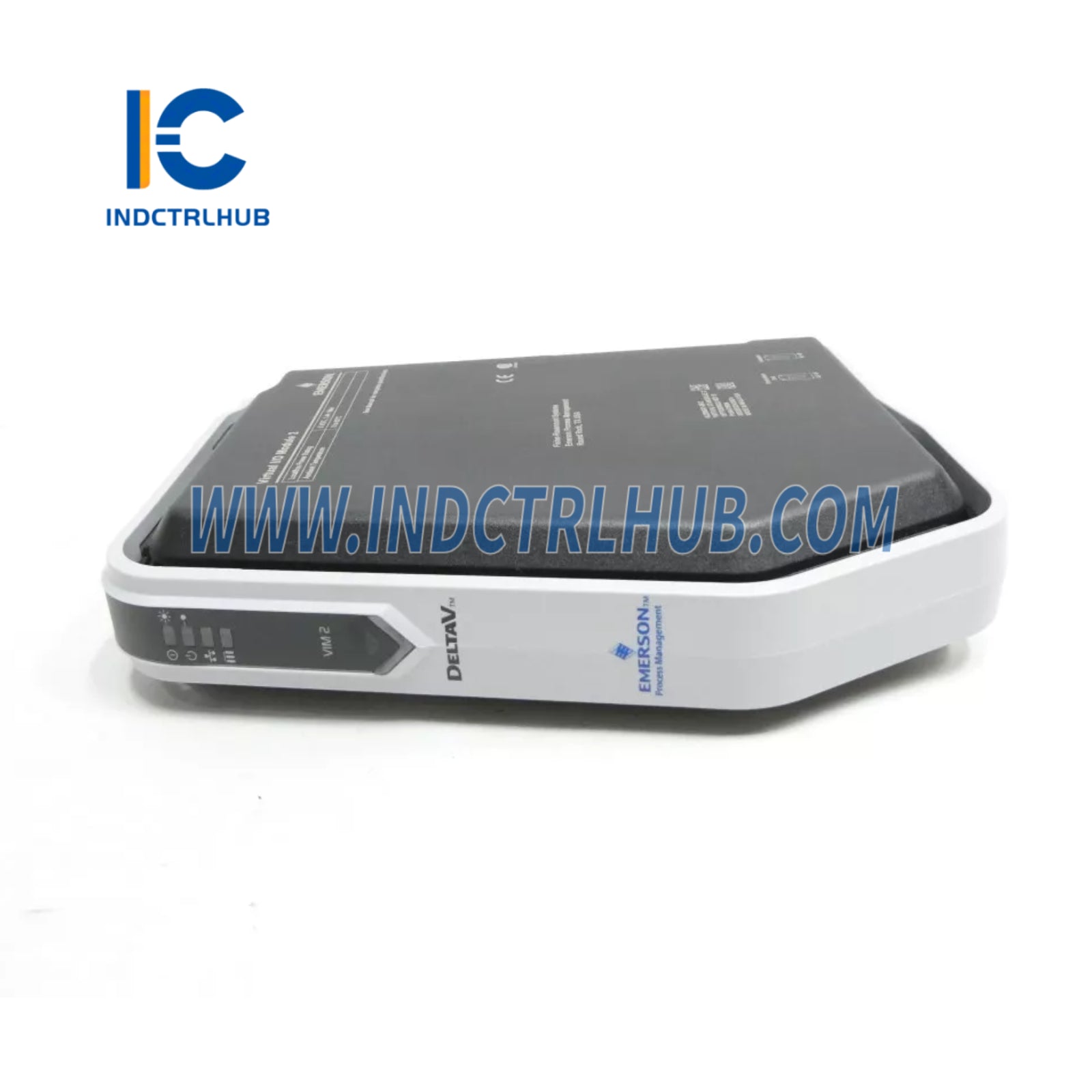

🔔 LED Indicators (Running Status)
| Indicator | Description |
|---|---|
| Green - Power | Indicates DC power is applied |
| Red - Error | Indicates an error condition |
| Green - Active | Indicates VIM2 is commissioned and active |
| Green - Standby | Indicates VIM2 is redundant and in standby mode |
| Yellow - Network | Solid indicates valid network communication status |
| Yellow - Ctrl IO | Indicates valid DeltaV I/O Bus communication status |
| All except Power flashing | Visual ID of controller initiated from user interface software by ping command |
🌐 Software Specifications
| Feature | Specification |
|---|---|
| Max VIM2 per Controller | 2 |
| Max Emulated DeltaV Cards | - Simplex: 4 simplex cards (slots 57–60 or 61–64) - Dual Simplex: 8 simplex cards (slots 57–64) - Redundant: 4 redundant pairs (slots 57–64) |
| Supported Protocols | Modbus TCP, EtherNet/IP, FMC722 Subsea, Rockwell PLC Scanner, PROFINET |
| Configuration Tool | VIMNet Explorer (plug-n-play, graphical drag-n-drop, integrated with DeltaV Explorer) |
| Driver Updates | Included with Mimic software releases for simulation; separate licenses for Ethernet I/O drivers |
| Firmware Upgrade | Flash upgrade via VIMNet Explorer to change or update driver types |
📡 Ethernet I/O Capacity
| Protocol | Number of Network Devices | Max I/O Data |
|---|---|---|
| Modbus TCP | - Simplex: 96 - Dual Simplex: 192 - Redundant: 32 |
128 datasets (simplex/redundant), 256 (dual simplex); each dataset up to 100 registers (50 for 32-bit/floating-point) |
| Rockwell PLC Scanner | - Simplex: 32 - Dual Simplex: 64 - Redundant: 16 |
128 datasets (simplex/redundant), 256 (dual simplex); each dataset up to 100 registers (50 for 32-bit/floating-point) |
| FMC722 Subsea | 5 Topside Processing Units (TPU) | 1150–6350 I/O points, depending on data type (AI, AO, DI, DO) |
| EtherNet/IP | - Simplex: 128 - Dual Simplex: 256 - Redundant: 128 |
- Programmable Serial: 32 datasets/card, up to 100 registers - DeviceNet: 3,843–15,555 signals/card, max 32,640 signals/VIM |
| PROFINET | - Simplex: 128 - Dual Simplex: 256 |
10,000 signals |
🔁 Redundancy Features
| Feature | Details |
|---|---|
| Configuration | Two VIM2s configured as a redundant pair (requires redundancy link cable) |
| Operation | Active and standby VIM2s monitor each other via status commands; standby sends intermittent signals to maintain communication integrity |
| Switchover | Automatic (protocol-specific rules) or manual via DeltaV; appears as standard I/O card switchover |
| Notification | Clear operator notification on switchover at the operator display |
| Licensing | Each VIM in a redundant pair requires a separate Ethernet I/O driver license |
🌡️ Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Relative Humidity | 5 to 95%, non-condensing |
| Airborne Contaminants | ISA-S71.04-1985 Class G3, conformal coating |
| Shock | 10 g ½-sine wave for 11 ms |
| Vibration | 1 mm peak-to-peak (5–16 Hz), 0.5 g (16–150 Hz) |
✅ Certifications
| Standard | Details |
|---|---|
| CE | EMC - EN 61326-1 |
| FM (USA) | FM 3600, FM 3611; Class I, Division 2, Groups A, B, C, D, T4 |
| cFM (Canada) | CSA C22.2 No. 213-M1987, CSA C22.2 No. 1010.1; Class I, Division 2, Groups A, B, C, D, T4 |
| ATEX | II 3G Ex ec IIC T4 Gc |
| IEC-Ex | II 3G Ex ec IIC T4 Gc |
| Marine | IACS E10, ABS Certificate of Design Assessment, DNV Marine Certificate |
| Installation Instructions | Class I Division 2: 12P5402 Zone 2: 12P5404 |
📦 Ordering Information
| Description | Model Number |
|---|---|
| S-series Virtual I/O Module 2 | SE4026 |
| Redundant S-series Virtual I/O Modules | SE4027 (Includes two VIM2s and one redundancy link cable) |
| Modbus TCP/IP Master Driver | IOD-4111 |
| EtherNet/IP Scanner Driver | IOD-4112 |
| FMC722 Ethernet Protocol Driver | IOD-4115 |
| ODVA EtherNet/IP Protocol Driver | IOD-4116 |
| PROFINET Protocol Driver | IOD-4117 |
📋 Licensing and Prerequisites
| Feature | Details |
|---|---|
| DeltaV Mimic Licensing | Licensed on Flexible Subscription Unit (FSU) basis (1, 3, or 5-year terms) |
| Ethernet I/O Licensing | Each operating VIM requires one driver license; redundant pair requires two licenses |
| Prerequisites | - One power/controller carrier per VIM2 - One dedicated system power supply per VIM2 - DeltaV Mimic and Railbus Driver for I/O simulation - Ethernet I/O driver for integration - DeltaV v11.3 or higher |
| Driver Compatibility | Existing S-series VIM drivers are incompatible; must be converted for VIM2 |
🔗 Supported Protocols and Functions
| Protocol | Functions |
|---|---|
| Modbus TCP | - Function Codes: 1 (Read Coil Status), 2 (Read Input Status), 3 (Read Holding Registers), 4 (Read Input Registers), 5 (Force Single Coil), 6 (Preset Single Register), 8 (Diagnostic Loop Back Test), 15 (Force Multiple Coils), 16 (Preset Multiple Registers) - Master/Slave mode (simplex only; redundant supports master mode) |
| EtherNet/IP | - I/O Scanner and Adapter (Transport Class 1) - Unconnected explicit (UCMM) and connected explicit (Transport Class 3) messaging - Emulates Programmable Serial or DeviceNet cards |
| FMC722 Subsea | Supports FMC Technologies Topside Processing Unit (TPU) via FMC722 (TPC) protocol |
| Rockwell PLC Scanner | - I/O Adapter (Transport Class 1) - Unconnected explicit (UCMM) messaging with Embedded DF1 (PCCC) - Emulates Programmable Serial cards |
| PROFINET | - I/O Controller with Real-Time (RT) messaging (PROFINET v2.2) - Emulates Profibus DP cards - Supports I/O data, alarms, diagnostics (no isochronous RT) |
🛠️ Installation and Configuration
| Feature | Details |
|---|---|
| Installation | Mounts on 2-wide horizontal carrier, left or right of DeltaV controller |
| Configuration | Via VIMNet Explorer; supports IP address, Subnet Mask, Gateway, and node address configuration |
| I/O Simulation | Simulates all DeltaV S-series I/O cards and digital buses (FOUNDATION Fieldbus, Profibus DP, DeviceNet, AS-i, Serial) with Mimic software |
| Ethernet I/O Integration | Appears as 4 or 8 DeltaV I/O cards; configured in DeltaV Explorer like Serial, DeviceNet, or Profibus cards |
| Network Requirements | VIMNet Explorer workstation requires connectivity to Ethernet I/O network (via third NIC or non-DeltaV workstation) |
📝 Additional Notes
- I/O Simulation: Requires DeltaV Mimic and Railbus Driver; supports up to 64 DeltaV I/O modules per controller for testing and training.
- Ethernet I/O Integration: Supports high-speed communication with devices like PLCs, motor control centers, and weigh scales.
- DST Licensing: Follows emulated card type rules (e.g., 1 DST per DeviceNet/Profibus device for up to 16 signals; additional signals count as DSTs).
- Limitations: Only one Ethernet I/O driver can be loaded at a time; PROFINET does not support isochronous real-time communication.
- Related Products: DeltaV Mimic, S-series I/O Subsystem Horizontal Carriers, PK/SX/SQ Controllers.
