Product Description

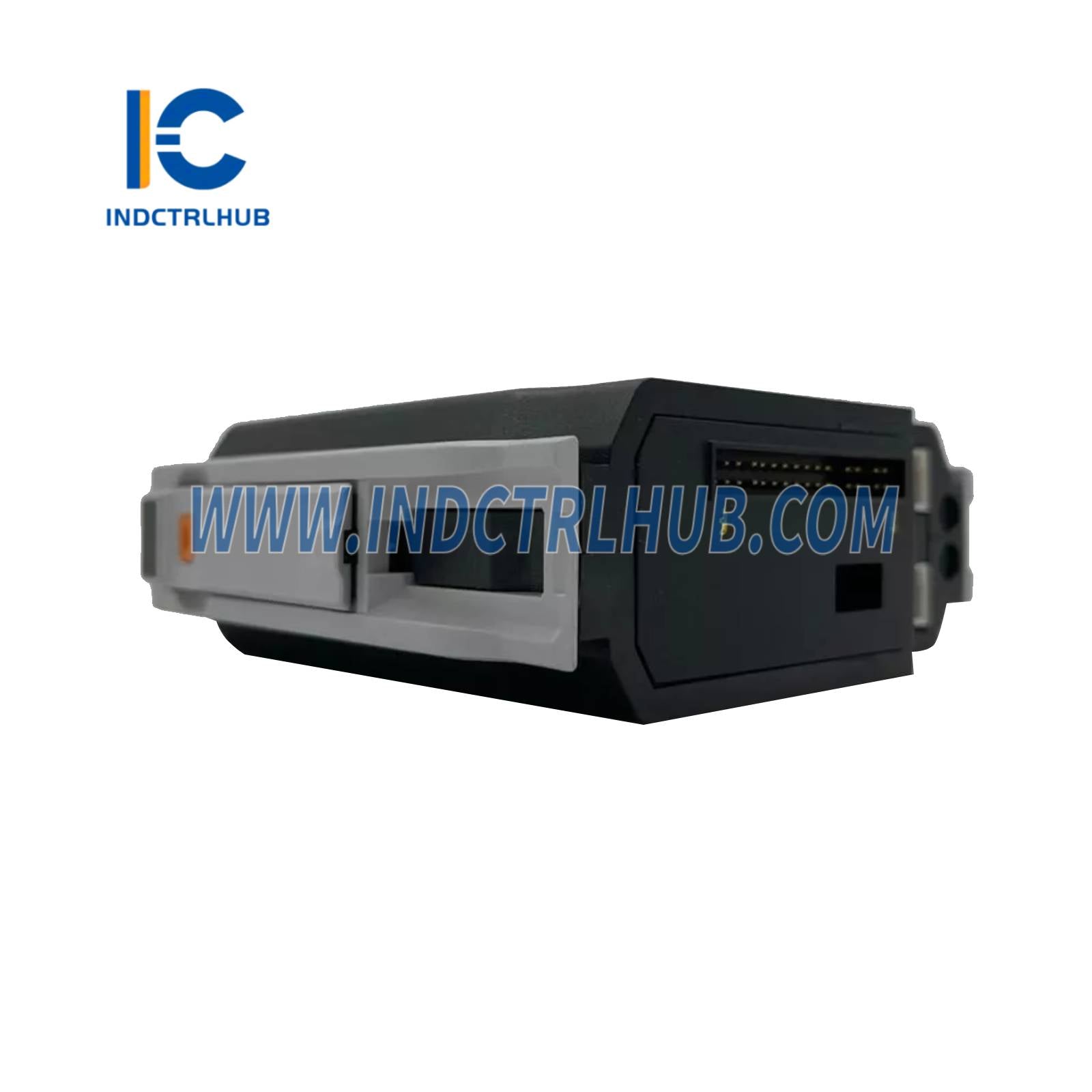

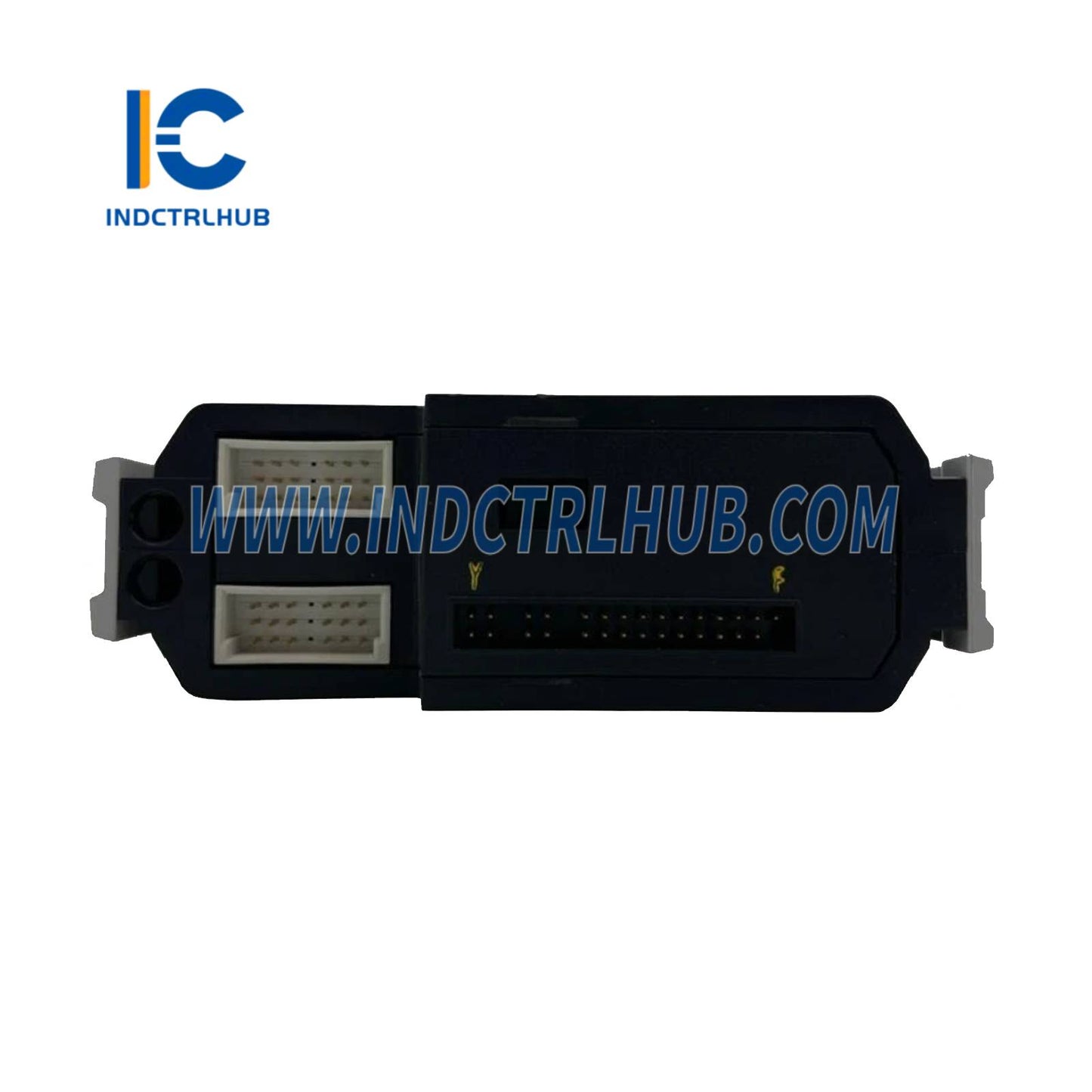

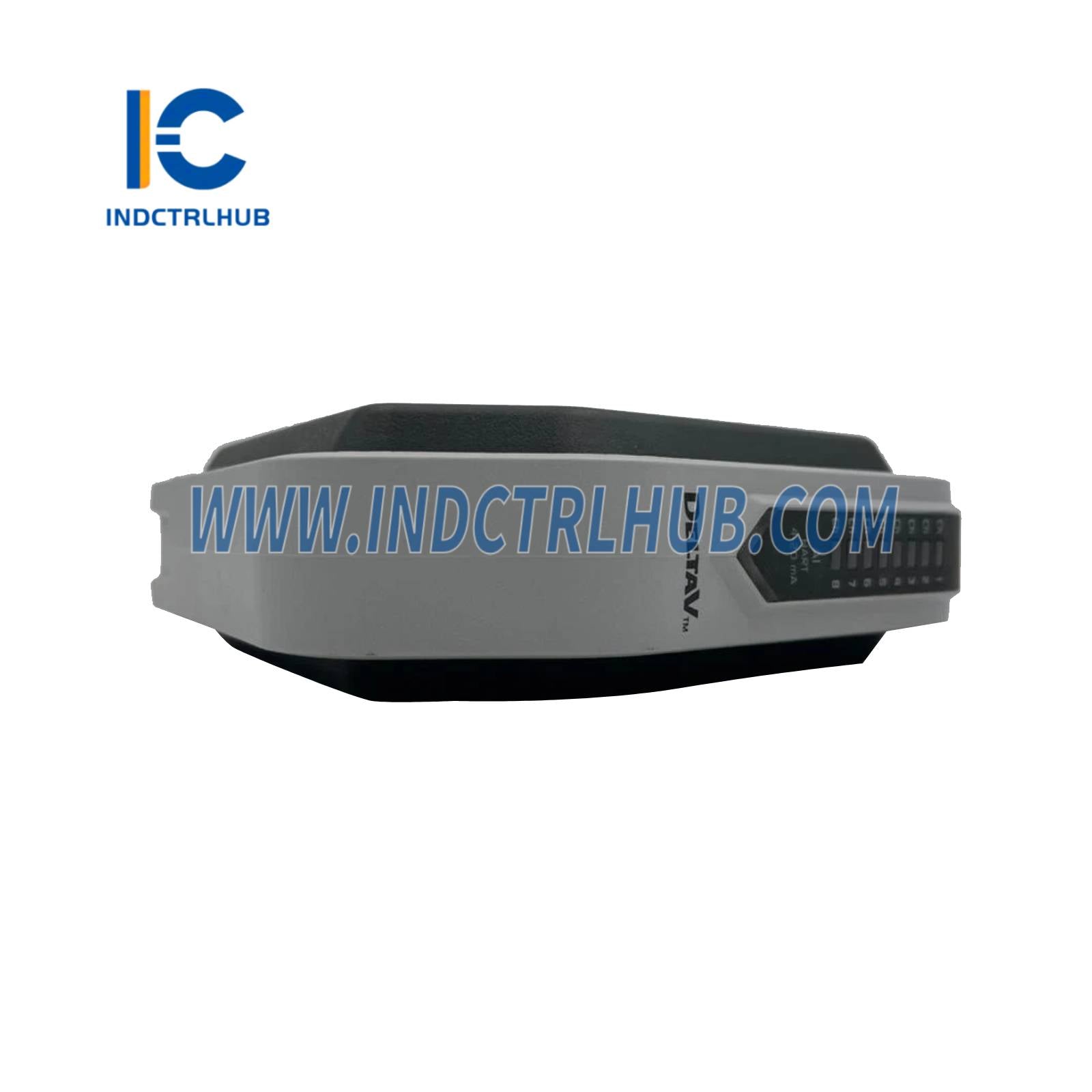

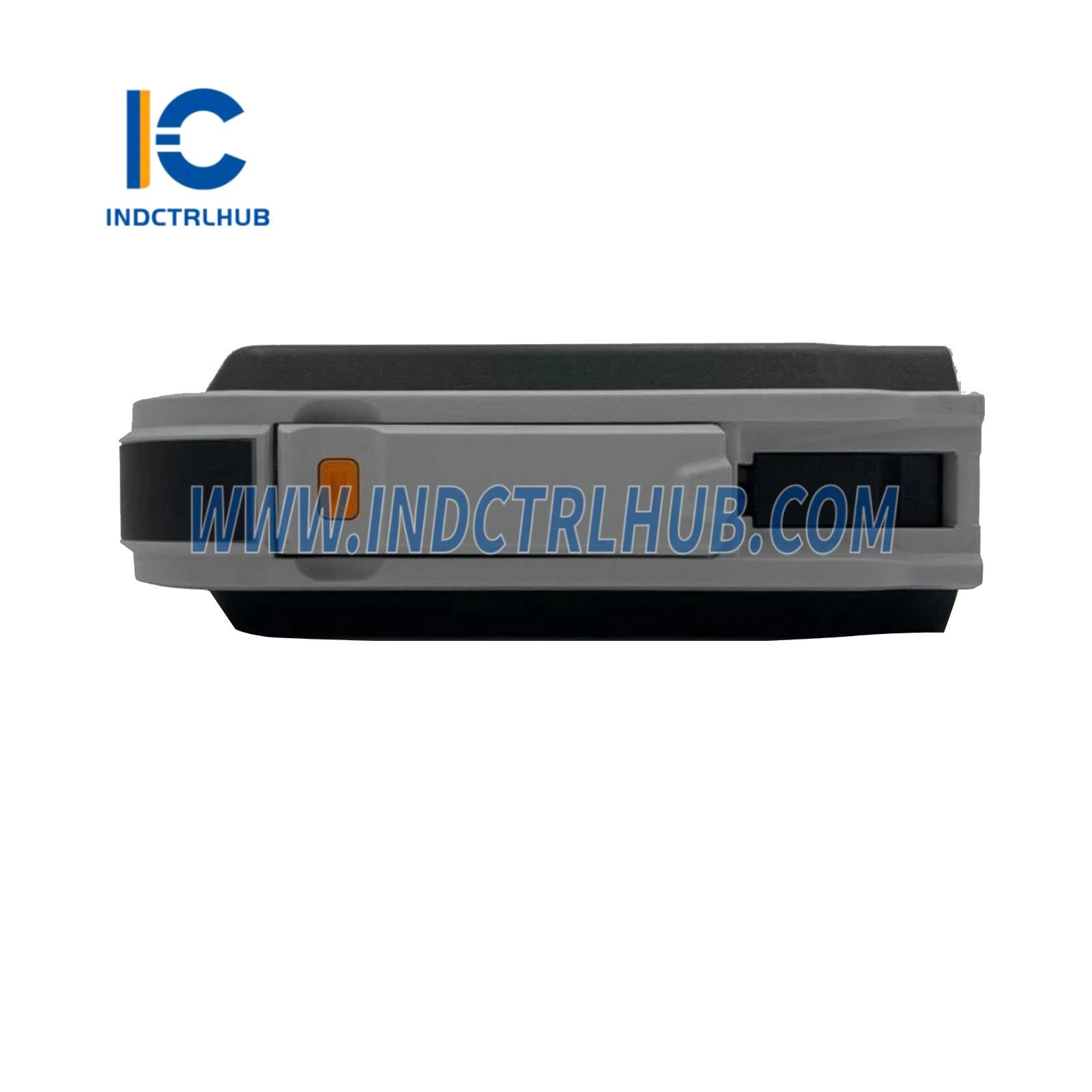

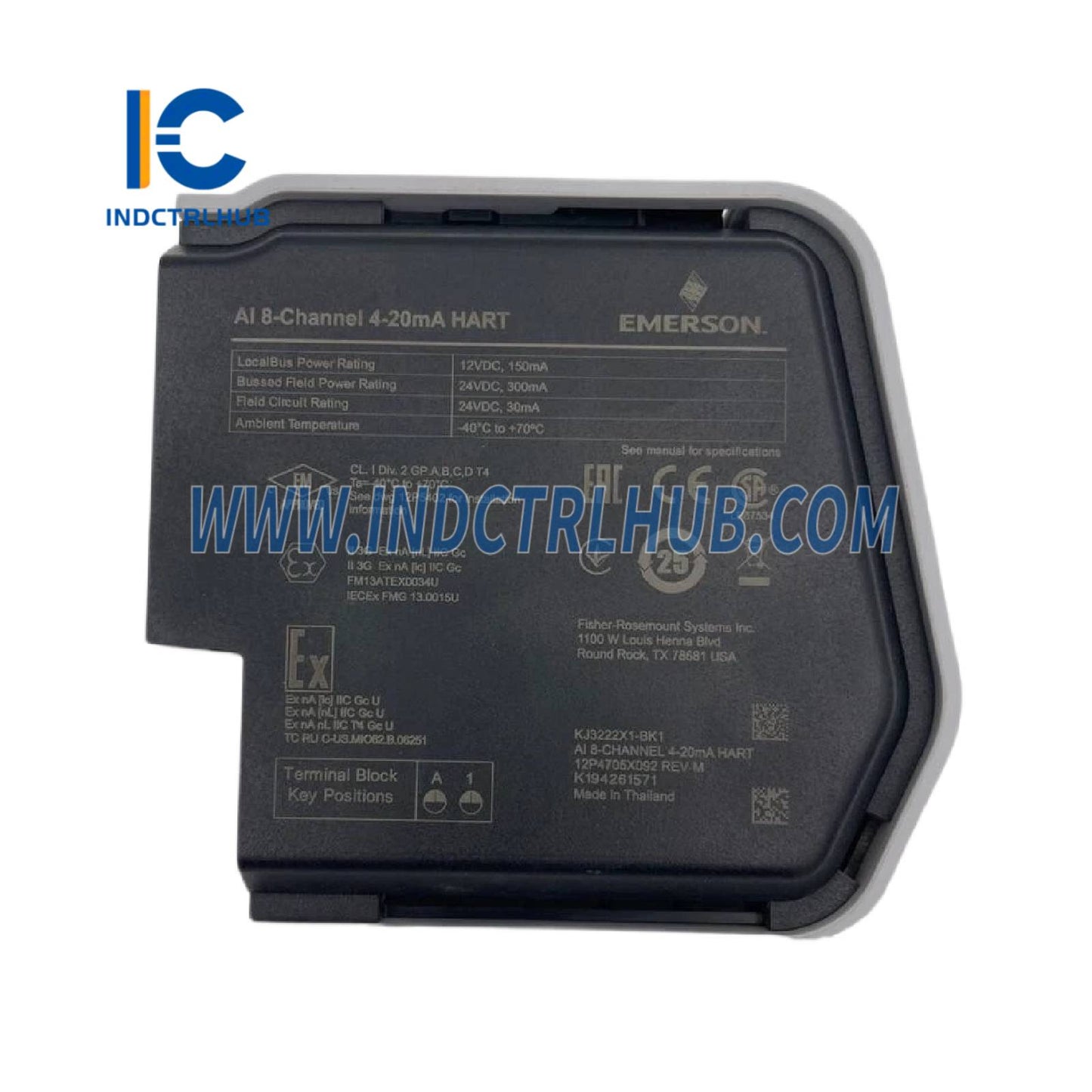

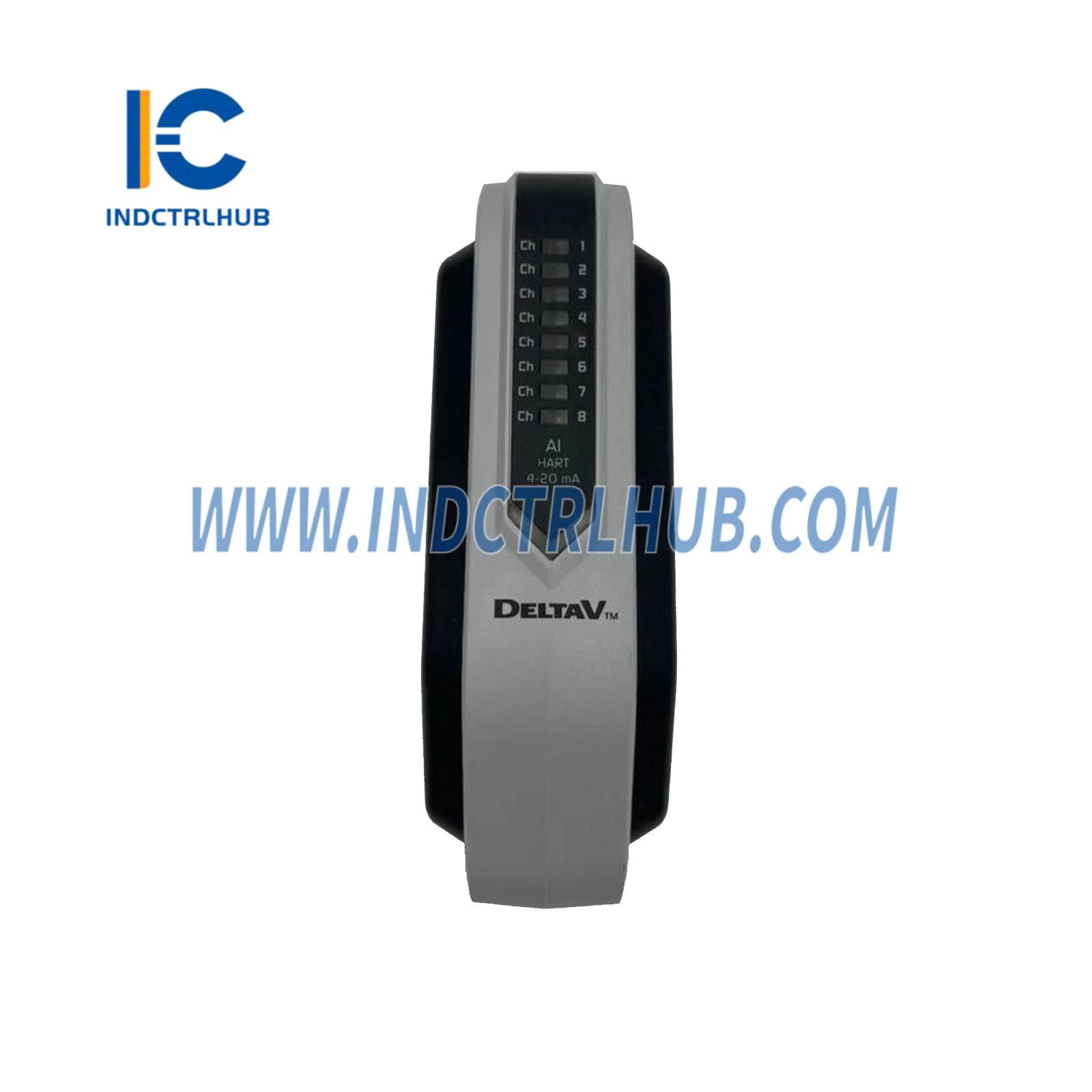

📘 Product Overview
| Field | Details |
|---|---|
| Manufacturer | Emerson |
| Model Number | SE4003S2B1 (includes KJ3222X1-BK1 and 8-channel Terminal Block) |
| Product Type | S-series Analog Input Card, 8-channel, 4-20 mA, HART |
| Function | Interfaces with 4-20 mA HART field devices for analog input to DeltaV system |
| System Compatibility | DeltaV S-series controllers (SX, SQ), DeltaV v11.3.1 and higher |
| Included Components | KJ3222X1-BK1 (Analog Input Card, 8-channel, 4-20 mA, HART), 8-channel Terminal Block |
⚙️ Hardware Specifications
| Feature | Specification |
|---|---|
| Number of Channels | 8 |
| Input Sensor Types | 4-20 mA (span), supports 2-wire and 4-wire devices |
| Full Signal Range | 1 to 22.5 mA, with over-range checking |
| Transmitter Power (2-wire) | 13.5 V minimum at 20 mA (current limited at 29 mA max) |
| LocalBus Power | 12 V DC nominal; Simplex: 120 mA typical, 150 mA max; Redundant: 175 mA typical, 250 mA max (per card) |
| Field Circuit Power | 300 mA maximum at 24 V DC (±10%) |
| Isolation | Each channel optically isolated from the system, factory tested to 1500 V DC |
| Optional Fuse | 2.0 A (Terminal block option) |
| Terminal Block Keying | A1 (for KJ3222X1-BK1); rotary keying system ensures compatibility |
🔌 Communication Specifications
| Feature | Specification |
|---|---|
| HART Communications | HART pass-through for AMS Device Manager; HART variable and status reporting for control functions |
| HART Scan Time | 600–800 ms (typical) per enabled channel |
| Accuracy Over Temperature | 0.1% of span |
| Repeatability | 0.05% of span |
| Resolution | 16-bit A/D converter |
| Roll-off Frequency (Anti-aliasing) | -3 dB at 2.7 Hz, -20.5 dB at ½ the sampling frequency |
| Calibration | None required |
🔁 Redundancy Features
| Feature | Details |
|---|---|
| Redundancy Option | Available as redundant pair (model SE4033S2B1, includes 2 cards and redundant terminal block) |
| Redundancy Setup | Autosensed by DeltaV system; install on redundant terminal block (Redundant AI 8-channel Terminal Block) |
| Switchover Triggers | Hardware failure, communication failure, field wiring fault, manual switch via Diagnostics Explorer |
| Switchover Time | Within two scans of the I/O bus; make-before-break contacts ensure process continuity |
| Standby Operation | Standby card scanned by controller; health and status reported via Diagnostics Explorer |
| Notification | Hardware alerts report integrity errors; switchover events logged in Event Chronicle |
| Replacement | Auto-commissioned standby card; replaceable under power in safe areas, follow hazardous area procedures |
🌡️ Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -40 to 70 °C (-40 to 158 °F) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Relative Humidity | 5 to 95%, non-condensing |
| Airborne Contaminants | ISA-S71.04-1985 Class G3, conformal coating |
| Protection Rating | IP20 |
| Shock | 10 g ½-sine wave for 11 ms |
| Vibration | 1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
✅ Certifications
| Standard | Details |
|---|---|
| CE | EMC - EN 61326-1 |
| FM (USA) | Class I, Division 2, Groups A, B, C, D, T4; FM17US0286U |
| cFM (Canada) | Class I, Division 2, Groups A, B, C, D, T4; FM17CA0145U |
| ATEX | II 3G Ex nA [nL] IIC Gc; II 3G Ex ec [ic] IIC Gc; FM19ATEX0173U |
| IEC-Ex | II 3G Ex ec IIC Gc; IECEx FMG 19.0019U |
| UKEX | FM21UKEX0017U |
| Marine | IACS E10, ABS Certificate of Design Assessment, DNV Marine Certificate |
| Installation Instructions | Class I Division 2: 12P5402; Zone 2: 12P5404 |
🛠️ Installation and Configuration
| Feature | Details |
|---|---|
| Installation | Plugs into any slot on 8-wide I/O carrier; snaps onto T-DIN rail |
| Removal/Insertion | Cannot be removed/inserted with system power energized; field power must be removed; non-sparking field circuits must be de-energized |
| Configuration | Auto-sensed by DeltaV controller; configured via DeltaV Explorer |
| Terminal Block Compatibility | AI 8-channel Terminal Block, Redundant AI 8-channel Terminal Block, Fused 8-channel Terminal Block, 8-channel Terminal Block, 16-pin Mass Terminal Block (2-wire), 24-pin Mass Terminal Block (4-wire) |
| Maintenance | No user-serviceable parts; no calibration required |
📦 Ordering Information
| Description | Model Number |
|---|---|
| Analog Input, 8-channel, 4-20 mA, HART | SE4003S2B1 (AI Card with 8-channel Terminal Block) |
| AI Card with Fused 8-channel Terminal Block | SE4003S2B2 |
| AI Card with 16-pin Mass Terminal Block | SE4003S2B4 |
| AI Card with 24-pin Mass Terminal Block | SE4003S2B5 |
| Redundant Analog Input, 8-channel, 4-20 mA, HART | SE4033S2B1 (2 AI Cards with Redundant AI 8-channel Terminal Block) |
| Spare Fuse (250V 2A) | KJ4010X1-BC1 (Box of 20) |
📝 Additional Notes
- HART Support: Enables HART pass-through for device management and variable/status reporting for control.
- Wiring: Terminal block allows removal of I/O card without disconnecting field wiring; supports 2- and 4-wire devices.
- Redundancy: Redundant configuration (SE4033S2B1) uses two cards on a redundant terminal block; no special configuration needed.
- Mass Terminal Blocks: Compatible with S-series Mass Connection Solutions or third-party solutions (e.g., Pepperl+Fuchs HIC IS barriers).
- Hazardous Area Operation: Follow installation instructions for Class I Division 2 (12P5402) and Zone 2 (12P5404).
- System Integration: Supports control module-level time stamping; integrates with DeltaV DCS for alarms and events.
