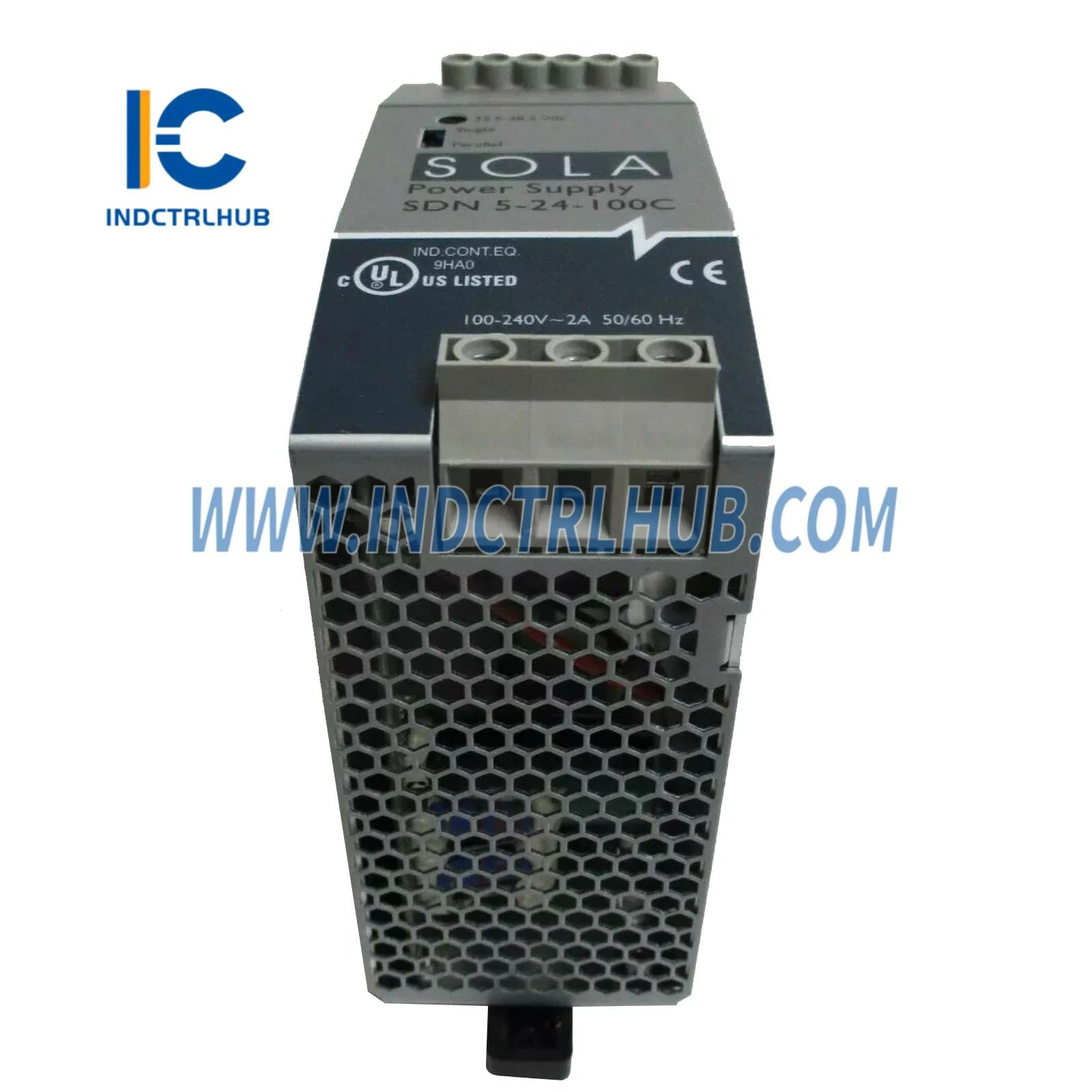

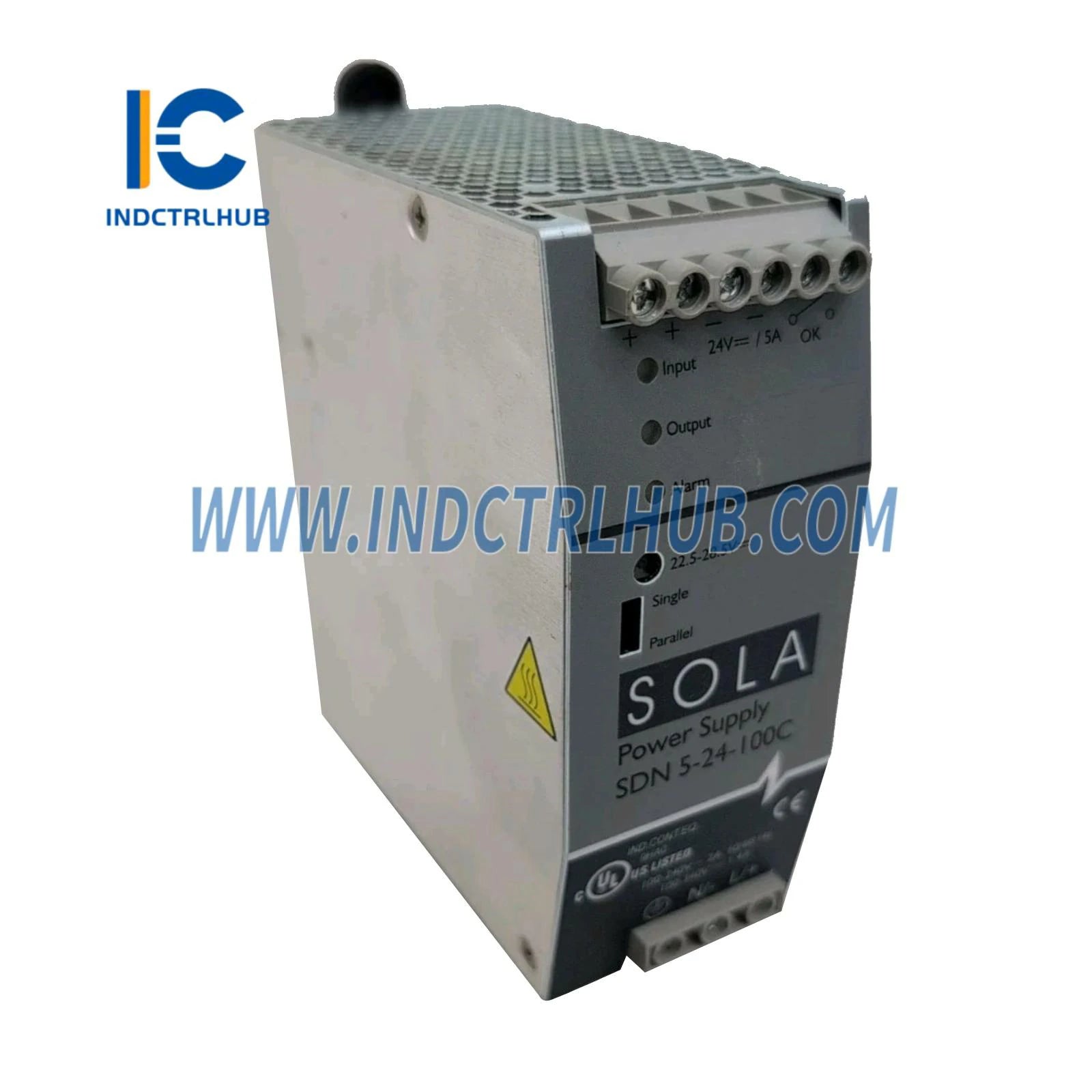

Emerson SDN5-24-100C 24V 5A DIN Rail Power Supply
Emerson SDN5-24-100C 24V 5A DIN Rail Power Supply
Manufacturer: Emerson
Product No.: SDN5-24-100C
Condition:1000 in stock
Product Type: Industrial Power Supply
Product Origin: 8961708523779
Payment: T/T, Western Union
Weight: 550g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Emerson SDN5-24-100C 24V DIN Rail Power Supply - Industrial-Grade Reliability with PowerBoost Technology
The Emerson SDN5-24-100C represents SolaHD's advanced single-phase DIN rail power supply solution, engineered to deliver unwavering 24VDC power in demanding industrial automation environments. With 120W output capacity, PowerBoost current limiting, and universal AC/DC input acceptance, this compact unit provides the foundation for reliable PLC, sensor, and control system operation across process industries, manufacturing facilities, and hazardous location installations.
Core Power Specifications
- Output Voltage: 24VDC nominal (23.5-28.5VDC adjustable)
- Output Current: 5A continuous at +60°C ambient
- Rated Power: 120W with convection cooling
- Input Voltage Range: 85-264VAC or 90-375VDC universal input
- Efficiency: >88% typical (14W losses at full load)
- Power Factor Correction: Active PFC for reduced harmonic distortion
- Output Regulation: <±2% overall tolerance (line, load, temperature)
- Ripple & Noise: <100mVpp for clean DC output

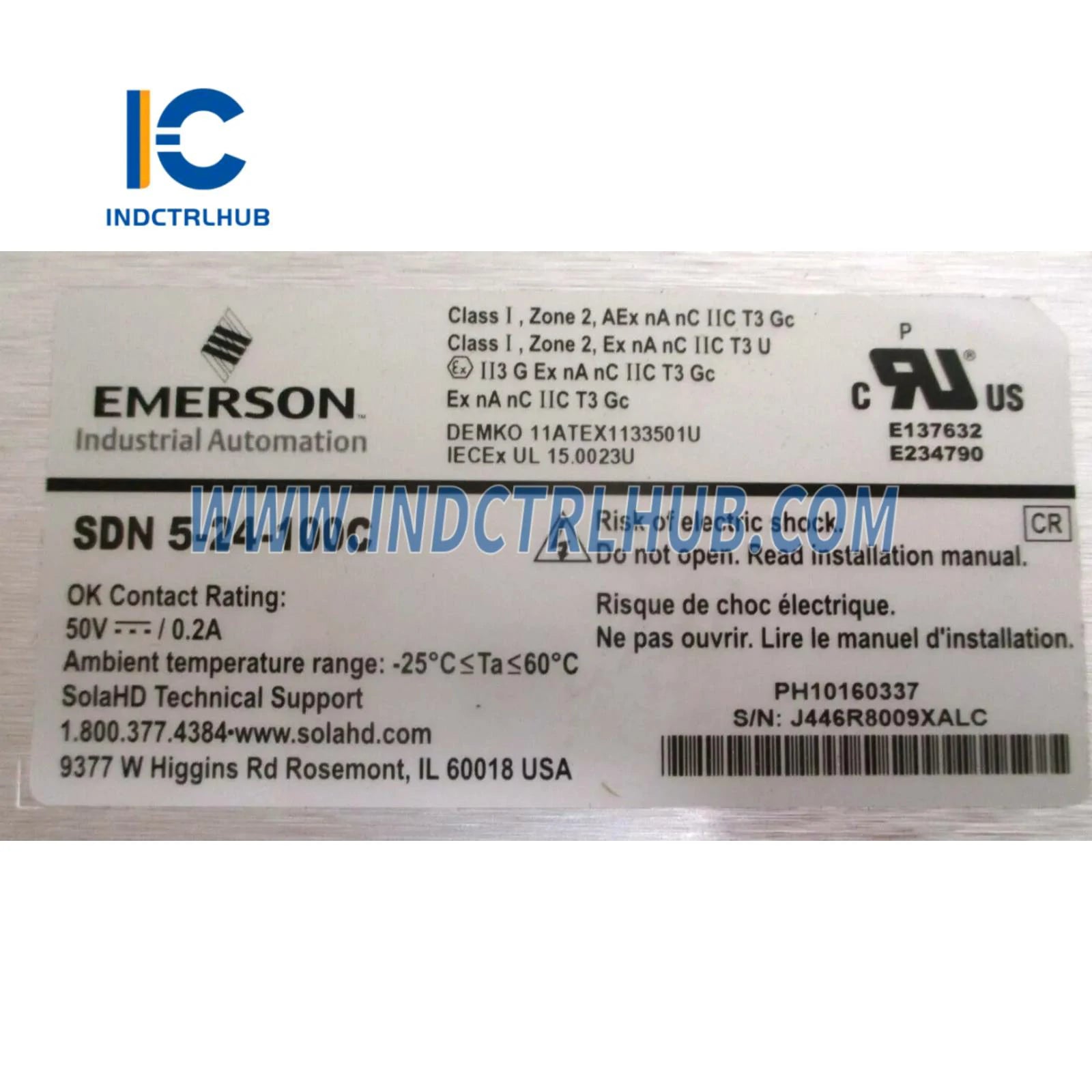

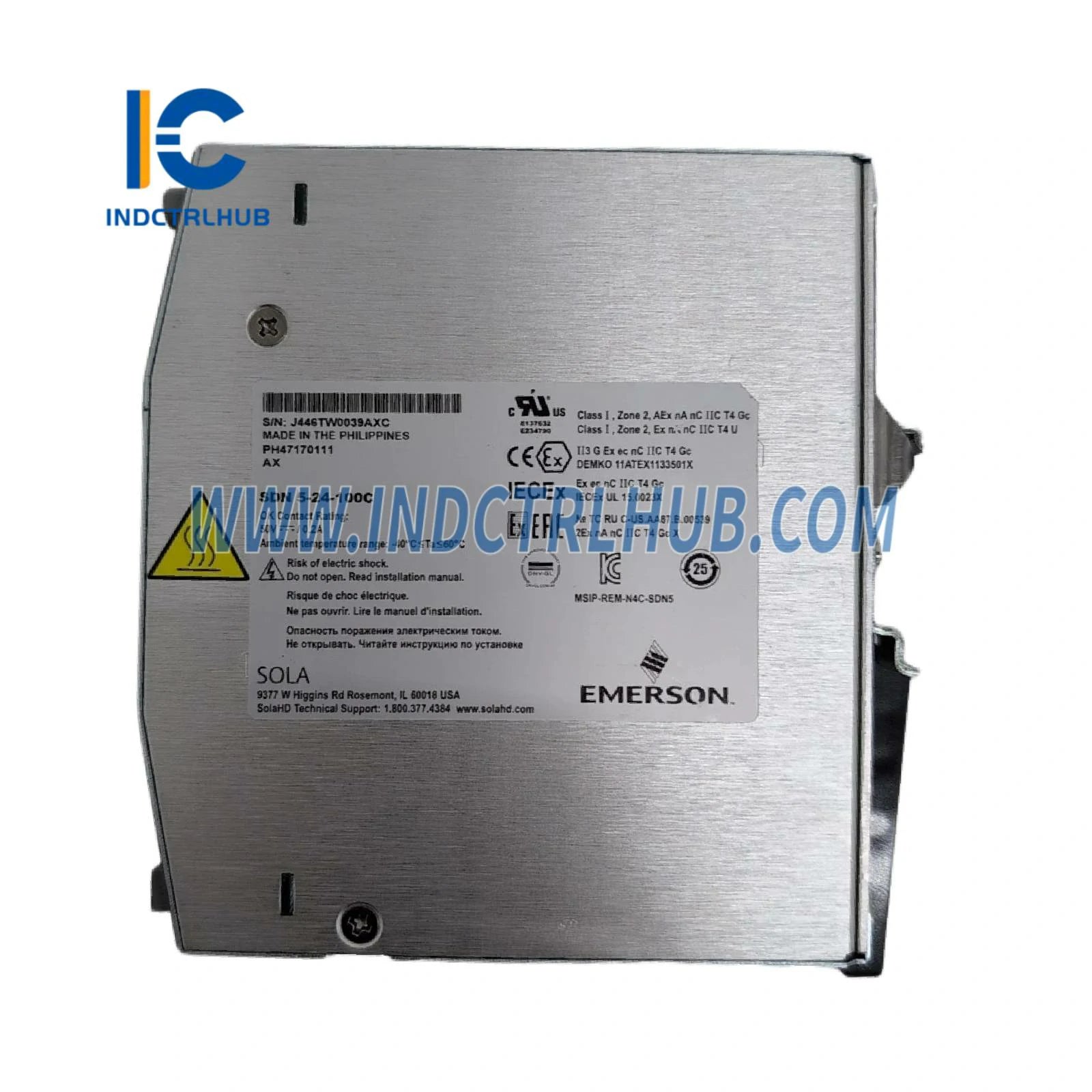

Global Hazardous Area Certifications
Certified for safe operation in classified industrial environments worldwide:
- UL/CSA Hazardous Locations: Class I, Div 2; Class I, Zone 2, AEx ec nC IIC, Ex ec nC IIC, T4
- ATEX Europe: II 3 G, Ex ec nC IIC Gc (EN IEC 60079-0, 60079-7, 60079-15)
- IECEx International: Ex ec nC IIC Gc (IEC 60079-0, 60079-7, 60079-15)
- Marine Certifications: ABS and DNV-GL Type Approved for offshore and maritime applications
- Industrial Standards: UL 508, CSA C22.2 No. 107.1, UL/CSA 60950-1, UL/CSA 62368-1
Industrial Automation Applications
The SDN5-24-100C powers critical control infrastructure across diverse industrial sectors:
PLC & DCS Control Systems: Provide stable 24VDC power for Allen-Bradley CompactLogix, Siemens S7-1200, Emerson DeltaV controllers, and distributed I/O modules. The <±2% regulation ensures microprocessor stability even during input voltage fluctuations and load transients.
Sensor & Instrumentation Networks: Power proximity sensors, photoelectric switches, pressure transmitters, and flow meters in manufacturing automation. The low ripple output (<100mVpp) prevents false triggering and measurement errors in sensitive analog circuits.
HMI & Operator Interfaces: Supply reliable power to touchscreen panels, industrial monitors, and SCADA workstations. The 20ms holdup time bridges momentary AC interruptions without system resets or data loss.
Safety System Power: Support emergency stop circuits, safety relays, and interlock systems with redundant power configurations using SDN-C redundancy modules for fail-safe operation in critical safety applications.
PowerBoost Technology - Advanced Current Management
Proprietary PowerBoost feature delivers superior performance during startup and fault conditions:
- Peak Current Capability: 1.5× nominal current (>7.5A) sustained for >4 seconds while maintaining >20VDC output
- Inrush Current Handling: Accommodates high inrush loads from contactors, solenoids, and motor starters without voltage collapse
- Capacitive Load Charging: Rapidly charges large filter capacitors in downstream equipment during power-up sequences
- Fault Ride-Through: Maintains output during brief overload conditions, preventing nuisance shutdowns in industrial environments
Comprehensive Protection & Diagnostics
Multi-layer protection safeguards both the power supply and connected equipment:
Short Circuit Protection: Output automatically reduces to near-zero voltage during short circuits with auto-recovery when fault clears, eliminating manual reset requirements.
Overvoltage Protection: Clamps output between 30.5-33VDC to protect sensitive 24VDC equipment from damage, with automatic recovery when condition resolves.
Overtemperature Protection: Thermal monitoring triggers LED alarm and controlled shutdown before component damage occurs, with auto-restart after cooling.
Back EMF Immunity: Withstands reverse voltage spikes up to 35V from inductive loads (motors, solenoids) without damage or shutdown.

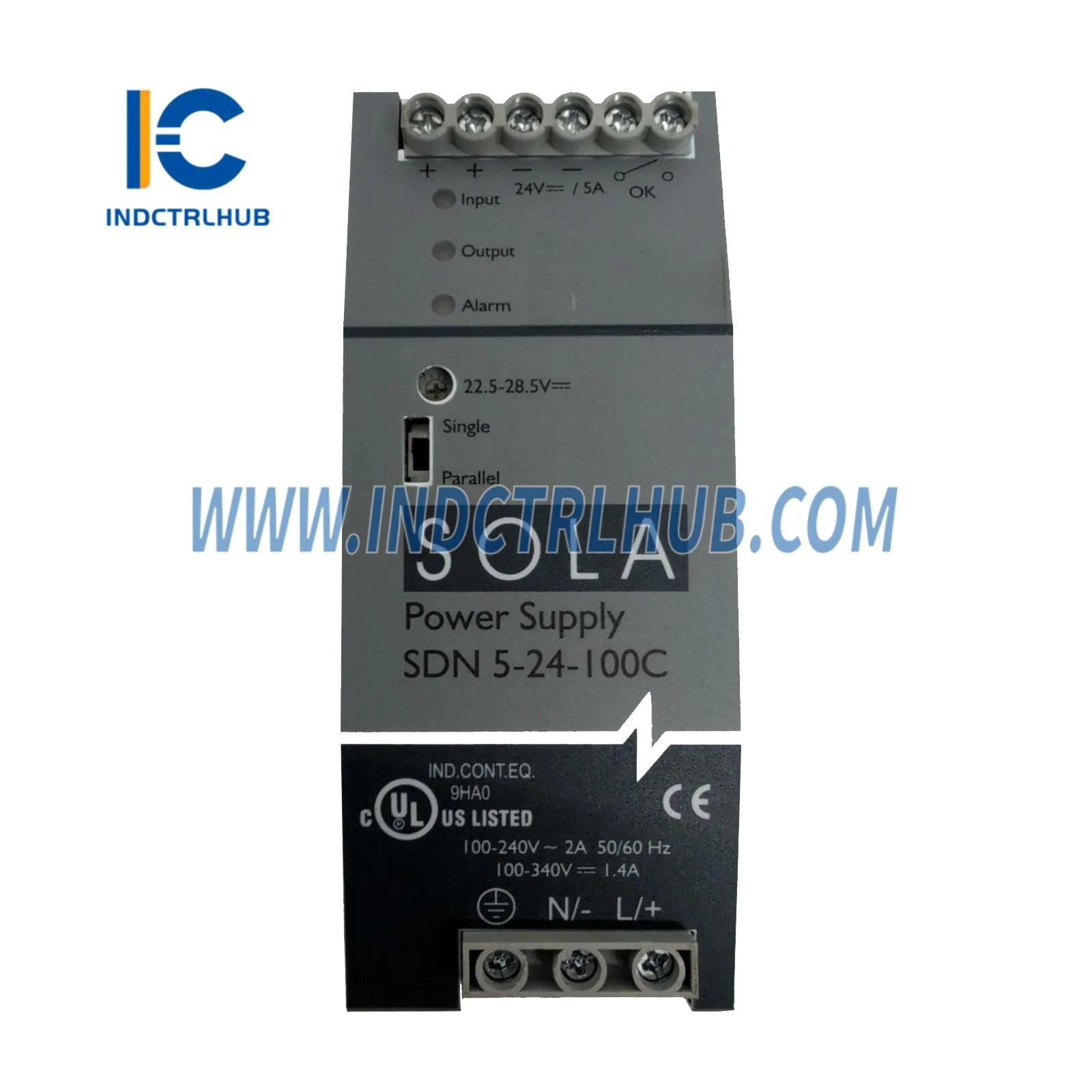

Intelligent 3-LED Diagnostic System
| LED Indicator | Status Condition | Meaning |
|---|---|---|
| Input LED | Green Solid | AC input present and within specification |
| Output LED | Green Solid | DC output voltage within regulation limits |
| Alarm LED | Off | Normal operation - no faults detected |
| Alarm LED | Yellow Solid | High load warning (approaching current limit) |
| Alarm LED | Red Solid | Overload, overtemperature, or output fault |
Flexible Installation & System Integration
Designed for versatile mounting in industrial control cabinets:

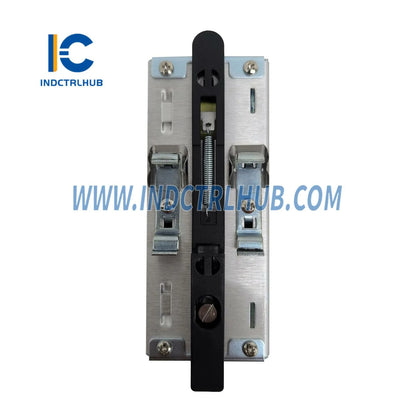

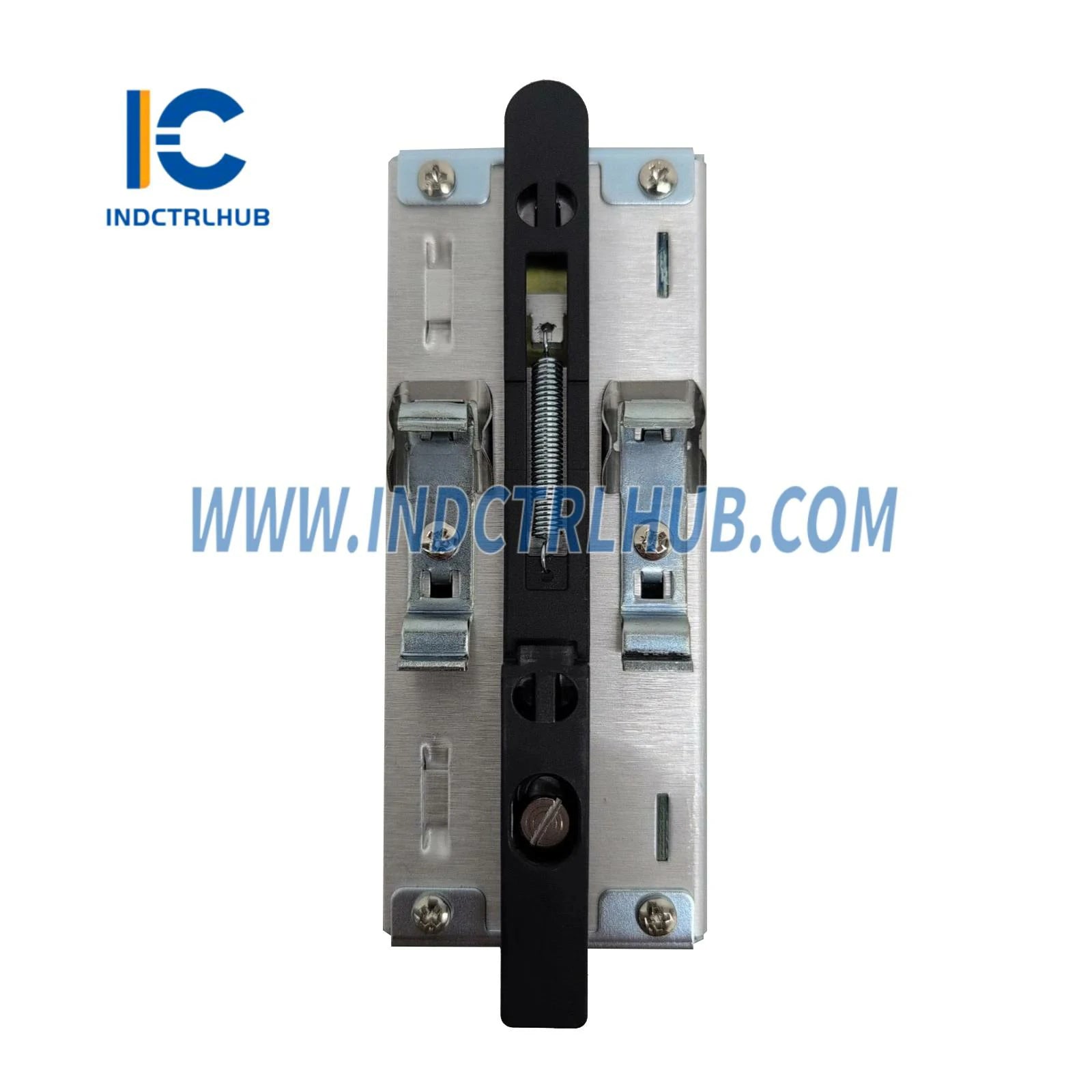

- DIN Rail Mounting: Snap-on installation to standard 35mm DIN rail with tilt-push-lock mechanism and shake test retention verification
- Optional Panel Mount: SDN-PMBRK3 bracket enables direct panel mounting (adds 2-4mm depth)
- Dual Output Terminals: Two sets of output terminals simplify daisy-chain wiring to multiple devices without external distribution blocks
- Compact Footprint: 50mm width conserves valuable cabinet space in dense control panel layouts
- Convection Cooling: Fanless design eliminates maintenance and acoustic noise while ensuring long service life
Redundancy & Parallel Operation
Supports mission-critical power architectures:
- Parallel Operation: Multiple units can operate in parallel for increased current capacity
- Redundant Configuration: Use with SDN-C Redundancy Module for N+1 redundancy in critical applications
- DC OK Relay: Provides remote monitoring contact for integration with SCADA systems and alarm panels
Environmental Ruggedness
- Operating Temperature: -40°C to +70°C (contact technical support for -40°C operation)
- Storage Temperature: -40°C to +85°C for long-term spare parts storage
- Humidity: 95% non-condensing for tropical and coastal environments
- Vibration Resistance: IEC 60068-2-6 compliant (10-500Hz, 2g, DIN rail mount)
- Shock Resistance: IEC 60068-2-27 compliant (15g, 11ms, 3 axes)
- Conformal Coating: Optional "X" suffix version meets ISA 71.04 Group A G3 Harsh Rating for corrosive atmospheres
Technical Performance Characteristics
| Parameter | Specification |
|---|---|
| Turn-On Time | <1 second after AC applied (full load) |
| Holdup Time | 20ms at full load, 100VAC input, +25°C |
| Voltage Fall Time | <150ms from 95% to 10% rated voltage |
| Inrush Current | <3.7A @ 120VAC, <7.4A @ 230VAC (25°C) |
| Input Frequency | 43-67Hz (50/60Hz nominal) |
| Initial Voltage Setting | 24.5V ±1% (field adjustable 23.5-28.5VDC) |
Why Choose Industrial Control Hub?
Your trusted source for genuine Emerson SolaHD power solutions:
- ✓ 100% authentic OEM products with full manufacturer warranty (5-year limited)
- ✓ Expert technical support for power system design and troubleshooting
- ✓ Extensive inventory of current production and legacy SolaHD models
- ✓ Fast global shipping to US, UK, EU, and Asia-Pacific markets
- ✓ Competitive pricing with volume discounts for project quantities
- ✓ Complete documentation including installation manuals and CAD drawings
Related Industrial Power Supply Solutions
| Product Model | Description | Link |
|---|---|---|
| SDN 20-24-100 | Emerson SolaHD 24VDC 100W industrial power supply - compact alternative for lower current applications | View Product |
| NDR-480-24 | Emerson 480W slim DIN rail power supply for high-power control system applications | View Product |
| 1606-XLSDNET8 | Allen-Bradley 24V DC DIN rail power supply with DeviceNet communication capability | View Product |
Ordering Information & Accessories
- SDN5-24-100C: Standard version (this product)
- SDN5-24-100CX: Conformal coated version for harsh environments (ISA 71.04 G3 rated)
- SDN-PMBRK3: Panel mount bracket kit (optional accessory)
- SDN-C: Redundancy module for N+1 power configurations
Physical Specifications
- Dimensions (W×H×D): 50mm × 123mm × 111mm (1.97" × 4.85" × 4.36")
- Weight: 0.55kg (1.2 lb)
- Enclosure Rating: IP20 for control cabinet installation
- Mounting: 35mm DIN rail (EN 50022) or panel mount with optional bracket
Technical Documentation & Engineering Support
Complete installation manuals, wiring diagrams, dimensional drawings, and application notes available upon request. Our power systems engineering team provides consultation for redundancy configurations, load calculations, and system integration assistance for complex industrial automation projects.
