Product Description

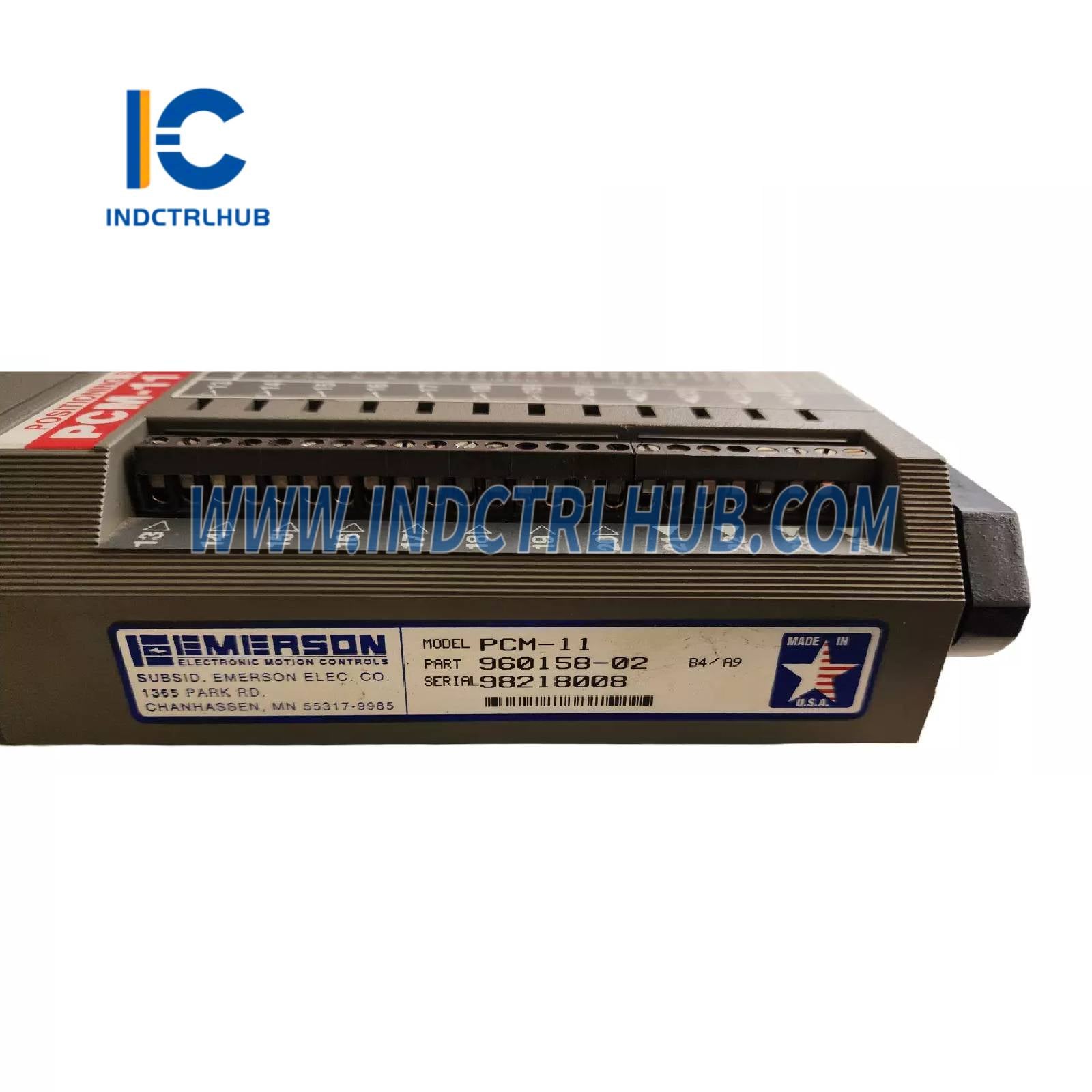

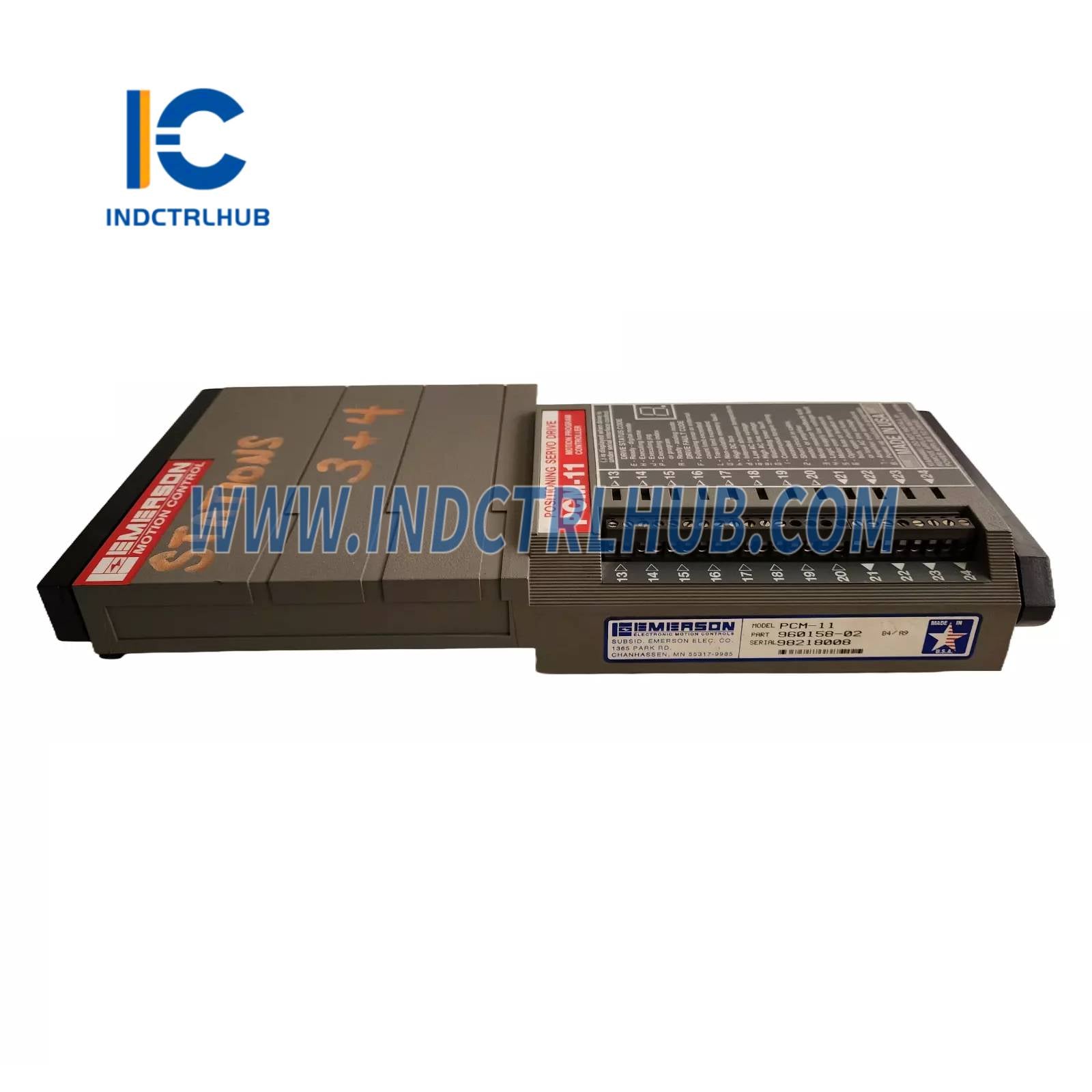

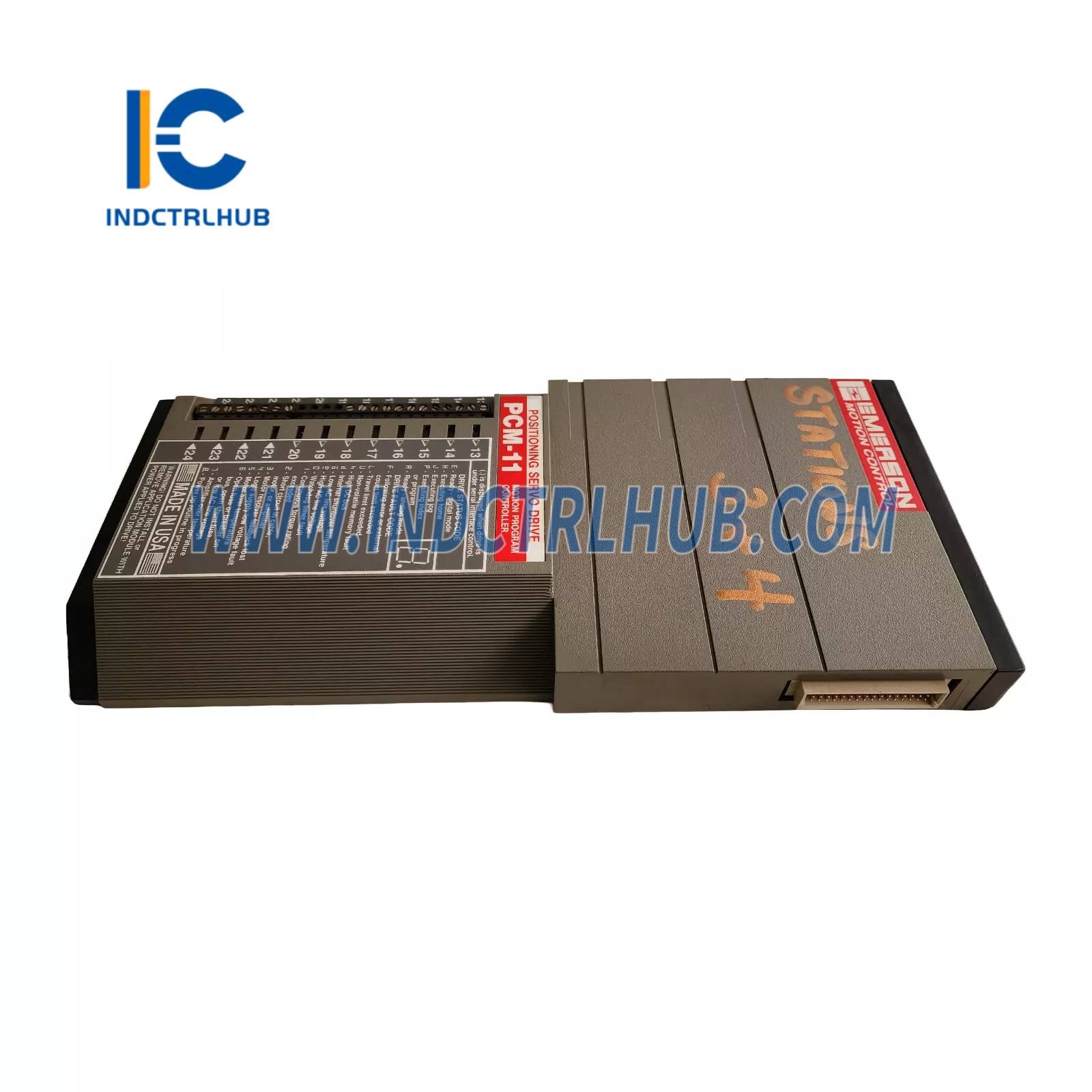

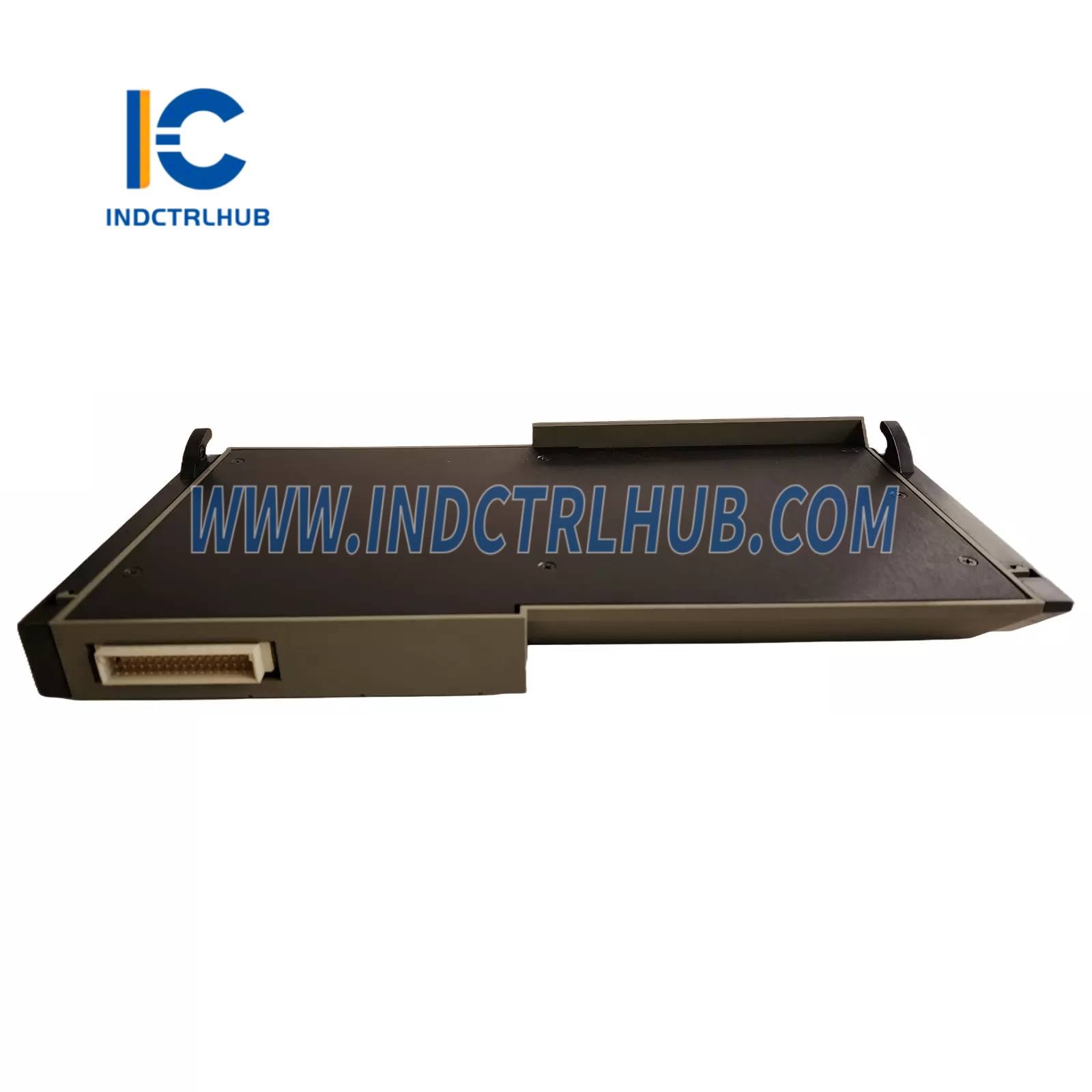

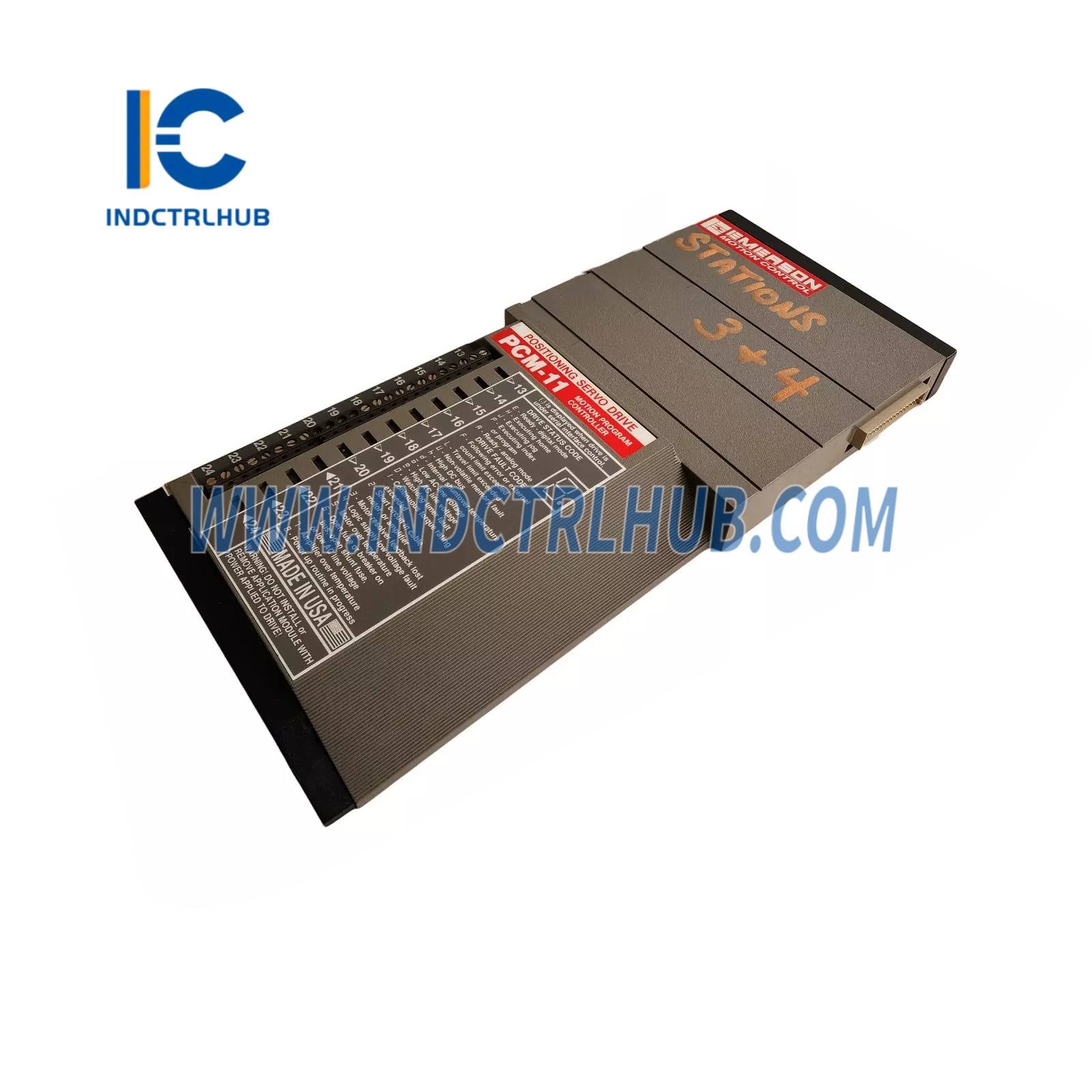

Emerson PCM-11 Motion Program Controller
- Manufacturer: Emerson
- Model/Part Number: PCM-11 (Alternate: 960158-02)
- Description: Motion Program Controller, Application Module for FX Positioning Servo Drive, with Expanded I/O and Programmable Motion Control
Overview
- The Emerson PCM-11 is a Motion Program Controller designed as an application module for the Emerson Motion Control FX Positioning Servo Drive. It enhances the drive's capabilities by enabling complex motion sequences through programmable indexes, dwell times, and other functions. The module is used in industrial automation for precise motion control in applications such as manufacturing, packaging, and material handling.
Technical Specifications
| Specification | Details |
|---|---|
| Model | PCM-11 (960158-02) |
| Series | FX Positioning Servo Drive |
| Type | Motion Program Controller, Application Module |
| Inputs | 8 optically isolated inputs, +10.5 to +30 VDC |
| Outputs | 4 optically isolated outputs, +10.5 to +30 VDC, 200 mA max per output |
| Connection | 48-pin connector to FX Drive, screw terminals for I/O |
| Features | Expanded I/O, memory expansion, programmable motion sequences, ratio control, multiple axis ratio control, suspend/resume functions |
| Mounting | Attaches to FX Drive with two locking arms |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Weight | Approximately 0.5 kg |
| Certifications | CE, UL, CSA (dependent on system configuration) |
Additional Information
- Functionality: The PCM-11 attaches to the front of an FX Positioning Servo Drive, connecting via a 48-pin connector. It doubles the I/O capacity of the standard FX drive with 8 inputs and 4 outputs, all optically isolated for +10.5 to +30 VDC operation. Each I/O line has two screw terminals for current sinking or sourcing. The module supports complex motion programs, ratio control, and suspend/resume functions, enabling precise control of motion sequences.
