Product Description
🔹 Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Emerson (Ovation) |
|
Model/Part Number |
5X00622G01 |
|
Description |
Analog Input Card designed for the Ovation Distributed Control System, providing 16-channel analog input for processing field signals in industrial automation applications. |
|
Key Features |
16-channel analog input, supports 4–20 mA and 1–5 VDC signals, high-resolution data conversion, isolated inputs, compatible with Ovation DCS |
🔹 Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
5X00622G01 |
|
Product Type |
Analog Input Card |
|
Series |
Ovation DCS |
|
Number of Channels |
16 |
|
Input Types |
4–20 mA (current), 1–5 VDC (voltage) |
|
Power Supply |
24 VDC (via Ovation I/O bus) |
|
Operating Temperature |
0°C to 60°C (32°F to 140°F) |
|
Weight |
Approx. 0.3–0.5 kg (0.66–1.1 lbs) |
🔹 External Connection Options
|
Connection Type |
Details |
|---|---|
|
Supported Connections |

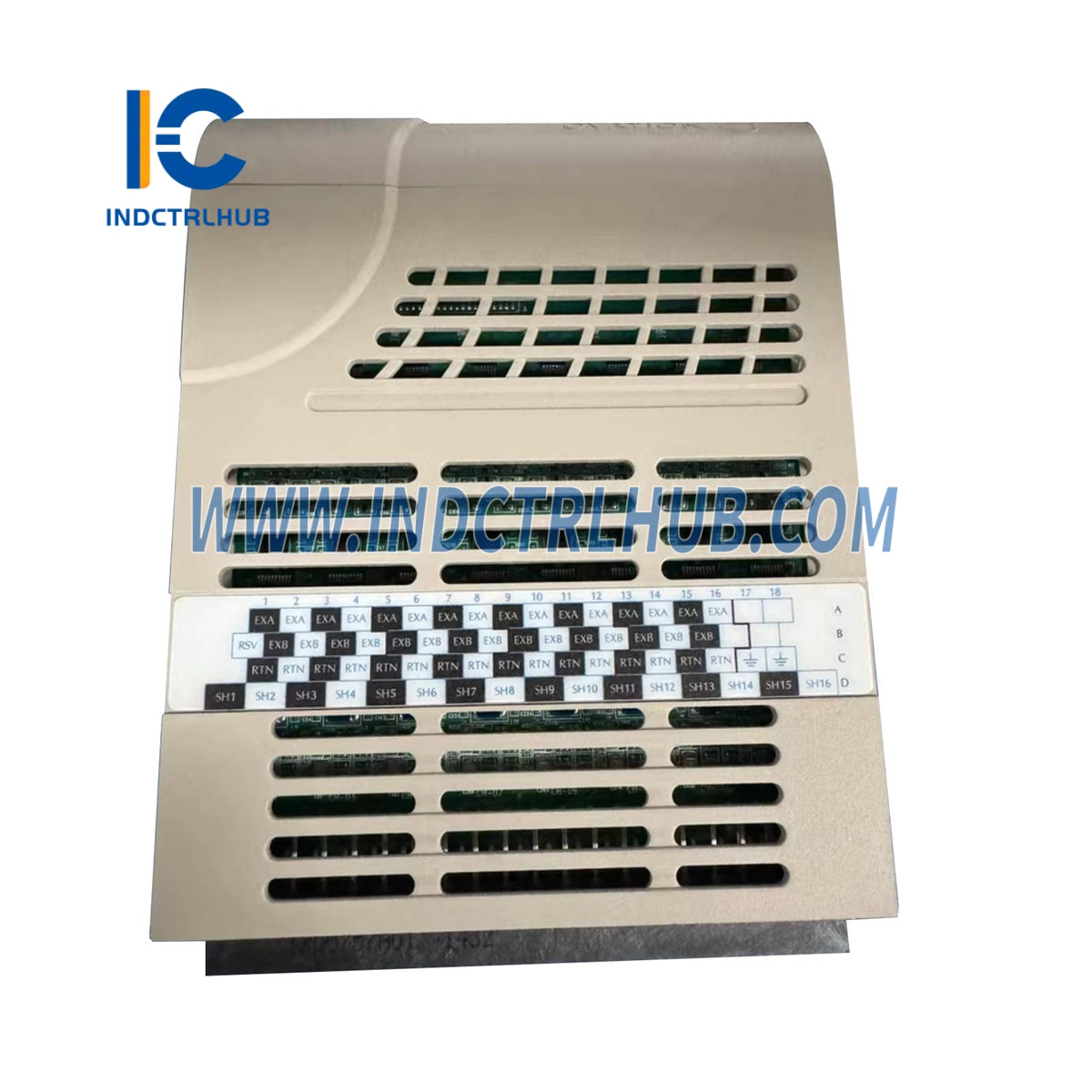

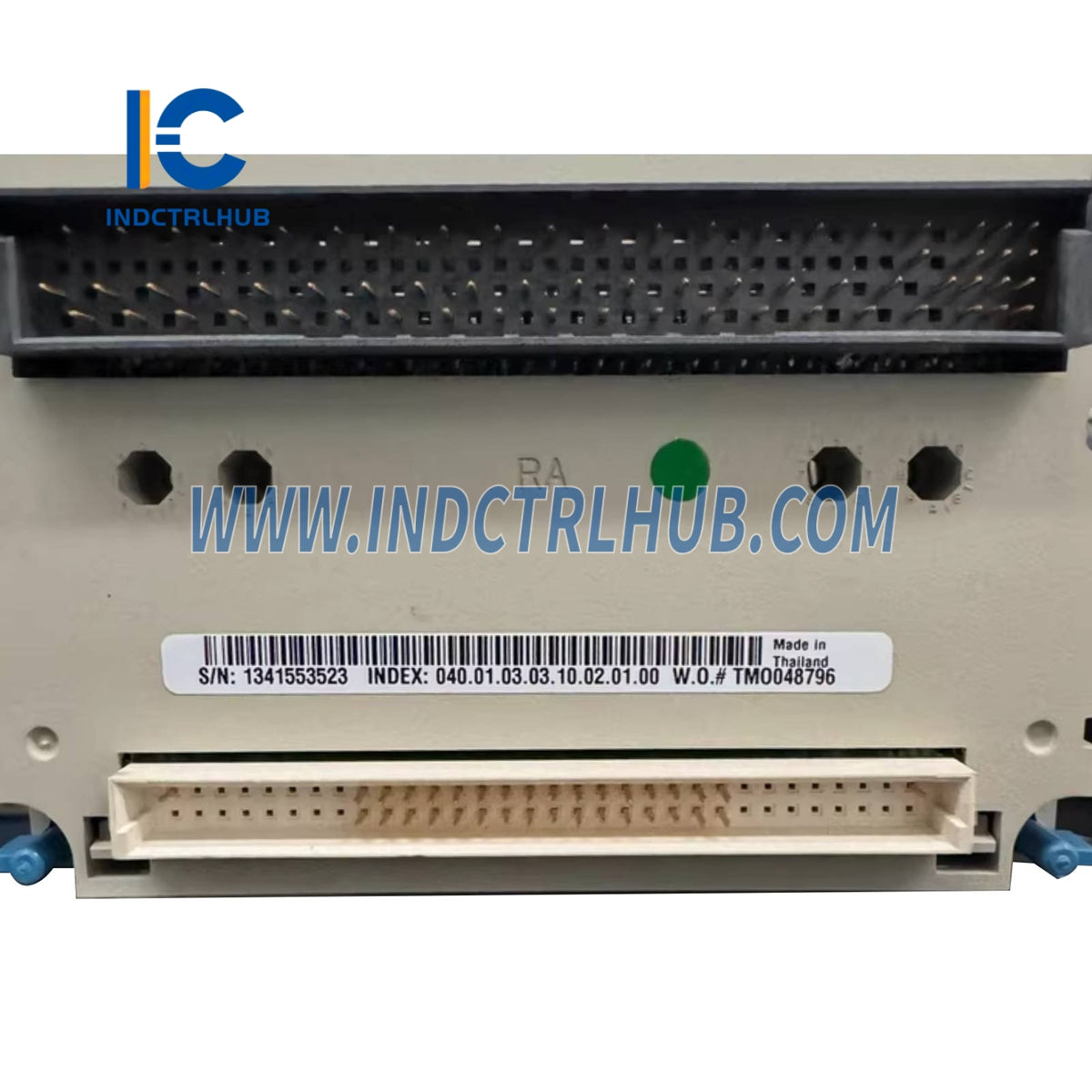

Terminal blocks for field wiring; connects to Ovation I/O bus via base module |
🔹 Functional Features
|
Feature |
Details |
|---|---|
|
Signal Conversion |
Converts analog field signals (current/voltage) to digital data for DCS processing |
|
Isolation |
Channel-isolated inputs to ensure reliable signal integrity |
|
Data Acquisition |
High-resolution sampling for accurate and precise process monitoring |
|
Compatibility |
Fully integrates with Ovation controllers for real-time automation and control |
🔹 Model and Configuration
|
Category |
Details |
|---|---|
|
Base Model |
5X00622 |
|
Configuration |
G01: Group 1 variant, standard analog input configuration |
